MAD FLUXER Pro 16.2x5.3in Glossy Carbon Fiber Folding Propeller for Multirotor, 30g, 7kg Pull
MAD FLUXER Pro 16.2x5.3in Glossy Carbon Fiber Folding Propeller for Multirotor, 30g, 7kg Pull
MAD
Couldn't load pickup availability
Overview

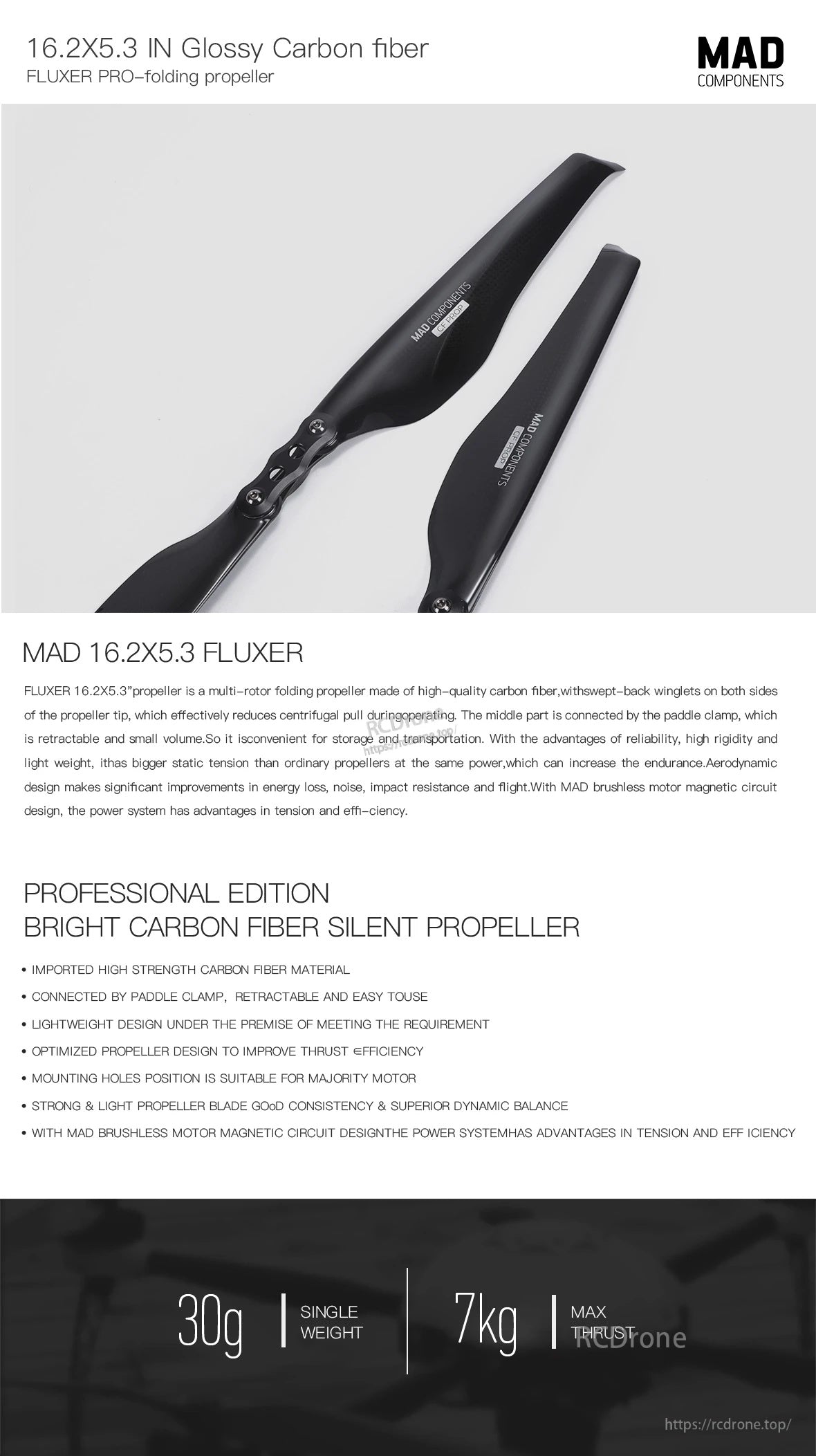

The MAD FLUXER Pro 16.2x5.3in is a glossy carbon fiber folding propeller for multi-rotor drones. It is designed for high-load operation and improved efficiency to support longer flight time, with a special wingtip design intended to reduce vortices and noise at the same thrust level compared with other carbon fiber folding propellers.
Key Features
- Imported high-strength carbon fiber material
- Carbon fiber + resin glossy (shine) surface technology

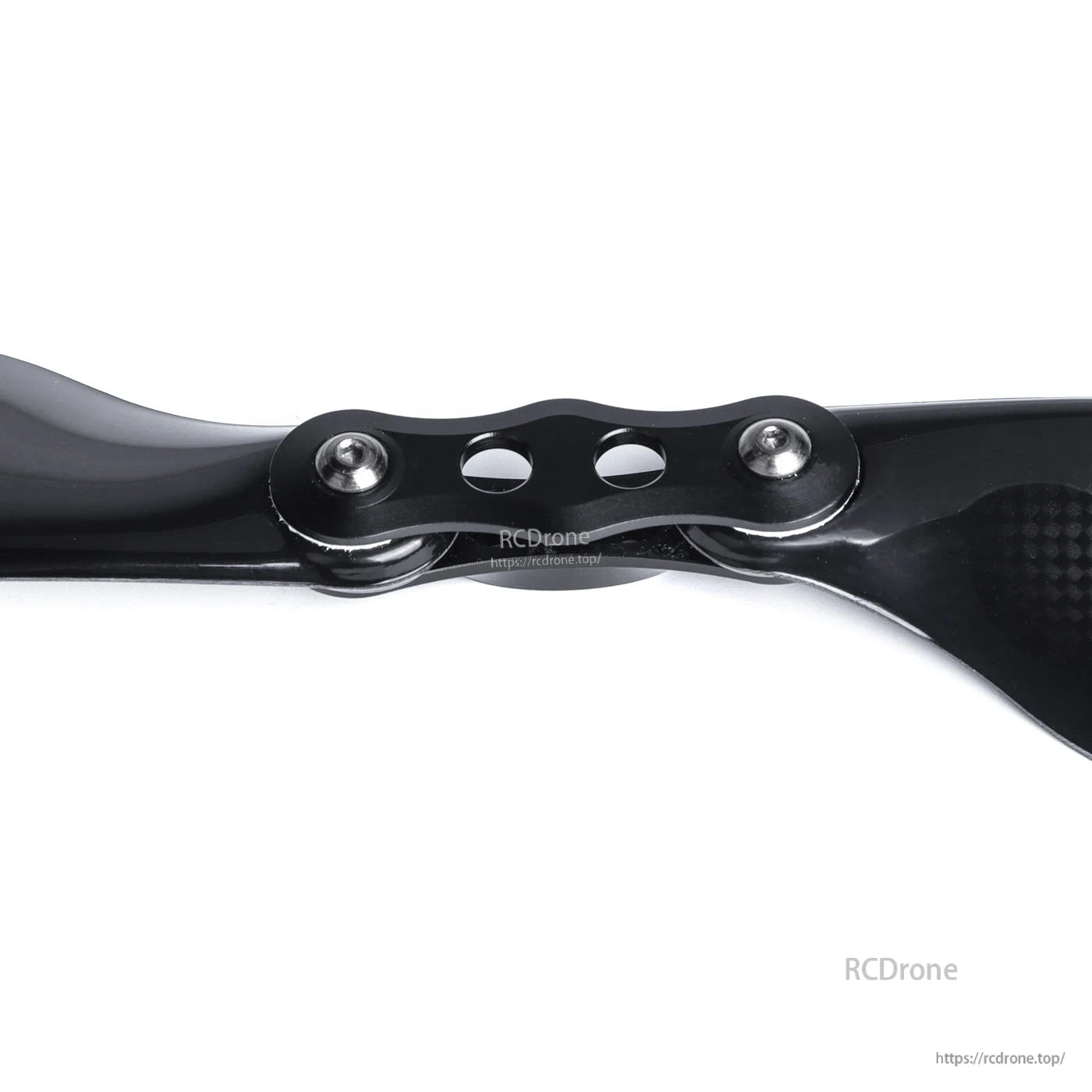

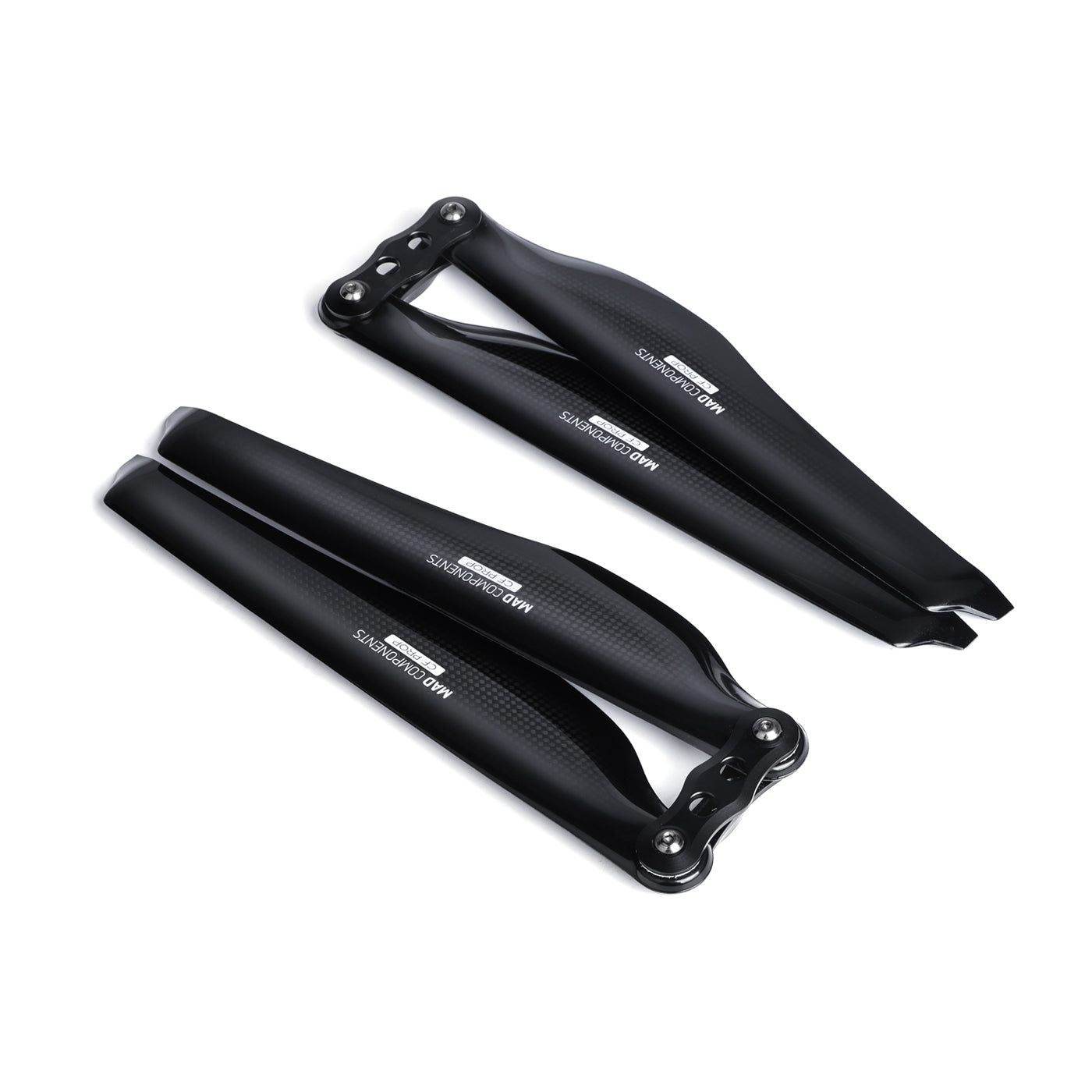

- Connected by paddle clamp; retractable for easier storage and transportation
- Optimized airfoil design to reduce airflow interference
- Special swept-back wingtips to help reduce vortices/centrifugal pull during operation
- Low-noise design at the same thrust level (vs. other carbon fiber folding propellers)
- Good consistency and superior dynamic balance
- Propeller lock mechanism designed to help ensure safe flight
- Mounting hole position stated as suitable for the majority of motors

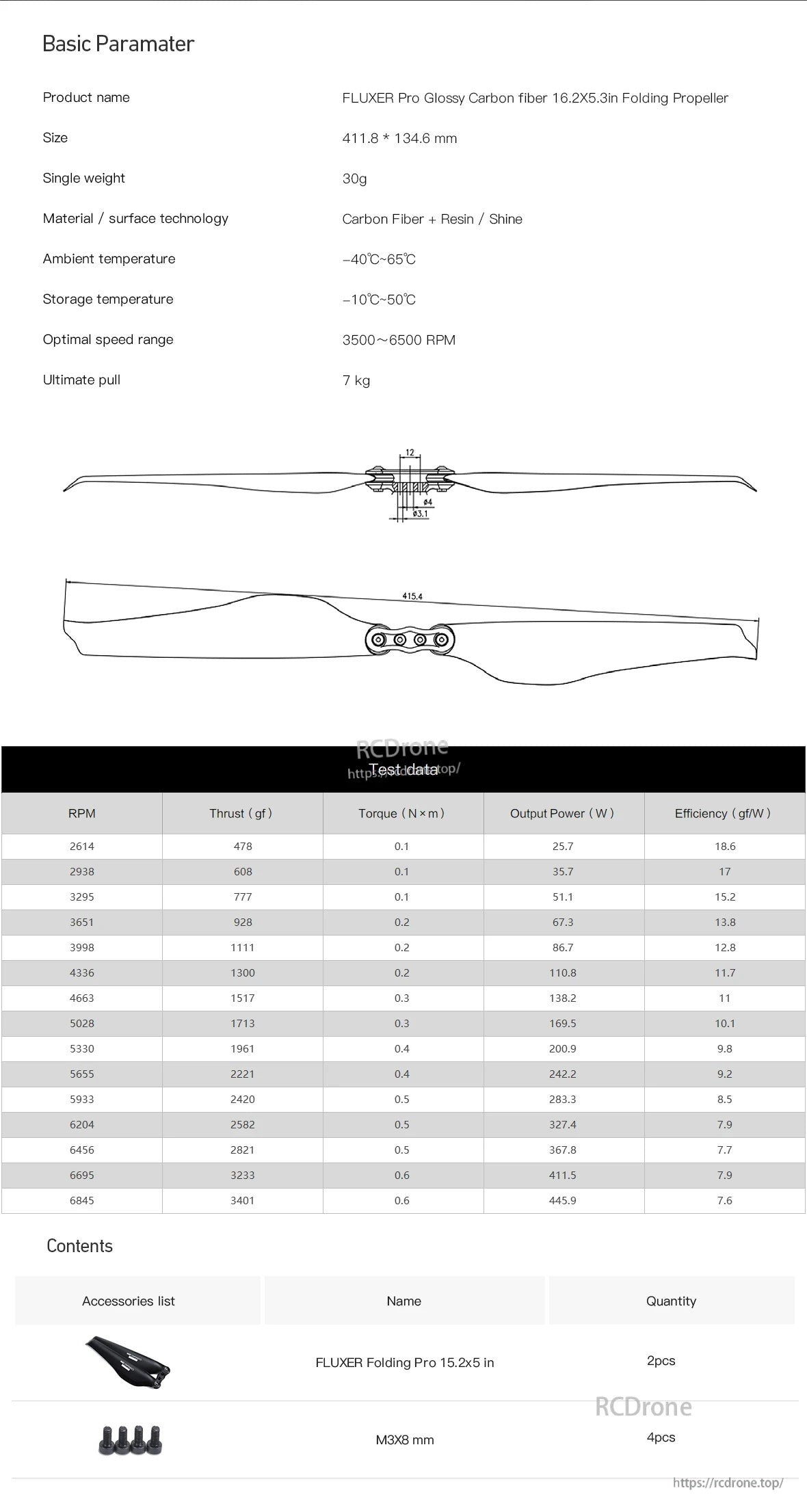

Specifications
| Product name | FLUXER Pro Glossy Carbon fiber 16.2X5.3in Folding Propeller |
| Prop size (inch) | 16.2 x 5.3 in |
| Size | 411.8 * 134.6 mm |
| Single weight | 30 g |
| Material / surface technology | Carbon Fiber + Resin / Shine |
| Ambient temperature | -40°C~65°C |
| Storage temperature | -10°C~50°C |
| Optimal speed range | 3500~6500 RPM |
| Ultimate pull | 7 kg |
| Technical drawing dimensions | 12 / 6.4 / 3.1; 415.4 |
Test Data
| RPM | Thrust (gf) | Torque (N*m) | Output Power (W) | Efficiency (gf/W) |
|---|---|---|---|---|
| 2614 | 478 | 0.1 | 25.7 | 18.6 |
| 2938 | 608 | 0.1 | 35.7 | 17 |
| 3295 | 777 | 0.1 | 51.7 | 15.2 |
| 3651 | 928 | 0.2 | 67.3 | 13.8 |
| 3998 | 1111 | 0.2 | 86.7 | 12.8 |
| 4336 | 1300 | 0.2 | 110.8 | 11.7 |
| 4663 | 1517 | 0.3 | 138.2 | 11 |
| 5028 | 1713 | 0.3 | 169.5 | 10.1 |
| 5330 | 1961 | 0.4 | 200.9 | 9.8 |
| 5655 | 2221 | 0.4 | 242.2 | 9.2 |
| 5933 | 2420 | 0.5 | 283.3 | 8.5 |
| 6204 | 2582 | 0.5 | 327.4 | 7.9 |
| 6456 | 2821 | 0.5 | 367.8 | 7.7 |
| 6695 | 3233 | 0.6 | 411.5 | 7.9 |
| 6845 | 3401 | 0.6 | 445.9 | 7.6 |

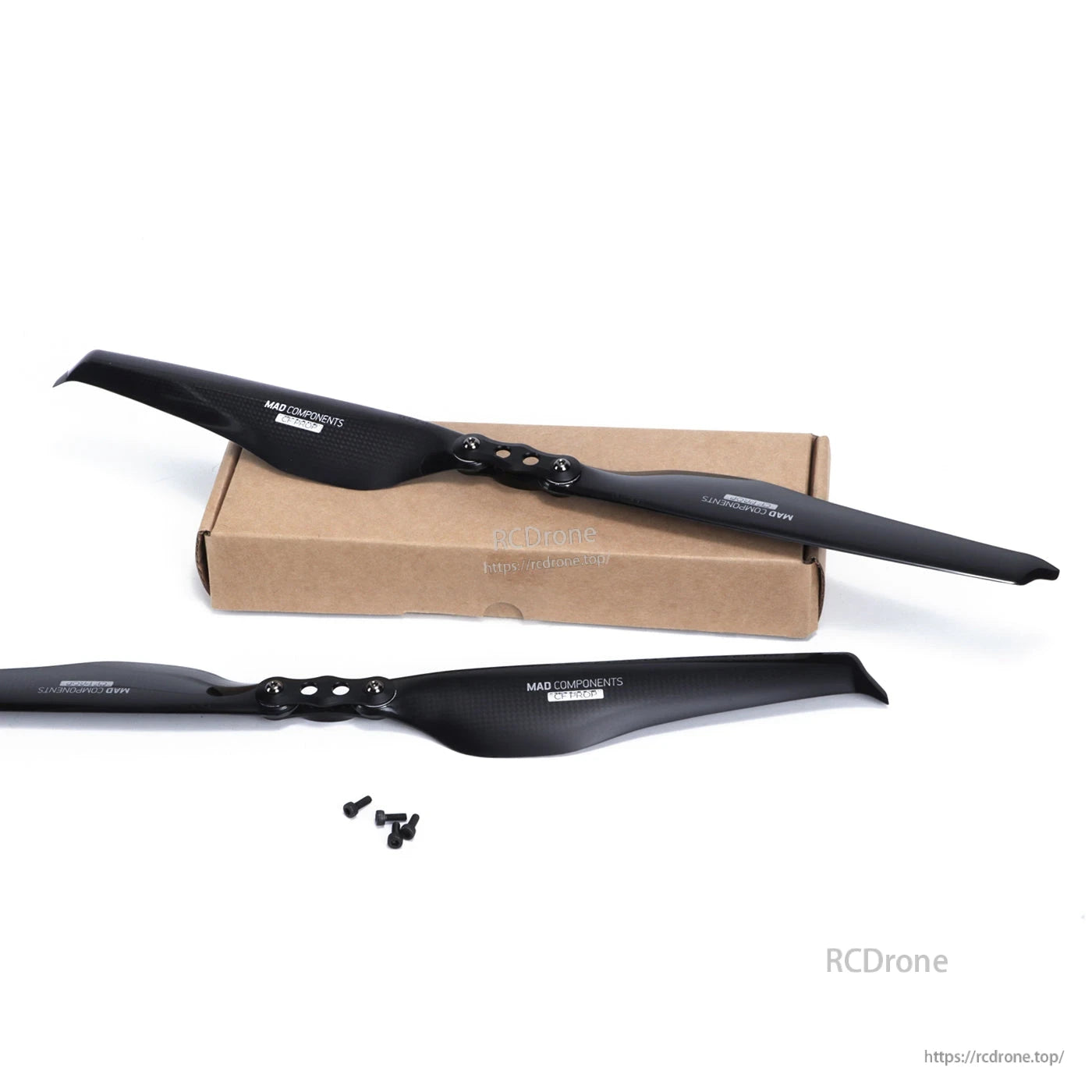

What’s Included
- FLUXER Folding Pro 15.2x5 in – 2 pcs
- M3X8 mm screws – 4 pcs
For compatibility questions (motor/arm clearance, hub fitment, mounting screws), contact support@rcdrone.top or visit https://rcdrone.top/.
Details
The MAD FLUXER Pro 16.2×5.3in glossy carbon fiber folding propeller is rated at 30g single weight and up to 7kg max thrust.
The FLUXER Pro 16.2x5.3 in glossy carbon fiber folding propeller is listed at 30 g per blade set and includes two propellers plus M3x8 mm mounting screws.
