MAD FLUXER Pro 22.2x7.2 in Glossy Carbon Fiber Folding Propeller, 57 g Single, 11.5 kg Pull
MAD FLUXER Pro 22.2x7.2 in Glossy Carbon Fiber Folding Propeller, 57 g Single, 11.5 kg Pull
MAD
Couldn't load pickup availability
Overview

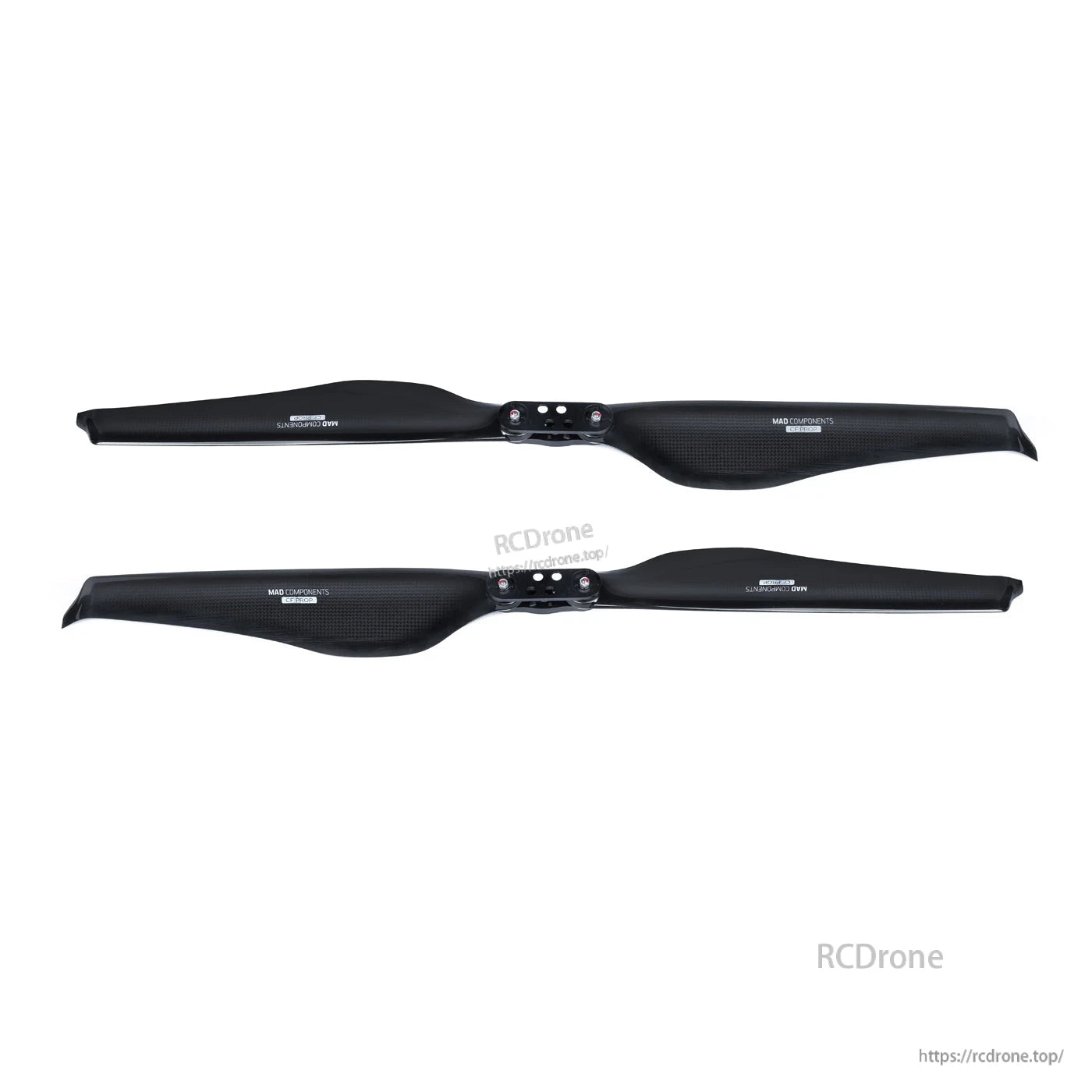

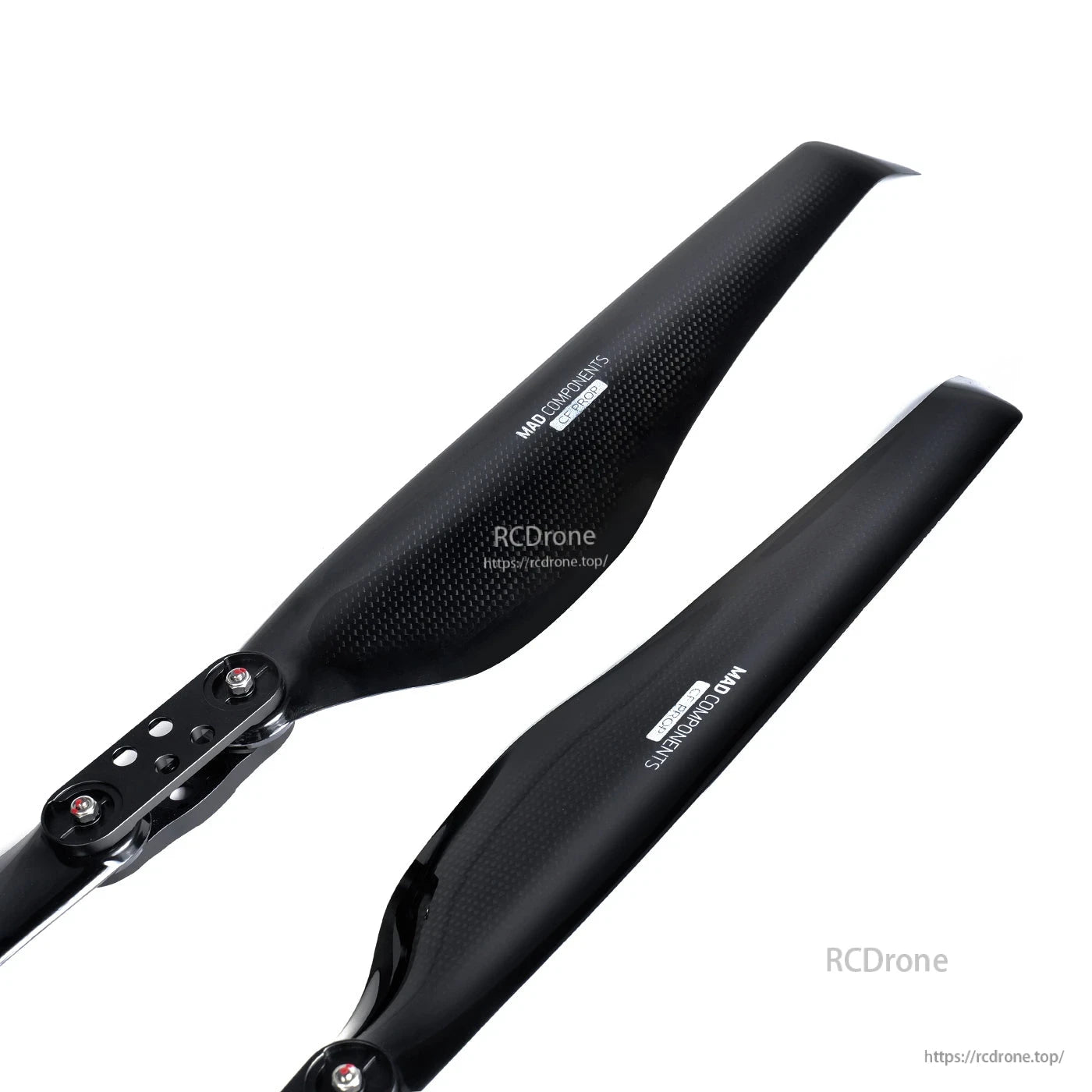

The MAD FLUXER Pro Glossy Carbon Fiber 22.2 x 7.2 in folding propeller is a multi-rotor folding propeller designed for high-load use with high efficiency for longer drone flight time. It uses an optimized airfoil and swept-back winglet tips to help reduce vortices and noise at the same thrust level, and features good dynamic balance and a propeller lock mechanism for secure operation.
Key Features
- Glossy carbon fiber construction (Carbon Fiber + Resin / Shine)

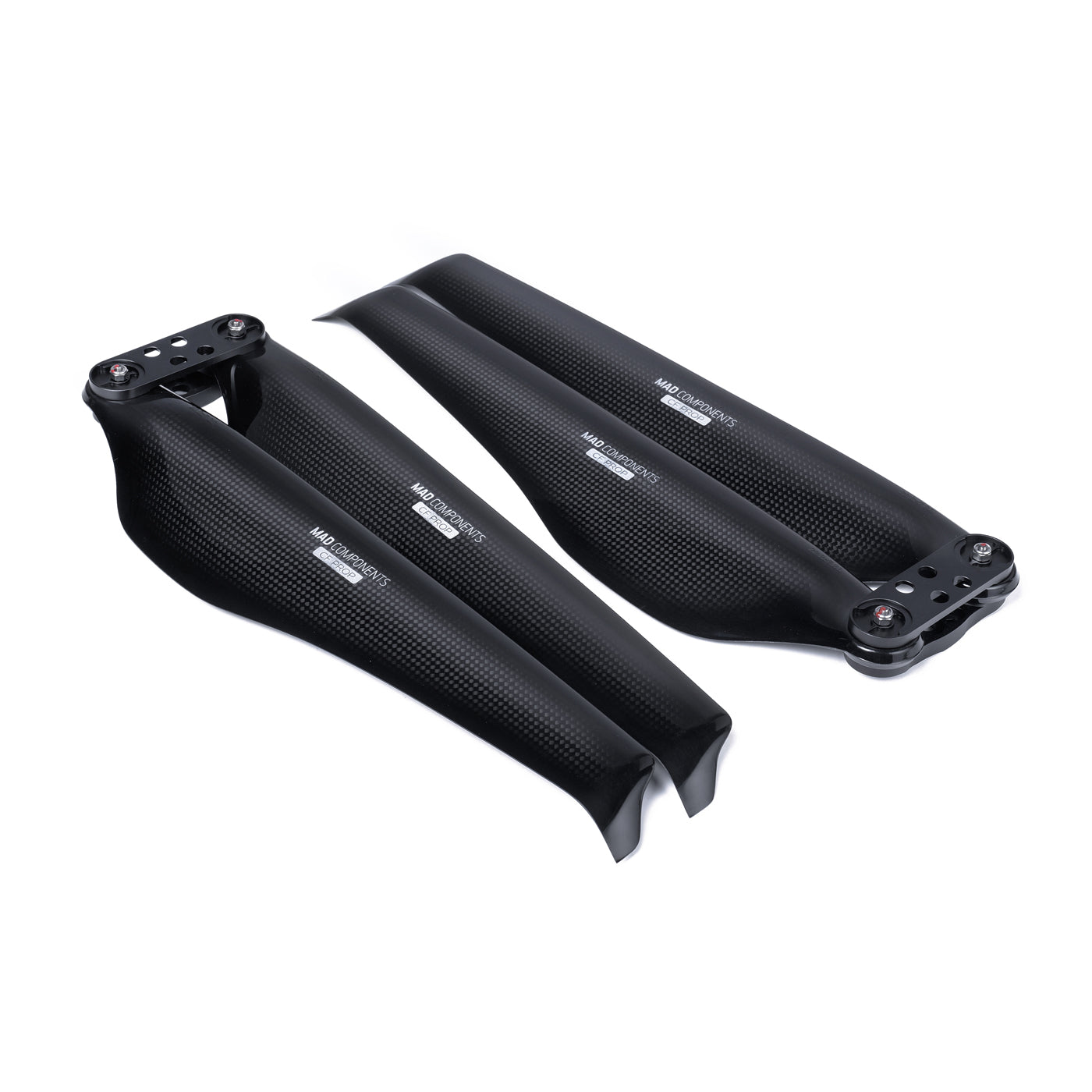

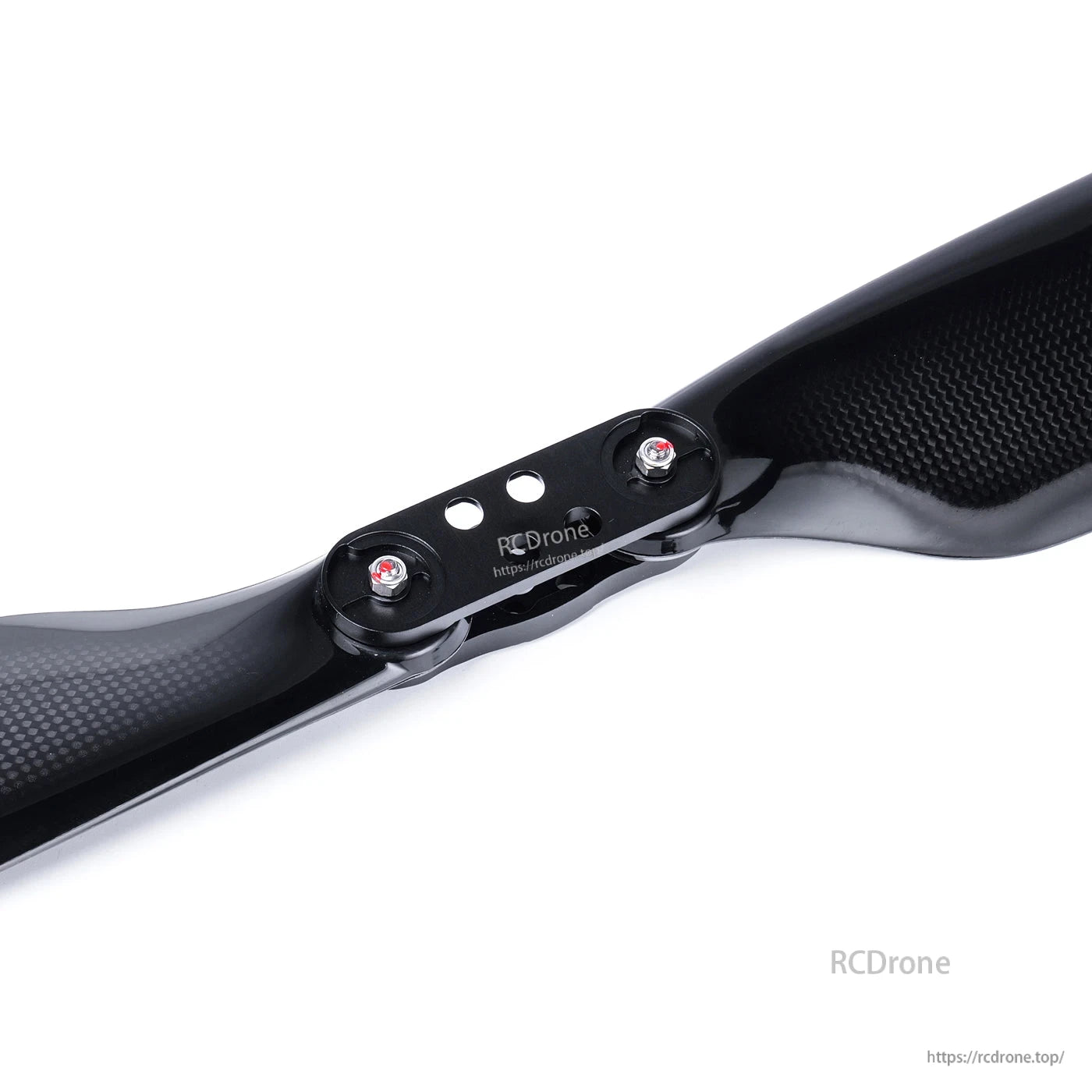

- Folding design connected by paddle clamp; retractable for storage and transport
- Optimized propeller/airfoil design to improve thrust efficiency and reduce airflow interference
- Swept-back winglet tip design to reduce vortices
- Low-noise design at the same thrust level (compared with other folding propellers)
- Good blade consistency and superior dynamic balance
- Mounting hole position suitable for the majority of motors

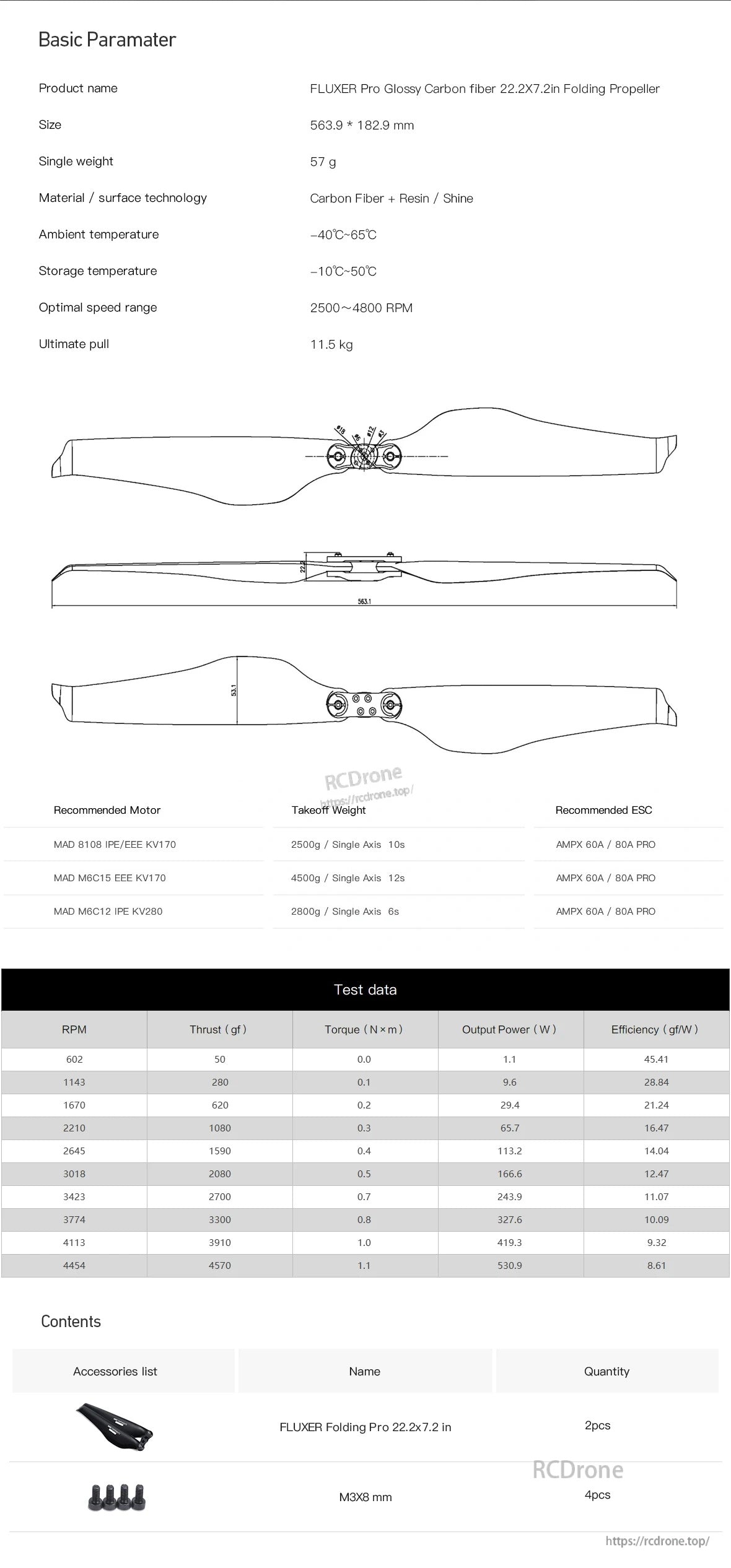

Specifications
| Product name | FLUXER Pro Glossy Carbon fiber 22.2 x 7.2 in Folding Propeller |
|---|---|
| Prop size | 22.2 x 7.2 in |
| Size | 563.9 x 182.9 mm |
| Single weight | 57 g |
| Material / surface technology | Carbon Fiber + Resin / Shine |
| Ambient temperature | -40°C to 65°C |
| Storage temperature | -10°C to 50°C |
| Optimal speed range | 2500 to 4800 RPM |
| Ultimate pull (max thrust) | 11.5 kg |
Recommended Motor / ESC (Reference)
| Recommended Motor | Takeoff Weight | Recommended ESC |
|---|---|---|
| MAD 8108 IPE/EEE KV170 | 2500 g / Single Axis / 10s | AMPX 60A / 80A PRO |
| MAD M6C15 EEE KV170 | 4500 g / Single Axis / 12s | AMPX 60A / 80A PRO |
| MAD M6C12 IPE KV280 | 2800 g / Single Axis / 6s | AMPX 60A / 80A PRO |
Test Data
| RPM | Thrust (gf) | Torque (N*m) | Output Power (W) | Efficiency (gf/W) |
|---|---|---|---|---|
| 602 | 50 | 0.0 | 1.1 | 45.41 |
| 1143 | 280 | 0.1 | 9.6 | 28.84 |
| 1670 | 620 | 0.2 | 29.4 | 21.24 |
| 2210 | 1080 | 0.3 | 65.7 | 16.47 |
| 2645 | 1590 | 0.4 | 113.2 | 14.04 |
| 3018 | 2080 | 0.5 | 166.6 | 12.47 |
| 3423 | 2700 | 0.7 | 243.9 | 11.07 |
| 3774 | 3300 | 0.8 | 327.6 | 10.09 |
| 4113 | 3910 | 1.0 | 419.3 | 9.32 |
| 4454 | 4570 | 1.1 | 530.9 | 8.61 |

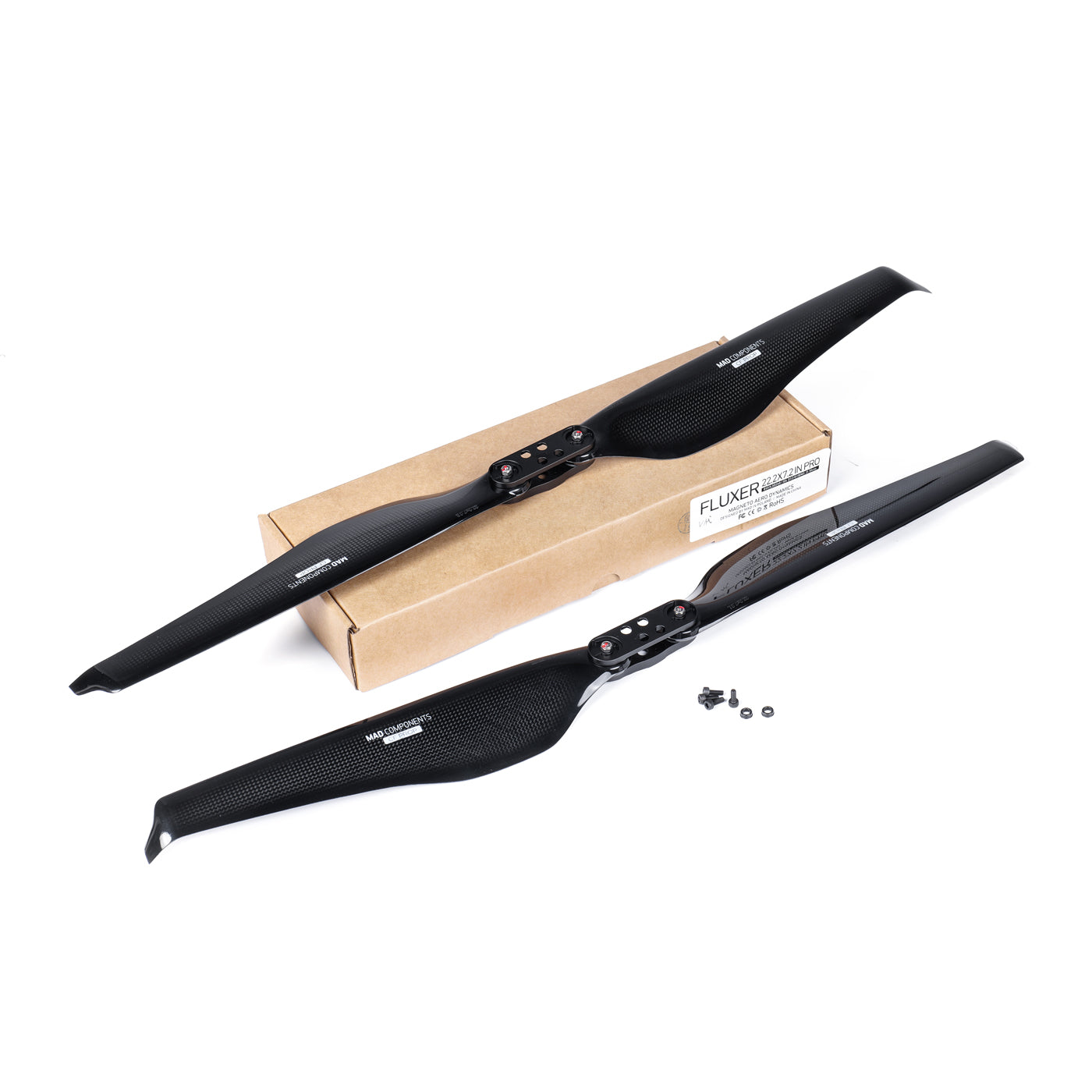

What’s Included
- FLUXER Folding Pro 22.2 x 7.2 in propeller: 2 pcs
- M3 x 8 mm screws: 4 pcs
Applications
- Multi-rotor drones requiring 22.2 x 7.2 in folding propellers
- Efficient, low-noise propulsion setups where compact storage/transport is needed
For compatibility checks (motor, ESC, and installation) and order support, contact support@rcdrone.top or visit https://rcdrone.top/.
Details
The MAD FLUXER Pro 22.2x7.2 in glossy carbon fiber folding propeller is listed at 57 g (single) with up to 11.5 kg max pull.
The FLUXER Pro 22.2x7.2 folding propeller includes a basic parameter list, recommended motor/ESC ranges, and a test-data table for setup reference.
