MAD FLUXER PRO 72x25 in Carbon Fiber Paramotor Propeller, 1828.8x635mm, 1720g, M8 Mount

MAD

$3,253.50 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Rotation direction CW+CCW CW CCW

Quantity

View full details

Overview

MAD FLUXER PRO 72x25 in carbon fiber propeller for paramotor applications, designed with a scimitar-style profile for efficient performance and reduced noise. The blade set uses a carbon fiber + resin composite and is supplied with mounting hardware and cover plates.

Key Features

Carbon fiber + resin composite construction
Matt surface treatment

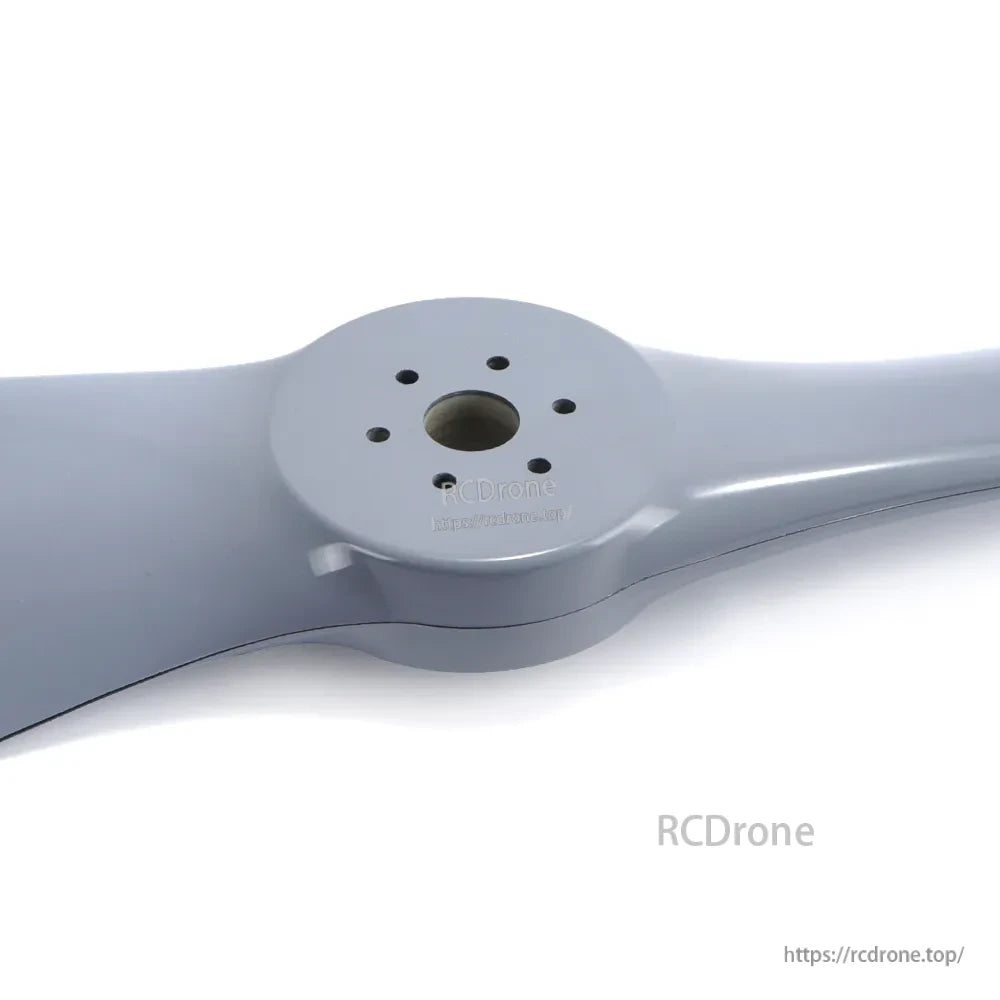

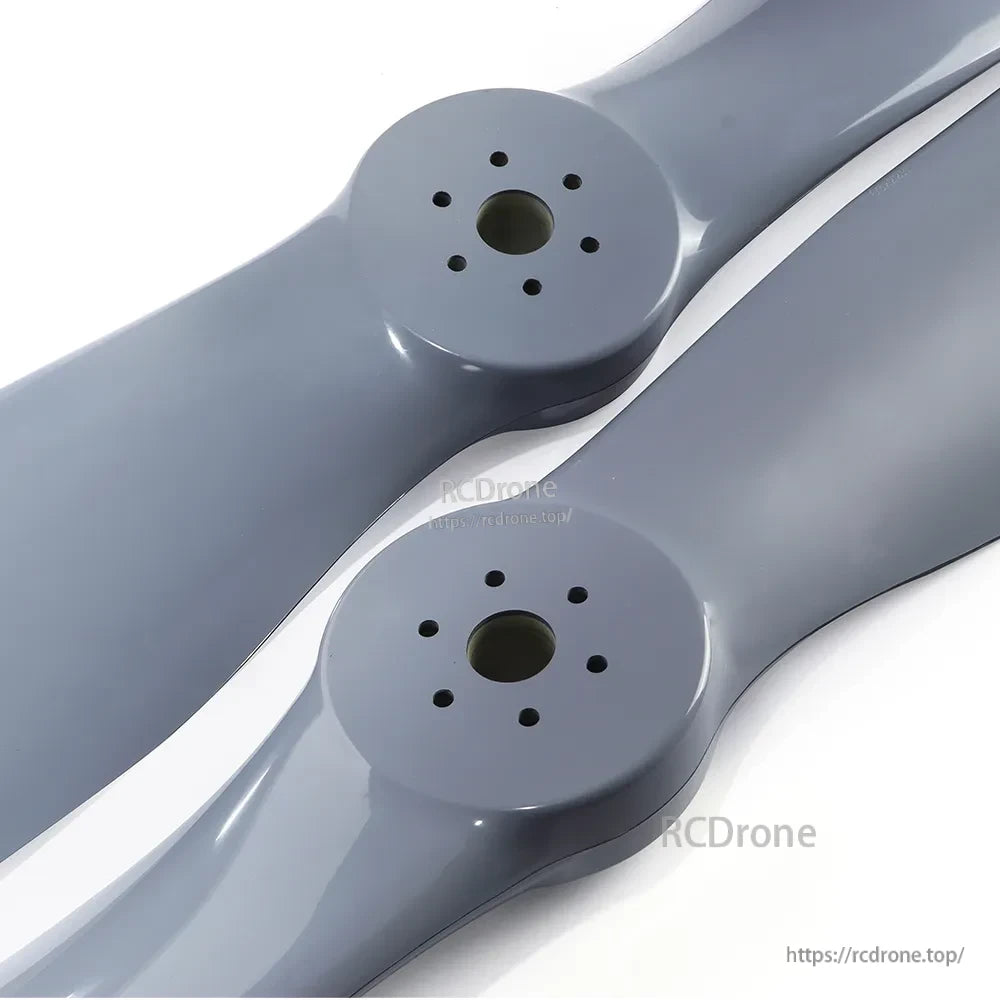

Mounting pattern shown with Ø75 M8*8 and Ø25 center hole
Specified operating and storage temperature ranges

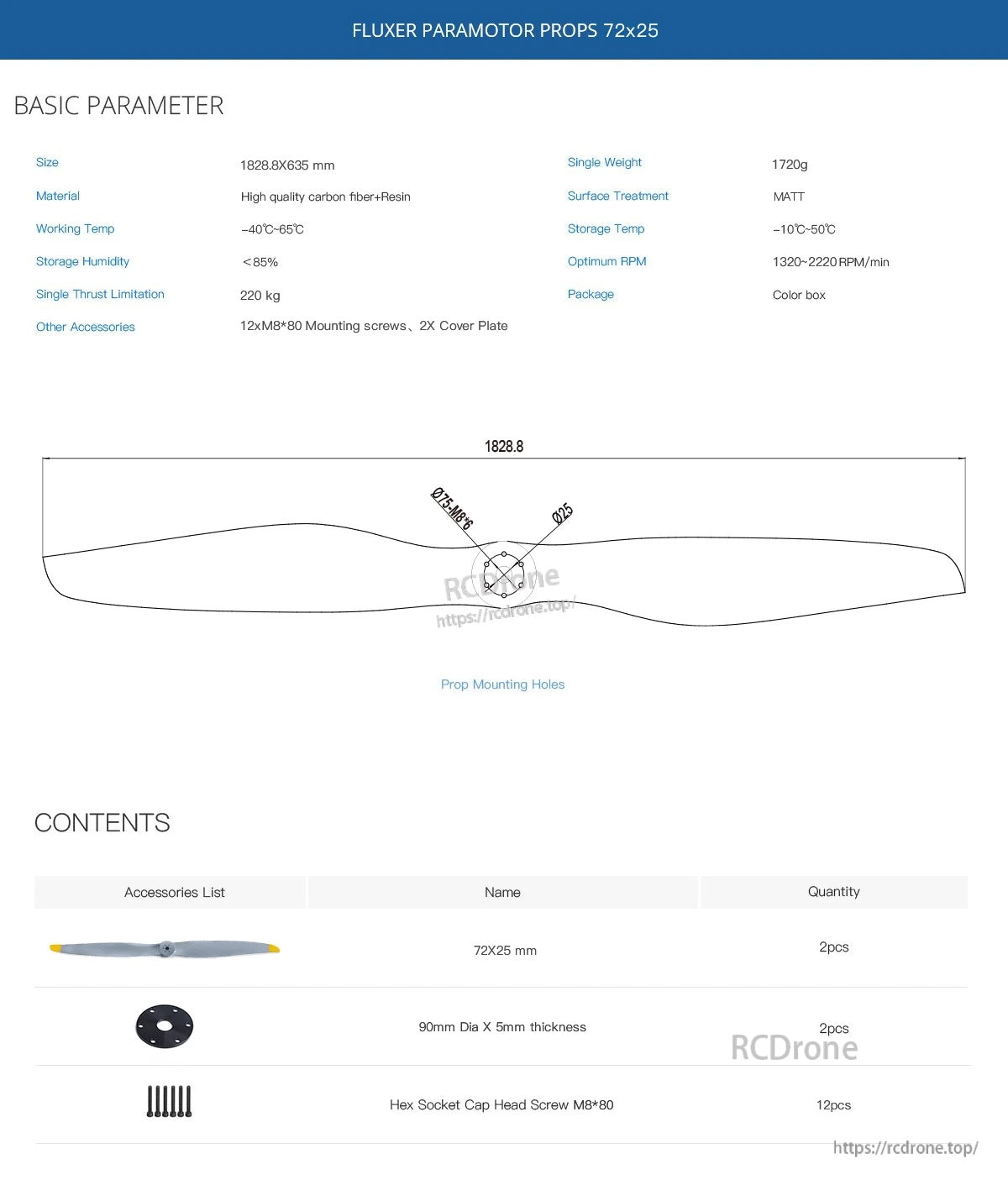

Specifications

Prop size	72x25 in
Dimensions	1828.8 x 635 mm
Material	High quality carbon fiber + resin
Single weight	1720 g
Surface treatment	MATT
Working temperature	-40°C~65°C
Storage temperature	-10°C~50°C
Storage humidity	< 85%
Optimum RPM	1320~2220 RPM/min
Single thrust limitation	220 kg
Package	Color box

What’s Included

72x25 propeller blades: 2 pcs
Cover plate (90 mm dia x 5 mm thickness): 2 pcs
Hex socket cap head screw M8*80: 12 pcs

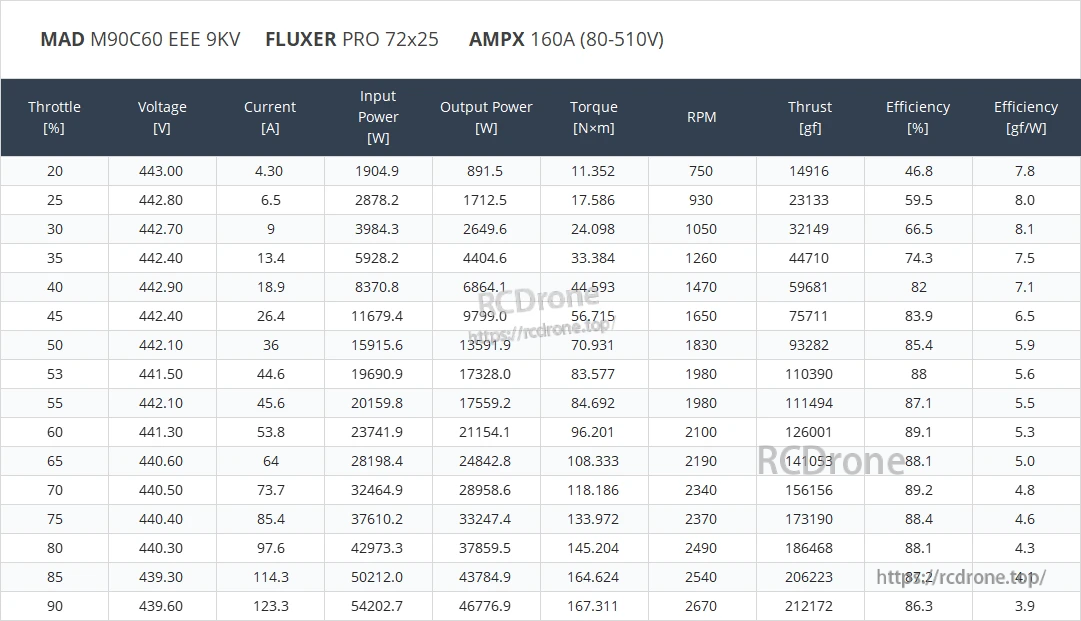

Performance Data (Test Table)

Test header: MAD M90C60 EEE 9KV + FLUXER PRO 72x25 + AMPX 160A (80-510V)

Throttle (%)	Voltage (V)	Current (A)	Input Power (W)	Output Power (W)	Torque (N*m)	RPM	Thrust (gf)	Efficiency (%)	Efficiency (gf/W)
20	443.00	4.30	1904.9	891.5	11.352	750	14916	46.8	7.8
25	442.80	6.5	2878.2	1712.5	17.586	930	23133	59.5	8.0
30	442.70	9	3984.3	2649.6	24.098	1050	32149	66.5	8.1
35	442.40	13.4	5928.2	4404.6	33.384	1260	44710	74.3	7.5
40	442.90	18.9	8370.8	6864.1	44.593	1470	59681	82	7.1
45	442.40	26.4	11679.4	9799.0	56.715	1650	75711	83.9	6.5
50	442.10	36	15915.6	13591.9	70.931	1830	93282	85.4	5.9
53	441.50	44.6	19690.9	17328.0	83.577	1980	110390	88	5.6
55	442.10	45.6	20159.8	17559.2	84.692	1980	111494	87.1	5.5
60	441.30	53.8	23741.9	21154.1	96.201	2100	126001	89.1	5.3
65	440.60	64	28198.4	24842.8	108.333	2190	141053	88.1	5.0
70	440.50	73.7	32464.9	28958.6	118.186	2340	156156	89.2	4.8
75	440.40	85.4	37610.2	33247.4	133.972	2370	173190	88.4	4.6
80	440.30	97.6	42973.3	37859.5	145.204	2490	186468	88.1	4.3
85	439.30	114.3	50212.0	43784.9	164.624	2540	206223	87.2	4.1
90	439.60	123.3	54202.7	46776.9	167.311	2670	212172	86.3	3.9

Applications

Paramotor propulsion systems
Large RC aircraft / industrial UAV propulsion projects requiring a 72x25 prop size

For fitment checks (hub pattern, center bore, and clearance) and order support, contact support@rcdrone.top or visit https://rcdrone.top/.

Details

MAD 72x25" inch FLUXER PRO carbon fiber propeller

Fluxer 72x25 paramotor prop specifications list a 1828.8×635 mm carbon fiber/resin build with a 1720 g single-blade weight and M8×80 mounting screws included.
