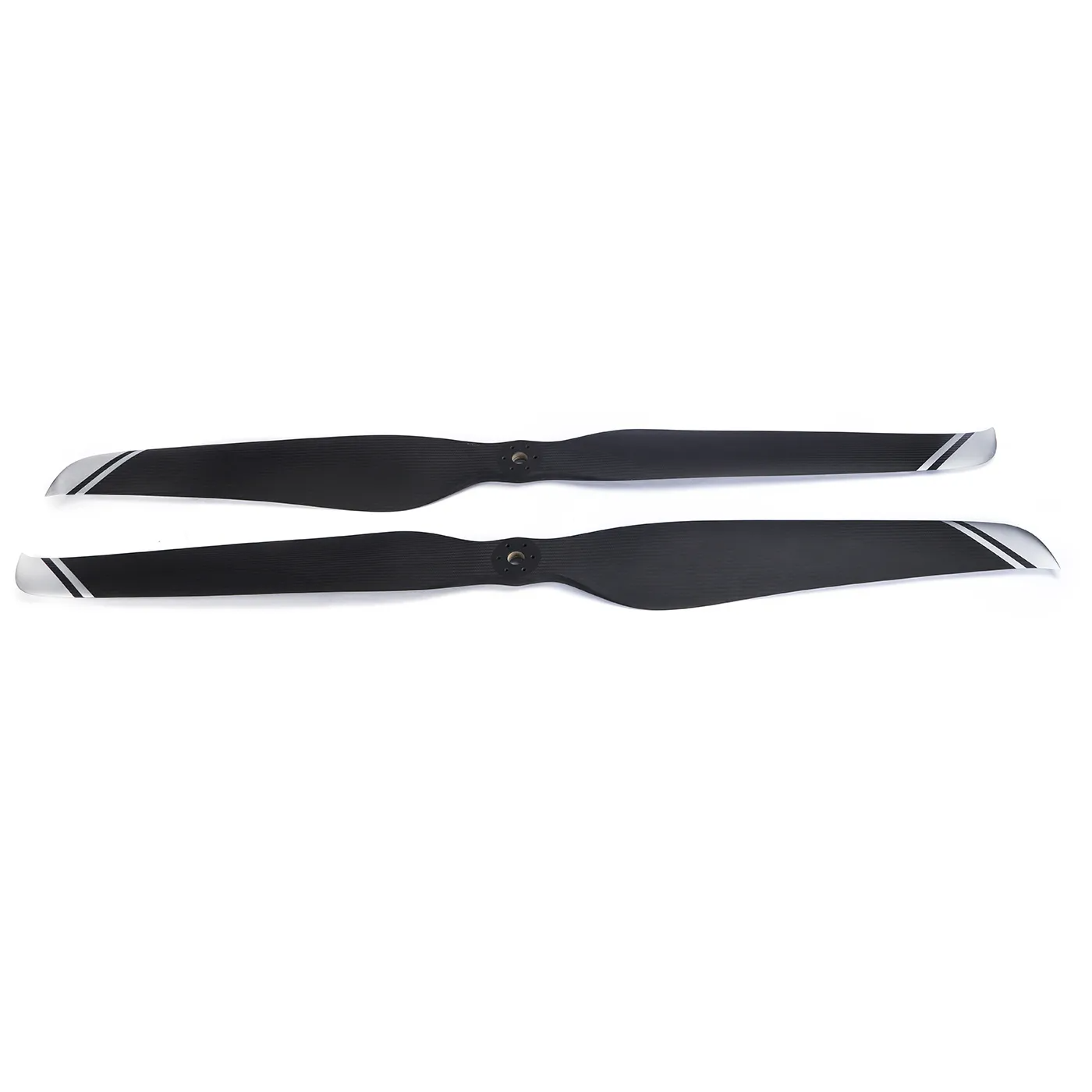

• MAD FLUXER CB2 64x20 Carbon Fiber Propeller, Pair of black carbon fiber propeller blades with white tip stripes, MAD FLUXER CB2 64x20

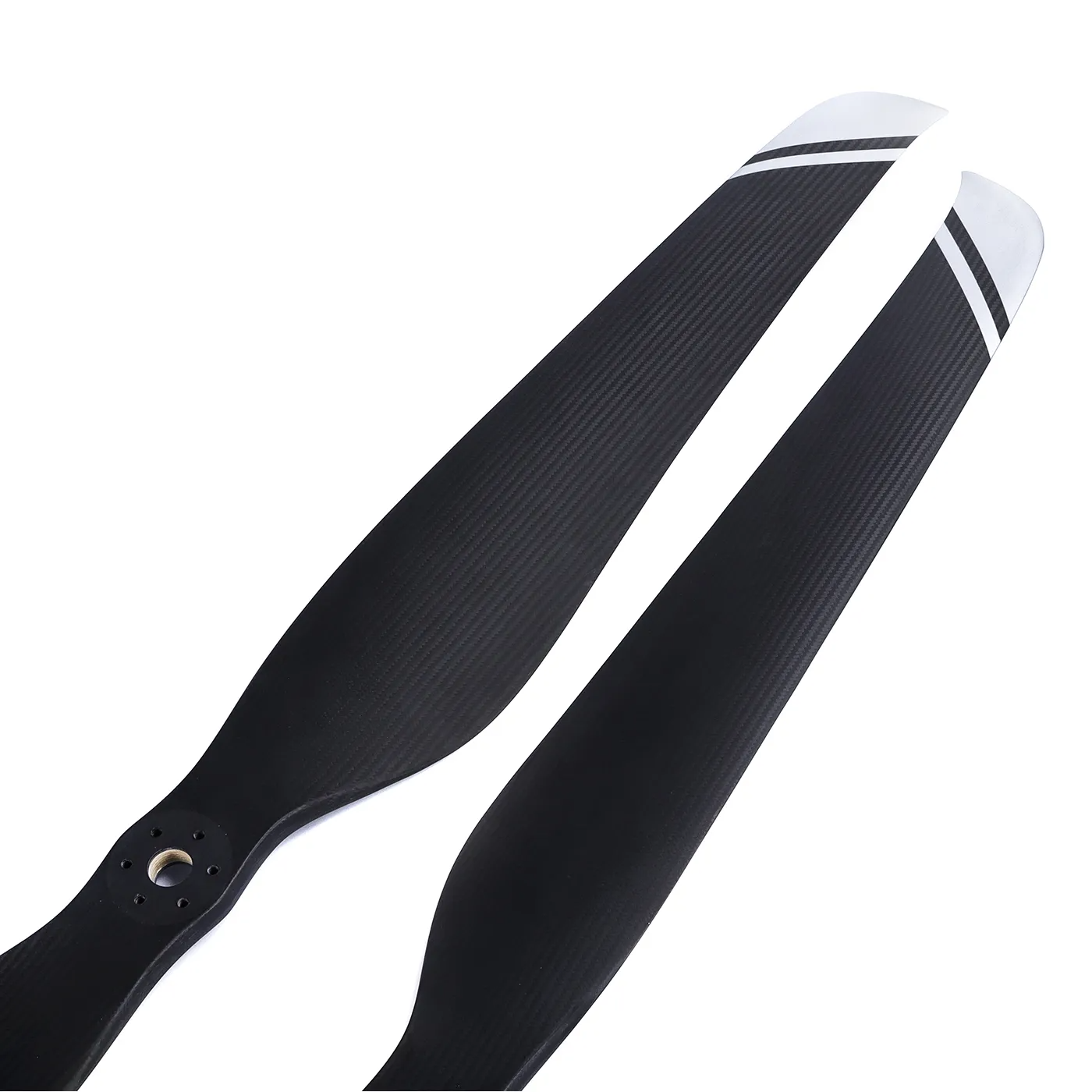

  • MAD FLUXER CB2 64x20 carbon fiber propeller with black blades, two white tip stripes, and center hub holes

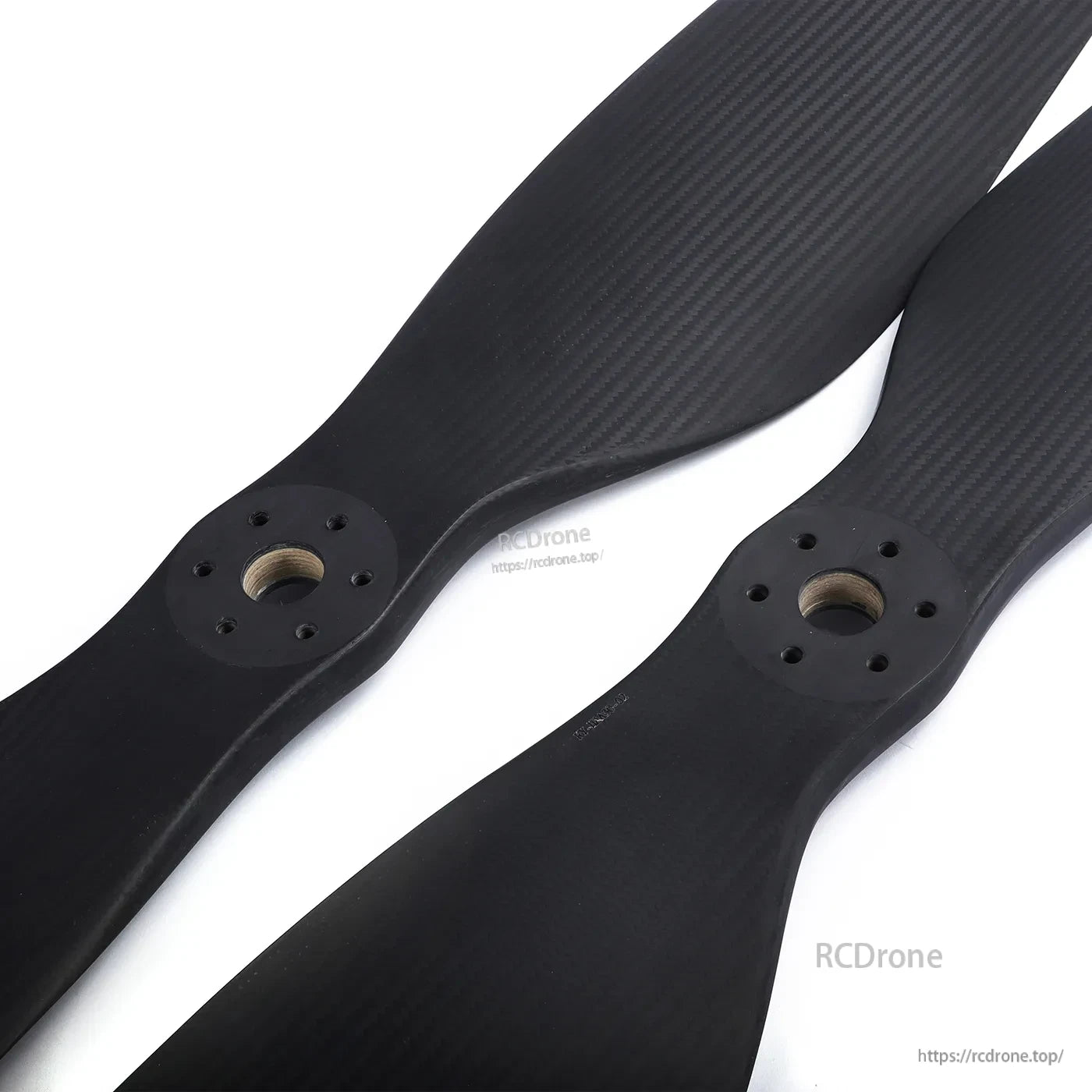

  • Pair of MAD FLUXER CB2 64x20 carbon fiber propeller blades with matte weave finish and multi-hole hubs

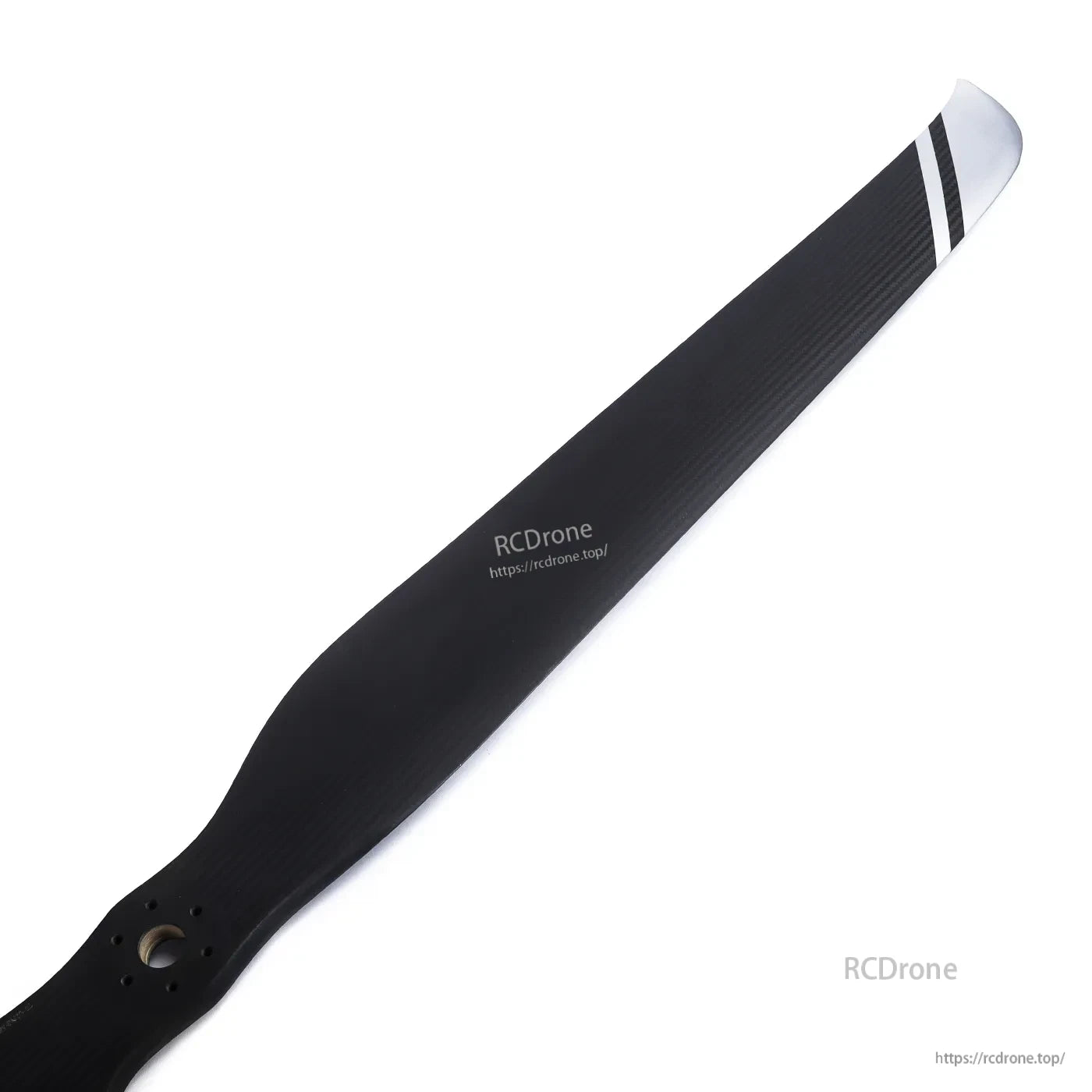

  • MAD FLUXER CB2 64x20 carbon fiber propeller blade with mounting holes and matte black finish

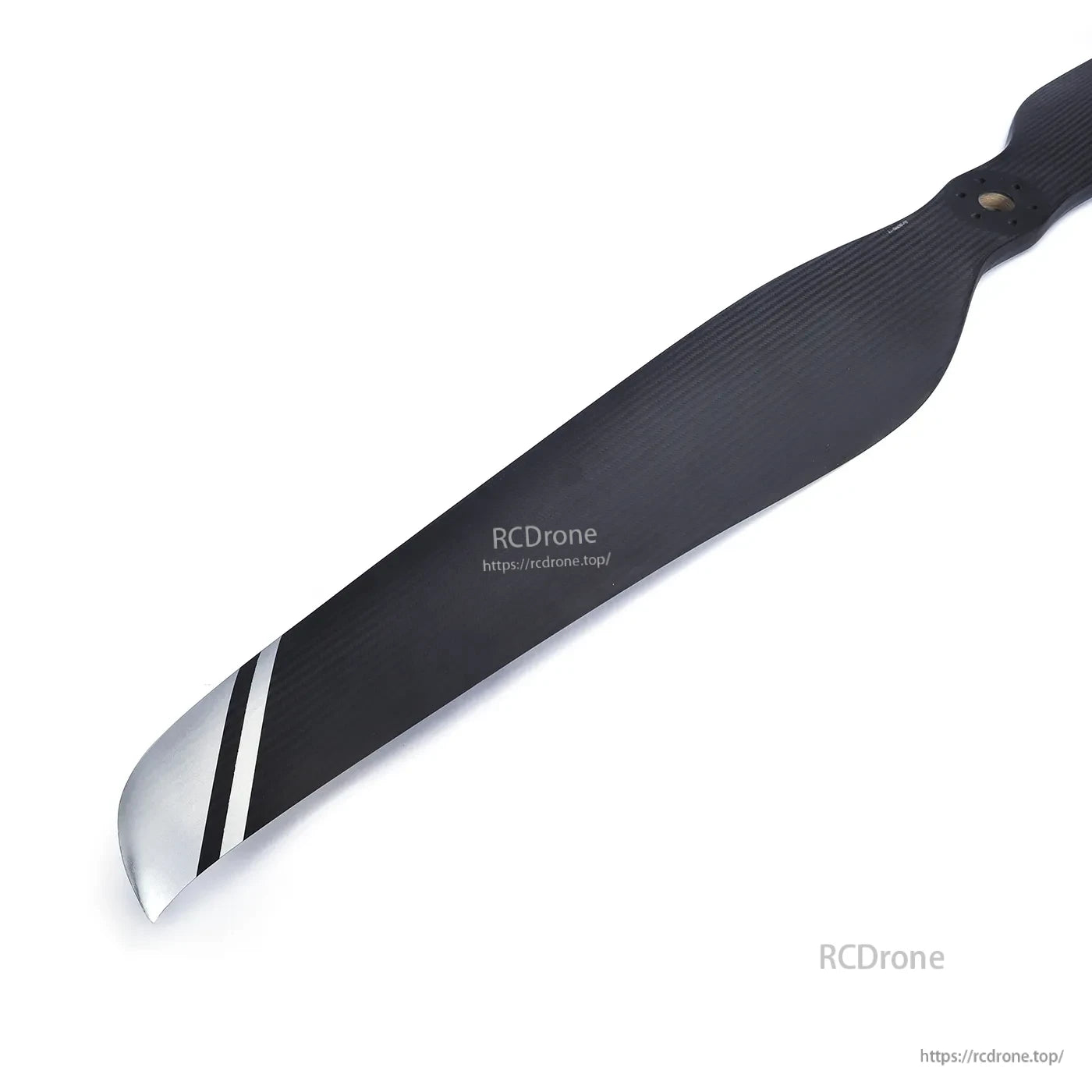

  • MAD FLUXER CB2 64x20 carbon fiber propeller blade with two-bolt hub holes and striped tip
1 5

MAD FLUXER CB2 64x20 Carbon Fiber Propeller Set (2pcs) – 1625.6×508 mm, 885 g, M6 Mount

MAD FLUXER CB2 64x20 Carbon Fiber Propeller Set (2pcs) – 1625.6×508 mm, 885 g, M6 Mount

MAD

$2,047.50 USD
$2,047.50 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Holes position
Single Weight
ROTATION DIRECTION
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

MAD/FLUXER CB2 64x20 carbon fiber propeller for large multi-rotor/e-VTOL platforms designed for heavy-load applications including flying car, delivery drone, and urban mobility.

Key Features

  • Carbon fiber + resin construction
  • Matt surface treatment
  • Rated working temperature: -40°C~65°C
  • Optimum RPM: 2000–2300 RPM/min

Specifications

Model CB2 64x20 inch PROP
Size 1625.6 x 508 mm
Material High quality carbon fiber + resin
Single weight 885 g
Surface treatment MATT
Working temp -40°C~65°C
Storage temp -10°C~50°C
Storage humidity < 85%
Optimum RPM 2000–2300 RPM/min
Single thrust limitation 140 kg
Package Cowhide cardboard box
Propeller mounting hole Ø50 mm, M6, Ø25 mm
Other accessories (hardware) 12 x 6*35 mounting screws; 2 x 90 mm Dia x 4 mm propeller plate

Test Data

RPM Thrust (gf) Torque (N×m) Output Power (W) Efficiency (gf/W)
788 9000 6.5 536.3 16.78
988 14200 10.2 1055.1 13.46
1177 19800 15.0 1848.5 10.71
1378 27200 20.0 2885.5 9.43
1574 35700 26.1 4301.2 8.30
1750 44100 32.6 5973.1 7.38
1951 55600 41.4 8456.8 6.57
2124 67000 49.8 11074.7 6.05
2285 79400 57.2 13684.5 5.80
2451 91400 66.8 17142.2 5.33
2605 101000 78.0 21274.0 4.75
2754 115600 88.0 25374.3 4.56
2877 129000 100.5 30272.8 4.26
3008 140000 105.3 33162.9 4.22

What’s Included

  • FLUXER CB2 64x20 inch propeller: 2 pcs
  • 90 mm Dia x 4 mm propeller plate: 2 pcs
  • Hex socket cap head screw M6*35: 12 pcs

Applications

  • Large multi-rotor and e-VTOL drones
  • Heavy-load UAV platforms
  • Delivery drone and urban mobility platforms

For compatibility checks (mounting, motor/RPM range, and integration), contact support@rcdrone.top or visit https://rcdrone.top/.

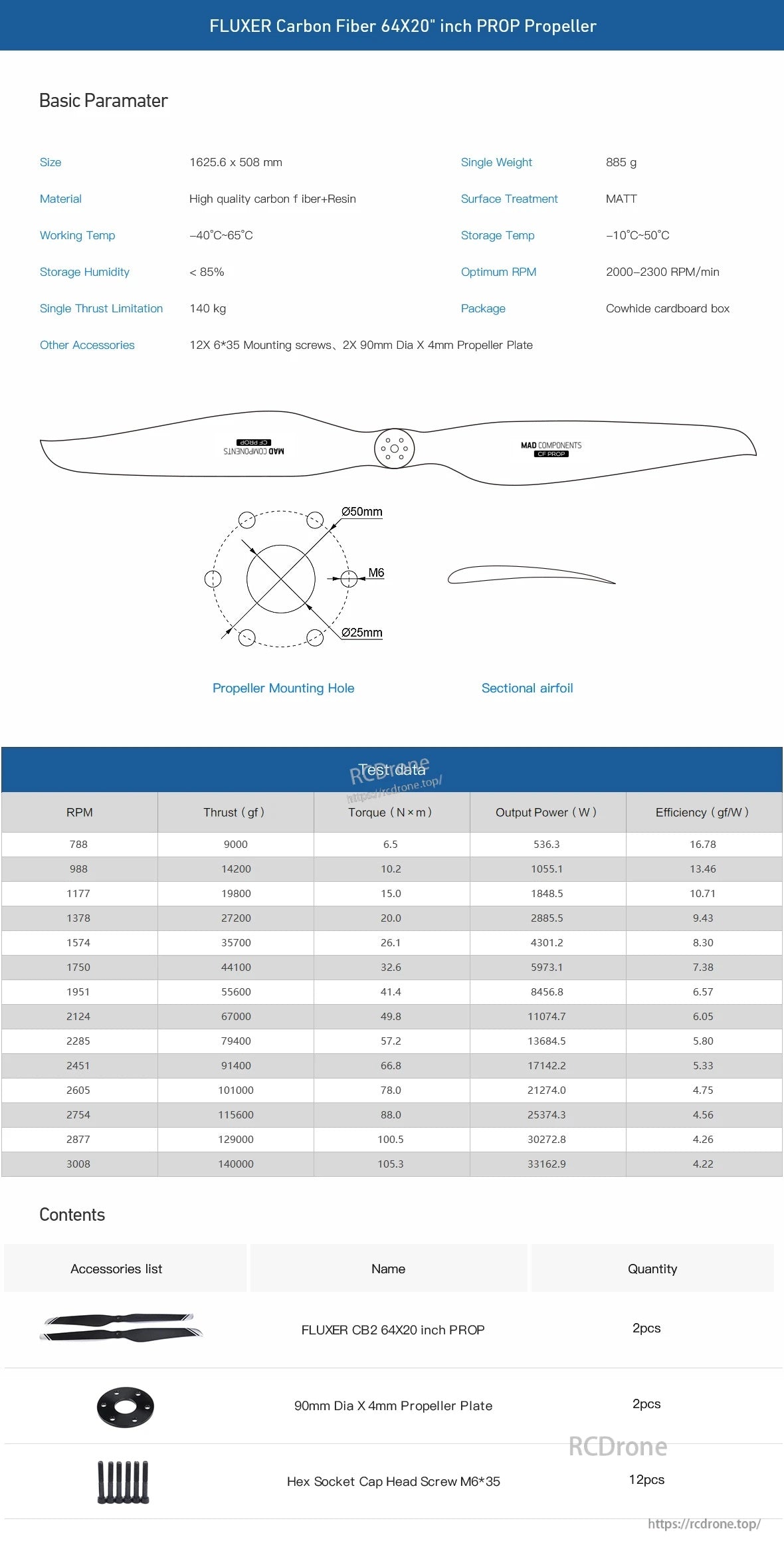

MAD FLUXER CB2 64x20 carbon fiber propeller

Details

MAD CB2 PROP 64X20 in Carbon Fiber Propeller

The FLUXER CB2 4x20-inch carbon fiber propeller provides basic parameters, mounting-hole dimensions, and thrust data to help with setup.
