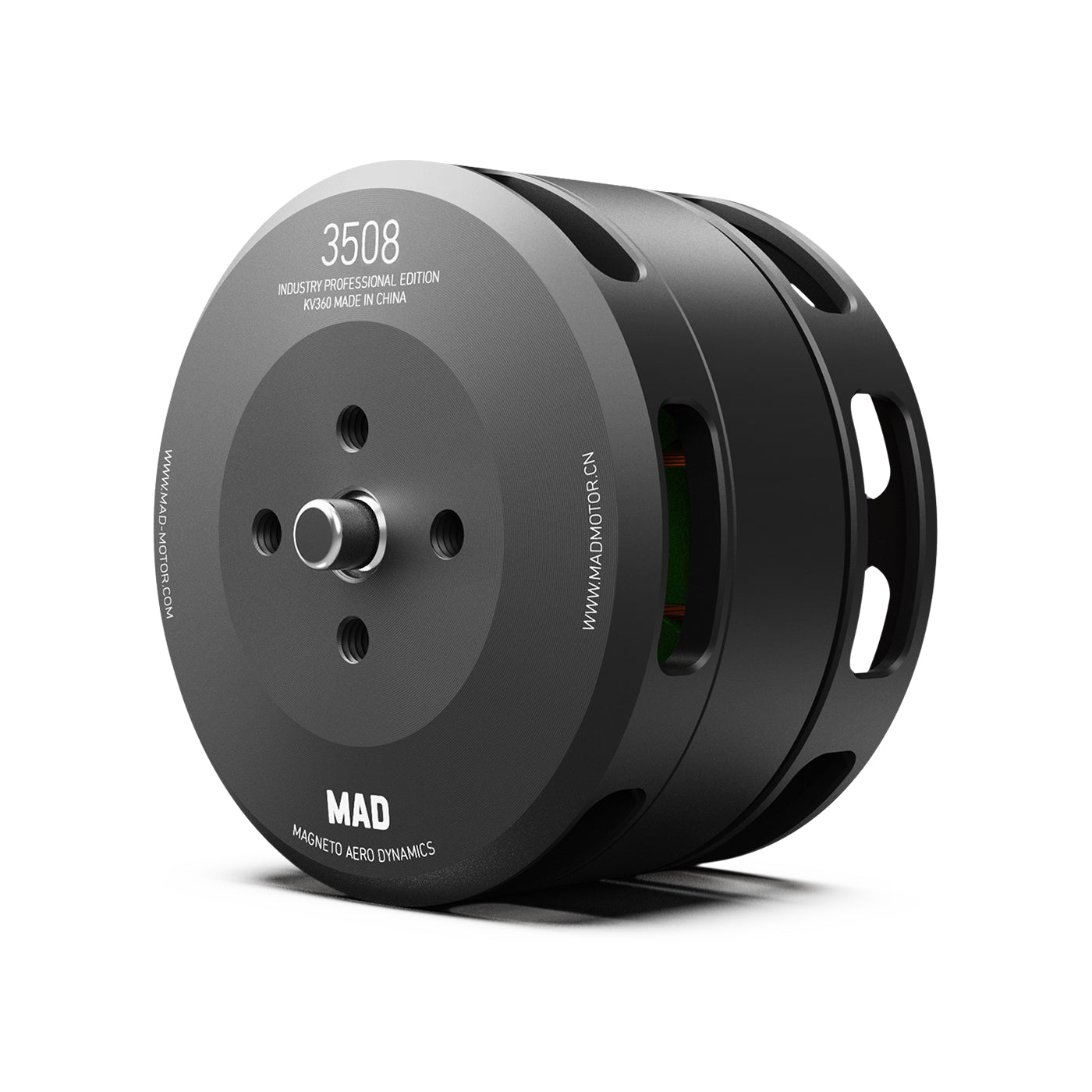

• MAD 3508 IPE Drone Motor, MAD 3508 IPE brushless drone motor with black anodized housing, front mounting holes, and vented bell

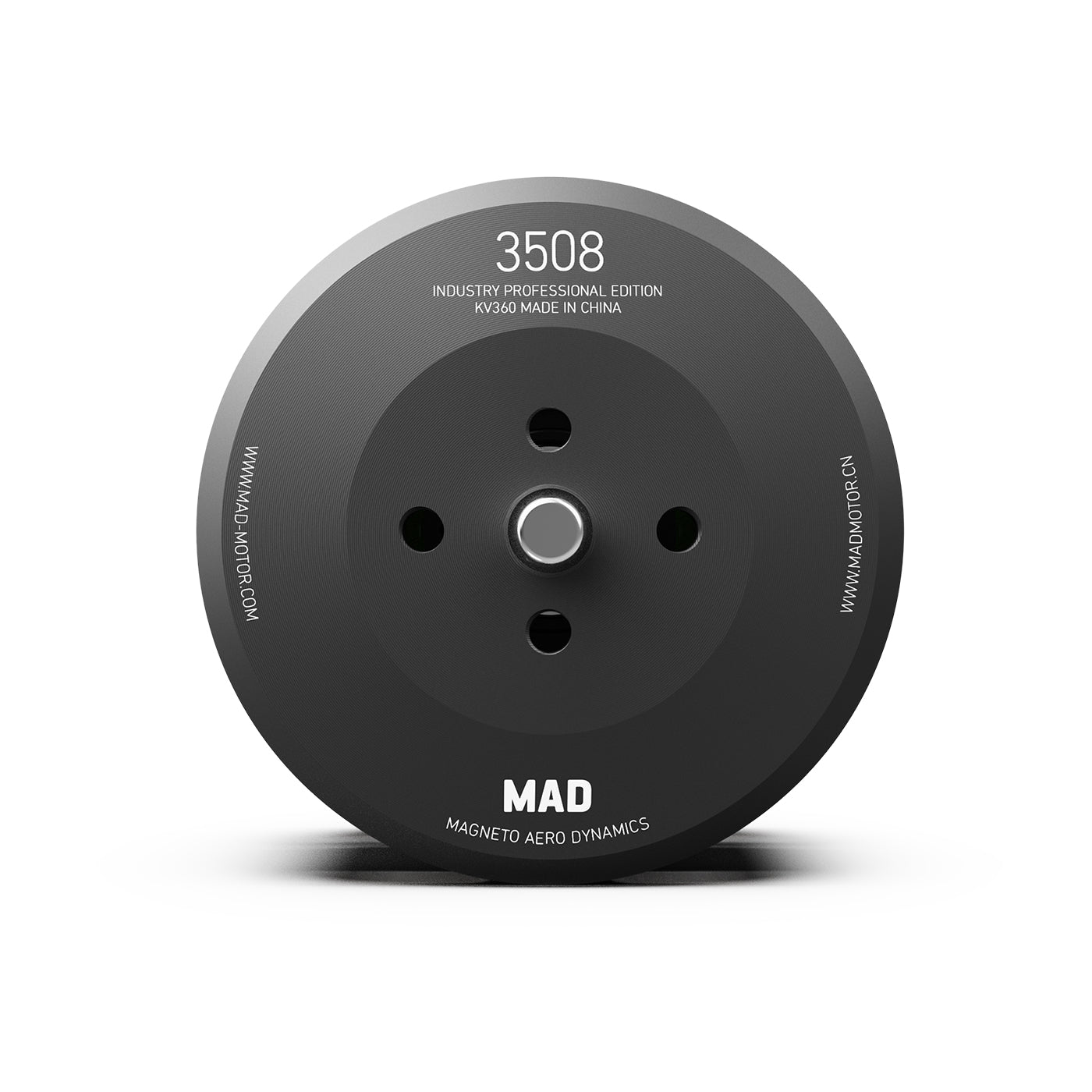

  • Top view of MAD 3508 IPE drone motor bell with KV360 marking, centered shaft hole and four mounting holes

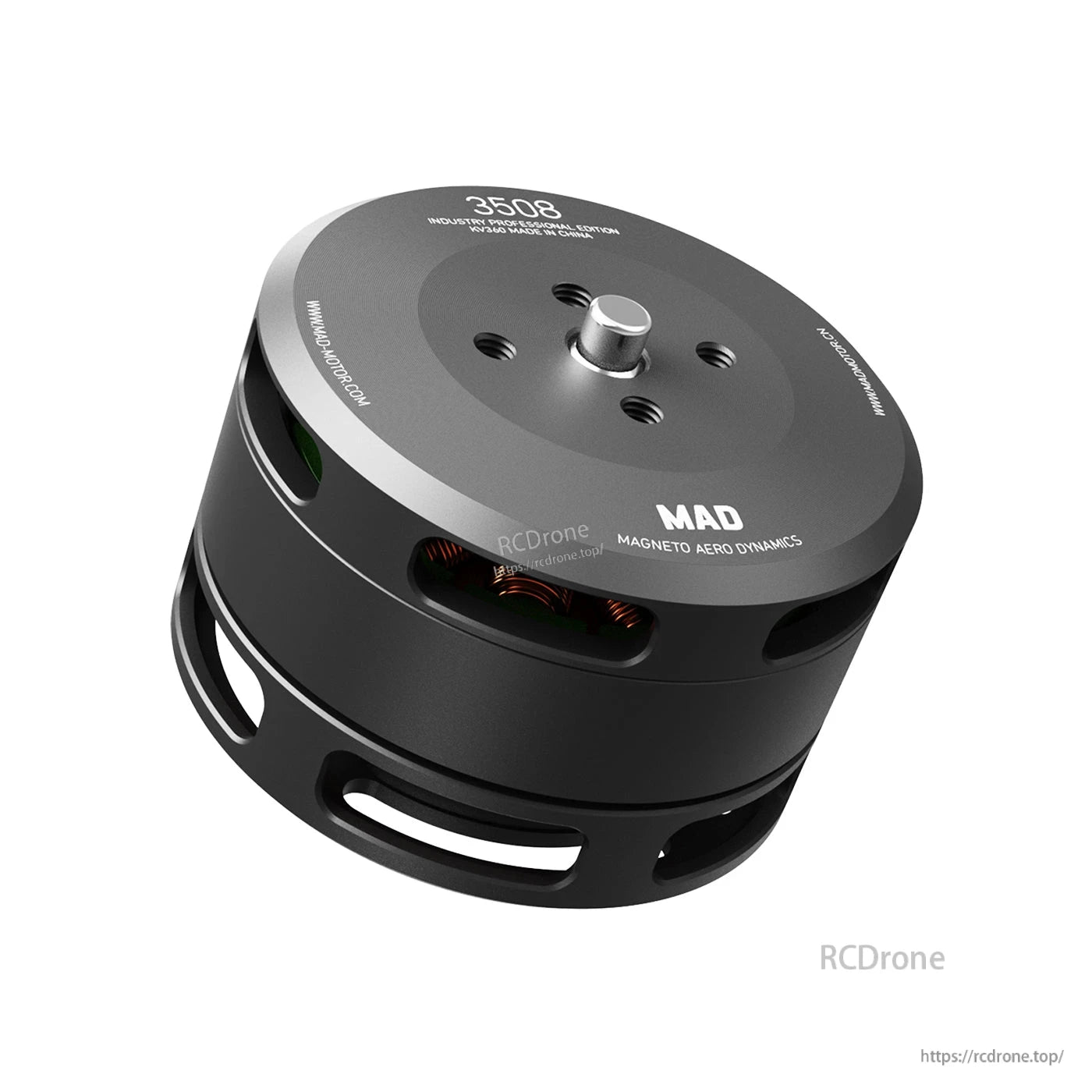

  • MAD 3508 IPE drone motor with black housing, top-mounted shaft, and vented side openings

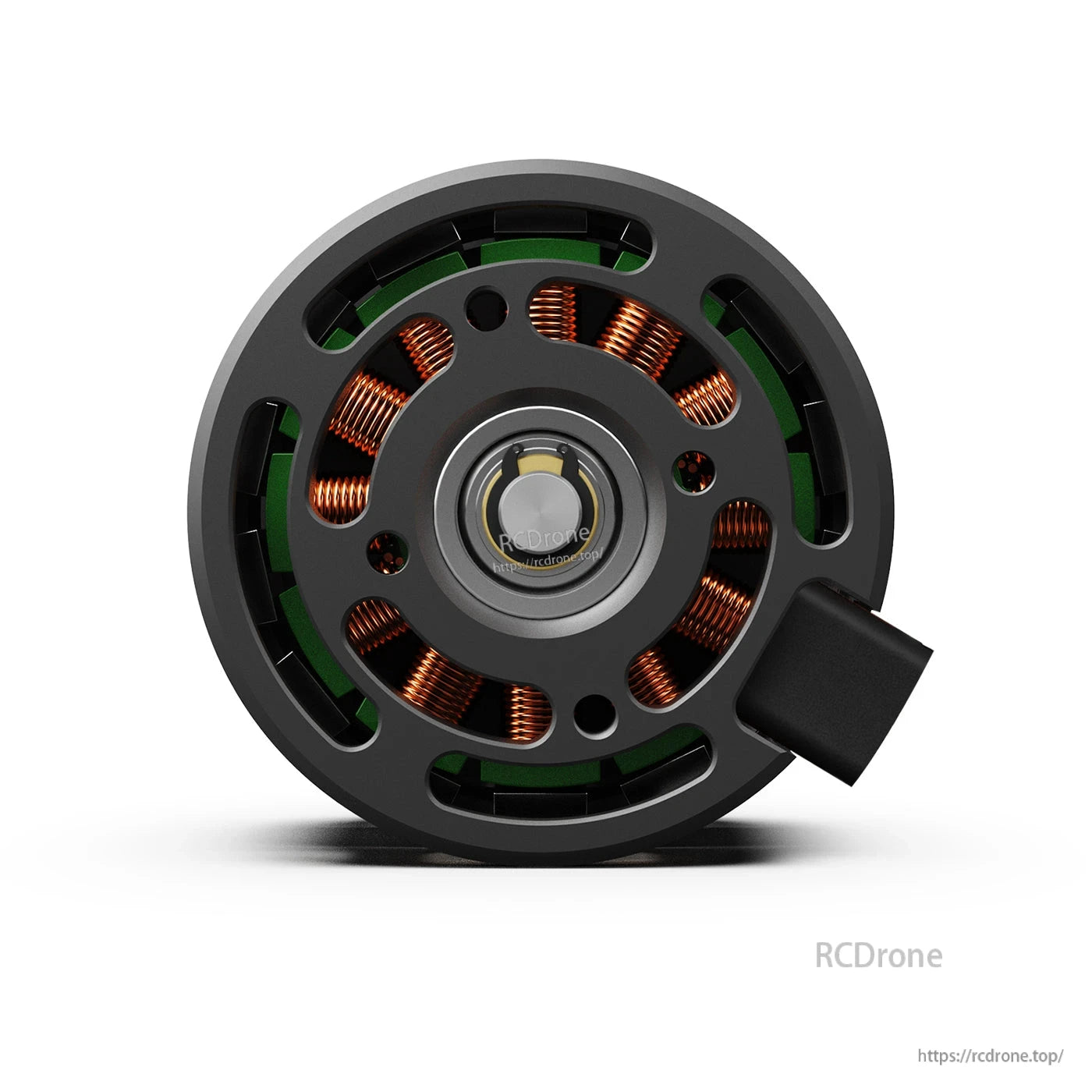

  • MAD 3508 IPE Drone Motor, Top view of MAD 3508 IPE brushless drone motor with black housing, visible copper windings, and side wire exit

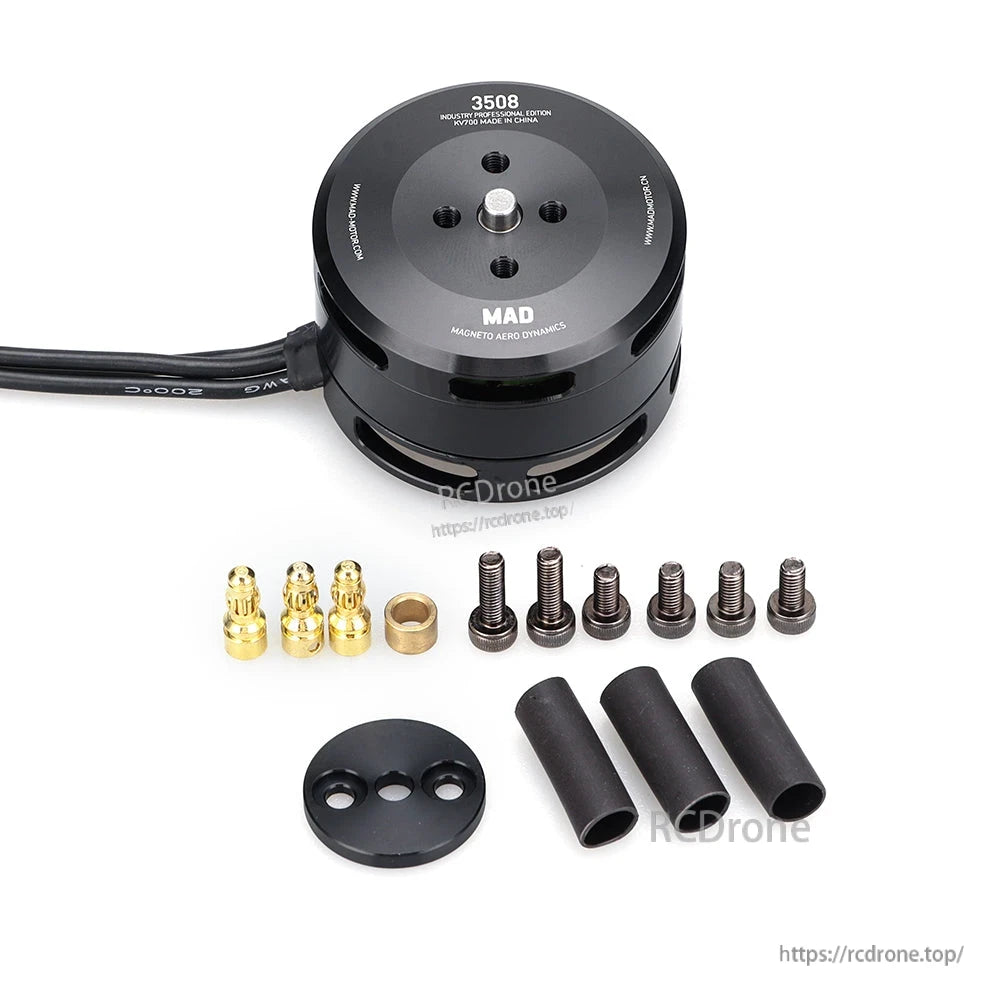

  • MAD 3508 IPE Drone Motor, MAD 3508 drone brushless motor with attached cable, bullet connectors, mounting screws, and spacers

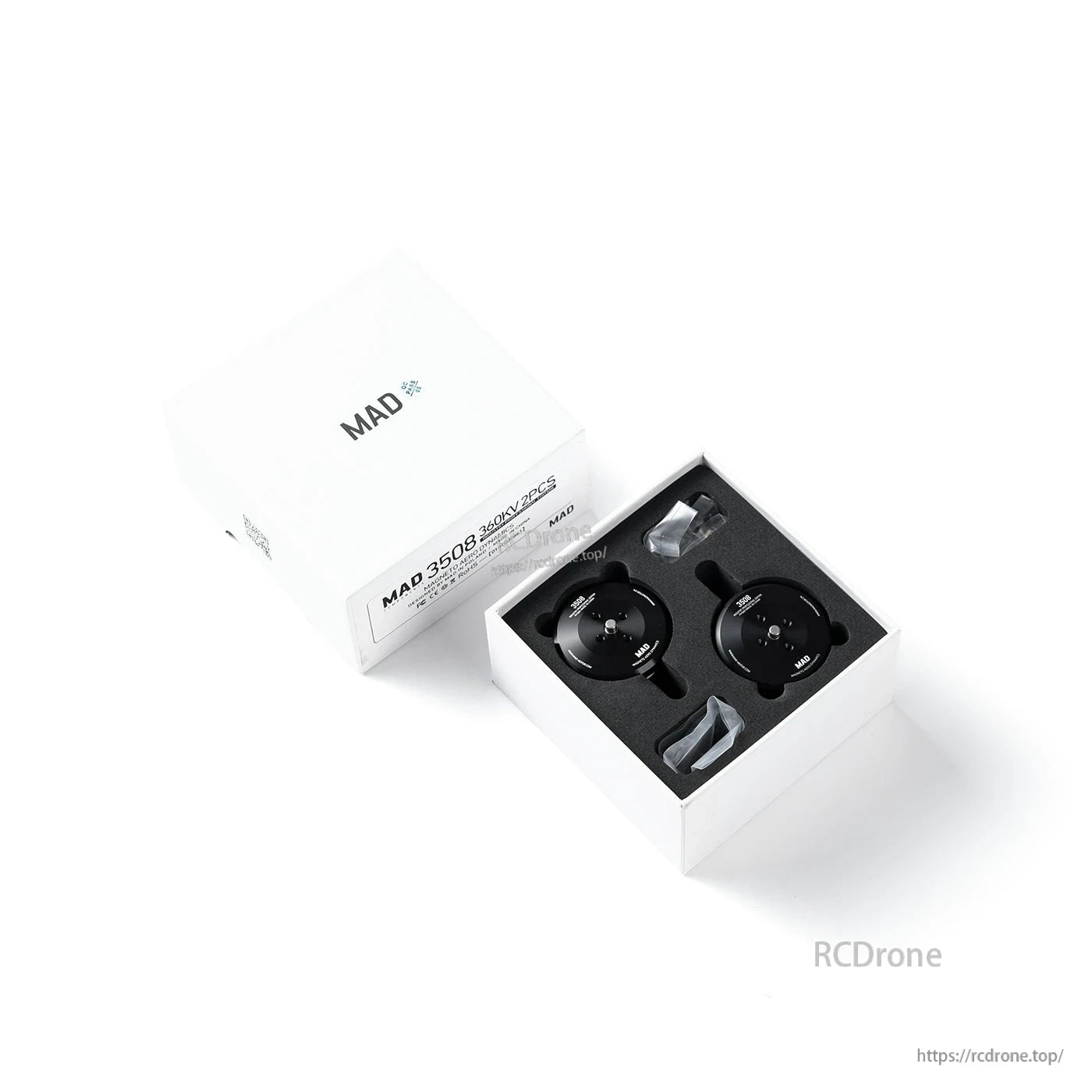

  • White MAD 3508 IPE drone motor retail box with MAD branding and model label on the side
1 6

MAD 3508 IPE Drone Motor 360KV/580KV/700KV - IP35 Brushless Motor for 13-16in Carbon Props

MAD 3508 IPE Drone Motor 360KV/580KV/700KV - IP35 Brushless Motor for 13-16in Carbon Props

MAD

$93.00 USD
$93.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
KV Option
packing way
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

MAD 3508 IPE is a drone motor (brushless) offered in 360KV, 580KV, and 700KV variants for multi-rotor and other UAV platforms using 13–16 in carbon fiber propellers. It is designed for applications requiring high thrust efficiency, with max thrust up to 1800 g per axis (variant-dependent) and a lightweight motor build (about 97–99 g).

Key Features

  • KV options: 360KV / 580KV / 700KV
  • Compatible propellers: 13–16 in carbon fiber
  • Single-rotor payload: 490–760 g (variant/setup dependent)
  • Max thrust per axis: up to 1800 g (variant/setup dependent)
  • Centrifugal heat dissipation: YES
  • Protection rating: IP35

Specifications

Motor Data (Common)

Motor Model MAD 3508 IPE V1.0
Number of pole pairs 7
Stator Anticorrosive
Varnished wire degree 150 C
Magnet degree 150 C
Motor size D: 42.5 d7 30.5 mm
Degree of protection IP35
Cable length 150 mm 18# Awg (Black) silicone
Centrifugal heat dissipation YES
Rotor balance
