MAD M40C30 PRO IPE Brushless Drone Motor (10KV/43KV) 3460g IP45 for 47.5–54in Propellers

MAD

$1,603.50 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

KV Option 43KV-24S 10KV-100S 35KV-24s

Quantity

View full details

Overview

MAD M40C30 PRO IPE is an ultra-heavy-duty brushless drone motor designed for high-load VTOL and cargo UAV platforms. It is positioned for use with 47.5–54 inch carbon fiber propellers and is also used in electric paramotor and PAV (Personal Aerial Vehicle) system builds.

Key Features

Thrust (from provided data): rated hover thrust 20–35 kgf (10KV) / 20–30 kgf (43KV); maximum thrust up to 73 kgf (10KV) / 80 kgf (43KV)
Optimized weight: 3460 g
Efficiency (label): >80% (10KV) / >84% (43KV)
Motor protection rating: IP45
Centrifugal heat dissipation: YES
Oversized locating bearings (for reduced resonance and gyroscopic effects)

Specifications

Motor Data (General)

Motor Model	MAD M40C30 IPE V3.0	Number of pole pairs	15
Stator	Anticorrosive	Varnished wire Degree	220°C
Motor Size	D:151.4 x 81 mm	Magnet Degree	180°C
Degree of Protection	IP45	Cable Length	150 mm (extended enameled wires)
Centrifugal Heat Dissipation	YES	Rotor Balance	≤20 mg
Propeller Mounting Holes	D:50 M6 x 6; D:32 M4 x 4	Motor Balance	≤30 mg
Shaft Diameter	IN: 25 mm	Motor Mounting Holes	D:65 M6 x 6
Bearing	NSK 6818ZZCM	Disruptive test	500 V

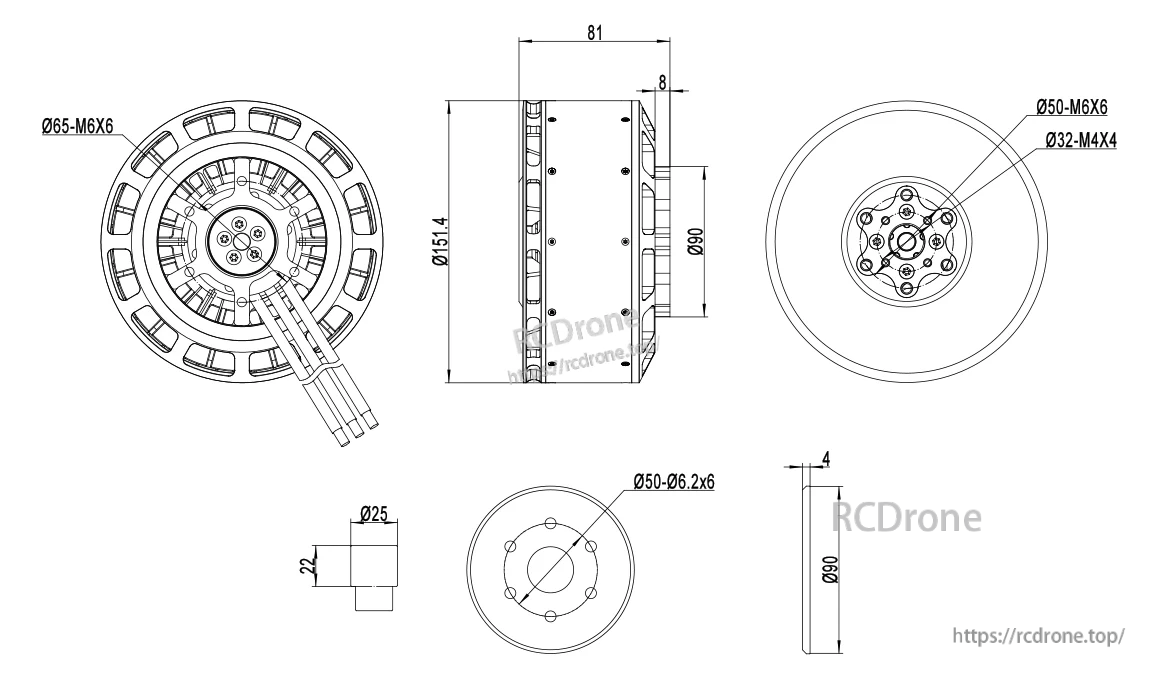

Drawing / Mounting Dimensions (from drawing)

Outer diameter	Ø151.4
Body length	81
Additional dimension labels	8; Ø90; 4; Ø25; 22
Motor mounting holes	Ø65-M6 x 6
Propeller mounting holes	Ø50-M6 x 6; Ø32-M4 x 4
Hole pattern label	Ø50-Ø6.2 x 6

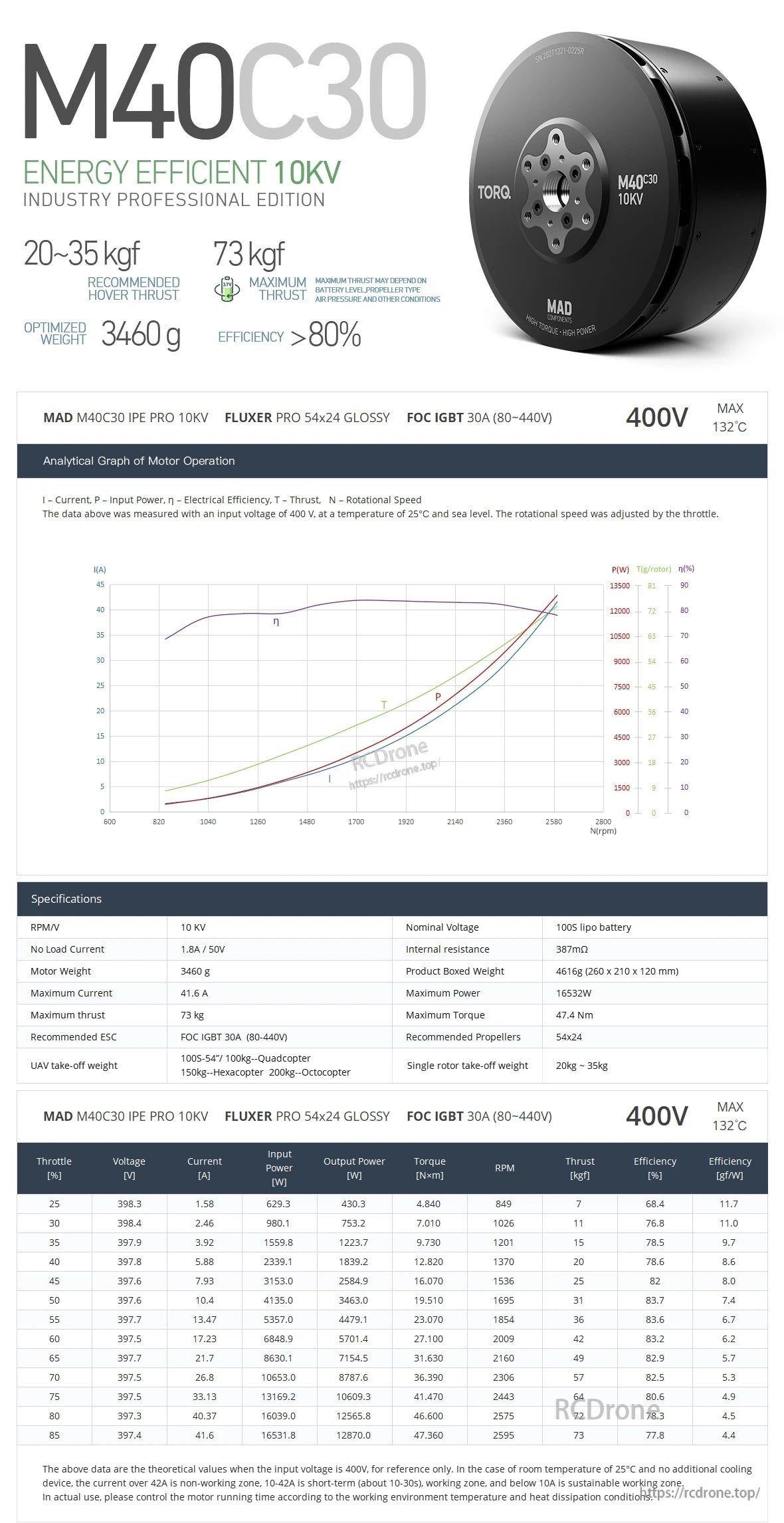

10KV Variant (MAD M40C30 IPE PRO 10KV)

Label: ENERGY EFFICIENT 10KV (Industry Professional Edition)
Recommended hover thrust: 20–35 kgf
Maximum thrust: 73 kgf
Optimized weight: 3460 g
Efficiency (label): >80%
Test banner setup: FLUXER PRO 54x24 GLOSSY; Recommended ESC: FOC IGBT 30A (80–440V)
Label: 400V MAX; 132°C

RPM/V	10 KV	Nominal Voltage	100S lipo battery
No Load Current	1.8A / 50V	Internal resistance	387mΩ
Motor Weight	3460 g	Product Boxed Weight	4616g (260 x 210 x 120 mm)
Maximum Current	41.6 A	Maximum Power	16532W
Maximum thrust	73 kg	Maximum Torque	47.4 Nm
Recommended ESC	FOC IGBT 30A (80–440V)	Recommended Propellers	54x24
UAV take-off weight	100S-54" / 100kg--Quadcopter; 150kg--Hexacopter; 200kg--Octocopter	Single rotor take-off weight	20kg ~ 35kg

10KV Test Data Table (400 V input)

Throttle [%]	Voltage [V]	Current [A]	Input Power [W]	Output Power [W]	Torque [N*m]	RPM	Thrust [kgf]	Efficiency [%]	Efficiency [gf/W]
25	398.3	1.58	629.3	430.3	4.840	849	7	68.4	11.7
30	398.4	2.46	980.1	753.2	7.010	1026	11	76.8	11.0
35	397.9	3.92	1559.8	1223.7	9.730	1201	15	78.5	9.7
40	397.8	5.88	2339.1	1839.2	12.820	1370	20	78.6	8.6
45	397.6	7.93	3153.0	2584.9	16.070	1536	25	82	8.0
50	397.6	10.4	4135.0	3463.0	19.510	1695	31	83.7	7.4
55	397.7	13.47	5357.0	4479.1	23.070	1854	36	83.6	6.7
60	397.5	17.23	6848.9	5701.4	27.100	2009	42	83.2	6.2
65	397.7	21.7	8630.1	7154.5	31.630	2160	49	82.9	5.7
70	397.5	26.8	10653.0	8787.6	36.390	2306	57	82.5	5.3
75	397.5	33.13	13169.2	10609.3	41.470	2443	64	80.6	4.9
80	397.3	40.37	16039.0	12565.8	46.600	2575	72	78.3	4.5
85	397.4	41.6	16531.8	12870.0	47.360	2595	73	77.8	4.4

10KV test note (verbatim meaning): Data are theoretical values when input voltage is 400 V (for reference). At 25°C with no additional cooling device: current over 42 A is non-working zone; 10–42 A is short-term (about 10–30 s) working zone; below 10 A is sustainable working zone. Control motor running time based on ambient temperature and heat dissipation conditions.

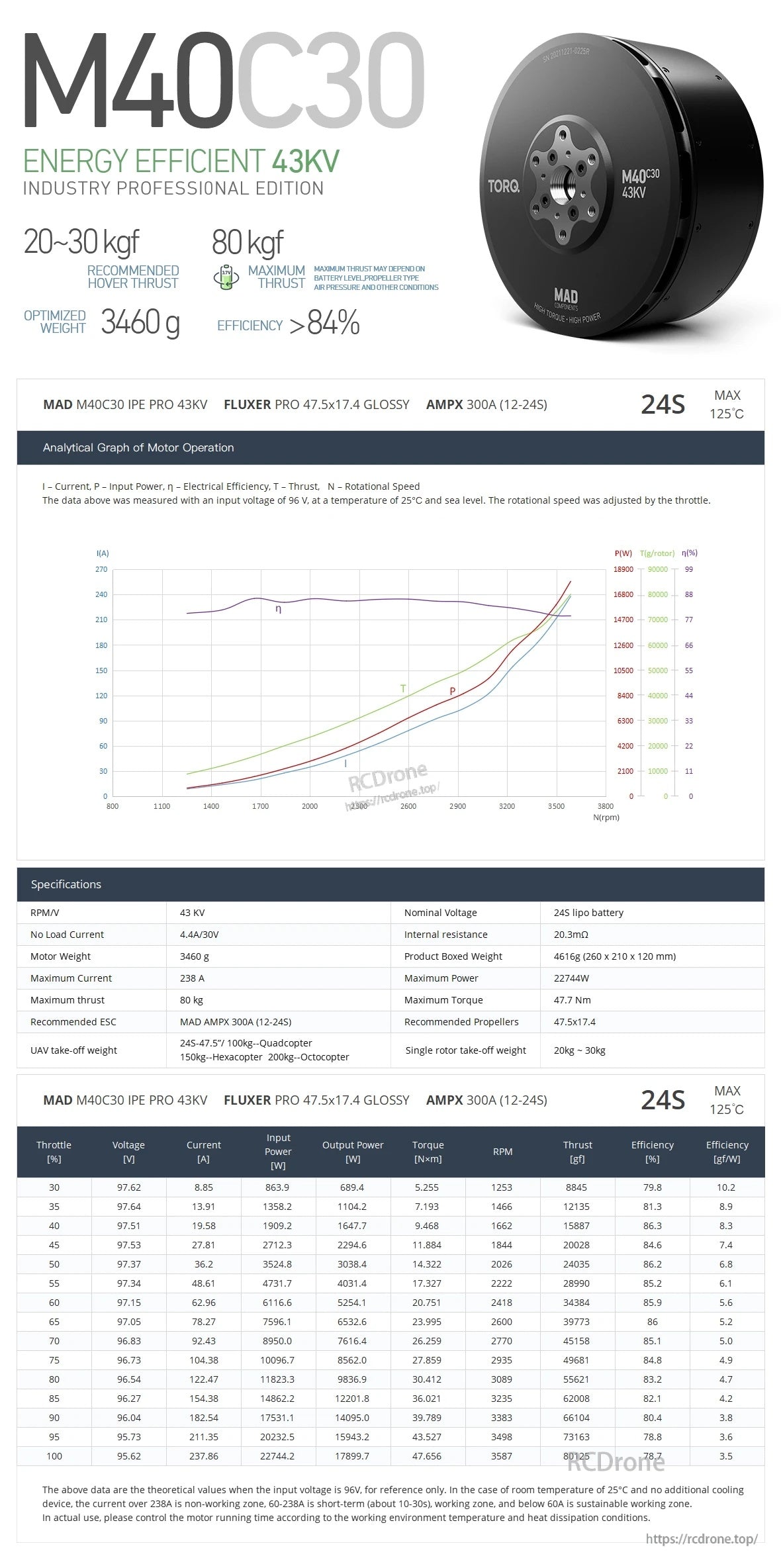

43KV Variant (MAD M40C30 IPE PRO 43KV)

Label: ENERGY EFFICIENT 43KV (Industry Professional Edition)
Recommended hover thrust: 20–30 kgf
Maximum thrust: 80 kgf
Optimized weight: 3460 g
Efficiency (label): >84%
Test banner setup: FLUXER PRO 47.5x17.4 GLOSSY; Recommended ESC: AMPX 300A (12–24S)
Label: 24S MAX; 125°C

RPM/V	43 KV	Nominal Voltage	24S lipo battery
No Load Current	4.4A / 30V	Internal resistance	20.3mΩ
Motor Weight	3460 g	Product Boxed Weight	4616g (260 x 210 x 120 mm)
Maximum Current	238 A	Maximum Power	22744W
Maximum thrust	80 kg	Maximum Torque	47.7 Nm
Recommended ESC	MAD AMPX 300A (12–24S)	Recommended Propellers	47.5x17.4
UAV take-off weight	24S-47.5" / 100kg--Quadcopter; 150kg--Hexacopter; 200kg--Octocopter	Single rotor take-off weight	20kg ~ 30kg

43KV Test Data Table (96 V input)

Throttle [%]	Voltage [V]	Current [A]	Input Power [W]	Output Power [W]	Torque [N*m]	RPM	Thrust [gf]	Efficiency [%]	Efficiency [gf/W]
30	97.62	8.85	863.9	689.4	5.255	1253	8845	79.8	10.2
35	97.64	13.91	1358.2	1104.2	7.193	1466	12135	81.3	8.9
40	97.51	19.58	1909.2	1647.7	9.468	1662	15887	86.3	8.3
45	97.53	27.81	2712.3	2294.6	11.884	1844	20028	84.6	7.4
50	97.37	36.2	3524.8	3038.4	14.322	2026	24035	86.2	6.8
55	97.34	48.61	4731.7	4031.4	17.327	2222	28990	85.2	6.1
60	97.15	62.96	6116.6	5254.1	20.751	2418	34384	85.9	5.6
65	97.05	78.27	7596.1	6532.6	23.995	2600	39773	86	5.2
70	96.83	92.43	8950.0	7616.4	26.259	2770	45158	85.1	5.0
75	96.73	104.38	10096.7	8562.0	27.859	2935	49681	84.8	4.9
80	96.54	122.47	11823.3	9836.9	30.412	3089	55621	83.2	4.7
85	96.27	154.38	14862.2	12201.8	36.021	3235	62008	82.1	4.2
90	96.04	182.54	17531.1	14095.0	39.789	3383	66104	80.4	3.8
95	95.73	211.35	20232.5	15943.2	43.527	3498	73163	78.8	3.6
100	95.62	237.86	22744.2	17899.7	47.656	3587	80125	78.7	3.5

43KV test note (verbatim meaning): Data are theoretical values when input voltage is 96 V (for reference). At 25°C with no additional cooling device: current over 238 A is non-working zone; 60–238 A is short-term (about 10–30 s) working zone; below 60 A is sustainable working zone. Control motor running time based on ambient temperature and heat dissipation conditions.

Recommended Configurations

43KV: ESC AMPX 300A (12–24S); propeller FLUXER PRO 47.5x17.4 (glossy)
35KV: propeller HB30-54x24
10KV + FOC ESC combo: propellers HB30-54x24; HB30-CB2 47.5x18.5; HB30 47.5x17.4; HB30-52x19

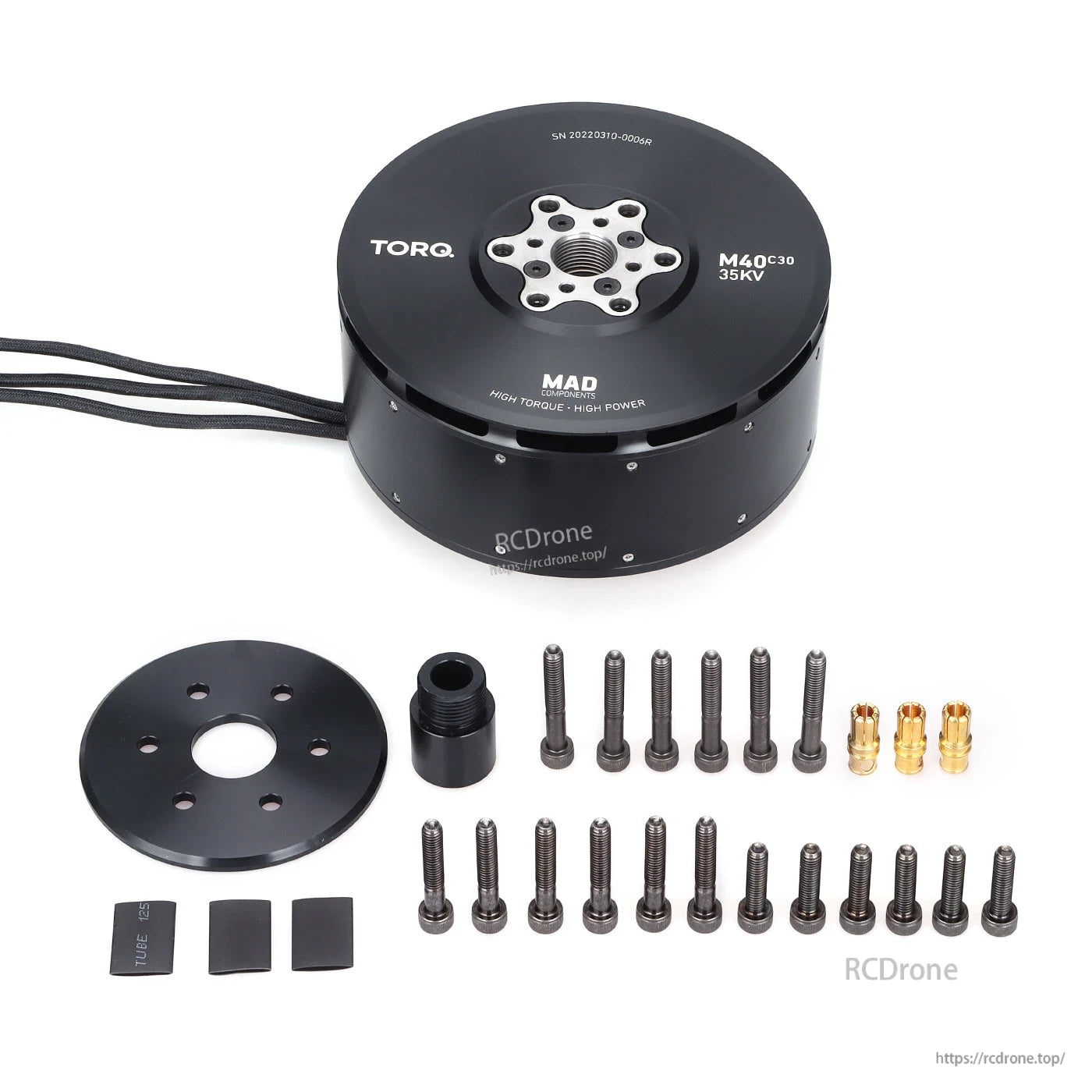

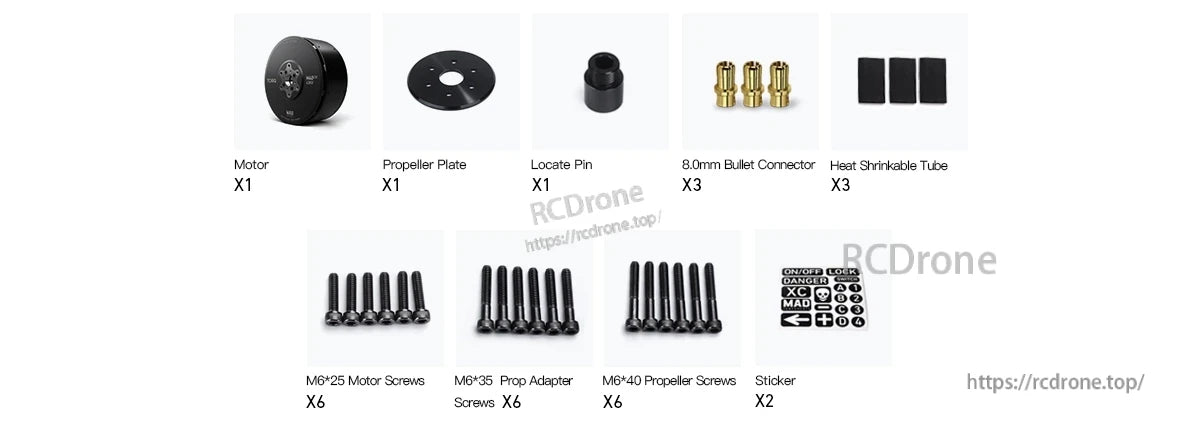

What’s Included

Motor x1
Propeller Plate x1
Locate Pin x1
8.0mm Bullet Connector x3
Heat Shrinkable Tube x3
M6*25 Motor Screws x6
M6*35 Prop Adapter Screws x6
M6*40 Propeller Screws x6
Sticker x2

Applications

Unmanned cargo drones and VTOL platforms
Large-scale multirotor UAV systems
Electric paramotor and PAV system builds

For compatibility questions (ESC, propeller, wiring, or integration), contact support at support@rcdrone.top or visit https://rcdrone.top/.

Details

MAD M40C30 PRO IPE brushless drone motor dimensions and the Φ50 mounting pattern help confirm fitment on your frame and motor mount.

MAD M40C30 PRO IPE brushless drone motor includes a propeller plate, locate pin, 8.0mm bullet connectors, heat shrink, screws, and stickers for installation.
