MAD M90C60 EEE 9KV Manned Drone Motor, 354-400V, 200.1 kgf Max Thrust, 12.7 kg

MAD

$7,500.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

KV OPTION 9KV

Quantity

View full details

Overview

MAD M90C60 EEE is a manned drone motor (9KV) designed for large manned multi-rotor aircraft, electric paragliders, large eVTOL UAVs, paramotors and paratrikes. It is positioned as an ultra-heavy-duty propulsion system for sustained high-load operation, supporting 70–100 kg single-axis payloads for aerial mobility and cargo lift missions.

Key Features

KV rating: 9KV (EEE: Enthusiasts Extreme Edition)
Recommended hover thrust: 70–100 kgf
Maximum thrust: 200.1 kgf (maximum thrust may depend on battery level, propeller type, air pressure, and other conditions)
Optimized weight: 12.7 kg
Efficiency: >90%
Power output (positioning): 45 kW
Maximum power (specification): 55.6 kW
Recommended propeller size: 72x31 (CB2 PROP 72x31 MATT referenced)
Recommended ESC (specification): SineSic Pro 160A 30KW (150V~435V)
Recommended FOC ESC/Prop system (positioning): HB110-72x31 drone arm set

Specifications

Motor Data

Motor Model	MAD M90C60 EEE V1.0	Number of pole pairs	21
Stator	TAIWAN / Anticorrosive	Varnished wire degree	220°C
Motor size	D:257 x 123 mm	Magnet degree	180°C
Degree of protection	Rain protection	Cable length	250 mm (extended enameled wires)
Centrifugal heat dissipation	Independent	Rotor balance	≤20 mg
Propeller mounting holes	D:75 M8x6	Motor balance	≤30 mg
Shaft diameter	IN: 35 mm	Motor mounting holes	D:140 M8x6
Bearing	6007ZZ x2 (SKF listed)	Disruptive test	1000 V

Electrical & System Specifications

RPM/V	9 KV	Nominal voltage	354~400V
No load current	1.44A / 40V	Internal resistance	40.5 mΩ
Motor weight	12.7 kg	Product boxed weight	14 kg
Maximum current	150.8 A	Maximum power	55.6 kW
Maximum thrust	200.1 kg	Maximum torque	178.9 Nm
Recommended ESC	SineSic Pro 160A 30KW (150V~435V)	Recommended propellers	72x31
UAV take-off weight	100S-72 in/360 kg - Quadcopter; 540 kg - Hexacopter; 720 kg - Octocopter	Single rotor take-off weight	70 kg ~ 100 kg

Analytical Graph Notes (Measured Conditions)

Variables: I = Current, P = Input Power, η = Electrical Efficiency, T = Thrust, N = Rotational Speed
Measured at: input voltage 400 V, temperature 25°C, sea level (rotational speed adjusted by throttle)

Performance Table (CB2 PROP 72x31 MATT, SineSic Pro 160A 30KW)

Input 354 V

Throttle (%)	Voltage (V)	Current (A)	Input Power (W)	Output Power (W)	Torque (N·m)	RPM	Thrust (gf)	Efficiency (%)	Efficiency (gf/W)
30	353.69	11.94	4223.1	3722.8	32.318	1100	38132	88.2	9.0
35	353.63	17.22	6089.5	5440.9	41.400	1255	50974	89.3	8.4
40	353.61	24.73	8744.8	7802.1	53.370	1396	65229	89.2	7.5
45	353.65	32.35	11440.6	10256.7	64.268	1524	77400	89.7	6.8
50	353.61	40.63	14367.2	12926.4	74.675	1653	88799	90.0	6.2
55	353.53	49.85	17623.5	15791.1	85.339	1767	104749	89.6	5.9
60	353.54	60.93	21541.2	19180.5	97.842	1872	118748	89.0	5.5
65	353.51	72.74	25714.3	22698.6	110.140	1968	134255	88.3	5.2
70	353.39	83.41	29476.3	25959.0	120.335	2060	144578	88.1	4.9
75	353.41	97.79	34560.0	29911.6	133.474	2140	158014	86.5	4.6
80	353.4	111.75	39492.4	33693.7	144.933	2220	170431	85.3	4.3
85	353.26	131.27	46372.4	38383.2	160.760	2280	183080	82.8	3.9
90	353.23	146.61	51787.1	42240.5	172.379	2340	194407	81.6	3.8
95	353.22	151.81	53622.3	43387.9	174.673	2372	194858	80.9	3.6
100	353.23	150.8	53267.1	42694.9	172.757	2360	192735	80.2	3.6

Input 400 V

Throttle (%)	Voltage (V)	Current (A)	Input Power (W)	Output Power (W)	Torque (N·m)	RPM	Thrust (gf)	Efficiency (%)	Efficiency (gf/W)
30	399.37	10.28	4105.5	3584.5	30.949	1106	37713	87.3	9.2
35	399.39	15.8	6310.4	5576.2	42.633	1249	52294	88.4	8.3
40	399.41	21.56	8611.3	7678.8	52.564	1395	64712	89.2	7.5
45	399.31	28.46	11364.4	10159.0	63.489	1528	77799	89.4	6.8
50	399.31	37.5	14974.1	13419.4	77.570	1652	94009	89.6	6.3
55	399.32	45.22	18057.3	16177.6	87.329	1769	105734	89.6	5.9
60	399.29	54.85	21901.1	19348.8	98.648	1873	121243	88.3	5.5
65	399.19	64.82	25875.5	22714.3	110.836	1957	135071	87.8	5.2
70	399.24	72.99	29140.5	25427.1	118.329	2052	145502	87.3	5.0
75	399.16	86.31	34451.5	29741.9	133.528	2127	159487	86.3	4.6
80	399.14	98.38	39267.4	33115.0	143.350	2206	168537	84.3	4.3
85	399.06	111.66	44559.0	36852.4	154.892	2272	181329	82.7	4.1
90	399.04	125.57	50107.5	40936.6	166.489	2348	190526	81.7	3.8
95	398.9	133.75	53352.9	42354.6	171.380	2360	196373	79.4	3.7
100	398.6	139.51	55608.7	44598.2	178.955	2380	200164	80.2	3.6

What’s Included

Motor x1
Propeller plate x1
Locate pin x1
8.0 mm bullet connector x3
Heat shrinkable tube x3
M6x25 motor screws x6
M8x90 propeller screws x6
M8x55 propeller screws x6
Sticker x2
Additional accessories list also includes: M8x30 mm motor screws x6

Applications

Electric manned aircraft and PAV systems
Heavy-lift VTOL and long-range aerial transport platforms
Advanced aerospace and eVTOL propulsion projects

For integration guidance, compatibility checks (ESC/prop/arm set), and after-sales support, contact support@rcdrone.top or visit https://rcdrone.top/.

Details

MAD M90C60 EEE motor drawings provide key outer dimensions and bolt-circle details to help plan mounting and clearance.

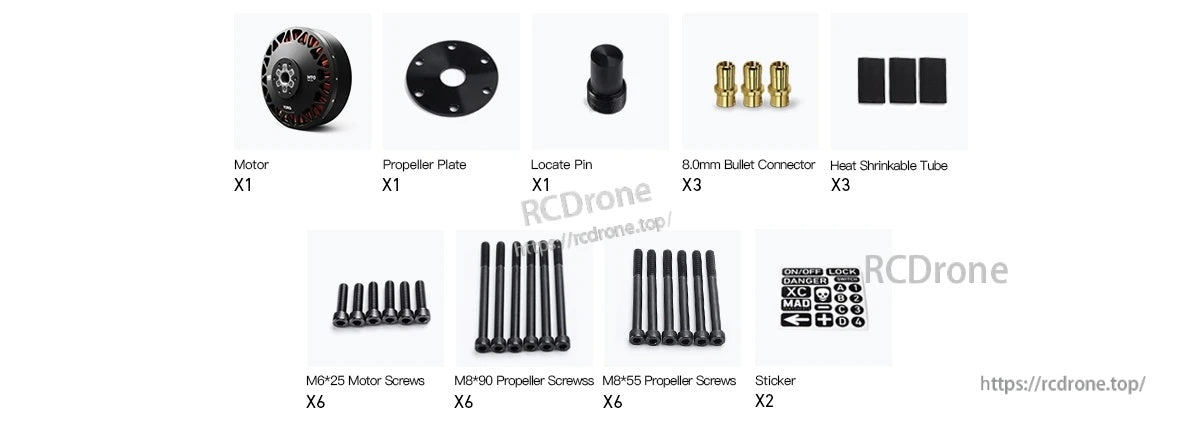

The MAD M90C60 motor package includes a propeller plate, locate pin, 8mm bullet connectors with heat-shrink, mounting screws, and stickers for a cleaner install.
