Overview
MAD 9X12-II Coaxial Drone Arm Set is a product type for multirotor UAV coaxial propulsion/arm integration. It is specified for recommended take-off weight 7000g-9000g per rotor (at 48V, sea level) and lists max thrust 22643g per rotor (at 48V, sea level). The system features neat cable arrangement, easy installation, and Field-Oriented Control (FOC).
Key Features
- Integrated propulsion system for coaxial multirotor arms
- Field-Oriented Control (FOC) sine-wave driving mode
- Neat cable arrangement; designed for easier installation
- Red/green LED heading light integrated at the bottom of the power pack
- Compatible carbon tube: 40mm
- CAN communication: DroneCan
- Compatibility: Ardupilot
For installation and selection support, contact https://rcdrone.top/ or support@rcdrone.top.
Specifications
| Model | MAD 9X12-II (KV100 shown in parameter table) |
| Max thrust | 22643g / rotor @48V (sea level) |
| Recommended take-off weight | 7000g-9000g / rotor @48V (sea level) |
| Recommended voltage | 12S Lipo (ESC table also lists 12S) |
| Operating temperature | -20~60°C |
| Unit combo weight | 1533g |
| Extension wire length | 1300mm/1300mm (Input/Signal Wires) |
| Compatible carbon tube | 40mm |
| Propeller diameter/pitch options | 32x9.6inch (812.8x243.8mm); 32x11inch (812.8x279.4mm) |
| Propeller unit weight | 127g/pc |
| Motor stator size | 91x12 mm |
| Motor unit weight | 453g |
| ESC model name | Circular 60A FOC |
| ESC max input voltage | 60.9V |
| ESC maximum allowable current | 60A (10S) |
| ESC maximum continuous current | 30A |
| Max throttle signal frequency | 450Hz |
| Compatibility | Ardupilot |
| CAN communication | DroneCan |
Benchmarks (12S, Circular FOC 60A (6-14S), Fluxer Pro 32x9.6 MATT)
Benchmark tables are provided for TOP and BOTTOM positions. Table columns shown: Throttle (%), Voltage (V), Current (A), Input Power (W), Output Power (W), Torque (N·m), RPM, Thrust (gf), Efficiency (%), Efficiency (gf/W). Temperature limits shown: TOP max 84°C; BOTTOM max 76°C.
Troubleshooting
Status can be judged by LED indicator and emitted sounds. The documentation provides fault symptoms, possible causes, and solutions for self-check and operation, including items such as throttle PWM signal missing/misidentified, high throttle detected at power-on, motor circuit disconnection, abnormal supply voltage, controller hardware abnormalities, motor start failure/stall protection, short circuit/overcurrent protection, loss of PWM signal during operation, and high temperature detection.
Description
- Max thrust (marketing text): 19.9kgF/rotor; recommended working range: 8-10kgF/rotor
- Neat cable arrangement and easy to install
- Ultralight weight for industrial multirotor applications including mapping, aerial inspection, search and rescue, and more
- Field-Oriented control
Details

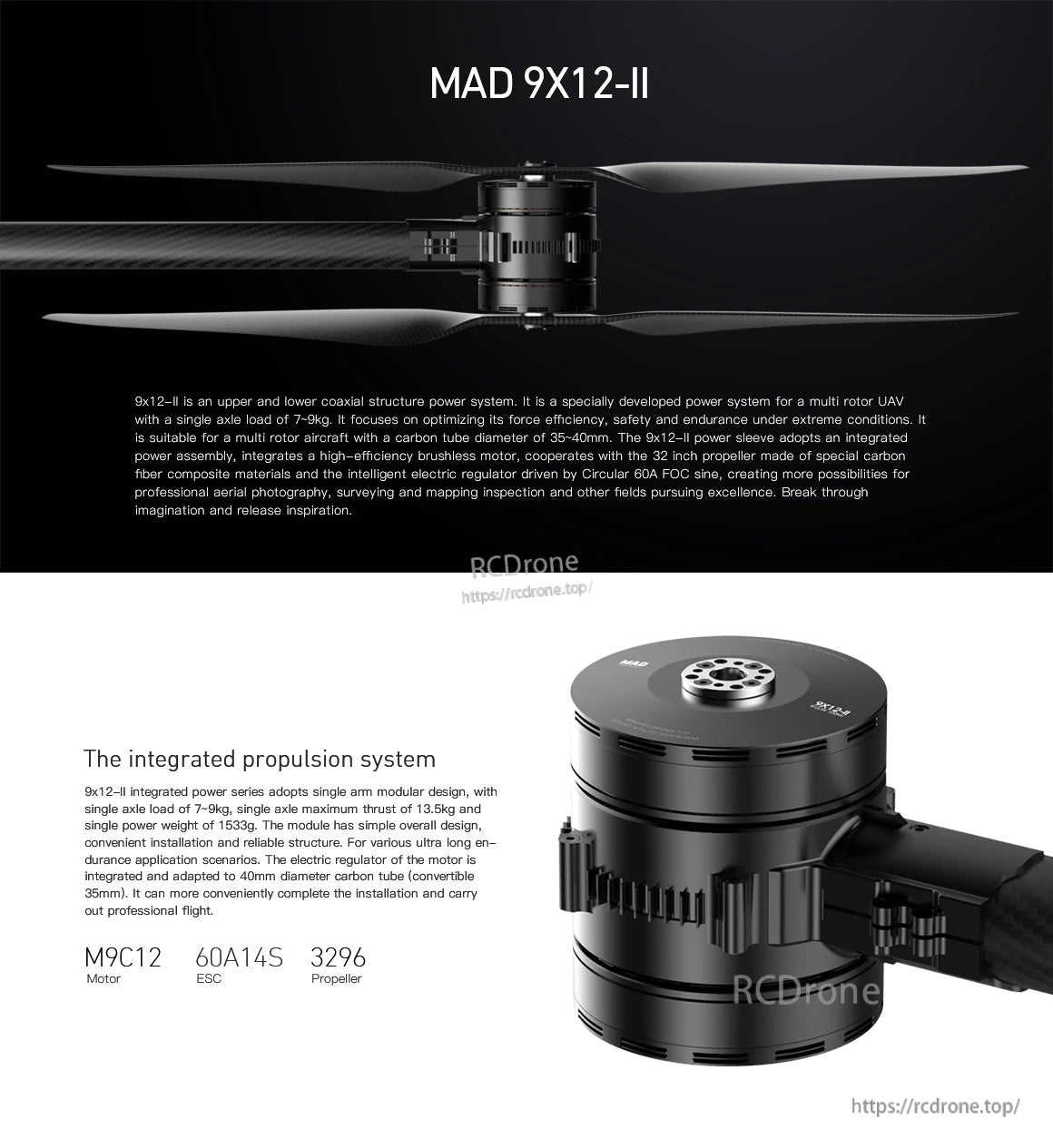

The MAD 9X12-II integrates the MC912 motor, 60A14S ESC, and 3296 propeller into a coaxial arm power system for multirotor builds.

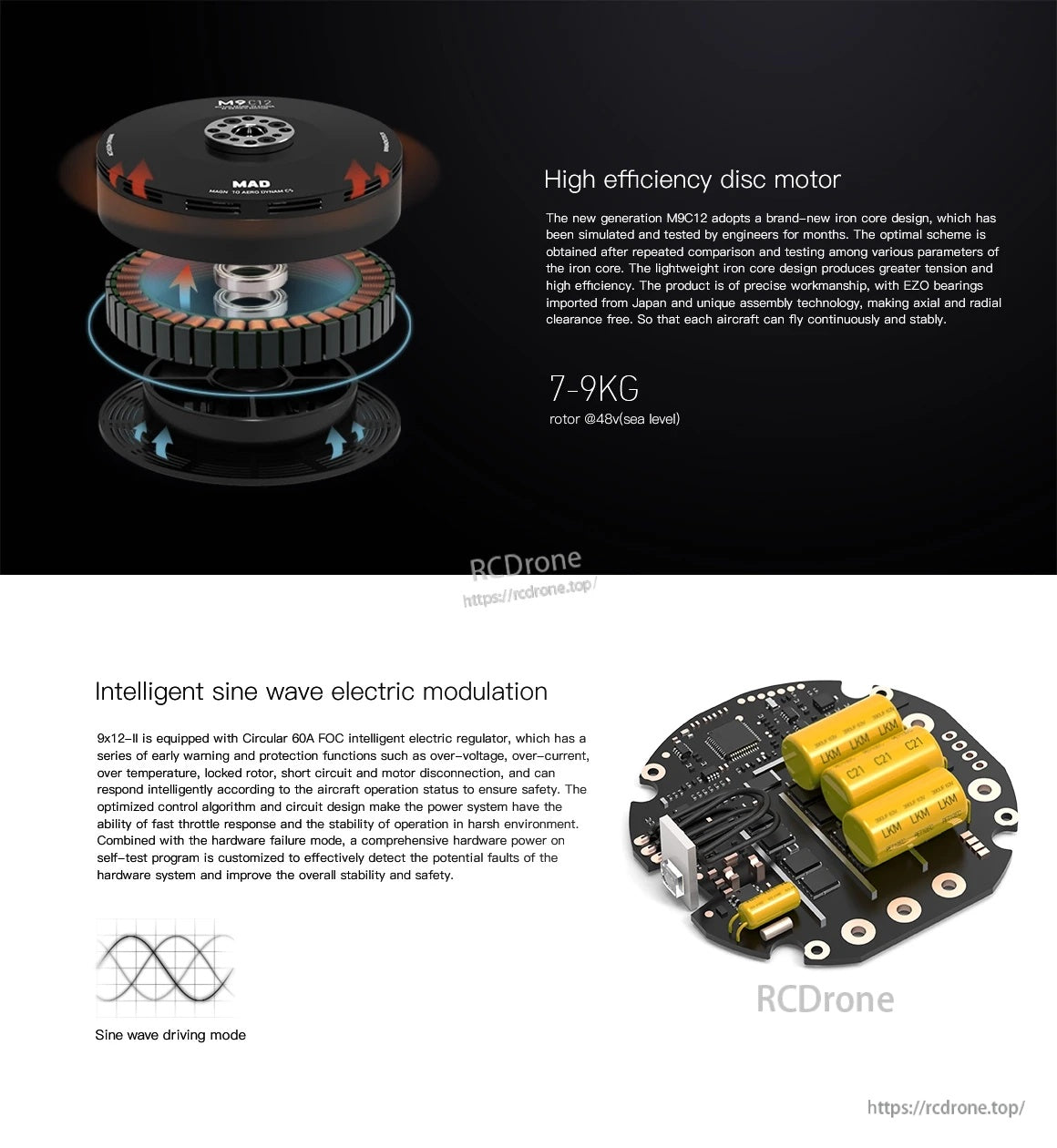

The high-efficiency disc motor and sine-wave drive controller are designed for smooth operation and stable thrust under load.

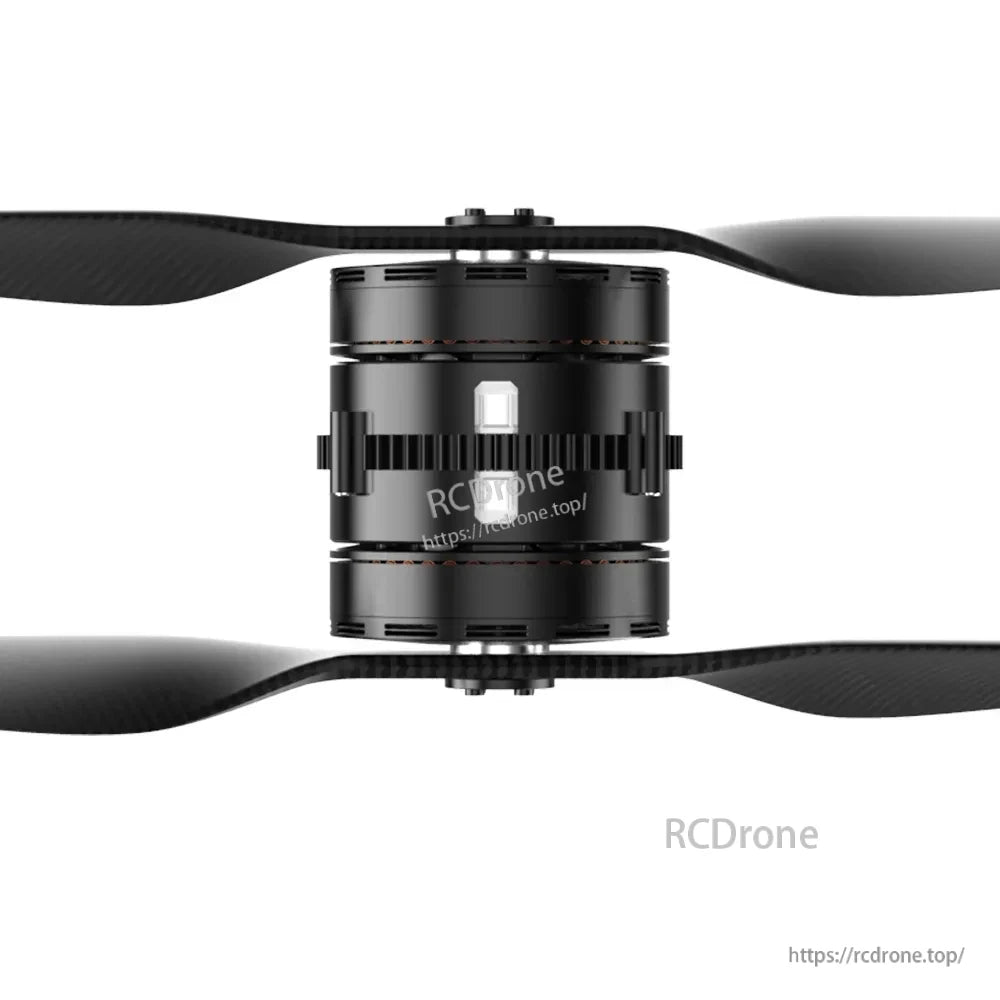

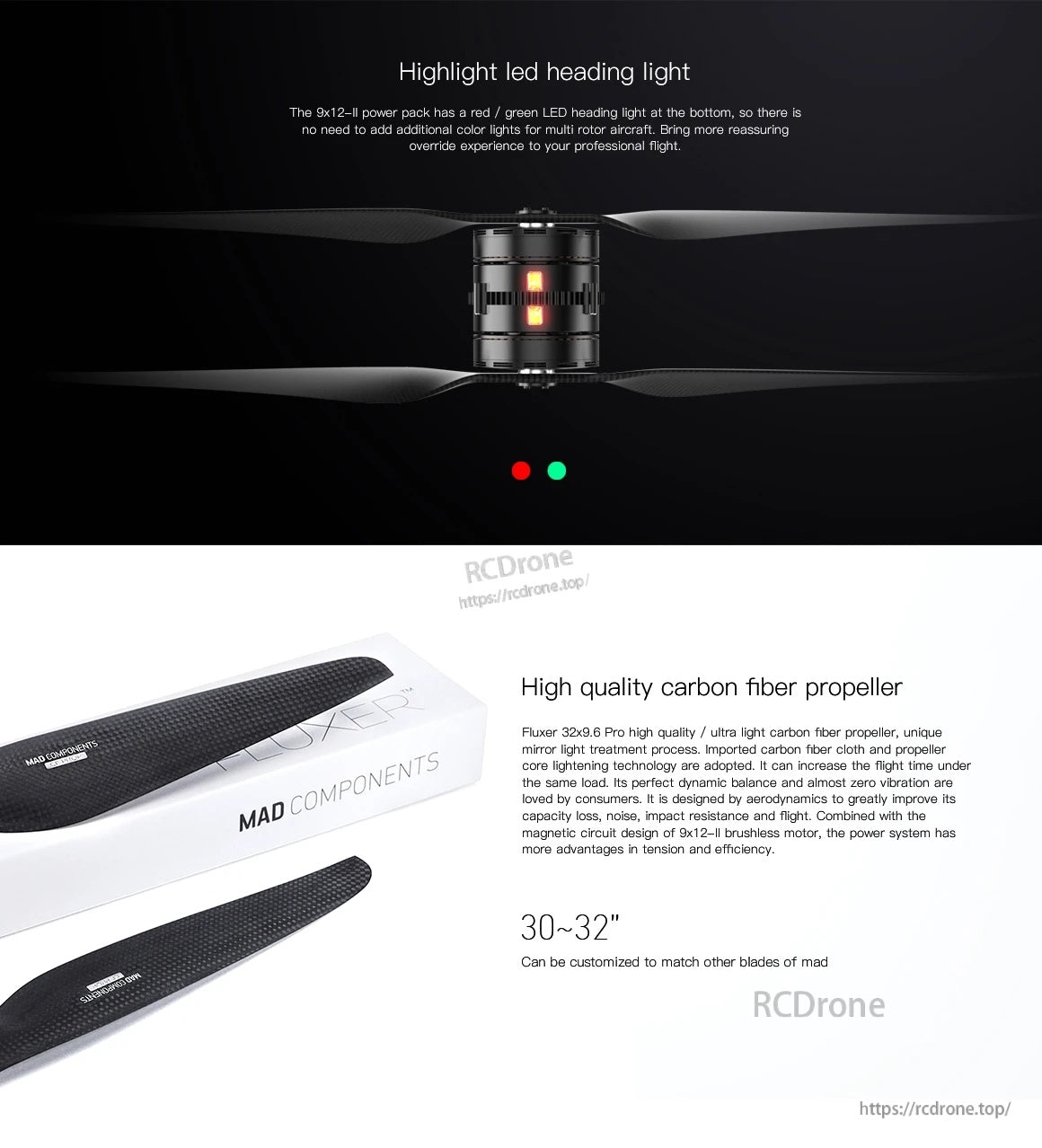

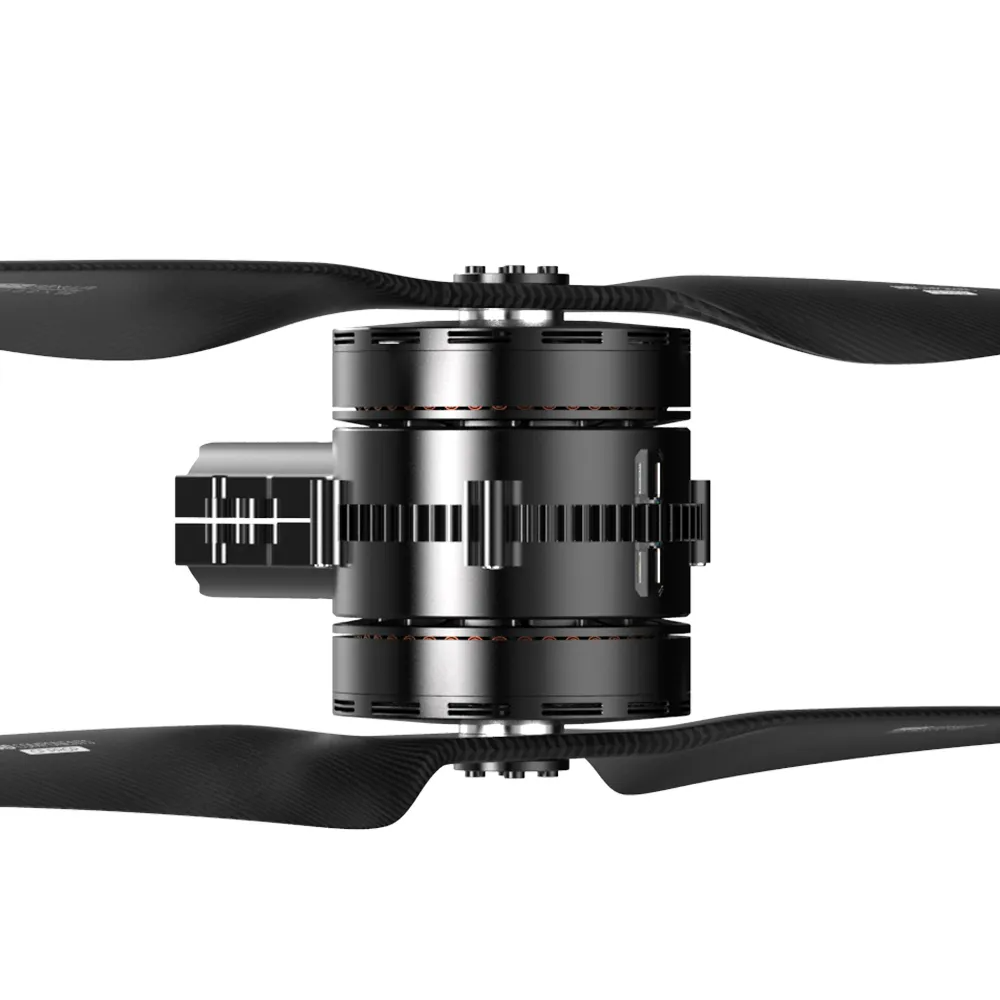

The coaxial propeller setup pairs carbon fiber blades with a central power pack that includes red and green LED heading lights.

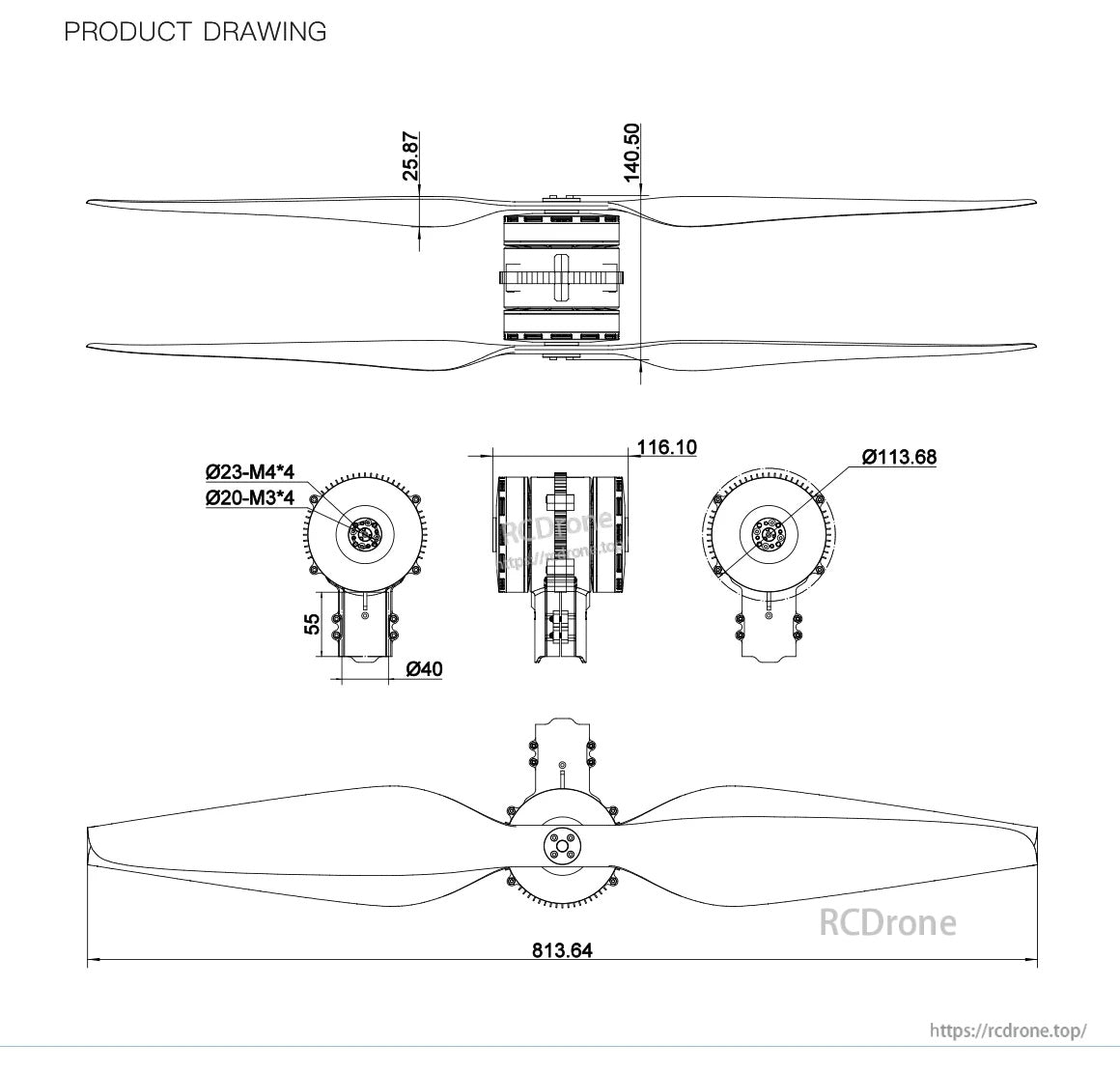

The MAD 9X12-II drawing provides key measurements like the 813.64 mm span and Ø113.68 mm hub diameter to help confirm fitment.

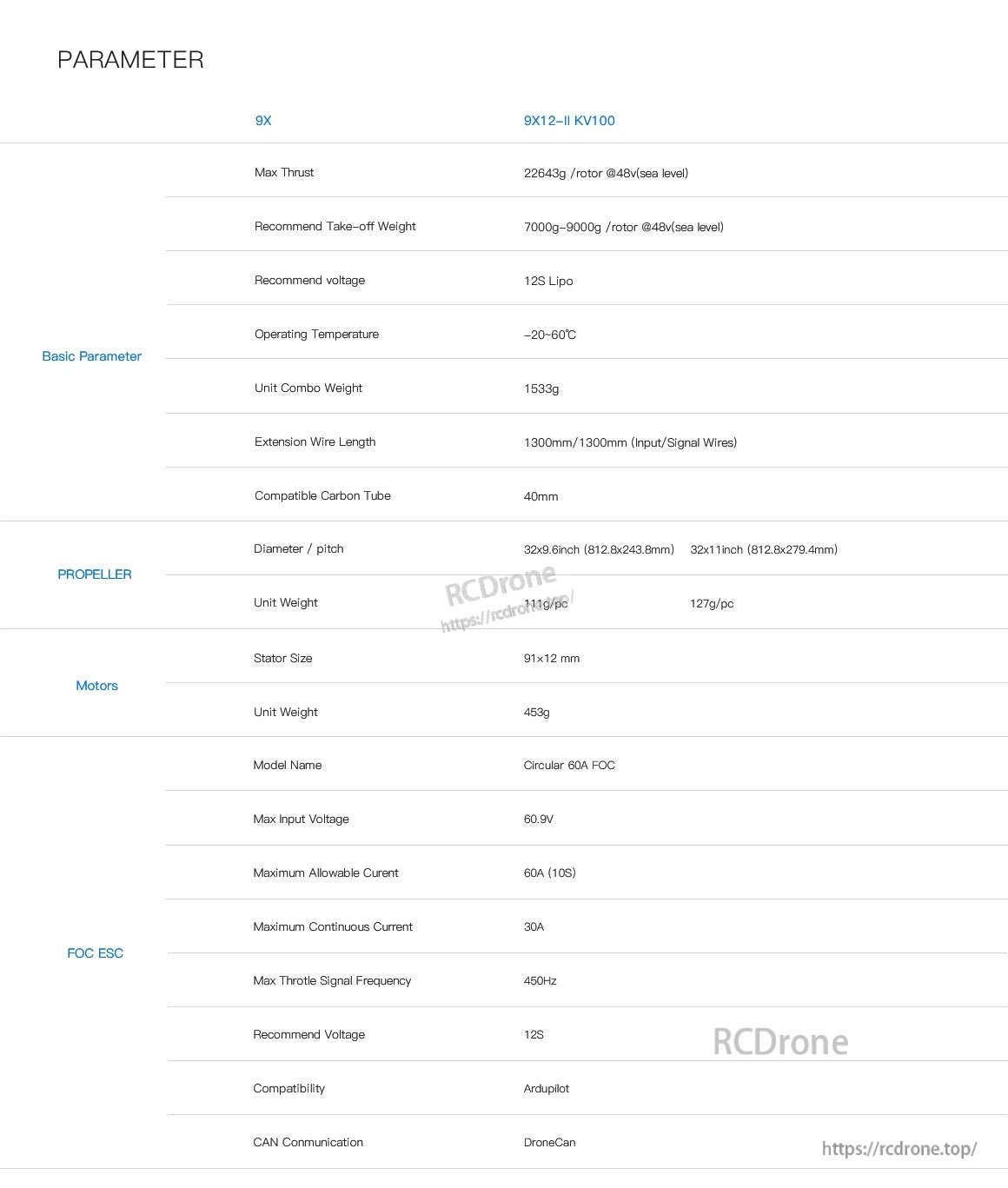

The MAD 9X12-II KV100 setup lists key specs like 12S LiPo voltage, 32-inch prop options, and a 60A FOC ESC with DroneCAN support.

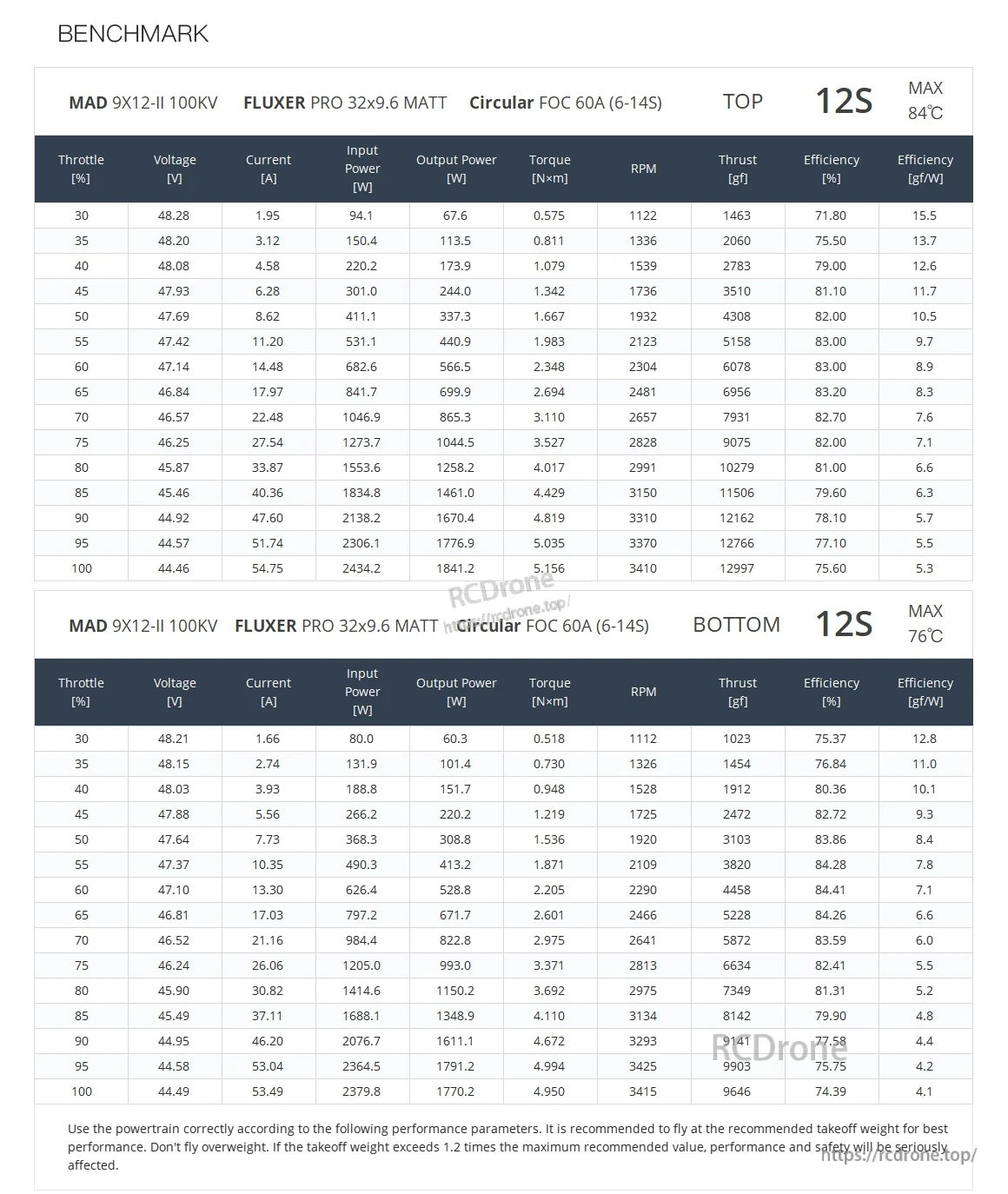

MAD 9X12-II 100KV test results on a 12S setup list throttle-by-throttle data for thrust, RPM, power draw, torque, and efficiency for both top and bottom configurations.

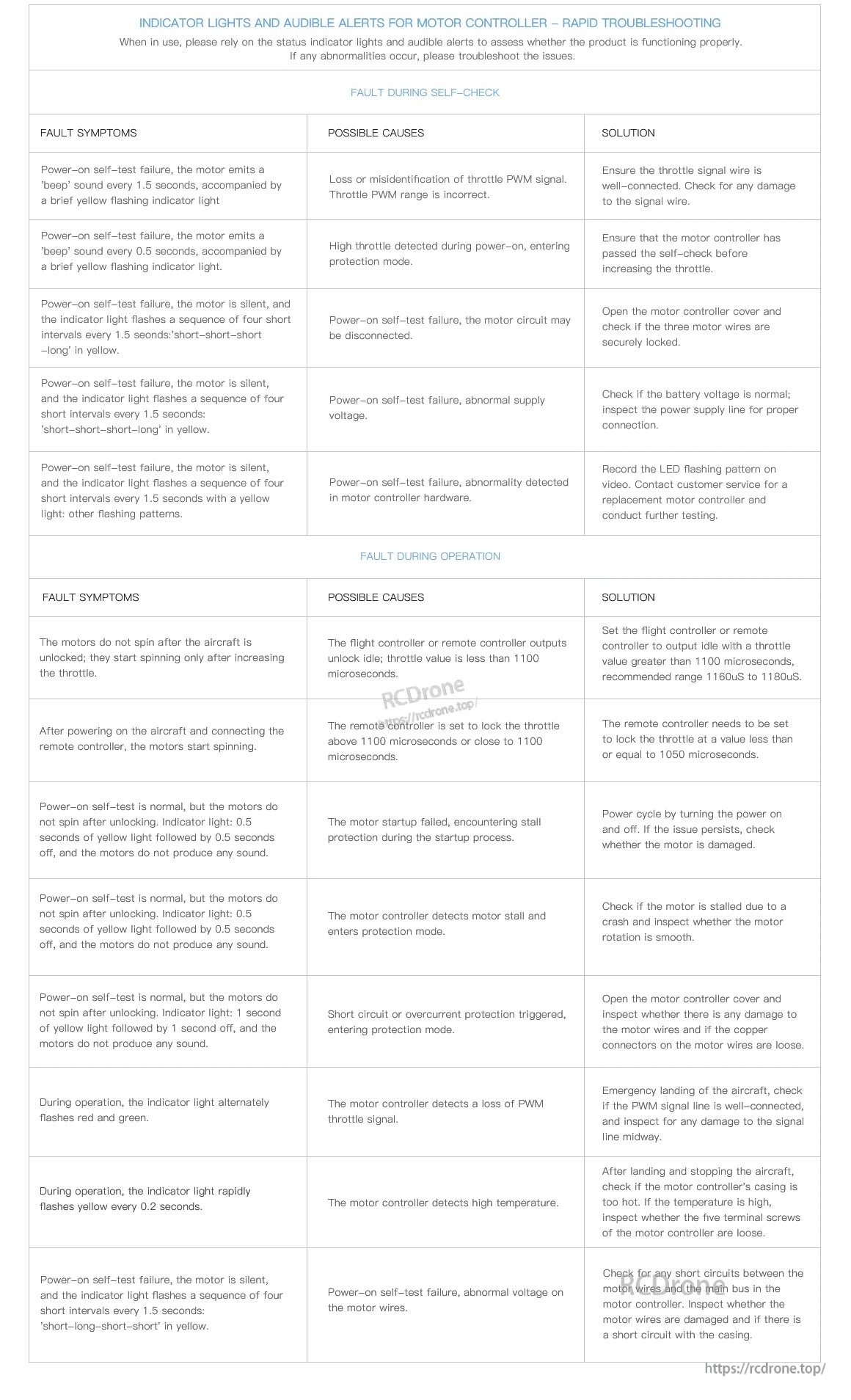

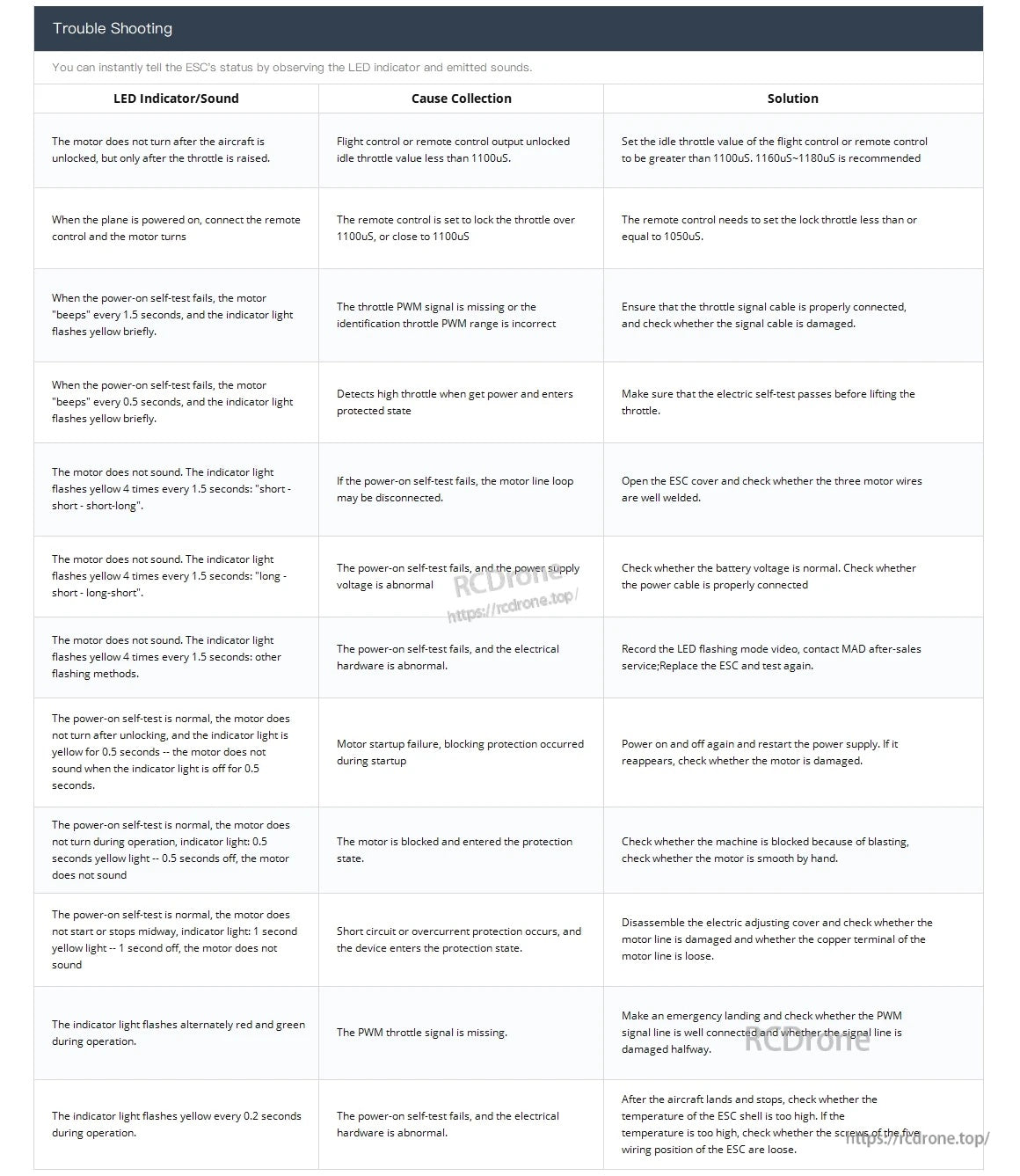

The included ESC troubleshooting guide pairs LED indicator patterns and beep codes with likely causes and setup fixes.
Details

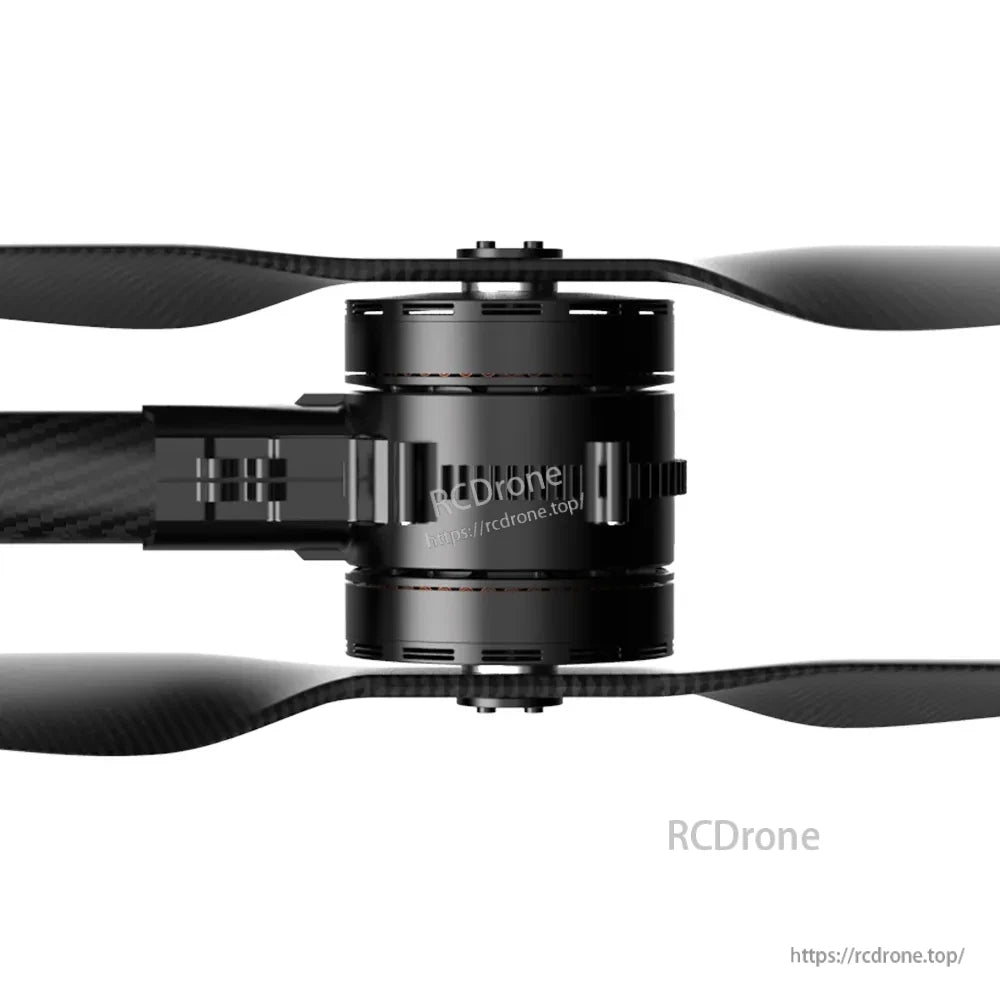

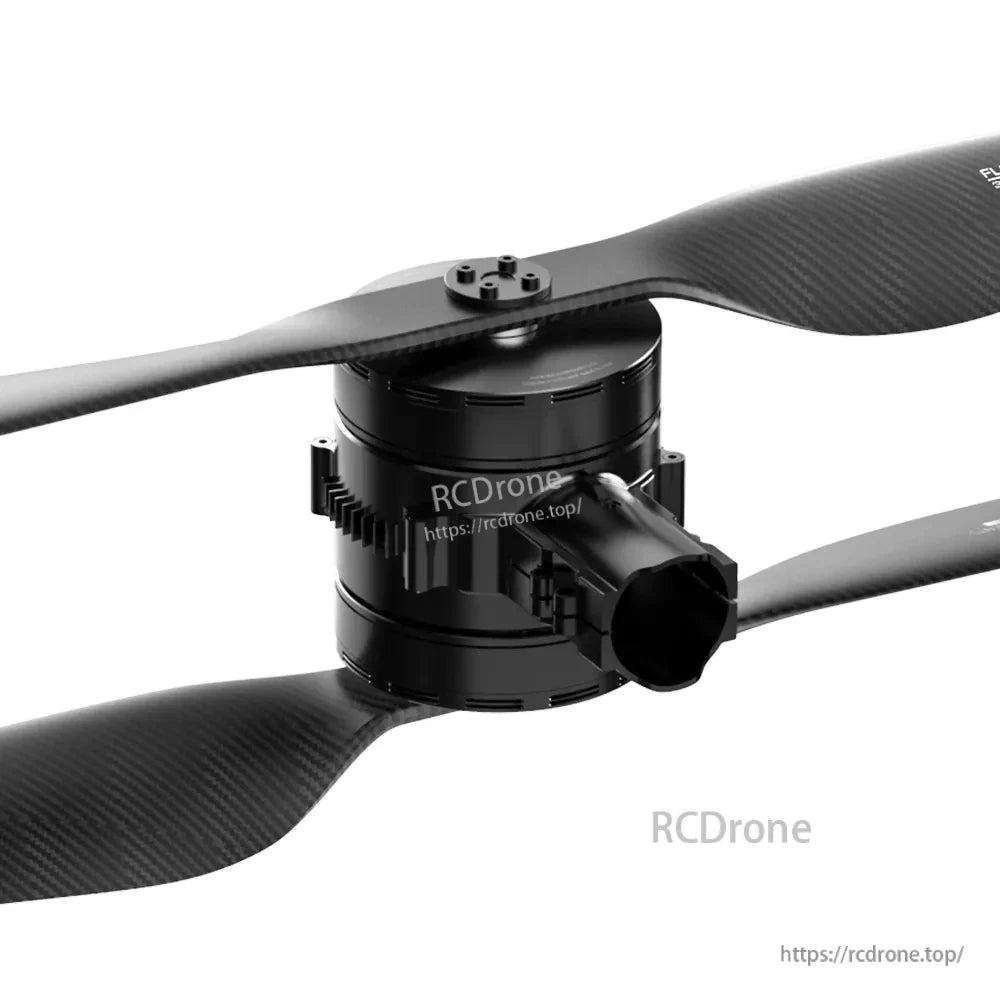

The MAD 9X12-II coaxial drone arm combines a coaxial motor module with matching MC912 motor, 60A14S ESC, and 3296 propeller set.
A high-efficiency disc motor pairs with an intelligent sine-wave controller board for smoother, quieter drive control.

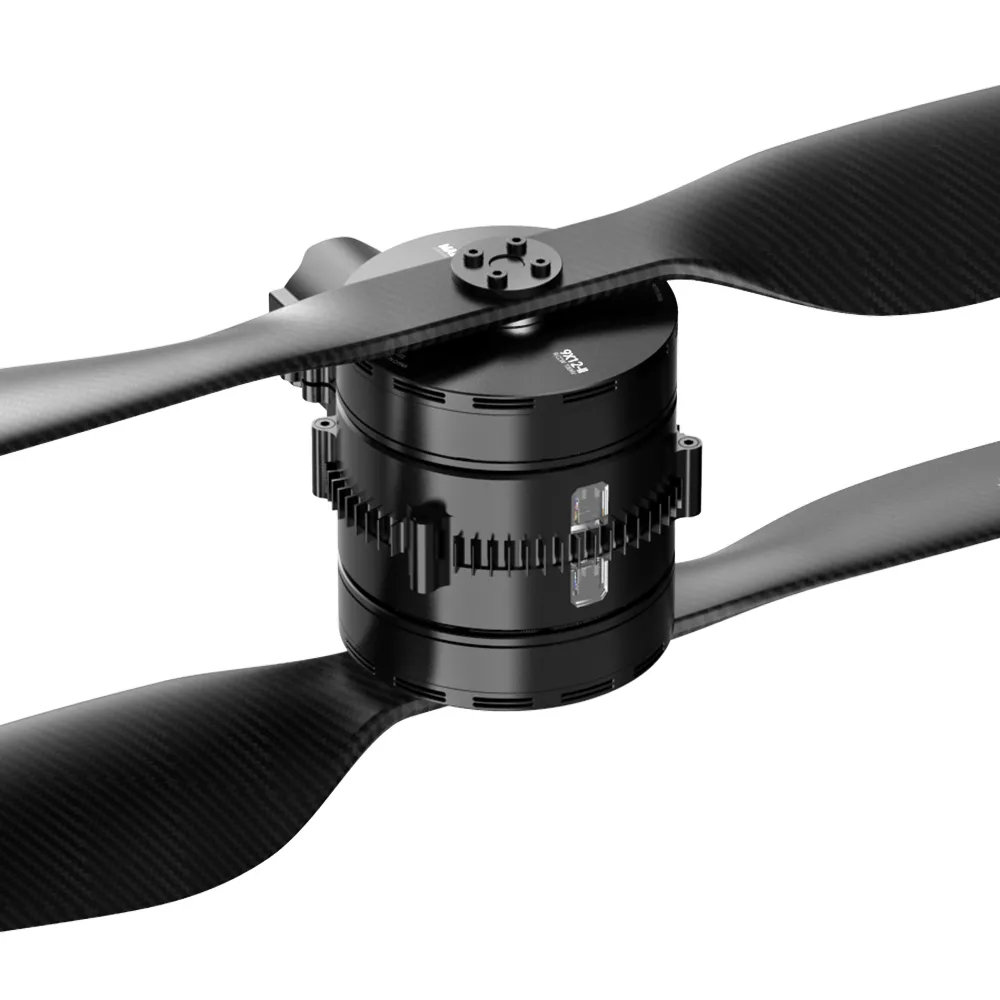

The carbon fiber propeller set includes a central power pack with a red/green LED status indicator for quick checks before flight.
The MAD 9X12-II coaxial drone arm diagram provides key measurements for fitting the arm and prop layout into your build.
MAD 9X12-II coaxial drone arm parameters include 12S LiPo operation, a 40 mm compatible carbon tube, and a DroneCAN/Ardupilot-ready 60A FOC ESC.
MAD 9x12-II 100KV benchmark results list top and bottom performance on 12S, including current, power, thrust, RPM, and efficiency, with a noted max temperature of 84°C.
The troubleshooting guide outlines common LED and sound patterns, likely causes, and practical steps for resolving ESC power and signal issues.
A quick-reference guide lists common motor controller faults, possible causes, and recommended solutions based on indicator lights and audible alerts.
