MAD M8S C10 (8110) EEE V1 Drone Motor
MAD M8S C10 (8110) EEE V1 Drone Motor
MAD
Couldn't load pickup availability
Overview
| Sustained thrust: | 3.5~4.5kg |
| Max thrust: | 11.6kg |
| Support voltage: | 12S |
| Weight: | 303g |
Description
About M8S C10 EEE V1
Positioning:
• Evolved from the classic 8110 UAV motor platform, trusted in high-end aerial applications
• Designed for endurance missions in aerial photography, mapping, archaeology, and exploration
• Supports 3.5–5 kg single-axis payloads with 29–32 inch carbon fiber propellers
Key Features:
✔ Latest MAD M8 EEE version — lighter and more efficient than previous generations
✔ Max thrust: 10.7 kg per axis
✔ Lightweight construction at only 303g
✔ Ideal for flights ranging from 30 to 120 minutes
✔ Proven efficiency and reliability in long-range UAV systems
Perfect for:
• Professional drones for remote sensing, surveying, and cinematic aerial work
• Builders seeking top-tier performance in the 8110 motor class
Motor Data |
|||
| Motor Model | MAD M8S C10 EEE V1.0 | Number of pole pairs | 21 |
| Stator | Anticorrosive | Varnished wire Degree | 180°C |
| Motor Size | D:87.3 × 30.75 mm | Magnet Degree | 150°C |
| Degree of Protection | IP45 | Cable Length | 80 mm 16# Awg(Black) silicone |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:20 M3×4, D:23 M4×4 | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 12 mm | Motor Mounting Holes | D:36 M4×4 |
| Bearing | EZO 6901ZZ*2 | Disruptive test | 1000 V |

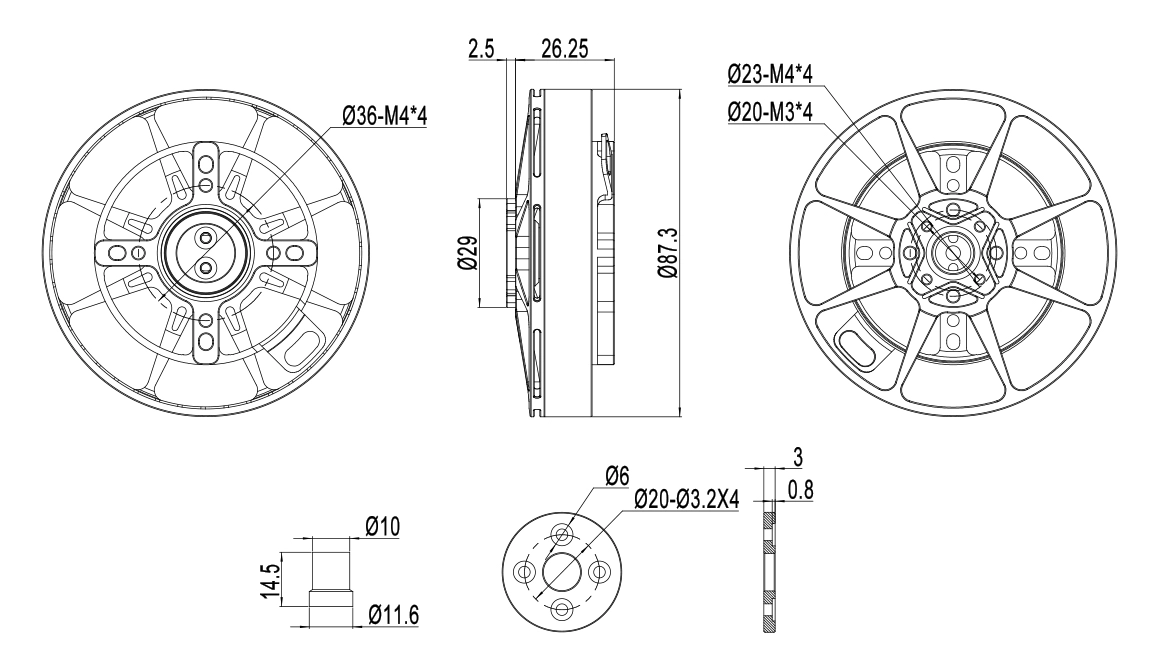

Drawing and mount holes
___________________________________________________________________________________________________________________________

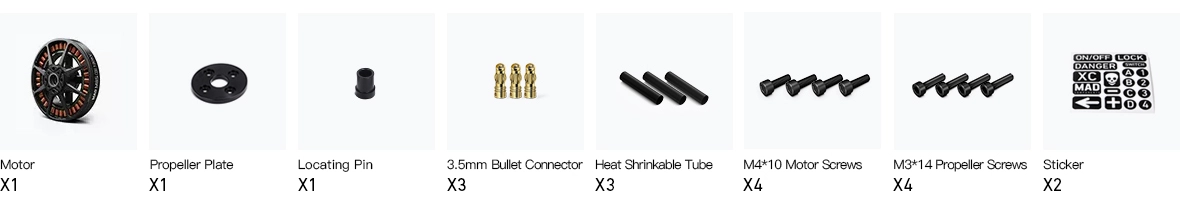

Accessories
100KV
