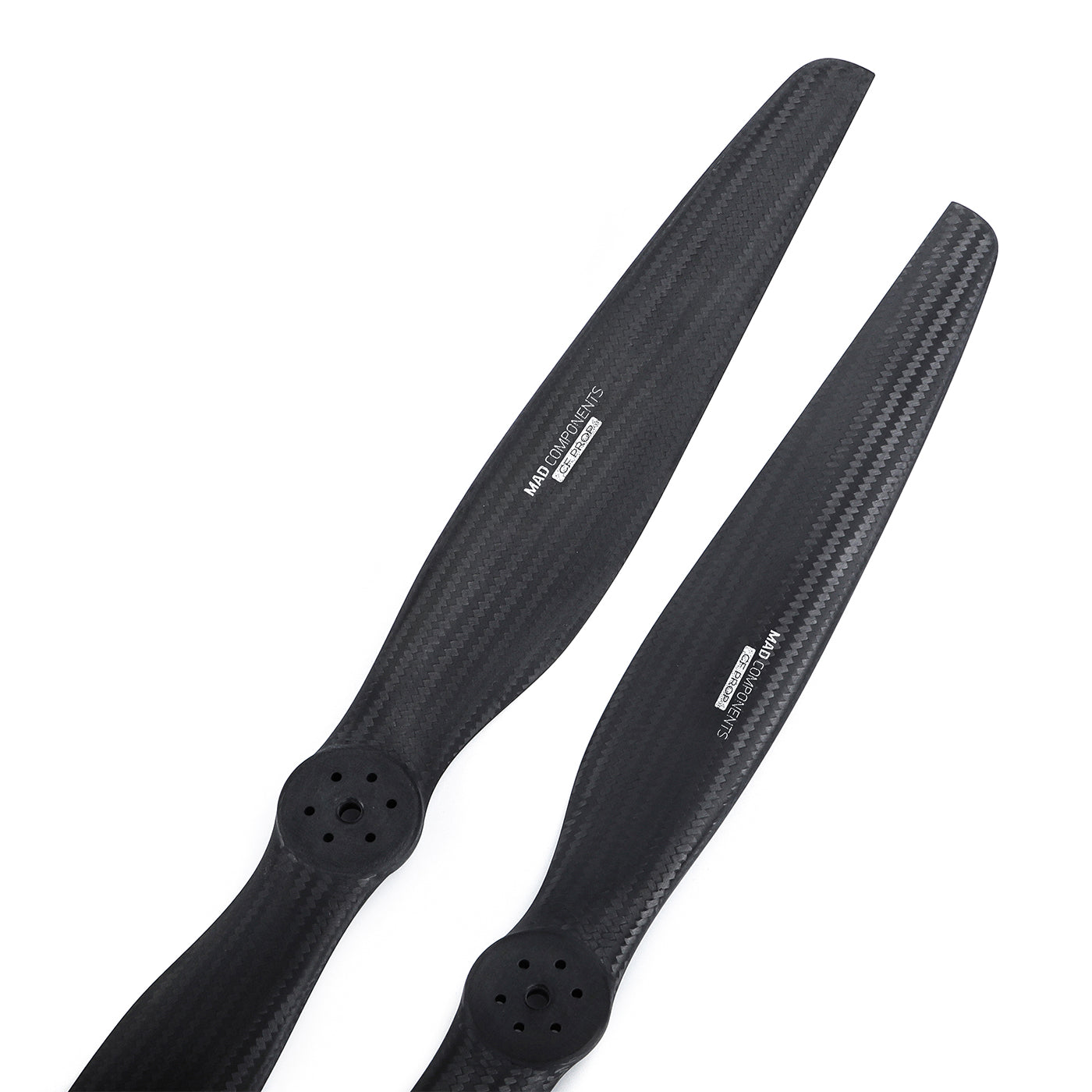

• MAD FLUXER EVTOL Carbon Fiber Propeller, Pair of MAD FLUXER eVTOL carbon fiber two-blade propellers with black weave finish and multi-hole hubs

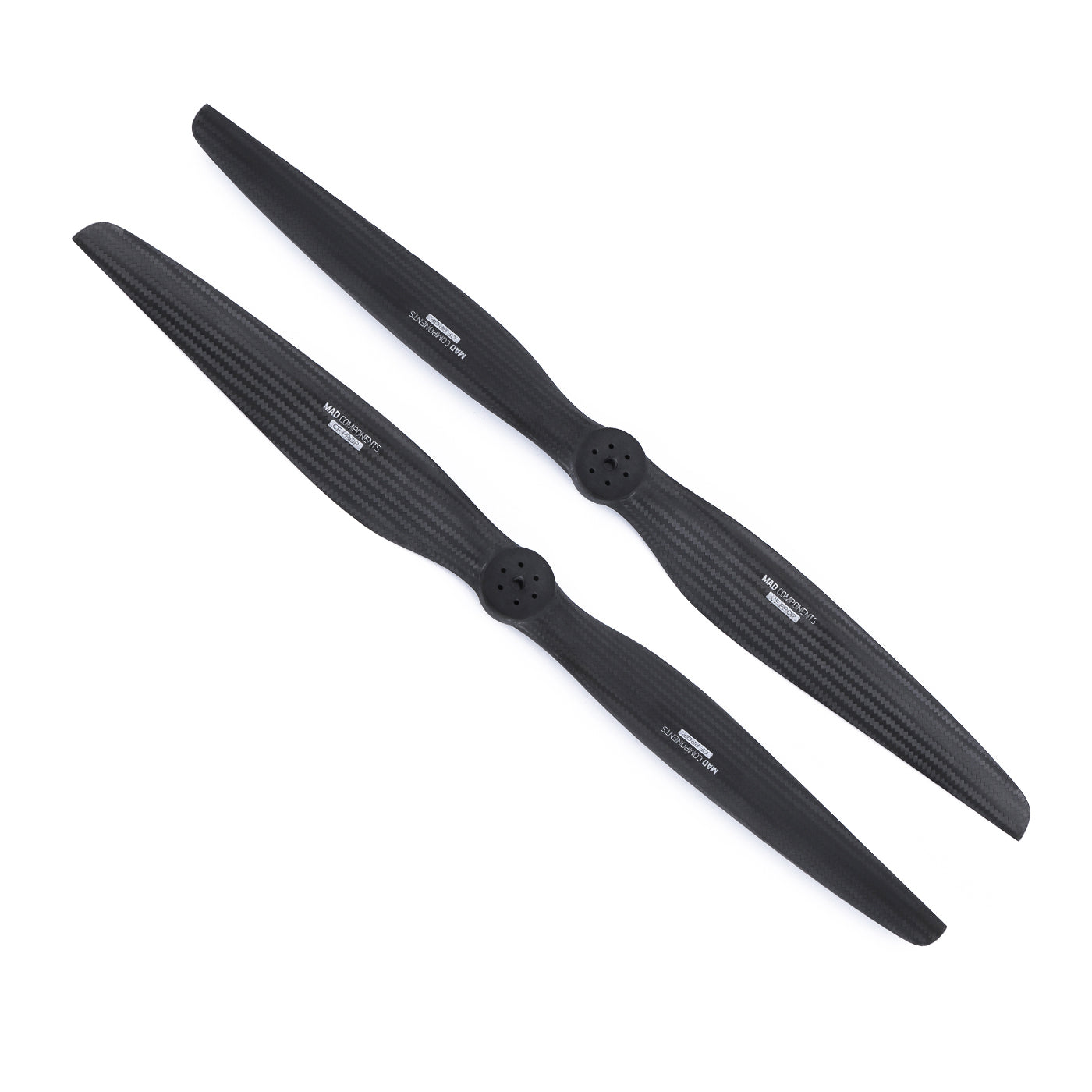

  • MAD FLUXER EVTOL Carbon Fiber Propeller, Pair of MAD FLUXER eVTOL carbon fiber two-blade propellers with a multi-hole center mounting hub

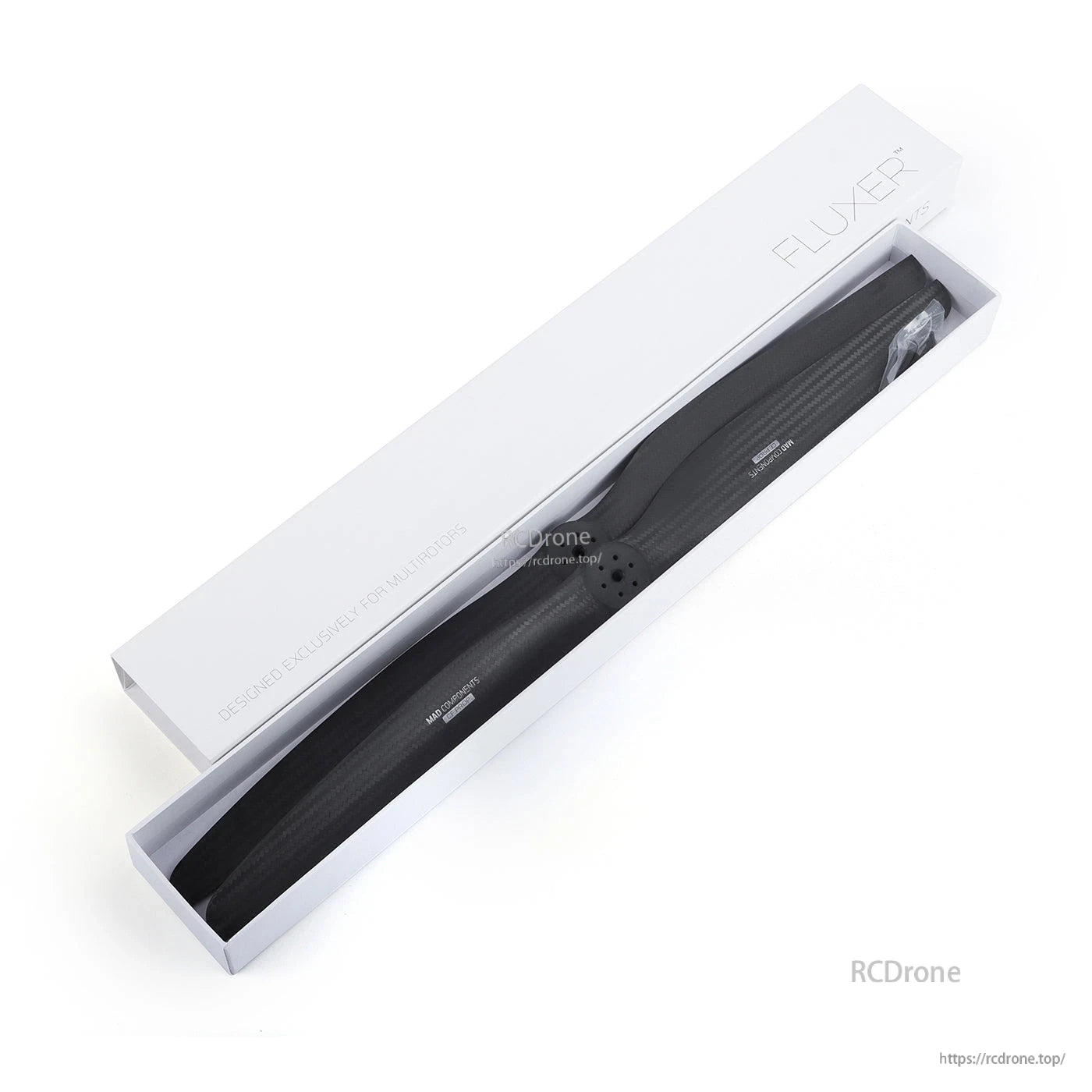

  • MAD FLUXER eVTOL carbon fiber propeller in a white FLUXER box, black blade with visible weave finish

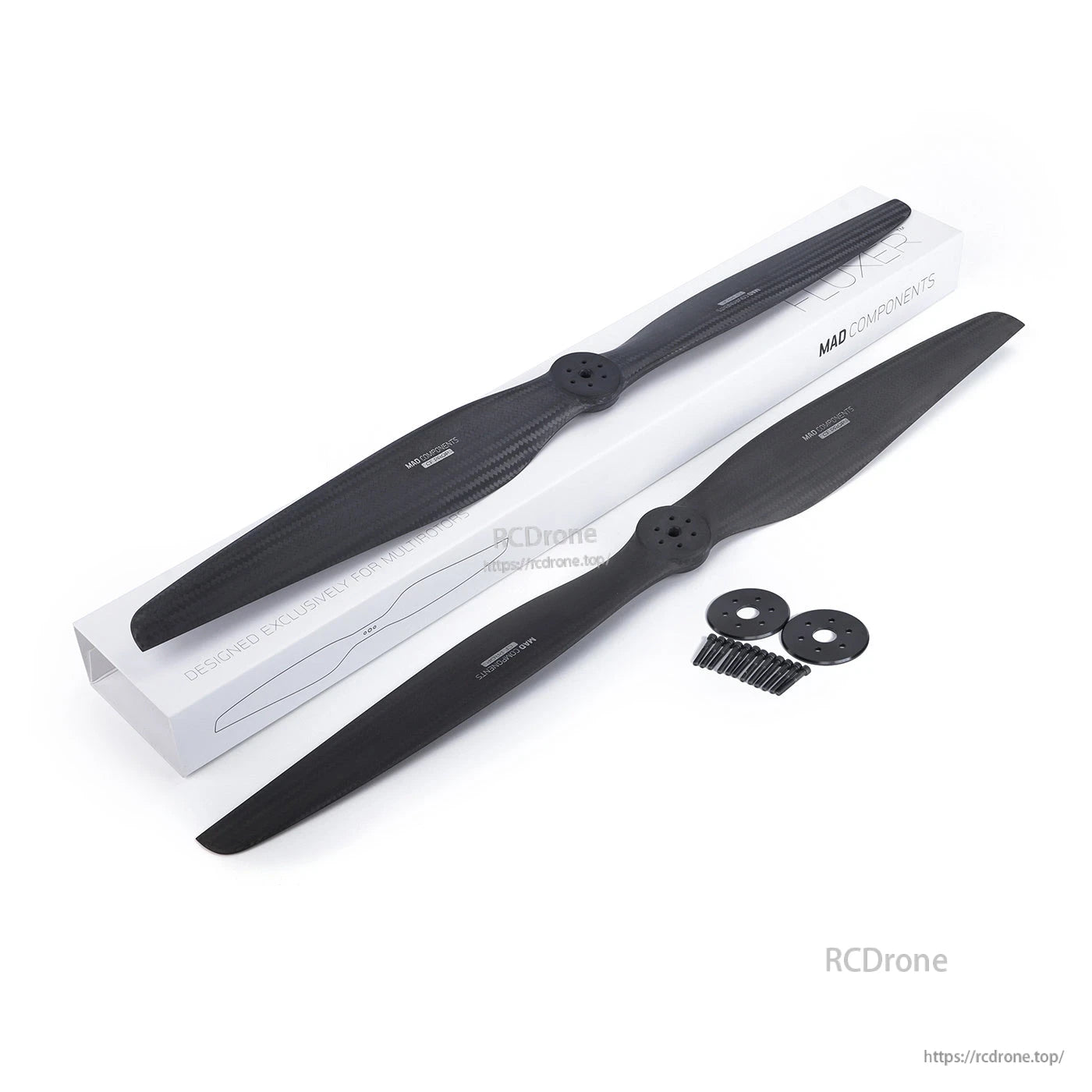

  • MAD FLUXER EVTOL Carbon Fiber Propeller, MAD Fluxer carbon fiber eVTOL propeller set with two blades, mounting plates, and screws on box

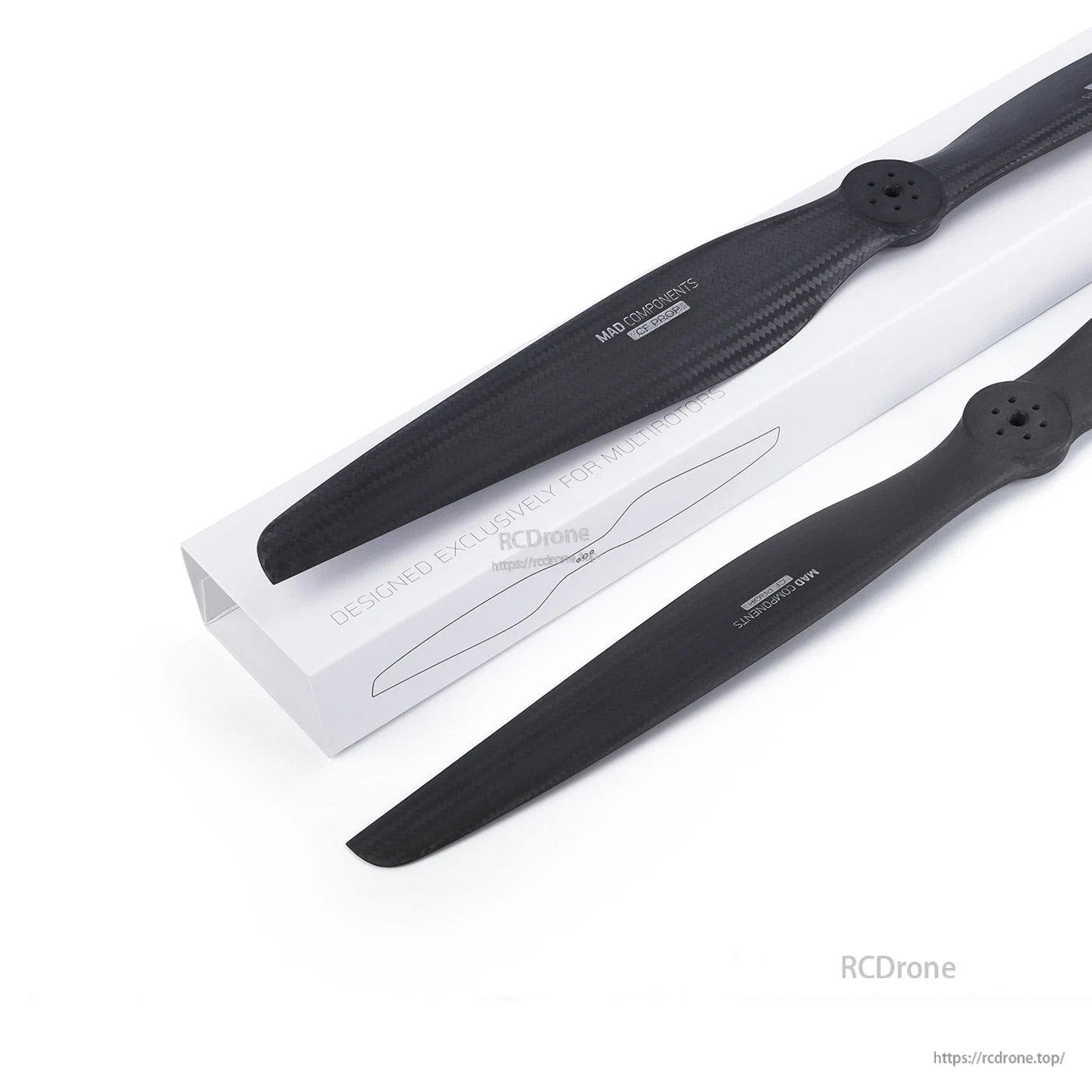

  • MAD FLUXER EVTOL Carbon Fiber Propeller, Carbon fiber eVTOL propeller set with two black blades and mounting hubs, displayed beside a white box
1 5

MAD FLUXER EVTOL Carbon Fiber Propeller 45x17.5 inch CCW, Matt Finish, M5 Mount, 2pcs Set

MAD FLUXER EVTOL Carbon Fiber Propeller 45x17.5 inch CCW, Matt Finish, M5 Mount, 2pcs Set

MAD

$1,117.50 USD
$1,117.50 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Propeller mounting holes
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

This MAD FLUXER EVTOL carbon fiber propeller is a 45 x 17.5 inch CCW prop designed for eVTOL/aircraft propulsion applications, with a matt surface treatment and specified operating and storage limits.

Key Features

  • Carbon fiber + resin construction
  • Matt surface treatment
  • Specified optimum RPM range: 2500–3700 RPM/min
  • Single thrust limitation: 90 kg
  • Mounting pattern details provided (see Specifications)

Specifications

Prop size 45 x 17.5 inch
Size 1143 x 444.5 mm
Rotation CCW
Material High quality carbon fiber + Resin
Surface treatment Matt
Single weight 290±25 g
Working temperature -40°C~65°C
Storage temperature -10°C~50°C
Storage humidity < 85%
Optimum RPM 2500–3700 RPM/min
Single thrust limitation 90 kg
Mounting hole reference Ø11, Ø34, M5*6
Package Cowhide cardboard box
Other accessories (noted) 12 x 5*45 mounting screws; 2 x 65mm Dia x 3.5mm propeller plate
Provided note D10-D24 (M4*4) for M30

Test Data

RPM Thrust (gf) Torque (N*m) Output Power (W) Efficiency (gf/W)
915 3700 2.1 201.5 18.34
1283 7600 4.2 559.4 13.59
1722 14090 7.6 1373.9 10.25
2005 19410 10.5 2193.7 8.85
2442 29050 15.7 4007.0 7.25
2763 37660 20.3 5874.3 6.41
3284 53690 29.4 10118.3 5.31
3602 65700 36.2 13658.3 4.81
4025 84910 47.6 20077.2 4.23
4284 97100 56.0 25109.7 3.87

What’s Included

  • 45 x 17.5 propeller: 2 pcs
  • 65mm Dia x 3.5mm propeller plate: 2 pcs
  • Hex socket cap head screw M5*45: 12 pcs

Support

For compatibility questions (including hub/mount patterns) or order assistance, contact support@rcdrone.top or visit https://rcdrone.top/.

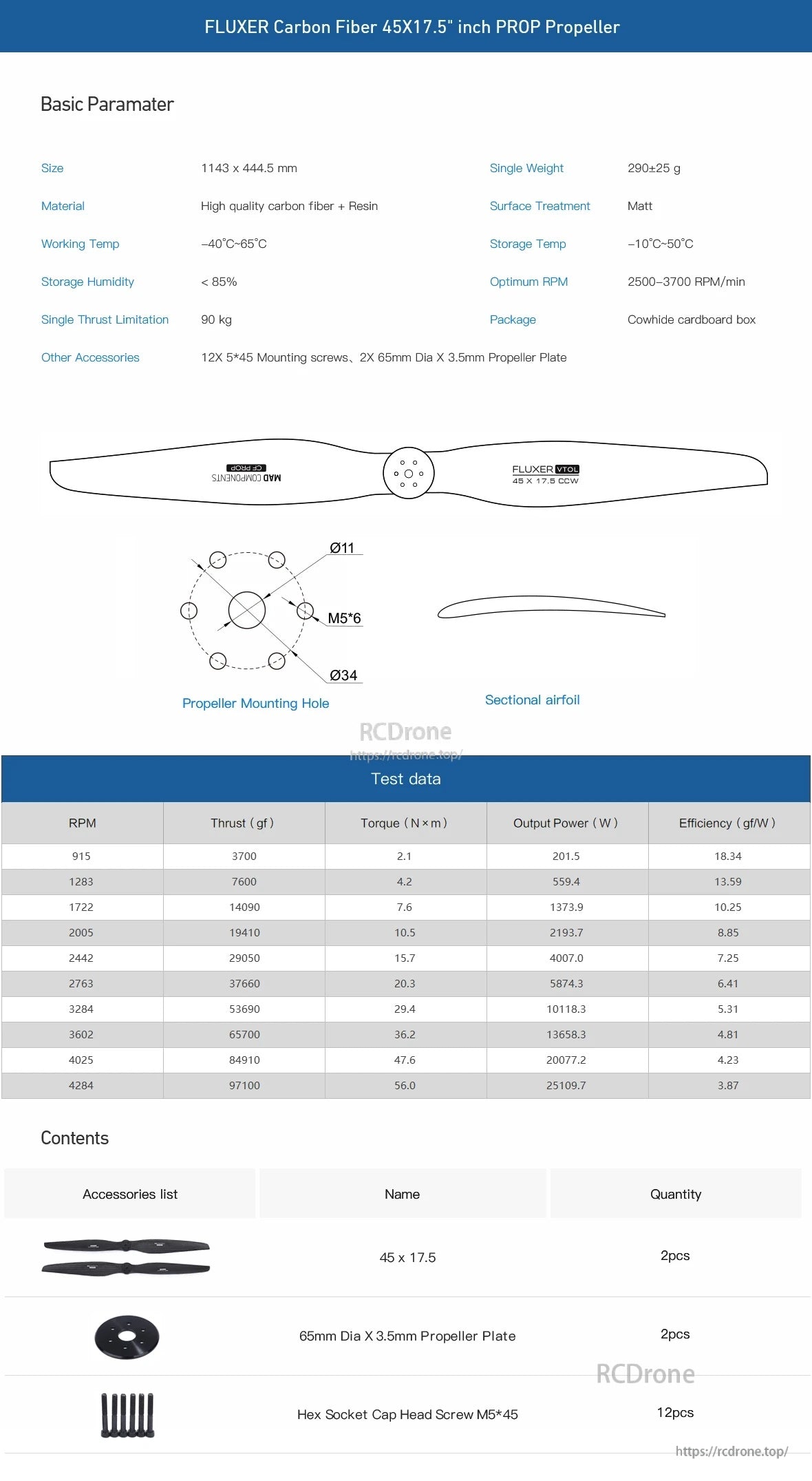

MAD FLUXER EVTOL Carbon Fiber Propeller, Spec sheet for FLUXER 45x17.5 inch carbon fiber RC/drone propeller with mounting hole diagram and package contents

The FLUXER 45x17.5-inch carbon fiber propeller includes a mounting hole layout plus plates and screws to simplify installation.

Details

MAD 45x17.5Inch FLUXER EVTOL carbon fiber Propeller

The MAD FLUXER 45×17.5 in carbon fiber propeller set includes mounting plates, M8×45 screws, and a mounting-hole layout with performance test data for setup reference.
