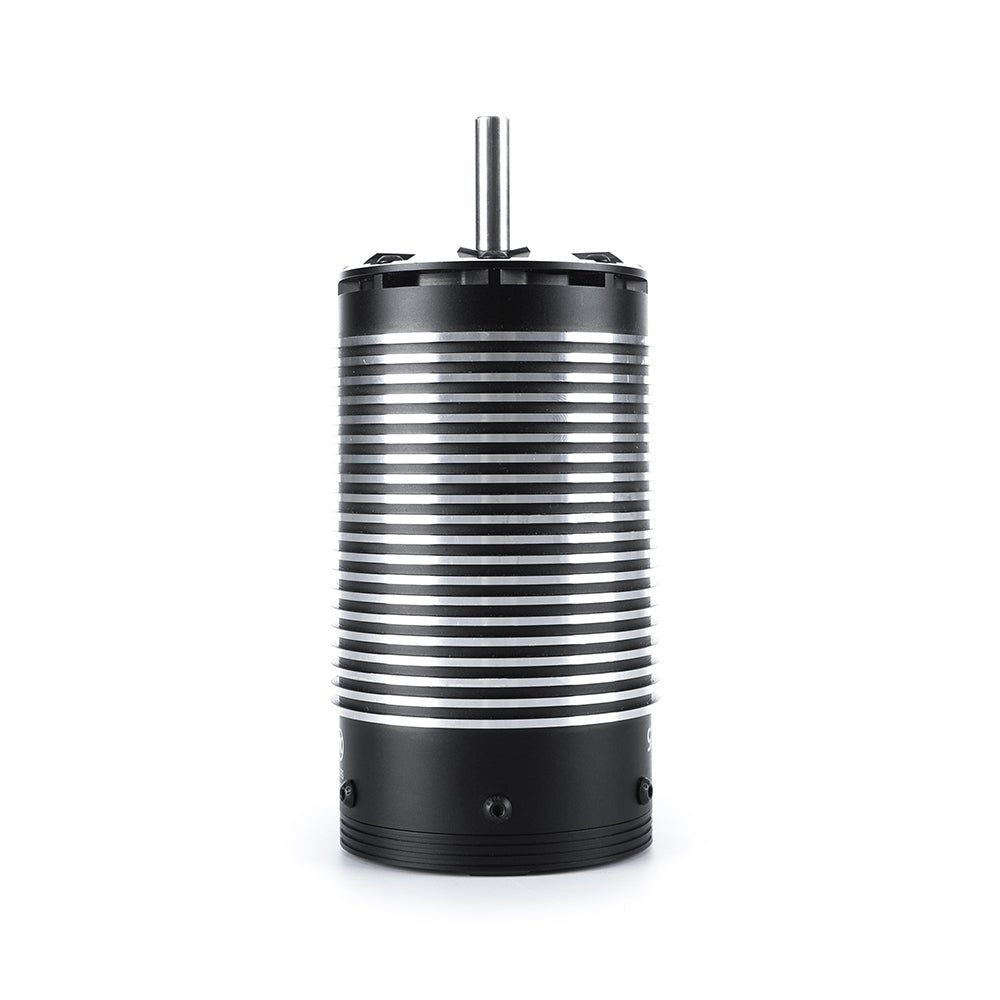

• MAD Runner70125 Sensored Brushless Motor, MAD Runner 70125 sensored brushless motor with black can, silver cooling fins, and exposed shaft

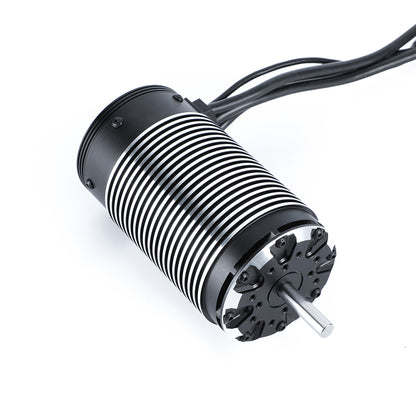

  • MAD Runner70125 sensored brushless motor with finned aluminum can, output shaft, and attached wiring leads

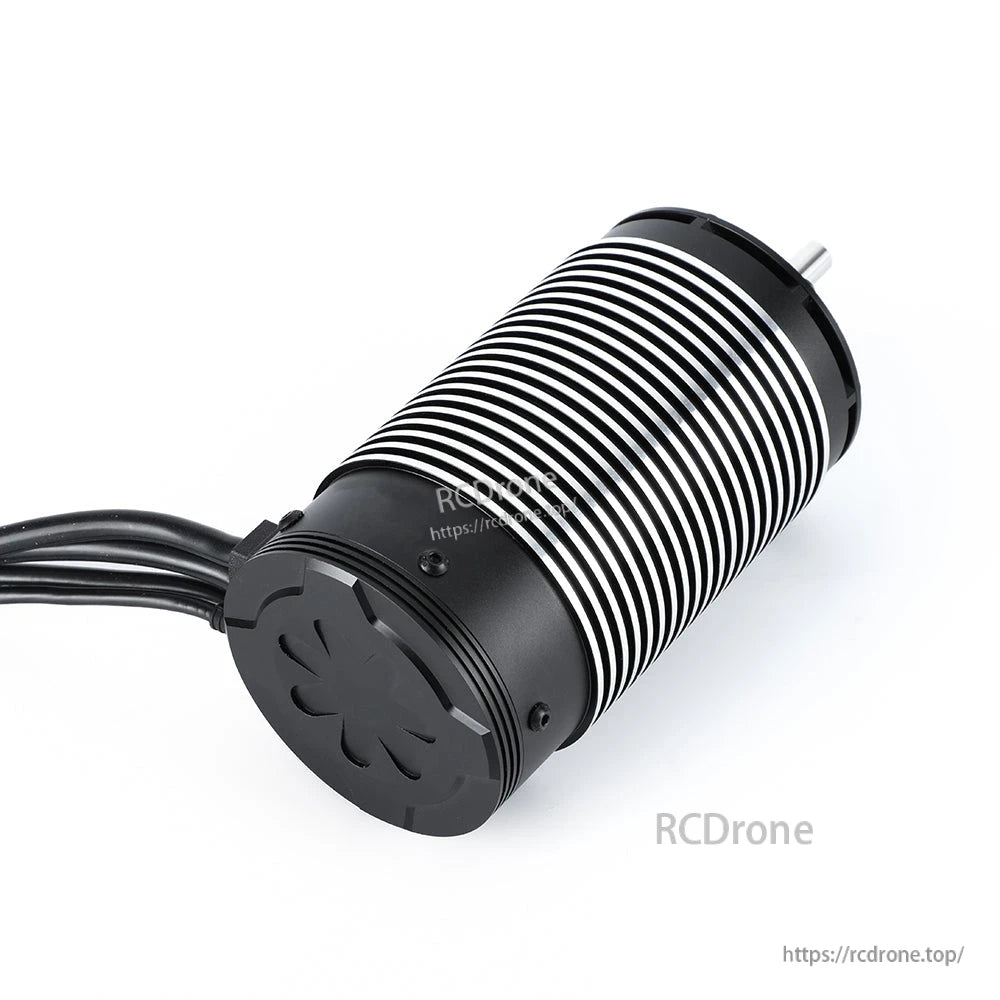

  • MAD Runner70125 Sensored Brushless Motor, MAD Runner70125 brushless motor with finned aluminum housing, black end cap, and attached power wires

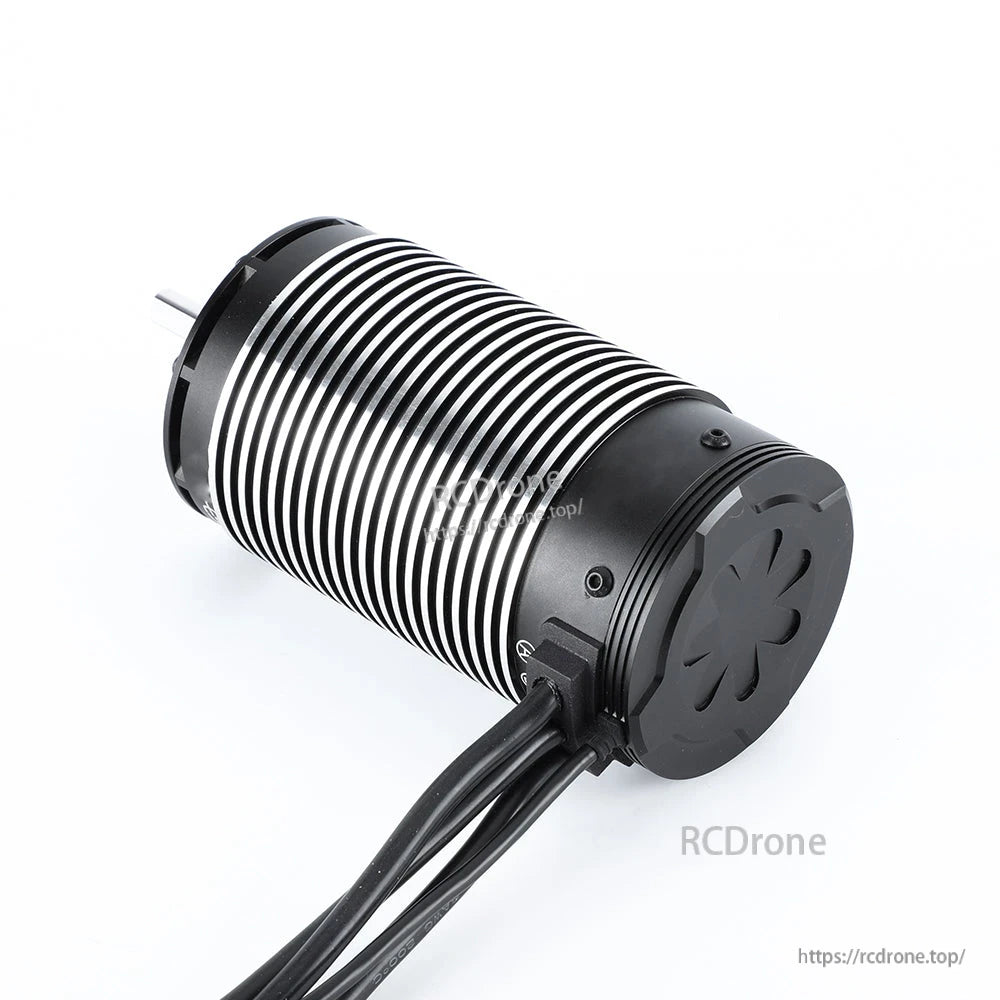

  • MAD Runner70125 sensored brushless motor with finned aluminum can and attached lead wires
1 4

MAD Runner70125 Sensored Brushless Motor 420KV/560KV, IP67 BLDC for 1/5 Scale RC Cars

MAD Runner70125 Sensored Brushless Motor 420KV/560KV, IP67 BLDC for 1/5 Scale RC Cars

MAD

$434.99 USD
$434.99 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
KV Option
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

MAD Runner70125 is a sensored brushless motor (BLDC) designed for 1/5 scale RC cars, featuring an IP67-rated waterproof/dustproof construction and sensored waterproof connectors for reliable operation in harsh conditions.

Key Features

  • Higher RPM, lower resistance
  • Imported bearings; stable at high speed; quick response
  • Compact, durable high-strength design: precision bearings, reinforced alloy shell, tough steel shaft

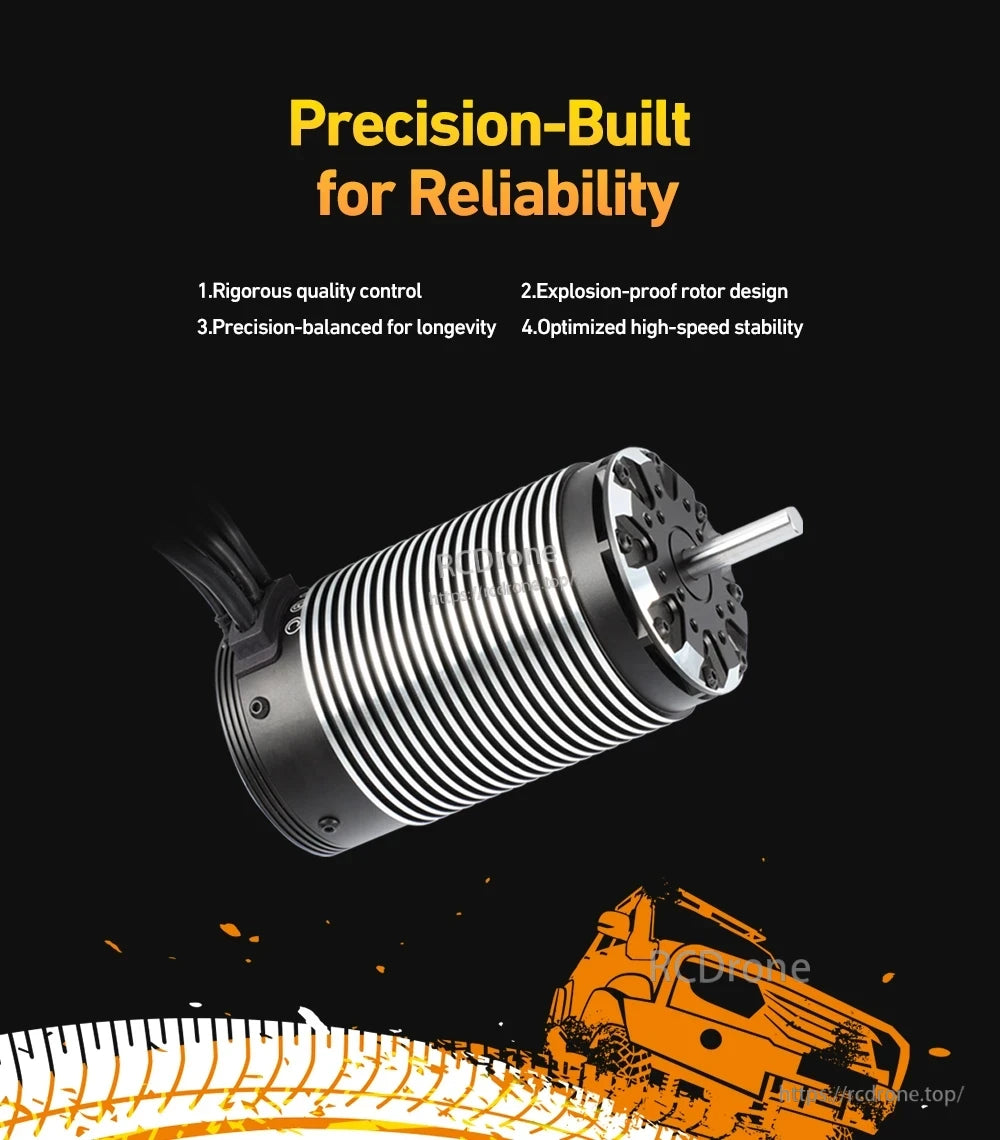

  • Precision-built reliability: rigorous quality control, reinforced rotor design, precision-balanced for longevity, optimized high-speed stability
  • Fast, smooth, and efficient: ultra-thin 0.2mm silicon steel core; high-density heat-resistant windings; lower energy loss & cooler operation; optimized power efficiency
  • All-weather toughness: IP67 rated; fully sealed waterproof/dustproof design; built for harsh environments

For compatibility questions (including pairing with a suitable ESC) and support, contact https://rcdrone.top/ or email support@rcdrone.top.

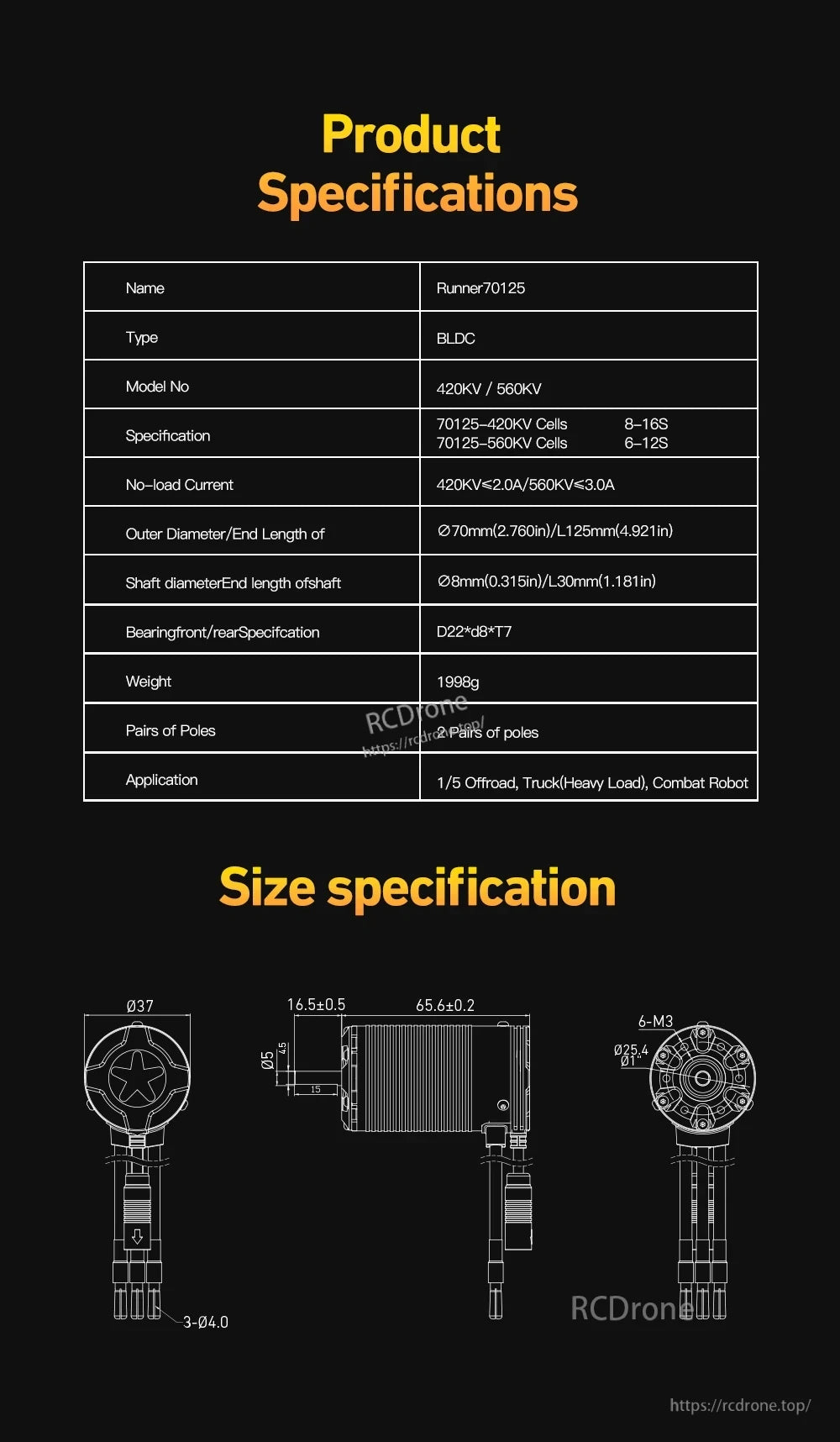

Specifications

Name Runner70125
Type BLDC
Model No 420KV / 560KV
Cell Count (70125-420KV) 8-16S
Cell Count (70125-560KV) 6-12S
No-load Current 420KV <= 2.0A / 560KV <= 3.0A
Outer Diameter / End Length Ø70mm (2.760in) / L125mm (4.921in)
Shaft Diameter / End Length of Shaft Ø8mm (0.315in) / L30mm (1.181in)
Bearing (Front/Rear) Specification D22*d8*T7
Weight 1998g
Pairs of Poles 2 pairs of poles

Size Specification

  • Ø37
  • 16.5 ± 0.5
  • 65.6 ± 0.2
  • 6-M3
  • Ø25.4
  • 3-Ø4.0
  • Ø5
  • 15

Applications

  • 1/5 offroad RC cars
  • RC trucks (heavy load)
  • Robotics applications

Details

MAD Runner70125 Sensored Brushless 420KV/560KV Motor For 1/5 Rc Cars

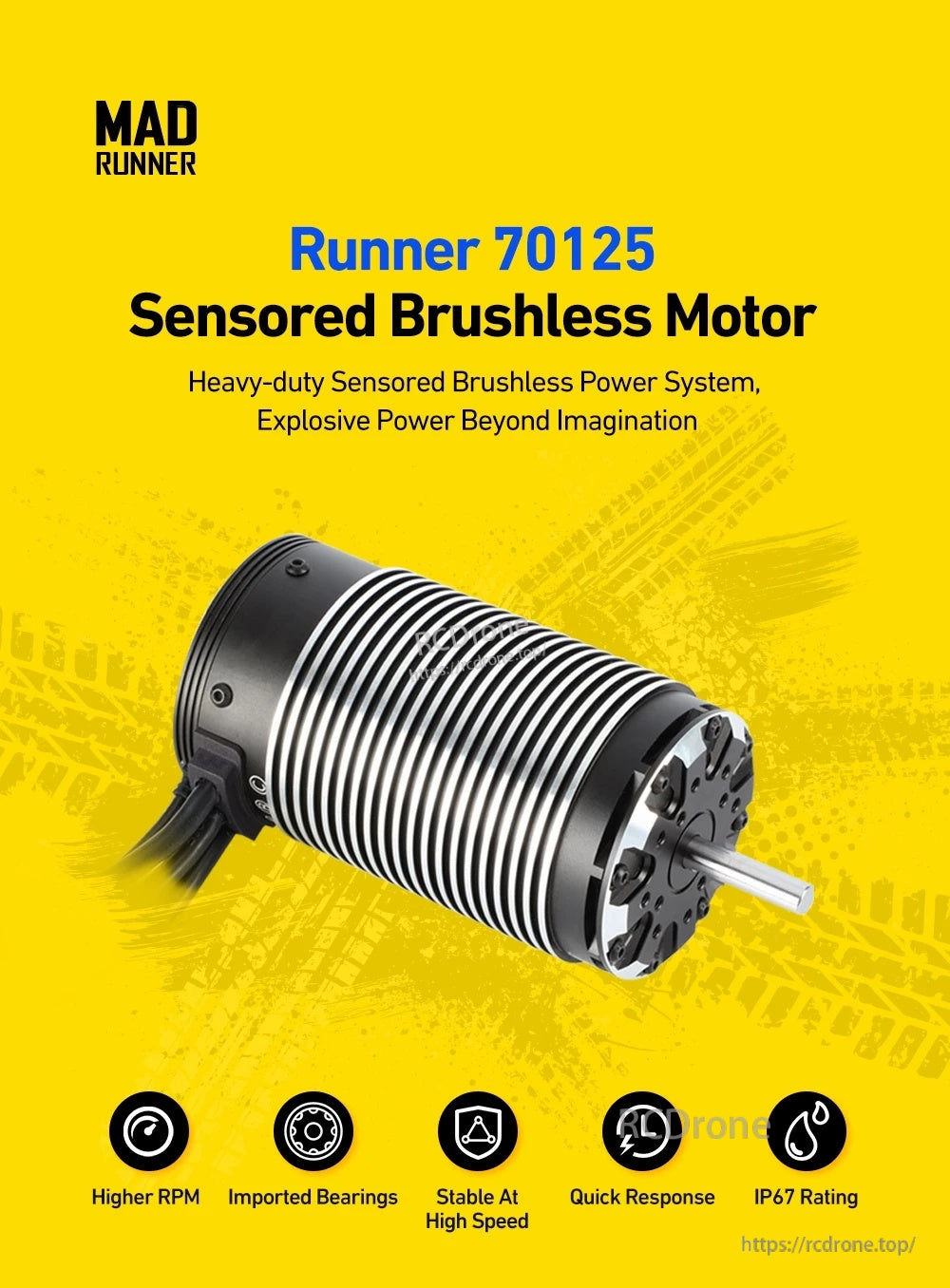

The MAD Runner 70125 sensored brushless motor features a rugged, finned can design and an IP67 rating for added protection.

MAD Runner70125 Sensored Brushless 420KV/560KV Motor For 1/5 Rc Cars

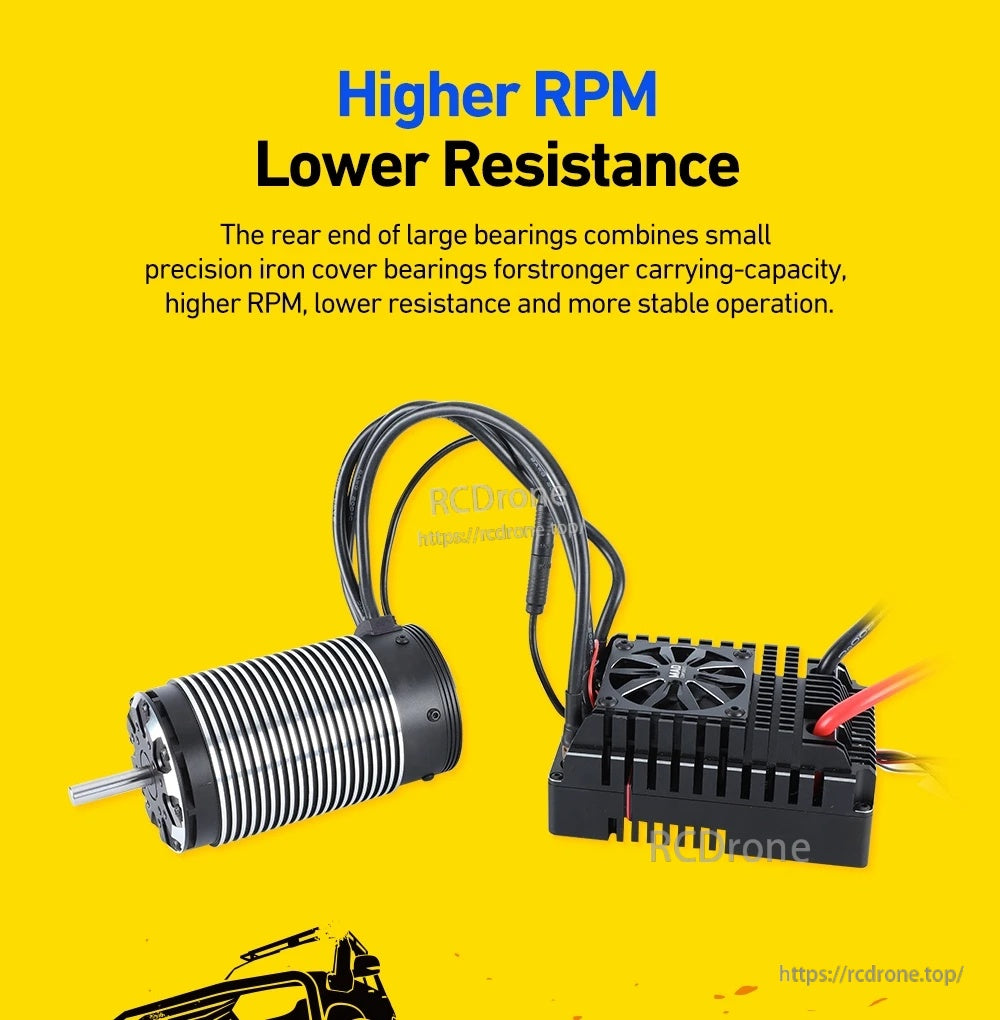

The MAD Runner70125 sensored brushless motor includes a sensor lead and pairs with a fan-cooled ESC for RC builds.

MAD Runner70125 Sensored Brushless 420KV/560KV Motor For 1/5 Rc Cars

The MAD Runner70125 sensored brushless motor uses a reinforced alloy shell, precision bearings, and waterproof sensor connectors for dependable RC power.

MAD Runner70125 Sensored Brushless 420KV/560KV Motor For 1/5 Rc Cars

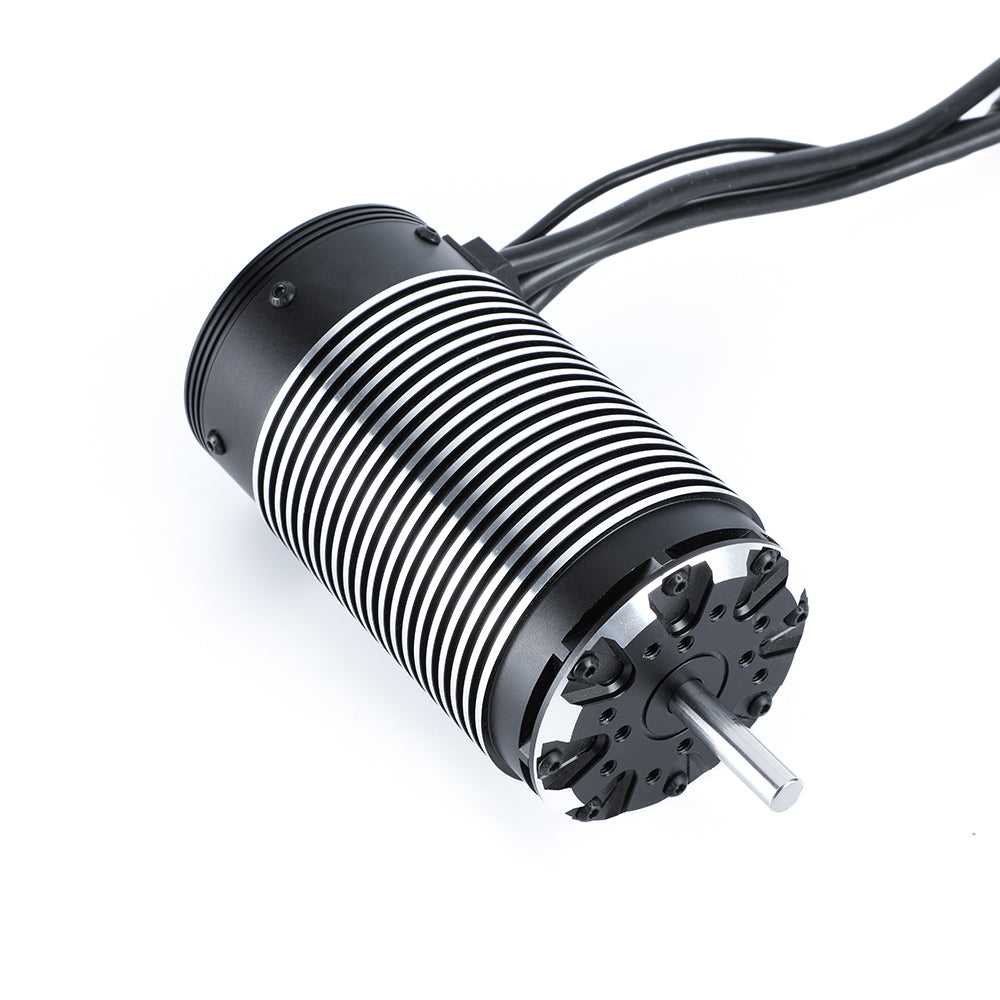

The MAD Runner70125 brushless motor uses a ribbed aluminum housing, protruding shaft, and attached leads for straightforward installation and wiring.

MAD Runner70125 Sensored Brushless 420KV/560KV Motor For 1/5 Rc Cars

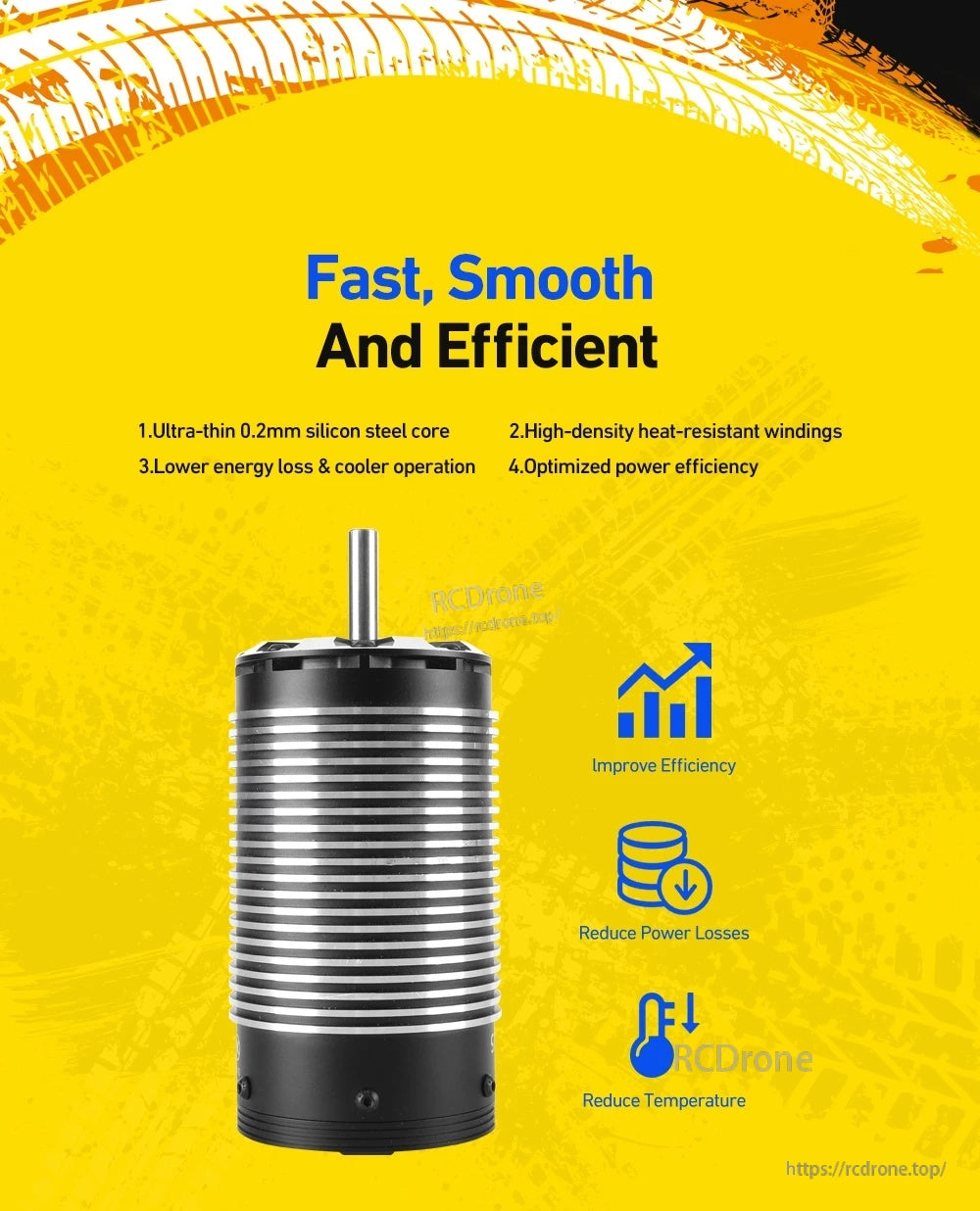

The Runner 70125 motor is designed for fast, smooth efficiency with a 0.2mm silicon steel core and heat-resistant windings.

MAD Runner70125 Sensored Brushless 420KV/560KV Motor For 1/5 Rc Cars

The MAD Runner70125 sensored brushless motor features an IP67-rated sealed design for waterproof and dustproof protection in harsh conditions.

MAD Runner70125 Sensored Brushless 420KV/560KV Motor For 1/5 Rc Cars

Runner70125 sensored brushless motor specs list a 70mm x 125mm body, 8mm shaft, and approx. 1960g weight for fitment planning.
