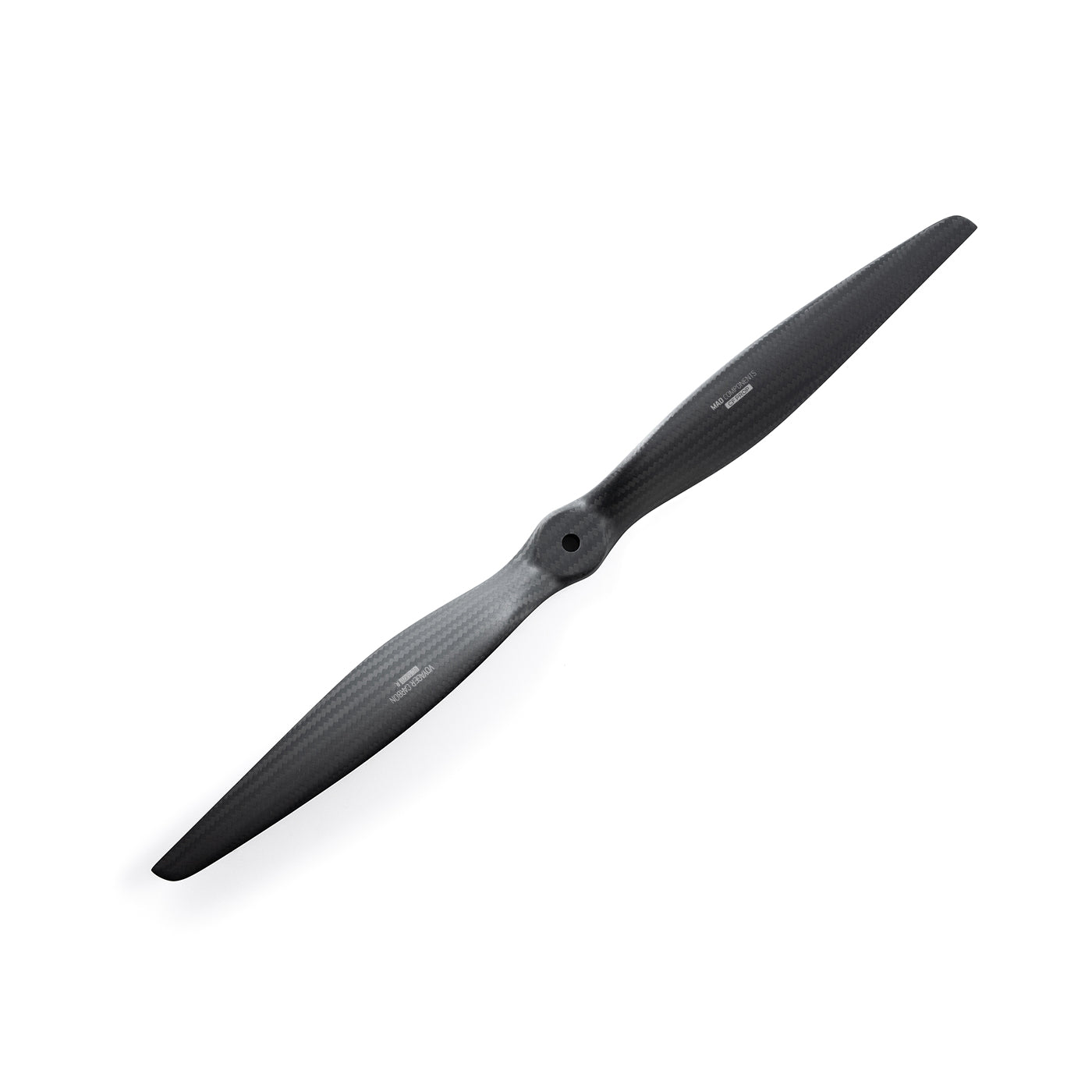

• MAD VC Voyager Carbon Series 16x8 carbon fiber two-blade propeller with Ø8.0mm hub bore

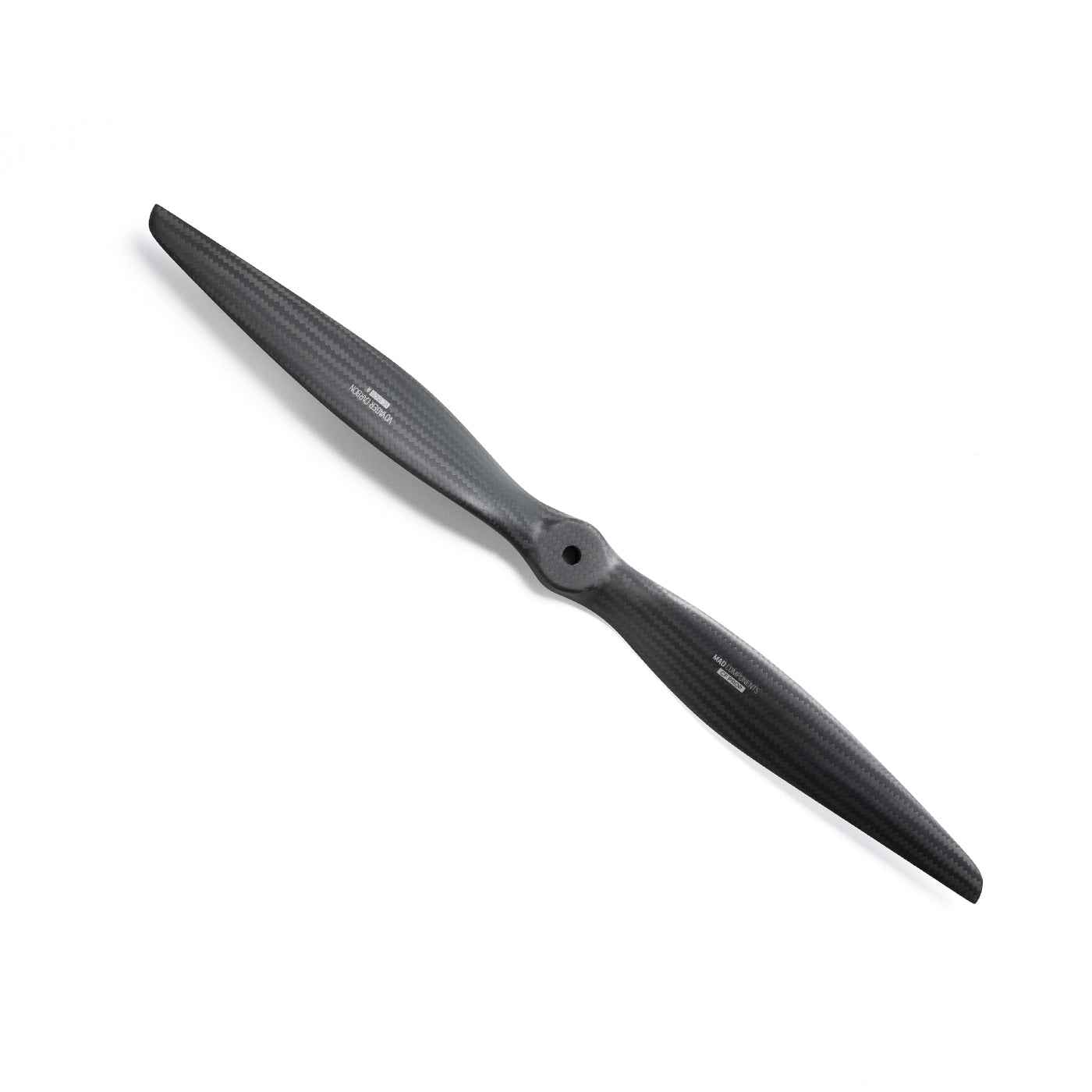

  • Two-blade carbon fiber propeller with visible weave finish and center mounting hub hole

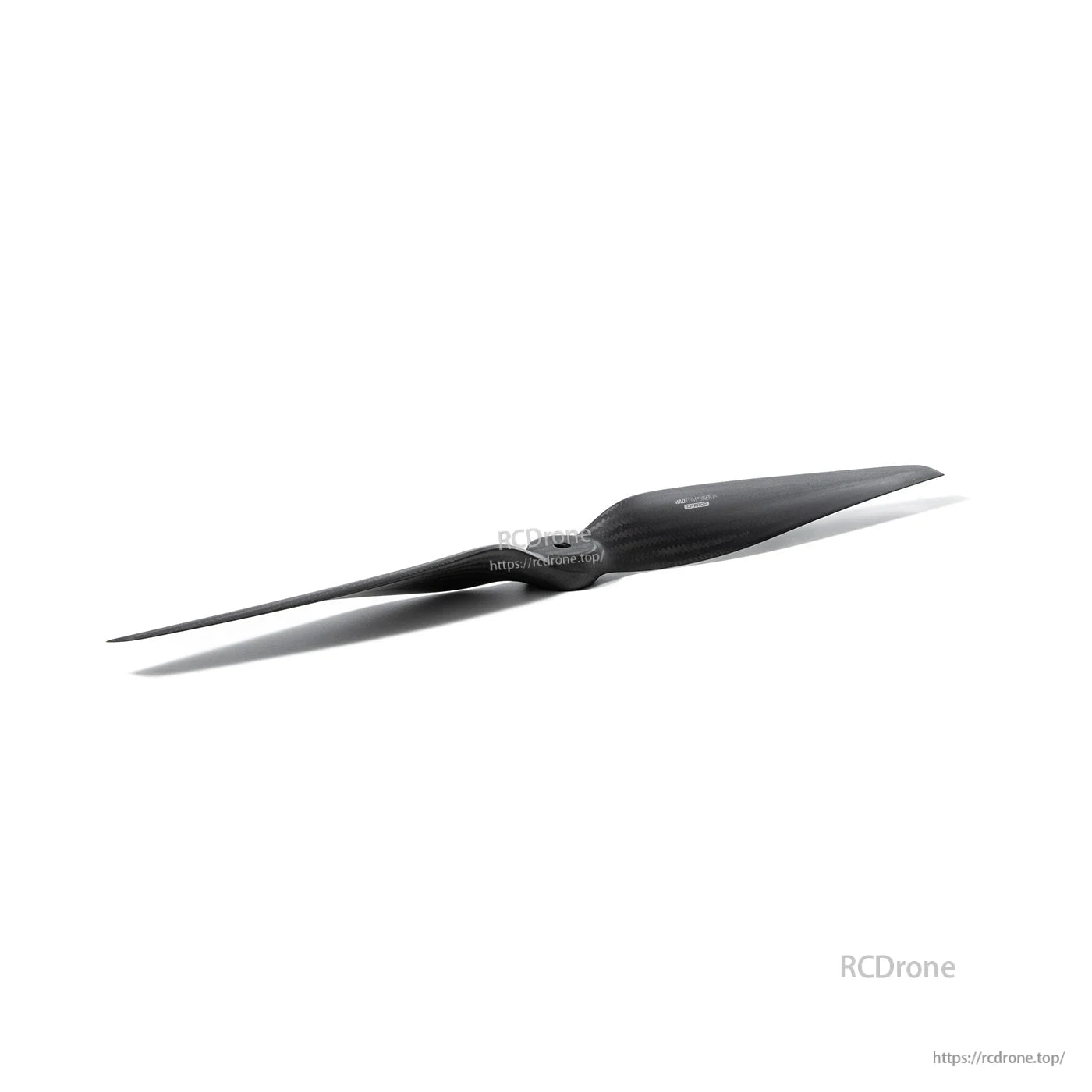

  • MAD VC Voyager Carbon Series carbon fiber propeller, right rotation, sleek two-blade design

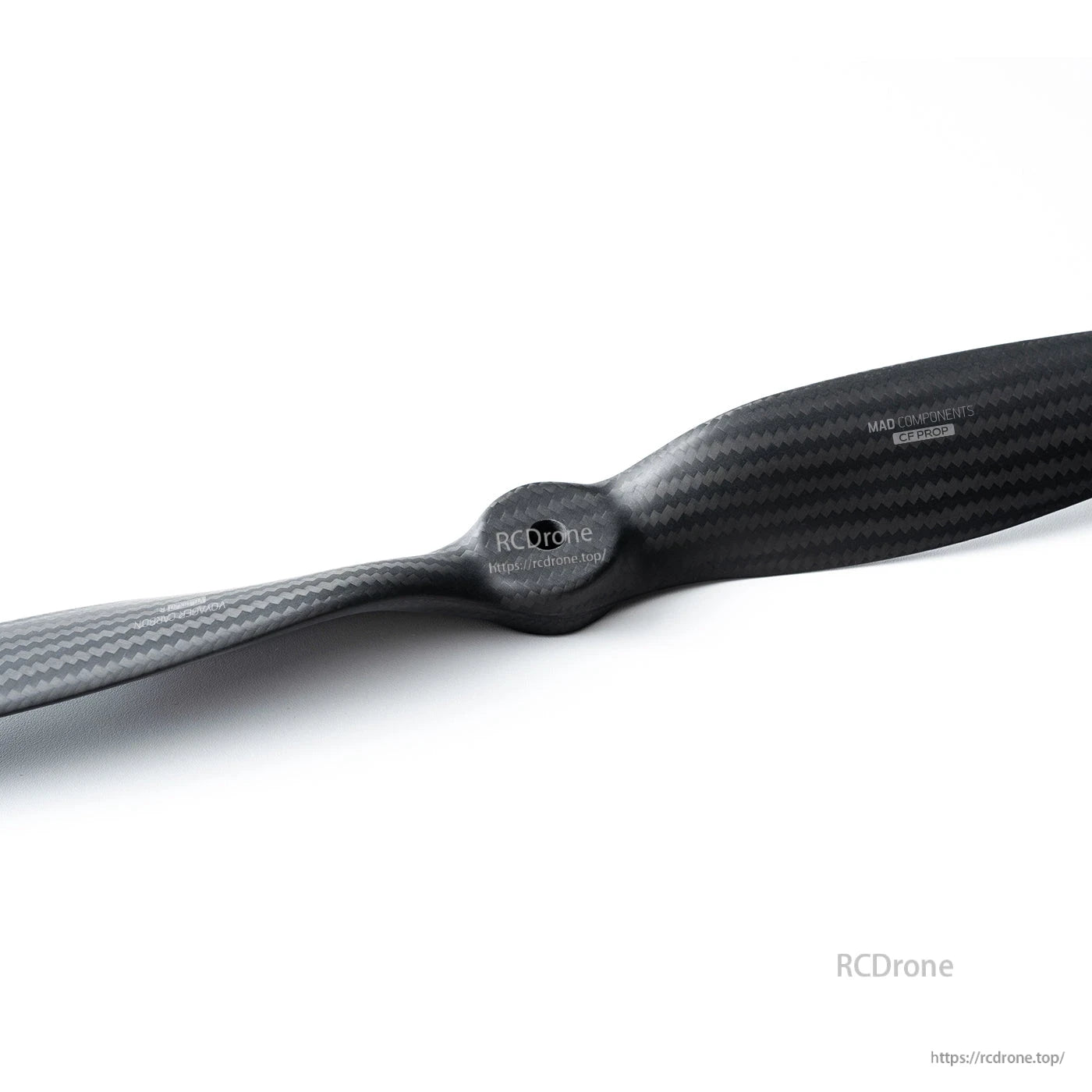

  • MAD Components Voyager carbon fiber propeller with glossy CF weave finish and central hub for RC aircraft

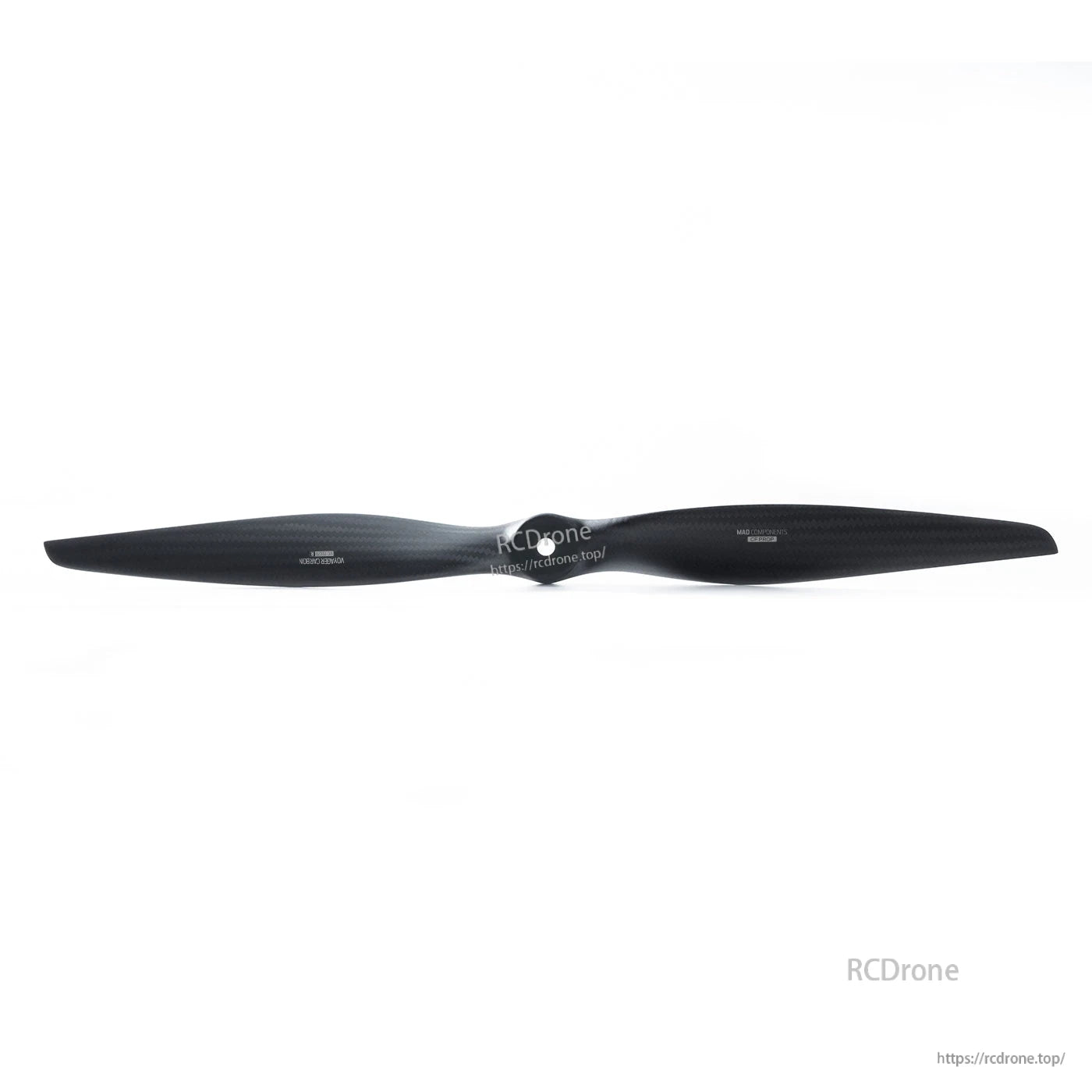

  • MAD VC Voyager Carbon Series 16-inch right-rotation carbon fiber propeller with two-blade design
1 5

MAD VC Voyager Carbon Series 16x8/16x10/16x12 Carbon Fiber Propeller (R) CF+Epoxy Ø8.0mm 1pc

MAD VC Voyager Carbon Series 16x8/16x10/16x12 Carbon Fiber Propeller (R) CF+Epoxy Ø8.0mm 1pc

MAD

$78.00 USD
$78.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Rotation Direction
Pitch
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

MAD VC Voyager Carbon Series carbon fiber propeller (R) for RC aircraft/drone propulsion, available in 16x8, 16x10, and 16x12 inch options. Material is CF+Epoxy with a matte frosting surface treatment.

Key Features

  • Voyager Carbon Series, Professional Matte Fiber
  • Material: CF+Epoxy
  • Surface treatment: Matte frosting
  • Center hole: Ø8.0
  • Working temperature: -40°C~65°C
  • Storage temperature: -10°C~50°C; Storage humidity: <85%

Specifications

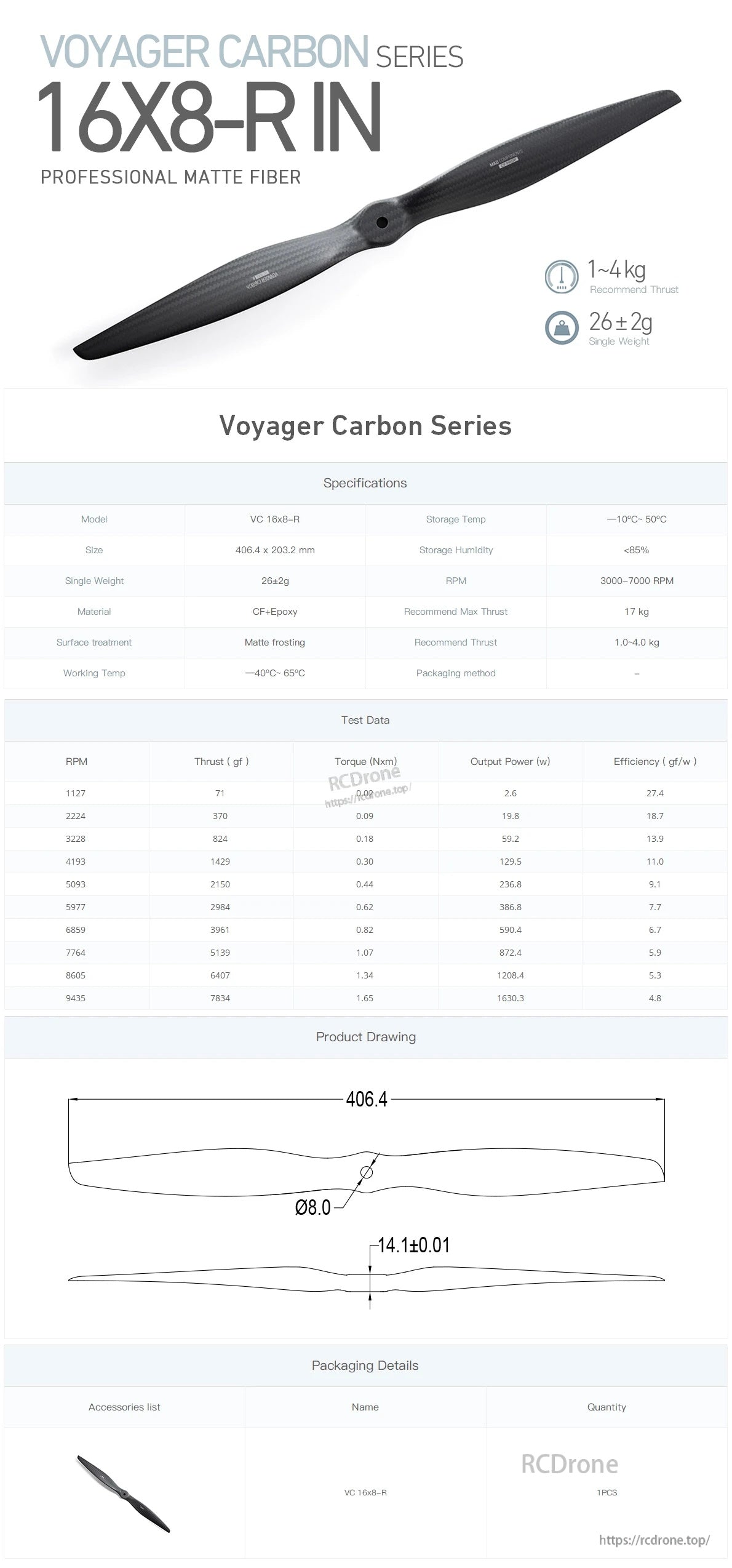

VC 16x8-R

Model VC 16x8-R
Size 406.4 x 203.2 mm
Single weight 26±2g
Material CF+Epoxy
Surface treatment Matte frosting
RPM 3000-7000 RPM
Recommend thrust 1.0-4.0 kg
Recommend max thrust 17 kg
Working temp -40°C~65°C
Storage temp -10°C~50°C
Storage humidity <85%
Product drawing Length 406.4; Center hole Ø8.0; Center thickness 14.1±0.01

VC 16x10-R

Model VC 16x10-R
Size 406.4 x 254 mm
Single weight 28±2g
Material CF+Epoxy
Surface treatment Matte frosting
RPM 3000-7000 RPM
Recommend thrust 1.0-4.5 kg
Recommend max thrust 20 kg
Working temp -40°C~65°C
Storage temp -10°C~50°C
Storage humidity <85%
Product drawing Length 406.4; Center hole Ø8.0; Center thickness 16.1±0.01

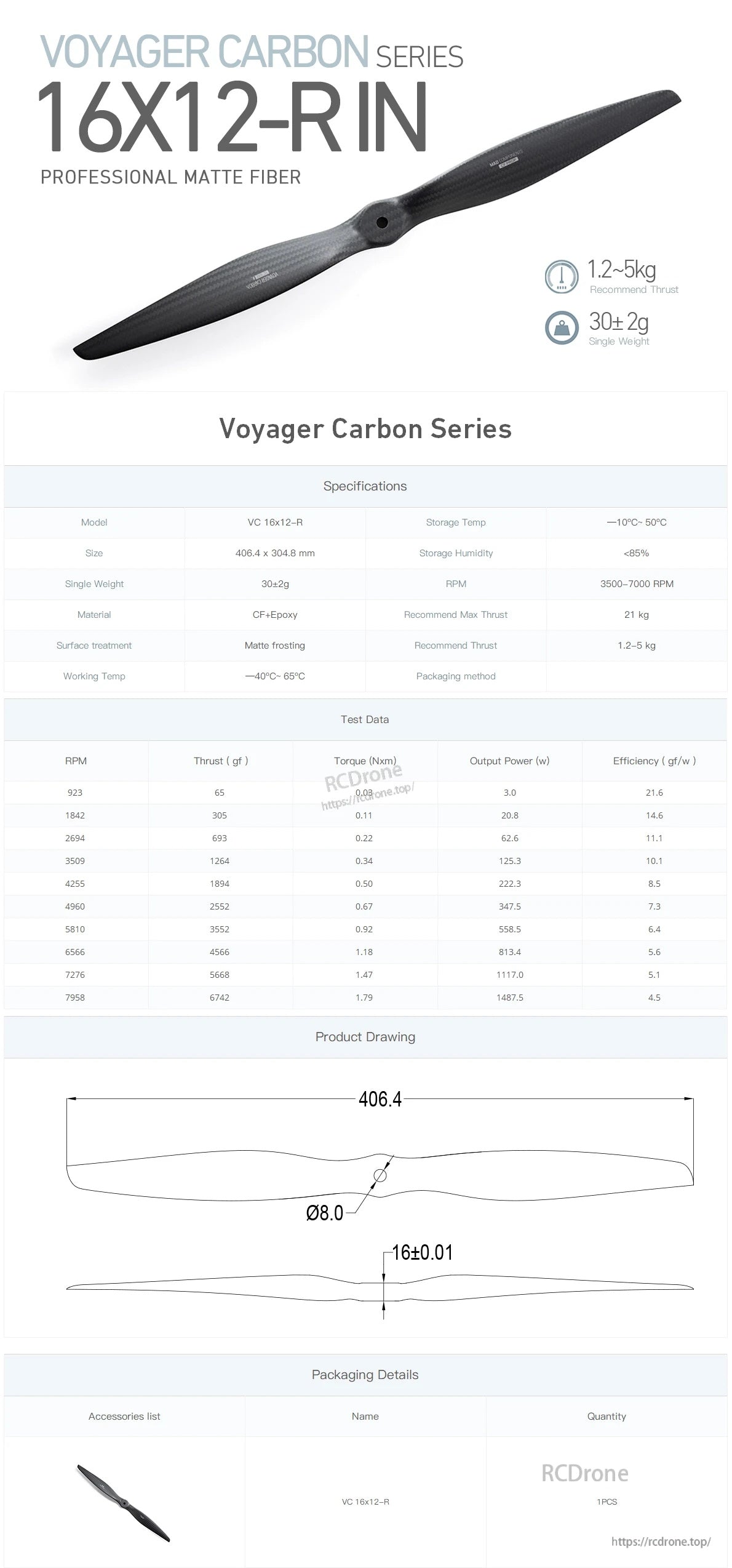

VC 16x12-R

Model VC 16x12-R
Size 406.4 x 304.8 mm
Single weight 30±2g
Material CF+Epoxy
Surface treatment Matte frosting
RPM 3500-7000 RPM
Recommend thrust 1.2-5 kg
Recommend max thrust 21 kg
Working temp -40°C~65°C
Storage temp -10°C~50°C
Storage humidity <85%
Product drawing Length 406.4; Center hole Ø8.0; Center thickness 16±0.01

Test Data

VC 16x8-R

RPM Thrust (gf) Torque (Nxm) Output Power (w) Efficiency (gf/w)
1127 71 0.02 2.6 27.4
2224 370 0.09 19.8 18.7
3228 824 0.18 59.2 13.9
4193 1429 0.30 129.5 11.0
5093 2150 0.44 236.8 9.1
5977 2984 0.62 386.8 7.7
6859 3961 0.82 590.4 6.7
7764 5139 1.07 872.4 5.9
8605 6407 1.34 1208.4 5.3
9435 7834 1.65 1630.3 4.8

VC 16x10-R

RPM Thrust (gf) Torque (Nxm) Output Power (w) Efficiency (gf/w)
1117 96 0.03 3.6 26.6
2207 442 0.11 25.2 17.6
3195 970 0.23 76.3 12.7
4131 1640 0.38 165.7 9.9
4987 2398 0.56 290.4 8.3
5893 3346 0.78 482.0 6.9
6771 4426 1.05 741.7 6.0
7664 5673 1.36 1091.5 5.2
8467 6842 1.70 1502.9 4.6
9266 8220 2.08 2015.4 4.1

VC 16x12-R

RPM Thrust (gf) Torque (Nxm) Output Power (w) Efficiency (gf/w)
923 65 0.03 3.0 21.6
1842 305 0.11 20.8 14.6
2694 693 0.22 62.6 11.1
3509 1264 0.34 125.3 10.1
4255 1894 0.50 222.3 8.5
4960 2552 0.67 347.5 7.3
5810 3552 0.92 558.5 6.4
6566 4566 1.18 813.4 5.6
7276 5668 1.47 1117.0 5.1
7958 6742 1.79 1487.5 4.5

What’s Included

  • 1 x MAD VC Voyager Carbon Series propeller, R (1PCS) (model selected: VC 16x8-R / VC 16x10-R / VC 16x12-R)

Applications

  • Fixed-wing drones and other RC aircraft requiring a 16-inch propeller with Ø8.0 center hole

For compatibility and selection help (16x8 vs 16x10 vs 16x12), contact support@rcdrone.top or visit https://rcdrone.top/.

Details

MAD VC 16x8/16x10/ 16x12inch Carbon Fiber Propeller - R - 1pc

The Voyager Carbon Series 16x8-R carbon fiber propeller features a professional matte finish and an 8.0 mm hub bore for compatible motor shafts.

MAD VC 16x8/16x10/ 16x12inch Carbon Fiber Propeller - R - 1pc

The Voyager Carbon Series 16x10 right-hand propeller uses a carbon fiber and epoxy build with an 8.0mm hub and an approximate 28g weight.

MAD VC 16x8/16x10/ 16x12inch Carbon Fiber Propeller - R - 1pc

The Voyager Carbon Series 16x12 right-hand propeller uses a 16-inch diameter blade profile with a Ø8.0 mm center hole for mounting.
