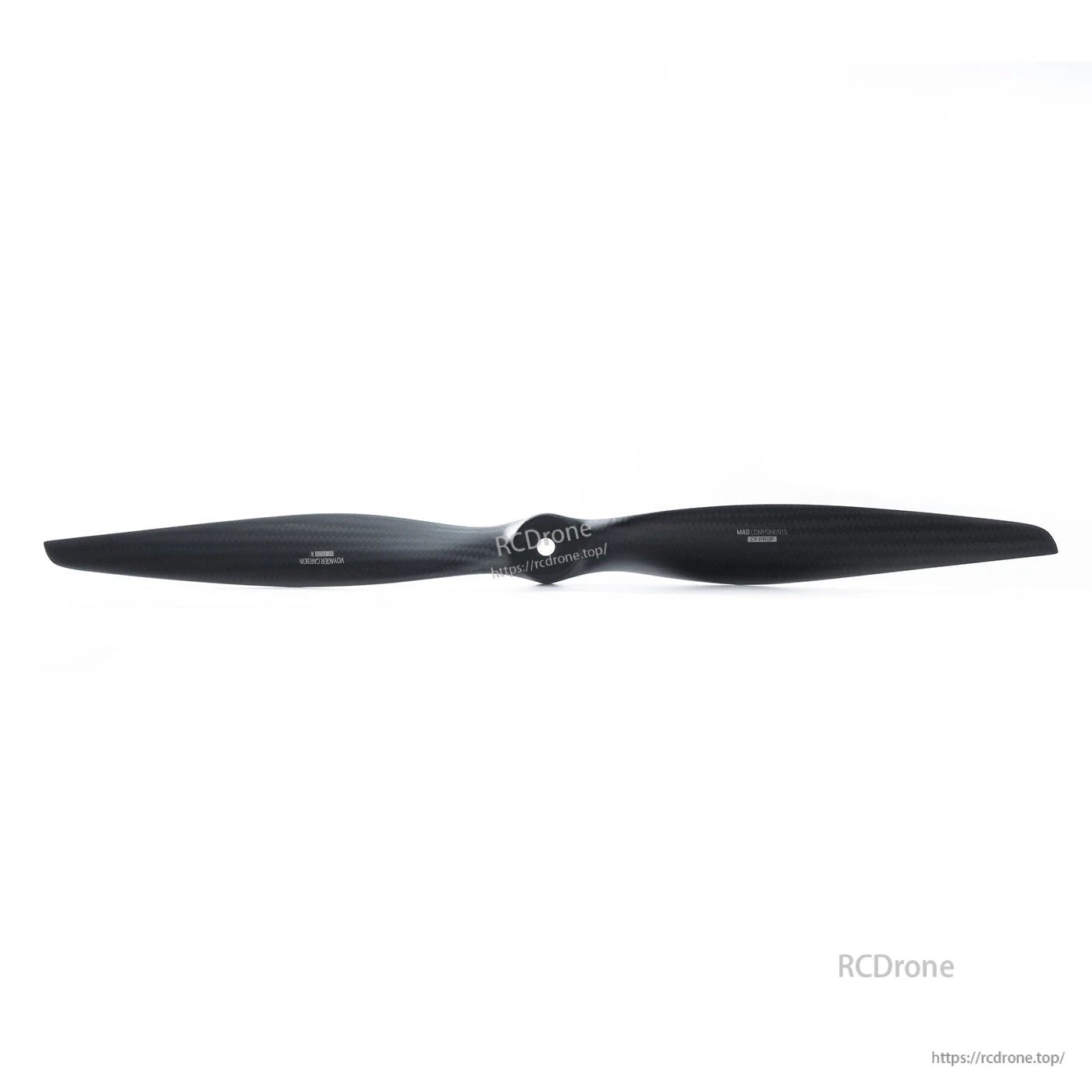

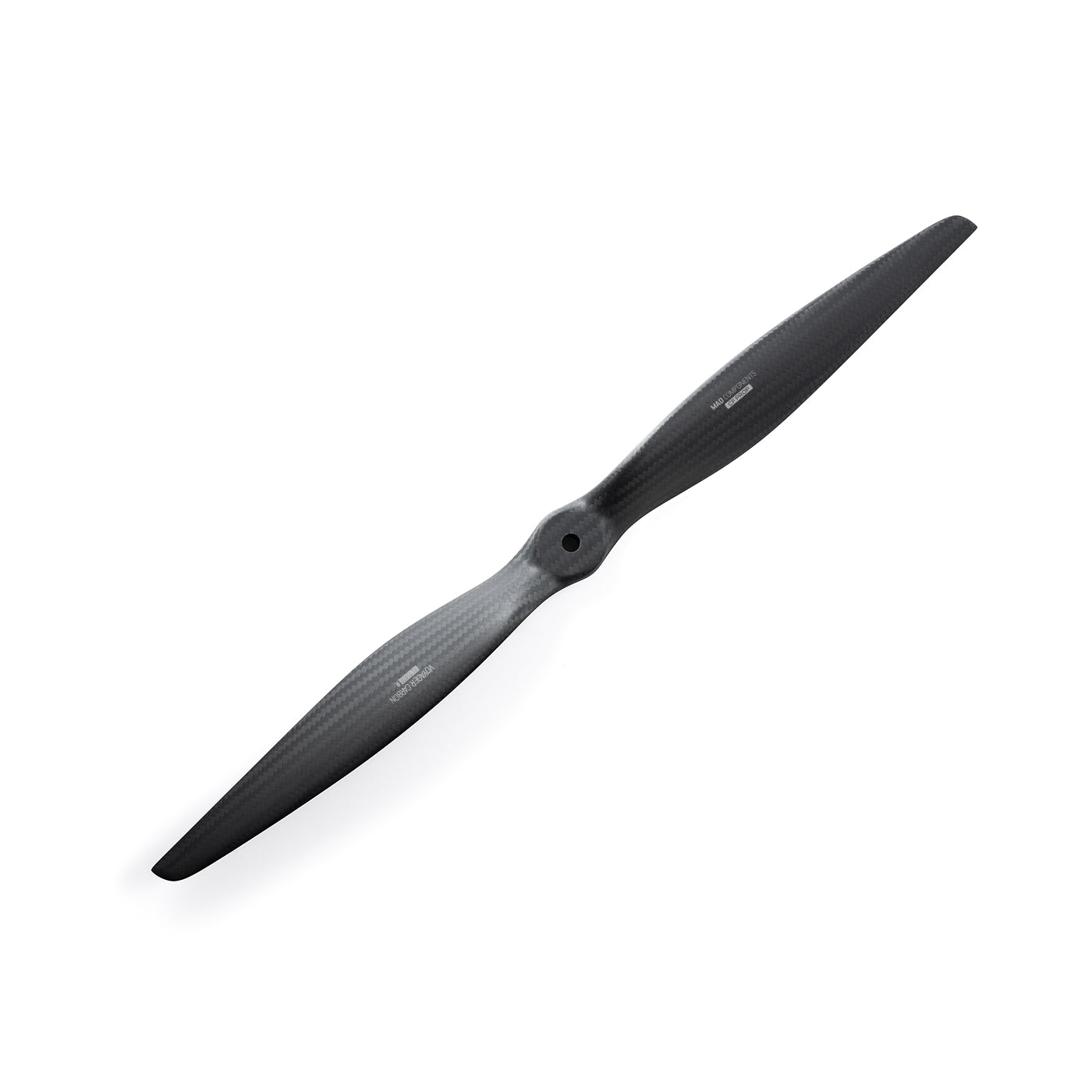

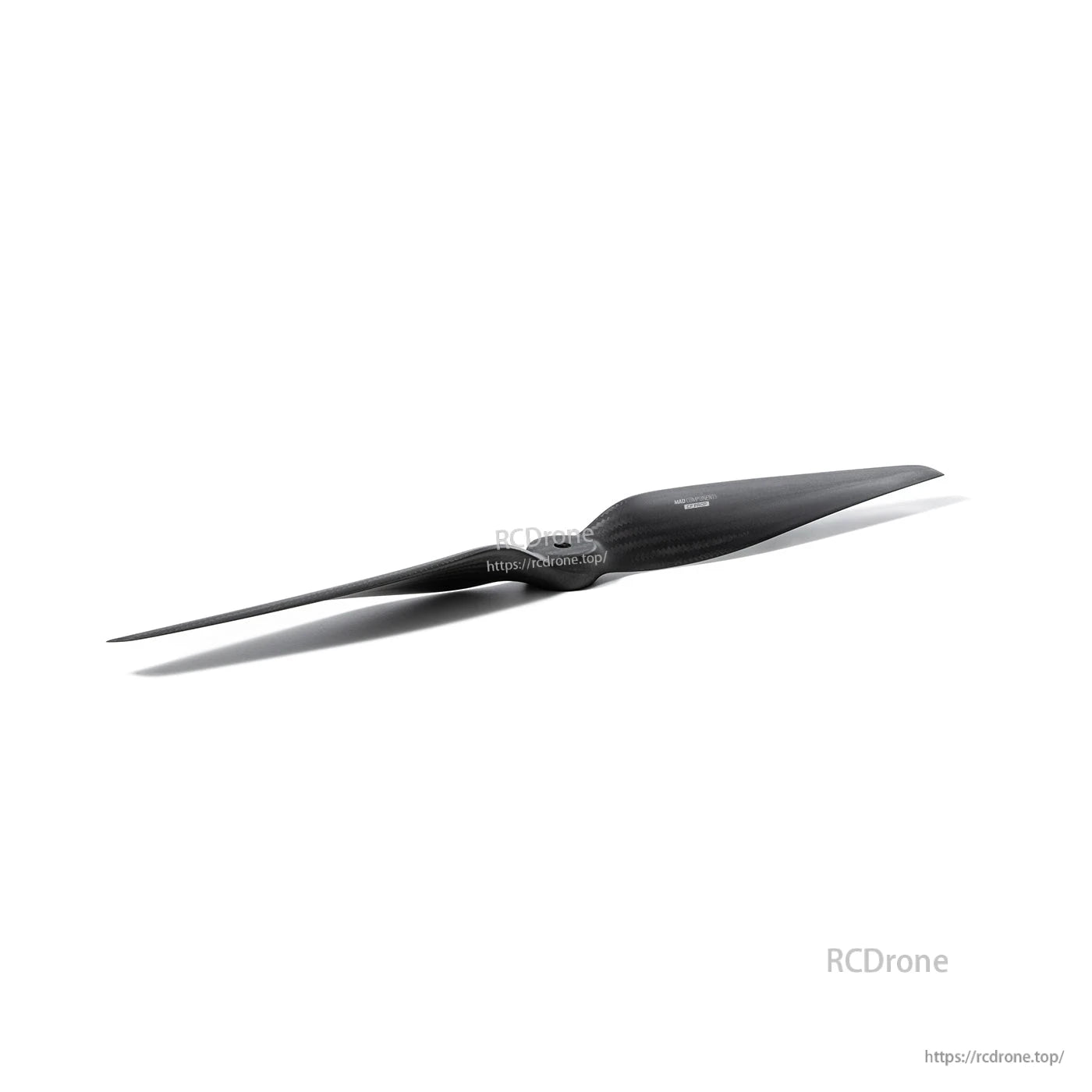

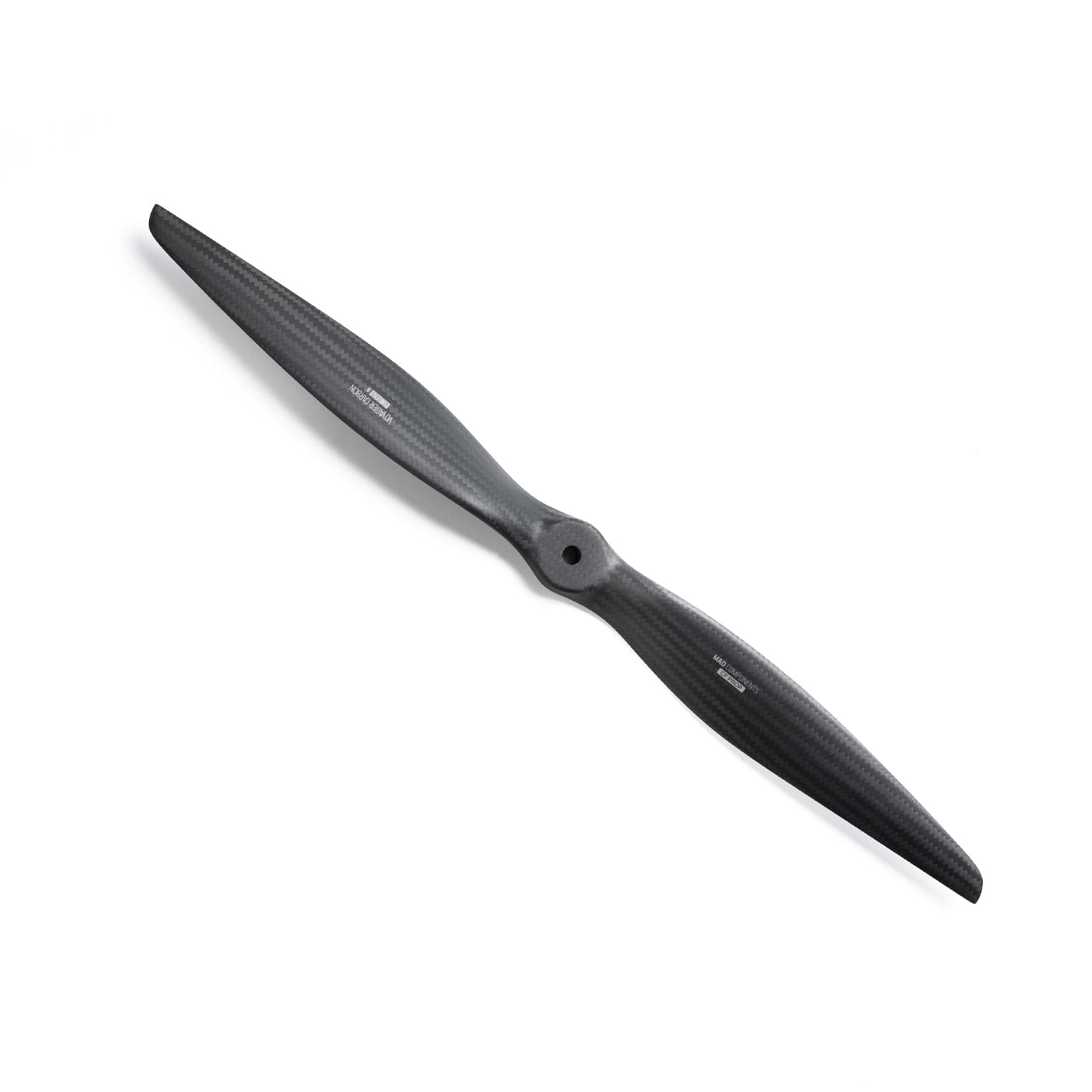

MAD VC Carbon Fiber Propeller R 1pc - 20x10/20x15/20x16 inch (Voyager Carbon Series)
MAD VC Carbon Fiber Propeller R 1pc - 20x10/20x15/20x16 inch (Voyager Carbon Series)
MAD
Regular price
$108.00 USD
Regular price
Sale price
$108.00 USD
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Overview
This carbon fiber propeller (R, right-hand rotation) is listed as MAD VC 20x10 / 20x15 / 20x16 inch, 1pc. The provided description specifies aerospace-grade carbon fiber construction made with precision molding technology and a matte surface intended to reduce glare for clearer visibility during flight.
Key Features
- Right-hand rotation: R
- Material: CF+Epoxy (carbon fiber + epoxy)

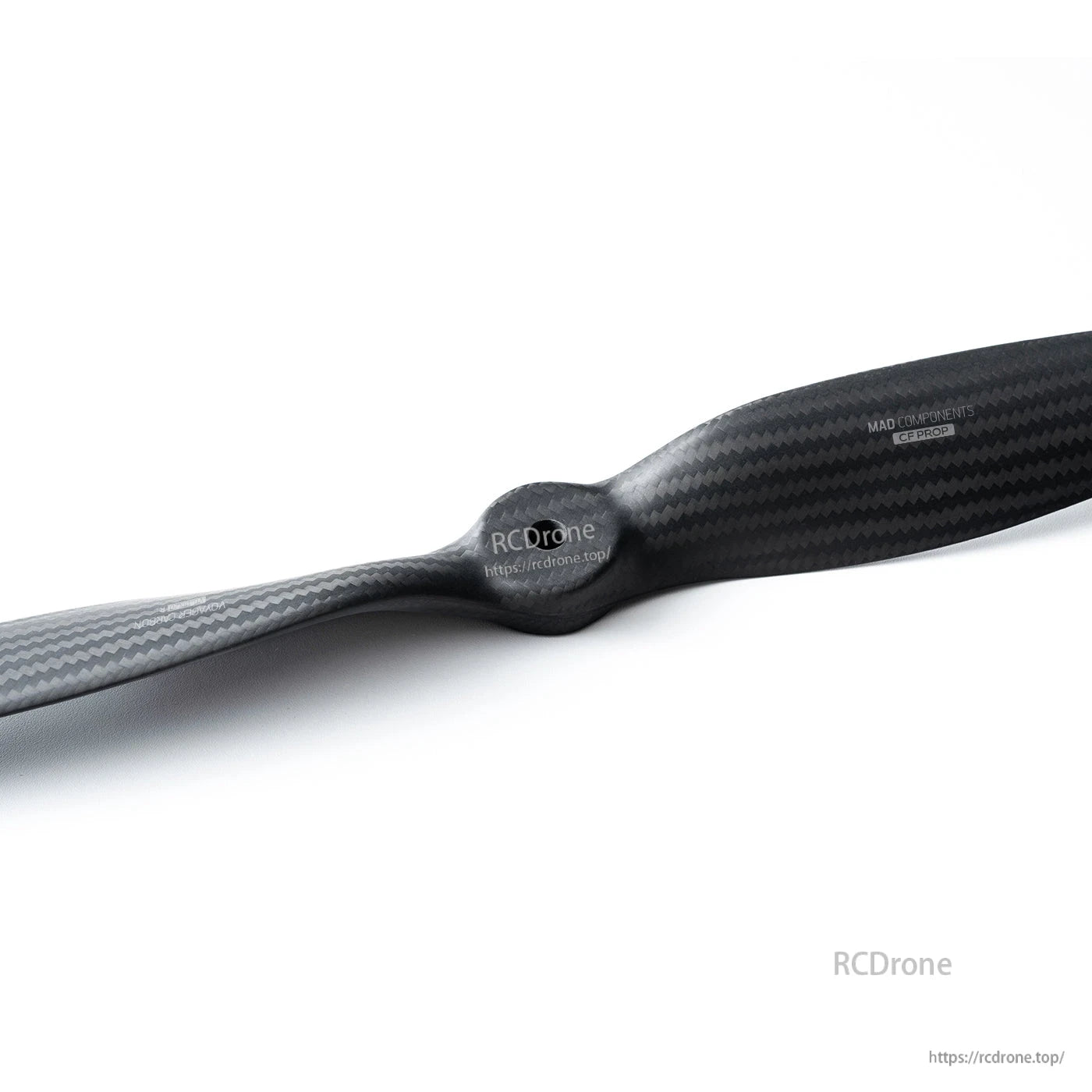

- Surface treatment: Matte frosting (professional matte fiber)
Specifications
Variant options (as listed)
- 20x10 R
- 20x15 R
- 20x16 R

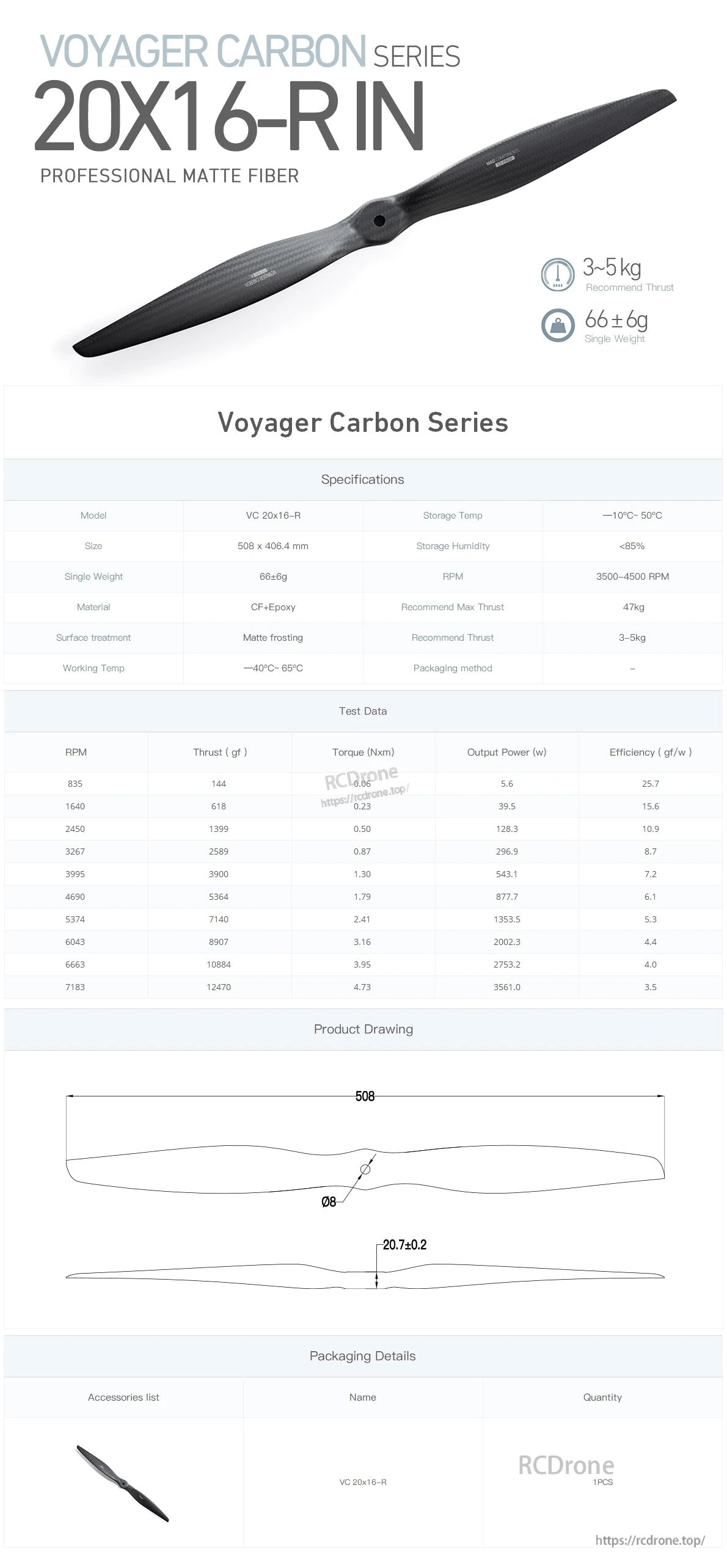

Voyager Carbon Series datasheet specs visible in provided images
| Parameter | VC 22x15-R | VC 20x16-R |
|---|---|---|
| Size | 558.8 x 381 mm | 508 x 406.4 mm |
| Single weight | 75±5 g | 66±6 g |
| Material | CF+Epoxy | CF+Epoxy |
| Surface treatment | Matte frosting | Matte frosting |
| Working temp | -40°C~65°C | -40°C~65°C |
| Storage temp | -10°C~50°C | -10°C~50°C |
| Storage humidity | <85% | <85% |
| RPM | 3000-6000 RPM | 3500-4500 RPM |
| Recommend max thrust | 50 kg | 47 kg |
| Recommend thrust | 3.6~13 kg | 3~5 kg |
| Packaging method | - | - |
| Drawing: hub bore | Ø10 | Ø8 |
| Drawing: max thickness | 21.8±0.2 | 20.7±0.2 |
Test data (VC 22x15-R)
| RPM | Thrust (gf) | Torque (Nxm) | Output Power (w) | Efficiency (gf/w) |
|---|---|---|---|---|
| 769 | 193 | 0.08 | 6.4 | 30.3 |
| 1566 | 836 | 0.30 | 48.9 | 17.1 |
| 2363 | 1924 | 0.64 | 157.6 | 12.2 |
| 3170 | 3405 | 1.13 | 375.5 | 9.1 |
| 3855 | 5150 | 1.71 | 691.0 | 7.5 |
| 4507 | 7123 | 2.37 | 1119.6 | 6.4 |
| 5130 | 9291 | 3.10 | 1666.5 | 5.6 |
| 5760 | 11590 | 4.16 | 2507.8 | 4.6 |
| 6336 | 13891 | 5.14 | 3408.2 | 4.1 |
| 6810 | 15977 | 6.18 | 4409.4 | 3.6 |
Test data (VC 20x16-R)
| RPM | Thrust (gf) | Torque (Nxm) | Output Power (w) | Efficiency (gf/w) |
|---|---|---|---|---|
| 835 | 144 | 0.06 | 5.6 | 25.7 |
| 1640 | 618 | 0.23 | 39.5 | 15.6 |
| 2450 | 1399 | 0.50 | 128.3 | 10.9 |
| 3267 | 2589 | 0.87 | 296.9 | 8.7 |
| 3995 | 3900 | 1.30 | 543.1 | 7.2 |
| 4690 | 5364 | 1.79 | 877.7 | 6.1 |
| 5374 | 7140 | 2.41 | 1353.5 | 5.3 |
| 6043 | 8907 | 3.16 | 2002.3 | 4.4 |
| 6663 | 10884 | 3.95 | 2753.2 | 4.0 |
| 7183 | 12470 | 4.73 | 3561.0 | 3.5 |
What’s Included
- Carbon fiber propeller (R) x 1 pc
Applications
- Fixed-wing drones (propulsion upgrade component)
For compatibility questions (motor/shaft fit, rotation direction, and size selection), contact support@rcdrone.top.
Details
The Voyager Carbon Series 22x15-RIN matte carbon fiber propeller is listed at 75±5 g with a 3.6–13 kg spec range.
The Voyager Carbon Series 20x16-RIN carbon fiber propeller features a matte finish with a listed weight of 66±6 g and a 3–5 kg rating.
