MAD Runner 3652 Sensored Brushless Motor for RC Cars, IP67 Rated, 3300KV/4100KV/5400KV Options
MAD Runner 3652 Sensored Brushless Motor for RC Cars, IP67 Rated, 3300KV/4100KV/5400KV Options
MAD
Couldn't load pickup availability
Overview
MAD Runner 3652 is a sensored brushless motor for RC cars. It is specified for 1/10 on-road, off-road, and short course/short truck applications (light load), with a 4-pole rotor design and 3652-class size (Ø37 mm x L53 mm).
Key Features
- Sensored brushless motor design
- IP67 rated design
- Imported bearings; precision bearing structure for lower resistance and stable operation
- Compact and durable construction: reinforced alloy shell and tough steel shaft
- Ultra-thin 0.2 mm silicon steel core and heat-resistant windings for improved efficiency
- Industrial-grade sensored waterproof connectors
Specifications
| Name | Runner 3652 |
| KV options | 5400KV / 4100KV / 3300KV |
| Supported cells (by KV option) | 5400KV: 2S; 4100KV: 2-3S; 3300KV: 2-3S |
| No-load current (by KV option) | 5400KV: <=6.5A; 4100KV: <=5.0A; 3300KV: <=3.9A |
| Weight (by KV option) | 5400KV: 227.0g; 4100KV: 227.5g; 3300KV: 228.1g |
| Numbers of poles | 4 poles |
| Outer diameter / length | Ø37mm (1.46in) / L53mm (2.09in) |
| Shaft diameter / end length of shaft | Ø3.175mm (0.125in) / L15mm (0.59in) |
| Bearings (front, driving end) | D13*d5*T4 |
| Bearings (rear, wire outlet end) | D11*d5*T5 |
| Mounting pattern (drawing) | 6-M3 |
| Additional drawing dimensions | 53±0.2; 15±0.5; Ø25.4 (Ø1"); 3-Ø4.0; 12 |
| Applicable to | On-road, off-road, short course (light load) |
Applications
- 1/10 scale on-road RC cars (light load)
- 1/10 scale off-road RC cars (light load)
- 1/10 short course / short truck (light load)
For compatibility help (KV selection, battery cell count, and sensored ESC matching), contact support@rcdrone.top or visit https://rcdrone.top/.
Details

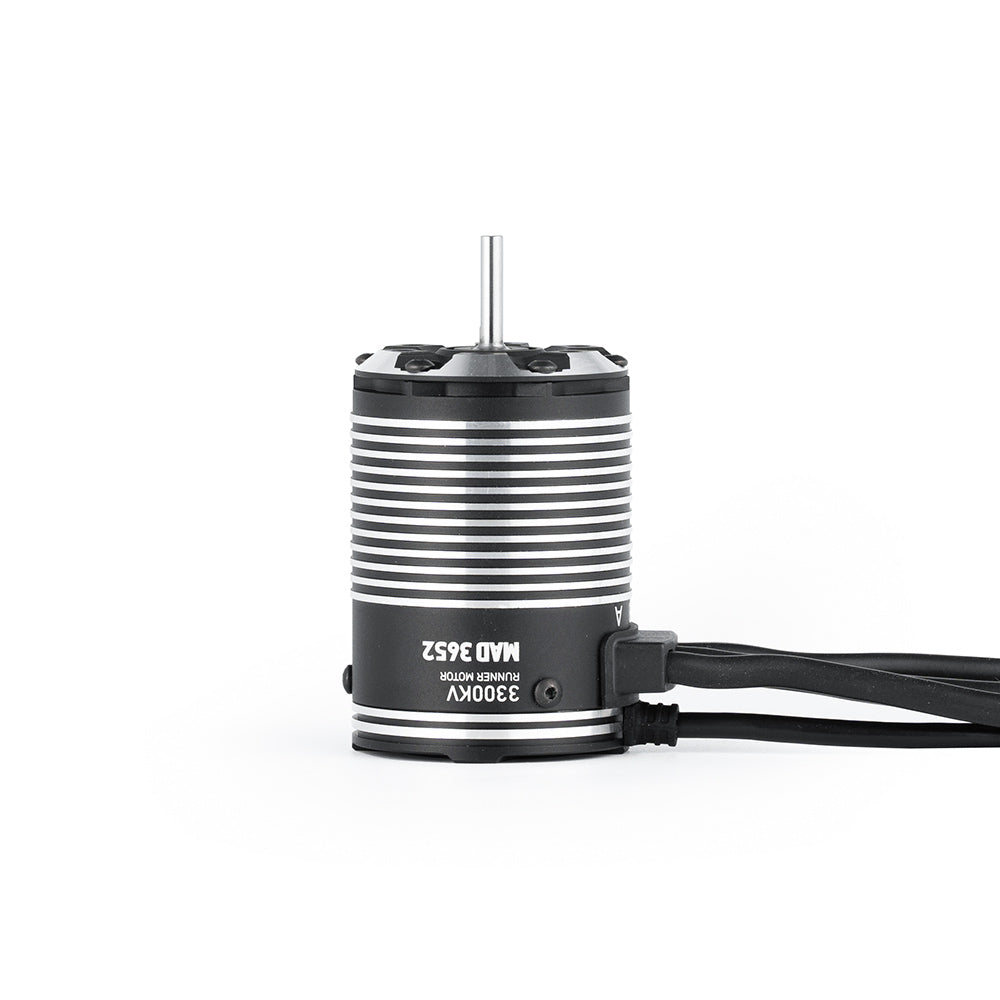

The MAD Runner 3652 sensored brushless motor is marketed with quick response, imported bearings, and an IP67 rating.

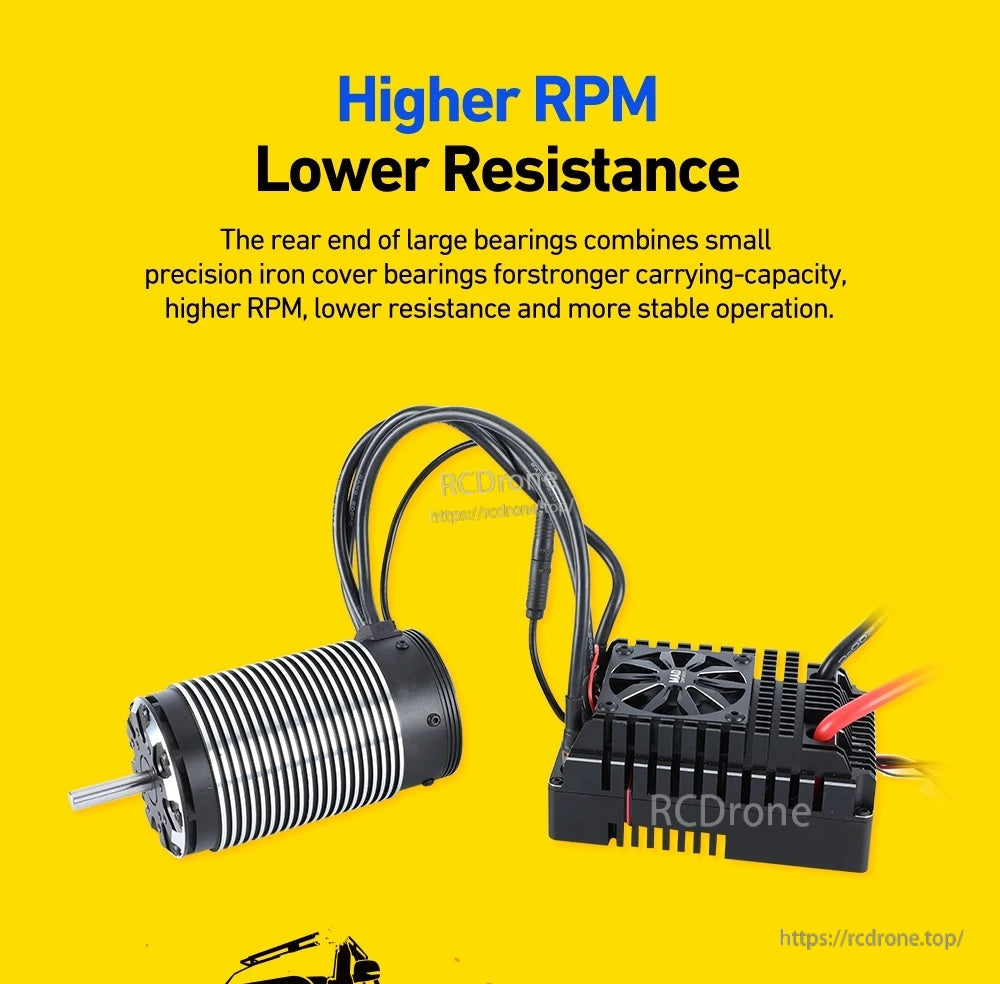

The MAD Runner 3652 sensored brushless motor pairs with a wired ESC setup for straightforward installation and reliable throttle control.
The MAD Runner 3652 sensored brushless motor pairs a reinforced alloy shell and steel shaft with industrial-grade sensored waterproof connectors for easier wiring.

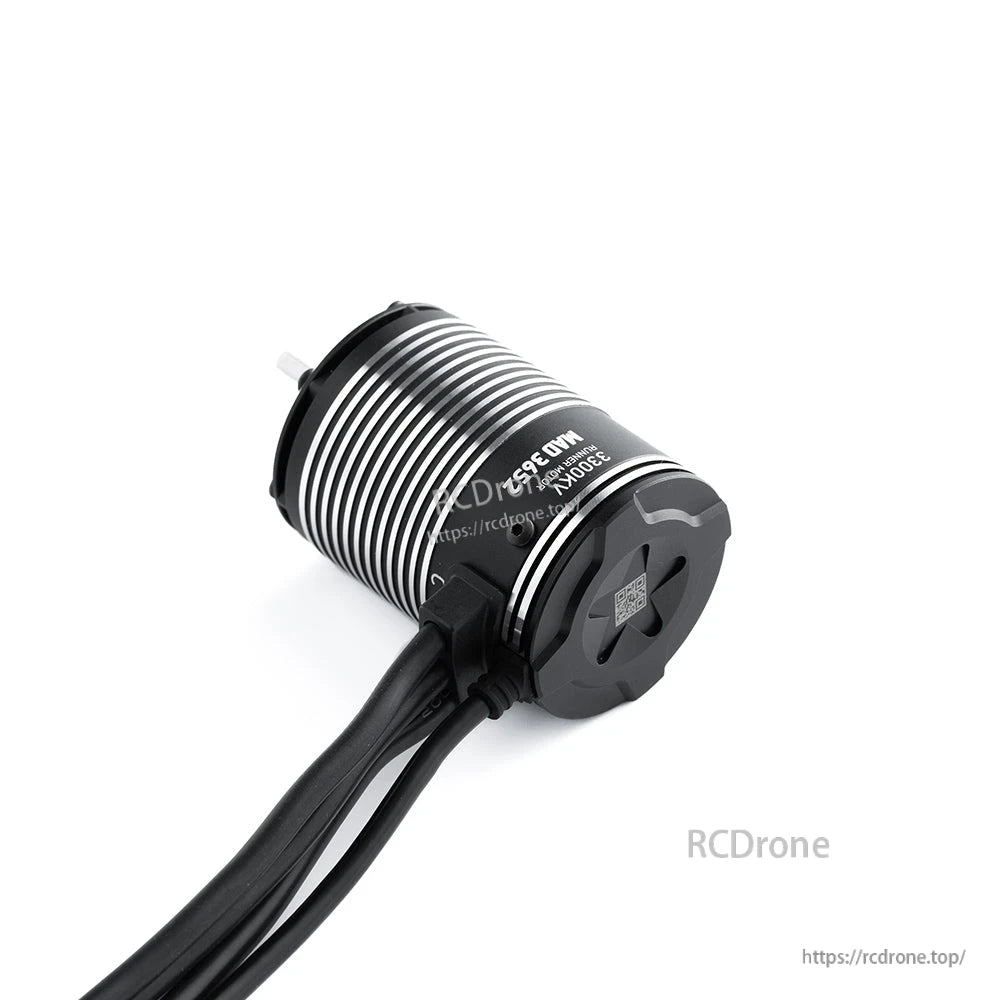

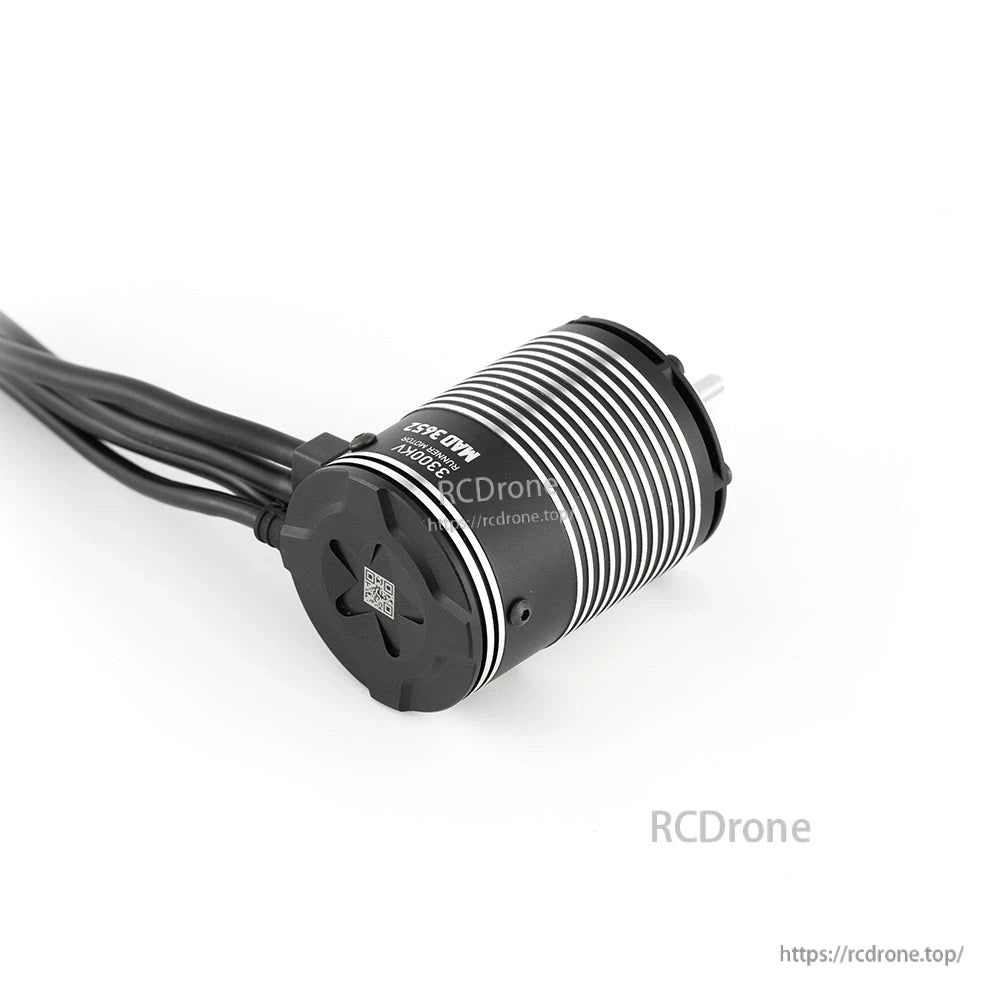

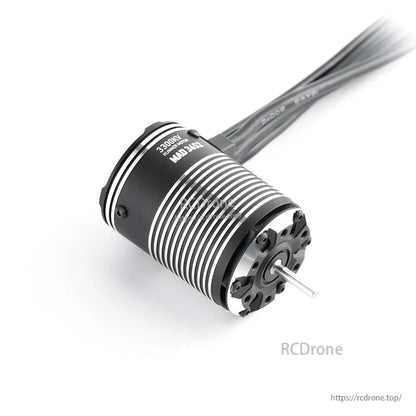

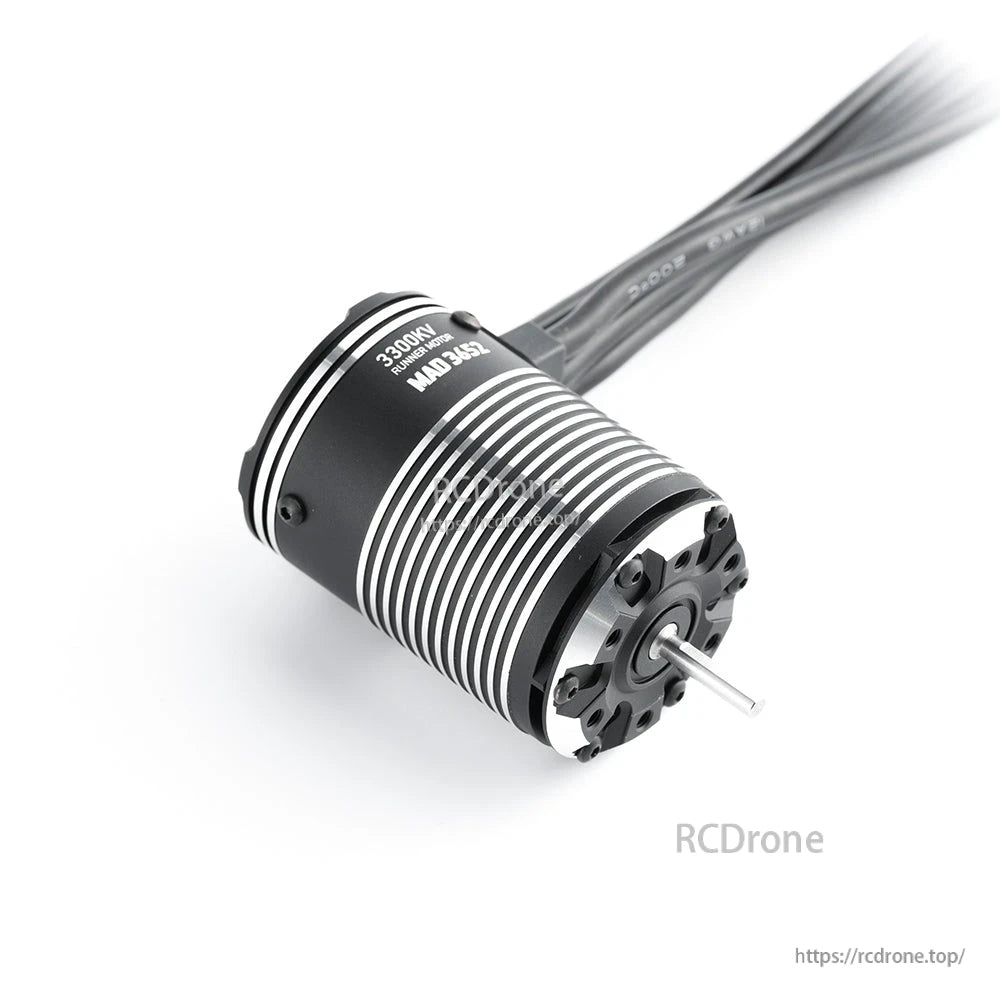

The MAD Runner 3652 brushless motor uses a finned aluminum can and an attached lead to keep your power setup clean and secure.

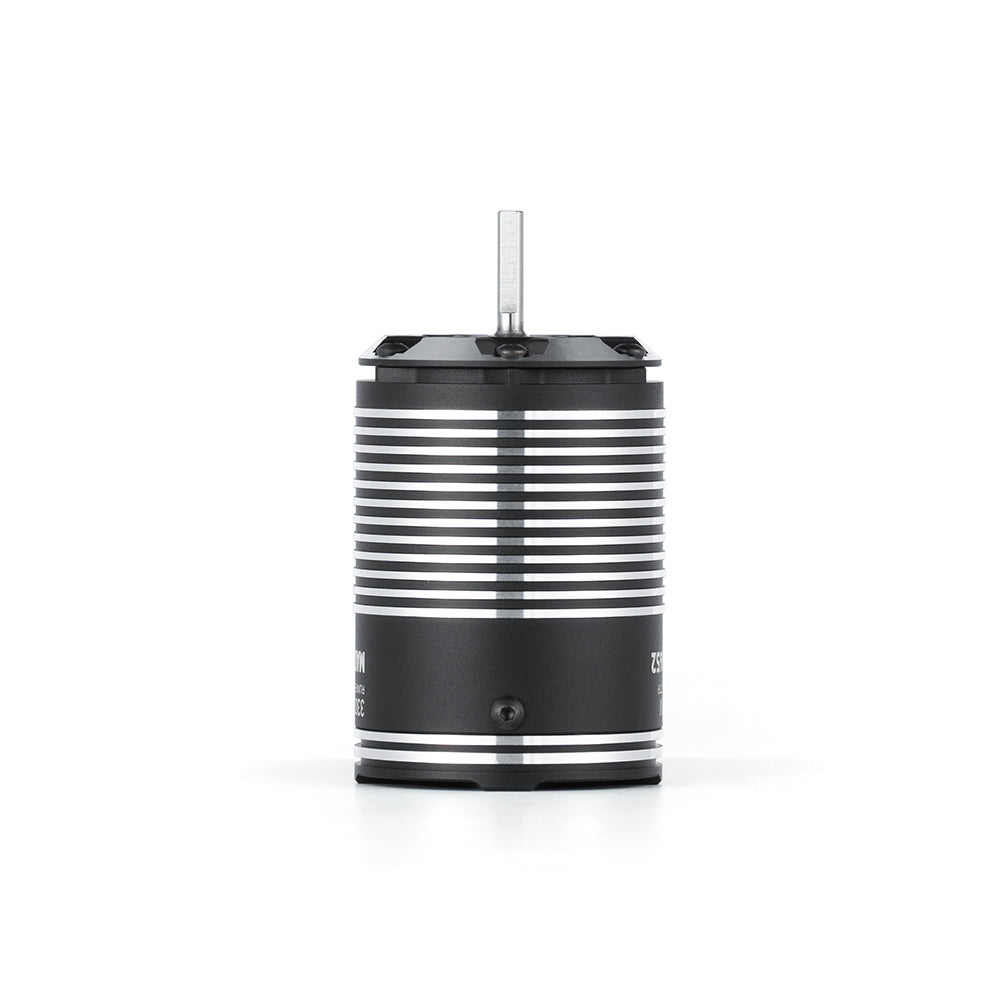

MAD Runner 3652 sensored brushless motor features a finned can design and notes optimized power efficiency with reduced power losses.
An IP67-rated sealed design helps protect the motor from water and dust during all-weather runs.

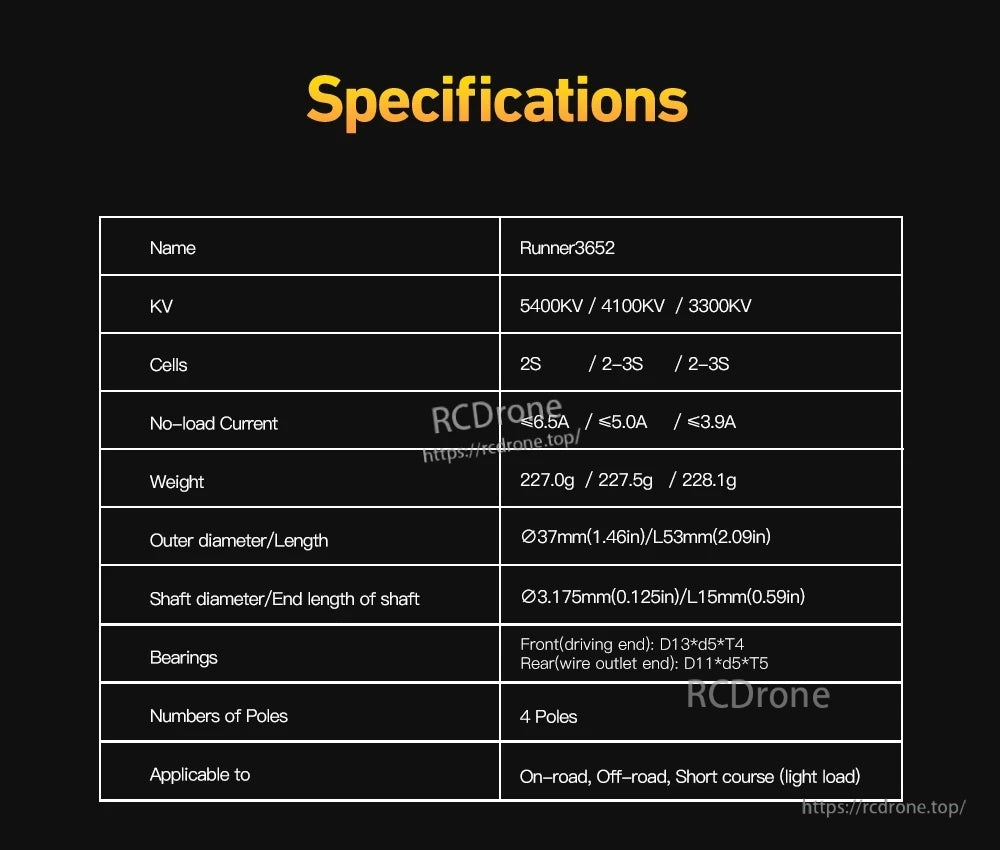

MAD Runner 3652 sensored brushless motor specs list KV options (5400/4100/3300), 2S–3S compatibility, Ø37×53mm sizing, and 4-pole design.

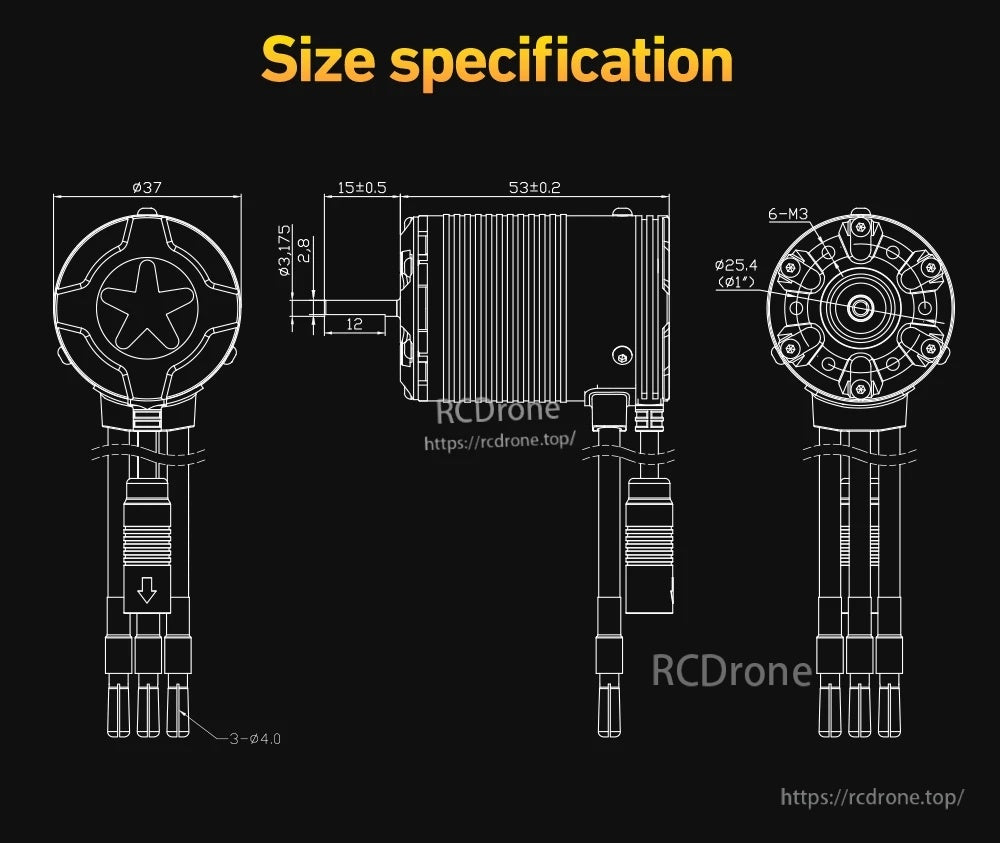

The MAD Runner 3652 sensored brushless motor uses a 37 mm can with 53±0.2 mm body length and a 6×M3 mounting pattern for fitment planning.
