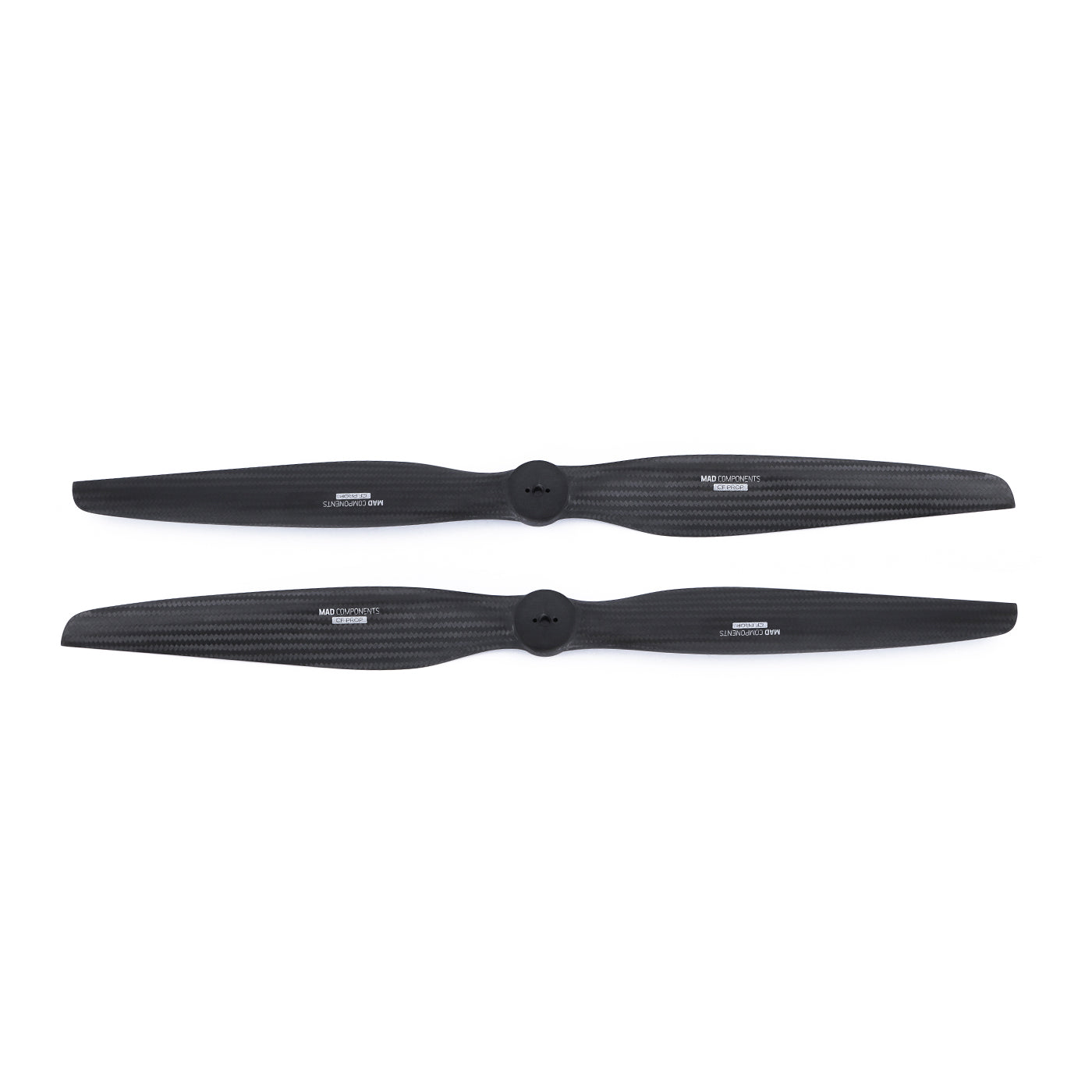

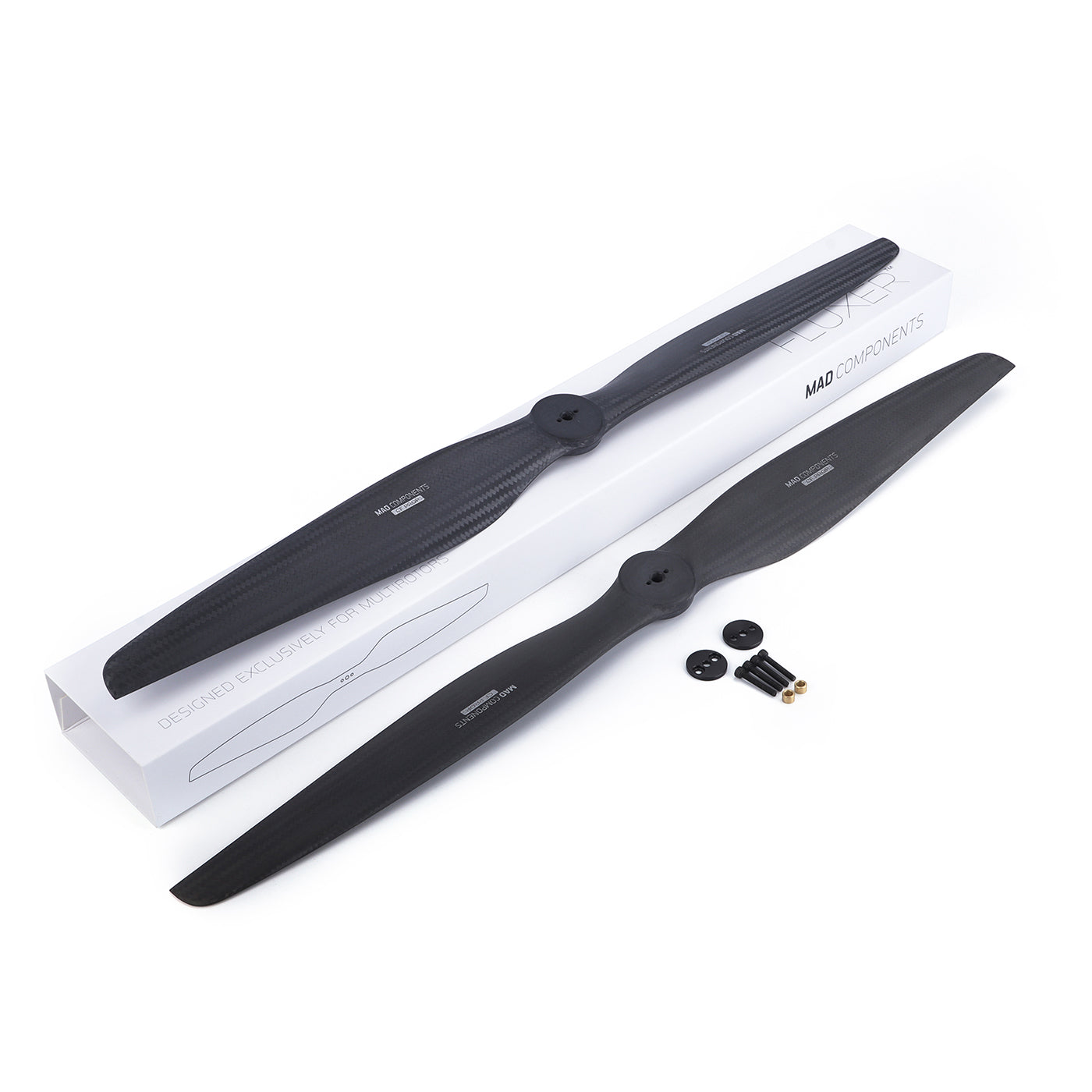

MAD FLUXER 22.1x8.8 VTOL Carbon Fiber Propeller Set (2pcs) with Cover Plates & Ø6/Ø4 Rings

MAD

$148.50 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Holes Position D6-D12(M3*2)

Quantity

View full details

Overview

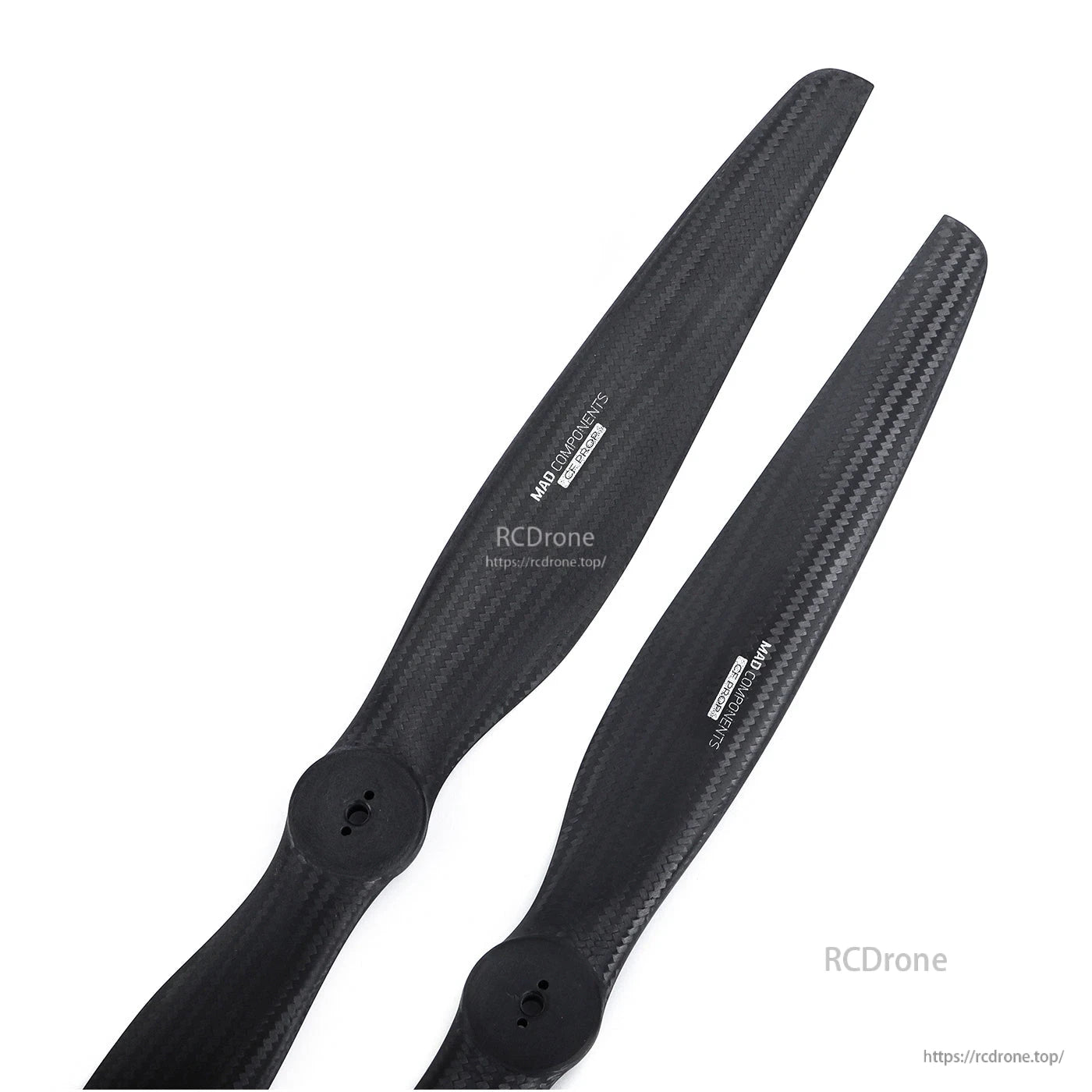

The MAD FLUXER VTOL 22.1x8.8 carbon fiber propeller uses an integrated structural design for higher strength and durability. The optimized VTOL prop profile uses a smaller prop surface to reduce air resistance during cruise, while the larger pitch supports higher thrust with faster response and startup. Reinforced installation positions improve safety and long-term reliability. Recommended pairing: MAD brushless motors.

Key Features

Integrated structure design for higher strength
Optimized VTOL prop profile: reduced prop surface for lower cruise air resistance
Larger pitch for higher thrust and faster response/startup

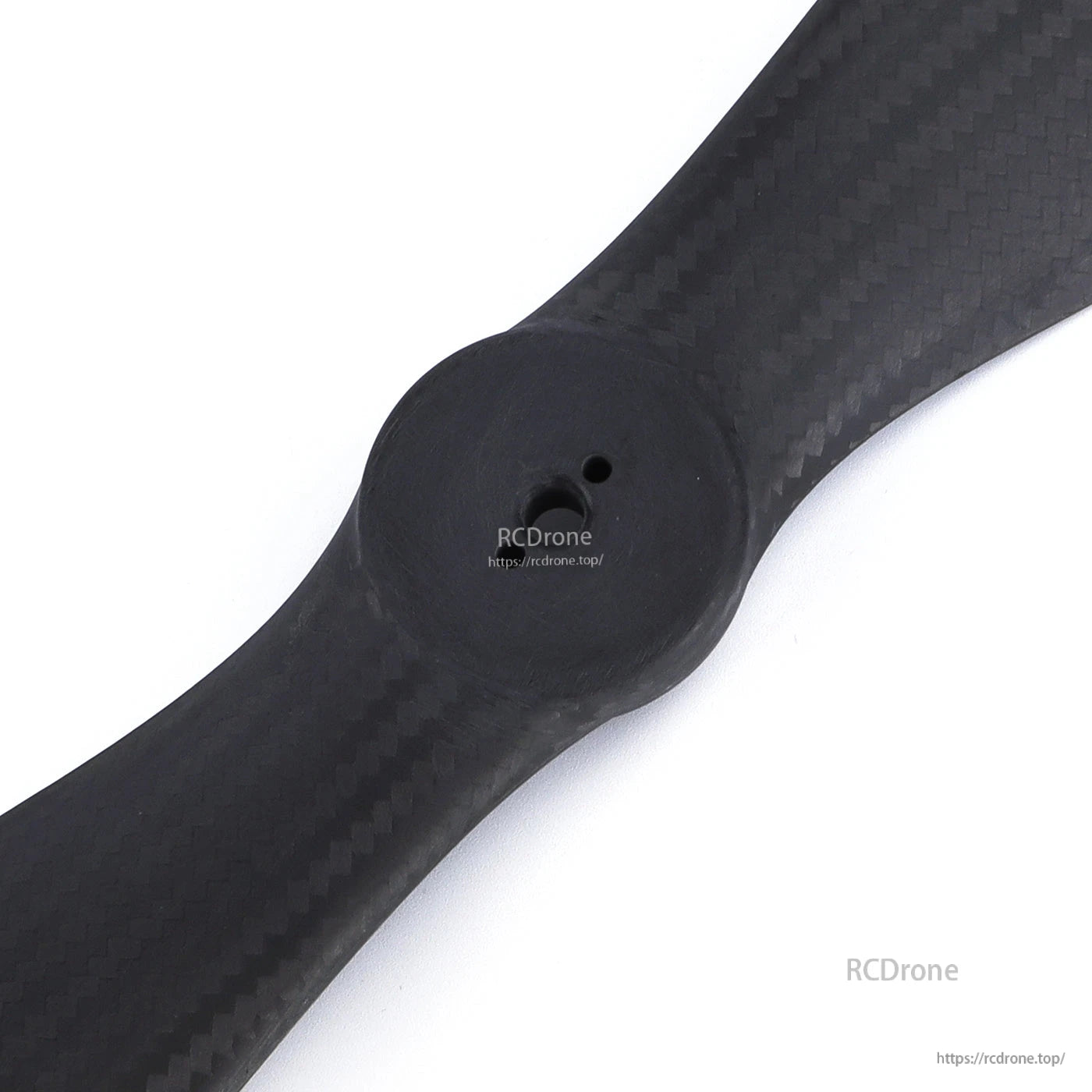

Reinforced mounting area for improved durability and safer operation
Surface treatment: polished/matt

Specifications

Model	FLUXER VTOL Props 22.1x8.8
Size	561.34 x 233.52 mm
Single weight	50 g
Material	High quality carbon fiber + Resin
Working temperature	-40°C~65°C
Storage temperature	-10°C~50°C
Storage humidity	<85%
Optimum RPM	3400–5400RPM/min
Single thrust limitation	15 kg
Surface treatment	Polished/matt

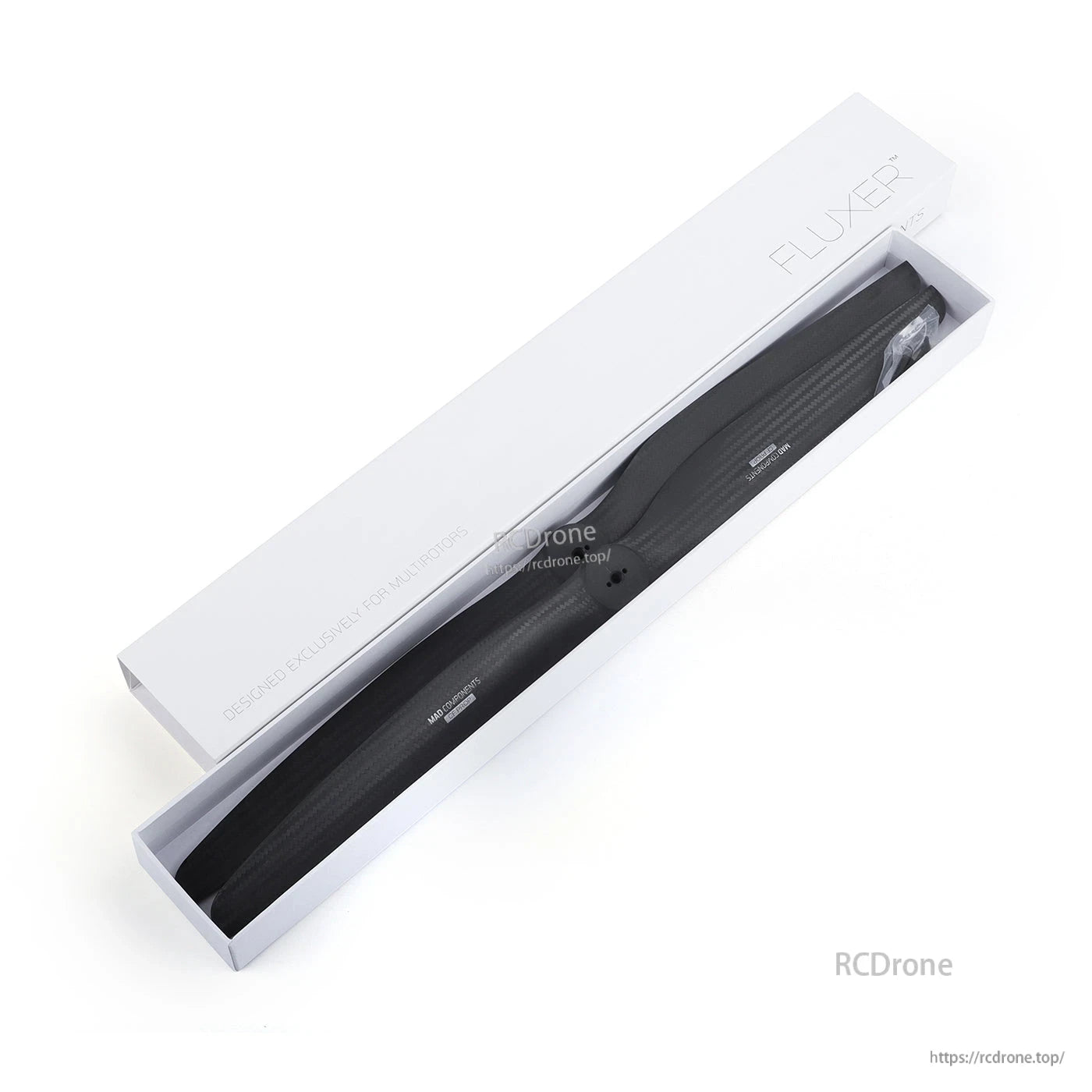

Package	Color box

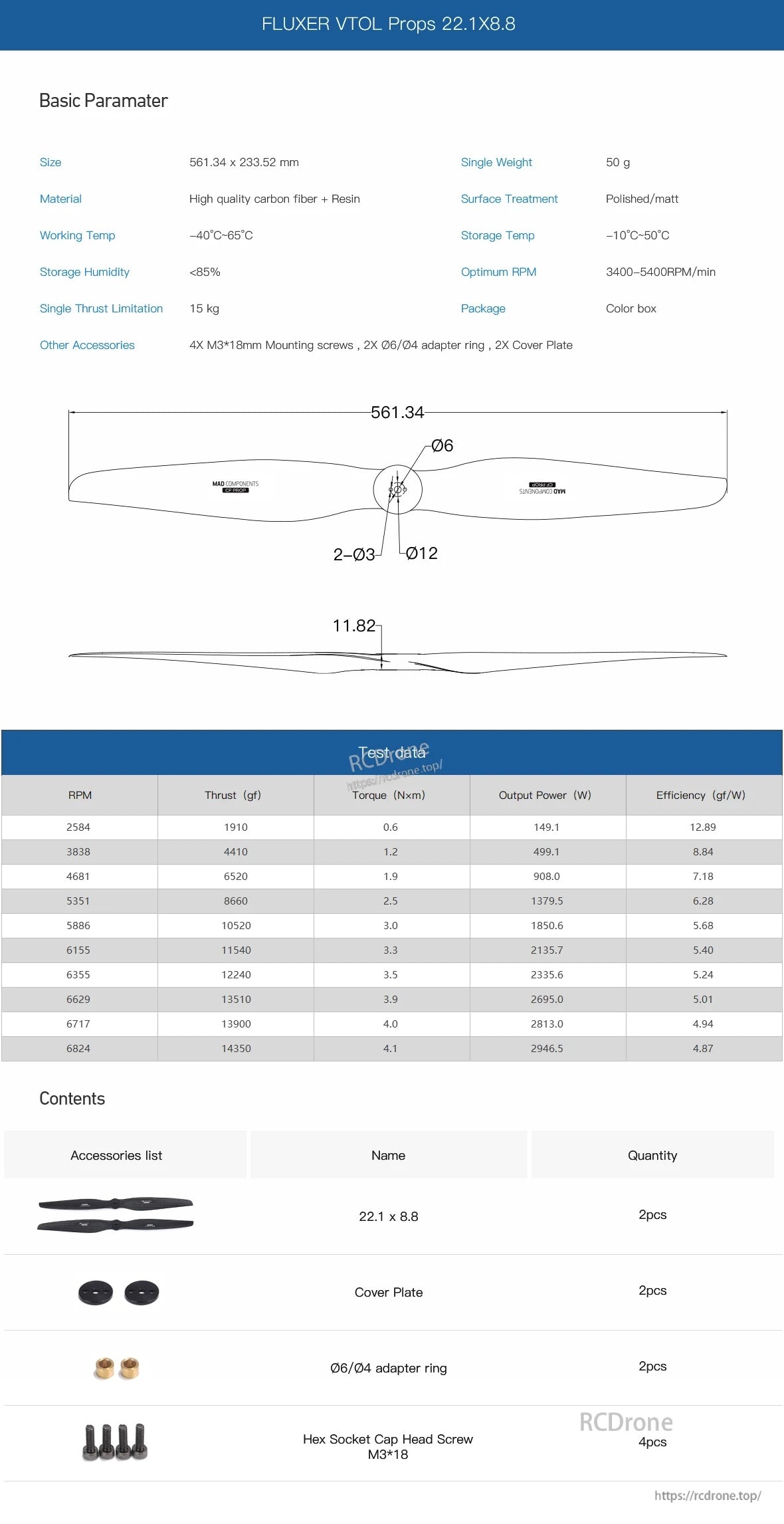

Mounting dimensions (drawing)	Center hole: Ø6; Hub: Ø12; 2-Ø3; Reference dimension: 11.82; Overall length: 561.34

Test Data

RPM	Thrust (gf)	Torque (Nxm)	Output Power (W)	Efficiency (gf/W)
2584	1910	0.6	149.1	12.89
3838	4410	1.2	499.1	8.84
4681	6520	1.9	908.0	7.18
5351	8660	2.5	1379.5	6.28
5886	10520	3.0	1850.6	5.68
6155	11540	3.3	2135.7	5.40
6355	12240	3.5	2335.6	5.24
6629	13510	3.9	2695.0	5.01
6717	13900	4.0	2813.0	4.94
6824	14350	4.1	2946.5	4.87
