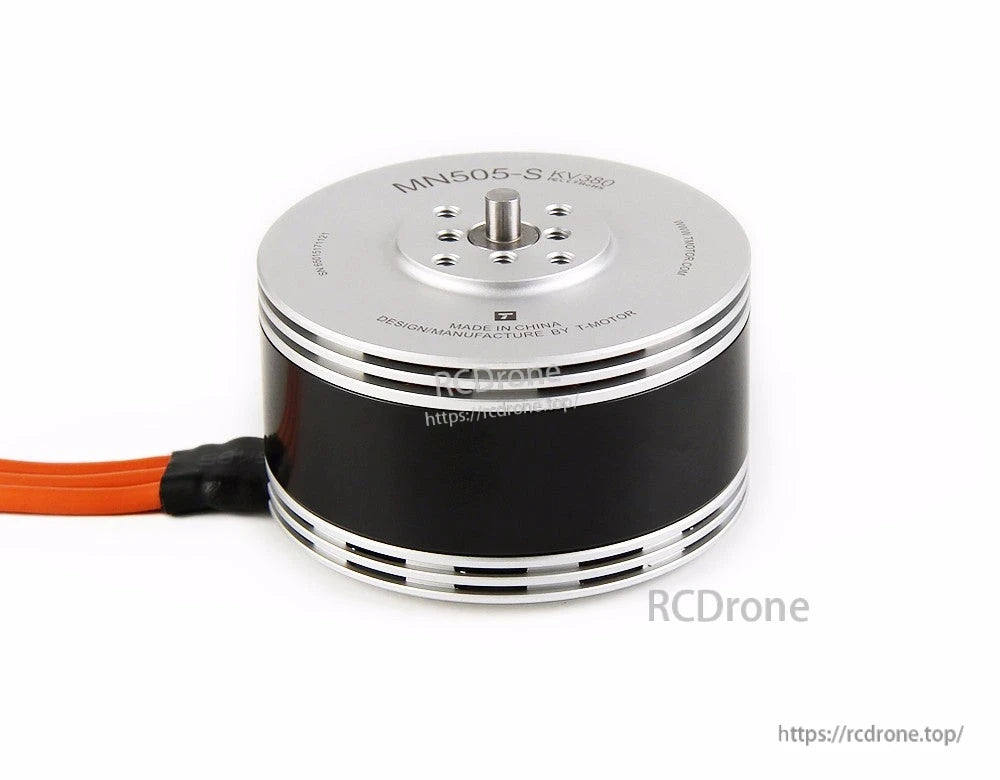

T-Motor MN505-S KV320 IP45 Navigator Type UAV Motor - 6.6kg Thrust, 6mm Shaft, Dust/Water Resistant

T-Motor MN505-S KV320 IP45 Navigator Type UAV Motor - 6.6kg Thrust, 6mm Shaft, Dust/Water Resistant

T-Motor

$153.86 USD
$153.86 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The T-Motor MN505-S KV320 is an IP45 Navigator Type UAV motor designed for multirotor, VTOL, and fixed-wing power systems where dust/water resistance and stable operation are required. The Navigator series is positioned for general UAV uses including aerial photography, with applications such as cargo drones, tethered platforms, mapping, and inspection.

Key Features

  • IP45 protection concept: waterproof, dust-resistant, and anti-corrosion design.
  • Centrifugal fan cooling (bell cap): active cooling design; heat dissipation performance stated as 10% better than ordinary motors.
  • High-temperature resistance: manual winding with special varnished wires; high-temperature resistant magnets; anti-high temperature and anti-overload positioning.
  • Foreign object protection note: grid-shaped bell cap helps keep the motor away from >1 mm foreign objects, including when mounted upside down.
  • Locking method: T-shape shaft secured with a circlip and a screw for “Double Security” under high RPM.
  • Structure for lifespan/impact resistance: uses a 6 mm steel shaft and a 15 mm bearing.
  • Performance optimization: anti-high temperature curved magnets; motor performance stated as improved by 5%+.
  • Mounting note: when mounting the motor, ensure the thread inside the motor is ≤ 5 mm.

For pre-sales compatibility checks (prop/ESC matching) or order support, contact https://rcdrone.top/ or email support@rcdrone.top.

Specifications

Model MN505-S
KV 320 KV
Ingress protection IP45
Max thrust 6.6 kg
MTBF About 1000 hours
Steel shaft 6 mm
Bearing 15 mm
Foreign object protection reference > 1 mm
Integrated prop installation reference 14"-22"
Foldable prop installation reference 14"-18"; 20"-22"
Installation hardware reference M3*10mm Mounting Screw*2; φ20*2.4mm Cover*1; Copper adapter 6mm*4mm*1
Air flow simulation temperature scale 293.00 K to 393.00 K

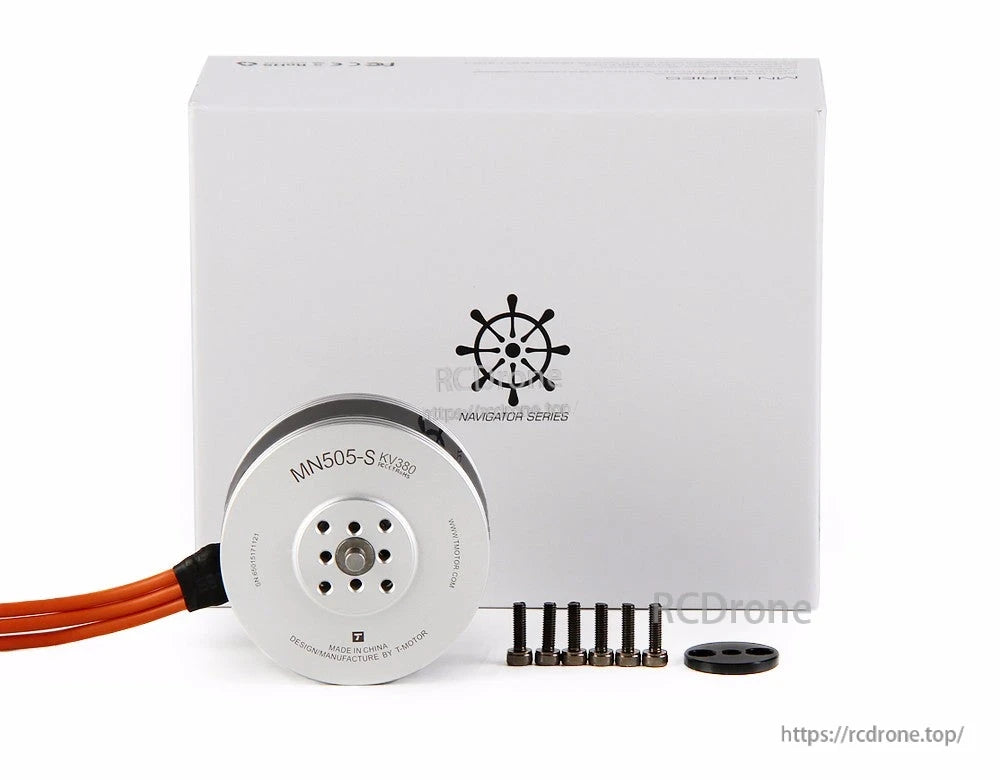

What’s Included

  • 1x T-MOTOR MN505 Motor KV320
  • 1x Hardware pack

Applications

  • Aerial photography UAV platforms (multirotor / VTOL / fixed wing)
  • Cargo drones
  • Tethered platforms
  • Mapping and inspection

Matching Guide

  • T-MOTOR P21*6.3 Prop
  • Flame 60A 12S v2 ESC
  • ALPHA 60A 6S ESC

Details

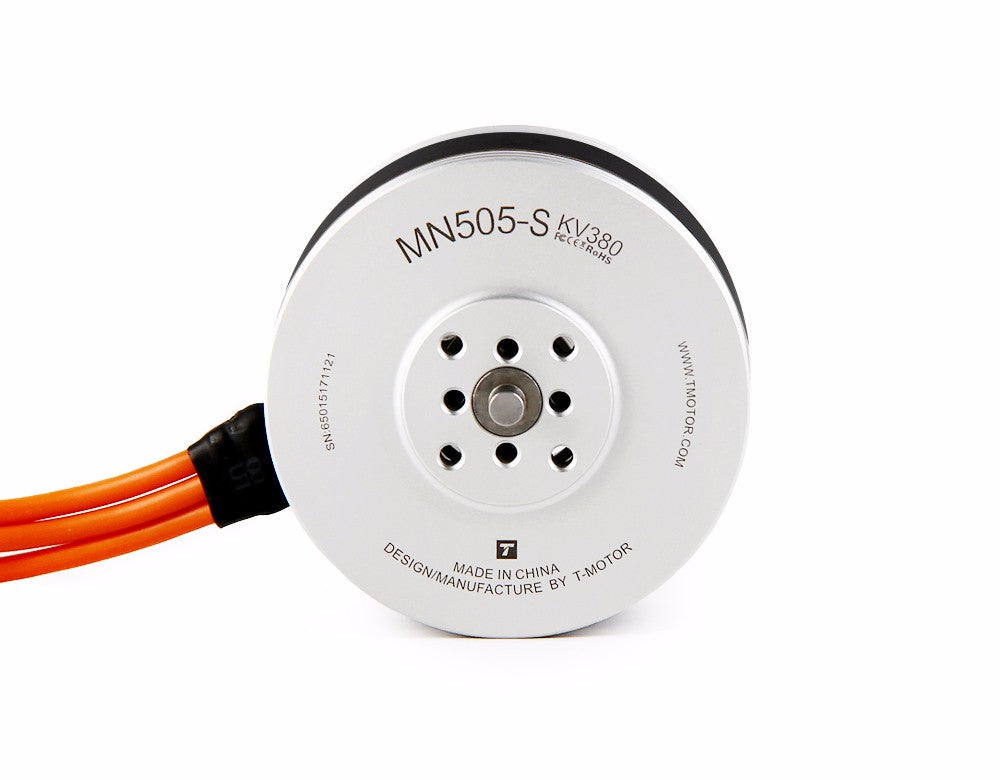

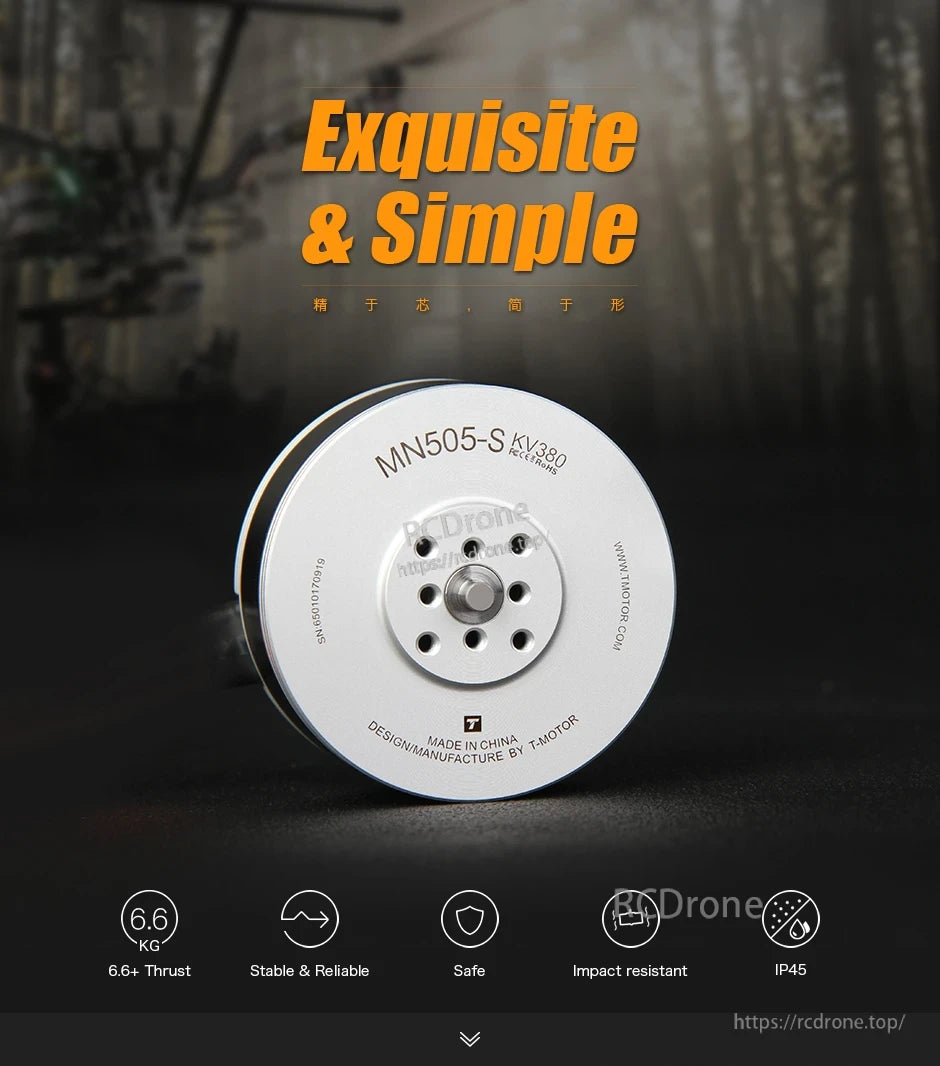

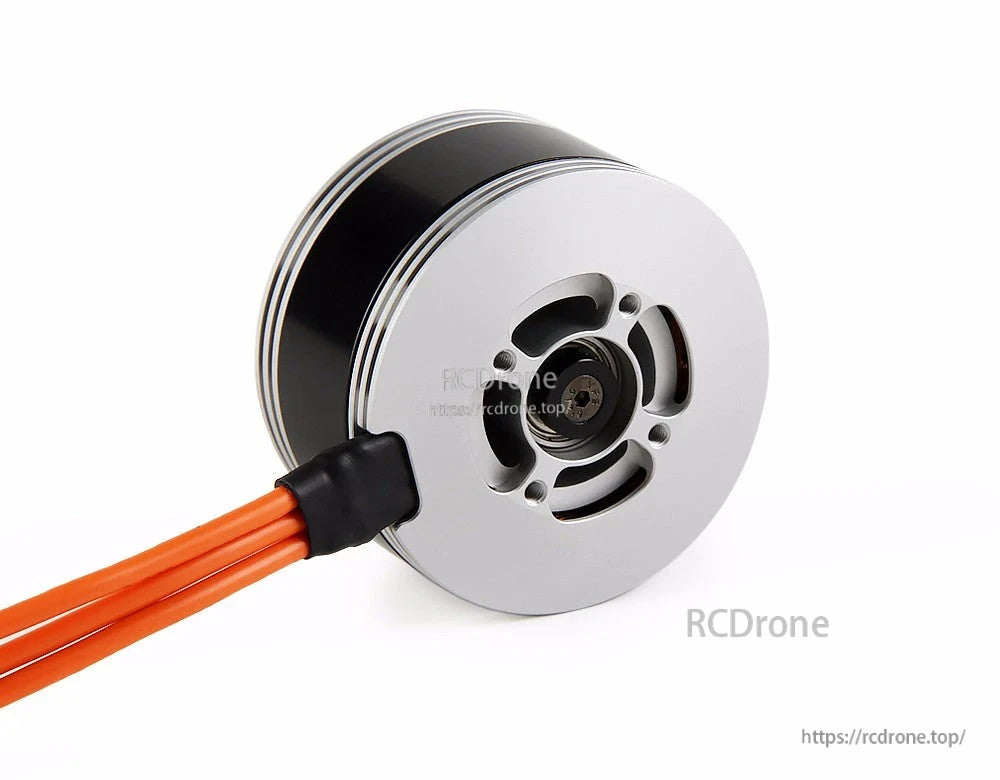

T-Motor MN505-S KV380 drone motor front view with mounting holes, labeled IP45 and 6.6+ kg thrust

The T-Motor MN505-S KV380 motor features a clean mounting face and lists IP45 protection with 6.6+ kg thrust.

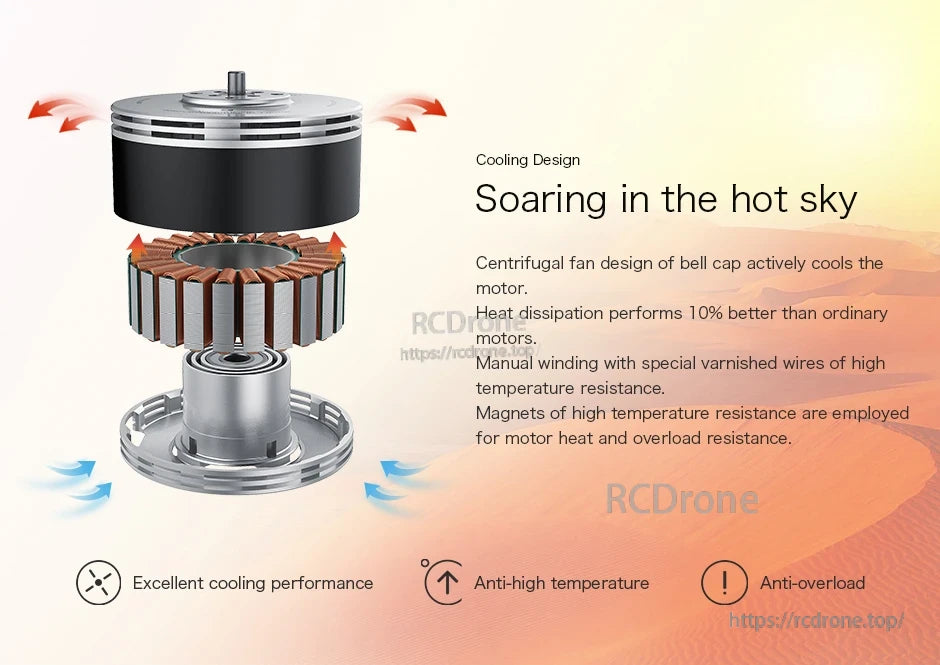

Exploded view of a T-Motor brushless motor with bell-cap fan cooling design and heat dissipation details

The T-Motor cooling design uses a bell-cap centrifugal fan and heat-dissipation features to help handle hot conditions and overloads.

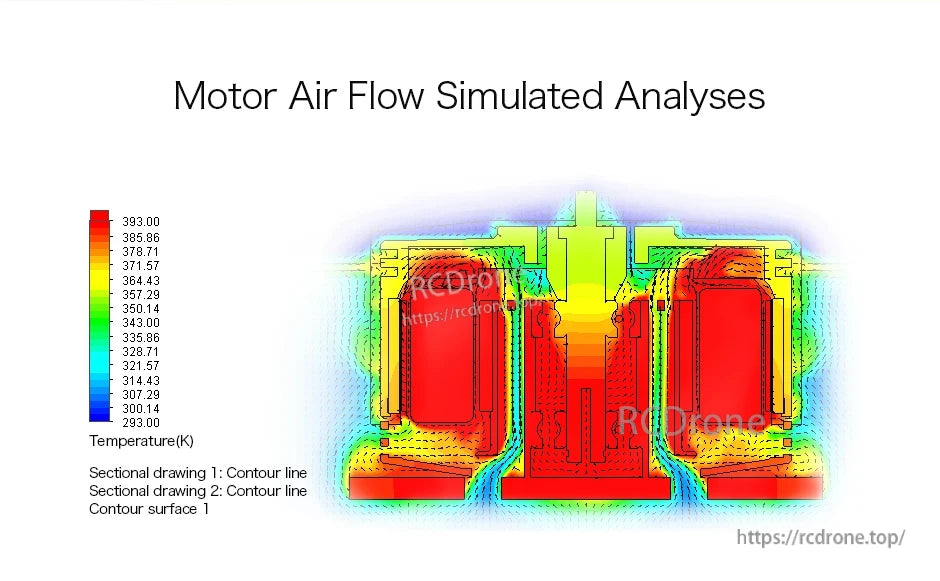

T-Motor motor airflow simulated analysis showing cross-section temperature contour map with Kelvin scale

Motor airflow and temperature contour analysis across a cross-section helps visualize heat distribution and cooling paths.

T-Motor IP45-rated brushless drone motor with waterproof, dust-resistant and anti-corrosion protection

The T-Motor IP45 design adds waterproof, dust-resistant, and anti-corrosion protection for flying in wet or dusty conditions.

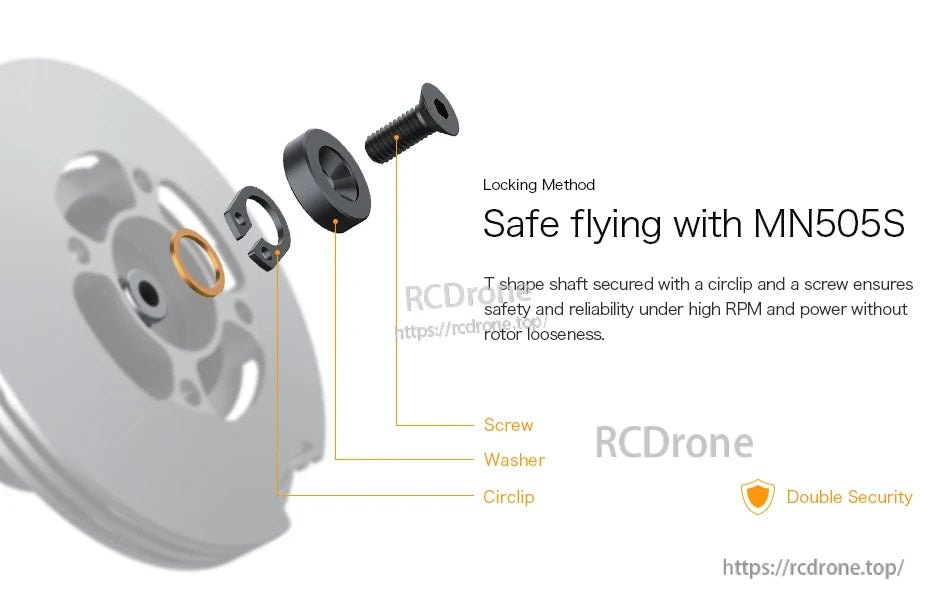

Exploded view of T-Motor MN505S shaft locking parts showing screw, washer and circlip on the rotor hub

The MN505S uses a screw, washer, and circlip locking method to help secure the T-shaped shaft during installation.

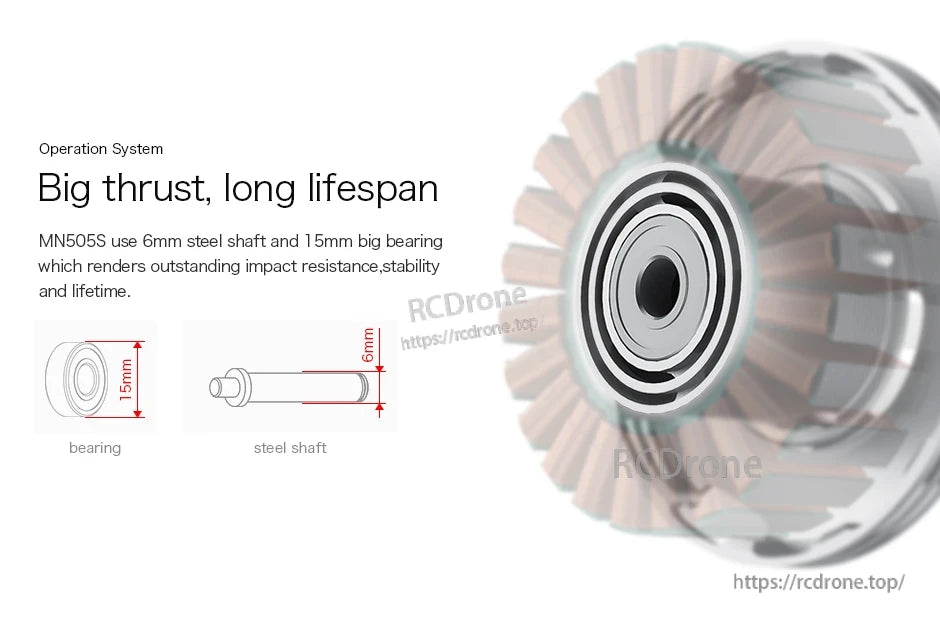

T-Motor MN505S motor detail showing 6mm steel shaft and 15mm bearing for durability

The MN505S uses a 6mm steel shaft and a 15mm bearing to support stable, long-lasting operation.

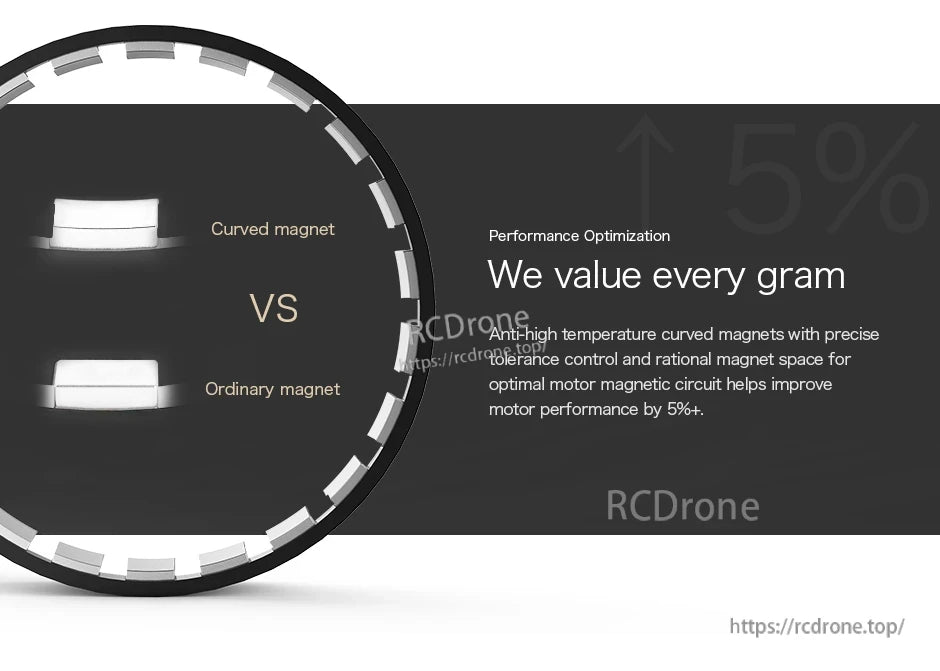

T-Motor graphic comparing curved magnets vs ordinary magnets, highlighting optimized motor magnetic circuit design

Curved magnets with controlled spacing are used to optimize the motor’s magnetic circuit compared with ordinary magnets.

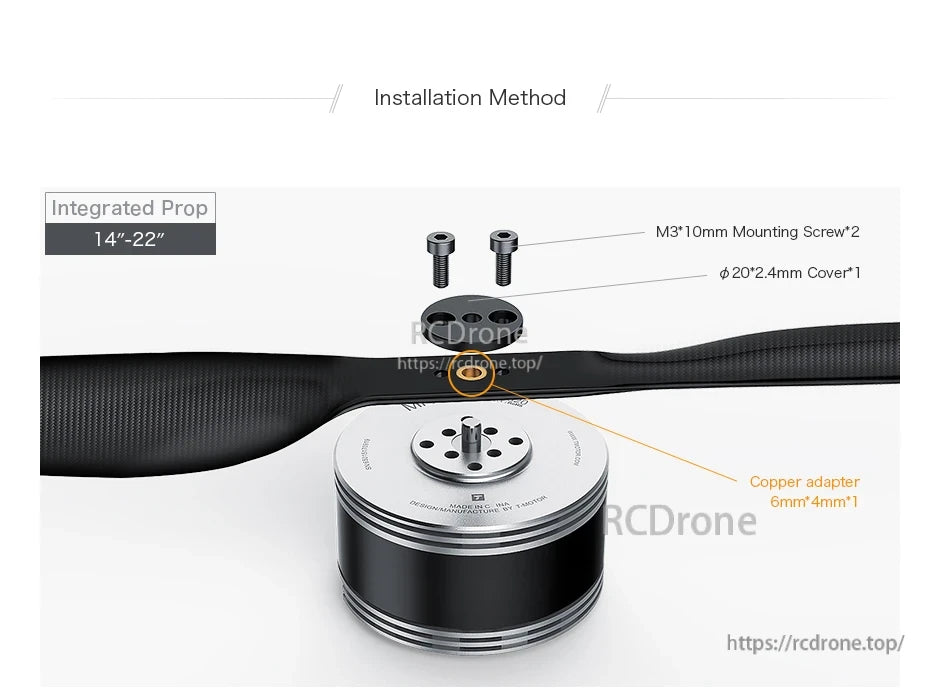

T-Motor integrated prop installation diagram with motor, 14–22 in prop, M3x10 screws, cover and copper adapter

The integrated 14–22 inch prop mounts to the motor using two M3×10 mm screws with a Ø20×2.4 mm cover and a 6×4 mm copper adapter.

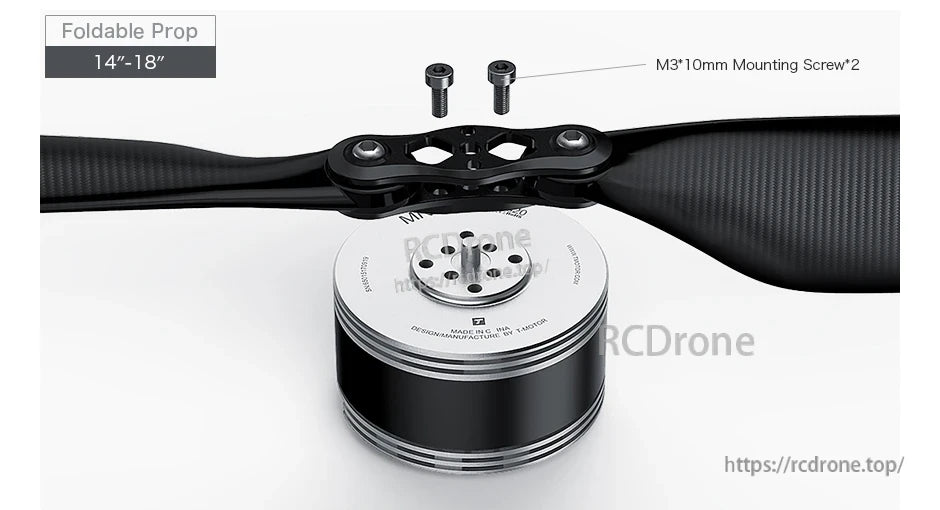

T-Motor foldable propeller (14–18 in) mounted on motor hub with two M3×10mm mounting screws

The 14–18" foldable prop mounts to the motor hub using two M3×10mm screws for a secure, clean install.

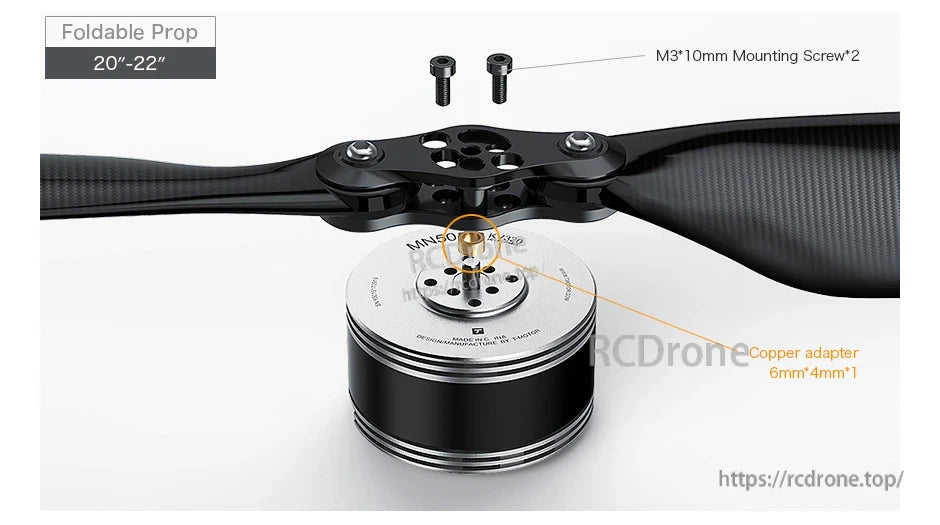

T-Motor foldable 20–22 inch prop mounted on motor hub with M3x10 screws and 6mm-to-4mm copper adapter

The foldable 20–22" prop setup uses two M3×10mm mounting screws and a 6mm×4mm copper adapter for the hub fit.

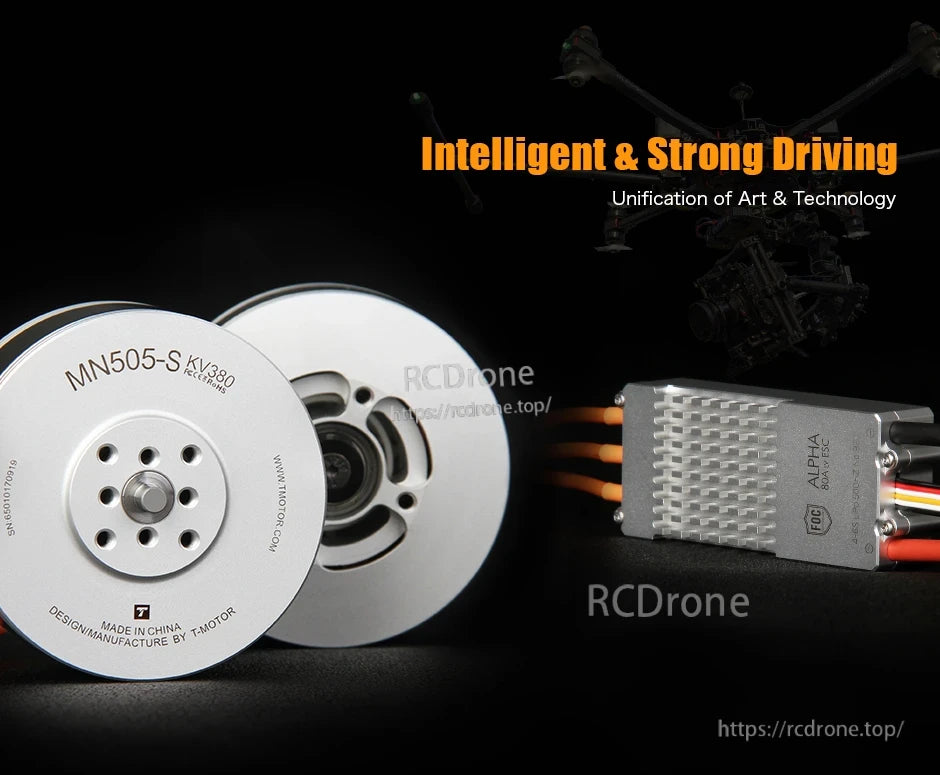

T-Motor MN505-S KV380 brushless motors with finned ALPHA-series ESC and wiring leads on a black background

T-Motor MN505-S KV380 motors pair with a finned ALPHA-series ESC for a clean, compact drone power setup.
