Super Mini AIO 5.8G 40CH 0/25MW/50MW/200MW VTX 600TVL Switchable 1/3 Cmos Camera For RC FPV Multicopter Drone Car part

Super Mini AIO 5.8G 40CH 0/25MW/50MW/200MW VTX 600TVL Switchable 1/3 Cmos Camera For RC FPV Multicopter Drone Car part

RCDrone

$22.86 USD
$32.01 USD $22.86 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

76 orders in last 90 days

Color
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

SPECIFICATIONS

Brand Name: creapart

Origin: Mainland China

Material: Composite Material

Tool Supplies: Assembled class

Upgrade Parts/Accessories: Frame

RC Parts & Accs: Transmitters

Size: mini size

Use: Vehicles & Remote Control Toys

Quantity: 1 pcs

Technical parameters: Value 4

Model Number: 5.8G VTX Camera

Remote Control Peripherals/Devices: RECEIVERS

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: Assemblage

Wheelbase: Bottom Plate

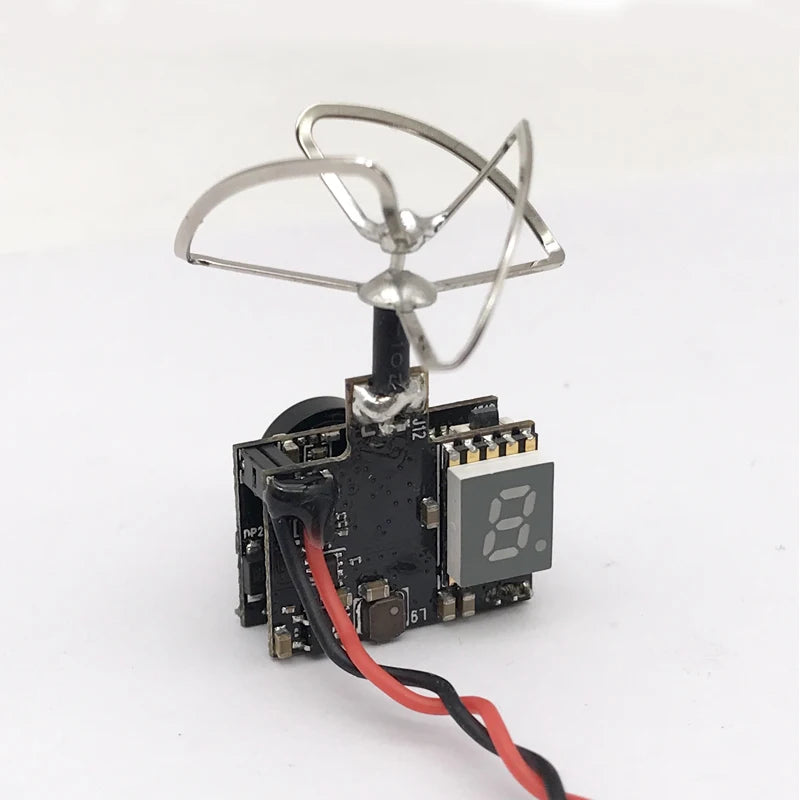

A3 Mini 5.8Ghz 40CH 0/25mw/50mw/200mw Switchable FPV Transmitter Raceband 600TVL FPV Micro AIO Camera

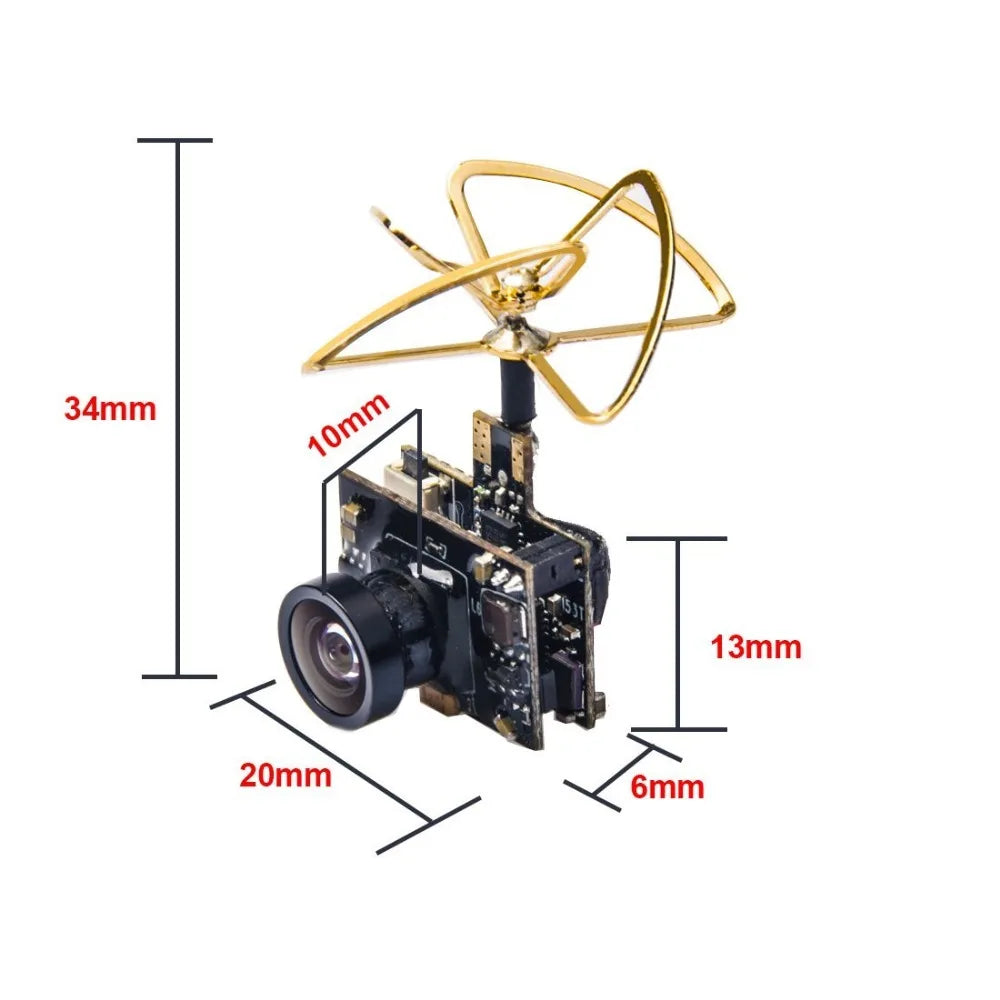

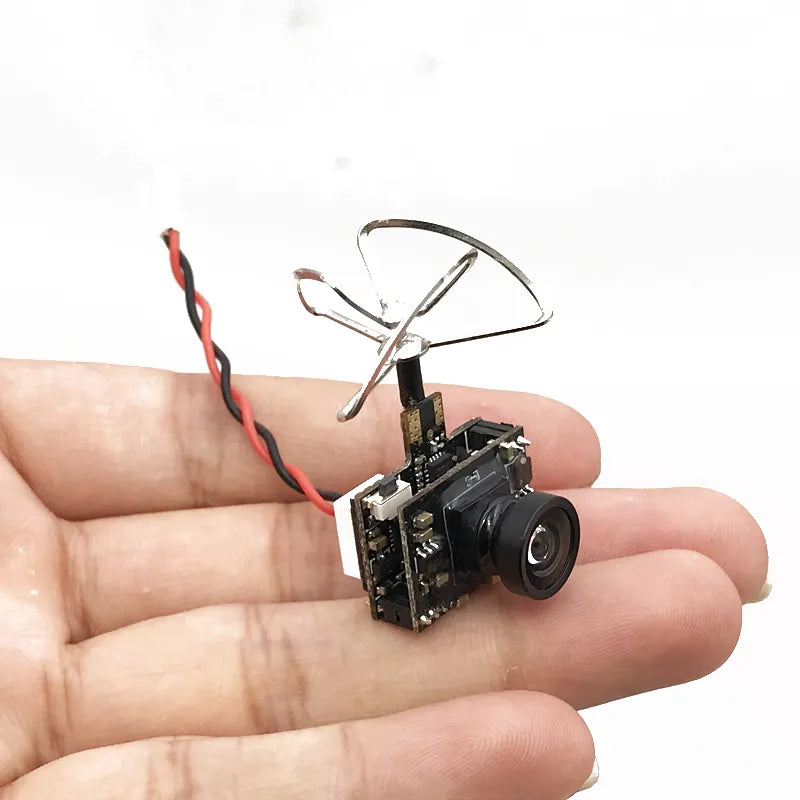

Super light weight:4.7g, Small size: 20*13mm(L*W)

3-leaf antenna for better signal transmission, easy to install. Installs in seconds

All in one vtx + camera + antenna, plug and play, ready to fly.

40 channel with raceband, good quality image with zero latency, Button control instead of switches to change channels

Integrated booster circuit prevents motor interference, Signal Range Suitable for Ultra Micro RC Aircraft.



Feature:

Compatible with 5.8GHz googles and monitor.

This AIO camera can be installed in minutes and ready to fly.

Its signal range is ideal for park flyers or racing quads. Integrated booster circuit prevents motor and servo interference.


Specification:
Output power: 0/25mW/50mw/200mw switchable (Output Power: 0/25mW/50mW/200mW (switchable) (Set output power on 0, to avoid frequency interference)
Input voltage: 3.2–5.5V  Sensor: 1/3 "CMOS
Output Power: 25mW: 14dBm /50mW: 17dBm /200mW: 23dBm
Camera resolution: 600TVL
Video system:NTSC
Mini illumination: 1 lux
Angle: 120 ° FOV horizontal viewing angle 150 ° DFOV diagonal perspective
Antenna dimensions: 22mm X 29mm diameter
Antenna: 3 lobe right hand circular polarized

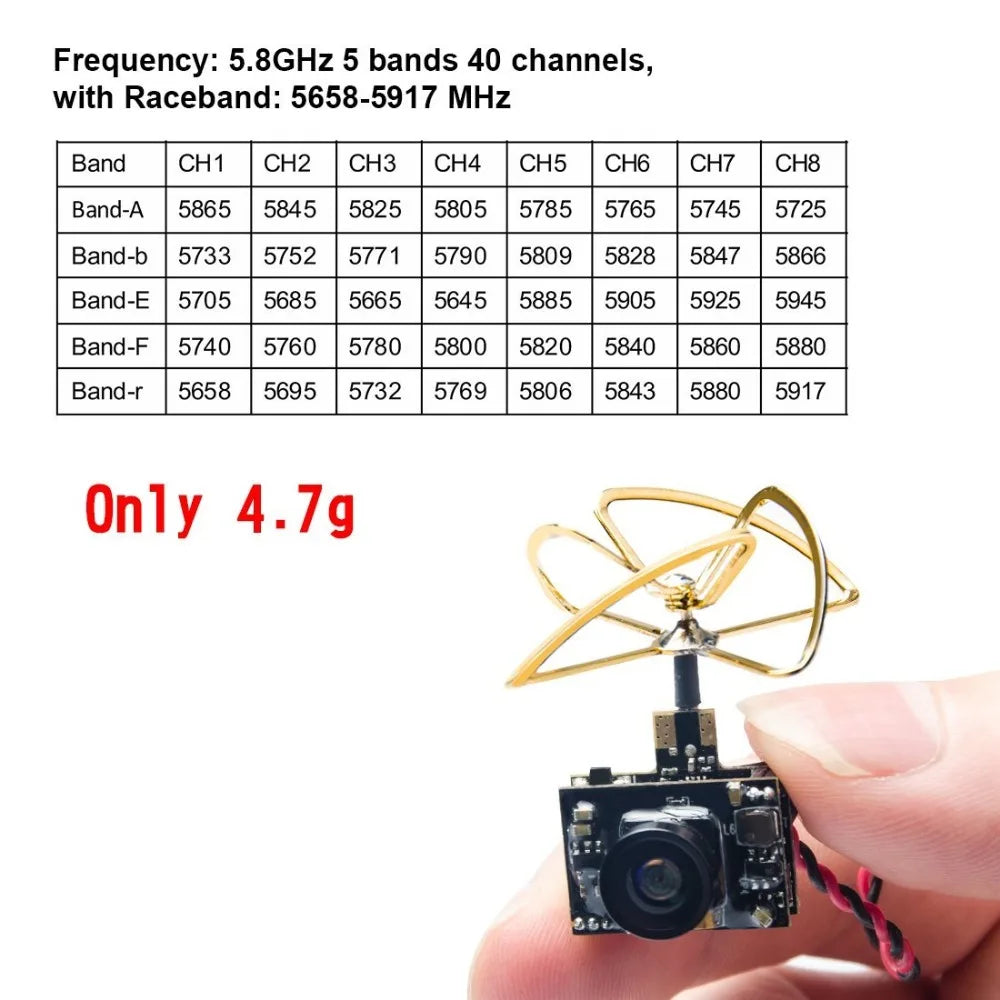

Frequency: 5.8GHz 5 bands 40 channels
Wireless Channel: 40CH

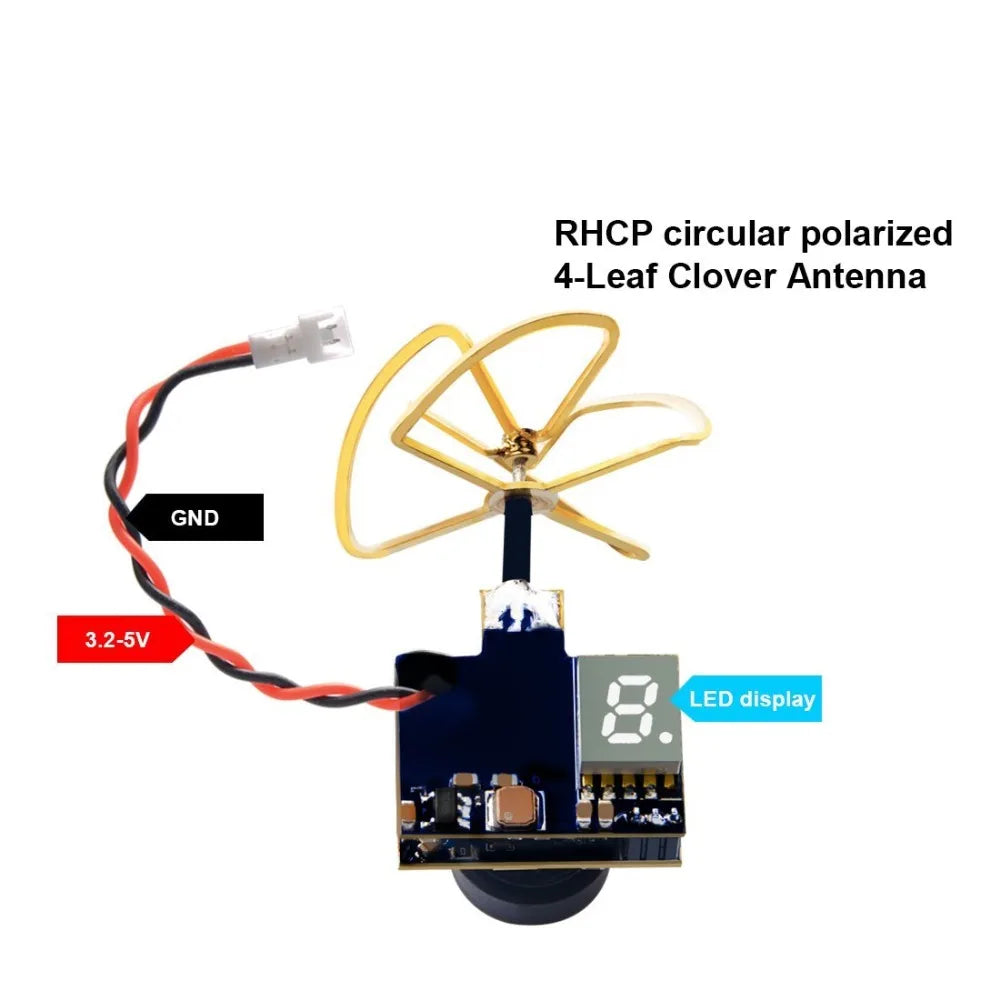

Antenna: RHCP circular polarization clover leaf antenna
Antenna Size: 22x29mm
Current consumption: 25mW: 250mA-510mA /50mW: 270mA-640mA /200mW: 330mA-740mA
Audio carrier: NO

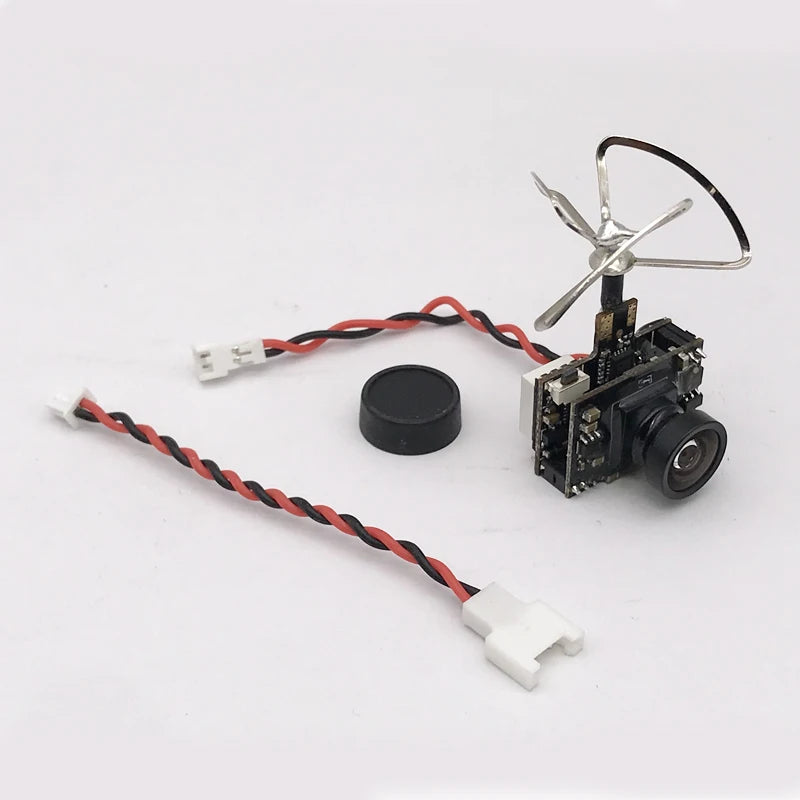

Package includes:
1x A3 AIO FPV Camera
1x Cable
1x User Manual
