Surpass Hobby BAT 2806.5 2808 2810 2812 3110 3115 800KV-1900KV Brushless Motors 4PCS Set for FPV Racing Drones

Overview

The Surpass Hobby BAT Series Brushless Motors (2806.5, 2808, 2810, 2812, 3110, 3115) offer exceptional thrust, efficiency, and durability for high-performance FPV racing drones. Covering a wide KV range from 800KV to 1900KV, these motors are engineered for 5"-9" propeller setups, making them ideal for freestyle, long-range, and cinematic drones like the APEX XL7 and similar platforms.

Designed with optimized stator geometry, high-quality materials, and precise winding, the BAT motors ensure consistent torque, responsive throttle control, and superior heat dissipation during aggressive flight sessions.

Key Features

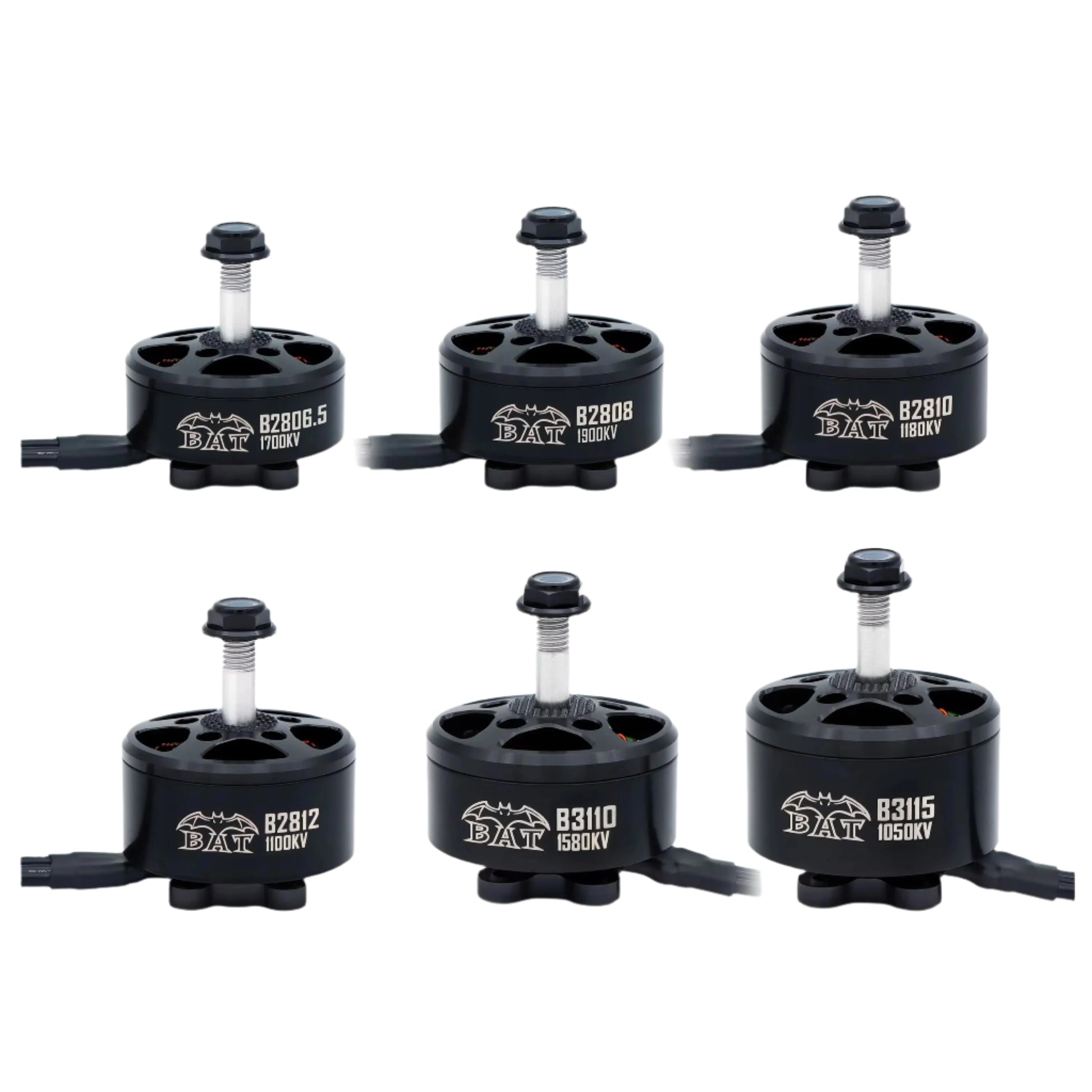

• Available models: 2806.5, 2808, 2810, 2812, 3110, 3115.

• KV options: 800KV, 900KV, 980KV, 1050KV, 1100KV, 1180KV, 1280KV, 1300KV, 1500KV, 1580KV, 1700KV, 1900KV.

• Wide voltage support: 4S–6S (14V–25V).

• Stator sizes: 28x6.5mm, 28x8mm, 28x10mm, 28x12mm, 31x10mm, 31x15mm.

• Robust construction for high efficiency and heat management.

• Tested with popular propellers like HQ 7x3.5, HQ 6x4x3, HQ 8x4.5x3, HQ 9x5x3.

• Optimized for APEX XL7, XL8, and similar 7-9 inch long-range and freestyle drones.

Specifications

Thrust Test Highlights

(Summarized across typical configurations)

• B2806.5 1300KV: 2335g thrust at 100% throttle with HQ7x3.5.

• B2806.5 1700KV: 2450g thrust at 100% throttle with HQ6x4x3.

• B2808 1500KV: 2071g thrust at 100% throttle with HQ6x3.5x3.

• B2808 1900KV: 2047g thrust at 100% throttle with HQ6x3.5x3.

• B2810 980KV: 2380g thrust at 100% throttle with HQ8x4.5x3.

• B2810 1180KV: 2341g thrust at 100% throttle with HQ7x4x3.

• B2812 900KV: 2333g thrust at 100% throttle with HQ9x5x3.

• B2812 1100KV: 3312g thrust at 100% throttle with HQ9x5x3.

• B3110 800KV: 3102g thrust at 100% throttle with HQ8x4x3.

• B3110 1280KV: 3050g thrust at 100% throttle with HQ8x4x3.

• B3110 1580KV: 2801g thrust at 100% throttle with HQ6x4x3.

• B3115 900KV: 2796g thrust at 100% throttle with HQ9.0x4.5.

• B3115 1050KV: 3172g thrust at 100% throttle with HQ9.0x4.7.

⚡ These results show strong pulling power while maintaining great efficiency for both long-range cruising and aggressive freestyle flying.

Application Scenarios

• 7"-9" FPV Freestyle Drones.

• Long-Range FPV Drones.

• Heavy Lift Cinematic Quads.

• Drones needing high thrust-to-weight ratios and low operating temperatures.

Packing List

• 4 × Surpass Hobby BAT Series Brushless Motors (Model and KV as selected)

• 16 × M3x8 Screws

• 4 × M5 Lock Nuts

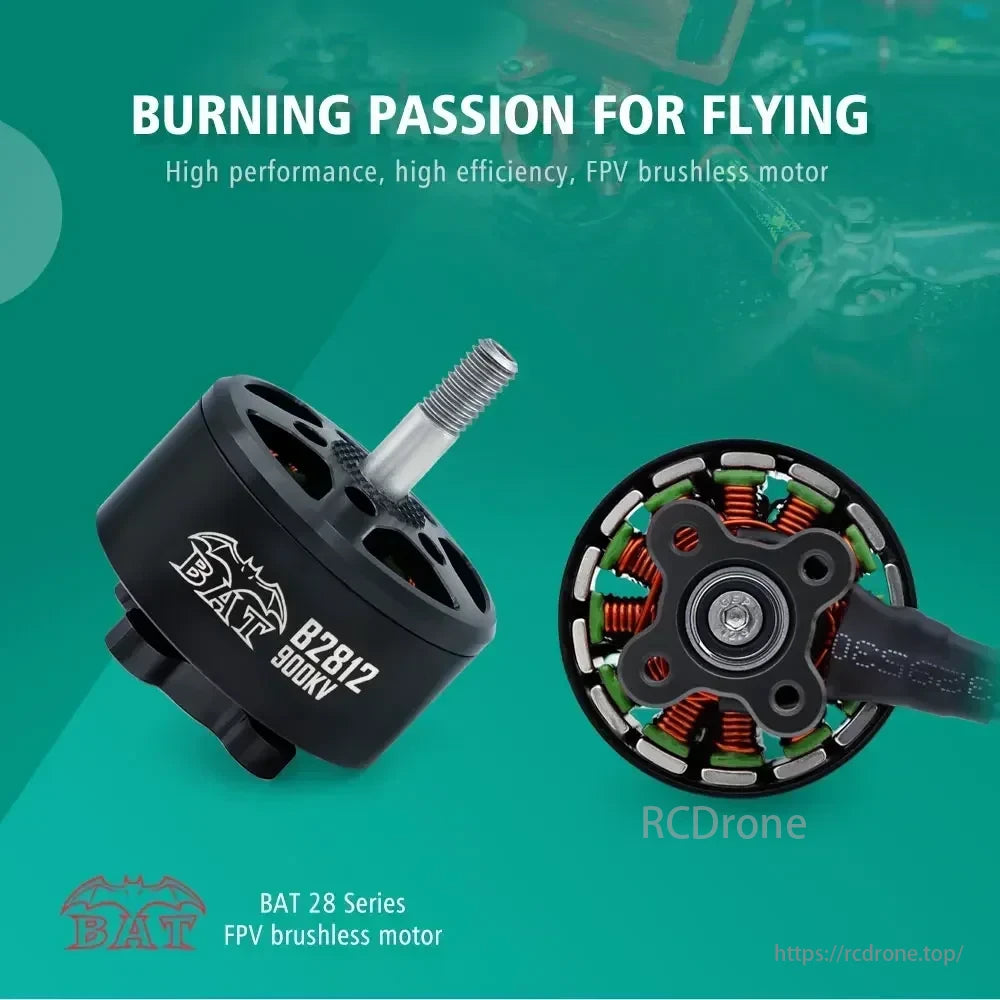

BAT 28 Series FPV brushless motor: high performance, high efficiency for flying passion.

M5 shaft fits most propellers; custom nuts protect steel threads.

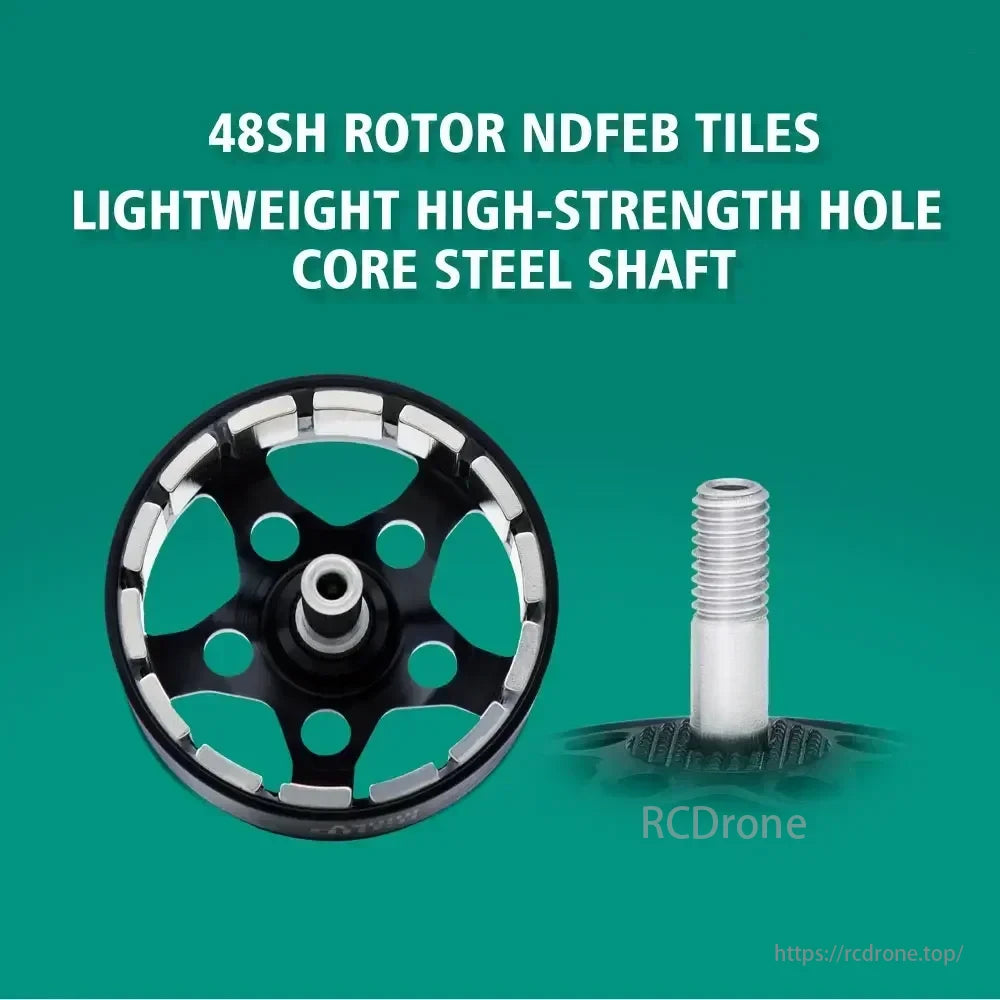

48SH rotor, NDFEB tiles, lightweight, high-strength hole core steel shaft.

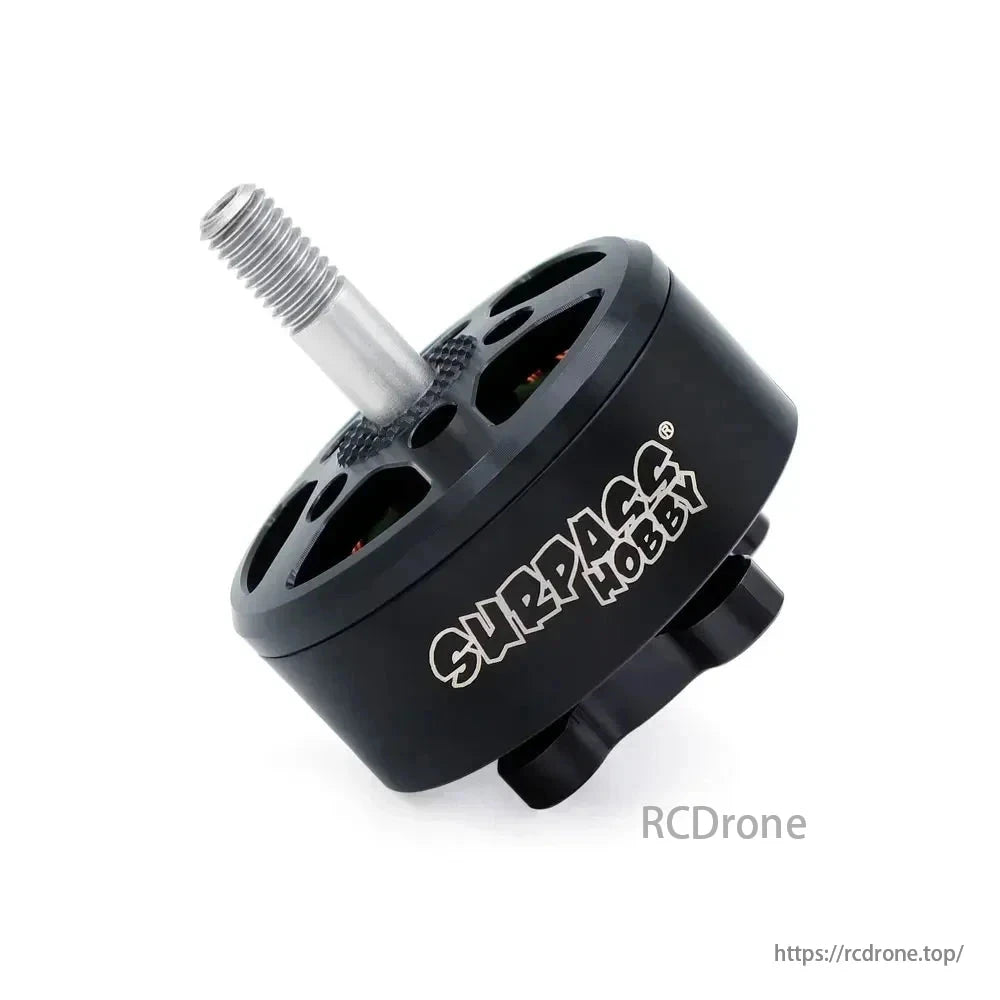

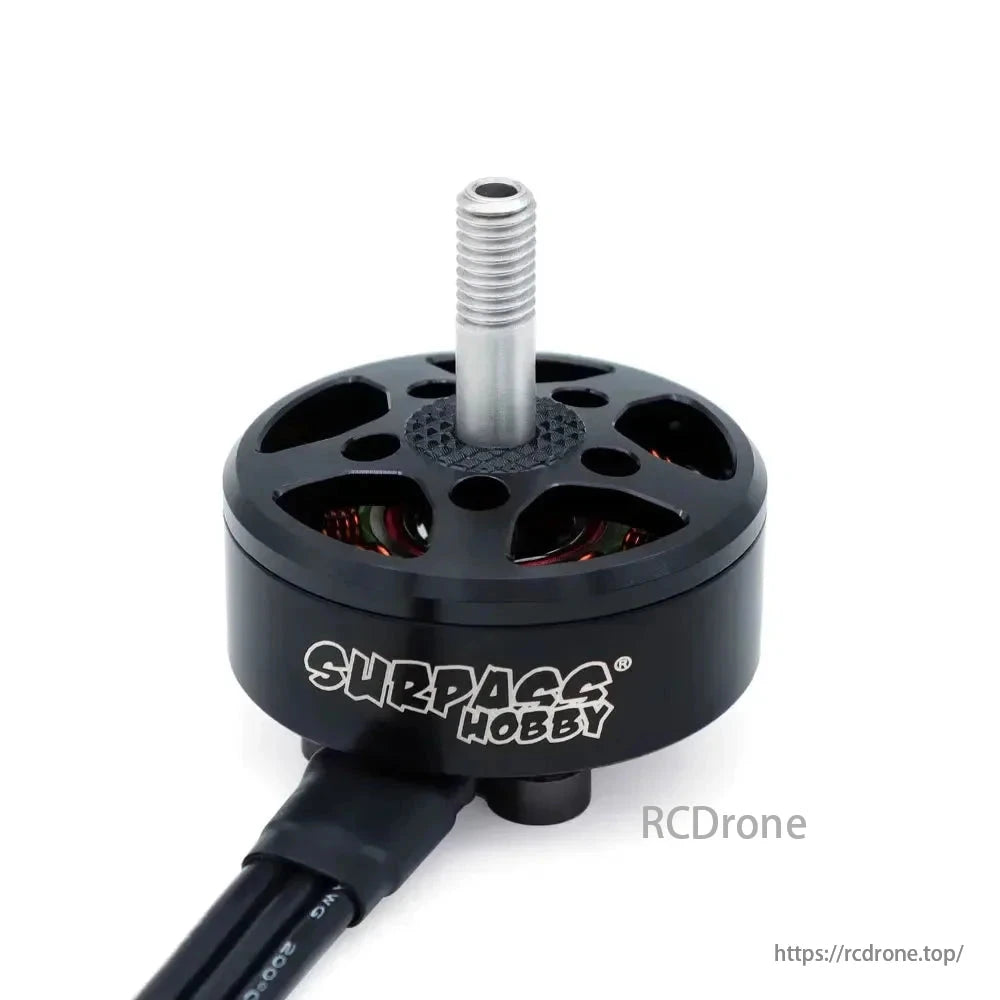

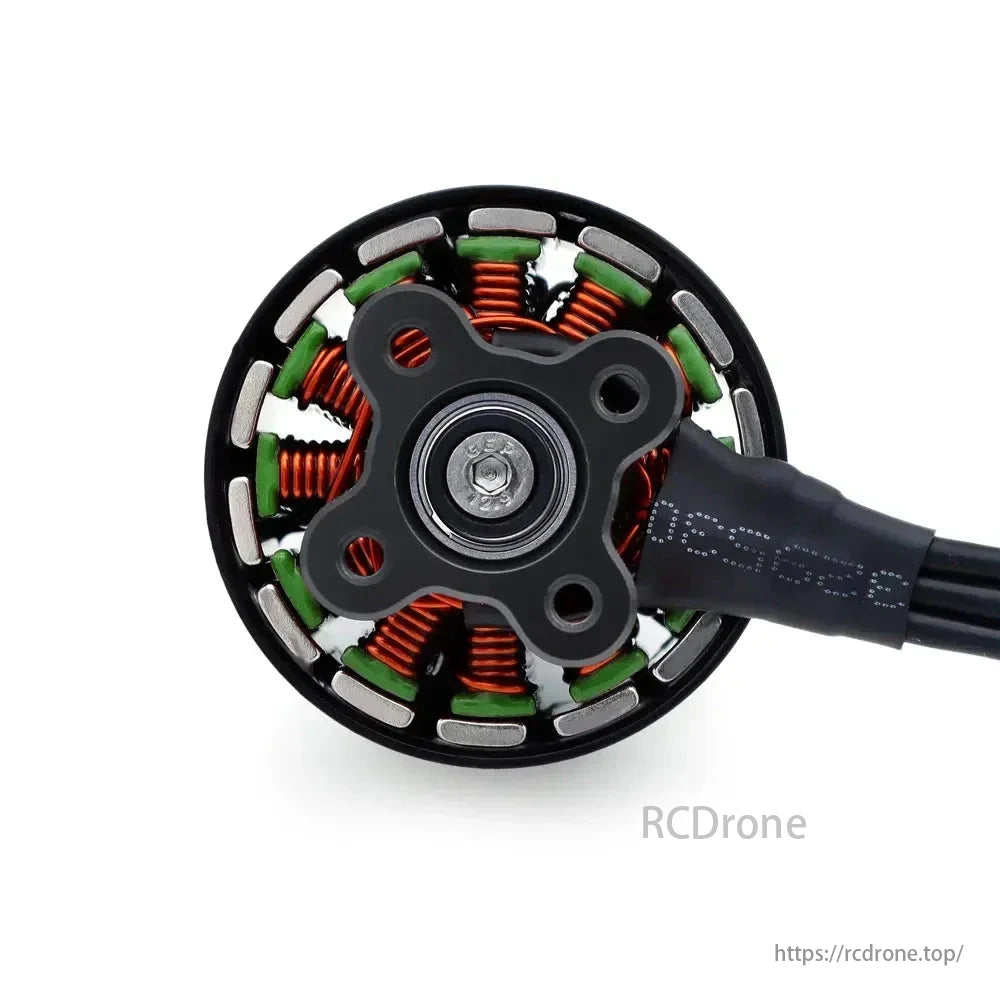

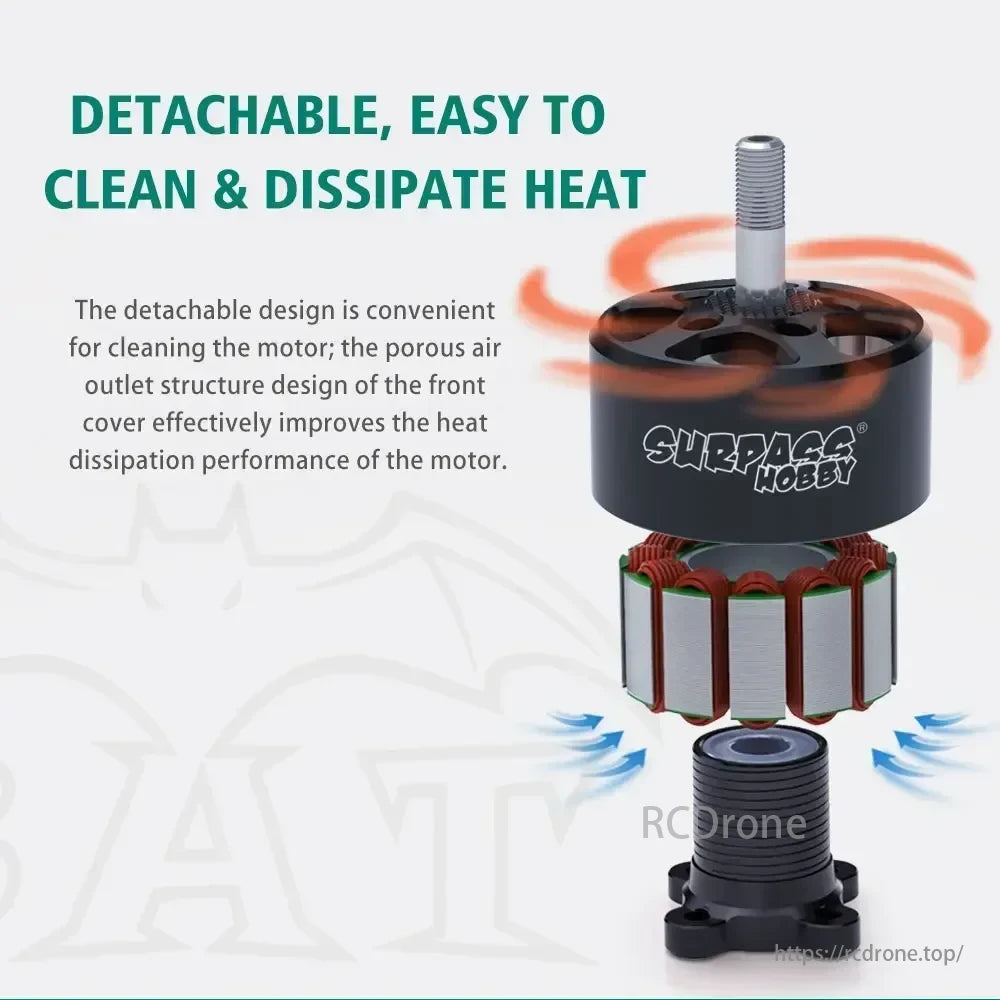

Detachable, easy-to-clean motor with porous air outlet design enhances heat dissipation. SURPASS HOBBY ensures efficient performance and maintenance.

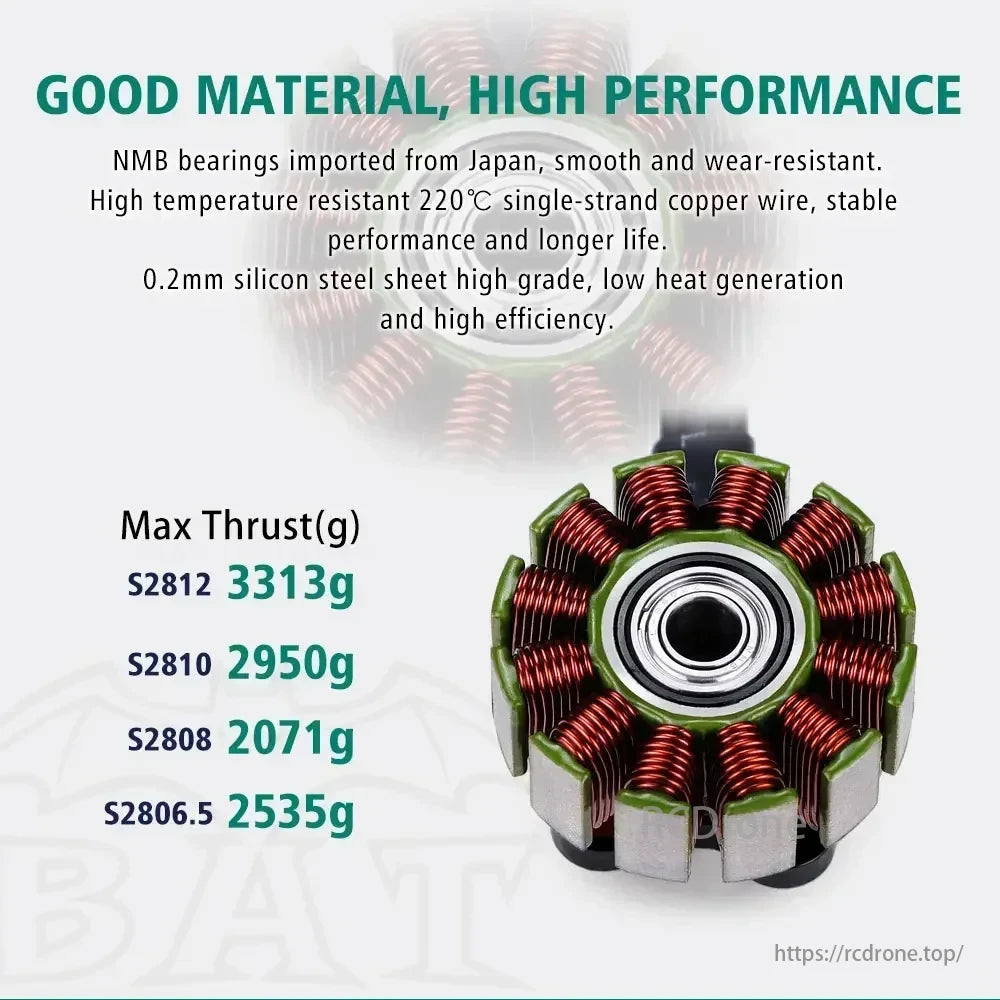

Good material, high performance. NMB bearings, 220°C copper wire, 0.2mm silicon steel. Max thrust: S2812 (3313g), S2810 (2950g), S2808 (2071g). Stable, efficient, long life.

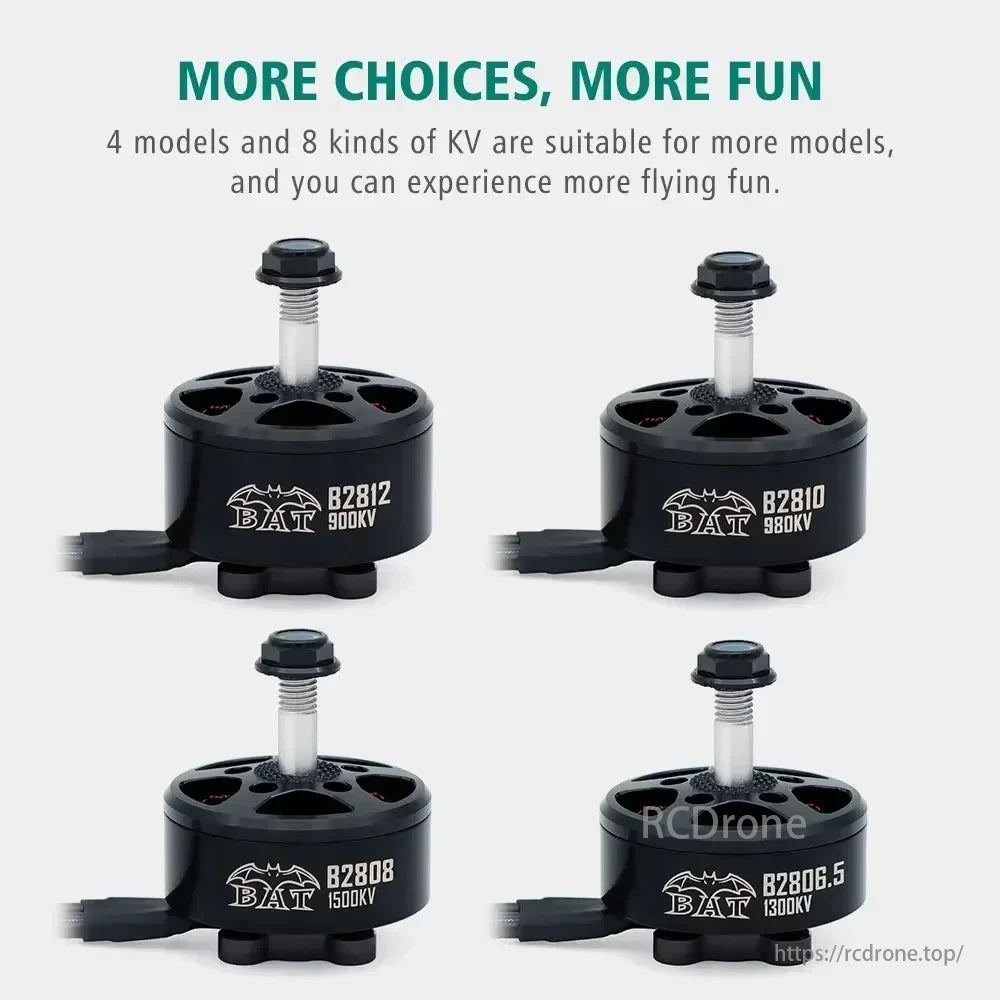

BAT 280X Brushless Motors offer 4 models and 8 KV options for versatile use, enhancing flying fun with customizable performance.

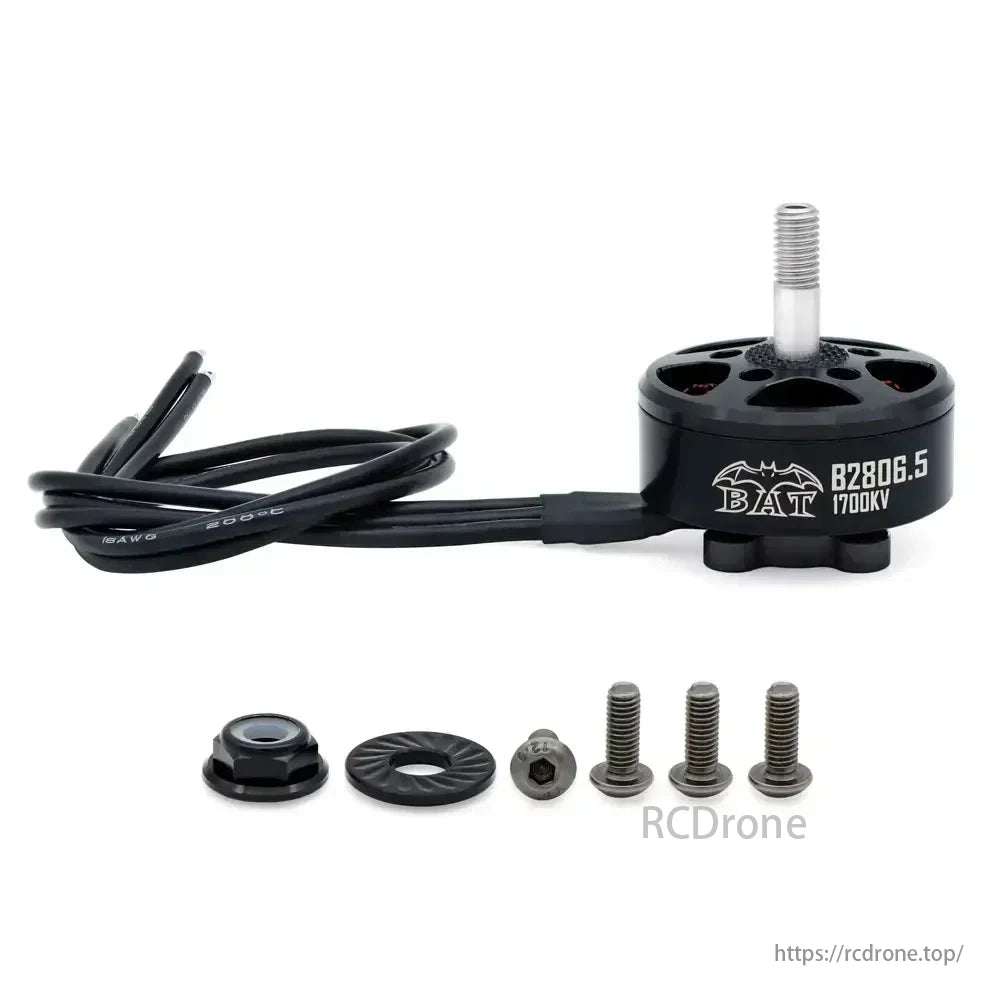

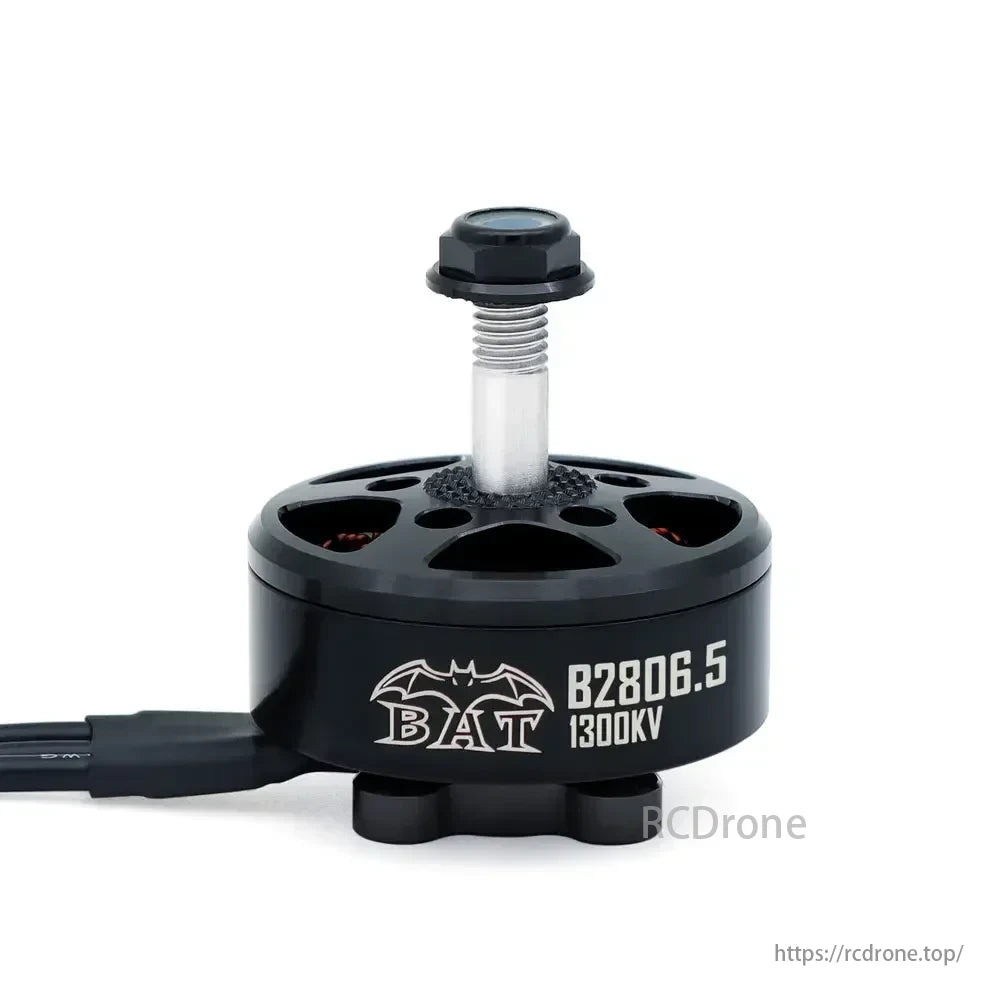

BAT 280X Brushless Motors: B2806.5 model, 1056-1170W power, 24V, 1300-1700KV. Thrust test data for HQ7x3.5 and HQ6x4x3 props. Packing includes motor, M3x8 screws, and M5 nut.

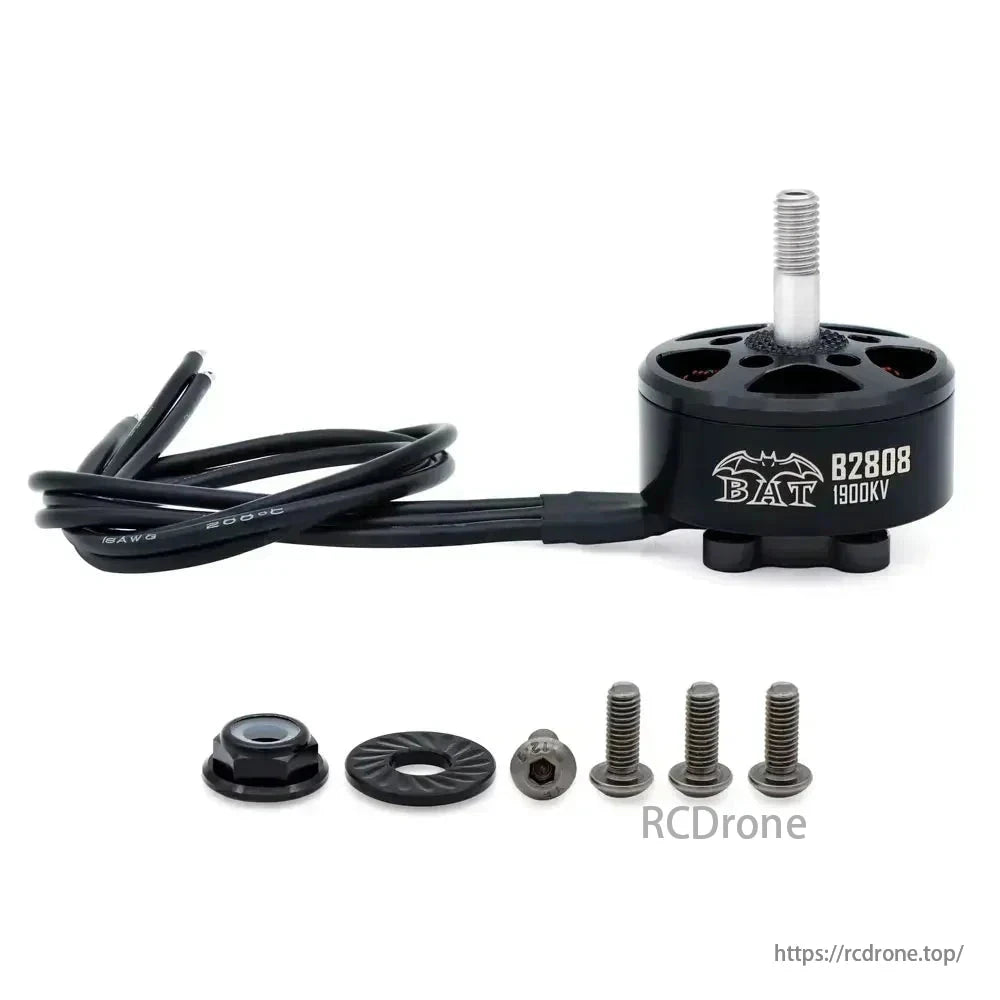

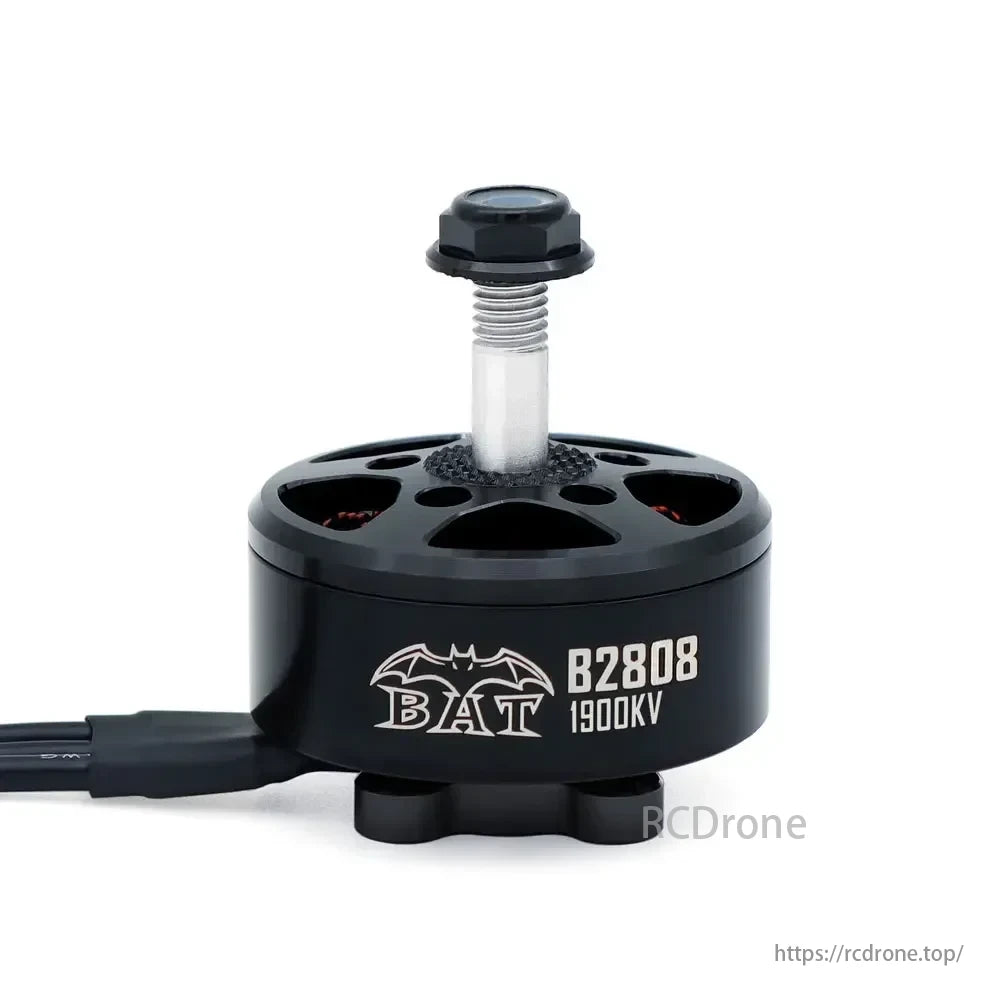

BAT 280X Brushless Motors: B2808 model, max power 1035W/1051W, voltage 24V/20V. Thrust test data for 1500KV and 1900KV variants provided. Packing includes motor, M3x8 screws, and M5 nut.

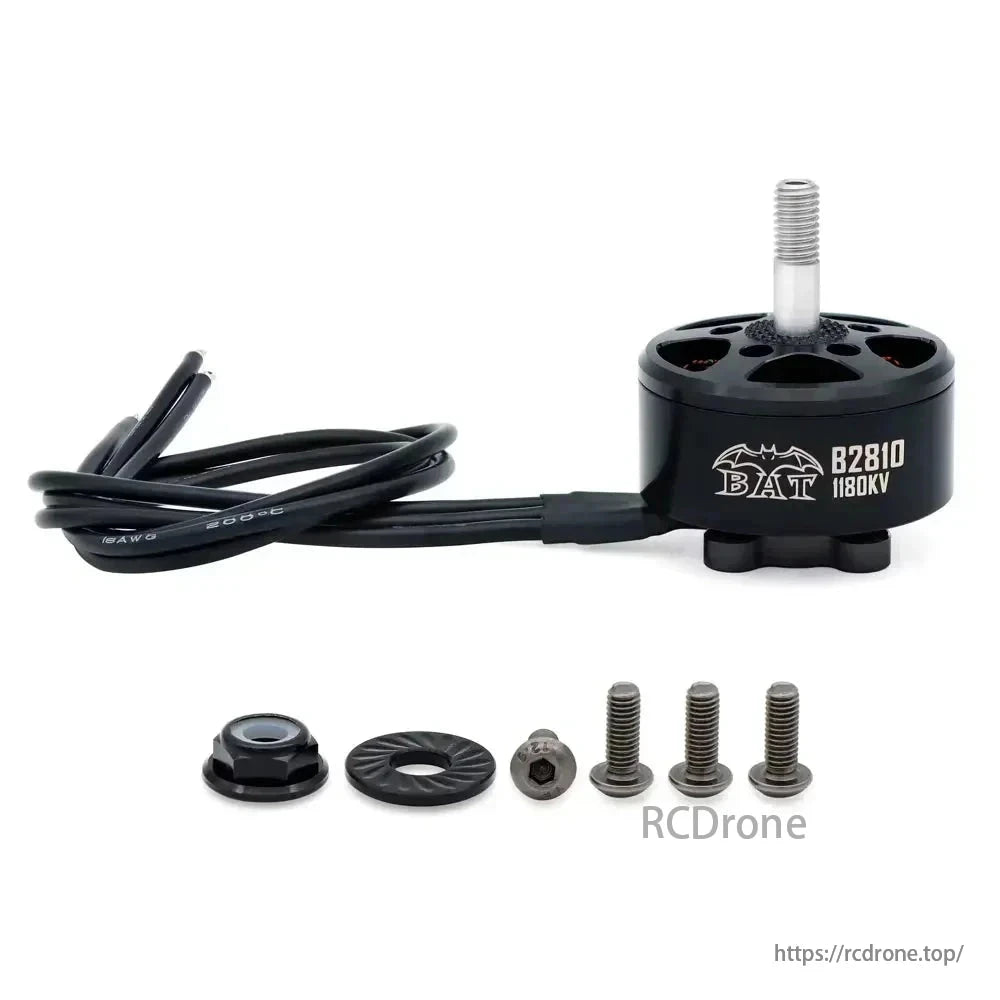

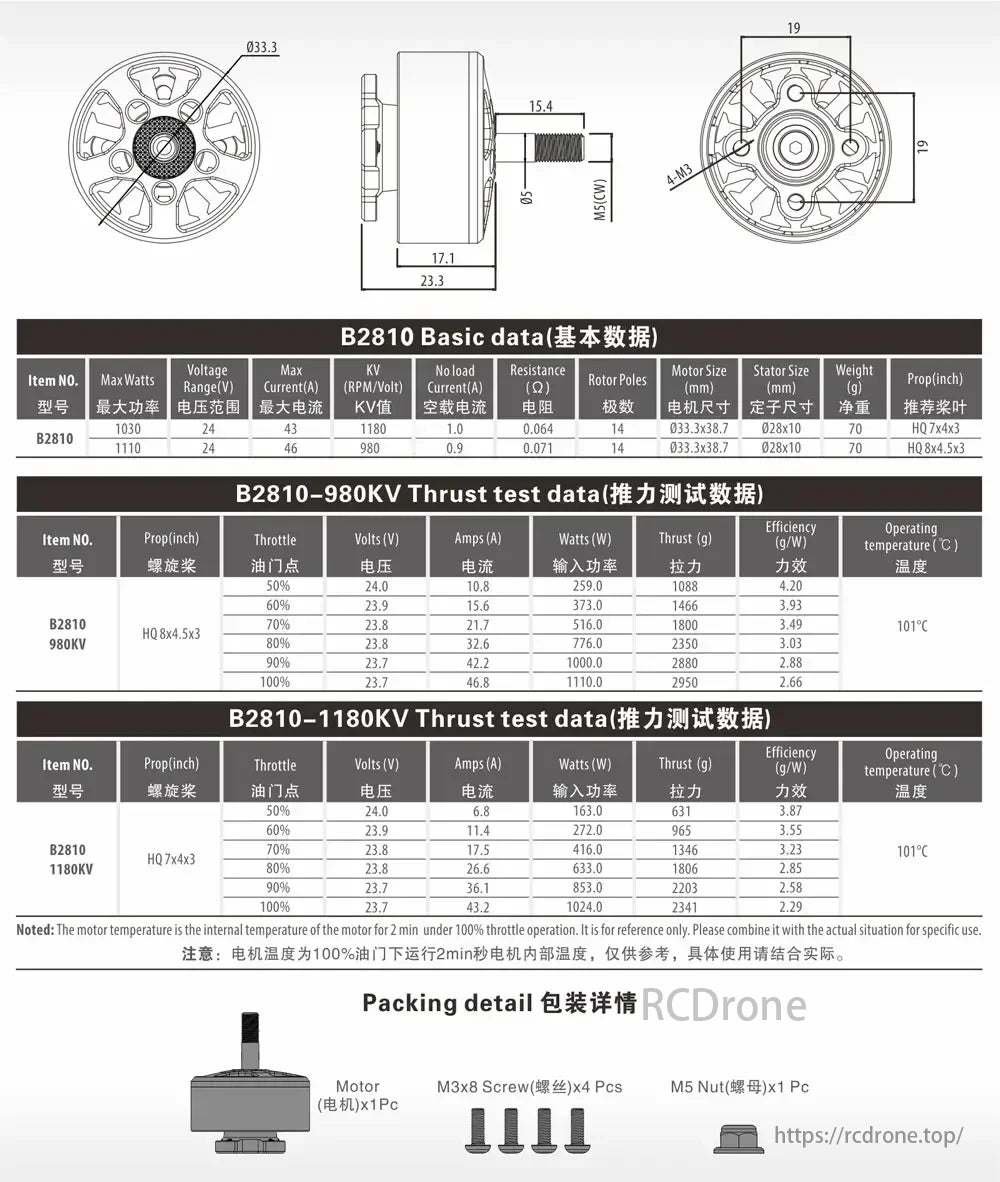

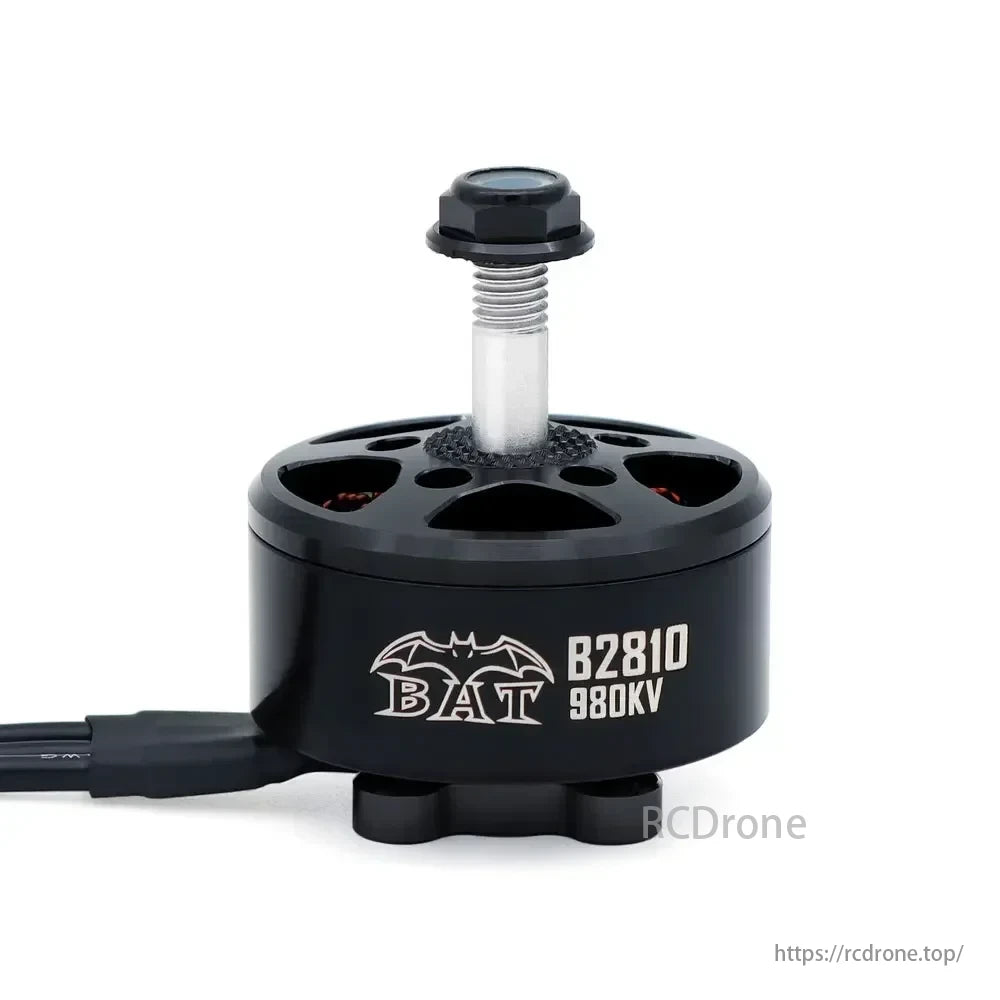

BAT 280X Brushless Motors: B2810 model, max 1030W/1110W, 24V, KV 980/1180. Thrust test data for HQ props at various throttle levels. Packing includes motor, M3x8 screws, and M5 nut.

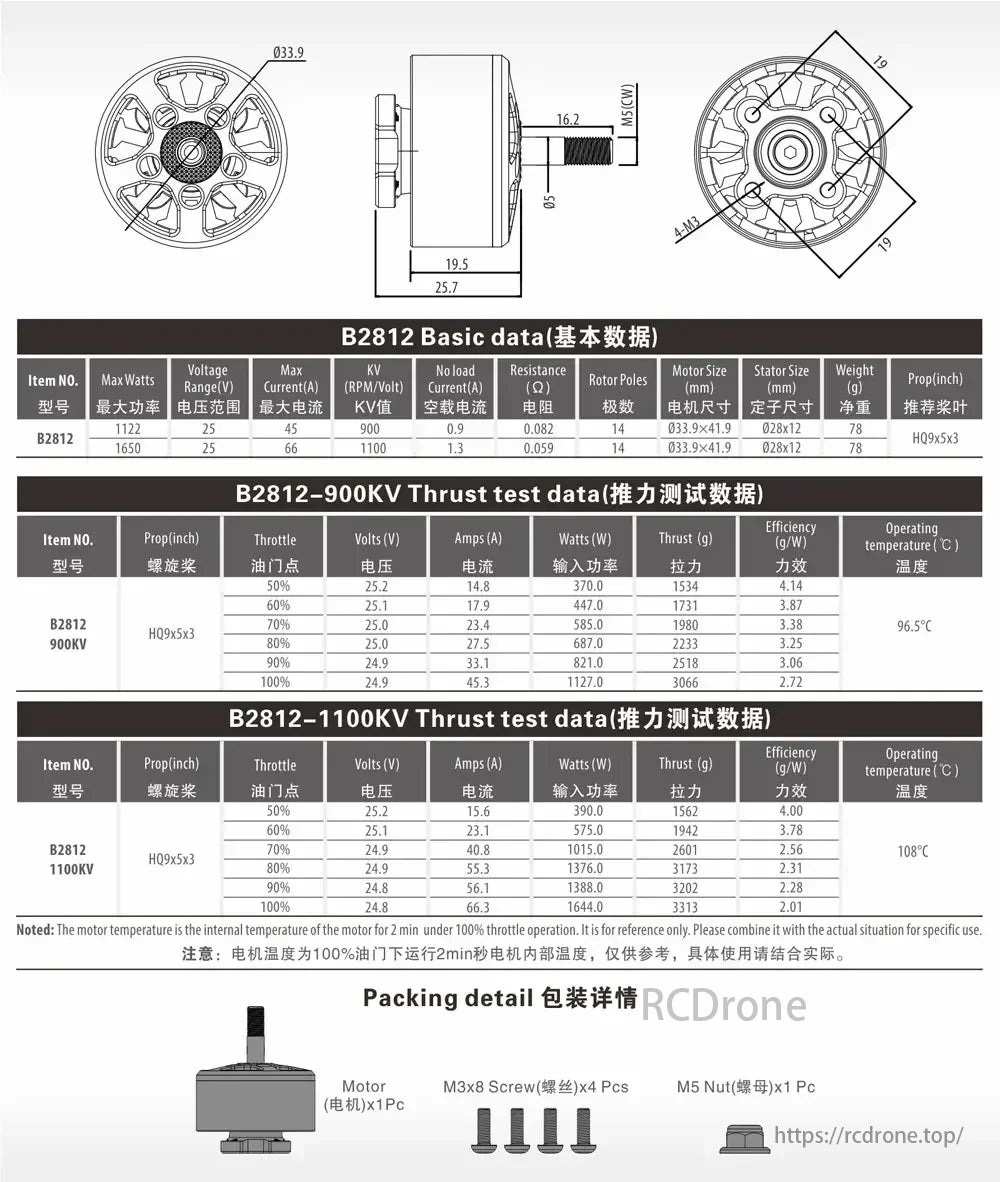

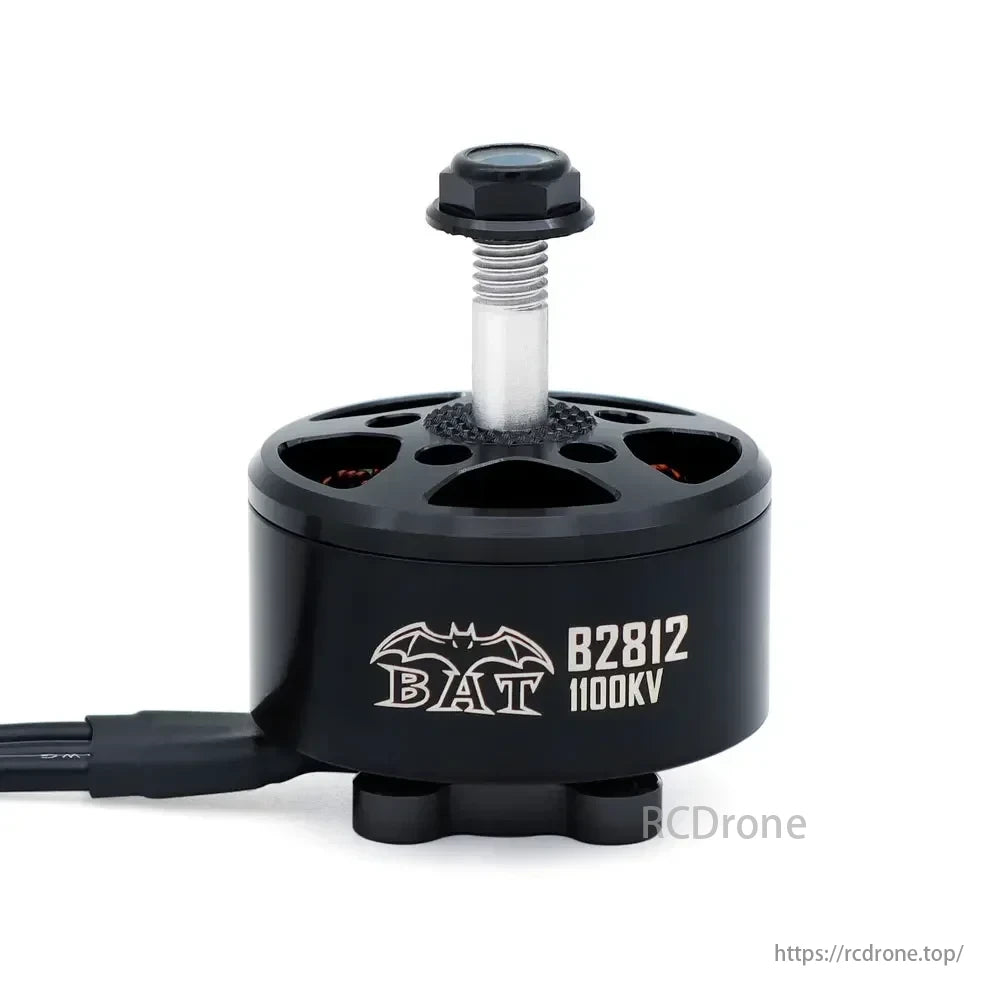

BAT 280X Brushless Motors: B2812 model, 1650W power, 25V, KV 900/1100. Includes HQ9x5x3 propeller thrust test data. Pack contains motor, screws, and nut.

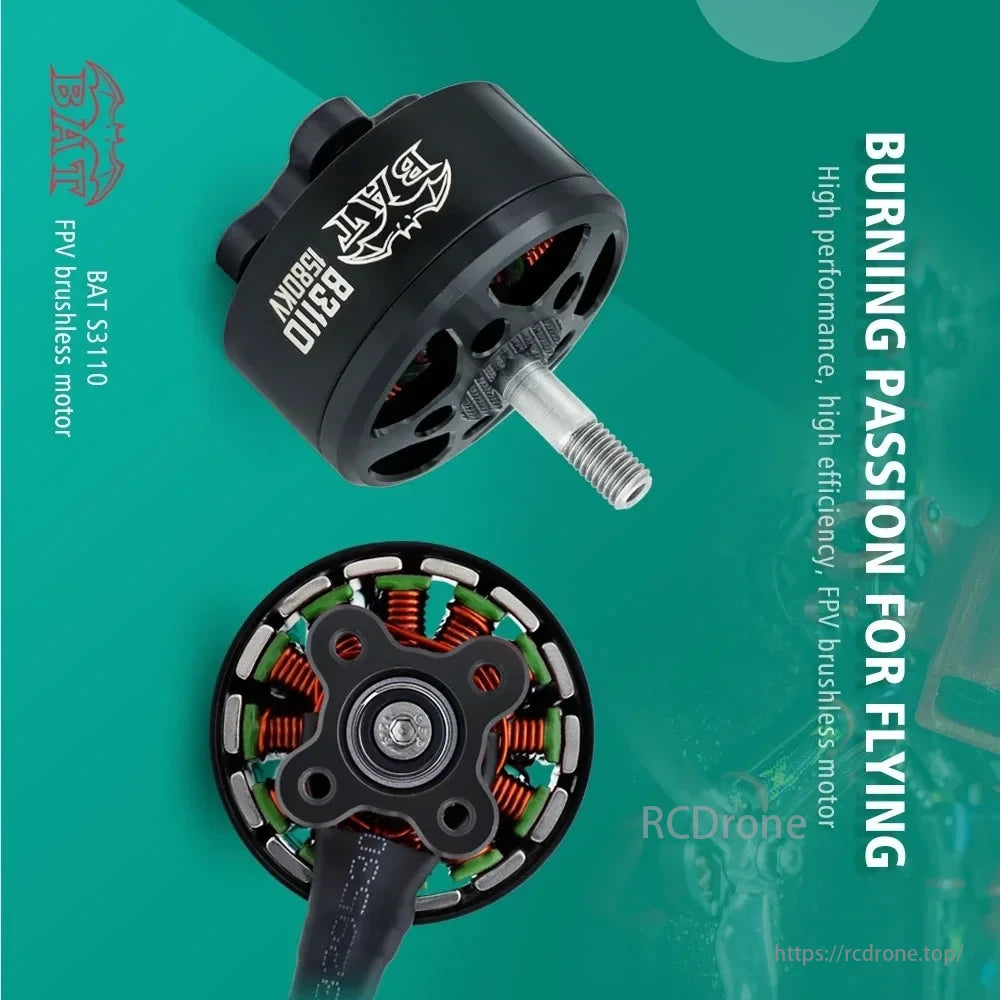

NMB bearings, 220°C copper wire, 0.2mm silicon steel. Max thrust: 800KV 3659g, 1280KV 3820g, 1580KV 2801g. Stable, efficient, long-lasting. Good material, high performance.

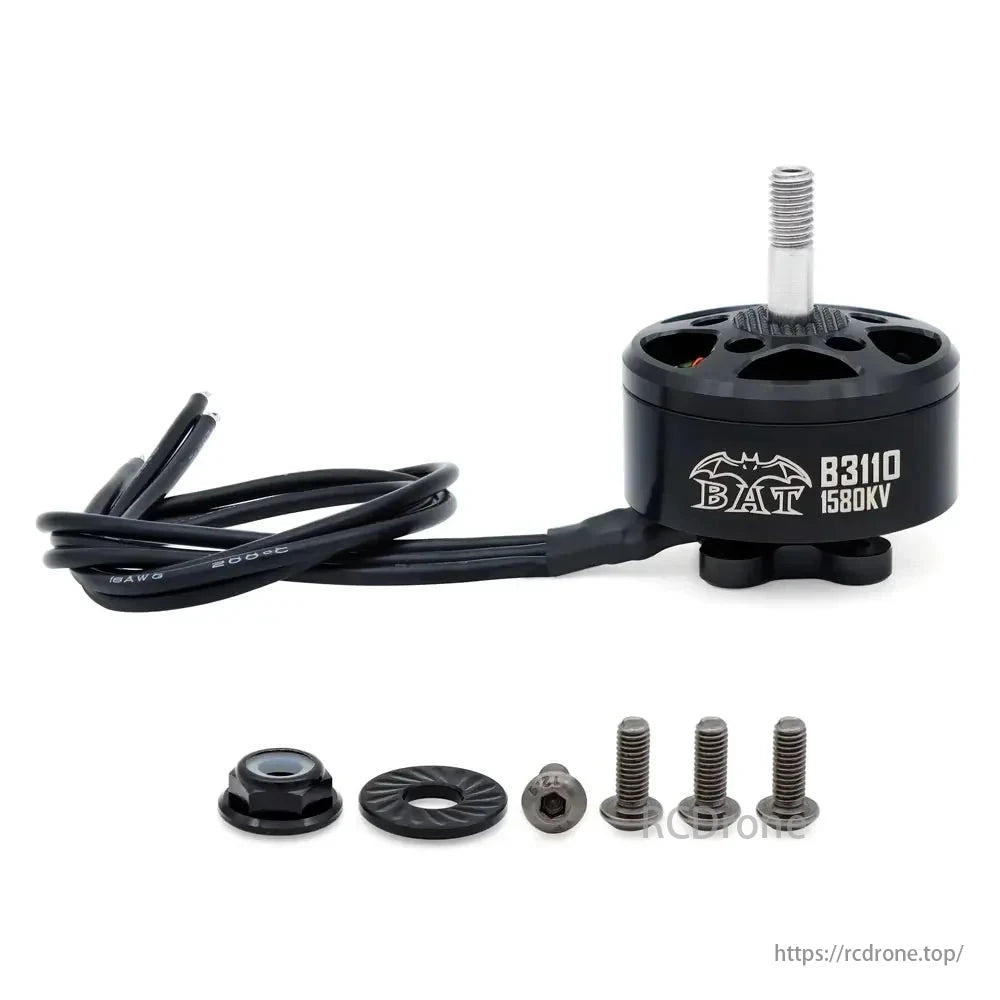

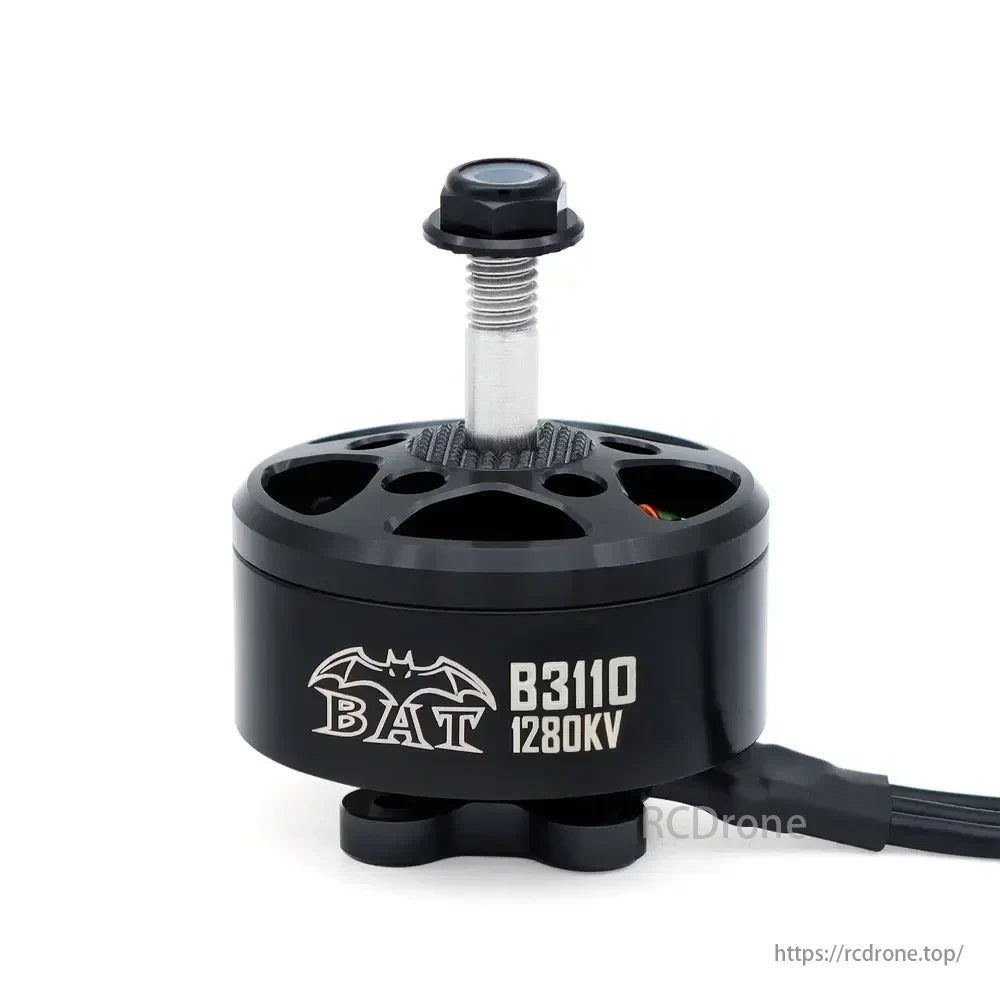

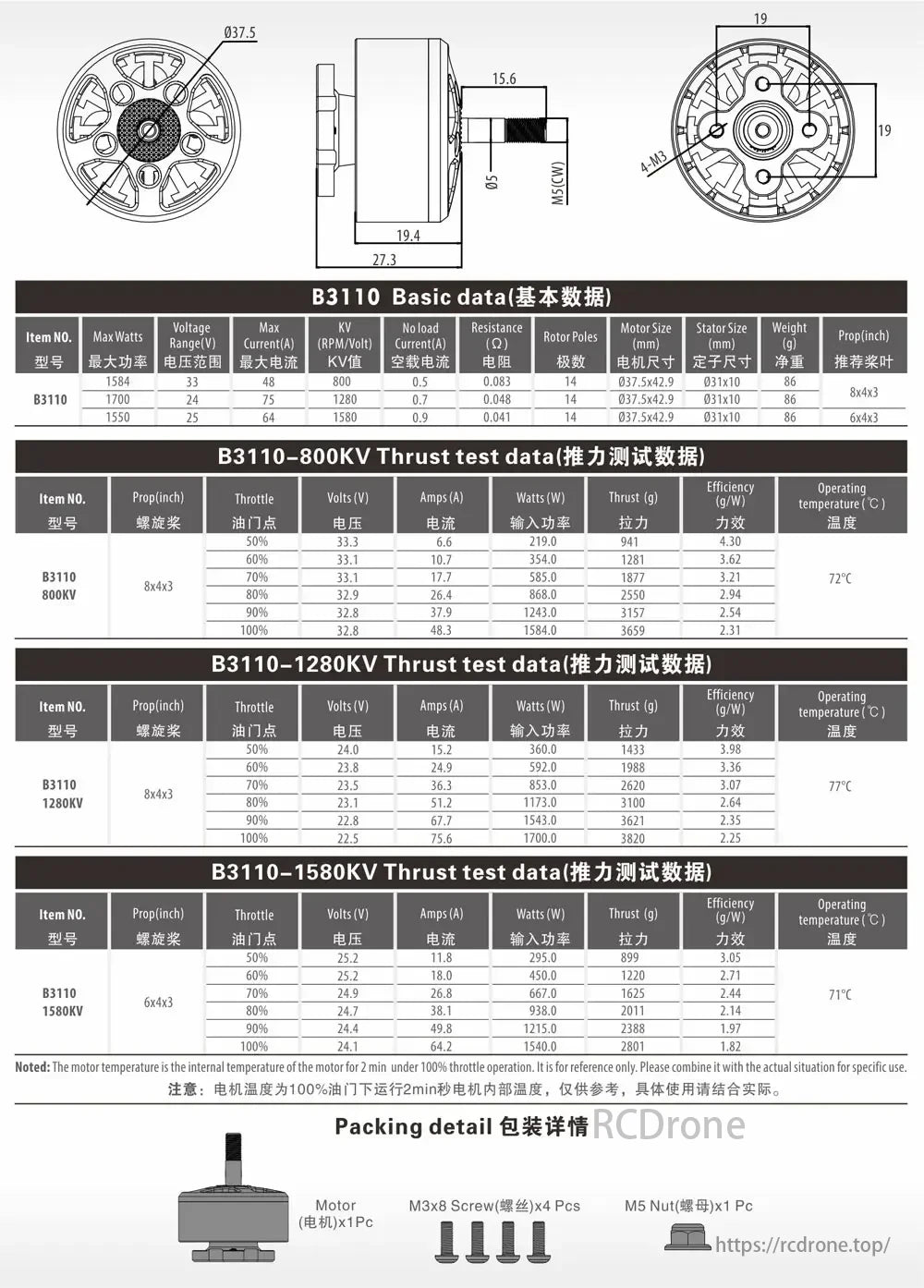

B3110 brushless motor: 1584W max power, 33V, 48A. Thrust data for 800KV, 1280KV, 1580KV variants. Includes motor, screws, and nut. Ideal for high-performance builds. Lightweight and efficient design.

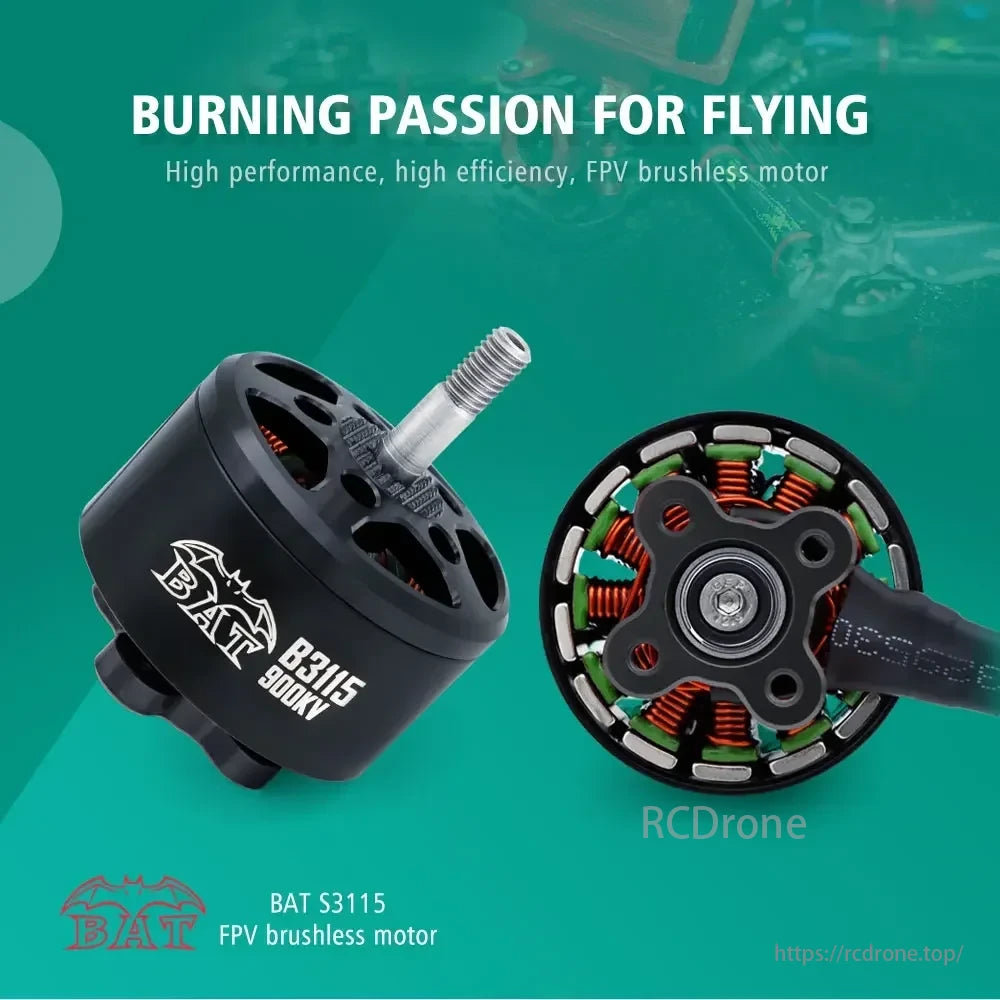

BAT S3115 FPV brushless motor: high performance, high efficiency for flying passion.

BAT 280X Brushless Motors feature NMB bearings, 220°C copper wire, and 0.2mm silicon steel sheets. Max thrust: 3218g (900KV), 3781g (1050KV). Good material, high performance.

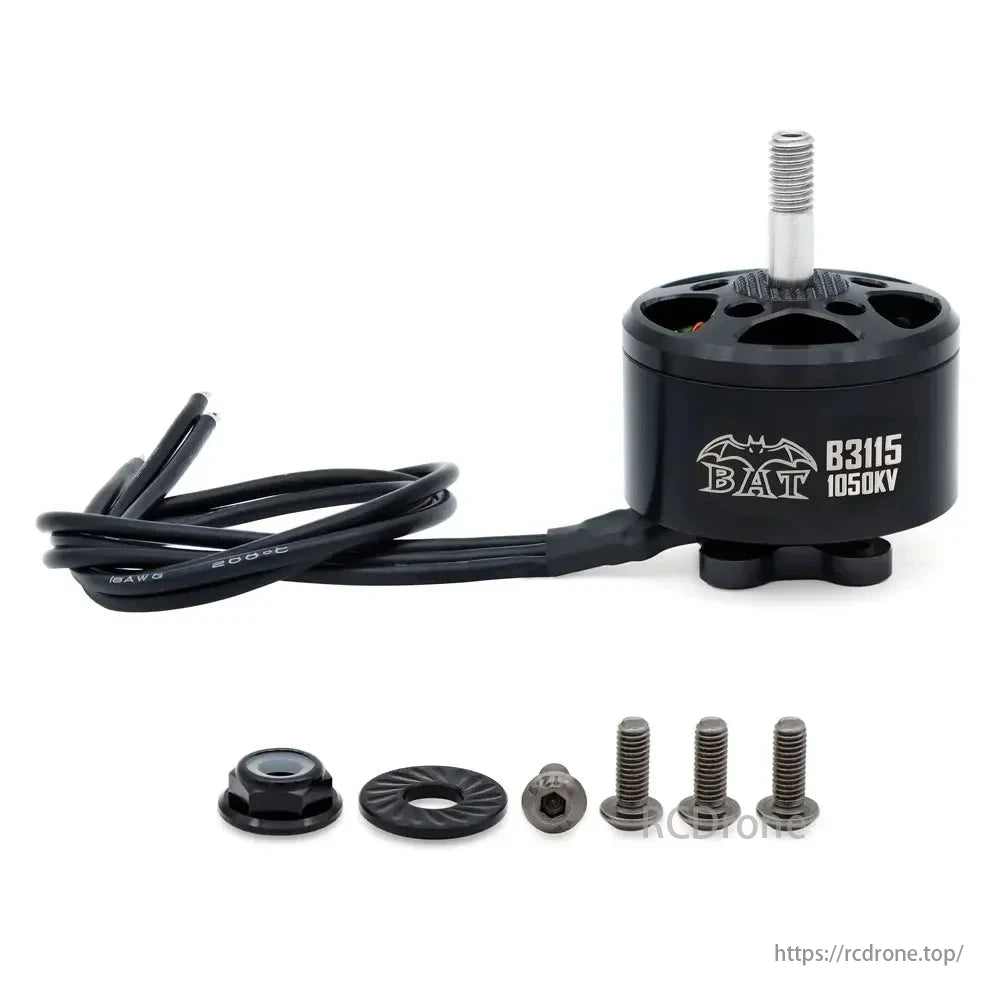

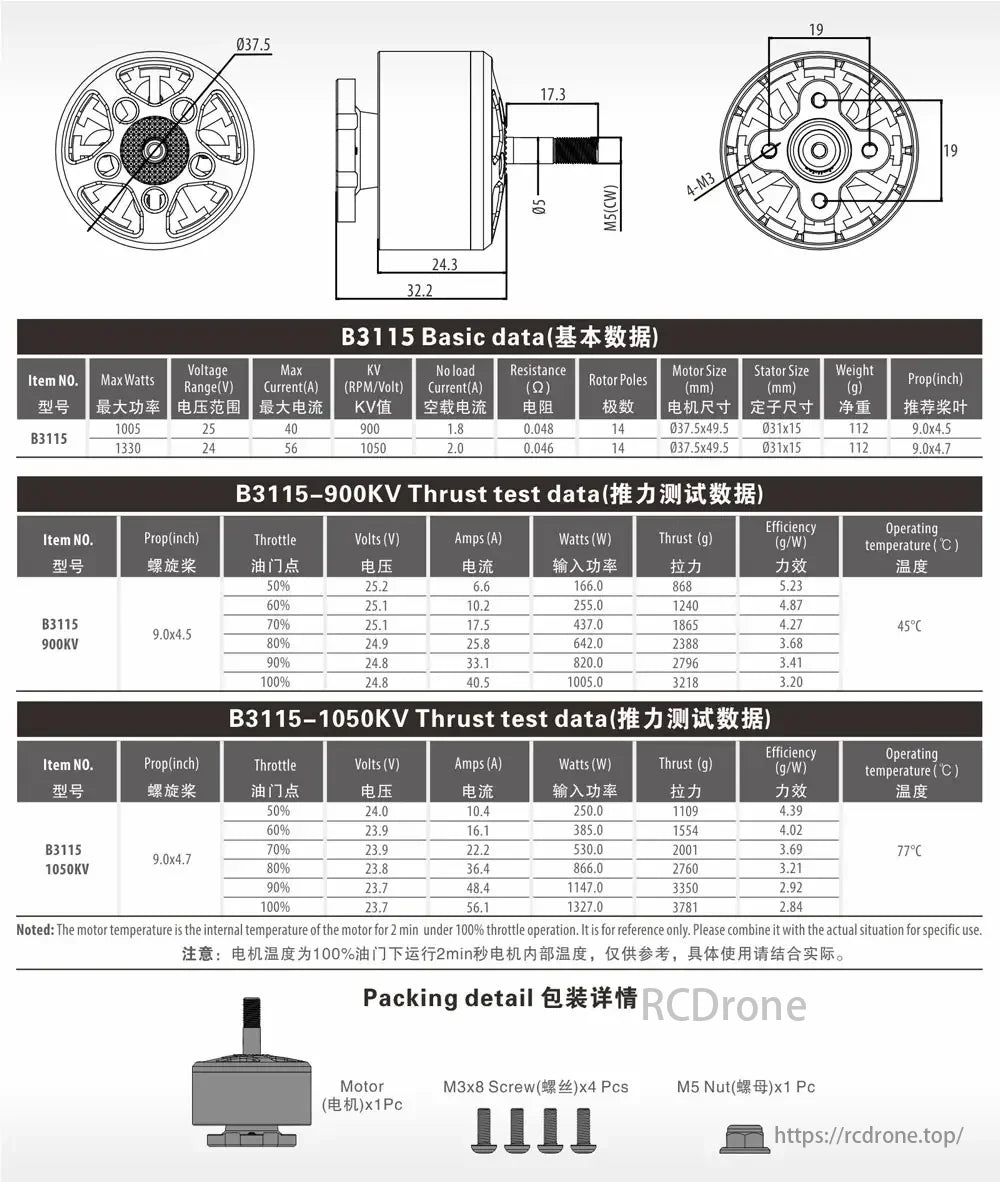

B3115 brushless motor specs: 1005/1330W max power, 25V range, 40/56A current, 900/1050KV. Thrust data for 900KV and 1050KV variants provided. Includes motor, M3x8 screws, and M5 nut in packaging.

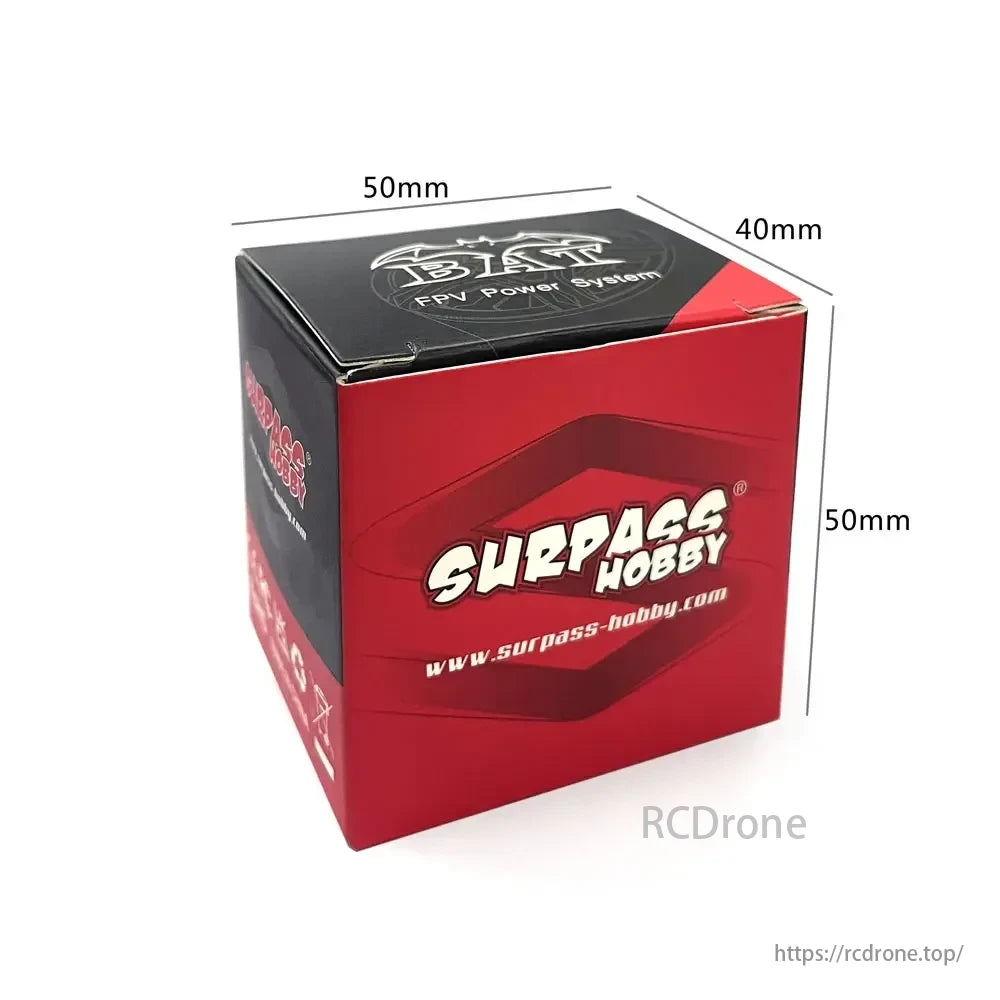

BAT 280X Brushless Motors in red box, dimensions 50mm x 40mm x 50mm.
