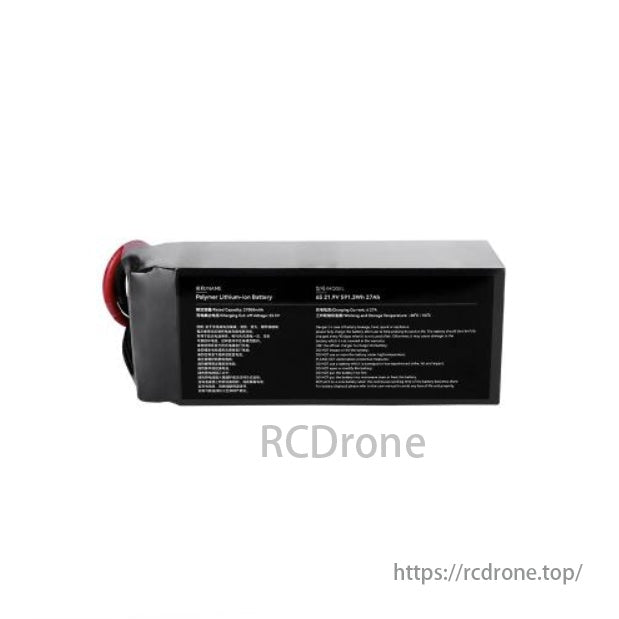

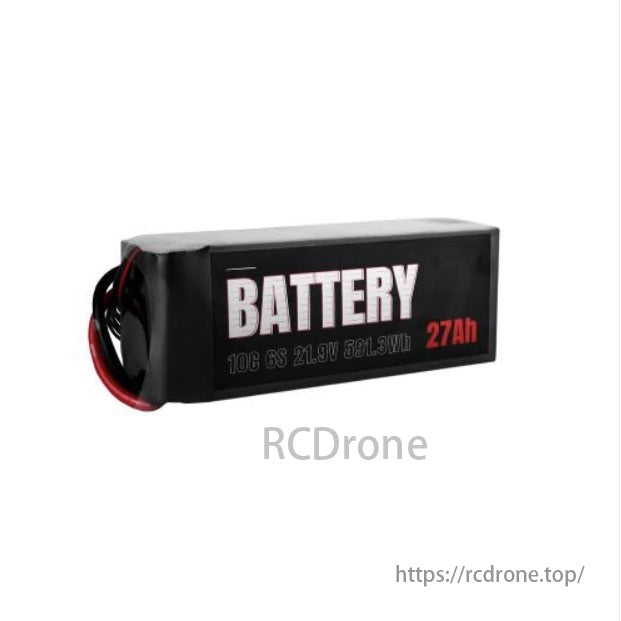

T-Drones 6S 21.9V 27Ah Solid-State Li-ion Drone Battery
T-Drones 6S 21.9V 27Ah Solid-State Li-ion Drone Battery
T-Drones
Couldn't load pickup availability
Overview
The T-Drones 6S 27Ah Solid-State Li-ion Battery delivers high energy efficiency, extended endurance, and stable power output for multi-rotor and VTOL UAVs. With 27Ah capacity, 591.3Wh energy, and a 10C discharge rate, it ensures longer flight times with reduced weight, making it ideal for mapping, inspections, and industrial applications.
Specifications
| Parameter | Details |
|---|---|
| Model | T-Drones 6S 27Ah |
| Nominal Voltage | 21.9V |
| Operating Voltage | 25.5V - 16.5V |
| Capacity | 27Ah |
| Energy | 591.3Wh |
| Size (T × W × L) | 65mm × 75mm × 200mm |
| Weight | 1930g |
| Energy Density | 306 Wh/kg |
| Charging Current (Max) | 27A (1C) |
| Continuous Discharge (Max) | 135A (10C) |
| Operating Temperature | Charging: 0°C - 45°C / Discharging: -40°C - 60°C |
| Cycle Life | ≥500 cycles |
Key Features
- Optimized Flight Endurance – 27Ah capacity and 591.3Wh output extend UAV flight time.
- Compact & Lightweight – High energy density (306Wh/kg) reduces drone payload.
- Stable Power Output – 10C continuous discharge ensures steady 135A current.
- Reliable in Harsh Conditions – Operates from -40°C to 60°C, ensuring performance in extreme environments.
- Long Service Life – 500+ charge cycles for extended use and reduced maintenance.
Why Choose T-Drones 6S 27Ah Battery?
- Powerful yet lightweight, ideal for long-range UAV missions.
- Advanced solid-state Li-ion technology enhances safety and efficiency.
- Reliable voltage stability for professional drone operations.
- Designed for industrial applications, including surveying, mapping, and agriculture.
Image Details

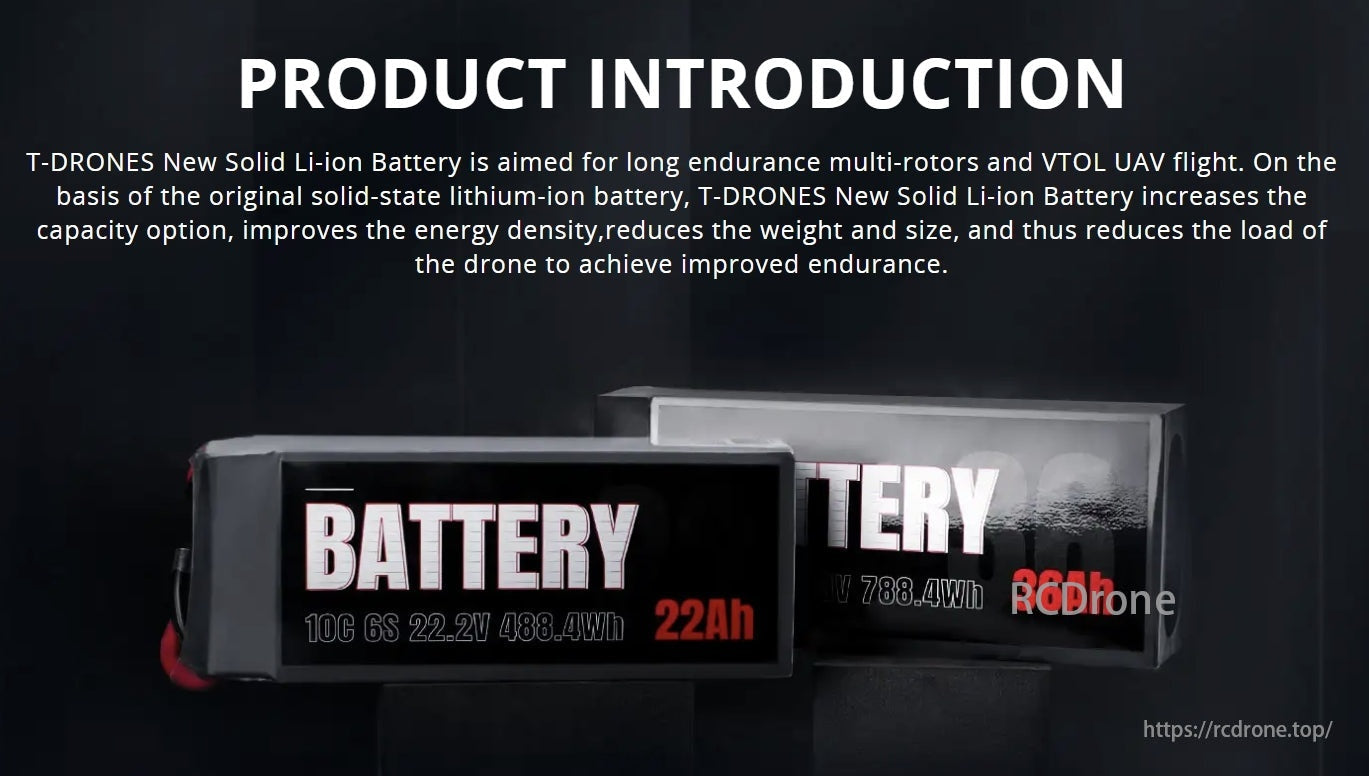

PRODUCT INTRODUCTION: T-DRONES New Solid Li-ion Battery targets long endurance multi-rotors and VTOL UAVs. It enhances capacity, energy density, reduces weight and size, improving drone endurance. Specifications include 10C 6S 22.2V 488.4Wh 22Ah and 788.4Wh 36Ah options.
LONGEVITY LIFE. Carries out up to 500+ complete charging and discharging cycles, maintaining high capacity and performance after multiple cycles.
Smaller and lighter battery saves device space, enhancing design flexibility. It's more adaptable for various application scenarios compared to traditional batteries.
High performance: High energy density improves battery performance, storing more power and extending endurance. T-DRONES Battery offers higher energy density with the same specifications compared to other batteries.
