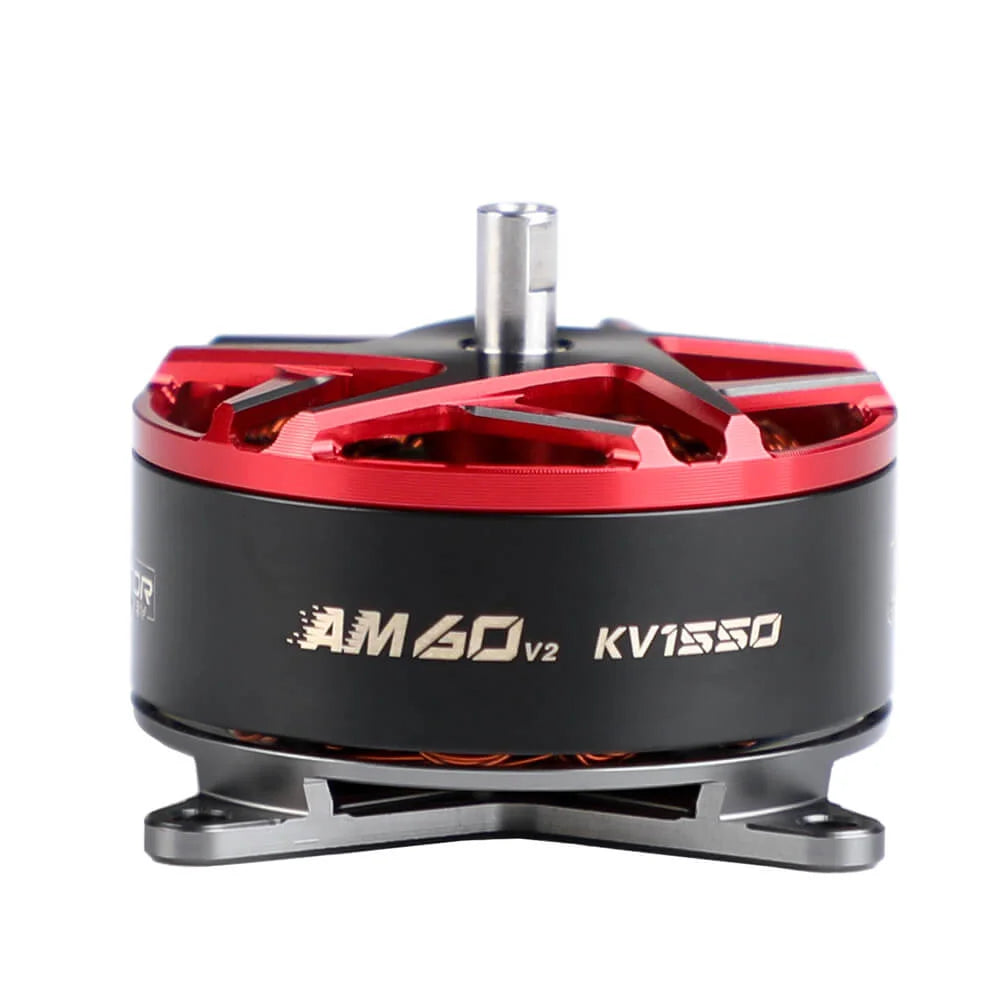

T-Motor AM60 V2 RC Plane Motor - 42x Burst Power, 2-3S, 12N14P, 1550/1880/2200KV for F3P 3D 4D

Overview

T-Motor AM60 V2 is a motor for F3P, 3D, and 4D RC plane setups, designed for indoor and outdoor flight. Image text shows “42x power” and “High burst and power saving”, and indicates suitability for 300-600 g EPP plane.

For product support and after-sales service, contact https://rcdrone.top/ or email support@rcdrone.top.

Key Features

• 42x burst power (as stated in provided description and image text).
• Indoor and outdoor mounting and application flexibility (image text: “a wide range of mounting options and applications”).
• Impact resistance cutout design to increase strength (image text).
• Power saving (image text).

Strength data shown in image

• Increased the overall shell strength: 15%
• Increased the bidirectional thrust strength: 11%

Specifications

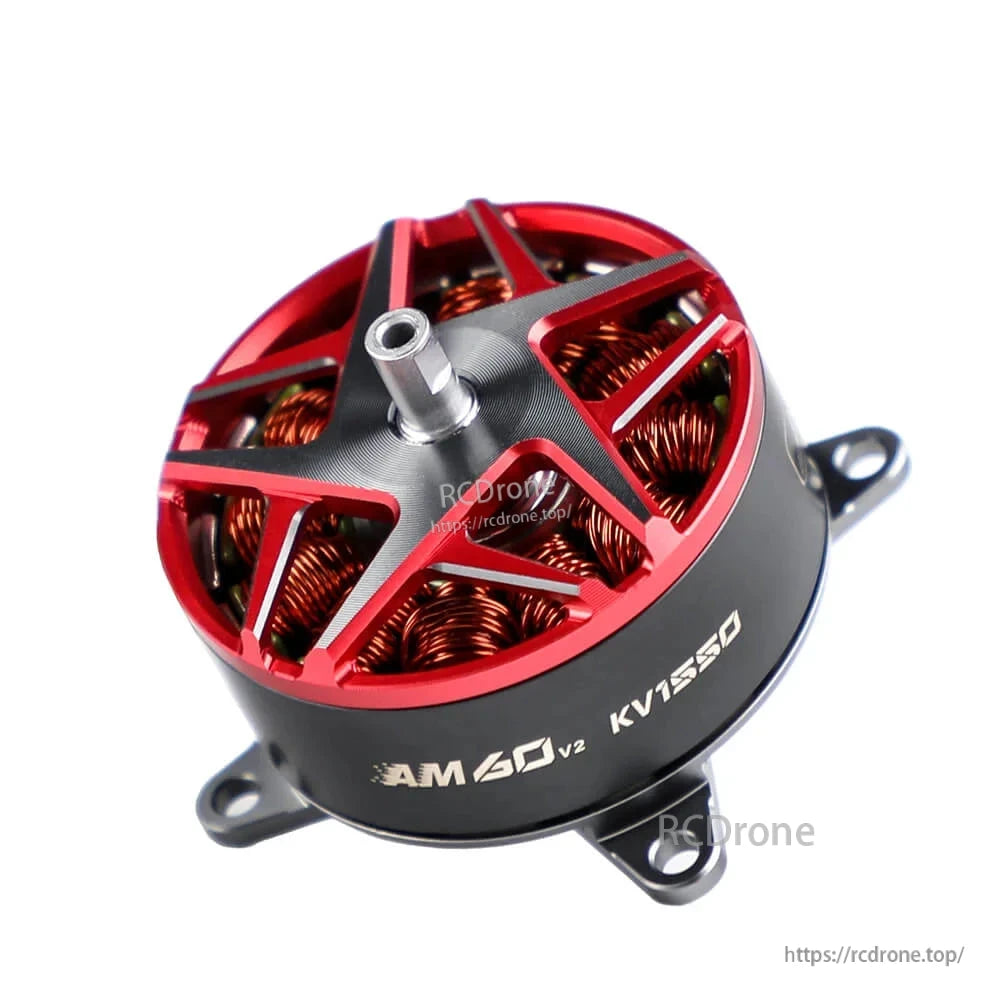

KV1550 (AM60 V2)

KV1880 (AM60 V2)

KV2200 (AM60 V2)

Maximum thrust shown in image

• Maximum thrust: 1356 g

Test Report (visible table excerpt)

The images include bench test tables for AM60 V2 with propellers T8044, T9048, and T8041, showing columns for Throttle, Voltage (V), Current (A), Power (W), RPM, Torque (N*m), Thrust (g), Efficiency (g/W), and Operating Temperature (°C). Note shown: “Motor temperature is motor surface temperature @100% throttle running 3 mins.”

What's Included

• Motor*1
• Parts Bag*1

Recommended

• Airplane: 300-600 g
• ESC: TMOTOR Fixed Wing AM16A ESC
• Compatible propellers: TMOTOR Fixed Wing T8044, T9048

Details

The T-Motor AM60 V2 is designed for 300–600g EPP planes and lists a 32.2g motor weight with up to 1356g maximum thrust.

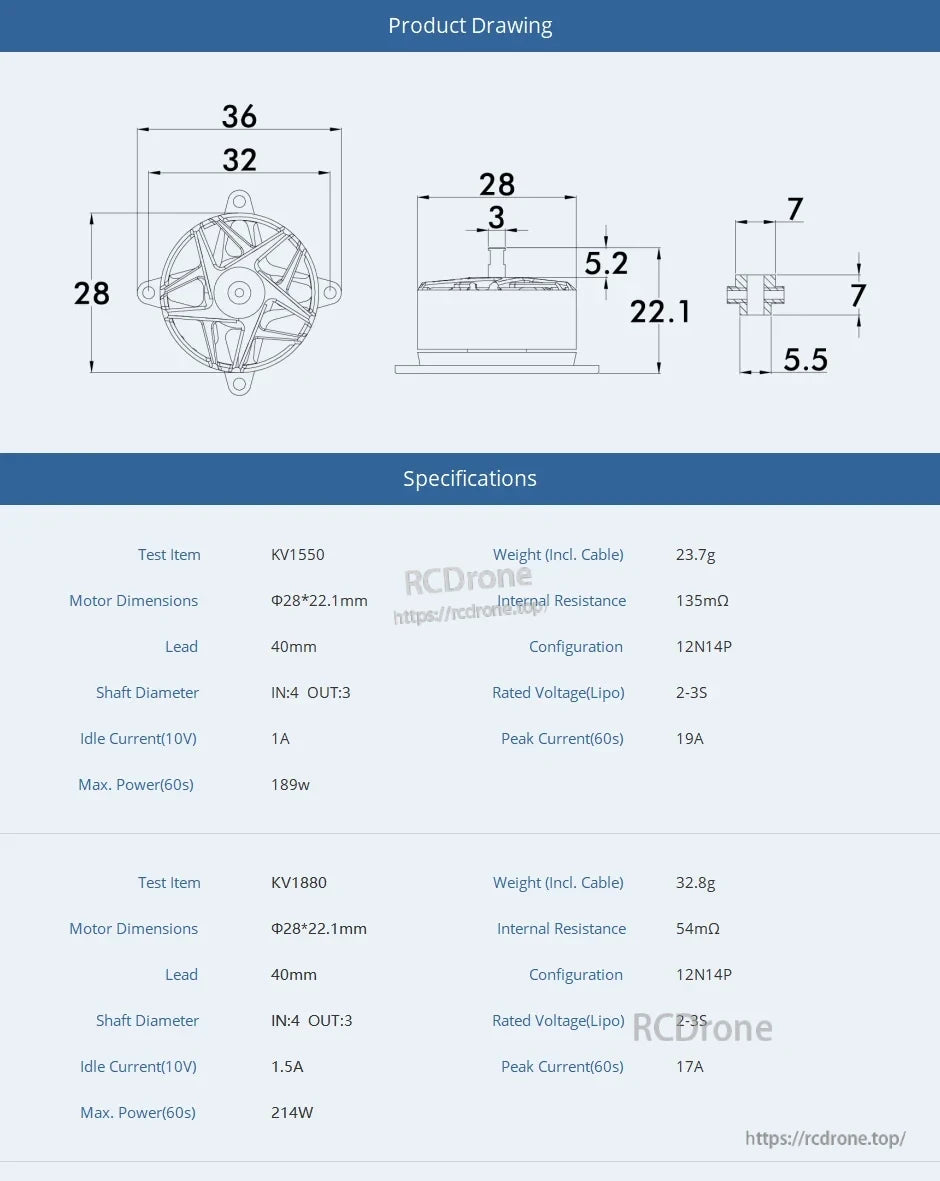

The Φ28×22.1 mm motor is listed in KV1550 and KV1880 versions with a 2–3S LiPo rating and 40 mm leads.

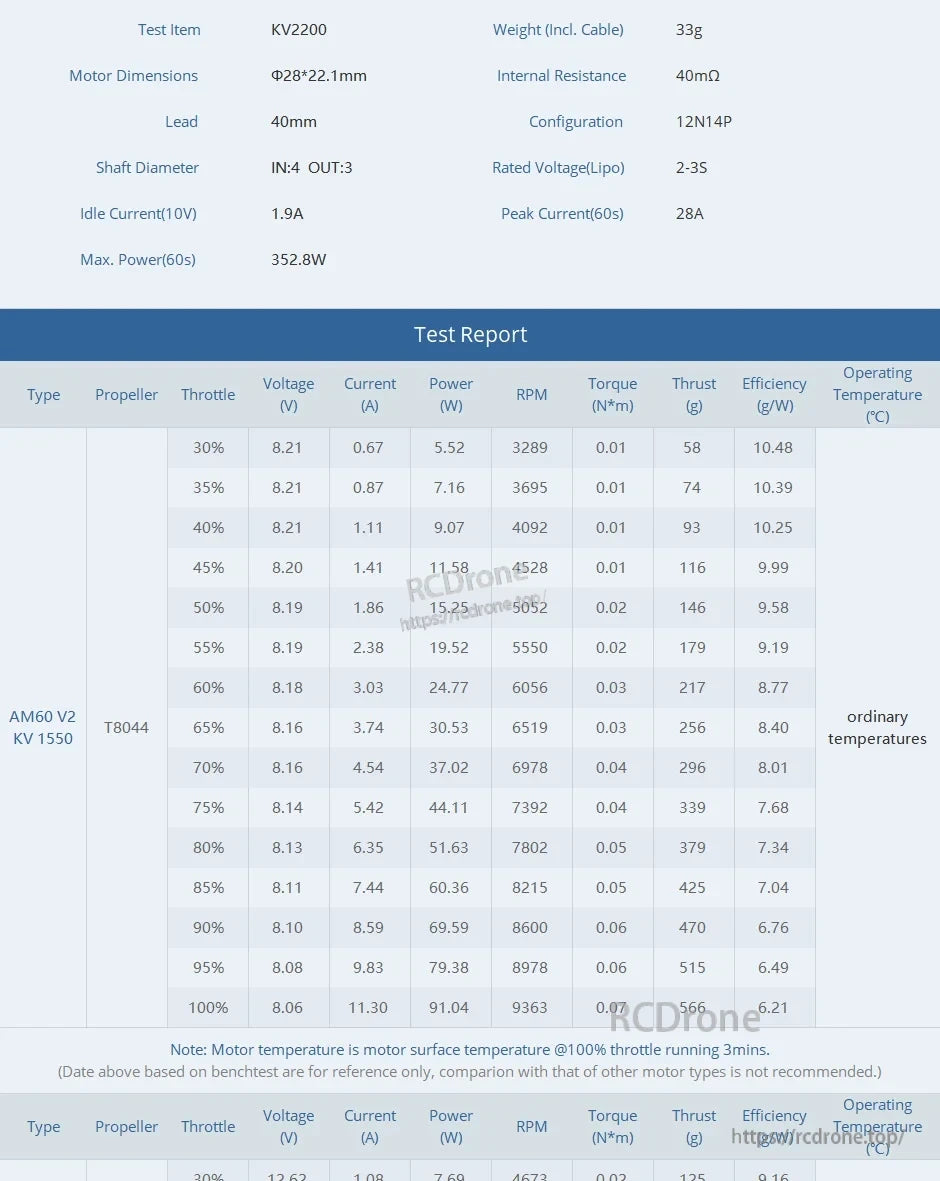

The test report lists throttle, voltage, current, RPM, thrust, and efficiency measurements for a T-Motor motor and propeller setup.

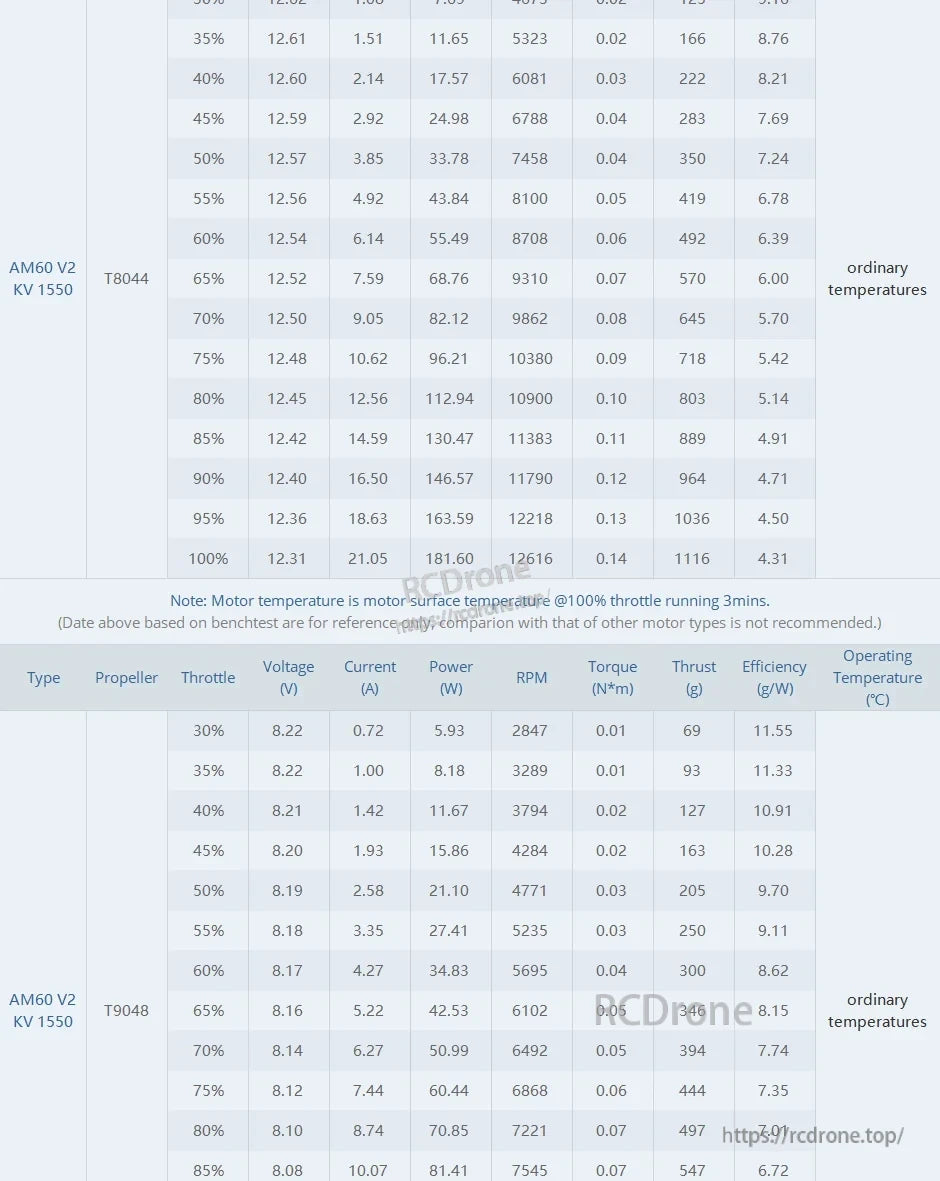

AM60 V2 KV1550 test data lists voltage, current, RPM, torque, thrust, and efficiency across throttle settings with T8044 and T9048 propellers.

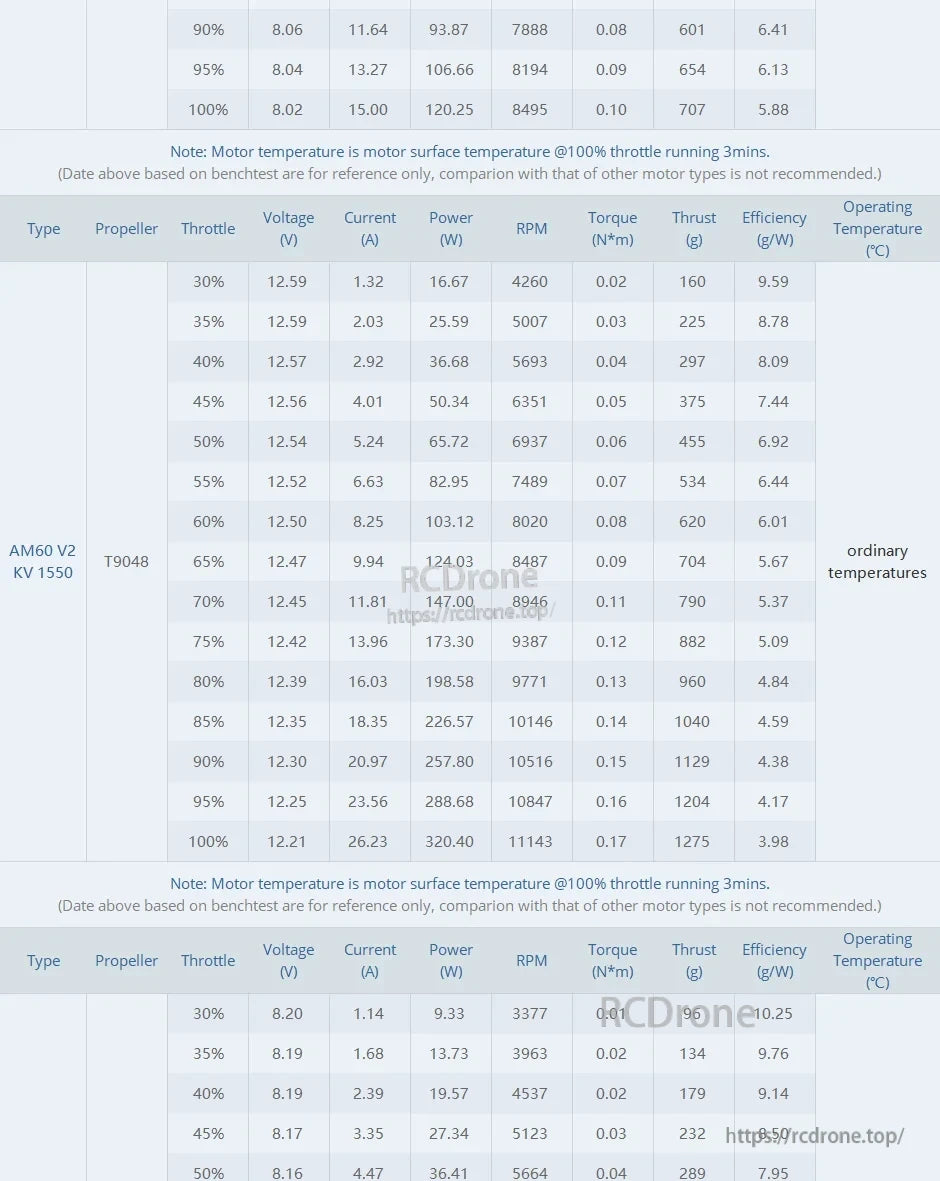

Bench test specs list voltage, current, RPM, torque, thrust, and efficiency for the AM60 V2 KV1550 with a T9048 prop across 30–100% throttle.

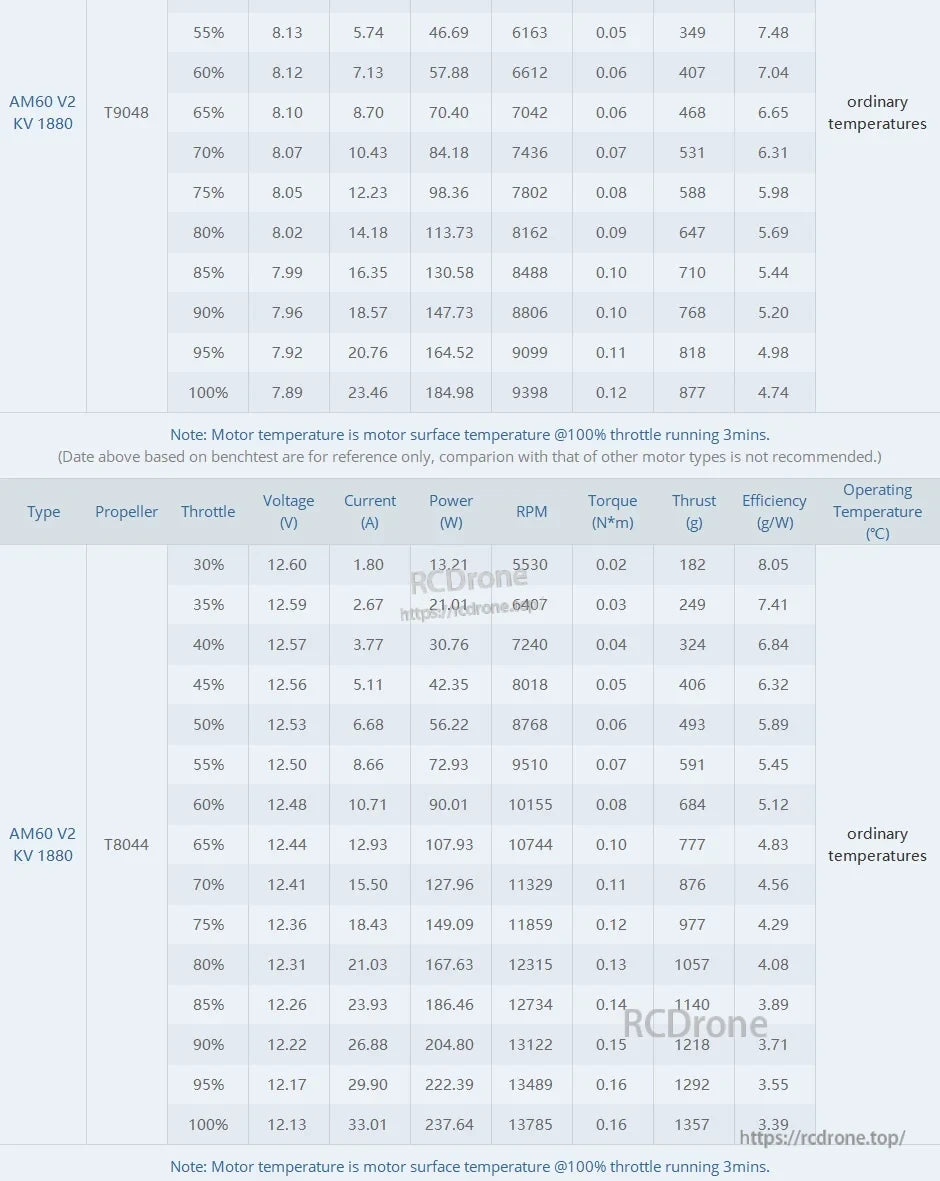

AM60 V2 KV1880 performance data lists RPM, torque, thrust, efficiency, and operating temperature across throttle settings with T9048 and T8044 propellers.

AM60 V2 motor bench-test tables list voltage, current, power, RPM, torque, thrust, and efficiency at different throttle levels for T8041 and T8044 props.

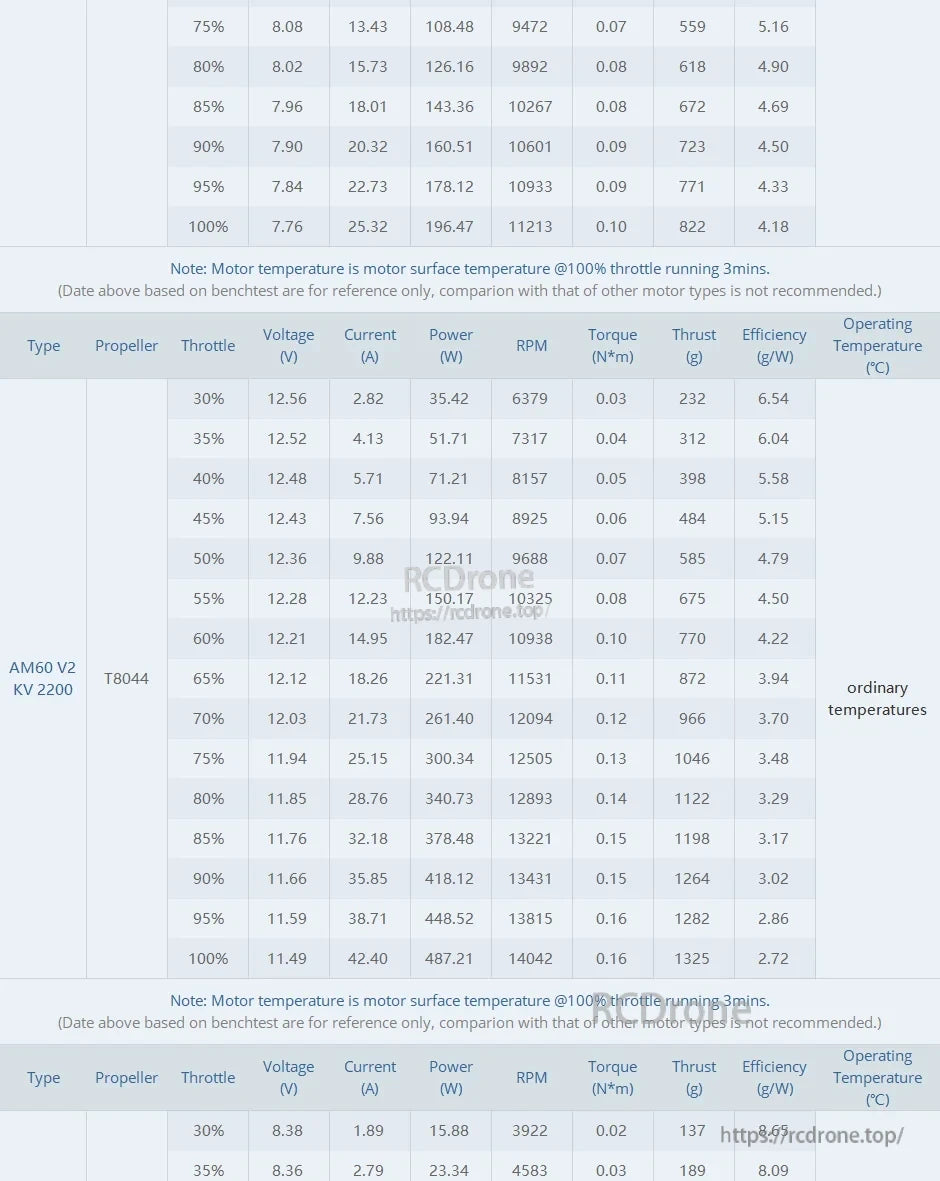

AM60 V2 KV2200 bench test results with a T8044 prop list throttle-by-throttle readings for voltage, current, RPM, thrust, and efficiency.

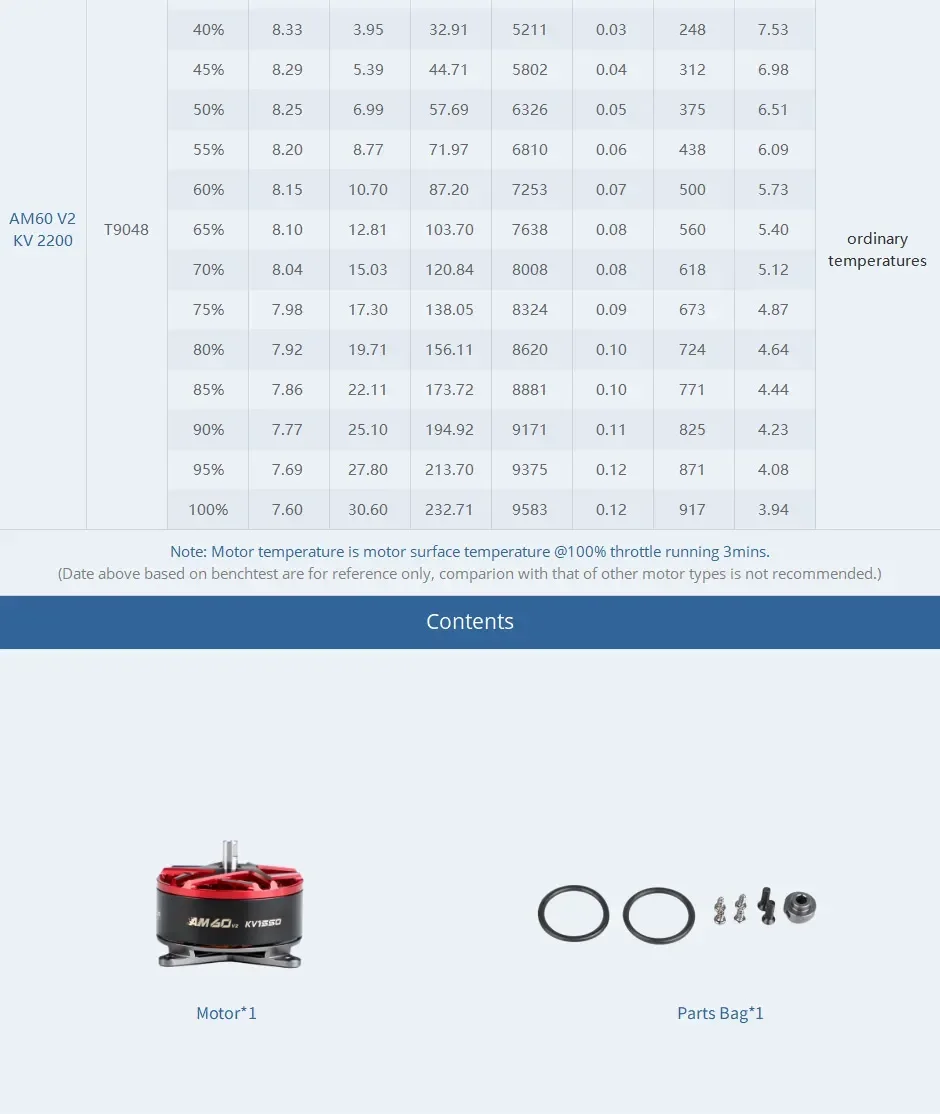

The package includes one AM60 V2 brushless motor and a small parts bag with O-rings and mounting hardware for installation.
