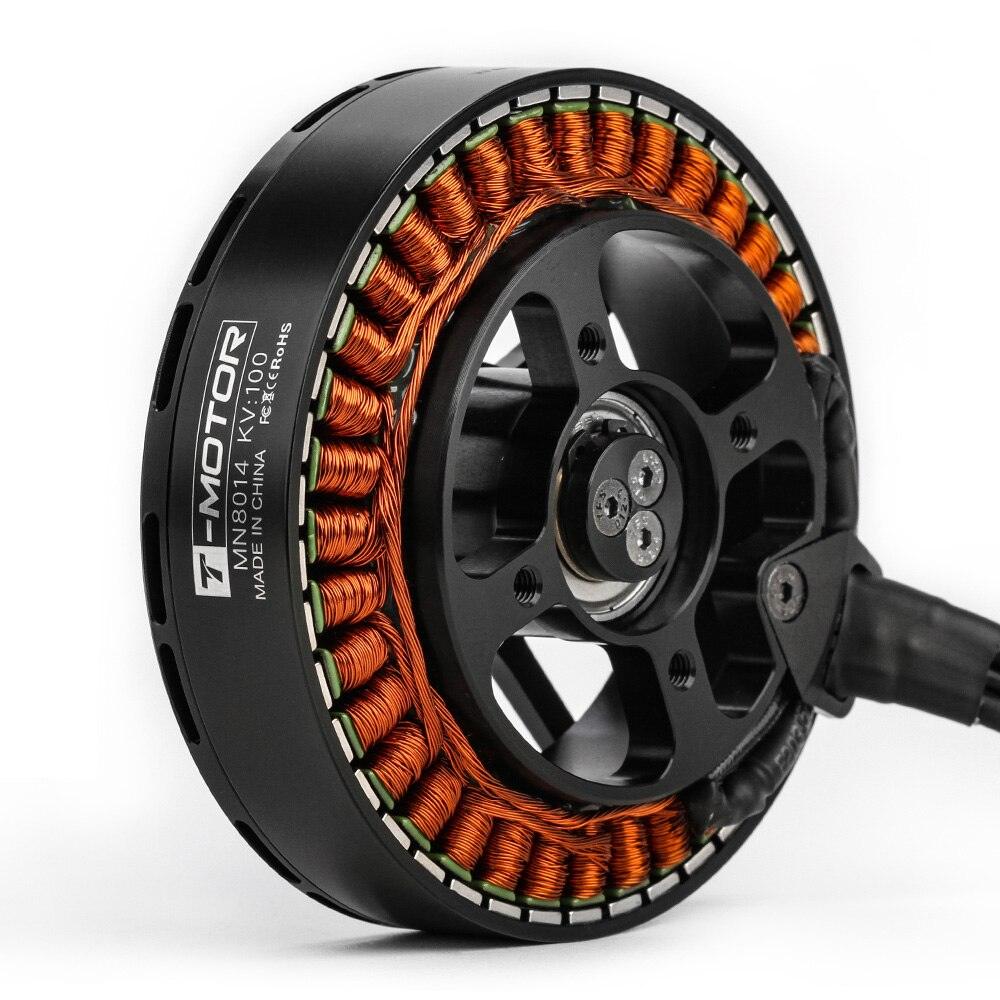

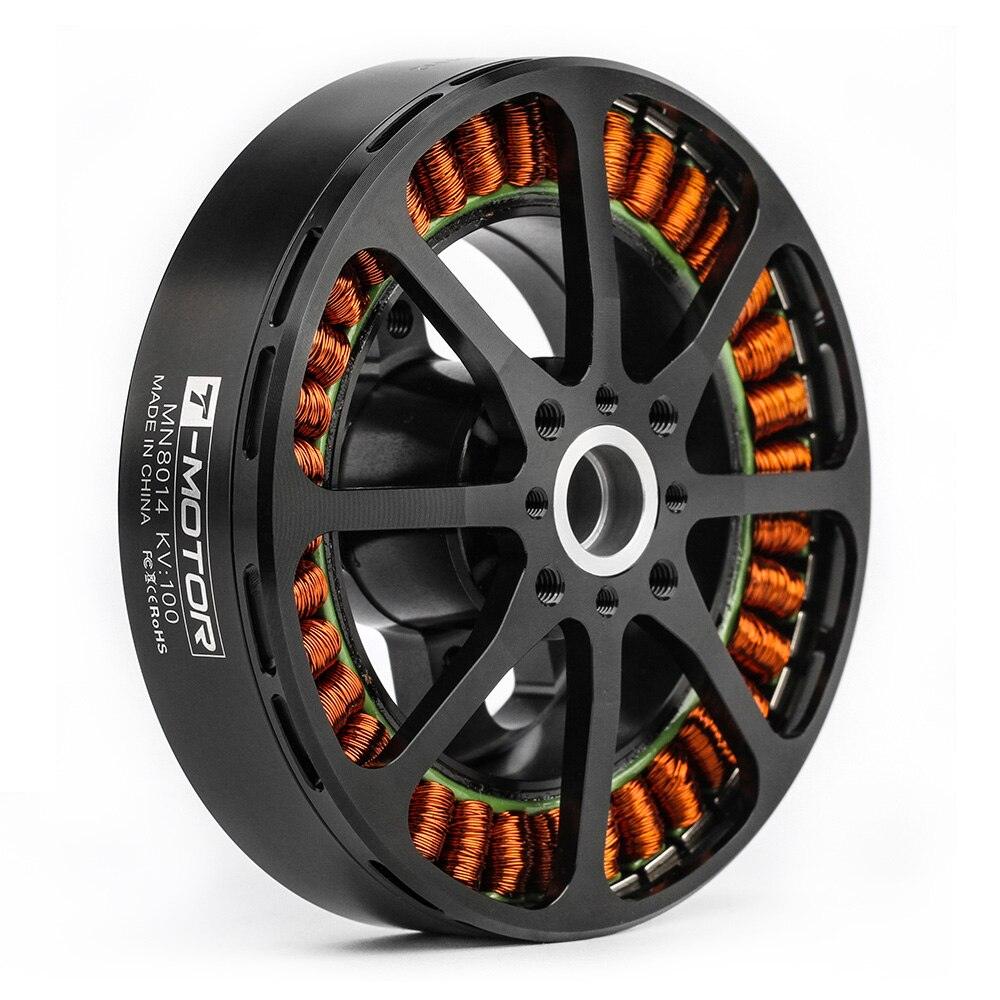

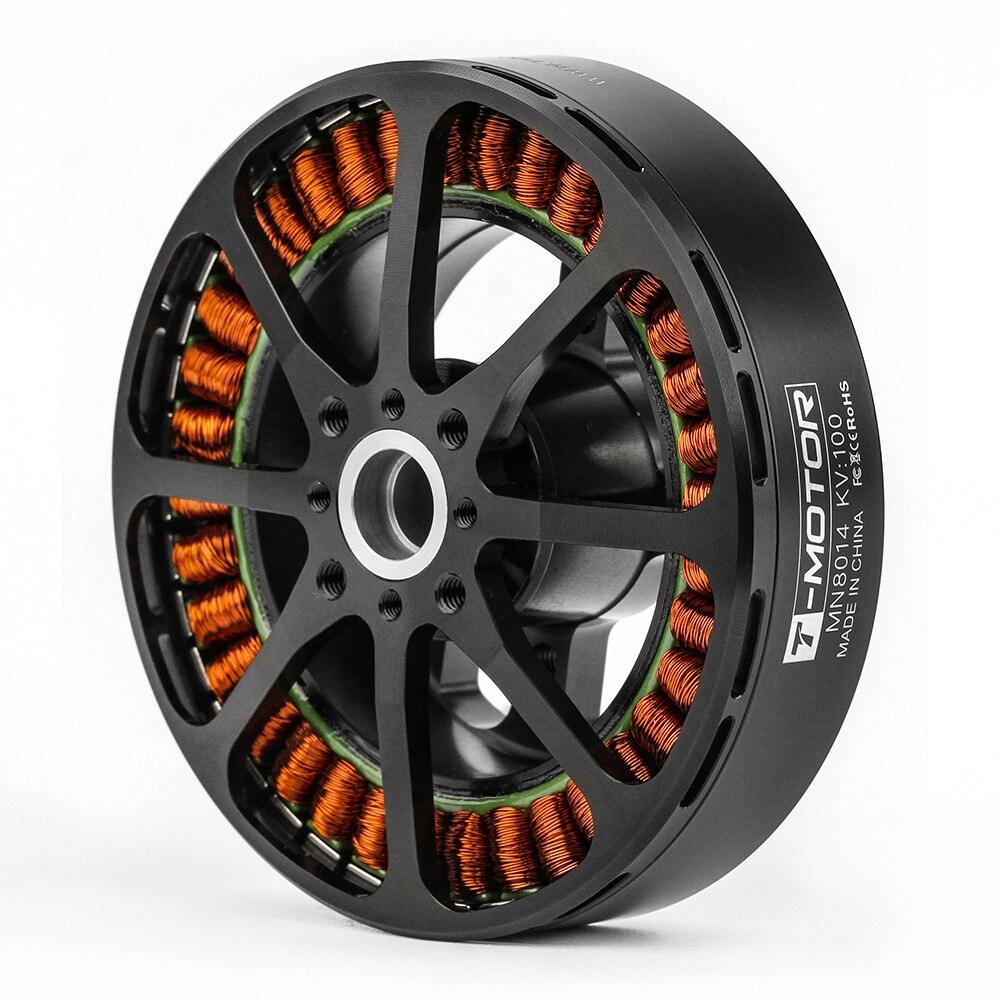

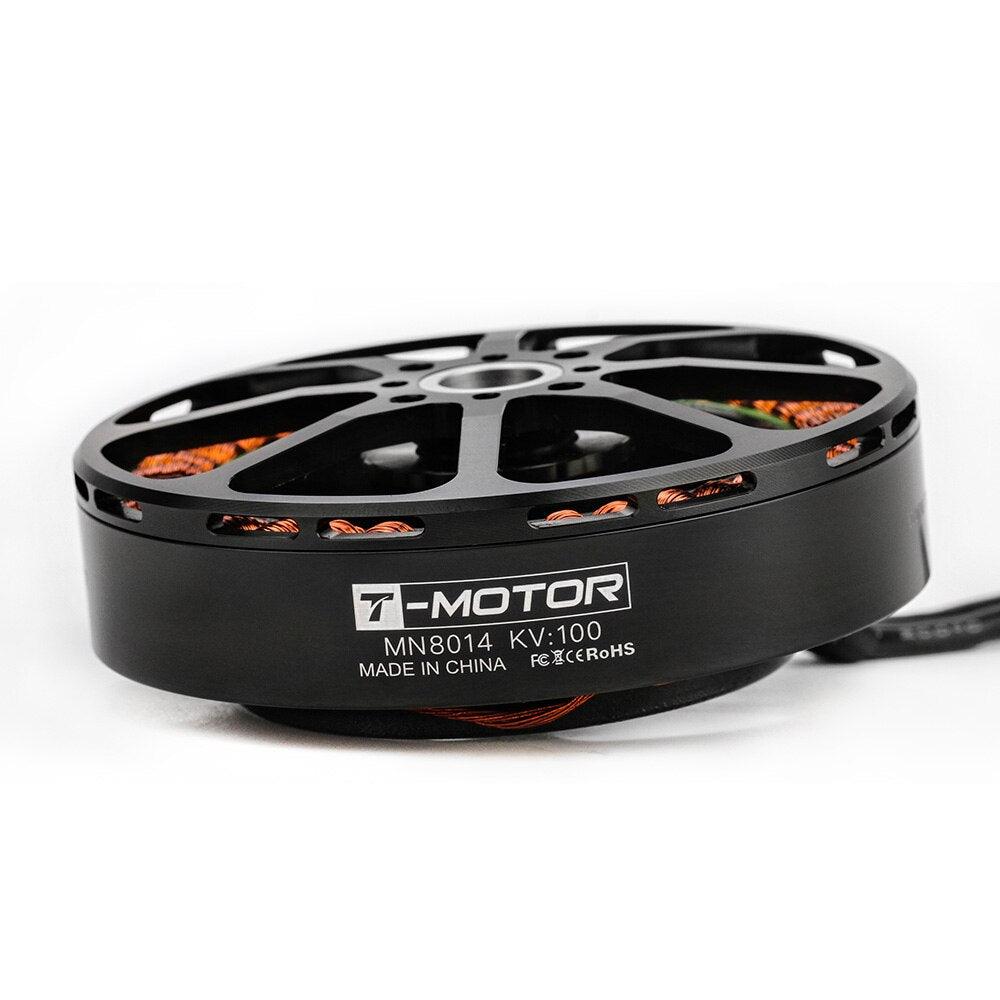

T-motor MN8014 KV100 12S Brushless Motor SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Technical parameters: Value 2

Remote Control Peripherals/Devices: ESC

Recommend Age: 18+

RC Parts & Accs: Motors

Origin: Mainland China

Model Number: MN8014 KV100

Material: Metal

For Vehicle Type: Airplanes

Brand Name: T-MOTOR

Rated thrust: 3-6kg Multiple Choices TARGETING CENTRAL POSITION Na MN8014 MADE 0 MOTOR] KVOO FcTctat4s voe .

MN8012 MN 8014 MN8117 11.8 kg 13.9 kg 16.8 kg Max Thrust Max Thrus 351 g 392 g 453 g Motor Weight Motor Weight 34 35 37 Power Ratio Power Rat .

For coaxial configurations, please note that there is a 25% thrust loss to be considered. If you're using a quadcopter, you'll likely require a specific propeller.

Featuring trustworthy performance and stable operation, this motor utilizes high-quality imported bearings and durable 7075 aviation-grade aluminum alloy to ensure long-lasting reliability and endurance up to 800 hours.

Delivers competitive performance while being energy-efficient and easy to maneuver, thanks to its self-circulating cooling system, high-temperature-resistant wires, and arc magnets that work together to unlock the motor's full potential for maximum efficiency.

Specifications: * Motor Size: 87.8mm x 31.5mm * Anti-rust treatment for enhanced durability * Stator configuration: 36N42P * Shaft diameter: 12mm * Bearing: Imported 6901ZZ * Magnet level: 1808, featuring high-temperature resistance * Lead cable: 14AWG x 90mm, with copper wire and high-temperature resistance insulation * Coil insulation test: 1000V/second * Rotor dynamic balance standard: Smg IP35 * Rated voltage (Lipo): [insert voltage rating]
