SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Technical parameters: Value 2
Remote Control Peripherals/Devices: drone electric motor
Recommend Age: 18+
RC Parts & Accs: Motors
Quantity: 1 pcs
Origin: Mainland China
Model Number: AT5220-B
Material: Metal
For Vehicle Type: Airplanes
Brand Name: T-MOTOR
• AT52 series are suitable for 90E-140E aircraft,corresponding to gasoline engine about 20-25CC.
FMOTOR The big good is the torque and heat dissipation structure . the big good has a powerful flight & excellent cooling performance .

The motor features military-grade wiring that enhances its high-temperature resistance, prolonging its lifespan and ensuring safe operation up to 220°C (high temperature) for extended flying times.

Strong power and excellent balance ensure a variety of smooth flight options. Throttle response is linear, providing consistent strong power for diverse and stable flight.

Featuring high-quality, imported bearings and a structurally strong design, this motor boasts exceptional durability and resistance to wear and tear, perfect for free flight operation.

This motor features a versatile mounting design, allowing it to be installed at the front or rear of an aircraft's firewall. Both internal and external installations are easily handled.

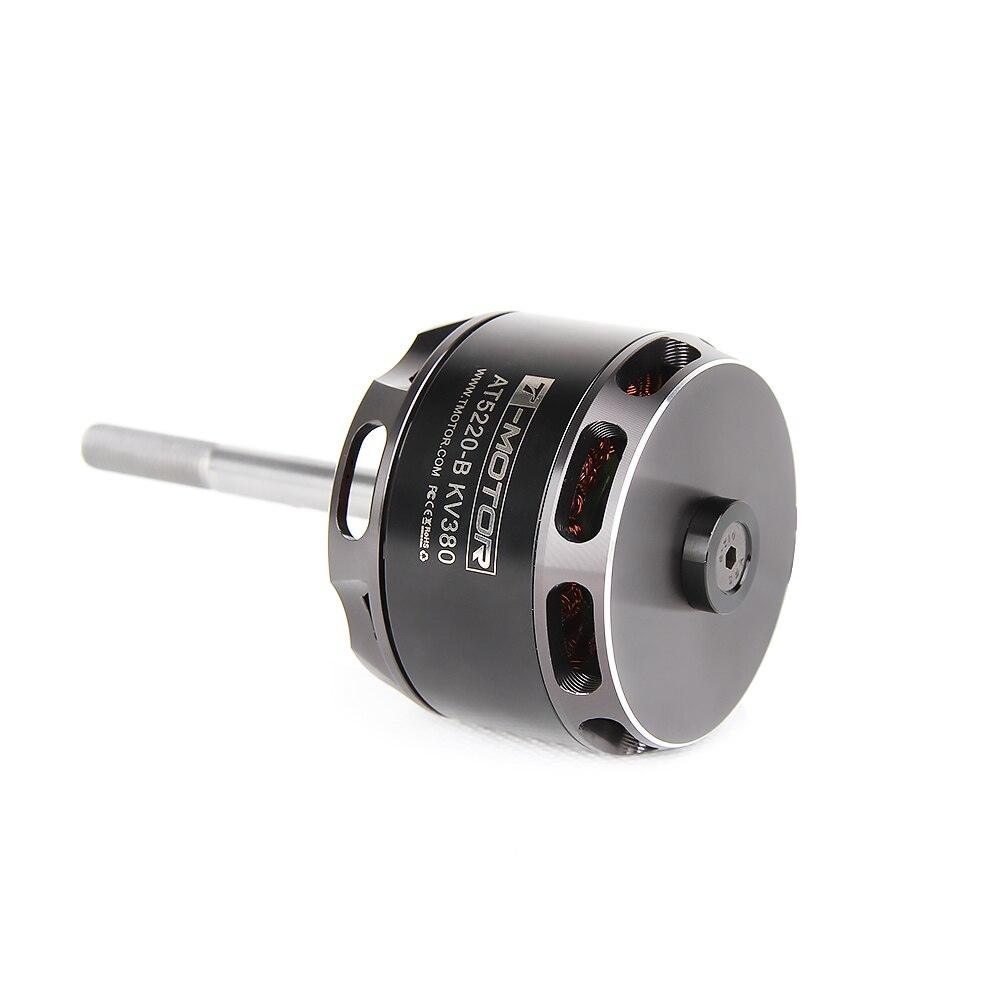

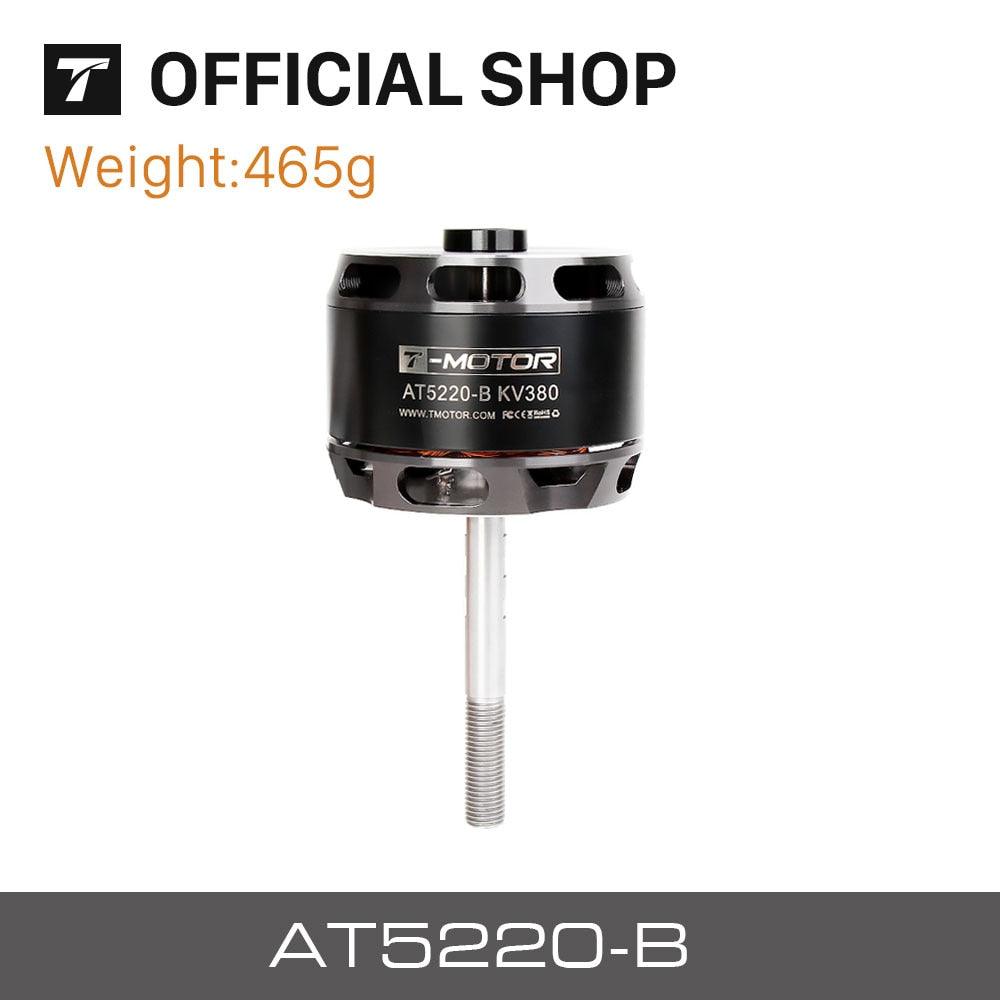

The T-motor AT5220-B KV380 motor features a thrust output of 465g, with dimensions of 60mm x 120mm. It has internal resistance of 36mΩ and lead-wire length of 10mm, made fromenameled wire. The configuration is 24N28P with an IN diameter of 1cm and shaft diameter of 8mm. Rated voltage for a lipo battery is 65V, with idle current at 4.0A, peak current at 100A (within 80 seconds), and maximum power output of 2700W. Recommendation: consult the test report for information on voltage, current, power, torque, thrust efficiency, and operating type. Suitable for use with propeller throttle control up to 1,800 RPM.
