T-Motor CINE C13 13-Inch Cinelifter FPV Propeller Set C13x10/C13x12 Glass Fiber Nylon 3-Blade

Overview

This FPV propeller set is the T-Motor CINE C13 series cinelifter propeller in 13-inch class, with options C13x10 and C13x12. It uses Glass Fiber Nylon material and a 3-blade design, with emphasis on durable output, optimized airfoil efficiency (30% boosted aerodynamic efficiency), and precision dynamic balancing for smoother footage.

Key Features

• Durable & resilient, steady output: high-toughness composite material; resists chipping and deformation during takeoff/landing on grass, dirt, or gravel; supports stable power output for uninterrupted filming.
• Optimized airfoil, efficient power: optimized airfoil design; aerodynamic efficiency boosted by 30% for smoother and more stable power output.
• Precision balanced: each propeller undergoes precise dynamic balancing to minimize vibration at the source, reducing jitter and blur during filming.
• Multiple locking, quick mounting: supports two mounting methods: a quick-lock bullet cap or four M3 screws with a metal hub for enhanced stability.
• Fitment note (as shown): screw option is stated as particularly suited for V4215 / V5315 / Cine99 motors.

Specifications

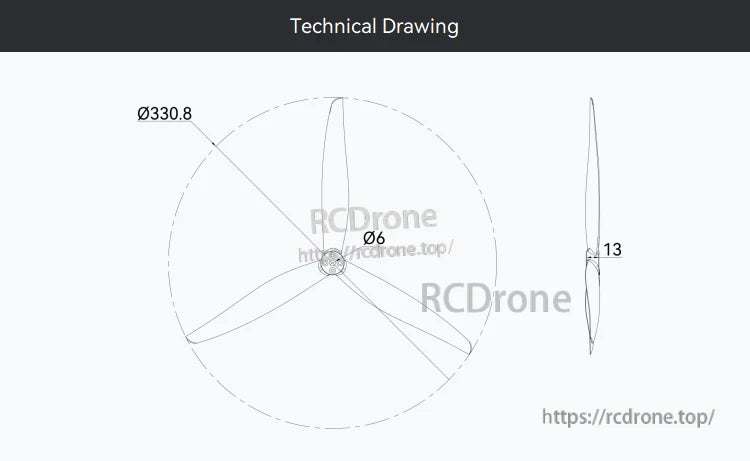

Technical drawing (dimensions shown)

C13x10

C13x12

Additional types shown in specification images

Test Data

T-HOBBY C13x10 (Motor: V4215 KV320)

T-HOBBY C13x12 (Motor: Cine99 KV350)

T-HOBBY C15x8 (Motor: V5315 KV500)

T-HOBBY C15x10 (Motor: Cine99 KV350)

Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)

What's Included

• CW*1
• CCW*1

Applications

• Cinelifter FPV builds and cinematic drones
• Video filming where reduced vibration and stable output are required

For order and product support, contact support@rcdrone.top or visit https://rcdrone.top/.

Details

The T-Motor CINE C13 13-inch cinelifter propeller is presented as a durable, resilient option designed for steady output.

The T-Motor CINE C13 propeller features an optimized airfoil design and claims 30% boosted aerodynamic efficiency for efficient power output.

Precision dynamic balancing helps reduce airframe vibration to support smoother footage on cinelifter FPV builds.

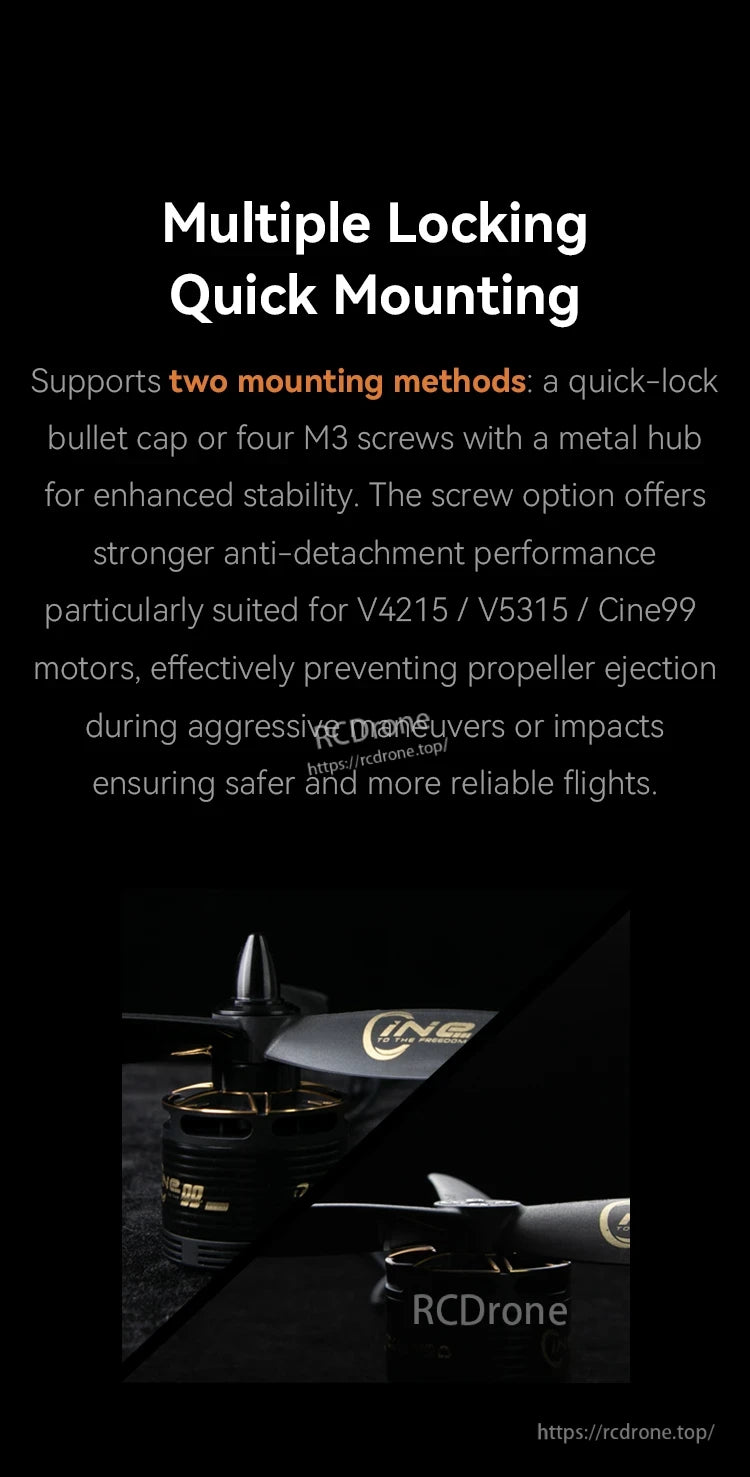

The T-Motor CINE C13 13-inch cinelifter prop supports quick-lock bullet cap mounting or four M3 screws with a metal hub for a secure fit.

The CINE C13 propeller uses a 13-inch three-blade design with a Ø6 mm center bore for straightforward mounting.

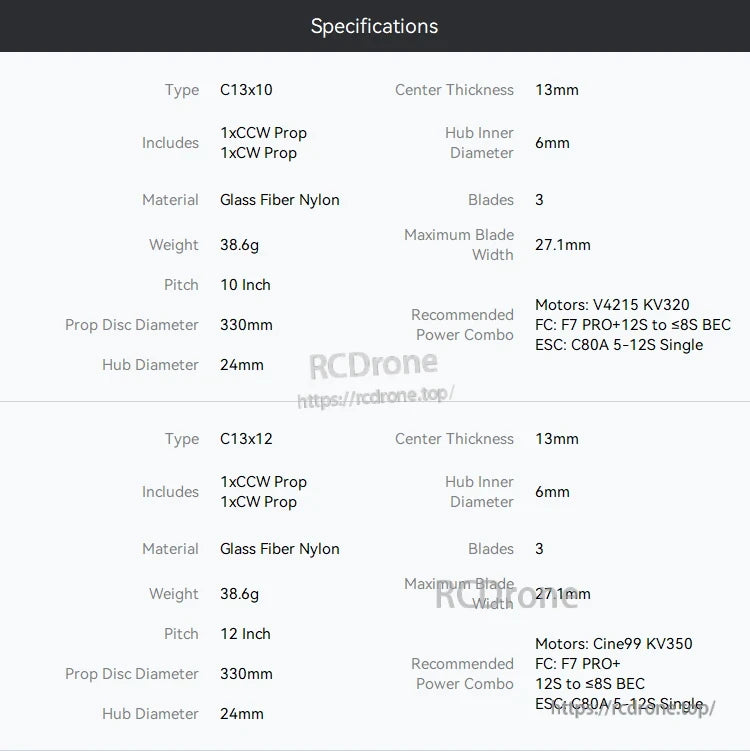

C13x10 and C13x12 13-inch cinelifter prop options include one CW and one CCW 3-blade prop with a 6mm hub inner diameter.

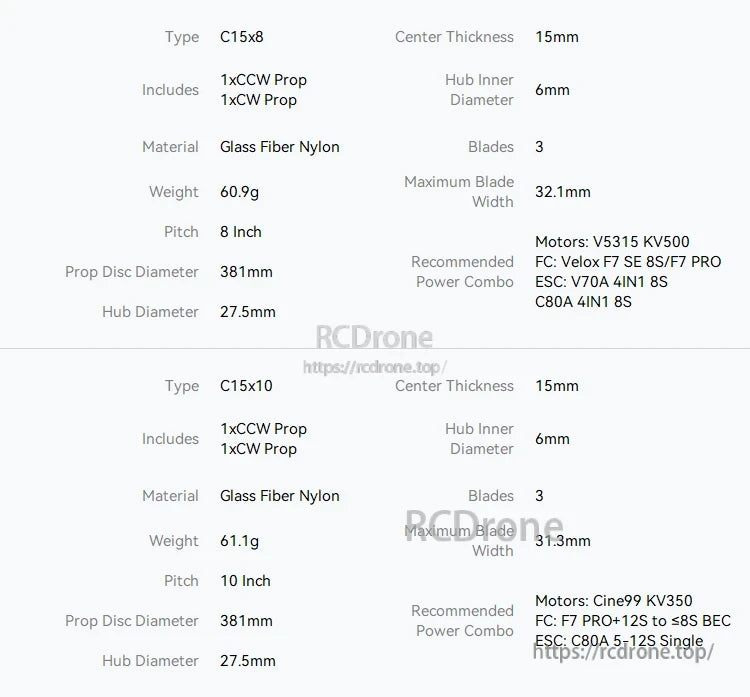

C15x8 and C15x10 prop options use a 3-blade glass fiber nylon design with a 6mm hub bore and include one CW and one CCW prop.

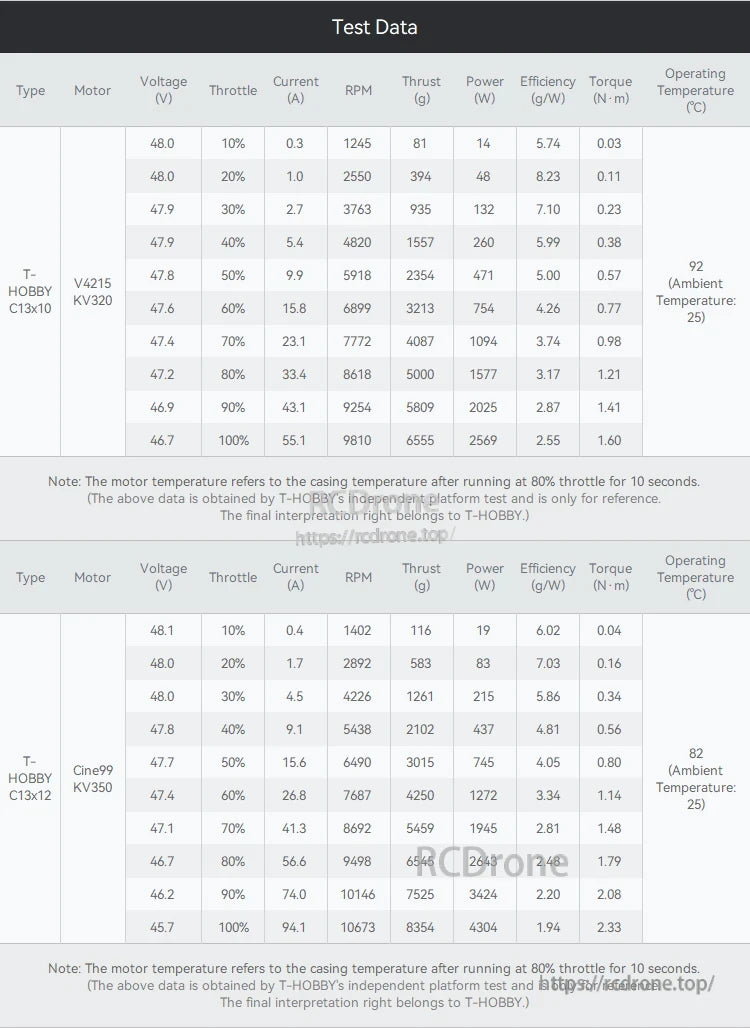

T-Hobby C13x10 and C13x12 prop test data lists voltage, throttle, current, RPM, thrust, power, efficiency, torque, and operating temperature.

Performance tables list voltage, throttle, RPM, thrust, power, efficiency, torque, and operating temperature for different prop and motor setups.

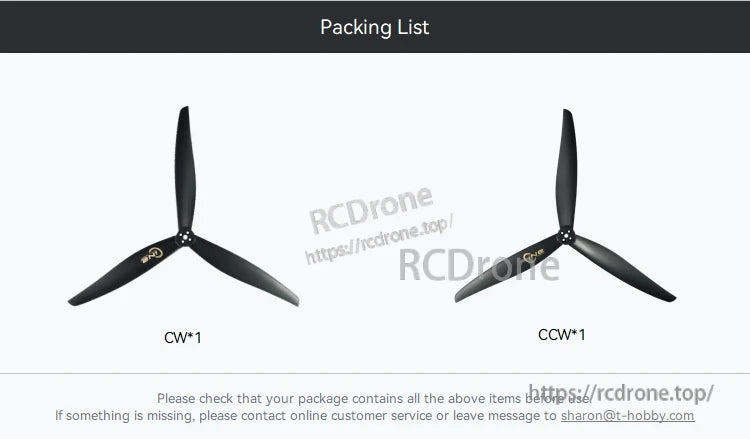

The pack includes one clockwise and one counterclockwise 3-blade T-Motor CINE C13 13-inch propeller for balanced rotation setup.
