T-Motor CINE 15x8 / 15x10 15 Inch FPV Propeller Set, Glass Fiber Nylon, CW+CCW, 6mm ID

Overview

This FPV propeller set is from the T-Motor CINE series (C15x8 / C15x10 sizes shown), designed for stable power output and smooth footage. The product information below is compiled from the provided images and includes specifications, mounting notes, and bench test data.

Customer service: https://rcdrone.top/ (or email support@rcdrone.top).

Key Features

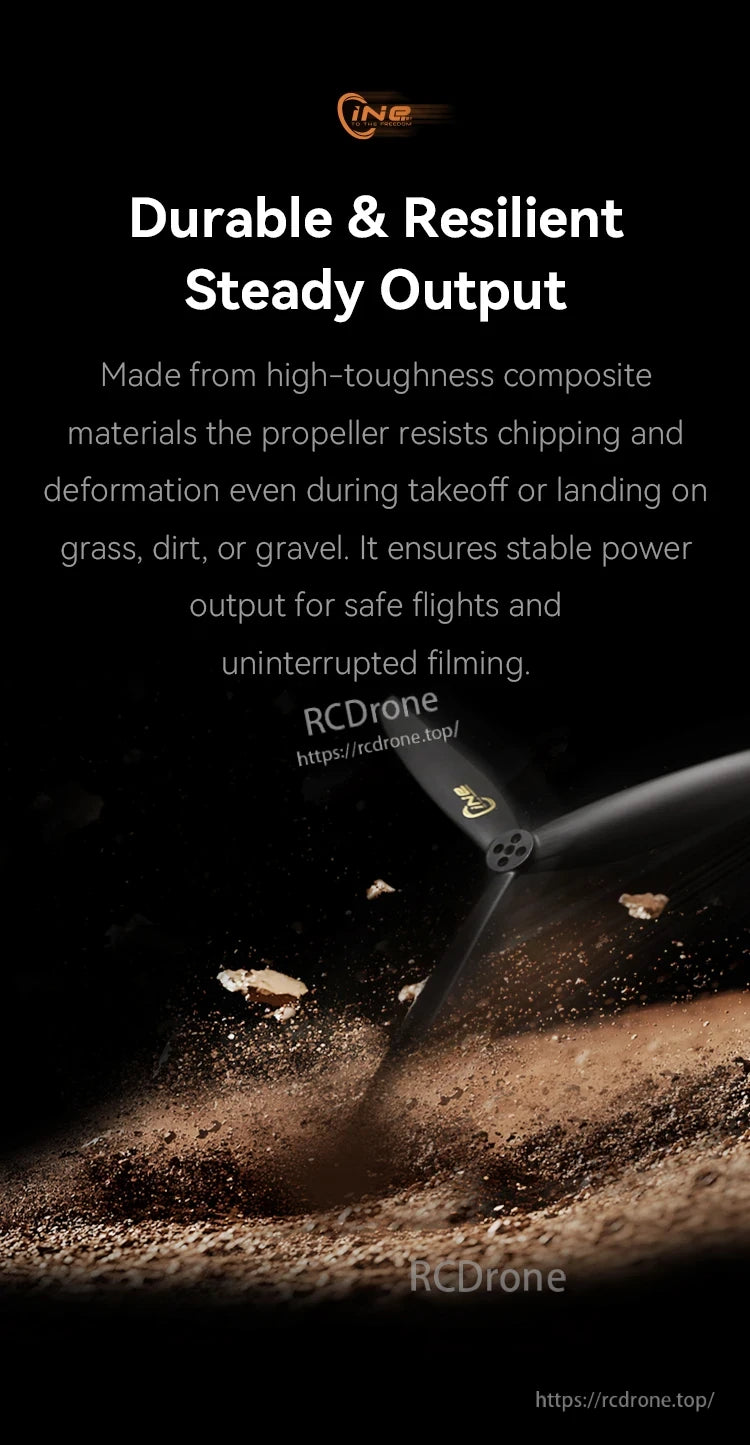

• Durable & resilient, steady output: Made from high-toughness composite materials; resists chipping and deformation during takeoff/landing on grass, dirt, or gravel; designed for stable power output and uninterrupted filming.
• Optimized airfoil: "30% boosted aerodynamic efficiency" (as stated in the provided material) for smoother and more stable power output and longer flight time on the same battery.
• Precision balanced: Each propeller undergoes precise dynamic balancing to minimize airframe vibration, reducing jitter and blur during filming.

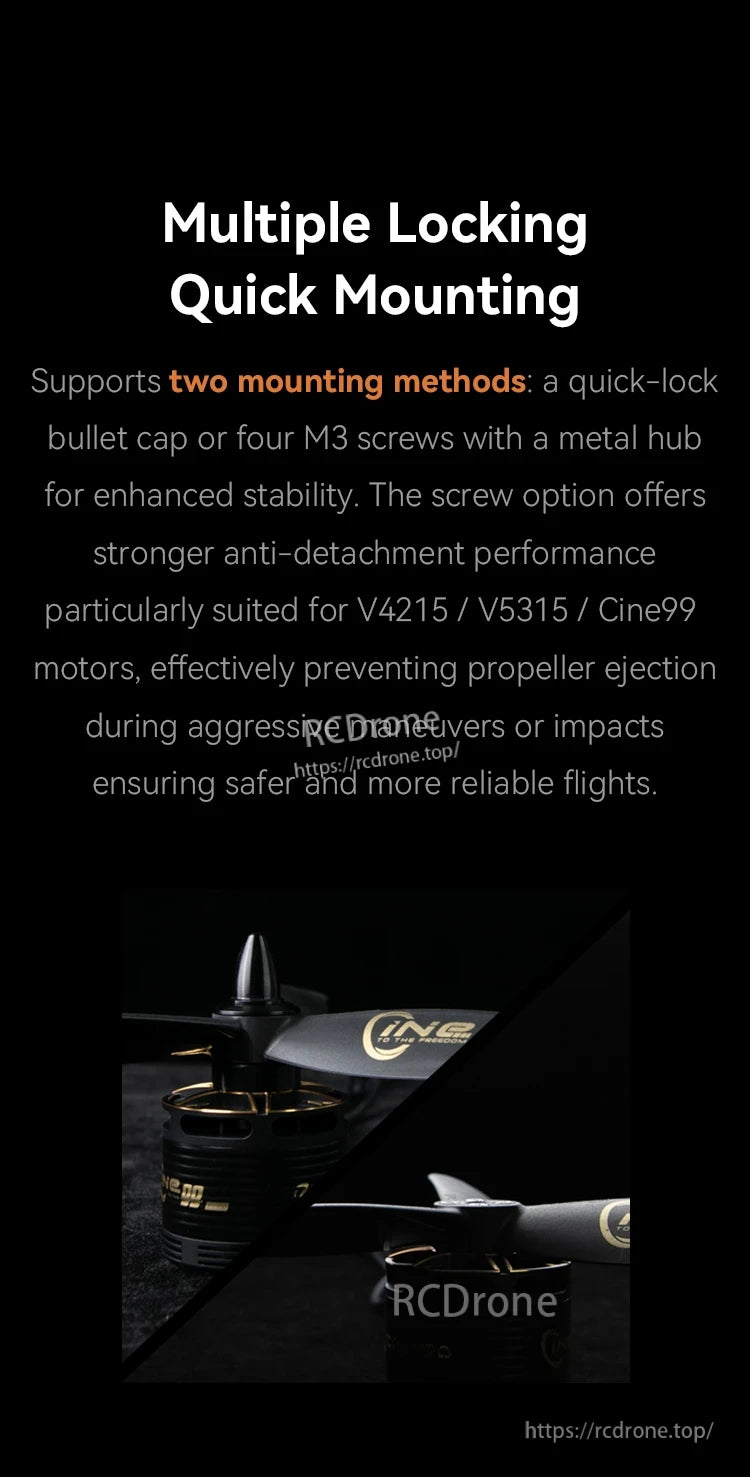

• Multiple locking / quick mounting: Supports two mounting methods: a quick-lock cap, or four M3 screws with a metal hub for enhanced stability. The screw option is described as suitable for V4215 / V5315 / Cine99 motors.

Specifications

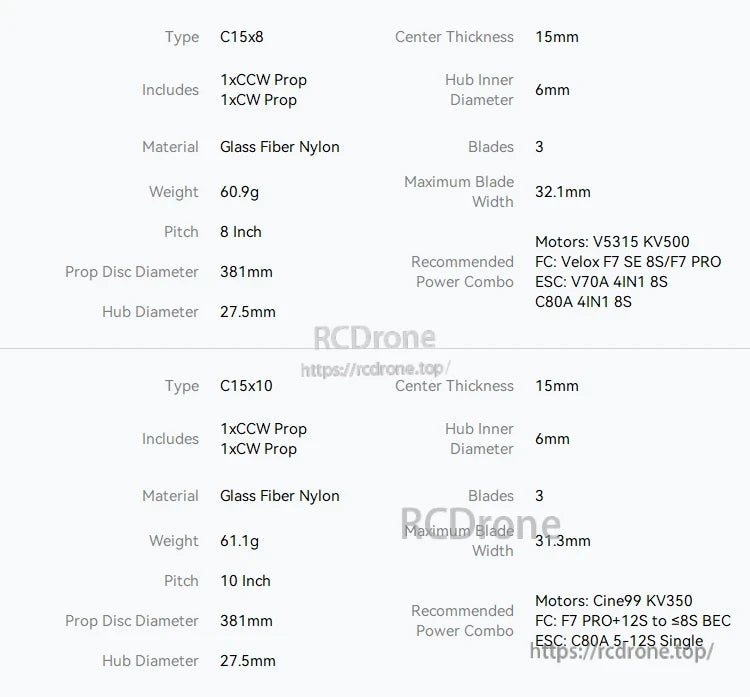

Propeller specifications (as shown)

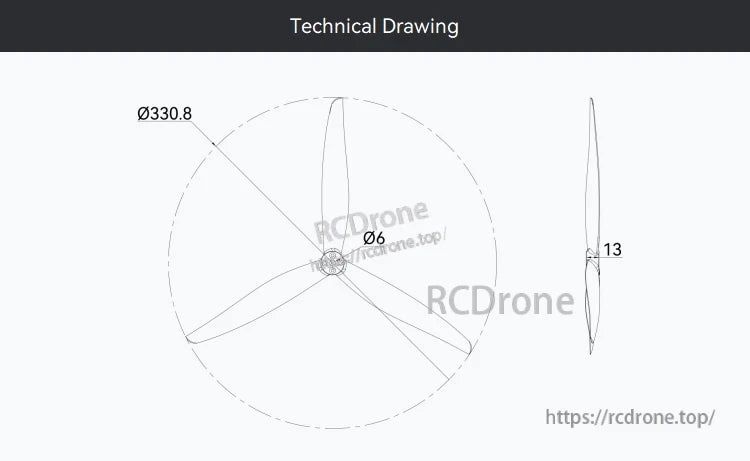

Technical drawing (dimensions shown)

• Diameter mark: Ø330.8
• Center bore mark: Ø6
• Thickness mark: 13

Test data (as shown)

Columns: Voltage (V), Throttle, Current (A), RPM, Thrust (g), Power (W), Efficiency (g/W), Torque (N·m), Operating Temperature (°C).

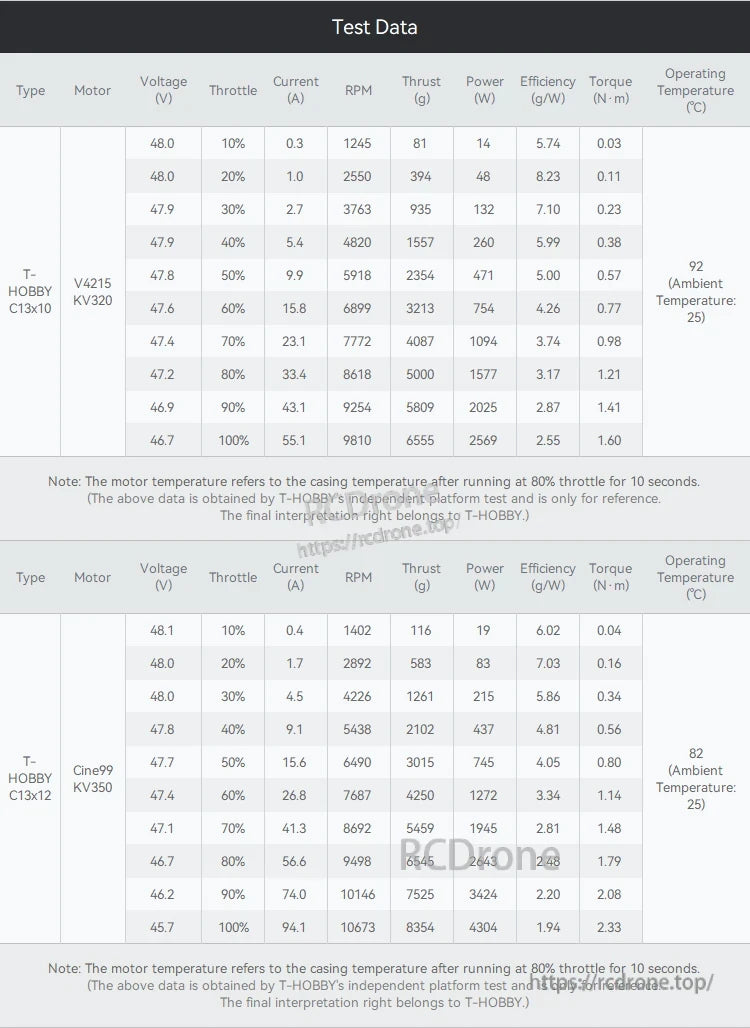

Test Data: T-HOBBY C13x10 + V4215 KV320

Test Data: T-HOBBY C13x12 + Cine99 KV350

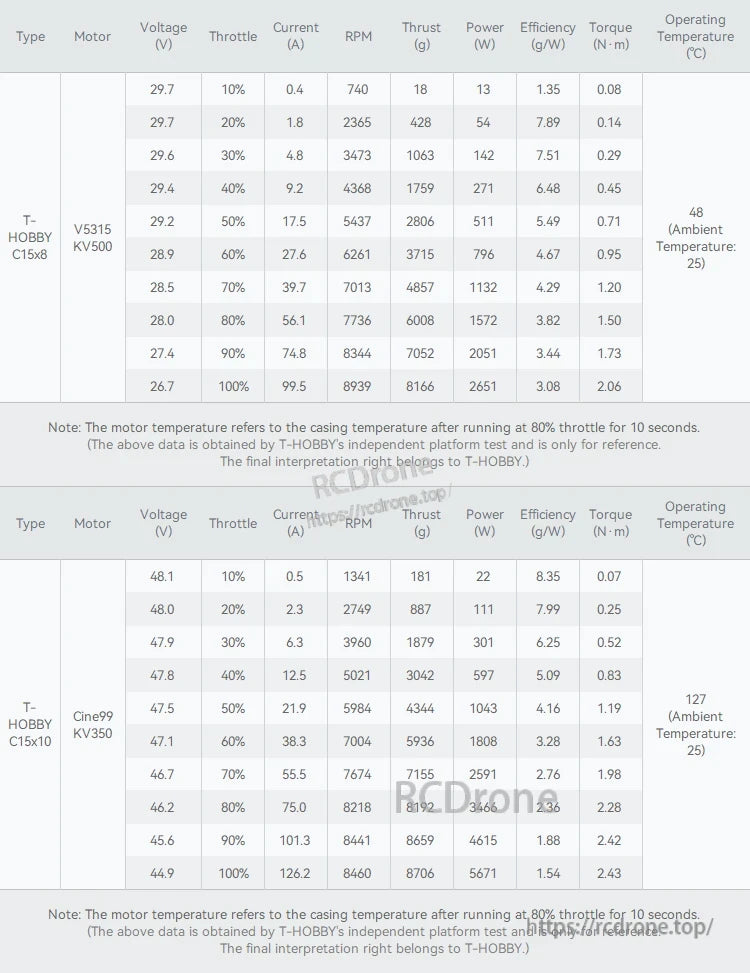

Test Data: T-HOBBY C15x8 + V5315 KV500

Test Data: T-HOBBY C15x10 + Cine99 KV350

Test note (as shown): Motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. The above data is obtained by an independent platform test and is only for reference.

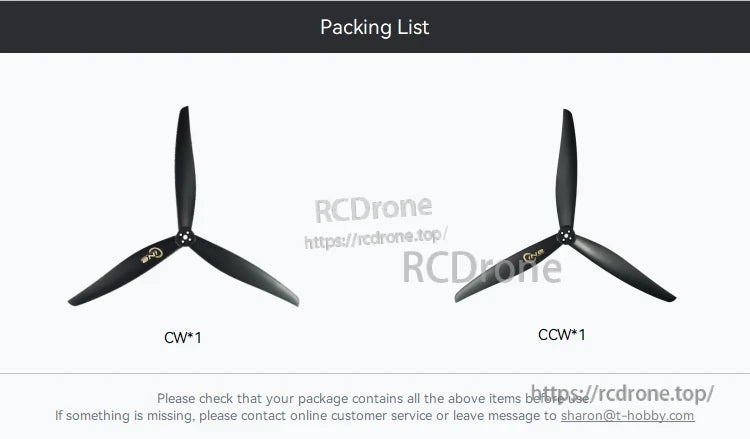

What’s Included

• CW*1
• CCW*1

Applications

• FPV cinematic platforms requiring smoother footage (reduced vibration/jitter) and stable power output
• Setups using the mounting methods described above (quick-lock cap or four M3 screws with metal hub)

Details

High-toughness composite construction helps the 15-inch propeller resist chipping and deformation during takeoff and landing.

The CINE propeller’s optimized airfoil design is described as boosting aerodynamic efficiency by 30% for smoother, more stable power output.

T-Motor CINE 15-inch FPV propellers are described as precision balanced to help minimize vibration for smoother filming.

T-Motor CINE 15-inch FPV propellers support quick-lock bullet cap mounting or a four M3 screw option with a metal hub for a more secure fit.

The 3-blade propeller uses a Ø330.8 mm diameter design with a Ø6 mm center mounting hole for compatible FPV builds.

C13x10 and C13x12 glass fiber nylon tri-blade props include one CW and one CCW prop with a 6mm hub inner diameter and 330mm prop disc diameter.

Both C15x8 and C15x10 options are 15-inch, 3-blade glass fiber nylon prop sets with a 6mm hub inner diameter and 15mm center thickness.

The test data lists RPM, thrust, power, efficiency, and torque at different throttle levels for T-HOBBY C13x10 and C13x12 setups.

C15x8 and C15x10 test data lists throttle and voltage alongside current draw, RPM, thrust, power, efficiency, torque, and operating temperature.

The set includes one clockwise and one counterclockwise three-blade 15-inch prop for balanced installation.
