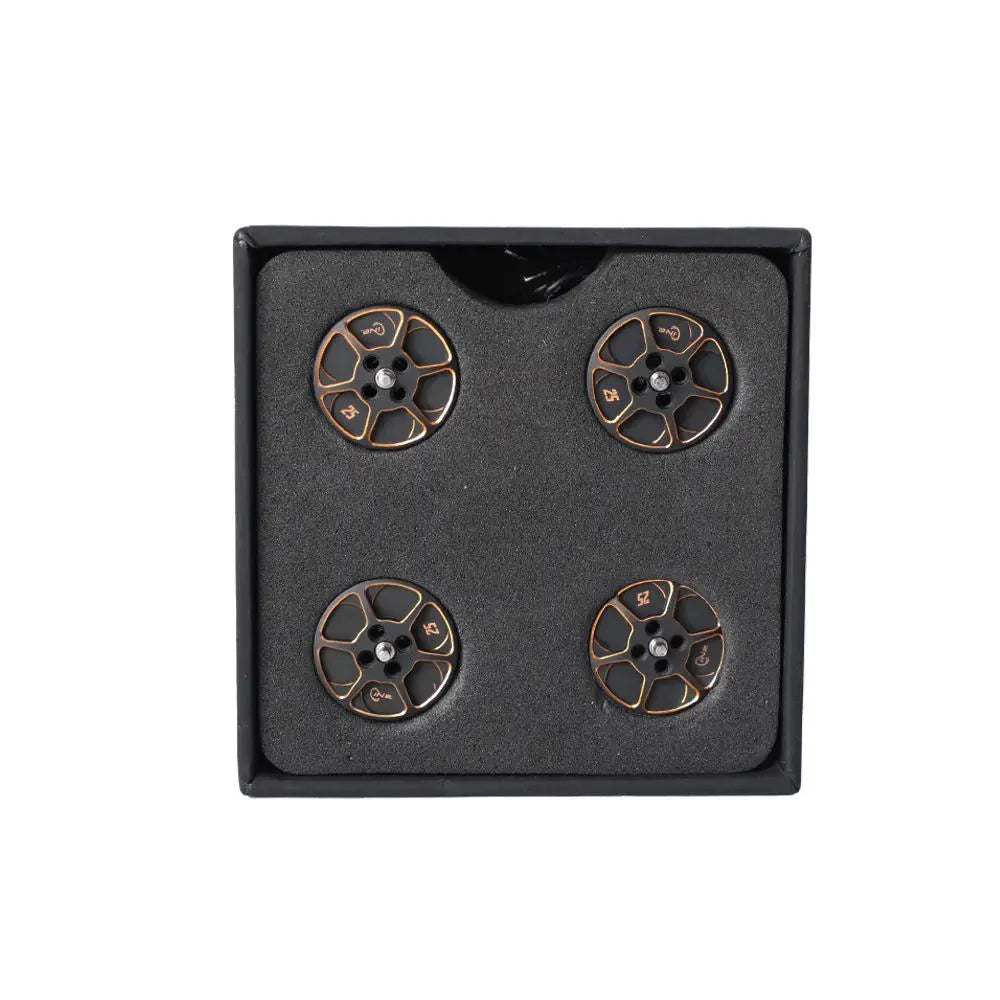

• Set of four black and gold anodized T-Motor drone motor parts arranged in a foam-lined box

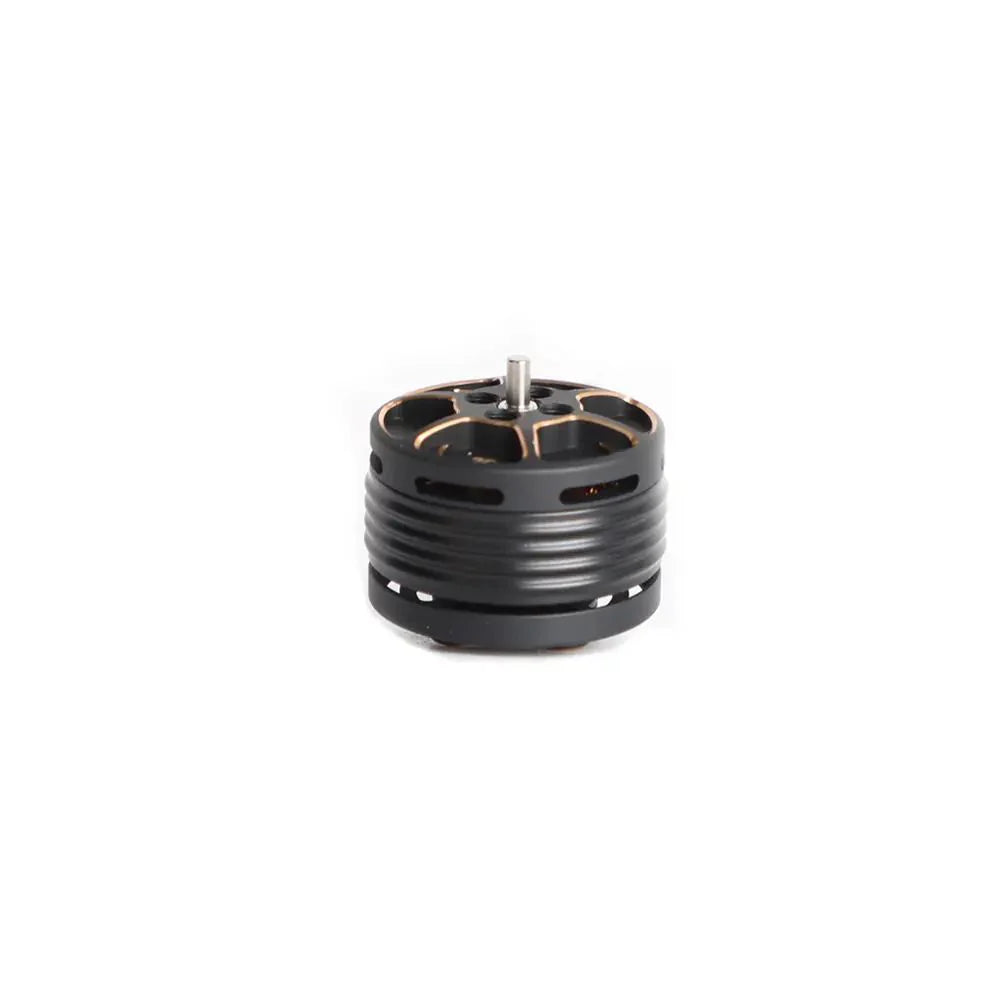

  • T-Motor brushless outrunner motor with black vented housing, exposed copper windings, and top shaft

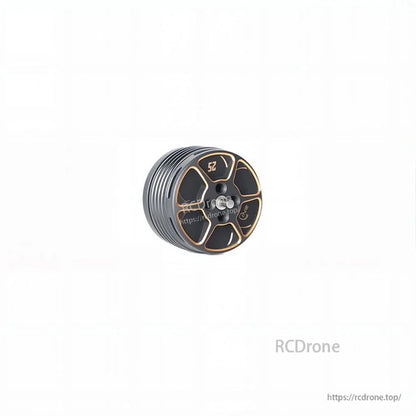

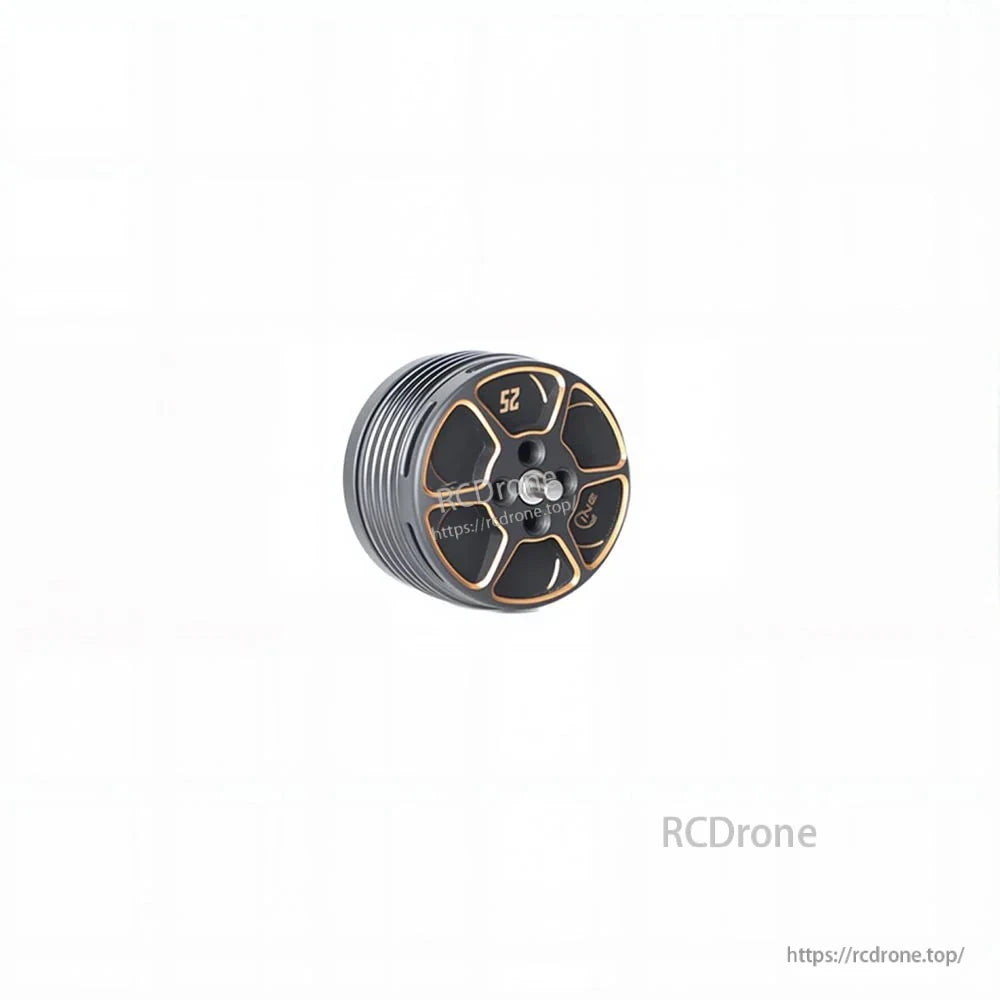

  • T-Motor brushless drone motor close-up with black and gold end bell and ventilated aluminum housing

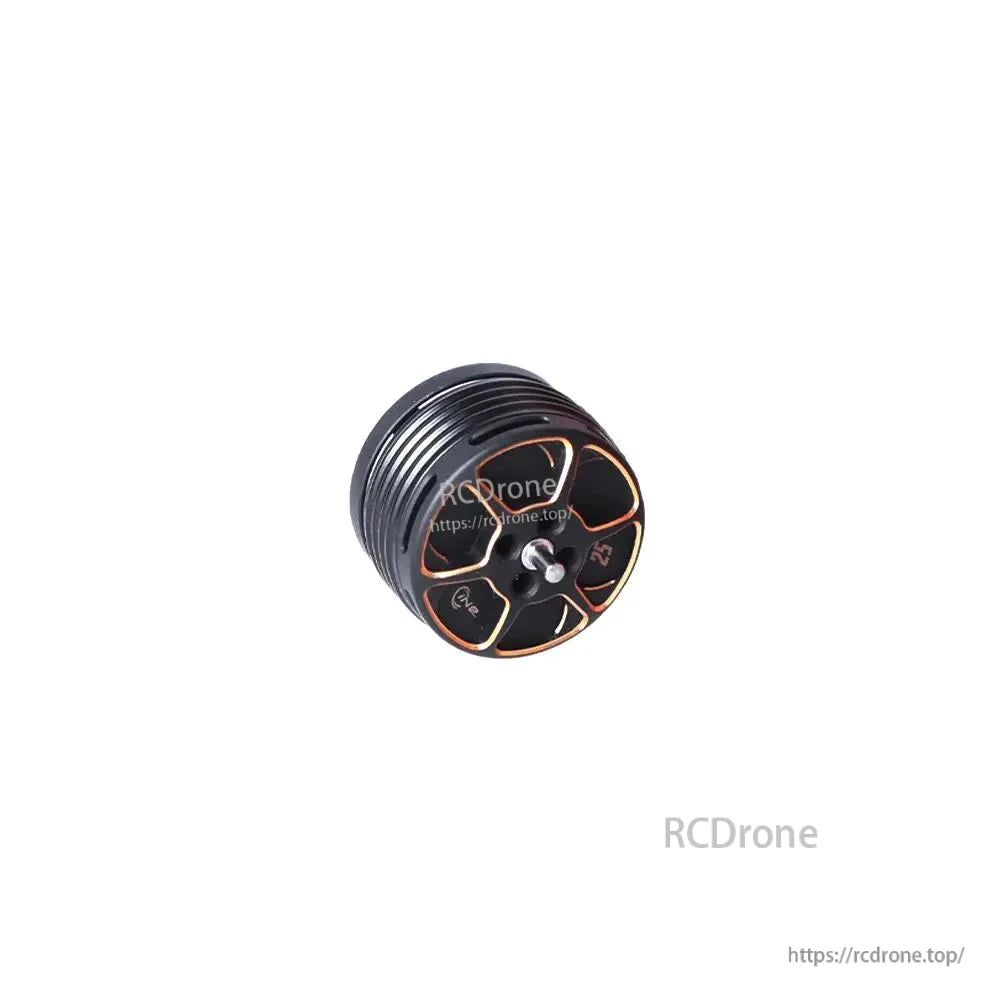

  • T-Motor black brushless drone motor with finned housing, orange-accent end cap, and central output shaft

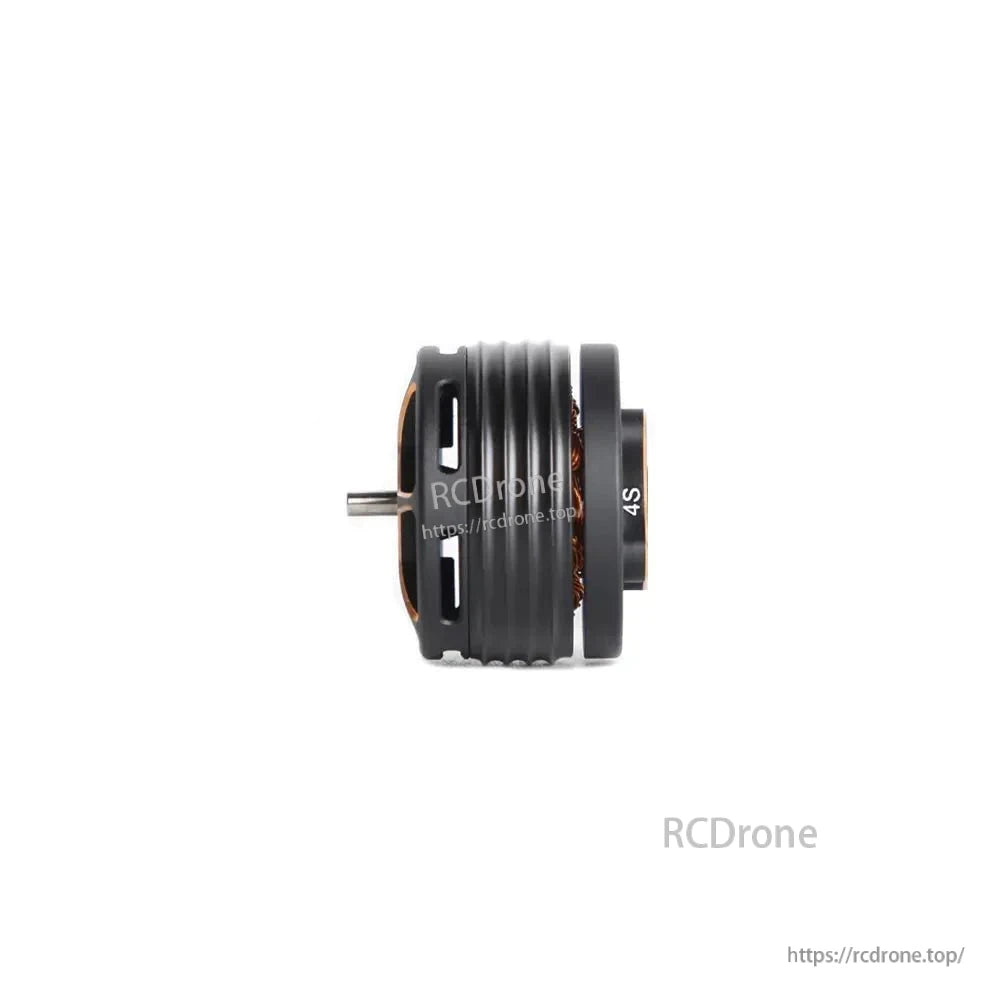

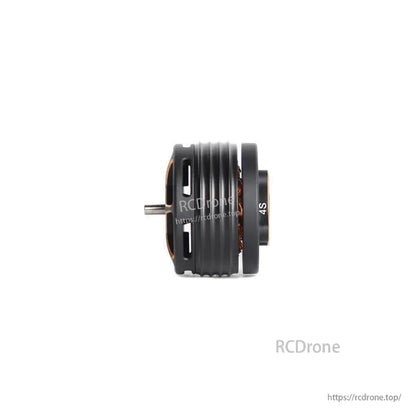

  • Side view of a black T-Motor brushless drone motor with cooling fins and a “4S” marking on the end cap
1 5

T-Motor Cine25 4S Drone Motor Set for 2.5" Cinewhoop FPV Drone, IP45, 12N14P, 4PCS

T-Motor Cine25 4S Drone Motor Set for 2.5" Cinewhoop FPV Drone, IP45, 12N14P, 4PCS

T-MOTOR

$139.00 USD
$139.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Options
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

T-Motor Cine25 4S drone motor set for a 2.5" Cinewhoop FPV drone. Designed for efficient and reliable performance on a 4S power supply, suitable for aerial filming and photography.

Key Features

  • Comprehensive protection for secure flight: integrated protective design helps prevent sand, gravel, and dust from entering the motor during filming and take off/landing operations.
  • Iron core electrophoretic coating treatment; passed 72-hour salt spray test certification (as stated in product materials).
  • Designed for reliable performance in moisture, dusty, and corrosive environments (as stated in product materials).
  • Claims shown: corrosion resistant, sand resistant, dust resistant, all-environment reliability.
  • Agile in compact space: fast response for 2.5" Cinewhoop use in tight spaces and obstacle-rich environments.
  • Enhanced electromagnetic design with upgraded temperature control and efficiency (as stated in product materials).
  • Multi-frame compatible base design: non-protruding shaft screw configuration for compatibility with various frame types.

Customer service: https://rcdrone.top/ or support@rcdrone.top

Specifications

Motor Specifications (Cine25 4S)

Type Cine25 4S
Recommended Voltage 4S
Rated Voltage (Lipo) 16V
Motor Dimension Φ18.8*17.3mm
Magnet Nickel plated arc magnet
Waterproof and dustproof class IP45
Configuration 12N14P
Dynamic balance requirements standards ≤ 3mg
Bearings Imported 520ZZ
Shaft Diameter 1.5mm
Lead 24AWG*100mm
Screw Diameter Φ9-M2-4
Prop Adapter Shaft Thread Φ5-M2-4
Coil insulation test 200V withstand voltage test(3s)
Idle Current(10V) 0.7A
Internal Resistance 141mΩ
Peak Current(1s) 12A
Max Power(1s) 192W
Max Thrust 342g
Weight (incl.cable) 11g
Packing Size 65*65*33mm
Packing Weight 95.3g (4pcs)

Technical Drawing (visible dimensions)

Overall length 17.3
Overall diameter Ø18.8
Mounting 4*M2
Center/shaft reference Ø5
Pattern reference 4-M2, Ø9
Side reference 3
Shaft reference Ø1.5

Recommended (as shown)

Motor Cine25 4S
Prop GF D63-3
ESC F7 35A AIO
Frame Type Cinewhoop X4
Lipo Cells 16V
Recommended takeoff weight range Within 300g
Max Takeoff Weight 400g

ESC Settings Note (as shown)

  • Startup power: 40%
  • Timing: AUTO
  • PWM frequency: 32-BYRPM
  • Demag compensation: low
  • Note: improper settings may cause desync

Flight Test Data (as shown)

  1. 850mah 4s battery (92g), load weight 60g, AUW 280g, flight time 10 minutes.
  2. 1350mah 4s battery (155g), without payload, AUW 283g, flight time 15 minutes.
  3. 850mah 4s battery (92g), without payload, AUW 220g, flight time 14 minutes.

Test Data Tables (as shown)

Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds.

(The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)

Type: Cine25 4S | Propeller: GF D63-3 | Operating Temperature: 78 (Ambient temperature: 25°C)

Voltage (V) Throttle (%) Current (A) RPM Thrust (g) Power (W) Efficiency (g/W) Torque (N*m)
16.04 10% 0.09 4801 5 1 3.37 0.000
16.03 20% 0.33 10208 21 5 3.89 0.002
16.02 30% 0.73 14695 43 12 3.69 0.004
16.02 40% 1.35 18999 72 22 3.33 0.007
16.00 50% 2.26 23273 108 36 2.98 0.010
15.99 60% 3.55 27516 151 57 2.65 0.013
15.96 70% 5.08 31360 196 81 2.41 0.017
15.93 80% 6.93 34965 242 110 2.19 0.021
15.90 90% 9.01 38434 288 143 2.01 0.025
15.87 100% 11.78 42061 349 187 1.87 0.030

Type: Cine25 4S | Propeller: GF D63-3 (With Oddity frame) | Operating Temperature: 72 (Ambient temperature: 25°C)

Voltage (V) Throttle (%) Current (A) RPM Thrust (g) Power (W) Efficiency (g/W) Torque (N*m)
16.04 10% 0.08 5203 5 1 4.20 0.000
16.04 20% 0.29 10507 21 5 4.48 0.002
16.02 30% 0.67 15322 45 11 4.17 0.004
16.01 40% 1.20 19418 73 19 3.82 0.006
15.99 50% 2.00 23643 110 32 3.43 0.009
15.96 60% 3.16 28034 154 50 3.05 0.013
15.93 70% 4.52 32025 200 72 2.78 0.016
15.88 80% 6.18 35594 249 98 2.54 0.020
15.84 90% 8.06 39045 299 128 2.34 0.024
15.78 100% 10.25 42261 348 162 2.15 0.028

Type: Cine25 4S | Propeller: HQ T63-4 (With Oddity frame) | Operating Temperature: 75 (Ambient temperature: 25°C)

Voltage (V) Throttle (%) Current (A) RPM Thrust (g) Power (W) Efficiency (g/W) Torque (N*m)
16.04 10% 0.08 5137 6 1 4.55 0.000
16.04 20% 0.30 10363 23 5 4.67 0.002
16.02 30% 0.69 14907 47 11 4.24 0.004
16.01 40% 1.25 18940 75 20 3.76 0.007
15.99 50% 2.12 23113 113 34 3.33 0.010
15.96 60% 3.31 27363 155 53 2.94 0.013
15.92 70% 4.83 31326 205 77 2.66 0.018
15.88 80% 6.54 34738 251 104 2.42 0.021
15.82 90% 8.50 38065 298 135 2.22 0.025
15.76 100% 10.87 41022 351 171 2.05 0.029

Type: Cine25 4S | Propeller: GFD63-5 (With Oddity frame) | Operating Temperature: 83 (Ambient temperature: 25°C)

Voltage (V) Throttle (%) Current (A) RPM Thrust (g) Power (W) Efficiency (g/W) Torque (N*m)
16.04 10% 0.09 5122 6 1 4.04 0.001
16.03 20% 0.32 10262 23 5 4.40 0.002
16.02 30% 0.74 14567 47 12 3.97 0.005
16.00 40% 1.44 18600 81 23 3.53 0.008
15.98 50% 2.41 22433 118 39 3.07 0.012
15.94 60% 3.78 26273 164 60 2.73 0.016
15.90 70% 5.51 29885 213 88 2.43 0.020
15.85 80% 7.40 33175 261 117 2.23 0.024
15.79 90% 9.77 36300 313 154 2.03 0.029
15.72 100% 12.33 38930 361 194 1.86 0.033

What's Included

  • 4 x T-Motor Cine 25 4S Motor
  • Parts Bag*1 (as shown)

Applications

  • 2.5" Cinewhoop FPV drone builds and repairs
  • Aerial filming and photography (as stated)

Details

T-Motor black brushless drone motor with corrosion, sand, and dust resistant protection and multi-frame base design

The T-Motor brushless motor uses a protective design aimed at resisting sand, dust, and corrosion, with a multi-frame compatible base for easier installs.

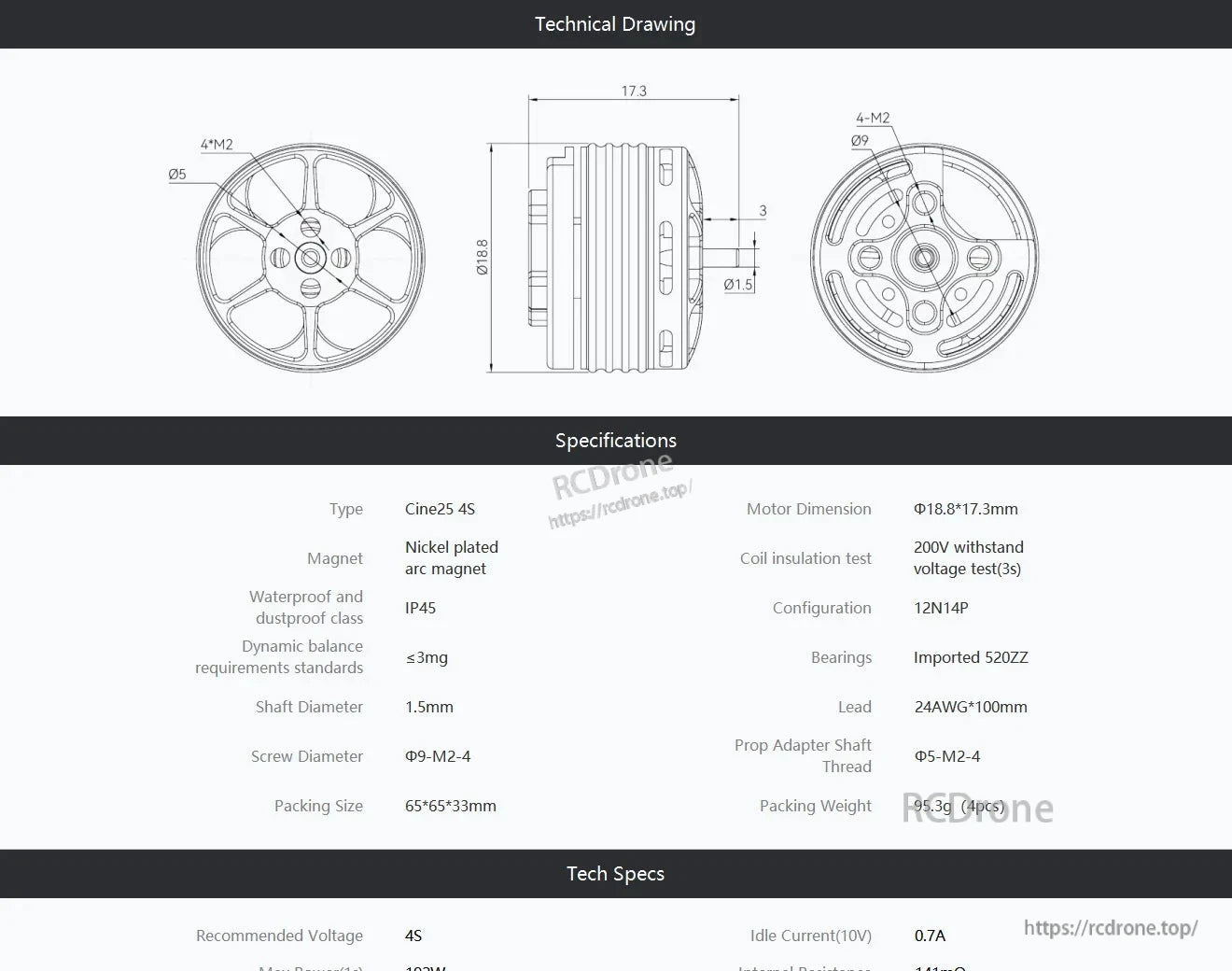

Technical drawing and key specs for T-Motor Cine25 4S motor, showing 18.8×17.3 mm size and 1.5 mm shaft

The Cine25 4S motor uses a compact 18.8×17.3 mm body with a 1.5 mm shaft and M2 mounting pattern for straightforward installation.

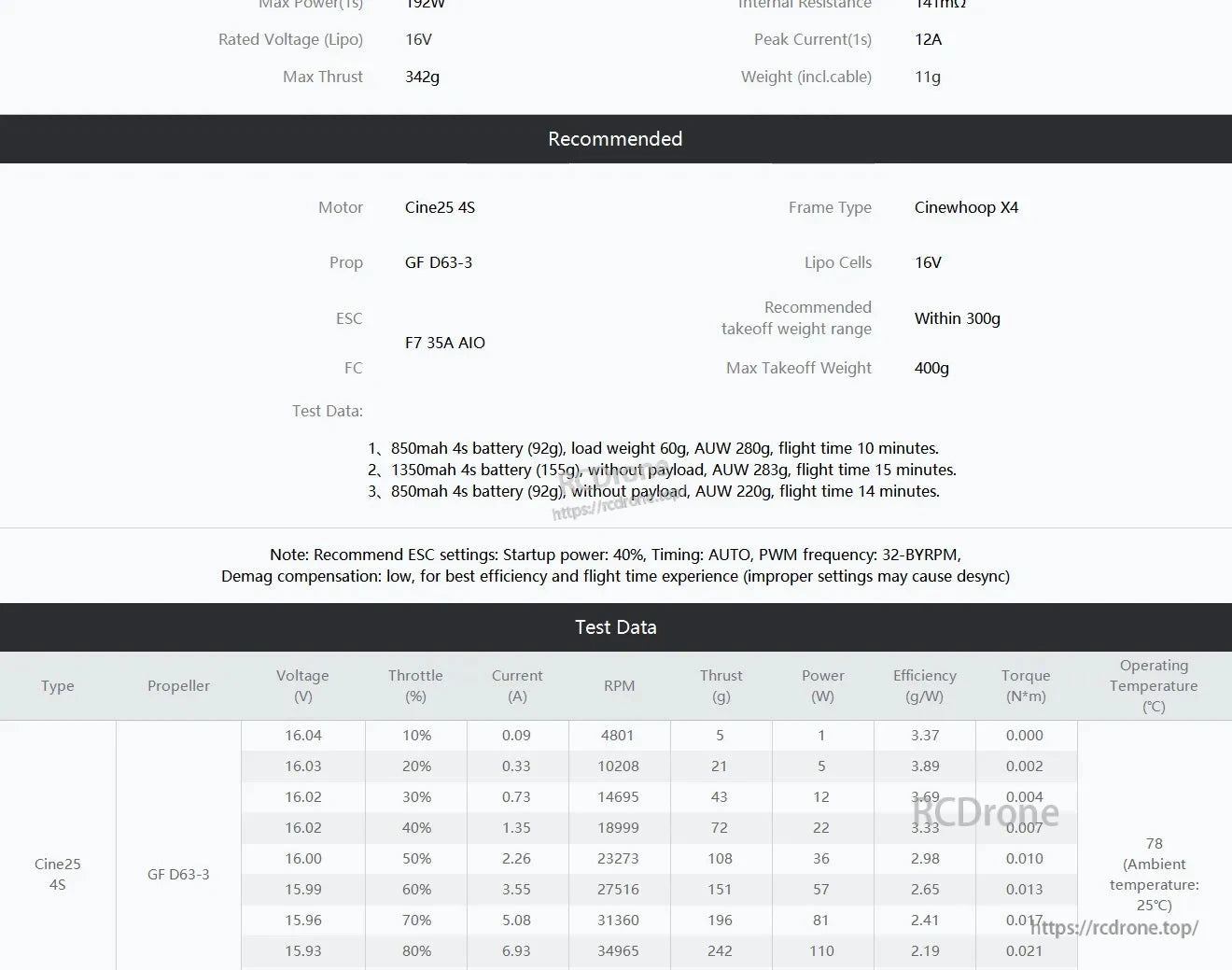

T-Motor Cine25 4S motor spec sheet with recommended setup and thrust/current test data table at 16V

Cine25 4S recommendations list a Cinewhoop X4 frame, GF D63-3 prop, F7 35A AIO ESC, and takeoff weight guidance up to 400g.

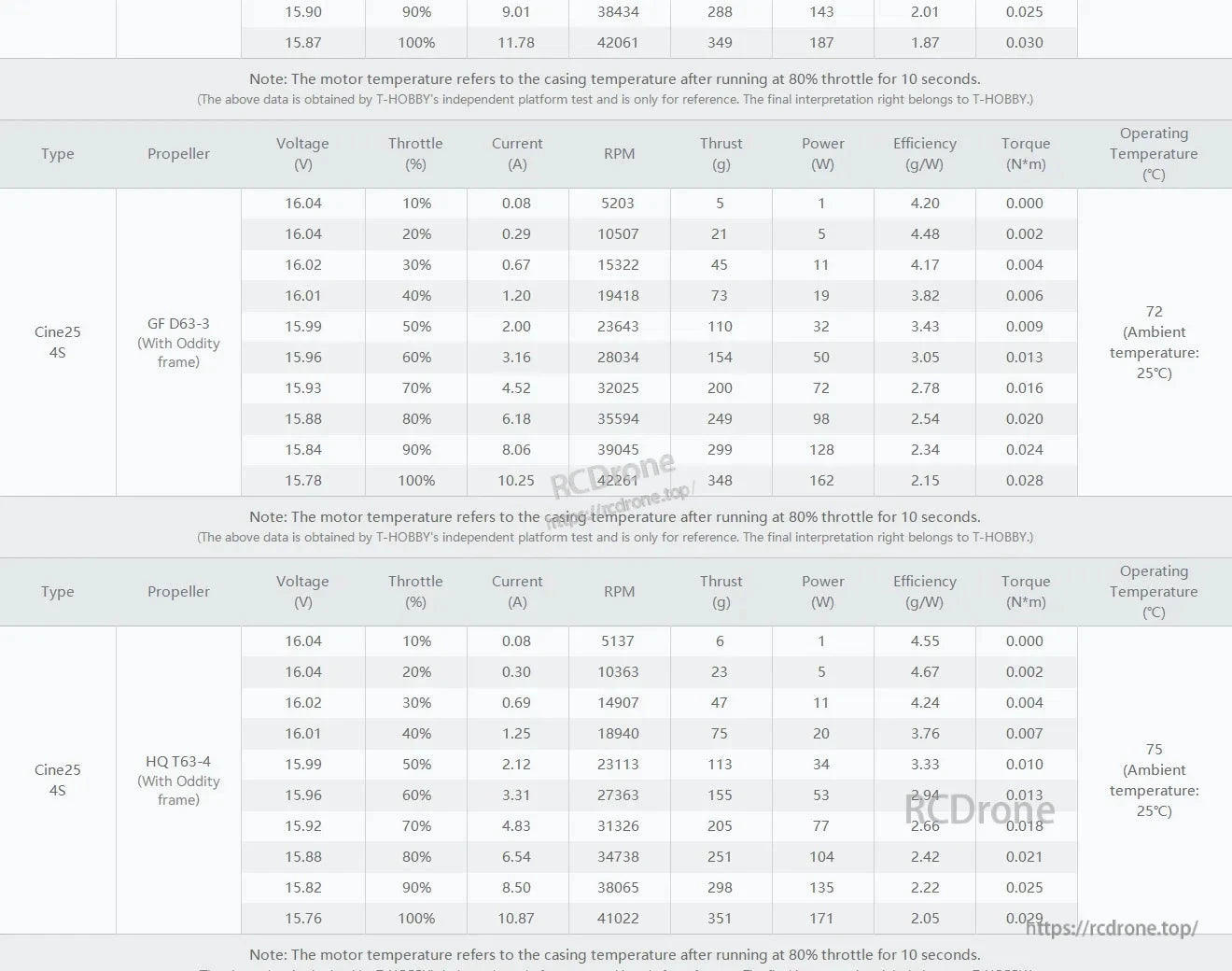

T-Motor Cine25 4S performance data table with GF D63-3 and HQ T63-4 props showing thrust, RPM and current

Cine25 4S test data lists voltage, throttle, current, RPM, thrust, power, efficiency, torque, and operating temperature across common prop options.

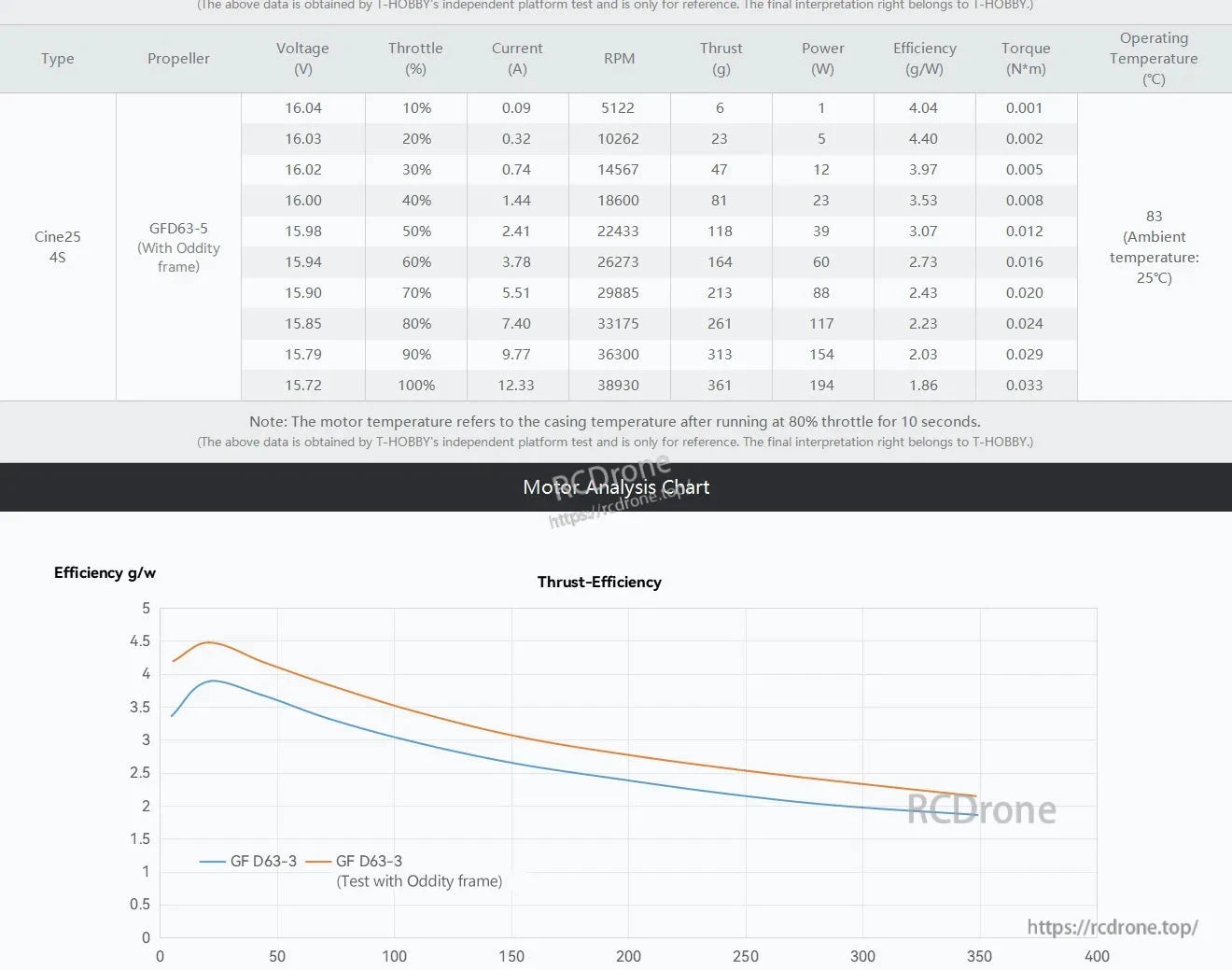

T-Motor, Motor analysis chart for Cine25 4S with GFD63-5 propeller, listing thrust, RPM, current, power and efficiency

Performance data for Cine25 4S with a GFD63-5 propeller includes thrust, RPM, current draw, power, and efficiency across throttle settings.

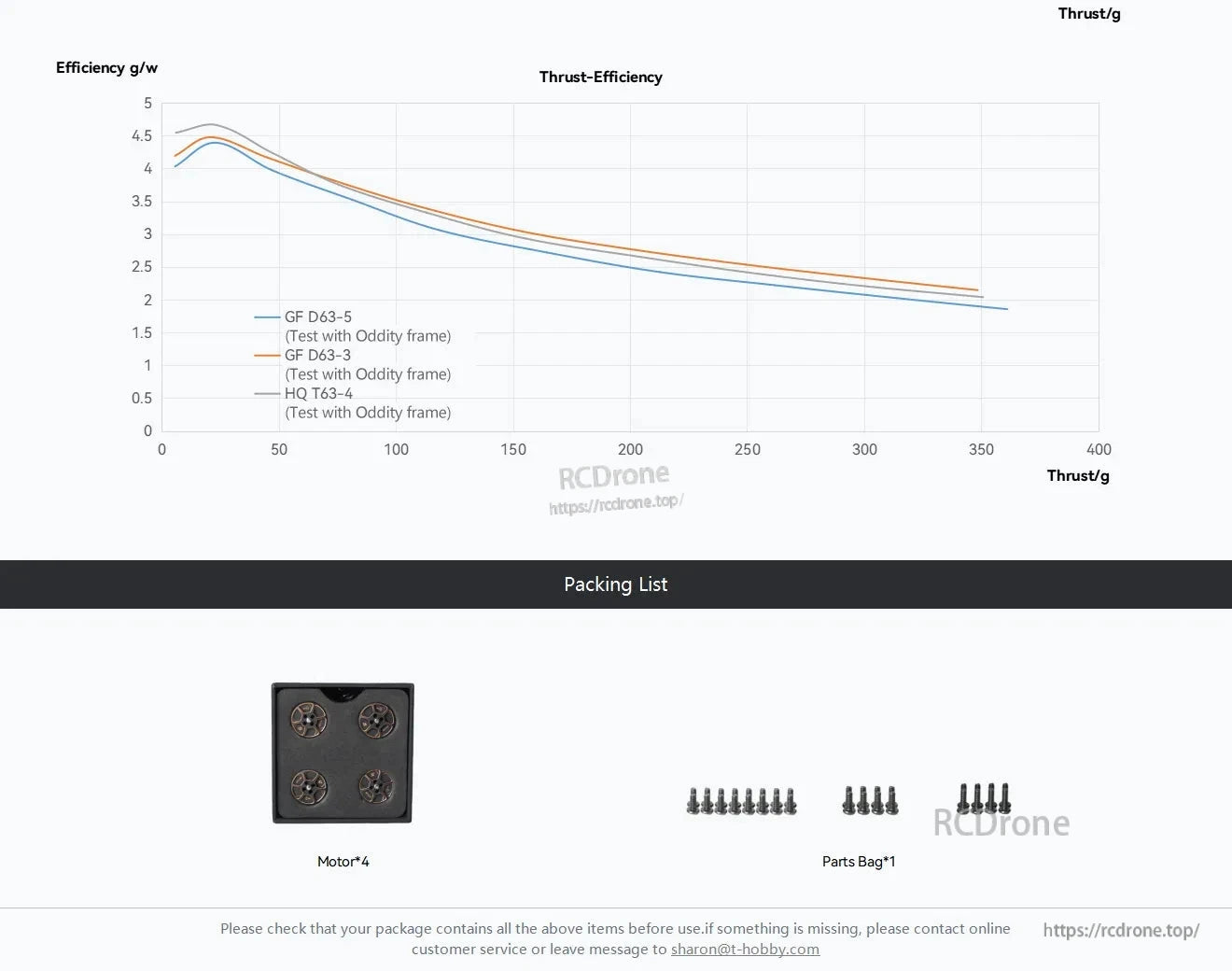

Thrust-efficiency graph and packing list showing 4 motors and a parts bag of mounting screws for a T-Motor kit.

The packing list includes four motors and a parts bag of mounting screws for assembly.
