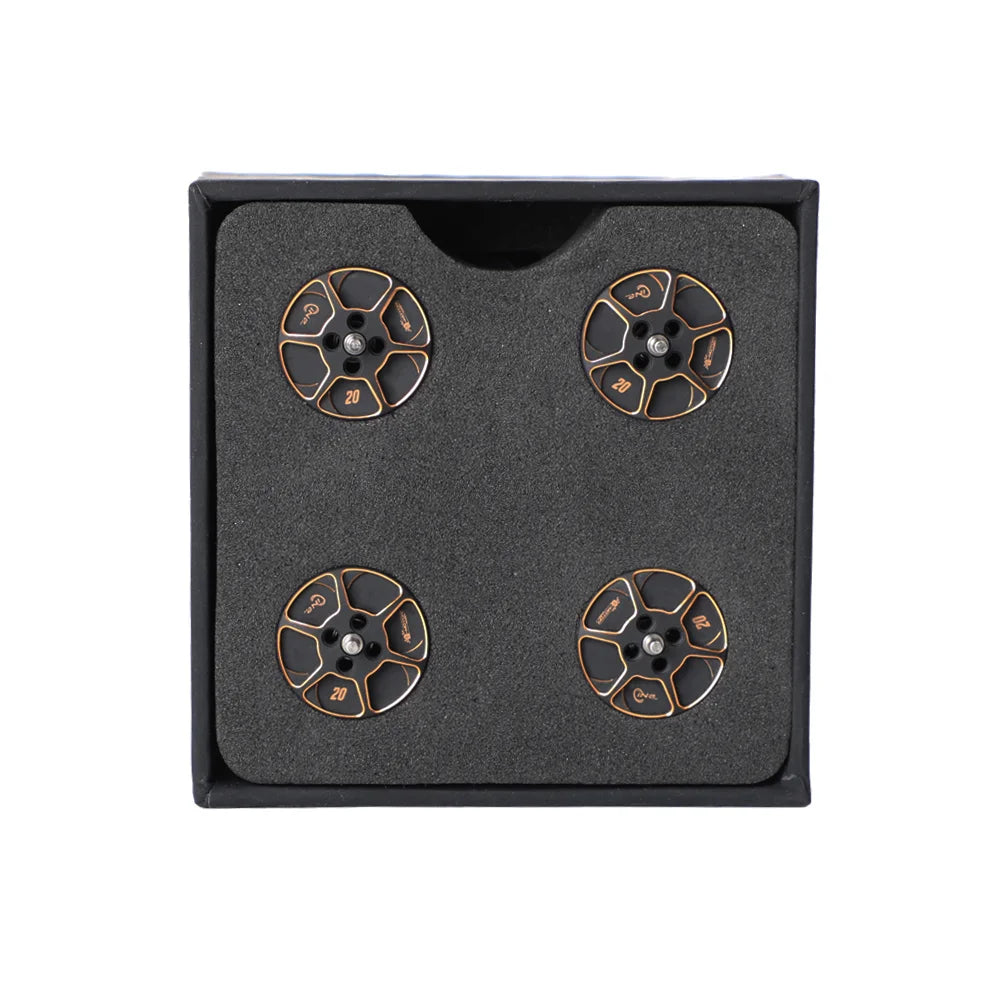

• Set of four black and gold T-Motor round aluminum hubs in foam packaging, each marked “20”.

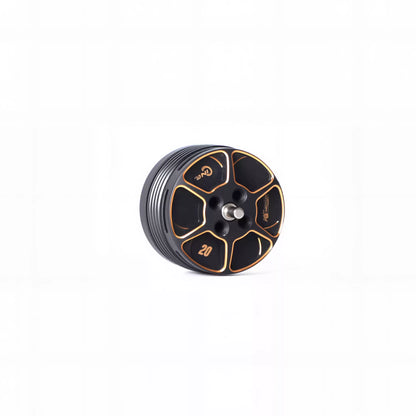

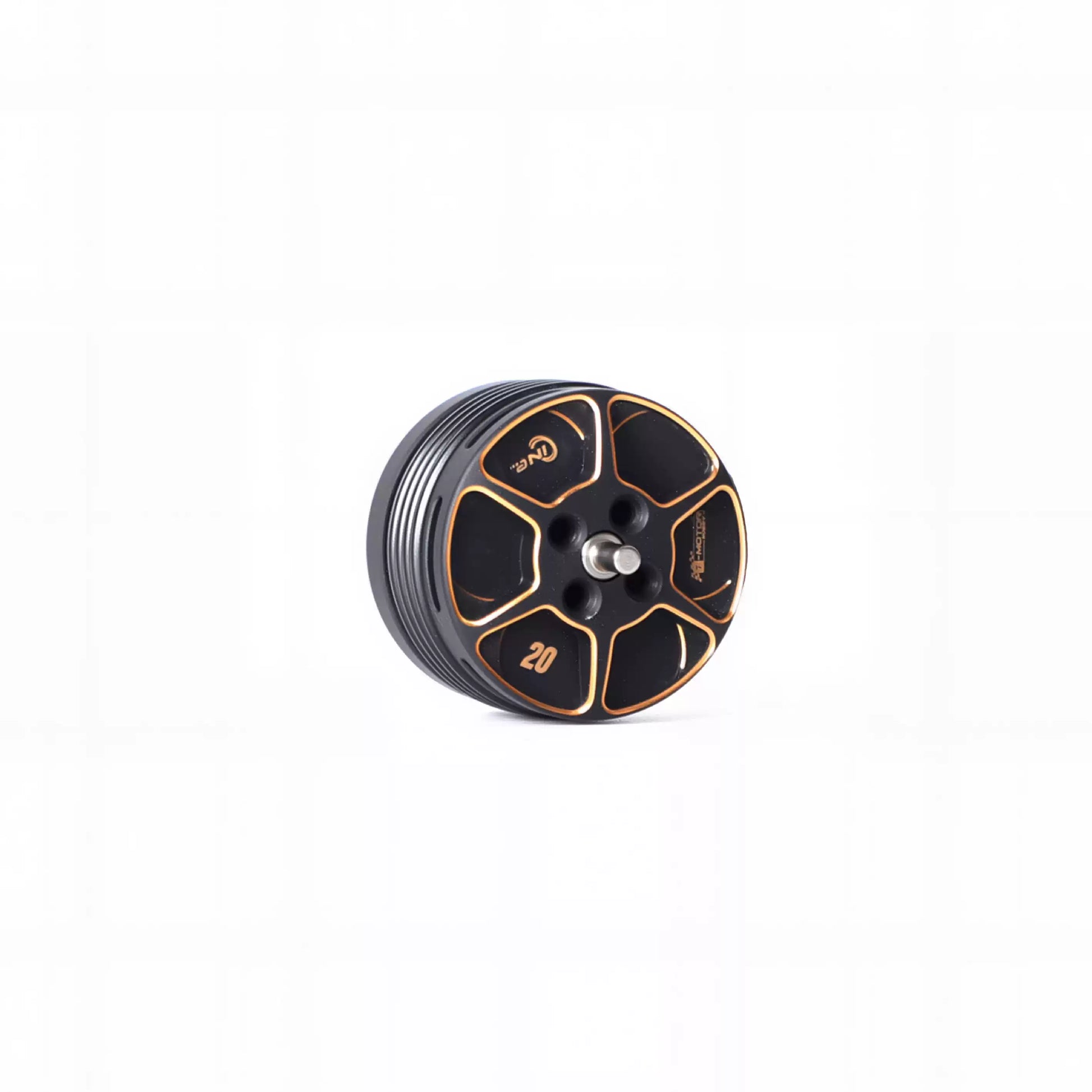

  • T-Motor brushless drone motor with black-and-orange bell, center shaft and four mounting holes

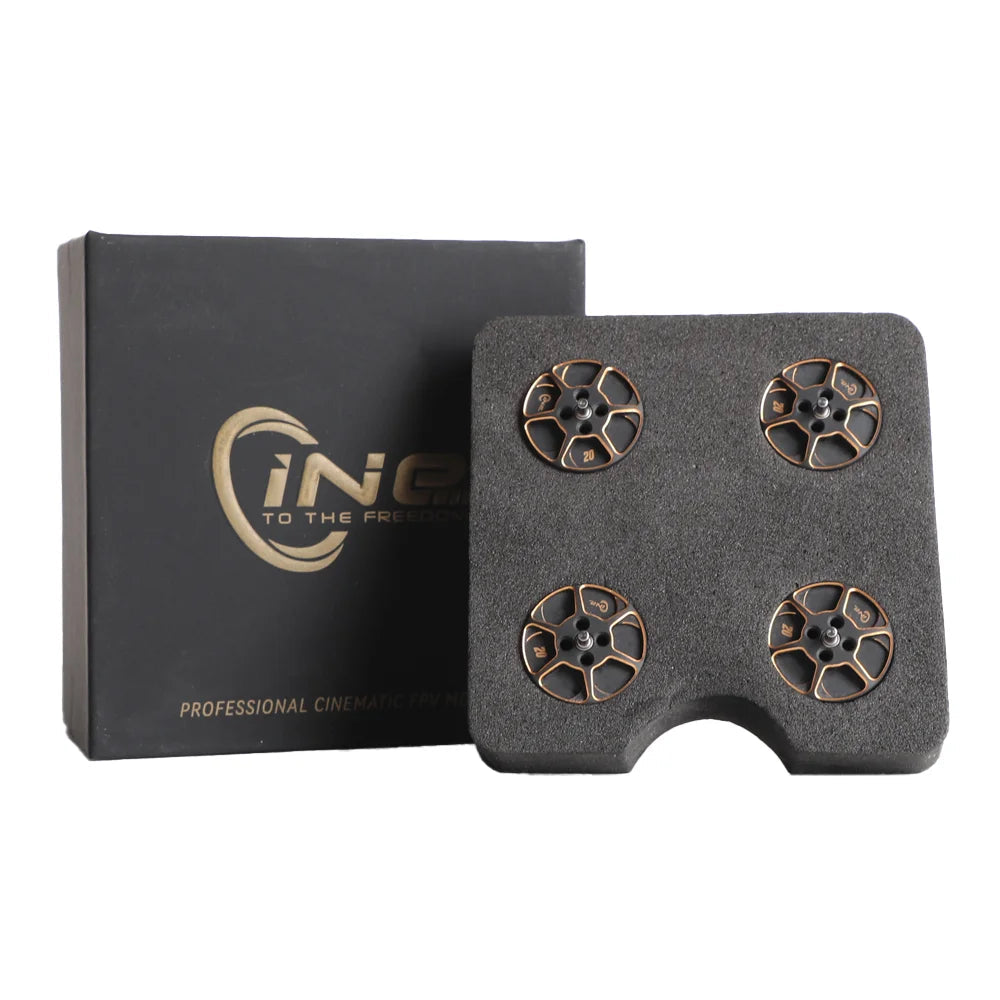

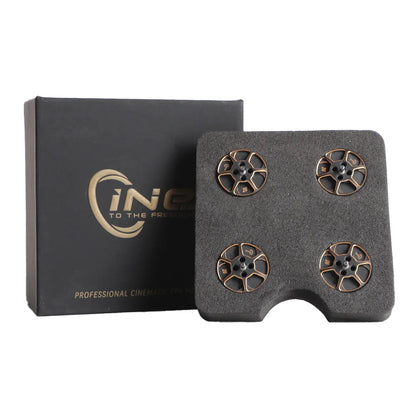

  • Four black and gold T-Motor components in a foam tray next to a branded box

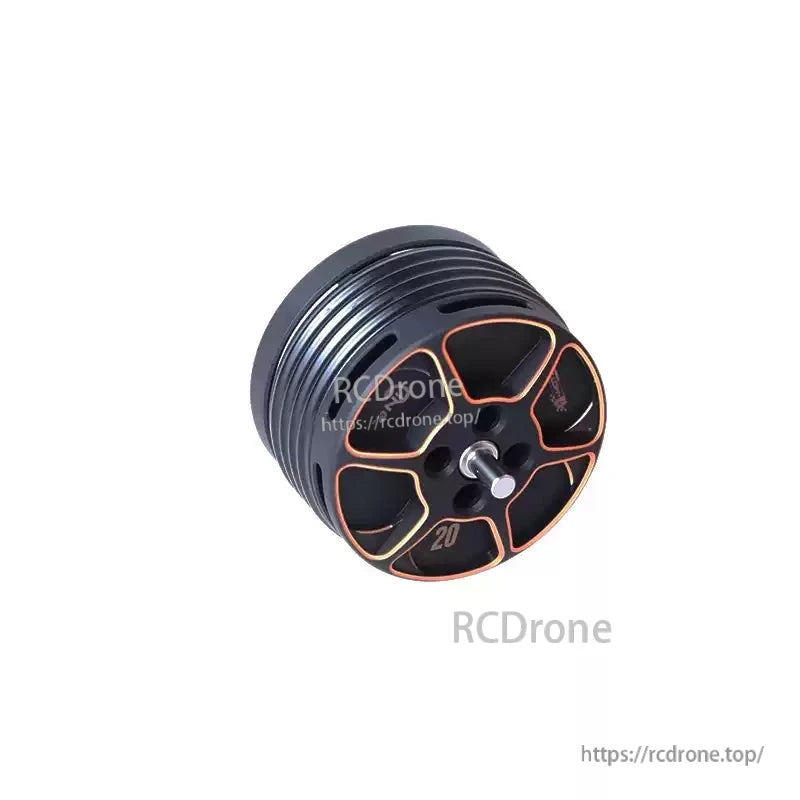

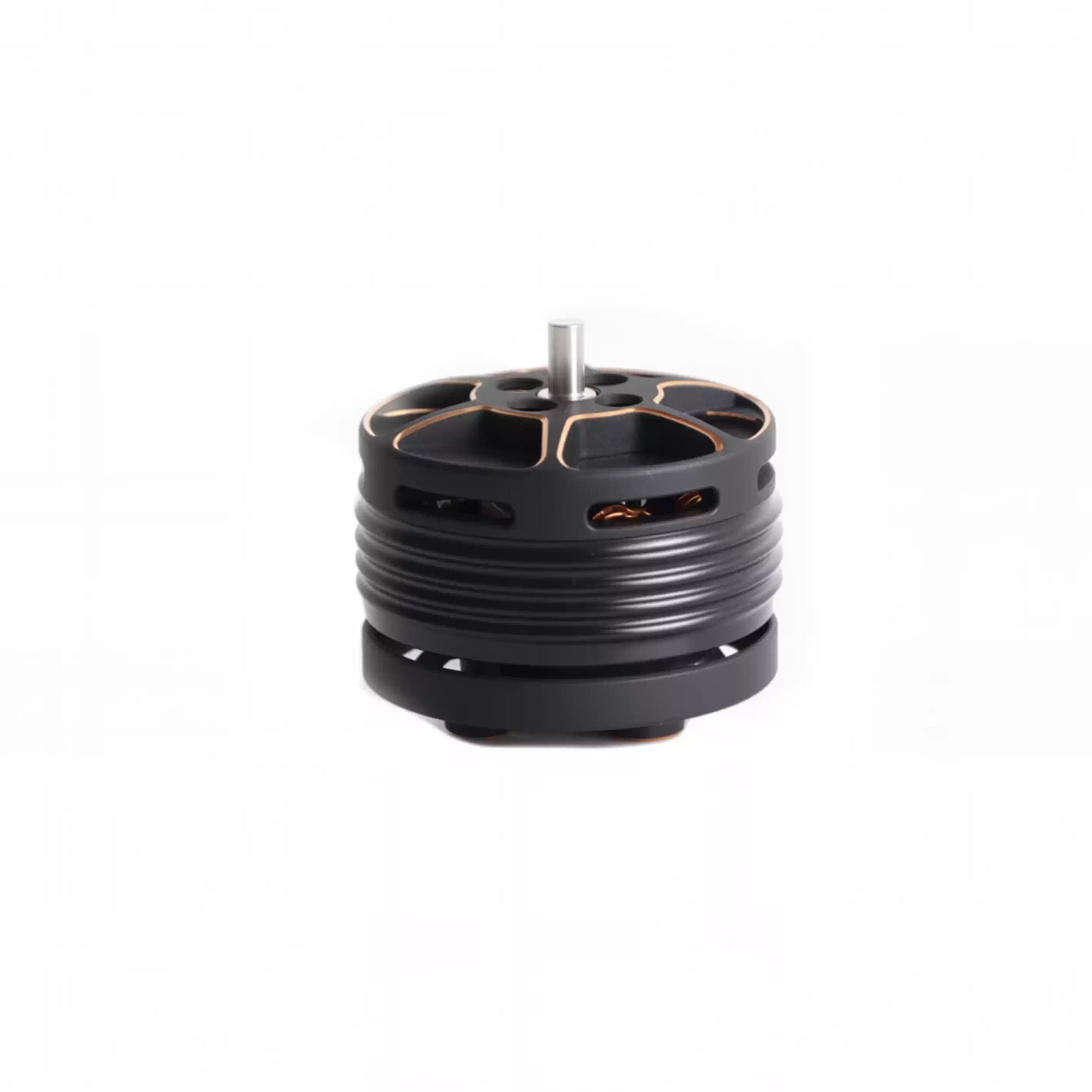

  • T-Motor black brushless drone motor with exposed steel shaft and vented bell housing

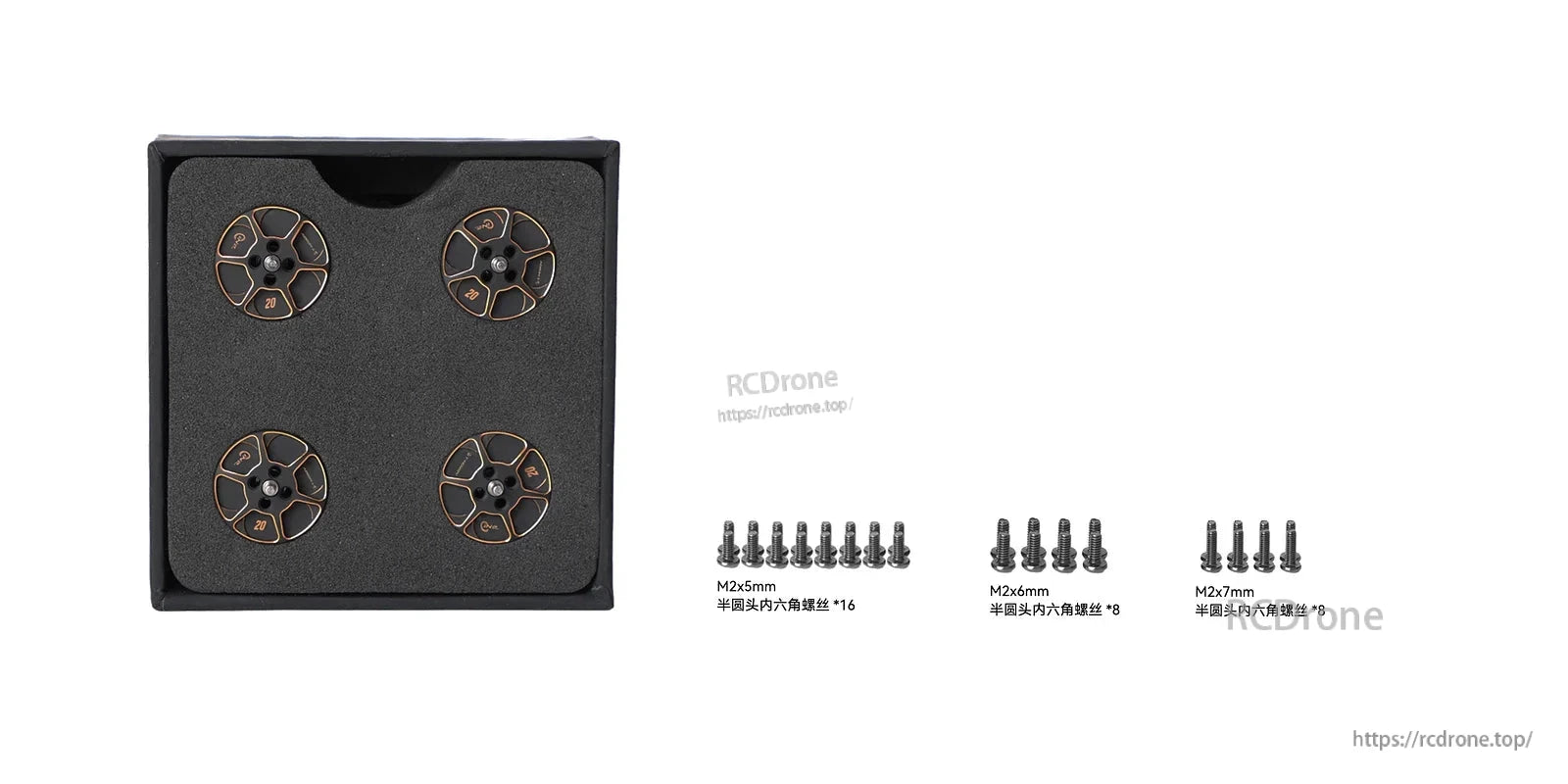

  • Four T-Motor drone motors in foam box with included M2 mounting screws in 5mm, 6mm, and 7mm lengths

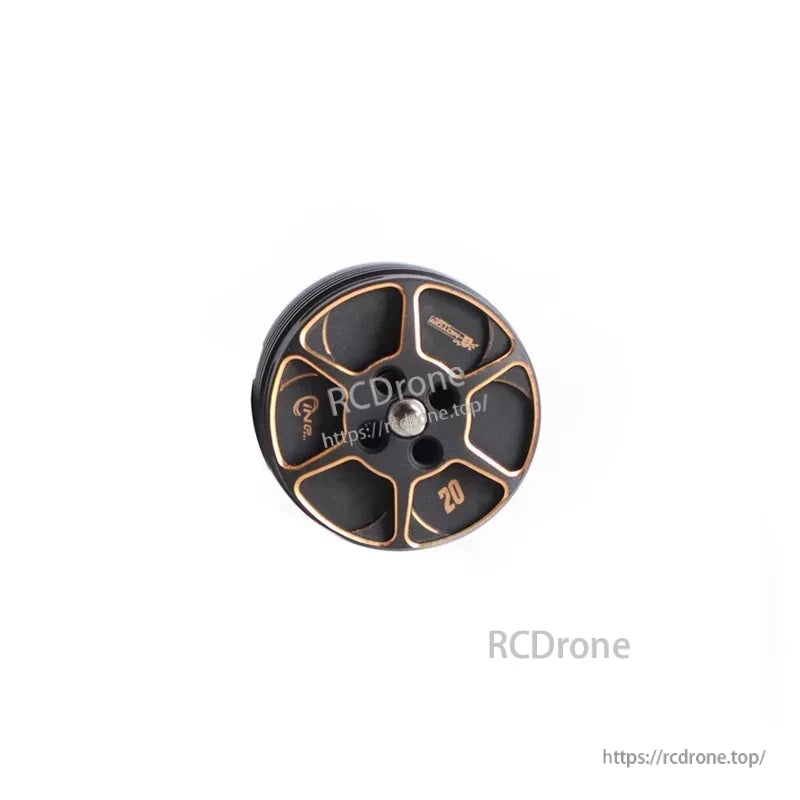

  • Top view of a T-Motor brushless drone motor with black vented bell and orange accent cutouts

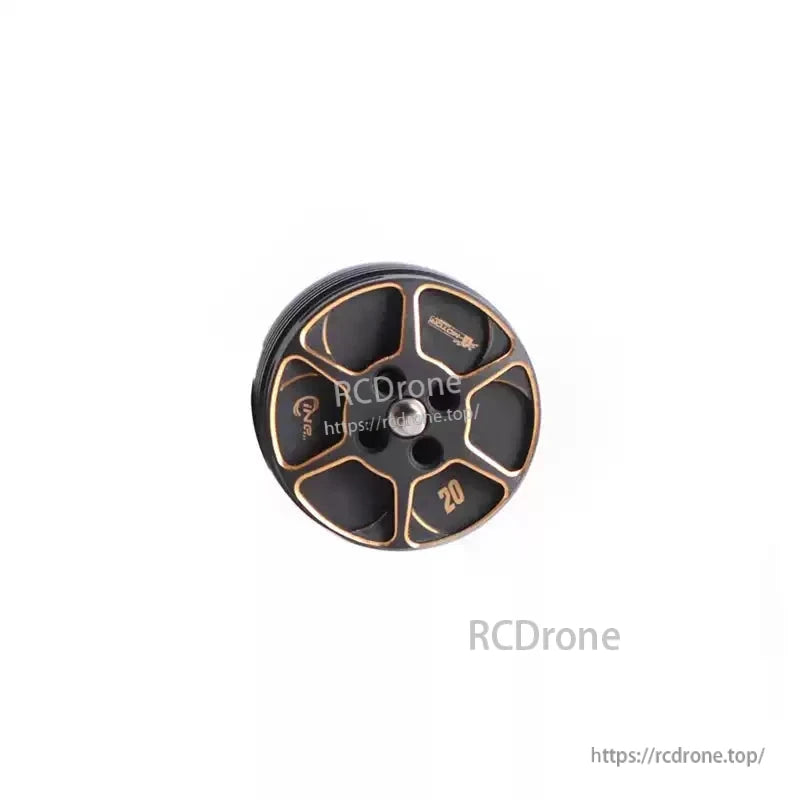

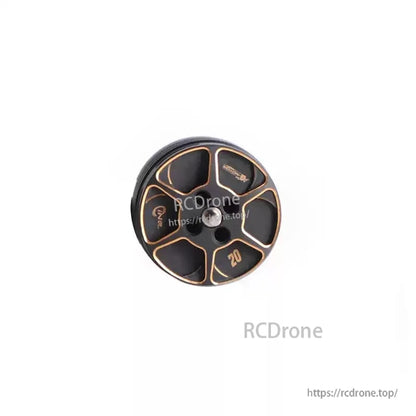

  • Top view of a black T-Motor drone motor bell with gold accents and five-spoke cutout design
1 8

T-Motor Cine20 4S Motor Set (4PCS) for 2 Inch Cinewhoop FPV Drone Motor Set, IP45, 270g Thrust

T-Motor Cine20 4S Motor Set (4PCS) for 2 Inch Cinewhoop FPV Drone Motor Set, IP45, 270g Thrust

T-MOTOR

$139.00 USD
$139.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Options
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

This motor set is the T-Motor Cine20 4S Motor Set for 2'' Cinewhoop FPV drones. It features an integrated protective design intended to reduce sand, gravel, and dust entering the motor during filming and takeoff/landing operations, and the iron core uses an electrophoretic coating treatment with a stated 72-hour salt spray test certification.

Key Features

  • Integrated protective design; labeled corrosion resistant, sand resistant, dust resistant, and all-environment reliability
  • Waterproof and dustproof class: IP45
  • Nickel plated arc magnet
  • Coil insulation test: 200V withstand voltage test (3s)
  • Non-protruding shaft screw configuration for compatibility with various frame types (as stated)
  • Bearings: Imported 520ZZ

Specifications

Type Cine20 4S
Motor dimension Dia 17.8*16.6mm
Magnet Nickel plated arc magnet
Waterproof and dustproof class IP45
Dynamic balance requirements standards <= 3mg
Configuration 9N12P
Bearings Imported 520ZZ
Shaft diameter 1.5mm
Screw diameter Dia 9-M2-4
Prop adapter shaft thread Dia 5-M2-4
Lead 24AWG*100mm
Coil insulation test 200V withstand voltage test (3s)
Recommended voltage 4S
Rated voltage (Lipo) 16V
Idle current (10V) 0.7A
Internal resistance 94mOhm
Peak current (1s) 12A
Max power (1s) 192W
Max thrust 270g
Weight (incl. cable) 10g
Packing size 65*65*33mm
Packing weight 91.3g (4pcs)

Recommended Setup (Reference)

Motor Cine20 4S
Prop HQ T51-4
ESC F7 35A AIO
Frame type Cinewhoop X4
Lipo cells 16V
Recommended takeoff weight range Within 260g
Max takeoff weight 360g

Note (ESC settings, reference): Recommend BL32 ESC settings: Startup power: 40%, Timing: AUTO, PWM frequency: 32-BYRPM, Demag compensation: low (improper settings may cause desync).

Test Data (Reference)

Flight time test data (reference):

  1. 650mah 4s battery (76g), load weight 40g, AUW 240g, flight time 6 minutes.
  2. 650mah 4s battery (76g), without payload, AUW 200g, flight time 8 minutes.
  3. 850mah 4s battery (92g), without payload, AUW 216g, flight time 9 minutes.

Temperature note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. The above data is obtained by T-HOBBY's independent platform test and is only for reference.

Thrust Table: Cine20 4S + HQ T51-4

Voltage (V) Throttle (%) Current (A) RPM Thrust (g) Power (W) Efficiency (g/W) Torque (N*m) Operating Temperature (°C)
16.03 10% 0.11 7760 3.81 1.84 2.09 0.000 68 (Ambient temperature: 25°C)
16.03 20% 0.40 15323 16.36 6.43 2.54 0.001 68 (Ambient temperature: 25°C)
16.02 30% 0.88 22433 36.03 14.12 2.55 0.003 68 (Ambient temperature: 25°C)
16.02 40% 1.53 28611 59.18 24.48 2.42 0.004 68 (Ambient temperature: 25°C)
16.00 50% 2.42 34724 86.99 38.66 2.25 0.006 68 (Ambient temperature: 25°C)
15.99 60% 3.58 40558 119.71 57.24 2.09 0.009 68 (Ambient temperature: 25°C)
15.96 70% 4.98 46011 153.31 79.54 1.93 0.011 68 (Ambient temperature: 25°C)
15.94 80% 6.78 51632 192.38 108.03 1.78 0.014 68 (Ambient temperature: 25°C)
15.91 90% 8.79 56694 231.42 139.84 1.65 0.016 68 (Ambient temperature: 25°C)
15.87 100% 11.32 59523 275.10 179.61 1.53 0.019 68 (Ambient temperature: 25°C)

Thrust Table: Cine20 4S + HQ T51-4 (With Oddity frame)

Voltage (V) Throttle (%) Current (A) RPM Thrust (g) Power (W) Efficiency (g/W) Torque (N*m) Operating Temperature (°C)
16.05 10% 0.10 7673 3.20 1.61 1.99 0.000 63 (Ambient temperature: 25°C)
16.04 20% 0.35 15178 15.40 5.68 2.71 0.001 63 (Ambient temperature: 25°C)
16.03 30% 0.78 22163 34.44 12.51 2.75 0.003 63 (Ambient temperature: 25°C)
16.02 40% 1.38 28432 57.53 22.08 2.61 0.004 63 (Ambient temperature: 25°C)
15.99 50% 2.17 34420 85.47 34.63 2.47 0.006 63 (Ambient temperature: 25°C)
15.96 60% 3.16 40115 115.76 50.43 2.30 0.008 63 (Ambient temperature: 25°C)
15.93 70% 4.40 45524 149.90 70.14 2.14 0.010 63 (Ambient temperature: 25°C)
15.90 80% 5.97 51065 186.96 94.89 1.97 0.012 63 (Ambient temperature: 25°C)
15.85 90% 7.69 55940 223.25 121.86 1.83 0.015 63 (Ambient temperature: 25°C)
15.80 100% 9.73 59523 260.11 153.69 1.69 0.017 63 (Ambient temperature: 25°C)

Thrust Table: Cine20 4S + GF 51-5 (With Oddity frame)

Voltage (V) Throttle (%) Current (A) RPM Thrust (g) Power (W) Efficiency (g/W) Torque (N*m) Operating Temperature (°C)
16.05 10% 0.11 7681 2.99 1.70 1.76 0.000 75 (Ambient temperature: 25°C)
16.03 20% 0.39 15050 16.28 6.29 2.59 0.002 75 (Ambient temperature: 25°C)
16.02 30% 0.90 21780 38.71 14.46 2.68 0.003 75 (Ambient temperature: 25°C)
16.00 40% 1.59 27525 63.95 25.51 2.51 0.005 75 (Ambient temperature: 25°C)
15.98 50% 2.56 33113 94.28 40.94 2.30 0.008 75 (Ambient temperature: 25°C)
15.95 60% 3.84 38560 129.84 61.26 2.12 0.010 75 (Ambient temperature: 25°C)
15.91 70% 5.41 43398 167.64 85.97 1.95 0.013 75 (Ambient temperature: 25°C)
15.86 80% 7.29 48170 207.49 115.62 1.79 0.016 75 (Ambient temperature: 25°C)
15.80 90% 9.53 52389 248.80 150.52 1.65 0.019 75 (Ambient temperature: 25°C)
15.74 100% 12.03 56102 285.79 189.24 1.51 0.021 75 (Ambient temperature: 25°C)

Applications

  • 2'' Cinewhoop FPV drone builds and replacements
  • Filming and takeoff/landing operations in dusty environments (as stated)
  • Confined-space flying; stated payload up to 60g (like naked GOPRO)

Flight-time note (as stated): One image states a single-flight duration of 3-6 minutes; separate test data above shows 6-9 minutes in specific configurations. Actual results vary by build, propeller, battery, and flying style.

What's Included

  • Motor*4 (T-Motor Cine20 4S)
  • Parts Bag*1

For order support and after-sales service, contact support@rcdrone.top or visit https://rcdrone.top/.

Details

T-Motor brushless drone motor with vented housing and non-protruding base screw layout for protected use

The T-Motor’s sealed, vented housing and non-protruding base screw design help support use in dusty or sandy environments and a wider range of frames.

T-Motor Cine20 4S motor technical drawing with 17.8×16.6 mm size, 1.5 mm shaft, and M2 mounting

T-Motor Cine20 4S motor specs list a 17.8×16.6 mm body, 1.5 mm shaft, IP45 rating, and 24AWG 100 mm leads.

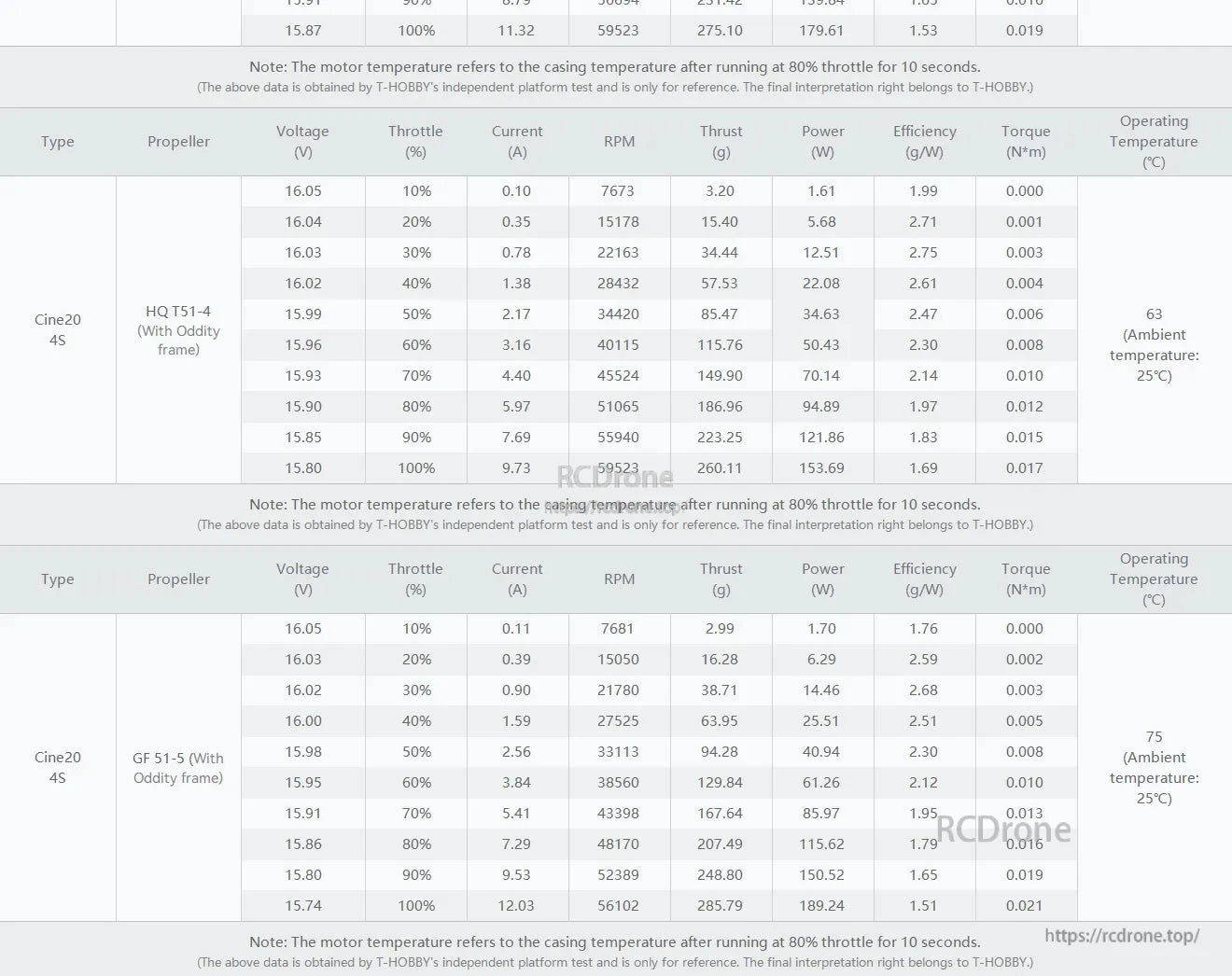

T-Motor, Performance test table for Cine20 4S motor with HQ T51-4 and GF 51-5 props, showing thrust, RPM, and current.

Test data lists Cine20 4S motor performance with HQ T51-4 and GF 51-5 props, including voltage, RPM, thrust, power, and operating temperature across throttle settings.

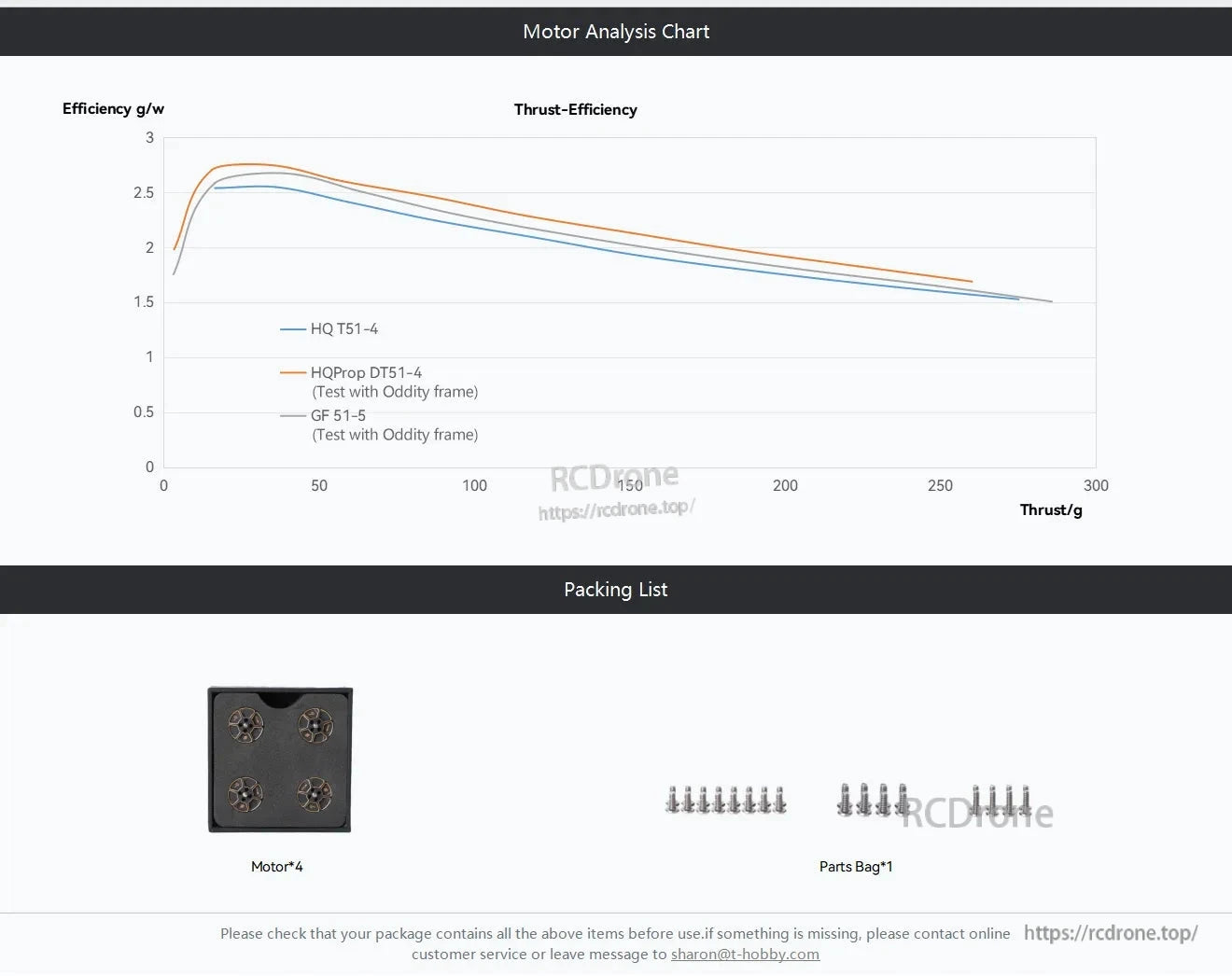

Motor analysis chart and packing list showing four T-Motor drone motors and included screws in parts bag

The set includes four motors and a parts bag with mounting screws for installation.
