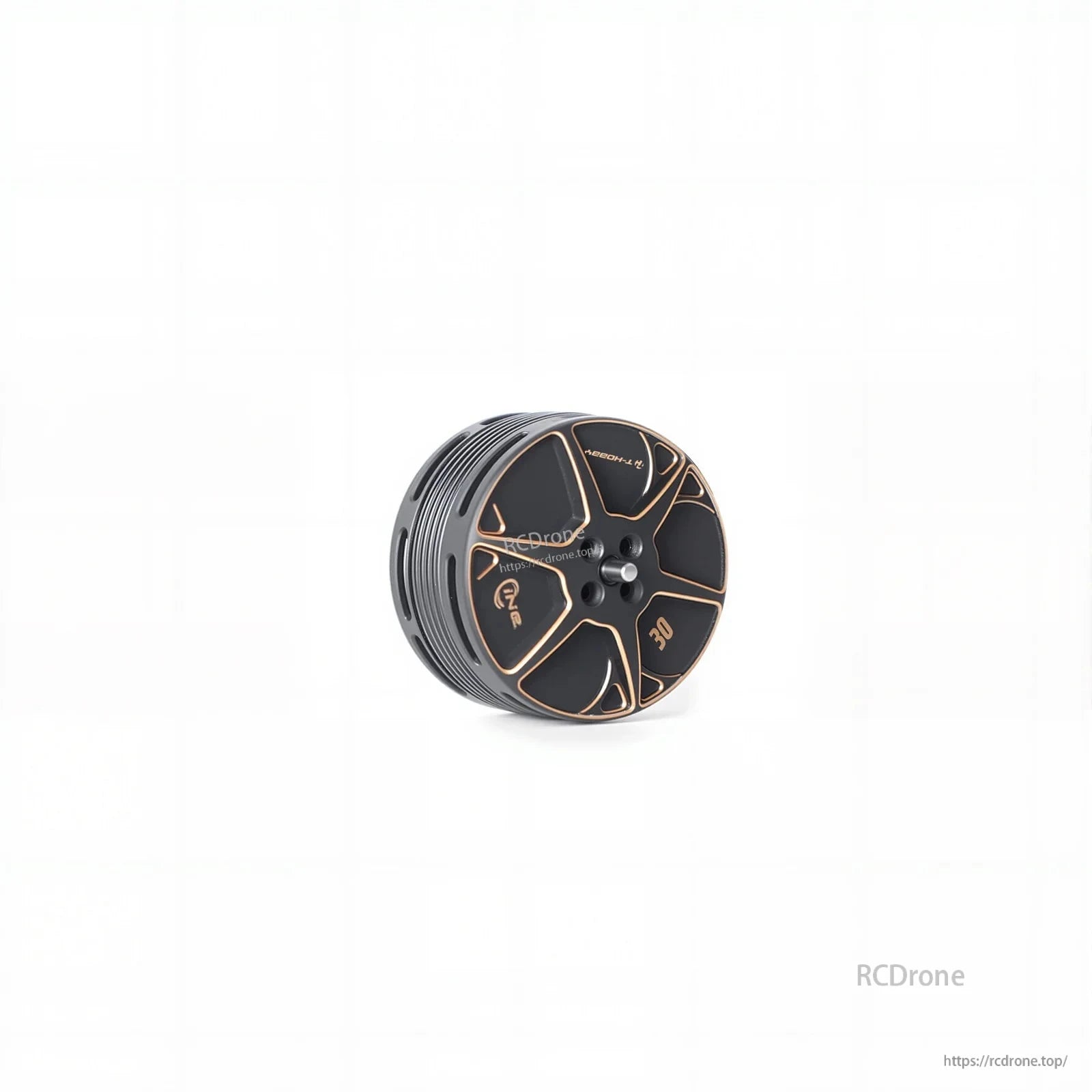

T-Motor Cine30 6S FPV Drone Motor for 3'' Cinewhoop (IP45, 12N14P, 715g Max Thrust, 4pcs)

Overview

The T-Motor Cine30 6S is an FPV drone motor designed for 3'' cinewhoop drone builds. It features an integrated protective design to help prevent sand, gravel, and dust from entering the motor during filming and take off/landing operations, and the iron core uses an electrophoretic coating treatment with 72-hour salt spray test certification.

Key Features

• Comprehensive protection design for secure flight: corrosion resistant, sand resistant, dust resistant, all-environment reliability
• Optimized electromagnetic design and heat dissipation for improved initial response and sustained power
• Multi-frame compatible base design with non-protruding shaft screw configuration
• Waterproof and dustproof class: IP45

For product support and order assistance, contact support@rcdrone.top or visit https://rcdrone.top/.

Specifications

Recommended Setup (as shown)

Test Data Notes (as shown)

• 1350mah 6s battery (216g), load weight 120g, AUW 570g, flight time 10 minutes.
• 1350mah 6s battery (216g), without payload, AUW 450g, flight time 13 minutes.
• 3000mah 6s battery (330g), without payload, AUW 564g, flight time 20 minutes.

Note: Recommend BL32 ESC settings: Startup power: 40%, Timing: 30, PWM frequency: 32K, for best efficiency and flight time experience (improper settings may cause desync).

Test Data Table: Cine30 6S + T-HOBBY T76S-3

Operating temperature: 136°C (Ambient temperature: 25°C)

Test Data Table: Cine30 6S + T-HOBBY T76S-3 (Test with Oddity frame)

Operating temperature: 128°C (Ambient temperature: 25°C)

Test Data Table: Cine30 6S + HQ DT76-3

Operating temperature: 115°C (Ambient temperature: 25°C)

Test Data Table: Cine30 6S + HQ DT76-3 (Test with Oddity frame)

Operating temperature: 111°C (Ambient temperature: 25°C)

Test Data Table: Cine30 6S + GF D75-3

Operating temperature: 104°C (Ambient temperature: 25°C)

Test Data Table: Cine30 6S + GF D75-3 (Test with Oddity frame)

Operating temperature: 96°C (Ambient temperature: 25°C)

Motor Analysis Chart (as shown)

• Thrust-Efficiency: Cine30 6S GF D75-3; Cine30 6S GF D75-3 (Test with Oddity frame)
• Thrust-Efficiency (Oddity frame comparison): Cine30 6S HQ DT76-3 (Test with Oddity frame); Cine30 6S T-HOBBY T76S-3 (Test with Oddity frame); Cine30 6S GF D75-3 (Test with Oddity frame)

What’s Included

• 4 x T-Motor Cine 30 6S Motor
• Parts Bag*1

Applications

• 3'' cinewhoop FPV drone builds
• 6S FPV setups where IP45 dust/water resistance and compact motor dimensions are required

Details

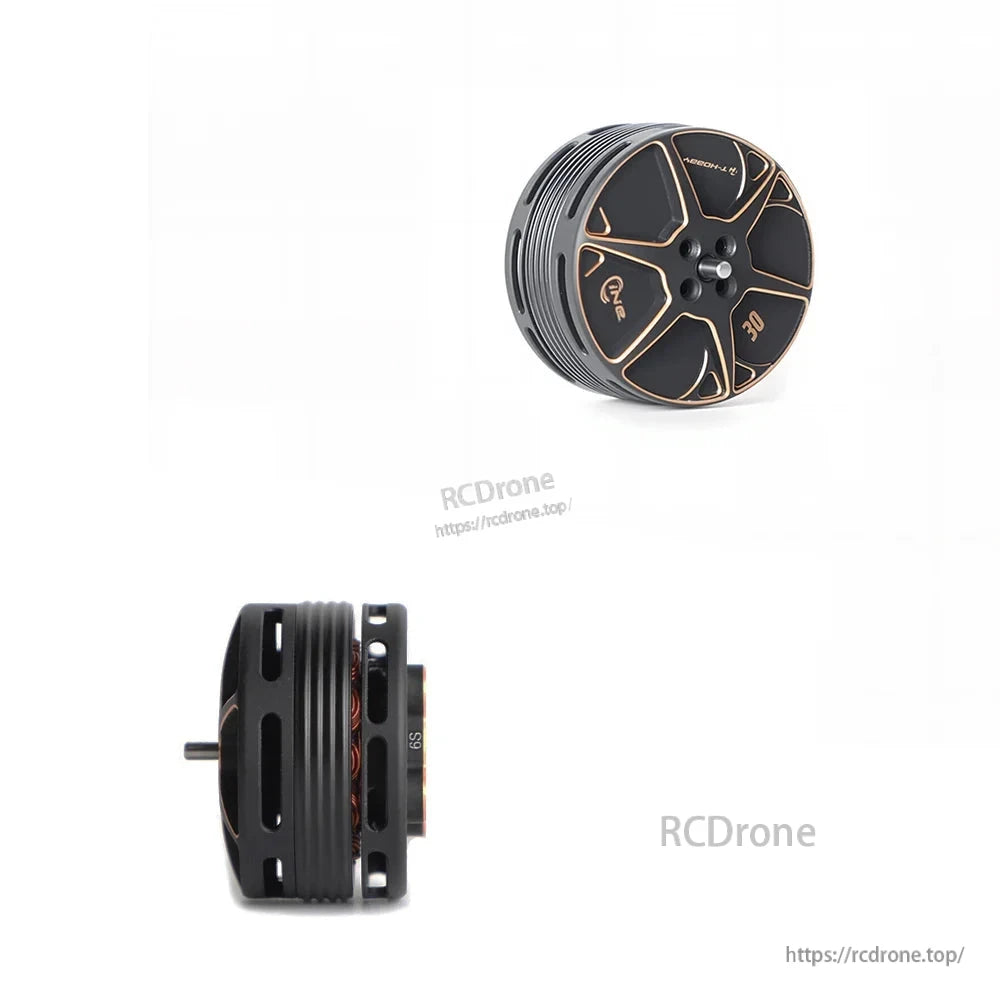

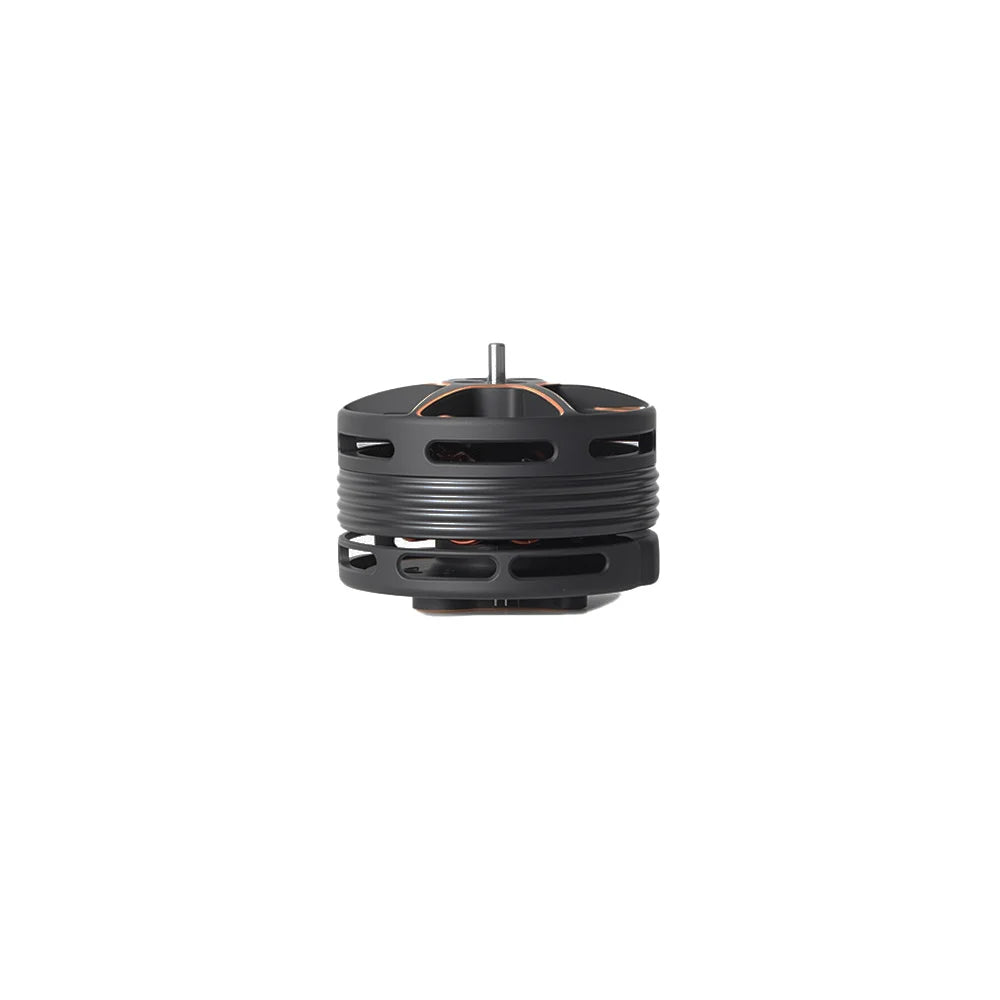

The protective motor design is built for dusty, sandy, and moisture-prone environments while keeping a compact mounting base for easy frame compatibility.

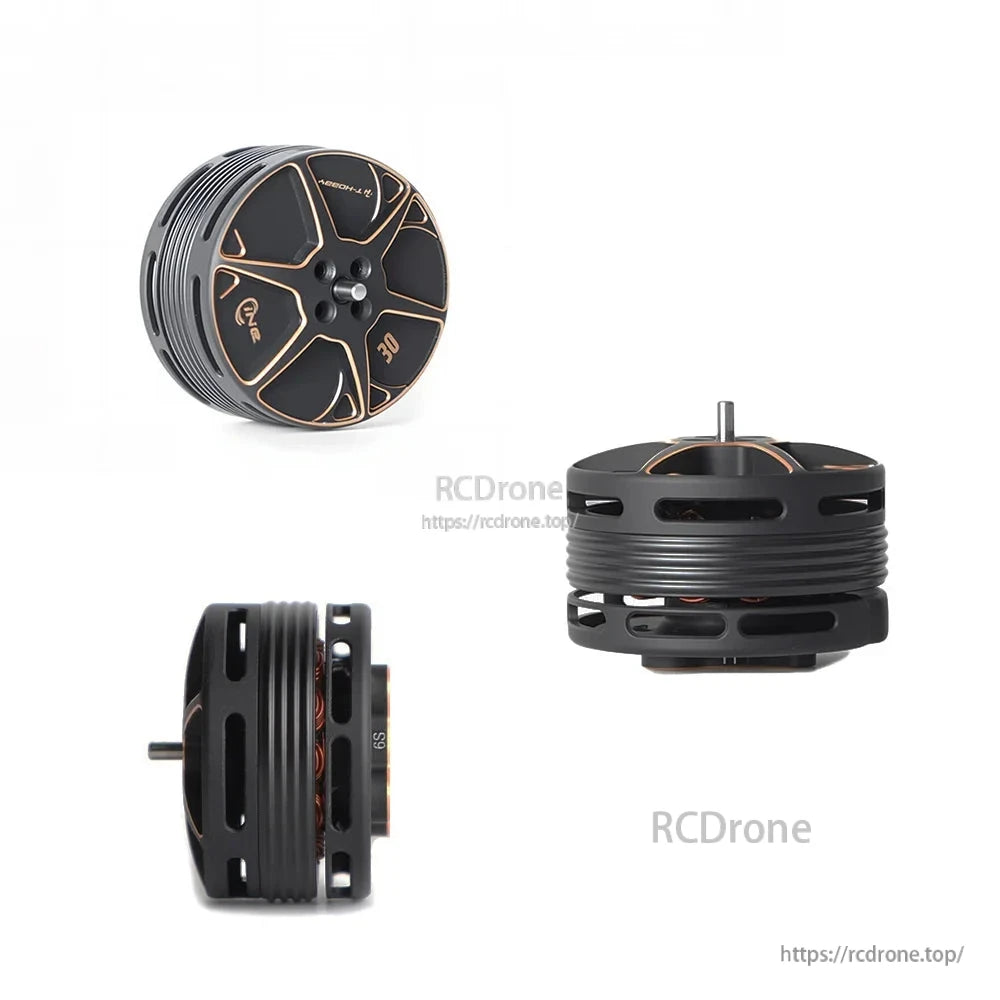

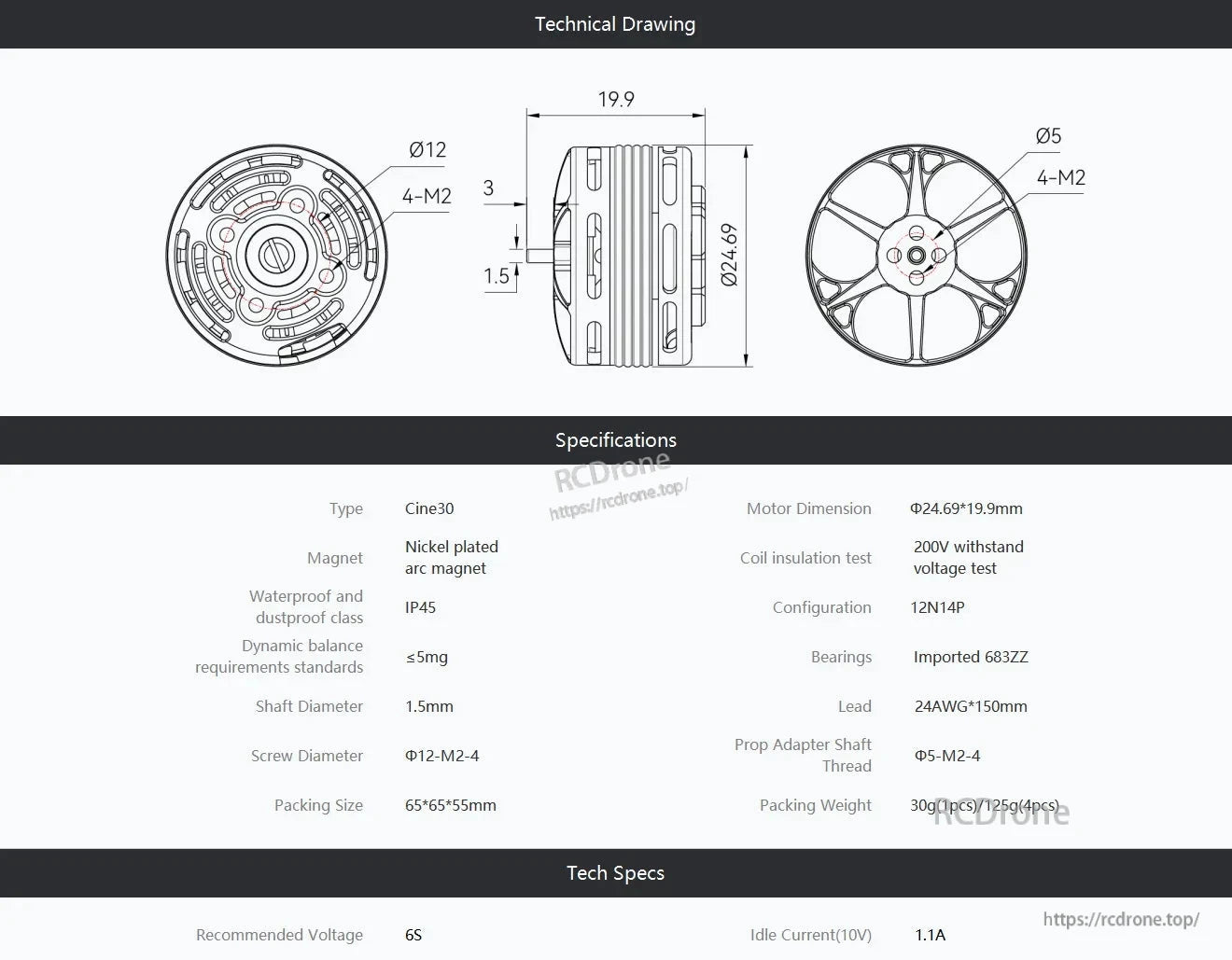

The Cine30 motor lists a Ø24.69×19.9mm body, 1.5mm shaft, M2 mounting holes, and a 6S recommended voltage.

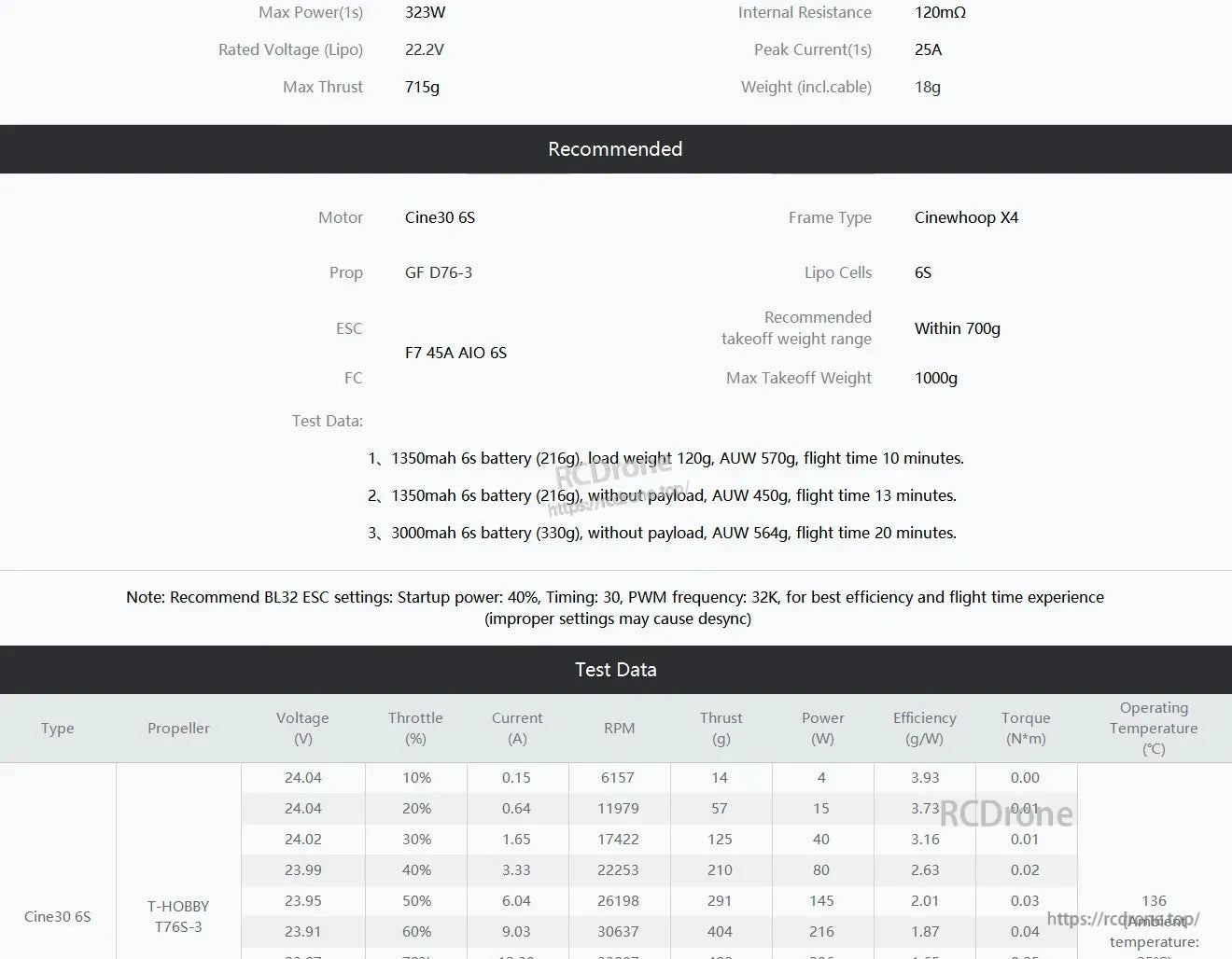

Recommended Cine30 6S setup details list compatible parts like the Cinewhoop X4 frame, 6S LiPo, and F7 45A AIO 6S FC/ESC, along with example flight-time test data.

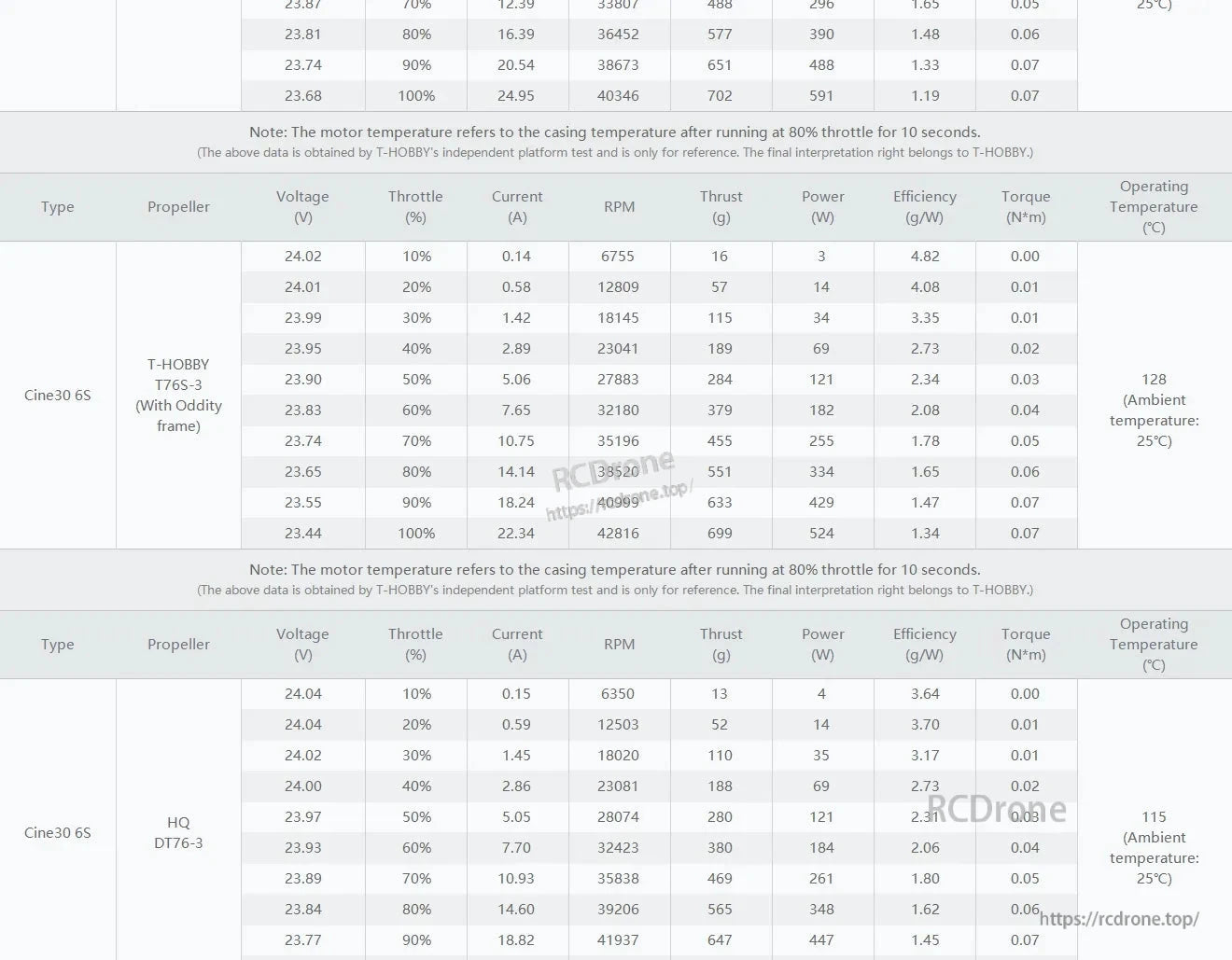

Cine30 6S test data lists voltage, throttle, current, RPM, thrust, power, efficiency, torque, and operating temperature across multiple throttle levels.

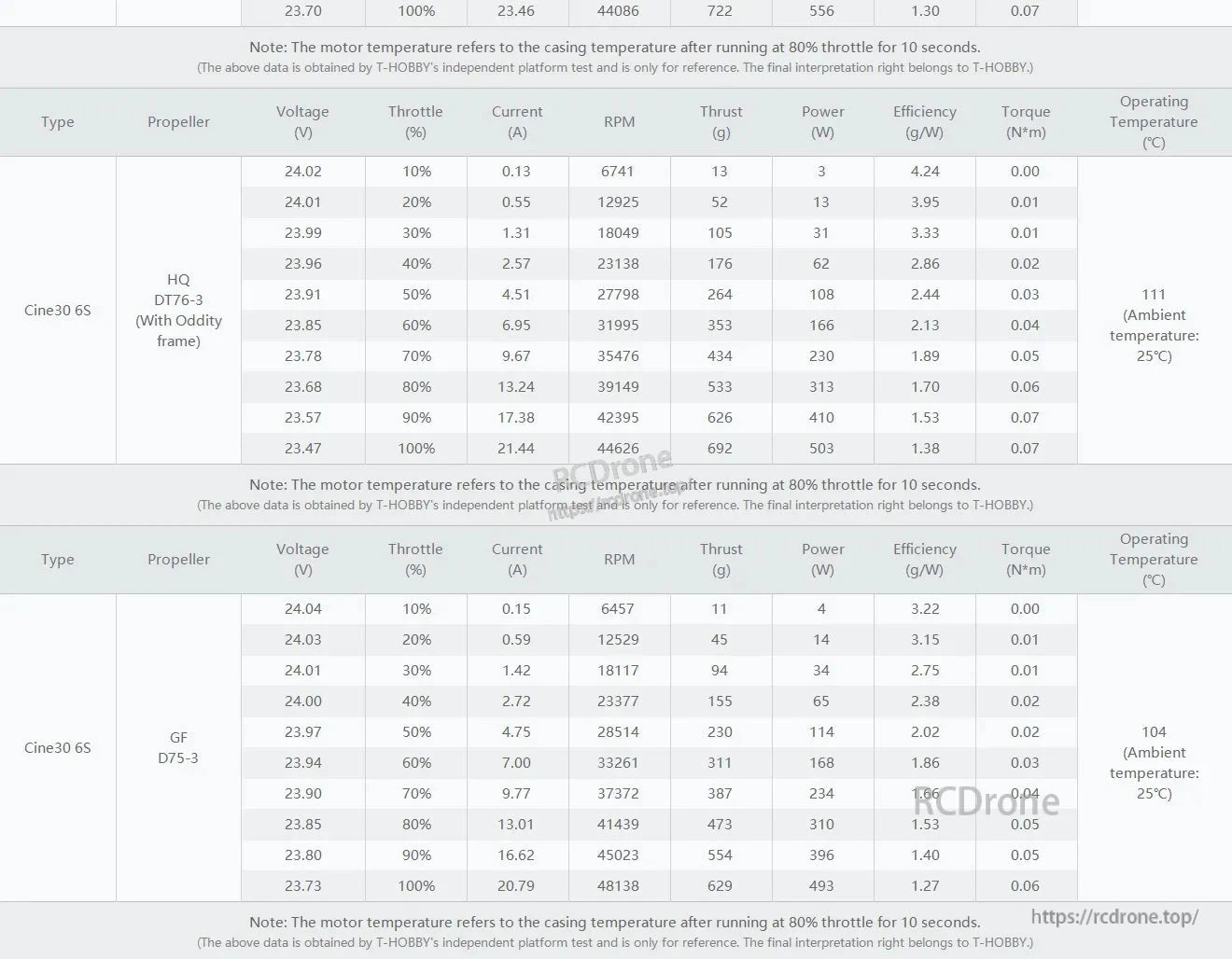

Cine30 6S test data lists voltage, throttle, current, RPM, thrust, power, efficiency, torque, and operating temperature for different propellers.

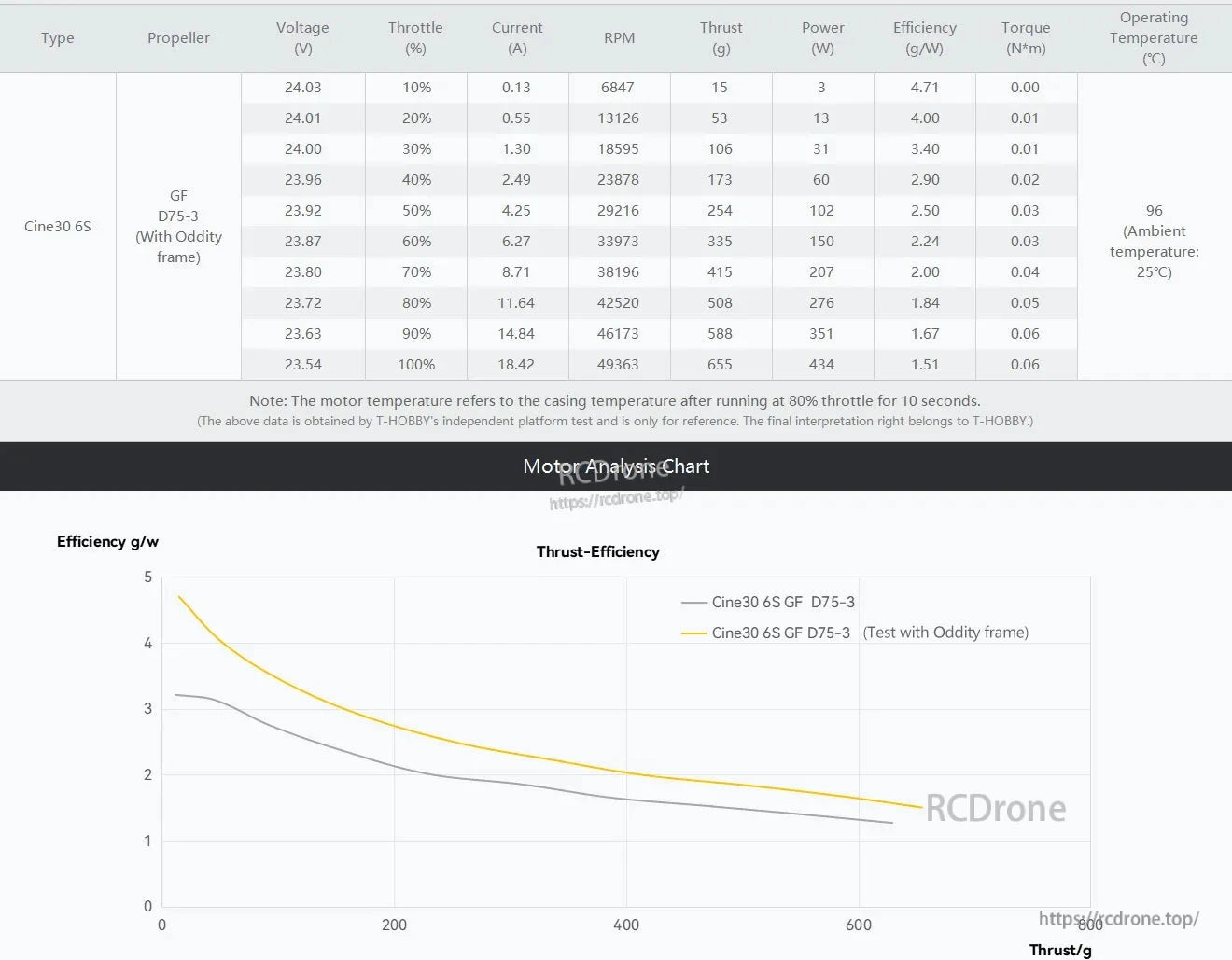

Cine30 6S test data with the GF D75-3 propeller includes throttle-to-thrust figures and a thrust-efficiency curve for reference.

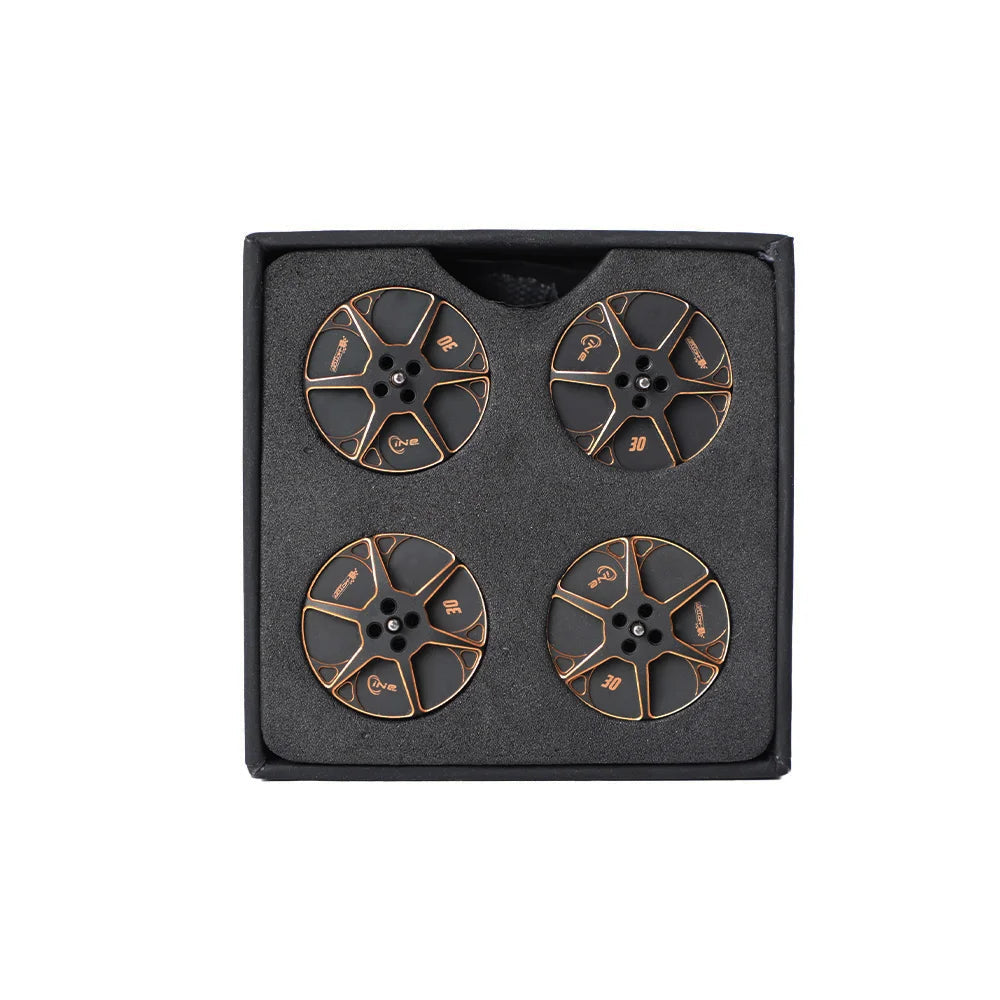

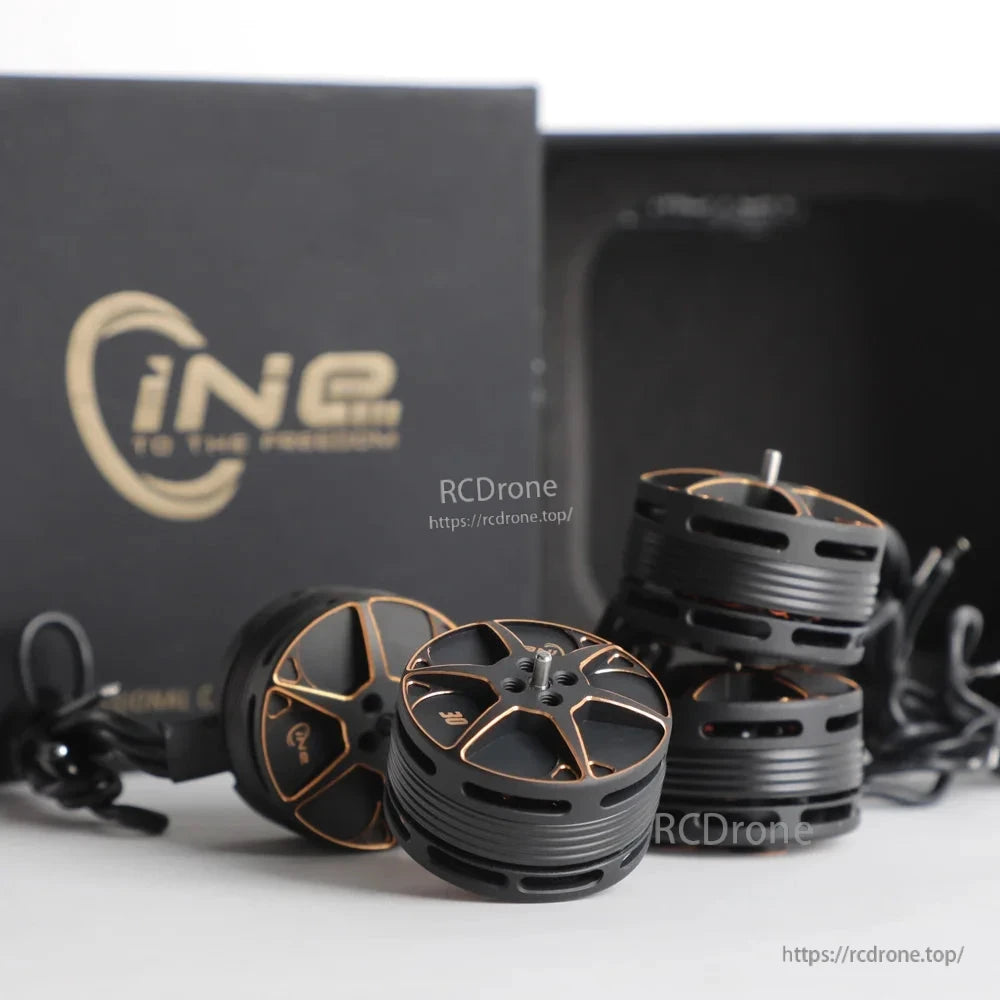

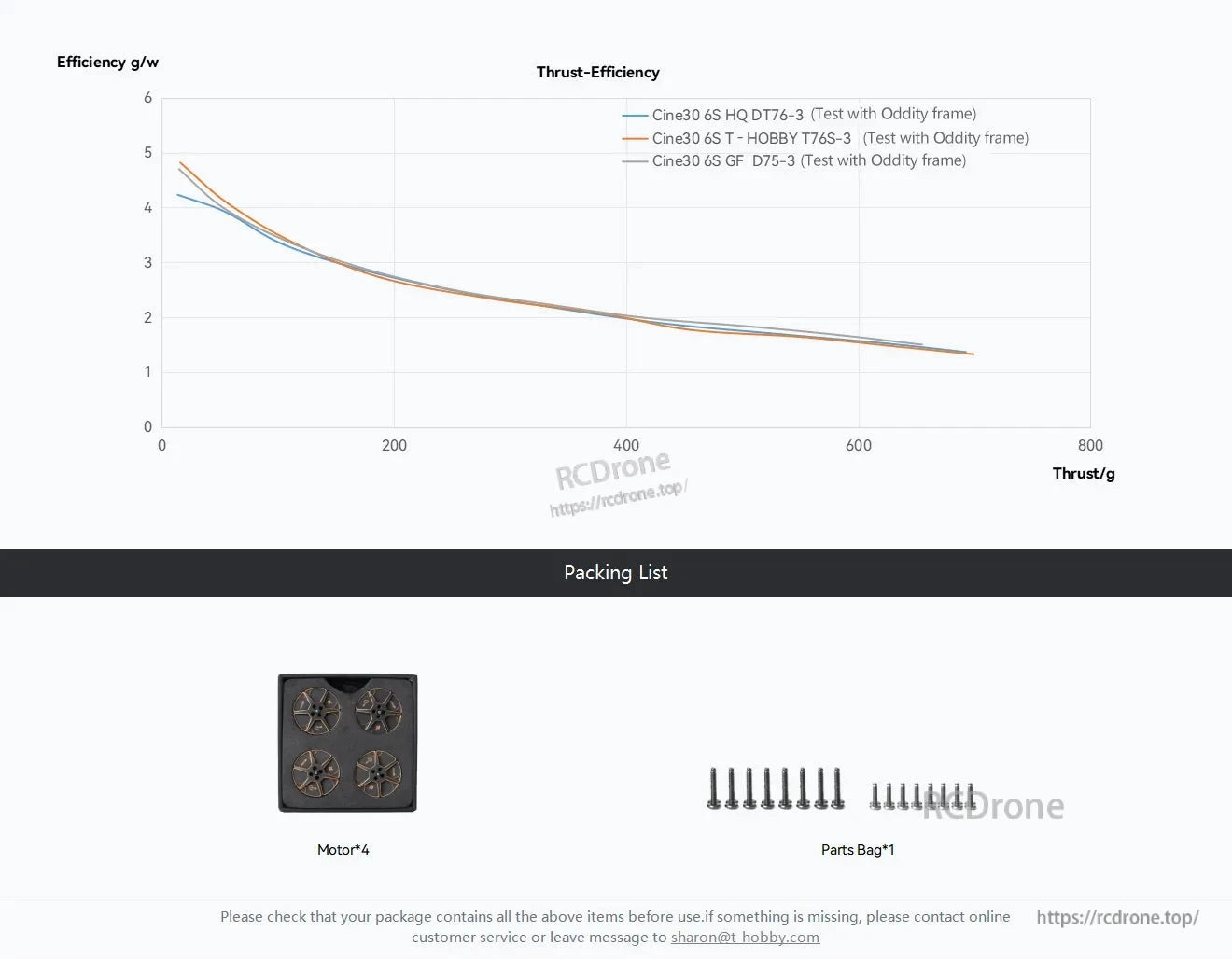

The package includes four motors and a parts bag of mounting screws, with a thrust-to-efficiency curve provided for reference.
