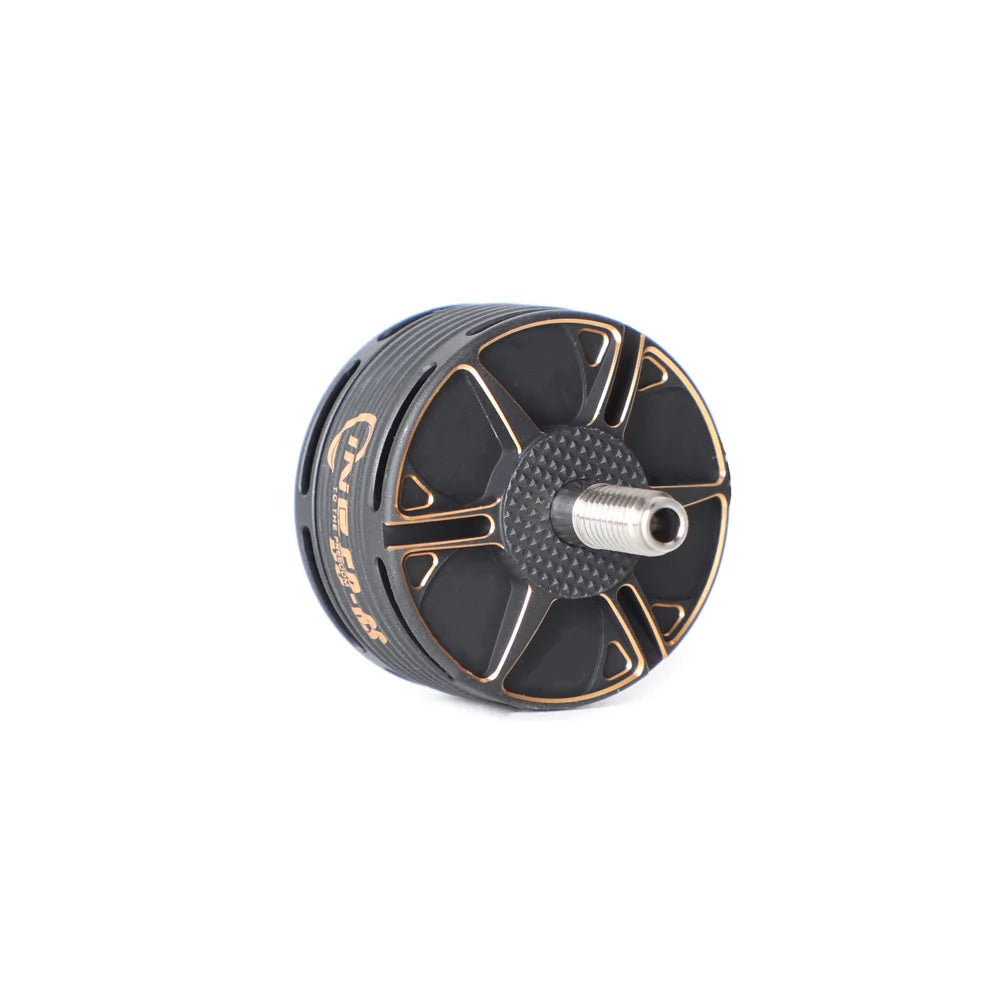

  • T-Motor brushless drone motor with black-and-gold housing and threaded output shaft, front view

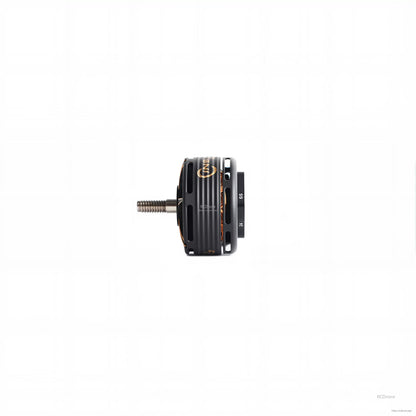

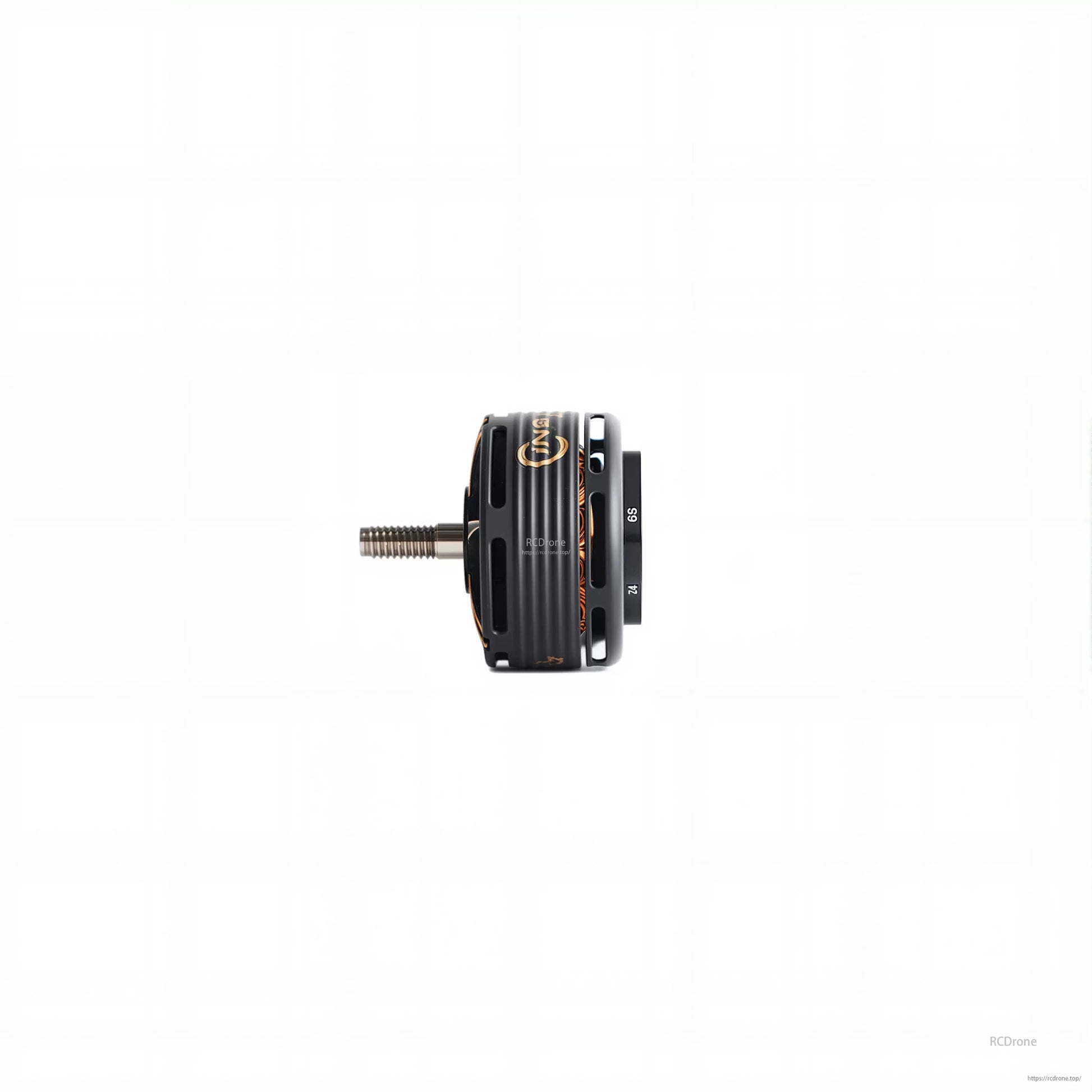

  • T-Motor black brushless drone motor side view with vented bell housing and threaded prop shaft
  • Close-up of a T-Motor brushless drone motor with black and gold housing and a threaded prop shaft
  • T-Motor brushless drone motor close-up with black and gold bell housing and threaded prop shaft

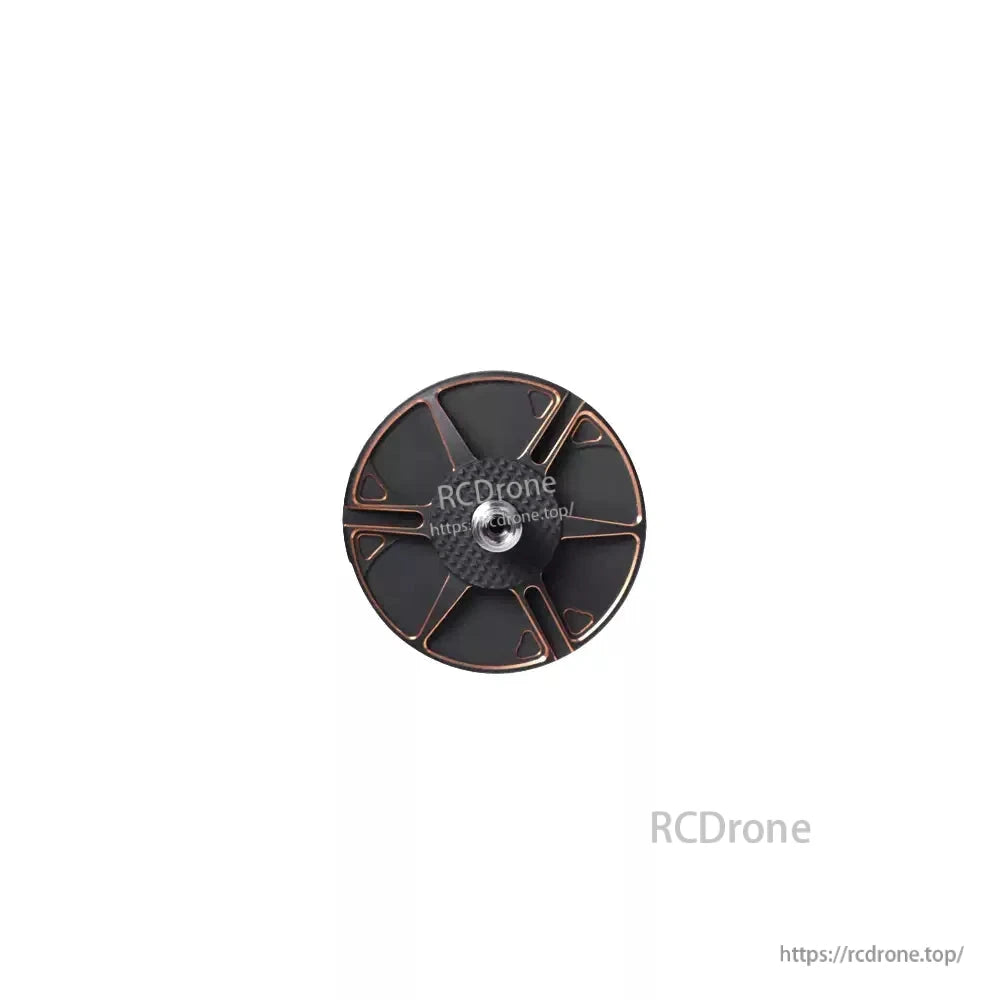

  • Top view of a black T-Motor brushless drone motor rotor with copper accents and a central shaft
1 6

T-Motor Cine60 6S Motor for 6-inch X4 Cinematic FPV Drone - IP45, 12N14P, 782W, 1789g

T-Motor Cine60 6S Motor for 6-inch X4 Cinematic FPV Drone - IP45, 12N14P, 782W, 1789g

T-MOTOR

$59.00 USD
$59.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Options
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The T-Motor Cine60 6S Motor is a motor designed for 6-inch X4 cinematic FPV drone builds. It features an IP45 waterproof and dustproof class rating and is specified with 12N14P configuration, imported 684ZZ bearings, and a 24AWG*180mm lead.

Key Features

  • Nickel plated arc magnet
  • Waterproof and dustproof class: IP45
  • Dynamic balance requirements standards: <= 5mg
  • Coil insulation test: 200V withstand voltage test
  • Configuration: 12N14P
  • Bearings: Imported 684ZZ

Customer service: https://rcdrone.top/ or support@rcdrone.top

Specifications

Type Cine60
Recommended Voltage 6S
Rated Voltage (Lipo) 24V
Max Power (1s) 782W
Peak Current (1s) 34A
Max Thrust 1789g
Idle Current (10V) 0.96A
Internal Resistance 84mΩ
Weight (incl.cable) 39.1g
Motor Dimension Φ30.9*34.03mm
Shaft Diameter 1.5mm
Prop Adapter Shaft Thread M5*12.5mm
Lead 24AWG*180mm
Screw Diameter Φ16-M2-4
Magnet Nickel plated arc magnet
Configuration 12N14P
Bearings Imported 684ZZ
Waterproof and dustproof class IP45
Dynamic balance requirements standards <= 5mg
Coil insulation test 200V withstand voltage test
Packing Size 65*65*55mm
Packing Weight 70g

Technical Drawing (selected dimensions)

  • 34.03
  • Φ30.9
  • Φ13
  • 4-M3
  • Φ16
  • M5
  • 12.5
  • 8

Recommended Setup (from test sheet)

  • Motor: Cine60 6S
  • Frame Type: X4
  • Lipo Cells: 6S
  • Prop: T6143-3 (6-inch Tri-blade propeller, pitch 3.0-4.5)
  • ESC: F7 PRO
  • FC: F55A PRO II
  • Recommended takeoff weight range: Within 1000g
  • Max Takeoff Weight: 2000g

Test Data (flight time)

  1. 2200mah 6s battery (310g), load weight 160g, AUW 900g, flight time 16 minutes.
  2. 1550mah 6s battery (260g), load weight 160g, AUW 850g, flight time 12 minutes.
  3. 5000mah 6s battery (420g), load weight 160g, AUW 1100g, flight time 34 minutes.
  4. 5000mah 6s battery (420g), without payload, AUW 940g, flight time 40 minutes.
  5. 1550mah 6s battery (260g), without payload, AUW 690g, flight time 16 minutes.

Note: Recommend BL32 ESC settings: Startup power: 50%, Timing: AUTO, PWM frequency: 16-BYRPM, Demag compensation: low, for best efficiency and flight time experience (improper settings may cause desync).

Test Data Tables

Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. The data is obtained by T-HOBBY's independent platform test and is only for reference.

Cine60 6S + T-HOBBY T6143-3

Voltage (V) Throttle (%) Current (A) RPM Thrust (g) Power (W) Efficiency (g/W) Torque (N*m) Operating Temperature (°C)
24.02 10% 0.22 3715 29 5 5.50 0.00 138 (Ambient temperature: 25°C)
24.01 20% 0.84 7037 117 20 5.85 0.02
23.99 30% 2.03 9894 252 49 5.18 0.03
23.96 40% 3.94 12535 417 94 4.42 0.05
23.91 50% 6.80 15190 641 163 3.94 0.08
23.84 60% 10.45 17539 872 249 3.50 0.10
23.76 70% 14.96 19404 1094 355 3.08 0.13
23.65 80% 20.28 21311 1341 480 2.80 0.16
23.54 90% 26.48 22955 1574 623 2.53 0.18
23.42 100% 33.40 24354 1789 782 2.29 0.21

Cine60 6S + HQ 6*3*3

Voltage (V) Throttle (%) Current (A) RPM Thrust (g) Power (W) Efficiency (g/W) Torque (N*m) Operating Temperature (°C)
24.03 10% 0.20 3733 23 5 4.77 0.00 96 (Ambient temperature: 25°C)
24.02 20% 0.73 7161 95 18 5.44 0.01
24.00 30% 1.74 10243 207 42 4.98 0.03
23.97 40% 3.32 13040 353 80 4.43 0.04
23.93 50% 5.69 15815 542 136 3.98 0.06
23.87 60% 8.88 18261 751 212 3.54 0.08
23.80 70% 12.78 20433 967 304 3.18 0.11
23.70 80% 17.70 22515 1208 419 2.88 0.14
23.60 90% 23.51 24275 1473 555 2.66 0.16
23.48 100% 29.89 25905 1710 702 2.44 0.19

Cine60 6S + HQ 6*4.3-2

Voltage (V) Throttle (%) Current (A) RPM Thrust (g) Power (W) Efficiency (g/W) Torque (N*m) Operating Temperature (°C)
24.03 10% 0.21 3736 27 5 5.28 0.00 91 (Ambient temperature: 25°C)
24.02 20% 0.75 7117 108 18 5.99 0.01
24.00 30% 1.82 10150 233 44 5.32 0.03
23.97 40% 3.45 12946 388 83 4.69 0.04
23.92 50% 5.88 15734 607 141 4.31 0.06
23.87 60% 9.09 18190 825 217 3.80 0.09
23.80 70% 12.99 20368 1046 309 3.38 0.11
23.70 80% 17.89 22447 1291 424 3.04 0.14
23.59 90% 23.70 24260 1528 559 2.73 0.16
23.48 100% 30.09 25854 1761 706 2.49 0.19

What’s Included

  • 1 x T-Motor Cine 60 6S Motor
  • Parts Bag*1

Applications

  • 6-inch cinematic FPV drone builds
  • X4 frame setups (as recommended)

Details

T-Motor drone motor promo showing corrosion-, sand- and dust-resistant protection and recommended CINE60 setup

T-Motor emphasizes protective design for reliable operation in harsh conditions, with corrosion, sand, and dust resistance.

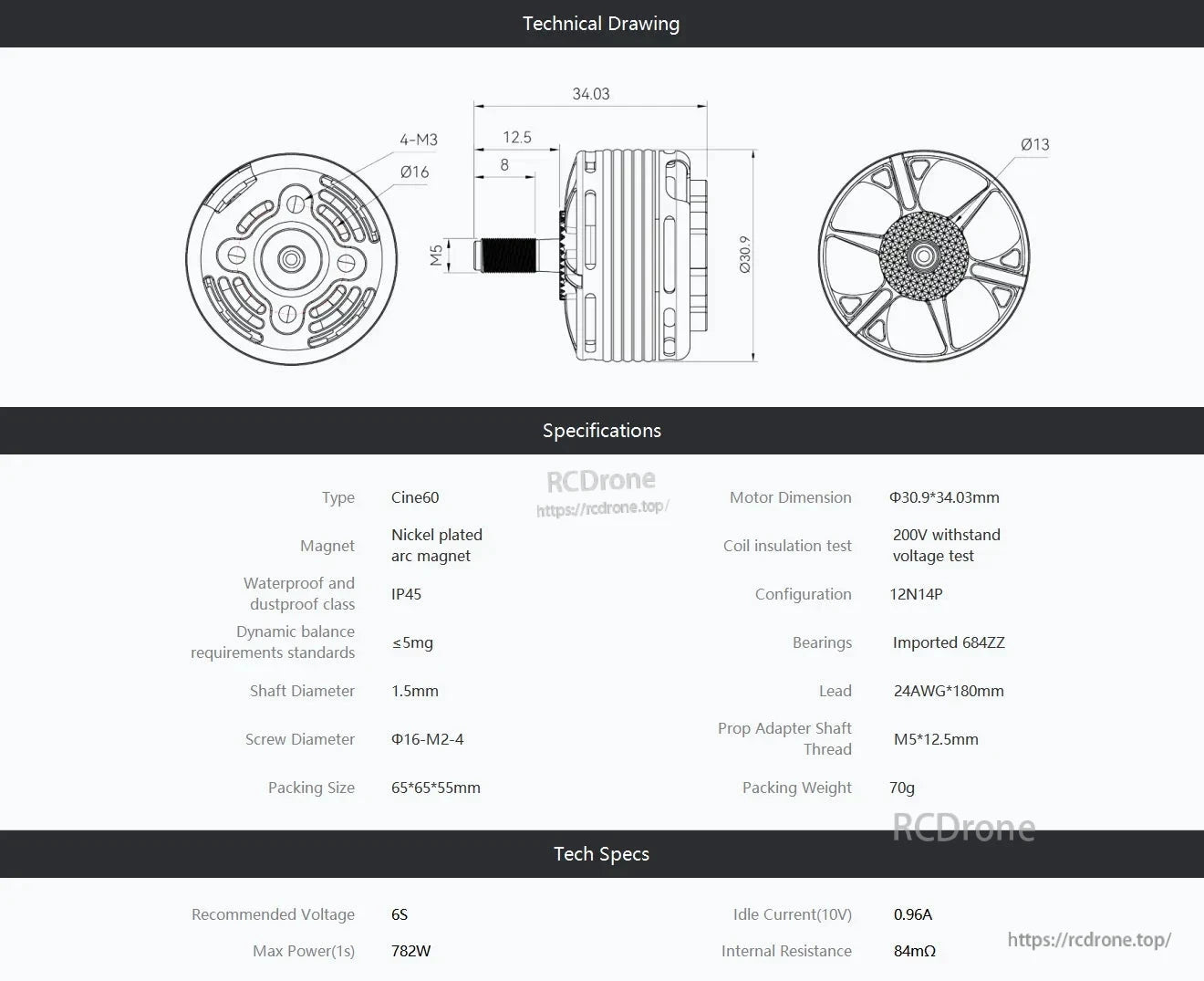

T-Motor Cine60 brushless motor technical drawing with 30.9 mm diameter, 34.03 mm length and 4x M3 mount pattern

T-Motor Cine60 motor uses a 4x M3 mounting pattern and a compact Φ30.9×34.03 mm body, with IP45 rating and 24AWG 180 mm leads listed in the specs.

Technical drawing and specs for T-Motor Cine60 motor, Ø30.9×34.03 mm body with 1.5 mm shaft

Cine60 motor specs include a Ø30.9×34.03 mm body, IP45 rating, 12N14P configuration, and 24AWG 180 mm leads for wiring.

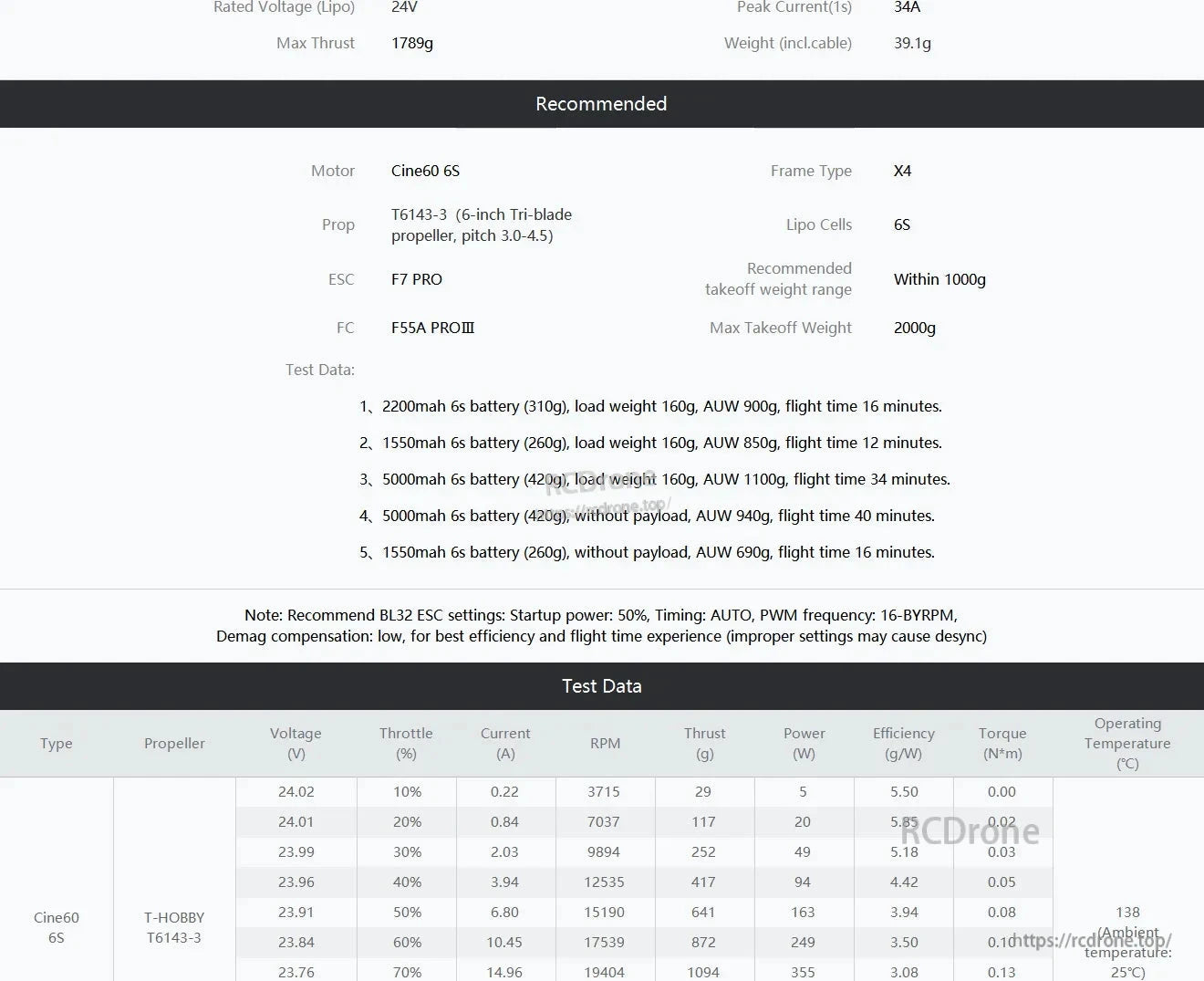

T-Motor Cine60 6S recommended setup and test data table with T6143-3 prop, 6S LiPo, and takeoff weight range

The Cine60 6S setup guide lists a T6143-3 6-inch tri-blade prop, 6S LiPo power, and a recommended takeoff weight within 1000g (max 2000g).

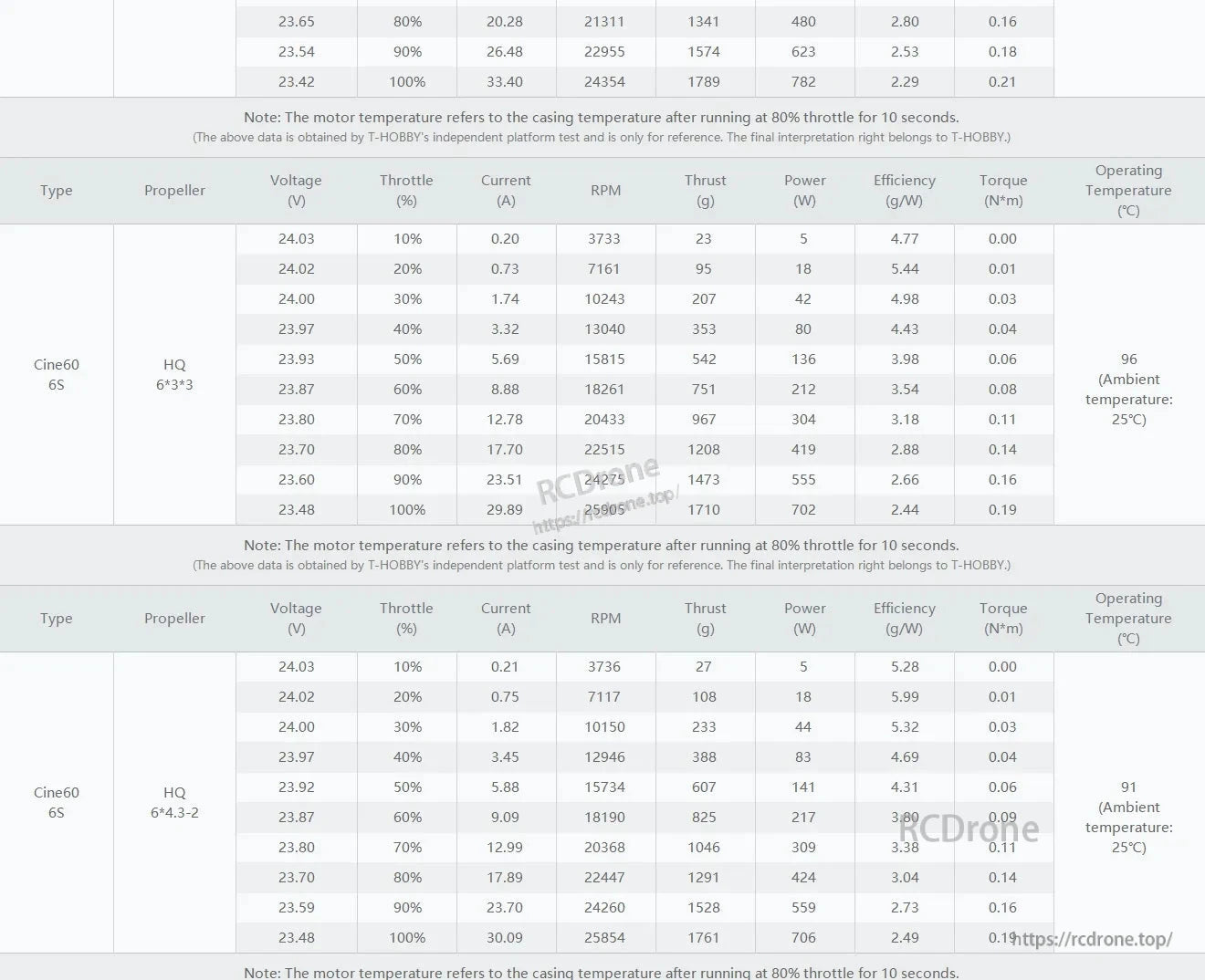

T-Motor, Cine60 6S motor test data table showing thrust, RPM, current, power and efficiency with HQ 6-inch props

Cine60 6S throttle test data lists current, RPM, thrust, power, and efficiency values with HQ 6×3×3 and 6×4.3-2 propellers.

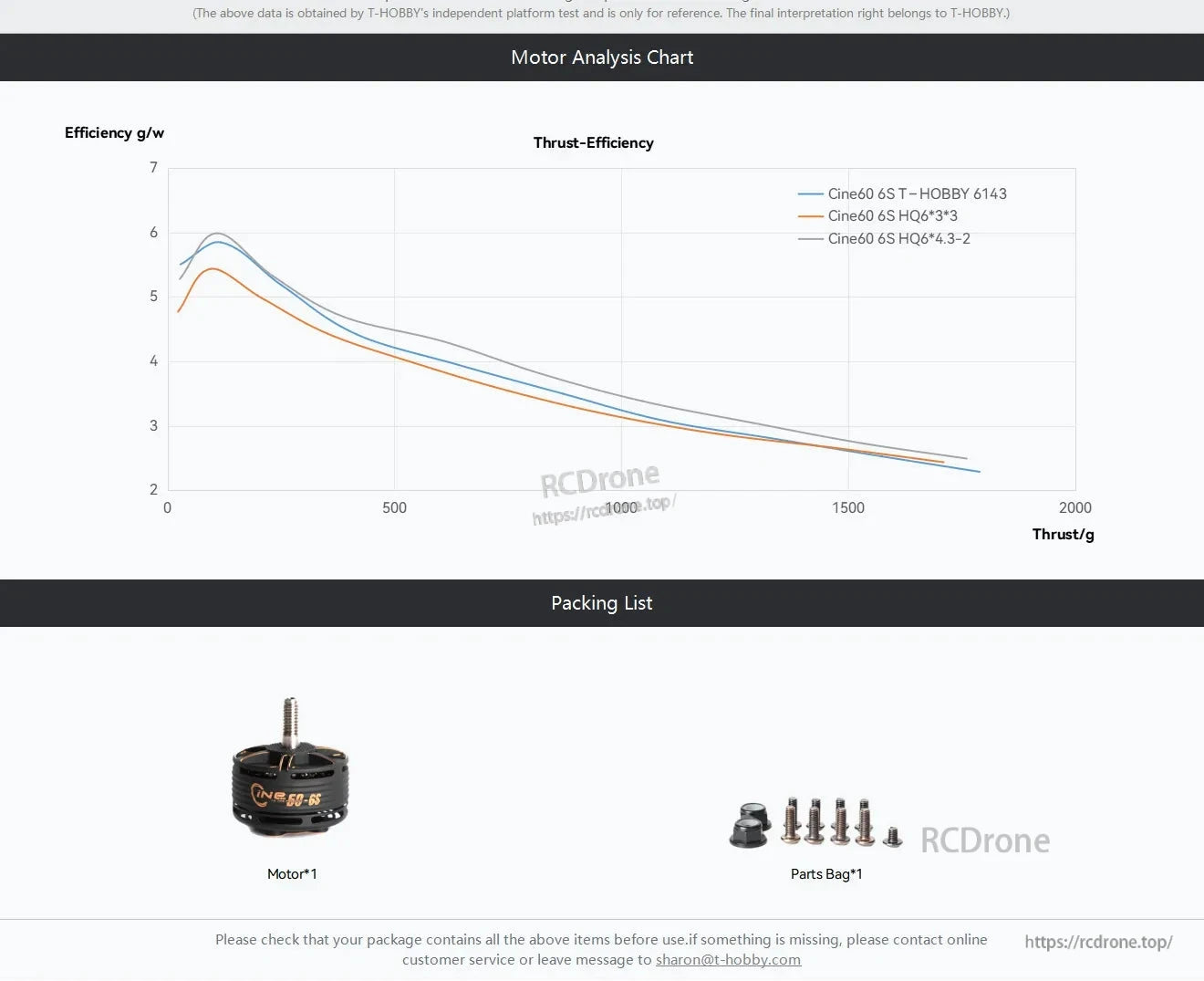

T-Motor, Motor analysis chart with thrust-efficiency curves and packing list showing Cine60-6S motor with parts bag and screws

The Cine60-6S motor includes a parts bag with mounting hardware, plus a thrust-efficiency chart for different prop setups.
