T-Motor X-U8II Coaxial Arm Set with U8 II 85KV 100KV Motor, Alpha 60A FOC ESC and G28 Propeller for Industrial Drones
T-Motor X-U8II Coaxial Arm Set with U8 II 85KV 100KV Motor, Alpha 60A FOC ESC and G28 Propeller for Industrial Drones
T-Motor
Couldn't load pickup availability
Overview
The T-Motor X-U8II Coaxial Arm Set is a ready-to-use coaxial propulsion system designed for industrial drones, heavy-lift UAVs, agricultural drones, mapping drones, inspection drones, and multi-rotor aircraft. Each arm set integrates the T-Motor U8 II motor, Alpha 60A FOC ESC, and matching G28 series propeller, offering a complete turn-key propulsion solution for professional UAV builders.
With a coaxial dual-motor structure, integrated arm base, optimized FOC electronic speed control, and matched carbon propeller, the X-U8II system provides high efficiency, strong thrust, stable control, and convenient installation. It is suitable for X8 coaxial drone frames and industrial multi-rotor platforms that require reliable power, compact structure, and clean wiring.
Key Features
Complete Coaxial Turn-Key Propulsion System
This system includes the motor, ESC, propeller, arm base, and integrated wiring layout. It reduces the time needed for power system matching and makes the drone build process simpler and more reliable.
High-Efficiency FOC ESC Control
The X-U8II uses a FOC sine-wave driving solution with the matched T-Motor Alpha 60A ESC. The intelligent control algorithm helps the motor run efficiently, precisely, and stably, meeting the demands of professional UAV applications.
Strong Thrust and High Efficiency
Matched with the T-Motor G28×9.2 carbon propeller, the system delivers strong pulling force and efficient power output. It is suitable for industrial drone platforms that require long endurance, stable lift, and dependable performance.

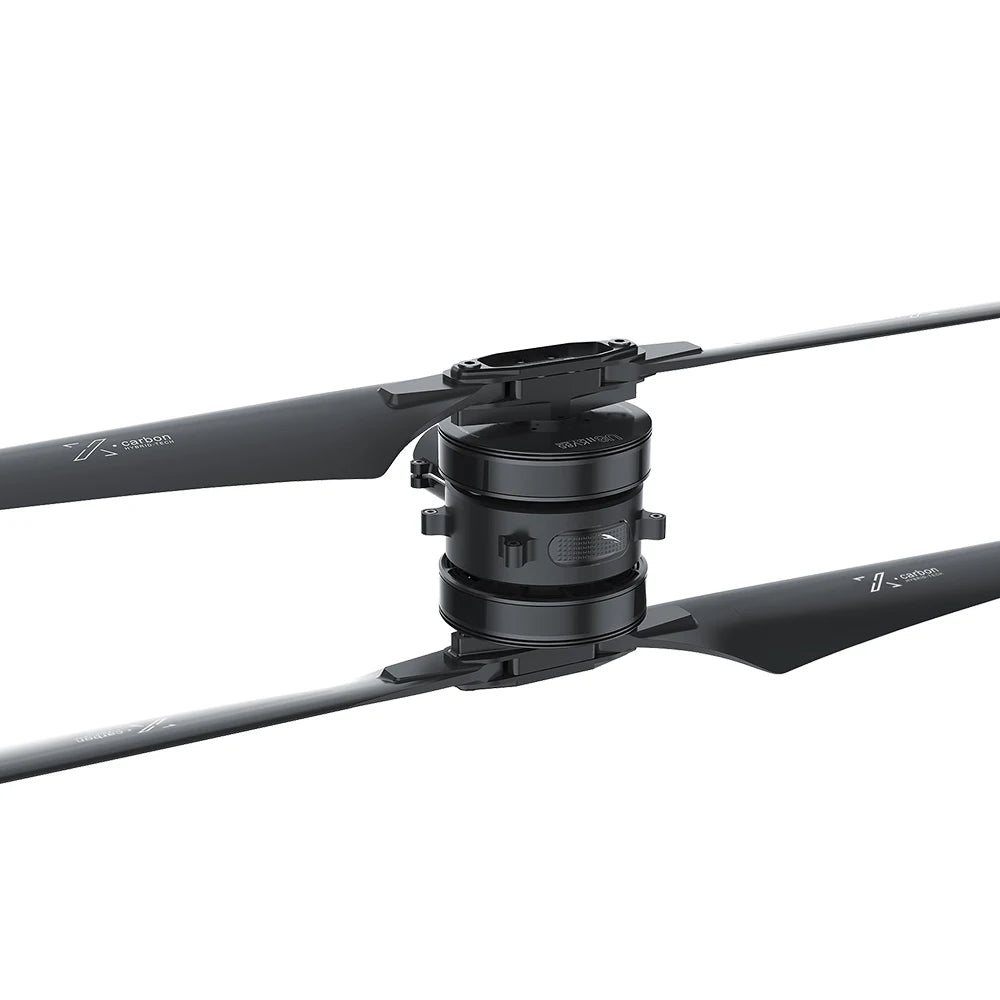

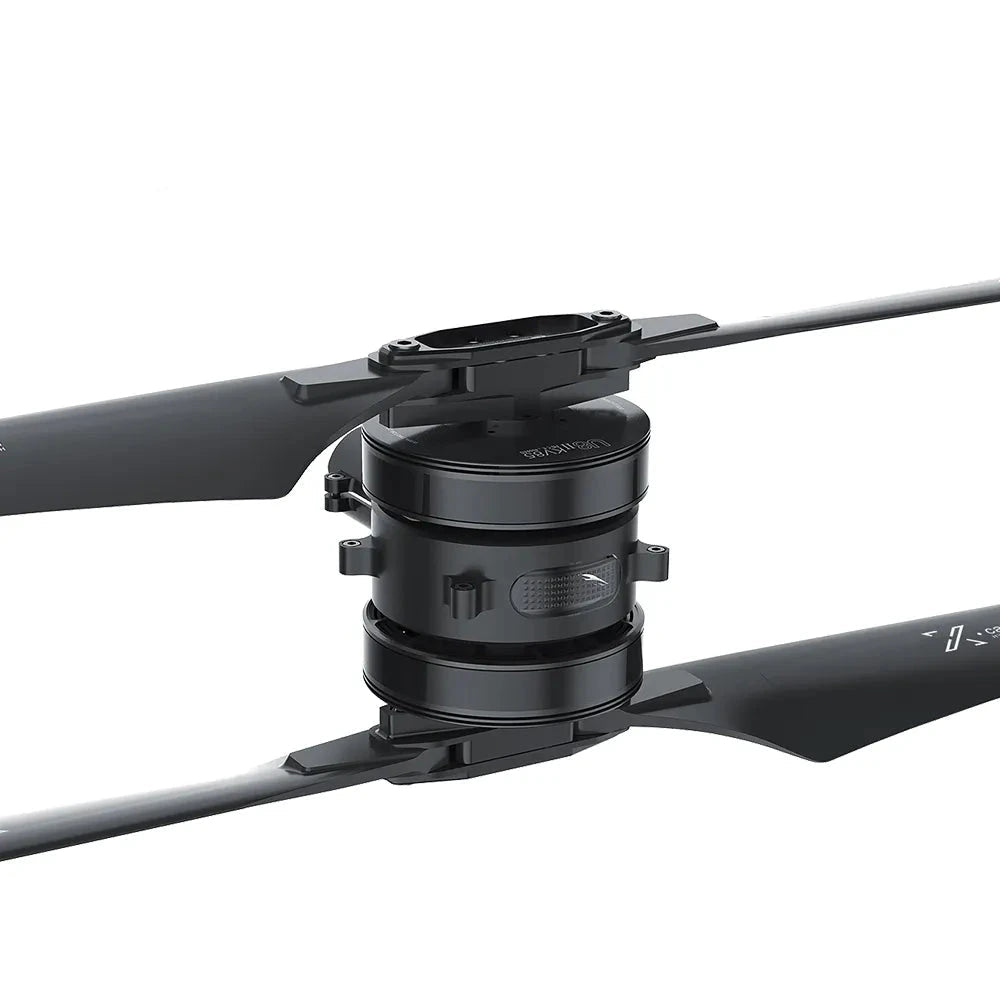

Coaxial X8 Configuration Design
The coaxial upper and lower motor layout is ideal for X8 industrial drones, allowing higher thrust in a compact frame structure while improving payload capability and layout flexibility.

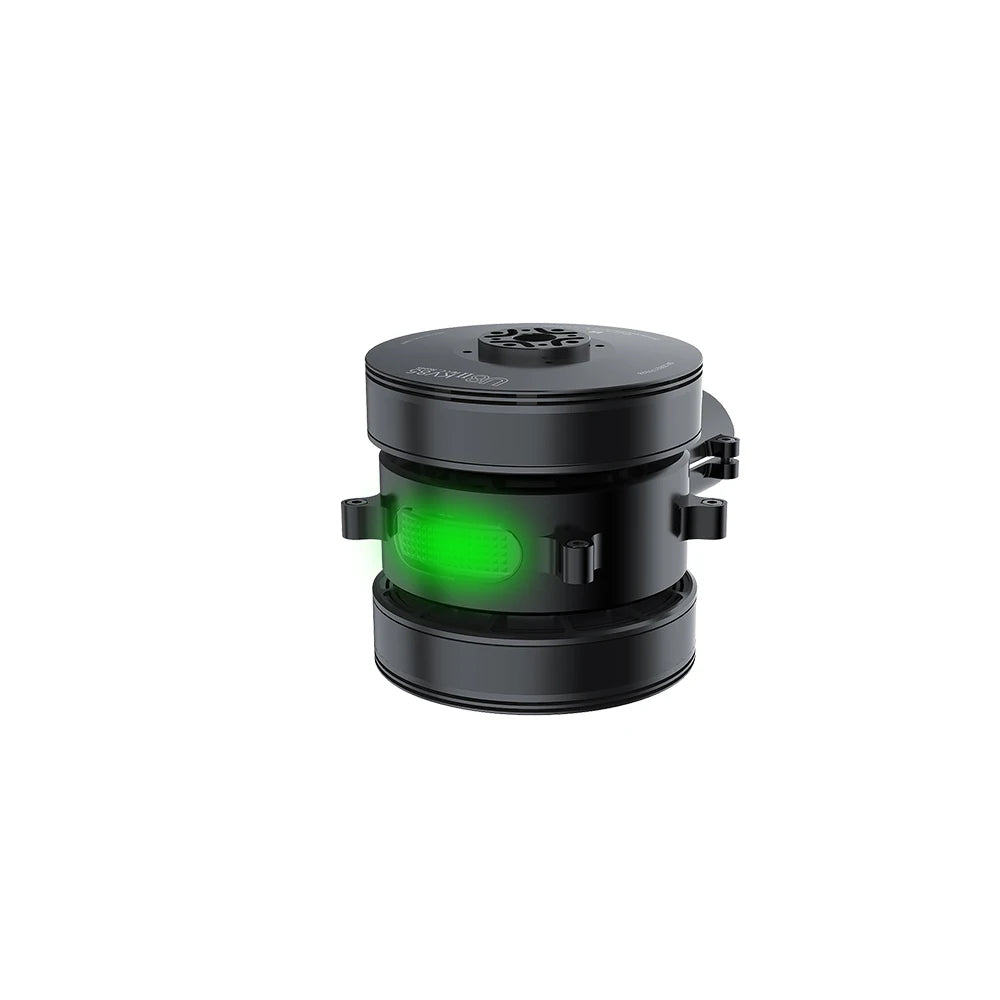

LED Status Indicator
The integrated LED indicator is combined with the motor mount, providing clear visual feedback and helping the pilot or operator improve control awareness during operation.

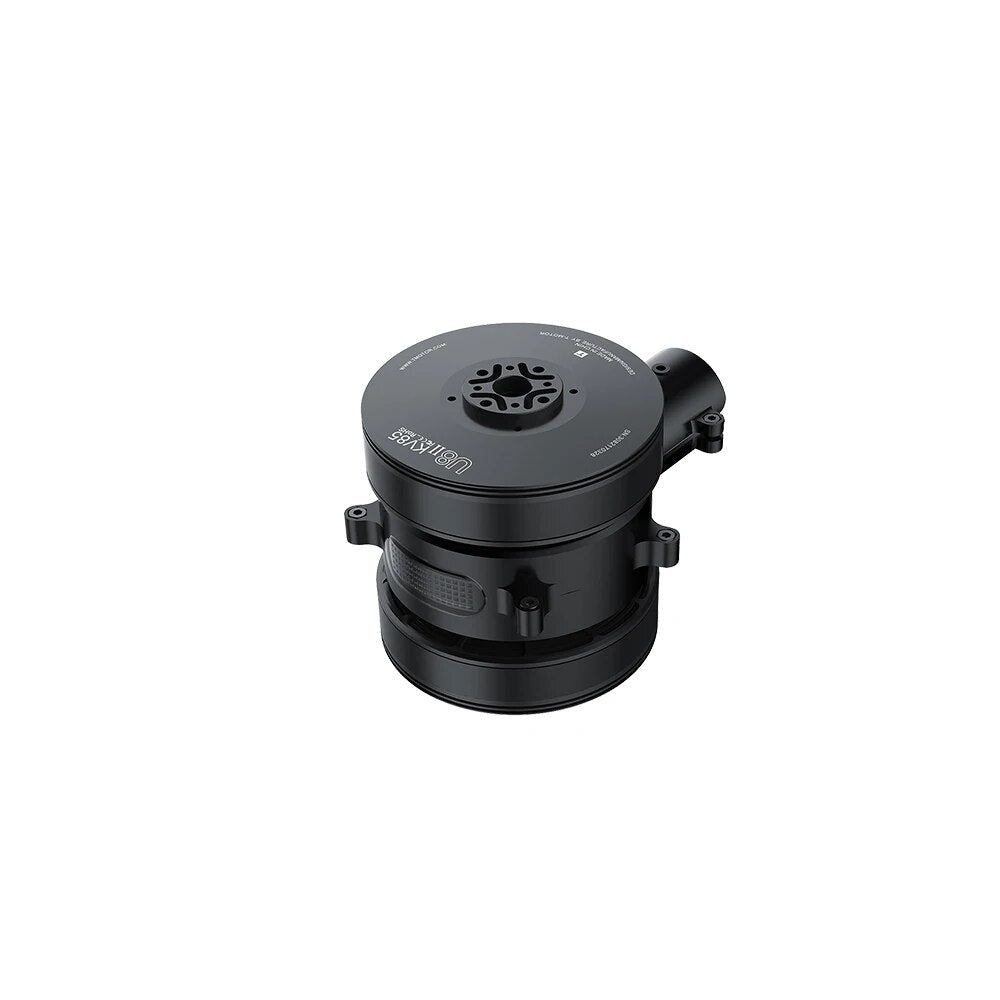

Easy Installation
The integrated arm set is designed for quick installation. It supports 25mm / 30mm arm tube diameter options, helping simplify assembly and reduce wiring complexity.

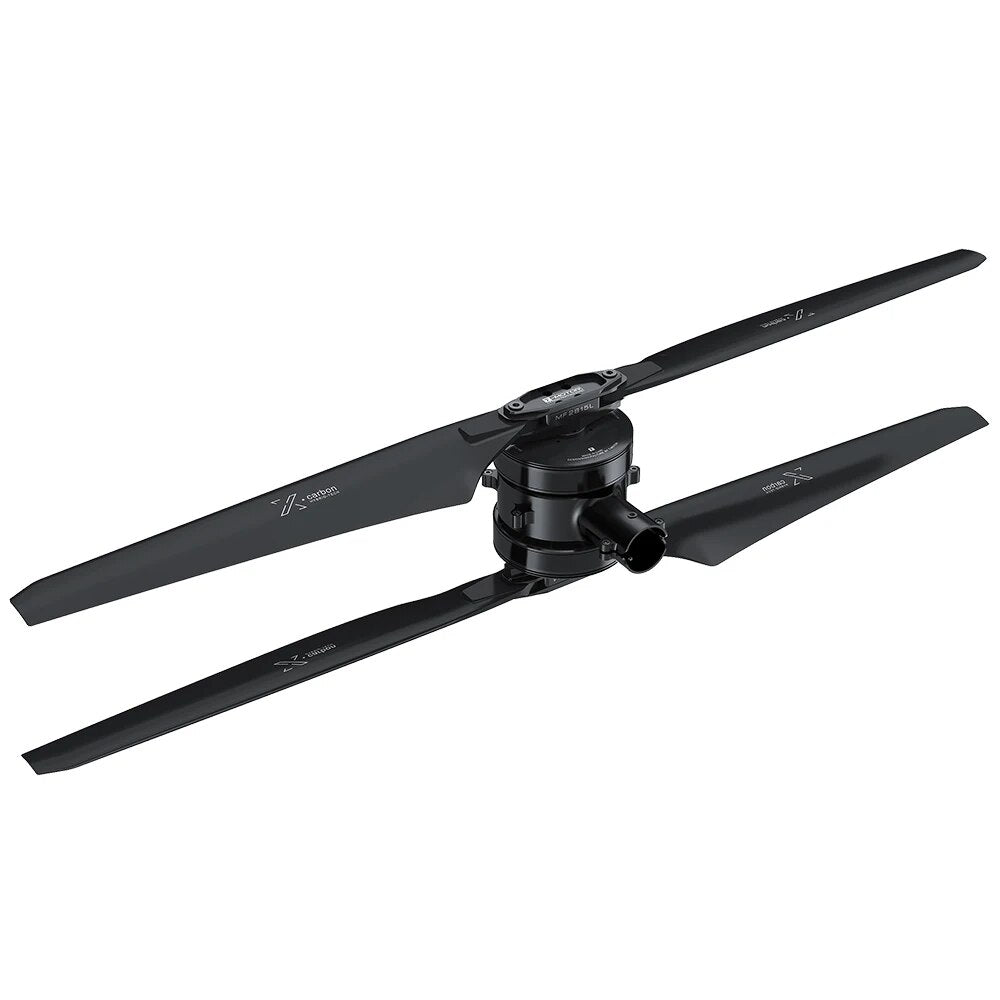

Matched Carbon Propeller Option
The G28 series carbon propeller is a classic configuration for the T-Motor power system. It provides high speed, high efficiency, and strong thrust performance. Custom propeller matching is also possible depending on the application.
Basic Specifications
| Item | X-U8II KV85 | X-U8II KV100 | X-U8II KV150 | X-U8II KV190 |
|---|---|---|---|---|
| Product Model | X-U8IIKV85 | U8II-XKV100 | U8II-XKV150 | U8II-XKV190 |
| Arm Size | 130.5 × 87.1 × 91.2mm | 130.5 × 87.1 × 91.2mm | 130.5 × 87.1 × 91.2mm | 130.5 × 87.1 × 91.2mm |
| Motor Configuration | 36N42P | 36N42P | 36N42P | 36N42P |
| No-load Current at 24V | 0.6A | 0.8A | 1.3A | 1.7A |
| Phase Resistance | 225mΩ | 170mΩ | 85mΩ | 48mΩ |
| Max Continuous Power, 180s | 238W | 440W | 196W | 342W |
| Cable Length | 600mm | 600mm | 600mm | 600mm |
| Arm Weight, Including Cable | 965g | 945g | 945g | 945g |
| Shaft Diameter | IN: 15mm | IN: 15mm | IN: 15mm | IN: 15mm |
| Rated LiPo Voltage | 12S | 12S | 6S | 6S |
| Recommended ESC | Alpha 60A 12S V1.2 | Alpha 60A 12S V1.2 | Alpha 60A 6S | Alpha 60A 6S |
| Recommended Propeller | G28×9.2 | G28×9.2 | G28×9.2 | G28×9.2 |
Performance Data
X-U8II KV85 with Alpha 60A 12S, 12S 48V, G28×9.2 Propeller
| Throttle | Current | Thrust | Torque | RPM | Motor Efficiency | Efficiency |
|---|---|---|---|---|---|---|
| 40% | 2.99A | 1911g | 0.72N.m | 1442 | 73.06% | 15.40gf/W |
| 50% | 5.30A | 2930g | 1.09N.m | 1770 | 77.75% | 13.22gf/W |
| 60% | 8.65A | 4145g | 1.54N.m | 2099 | 80.54% | 11.44gf/W |
| 70% | 13.20A | 5544g | 2.06N.m | 2421 | 81.99% | 10.03gf/W |
| 80% | 19.10A | 7169g | 2.64N.m | 2739 | 82.96% | 8.96gf/W |
| 90% | 26.65A | 8915g | 3.29N.m | 3050 | 83.26% | 8.00gf/W |
| 100% | 33.96A | 10382g | 3.83N.m | 3282 | 83.61% | 7.28gf/W |
Motor temperature: 88°C, ambient temperature: 25°C.
X-U8II KV100 with Alpha 60A 12S, 12S 48V, G28×9.2 Propeller
| Throttle | Current | Thrust | Torque | RPM | Motor Efficiency | Efficiency |
|---|---|---|---|---|---|---|
| 40% | 5.33A | 2884g | 1.09N.m | 1771 | 77.66% | 13.08gf/W |
| 50% | 9.49A | 4377g | 1.63N.m | 2165 | 80.47% | 11.18gf/W |
| 60% | 15.35A | 6105g | 2.25N.m | 2542 | 81.49% | 9.59gf/W |
| 70% | 23.12A | 7984g | 2.94N.m | 2907 | 81.31% | 8.32gf/W |
| 80% | 33.24A | 10111g | 3.71N.m | 3263 | 80.78% | 7.35gf/W |
| 90% | 45.27A | 12176g | 4.46N.m | 3580 | 79.13% | 6.49gf/W |
| 100% | 55.32A | 13672g | 5.01N.m | 3784 | 77.35% | 5.97gf/W |
Motor temperature: 95°C, ambient temperature: 25°C.
X-U8II KV150 with Alpha 60A 6S, 6S 24V, G28×9.2 Propeller
| Throttle | Current | Thrust | Torque | RPM | Motor Efficiency | Efficiency |
|---|---|---|---|---|---|---|
| 40% | 5.00A | 1588g | 0.64N.m | 1359 | 77.47% | 15.48gf/W |
| 50% | 8.81A | 2444g | 0.96N.m | 1659 | 80.63% | 13.49gf/W |
| 60% | 14.19A | 3465g | 1.35N.m | 1950 | 81.72% | 11.91gf/W |
| 70% | 21.21A | 4568g | 1.76N.m | 2226 | 81.97% | 10.56gf/W |
| 80% | 30.03A | 5788g | 2.20N.m | 2491 | 81.69% | 9.50gf/W |
| 90% | 37.64A | 6707g | 2.53N.m | 2671 | 81.21% | 8.83gf/W |
| 100% | 42.74A | 7232g | 2.72N.m | 2817 | 81.07% | 8.59gf/W |
Motor temperature: 71°C, ambient temperature: 25°C.
X-U8II KV190 with Alpha 60A 6S, 6S 24V, G28×9.2 Propeller
| Throttle | Current | Thrust | Torque | RPM | Motor Efficiency | Efficiency |
|---|---|---|---|---|---|---|
| 40% | 8.75A | 2469g | 0.94N.m | 1639 | 78.00% | 13.73gf/W |
| 50% | 15.37A | 3697g | 1.39N.m | 1990 | 80.35% | 11.75gf/W |
| 60% | 24.64A | 5141g | 1.90N.m | 2324 | 80.74% | 10.25gf/W |
| 70% | 36.24A | 6630g | 2.44N.m | 2630 | 80.46% | 9.07gf/W |
| 80% | 50.71A | 8193g | 3.00N.m | 2914 | 79.56% | 8.15gf/W |
| 90% | 66.33A | 9661g | 3.52N.m | 3147 | 78.17% | 7.47gf/W |
| 100% | 65.68A | 10193g | 3.67N.m | 3292 | 77.63% | 7.25gf/W |
Motor temperature: 95°C, ambient temperature: 25°C.
Installation and Dimension Information
| Item | Value |
|---|---|
| Main Body Length | 130.5mm |
| Main Body Width | 87.1mm |
| Main Body Height | 91.2mm |
| Arm Tube Compatibility | 25mm / 30mm |
| Cable Length | 600mm |
| Shaft Diameter | IN: 15mm |
| Propeller Recommendation | G28×9.2 |
| Motor Mount Structure | Coaxial upper and lower motor layout |
| LED Indicator | Integrated LED display light |
Package Options
| Option | Description |
|---|---|
| U8II 85 + Alpha 60A HV | X-U8II KV85 motor system with Alpha 60A HV ESC |
| U8II 100 + Alpha 60A HV | X-U8II KV100 motor system with Alpha 60A HV ESC |
| Custom Configuration | Contact us for customized motor, ESC, or propeller matching |
| Without Propeller | Arm set without propeller |
| G28×9.2 | Matched T-Motor G28×9.2 propeller |
| NS28×9.2 | Optional NS28×9.2 propeller |
| 25 / 30mm Arm Tube | Compatible with 25mm or 30mm arm tube |
| Upper CW, Lower CCW | Upper motor clockwise, lower motor counterclockwise |
| Upper CCW, Lower CW | Upper motor counterclockwise, lower motor clockwise |
Recommended Applications
This T-Motor X-U8II coaxial arm set is suitable for:
Industrial drones
Agricultural drones
Heavy-lift UAVs
Mapping and surveying drones
Inspection drones
Cargo drones
Long-endurance multi-rotor drones
X8 coaxial drone frames
Professional UAV development platforms
What’s Included
1 × T-Motor X-U8II Coaxial Arm Set
1 × U8 II Motor System, according to selected KV version
1 × Alpha 60A FOC ESC, according to selected voltage version
1 × Matching Propeller, if selected
1 × Integrated Arm Base and Wiring Set
Notes
The test data shown above is based on T-Motor official test conditions and is provided for propulsion system selection reference. Actual performance may vary depending on frame structure, battery condition, flight controller settings, payload, altitude, temperature, and propeller configuration.
Please select the correct KV version, ESC voltage, propeller type, arm tube size, and motor rotation direction before ordering. For industrial drone projects, the 12S KV85 / KV100 versions are generally suitable for higher-voltage platforms, while the 6S KV150 / KV190 versions are suitable for lower-voltage configurations.
Details
coaxial arm set series for industrial drones with motors, FOC ESCs and Xcarbon props integrated in one . tube sizes available are 3Omm and 25mm with an adapter ring to switch from one to another .
X-50 X-60 MOTOR MOTOR MNSO1-S MNSOS-S ESC ESC Alpha 60A LV Polymer Folding Propeller Polymer folding propelle 15" 20" 18" 22" 20. 22" X-70 X -U8 MNZ01-S U8II MN705-S
The sine-wave FOC (Field-Oriented Control) electronic speed controllers (ESCs) that come with this arm set provide optimal compatibility. With their efficient, accurate, and stable motor control capabilities, they cater to diverse application demands.
X-Carbon is a new patented polymer folding propeller series designed for high-RPM and high-efficiency performance with strong power output. Additionally, T-MOTOR offers a range of other propellers available for use.
