T-MOTOR F35A ESC SPECIFICATIONS
Brand Name: T-MOTOR
Origin: Mainland China
Material: Metal
Recommend Age: 14+y
RC Parts & Accs: Motor Components
Size: 30.5*14.9*5mm
For Vehicle Type: Airplanes
Use: Vehicles & Remote Control Toys
Model Number: F35A 3-6S-32Bit

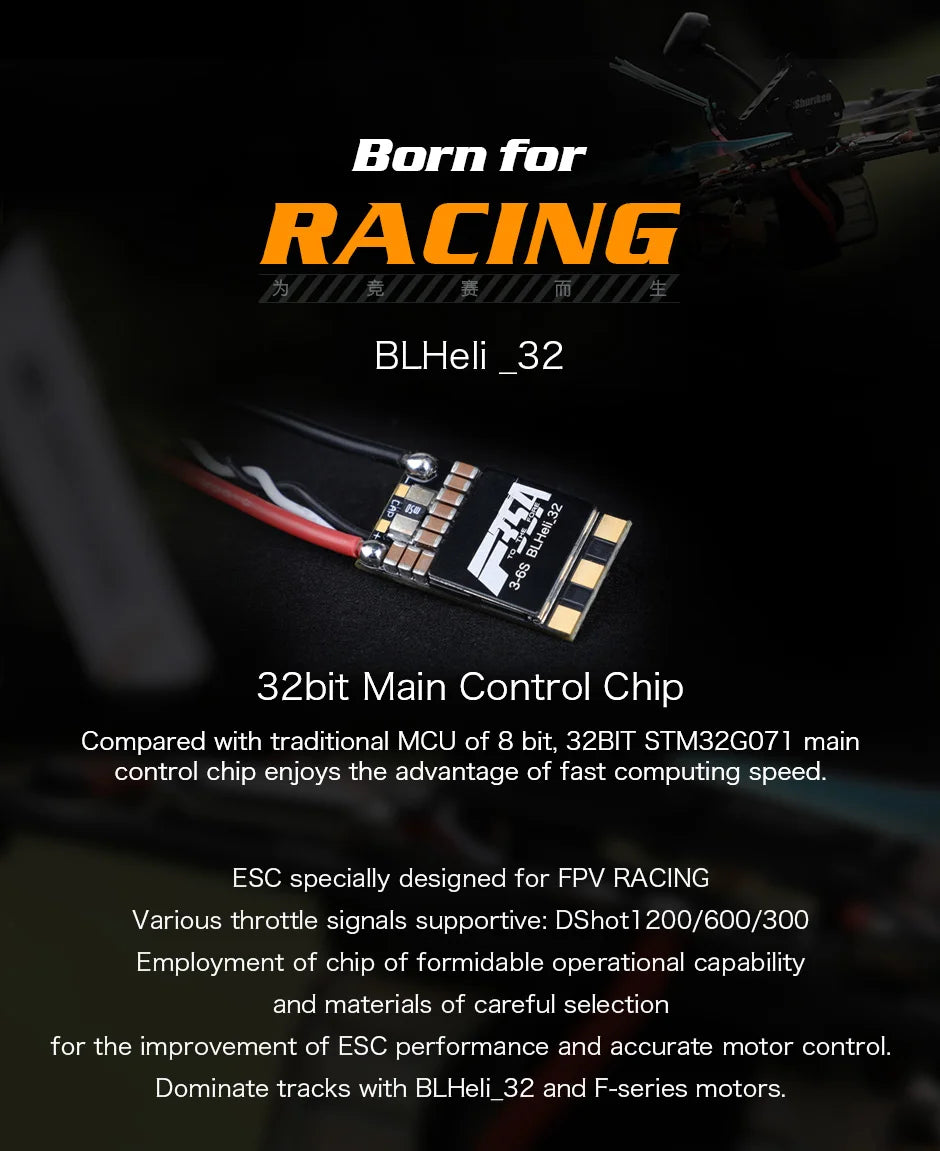

ESC specially designed for FPV RACING 4 BLHeli_32 and F-series motors: 3 3 2 . 32bit main control chip enjoys the advantage of fast computing speed: .
Equipped with BLHeli_32 firmware, this ESC boasts impressive performance capabilities and a range of advanced features. The auto-timing function has been updated to ensure maximum reliability and efficiency.

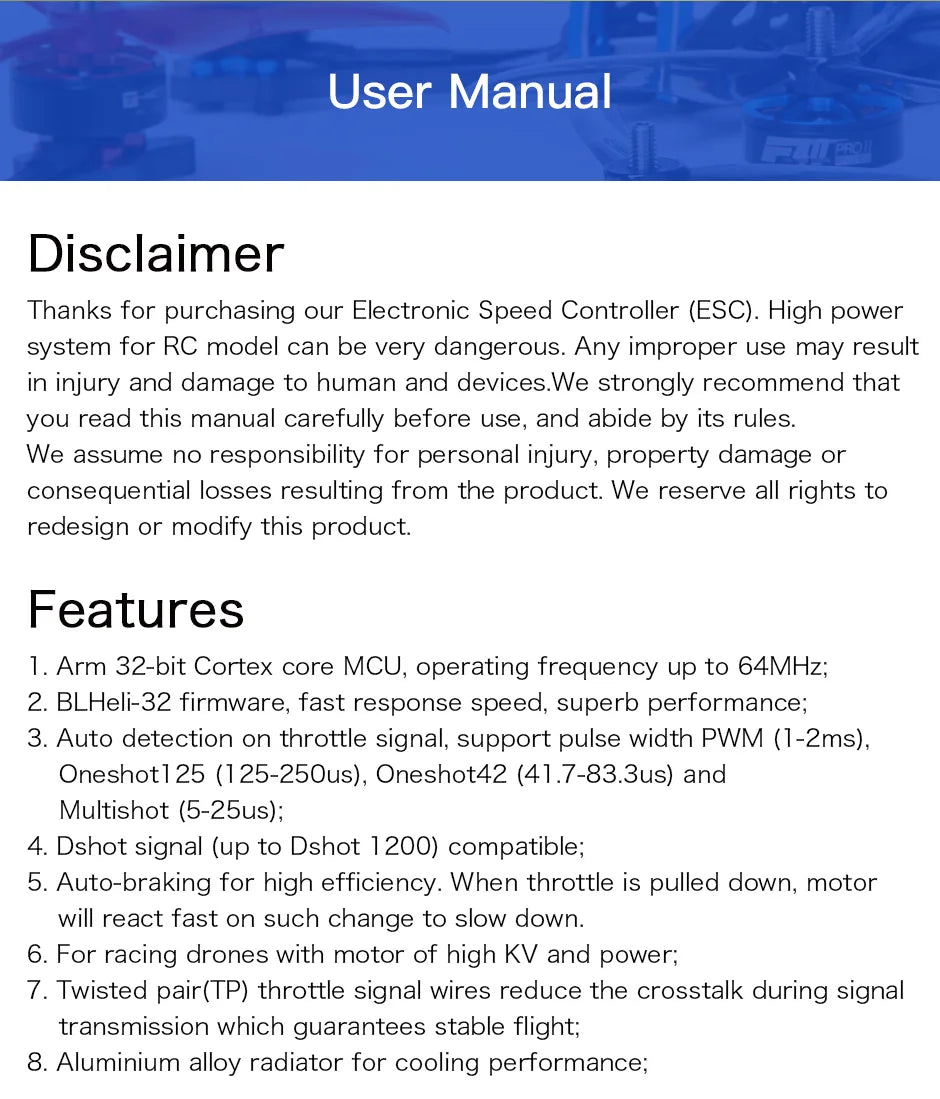

This high-performance ESC (Electronic Speed Controller) is designed for RC models and requires proper handling to ensure safe operation. Improper use can lead to injuries or damage to people and equipment. It features BLHeli-32 firmware, which enables fast response times and outstanding performance.

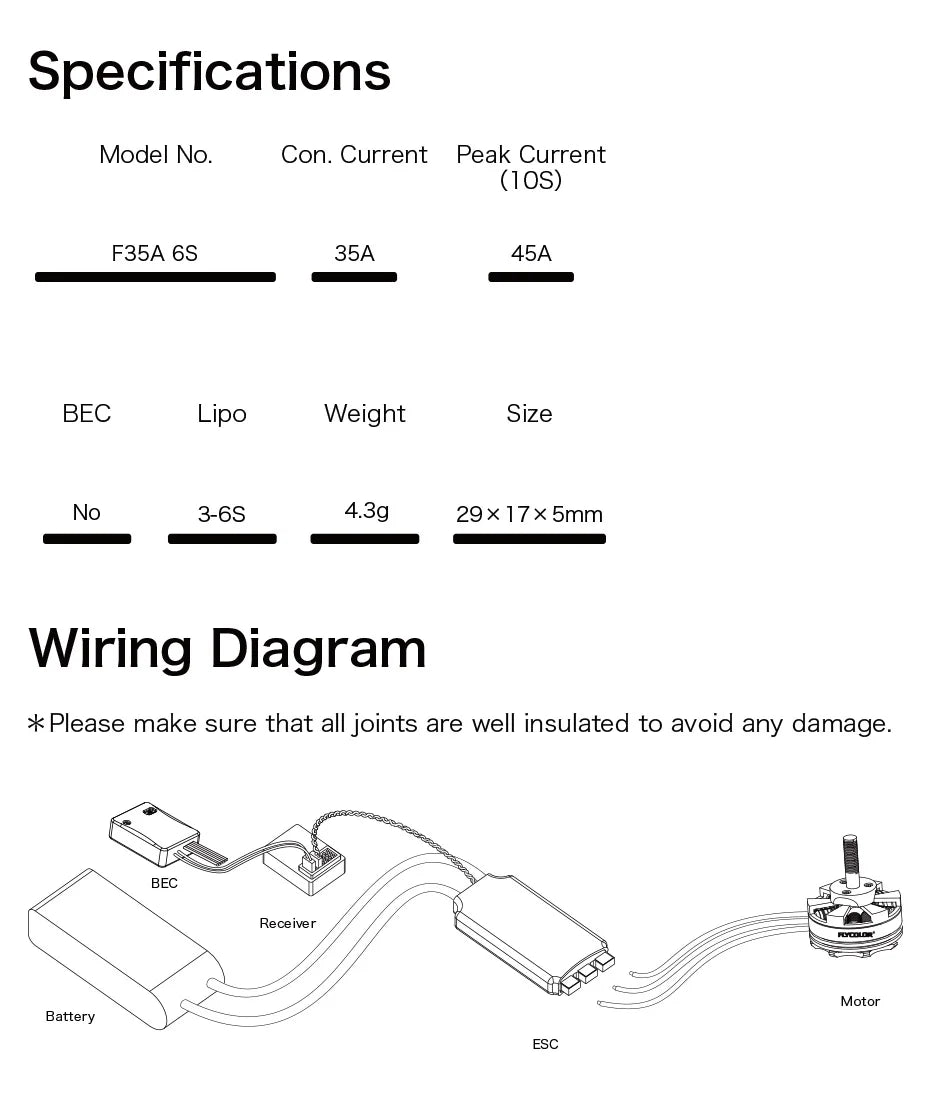

Note: The wiring diagram shows a 4.3g, 29x17x5mm configuration. Please ensure that all connections are well-insulated to prevent damage. Additionally, please note that the BEC (Battery Eliminator Circuit) receiver motor battery ESC is not included in the product price.

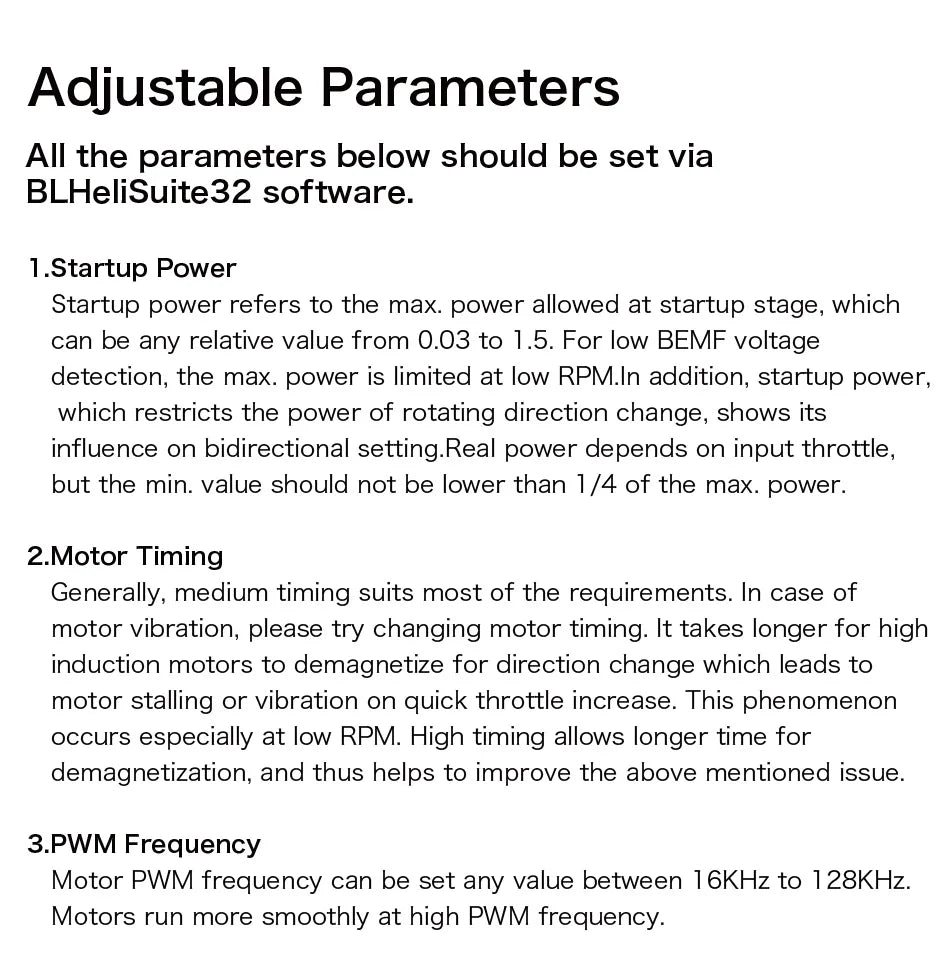

BLHeliSuite32 software enables users to customize their motor performance by adjusting various settings, including startup power, motor timing, and speed, allowing for precise control over the flight experience.

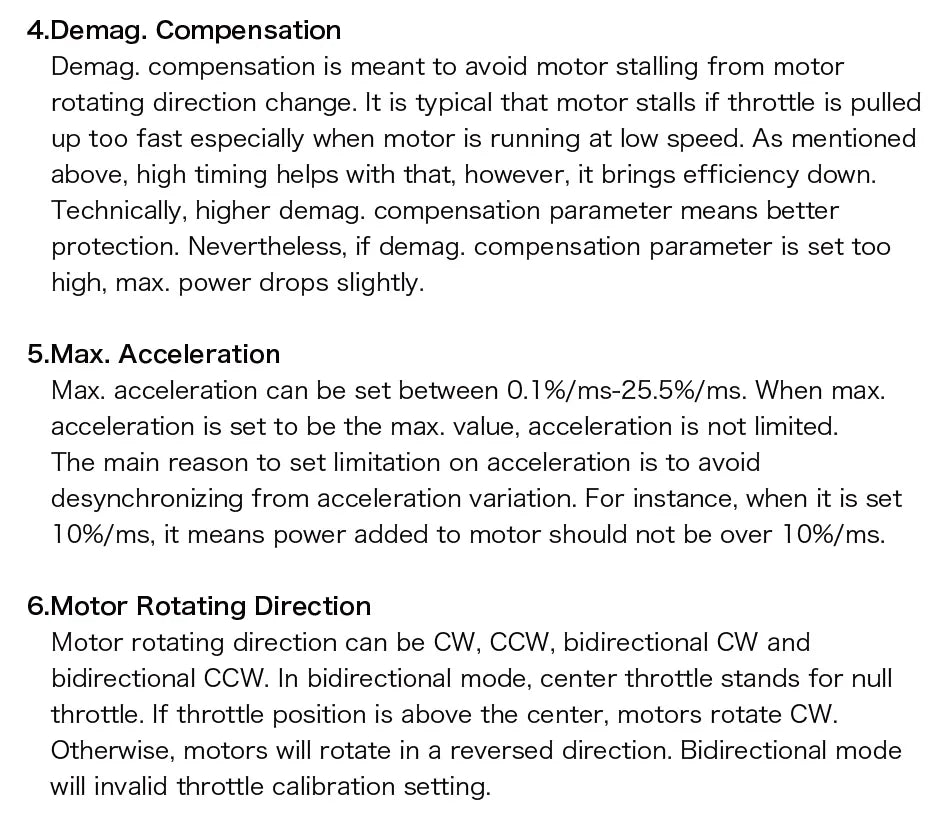

The demagnetization compensation parameter aims to prevent motor stalling caused by changes in motor rotation direction. If this parameter is set too high, the maximum power output will decrease slightly. Additionally, when the max acceleration setting is set to its highest value, there will be no acceleration limit. Furthermore, in bidirectional mode, a center throttle position corresponds to a neutral or null throttle input.

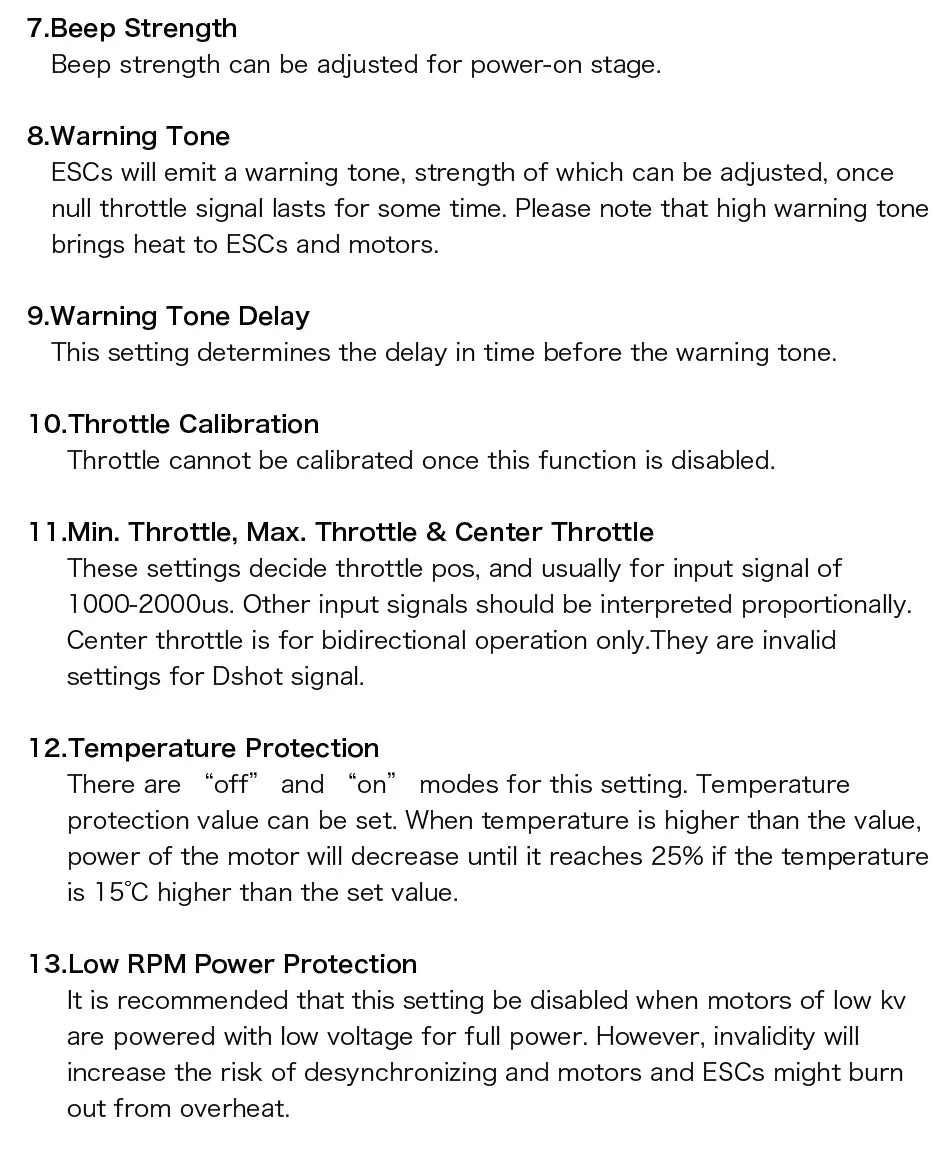

This ESC emits a warning tone that can be adjustable in terms of strength. A higher warning tone causes the motor to heat up, while the settings determine the delay in time before the warning tone is triggered.

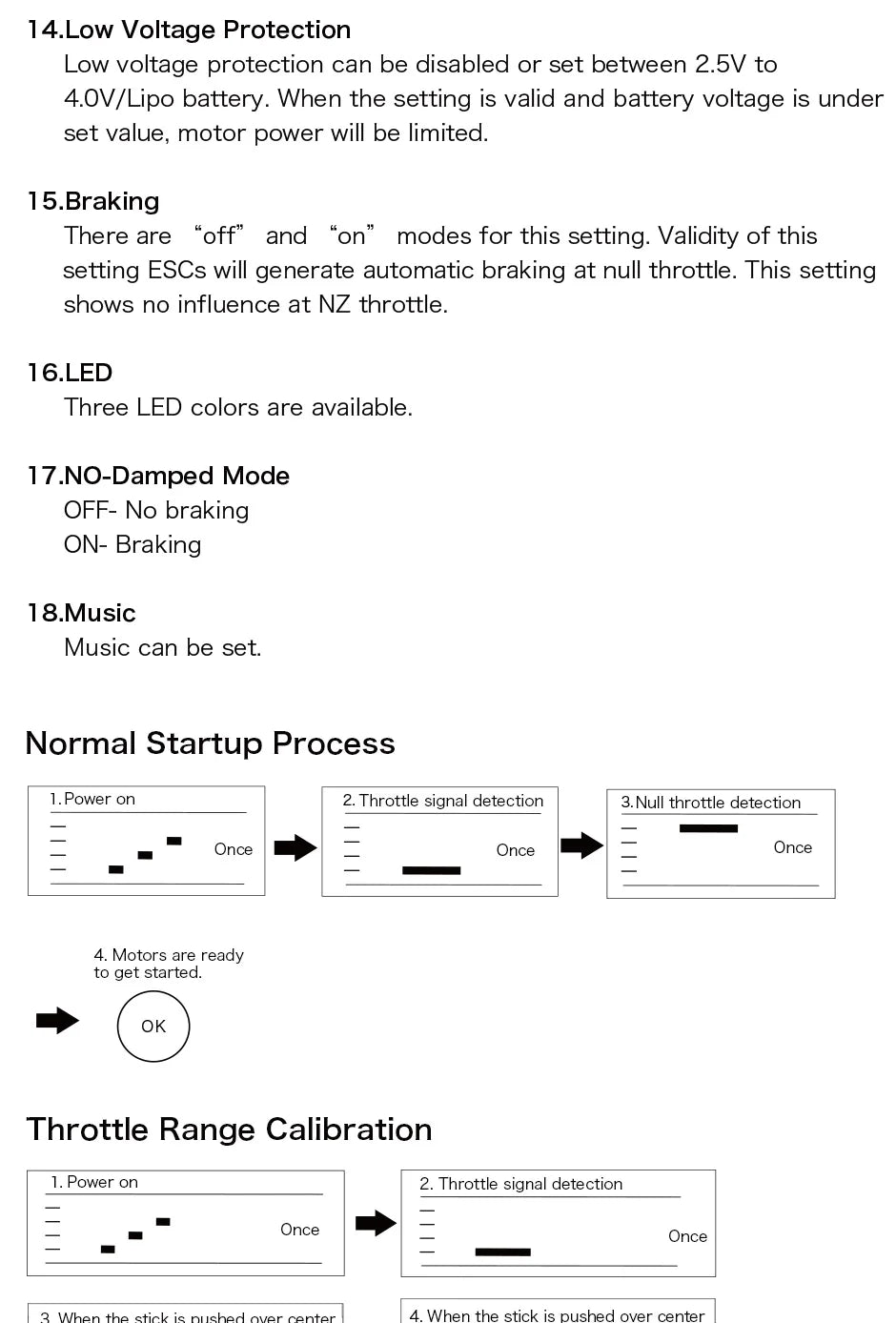

Low Voltage Protection: This feature can be enabled or disabled, with a setpoint adjustable between 2.5V to 4.0V (or LiPo battery voltage). Braking: The ESC offers two modes for this setting - 'off' and 'on'. When in 'on' mode, the ESC will automatically generate braking when the throttle is at null.

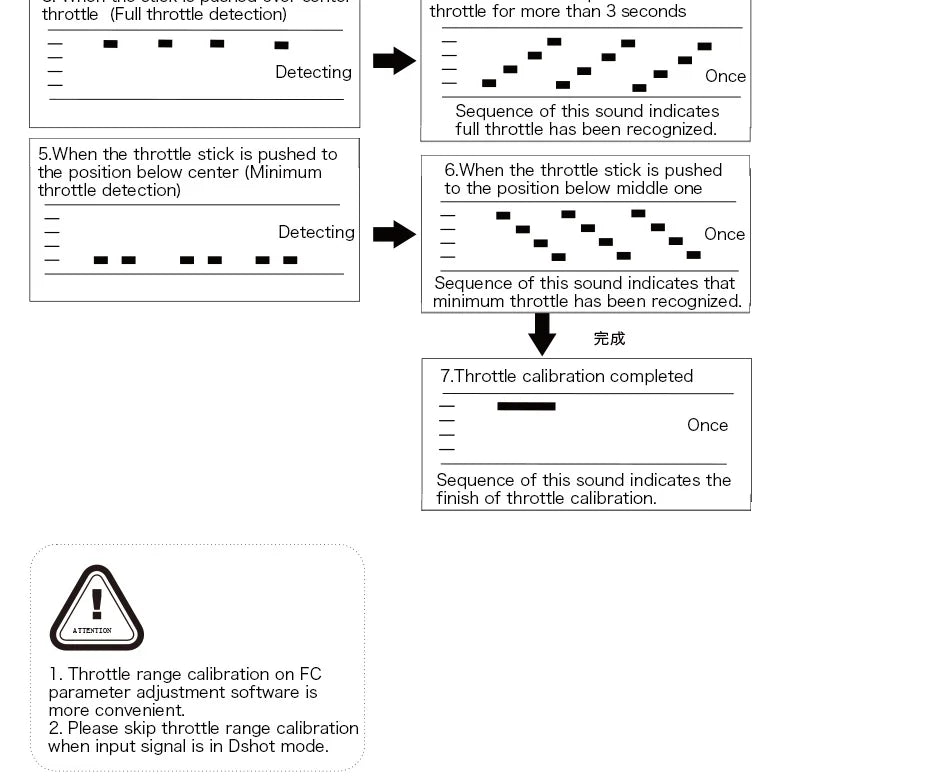

This ESC detects a specific sequence of sounds that indicates full throttle has been recognized. Additionally, when the throttle stick is moved below its neutral center position or further down to the minimum position, the ESC will also detect this movement.

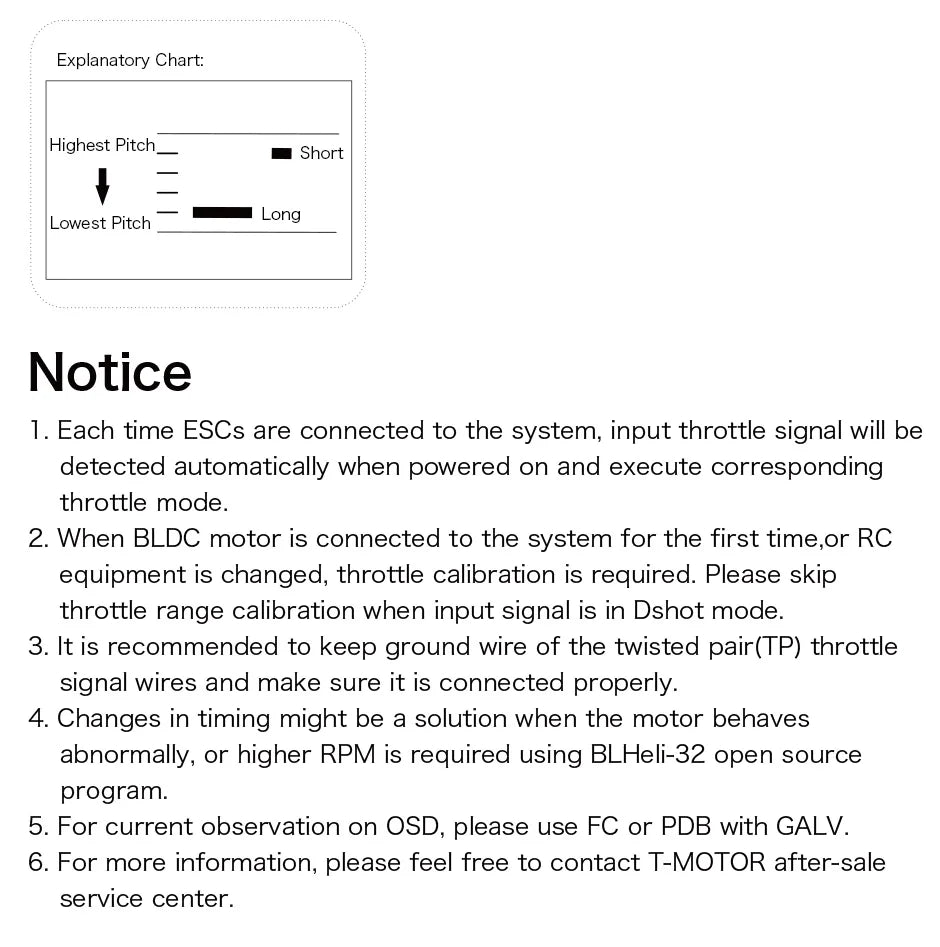

When powered on, the ESC will automatically detect the input throttle signal. It is recommended that you connect the ground wire of the twisted pair (TP) throttle signal wires.
