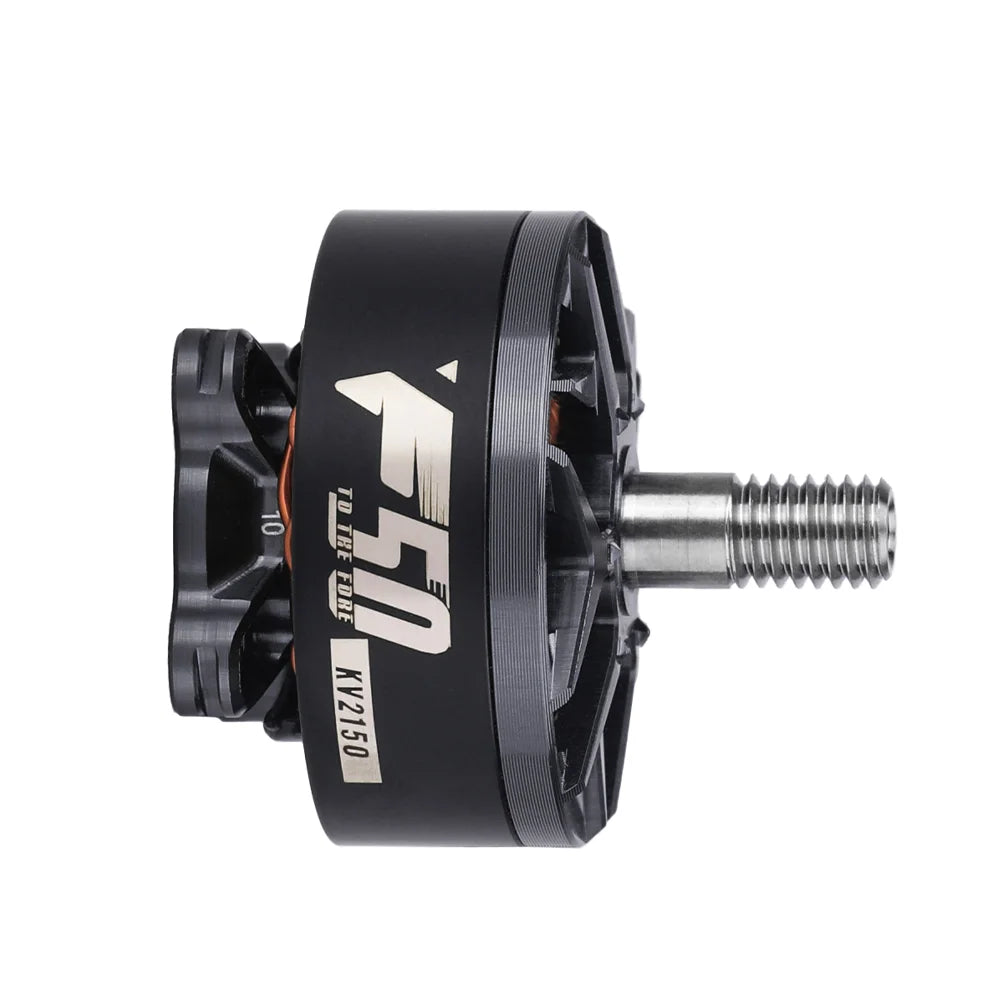

  • T-Motor brushless drone motor with black housing, threaded shaft, and KV2150 marking on the side

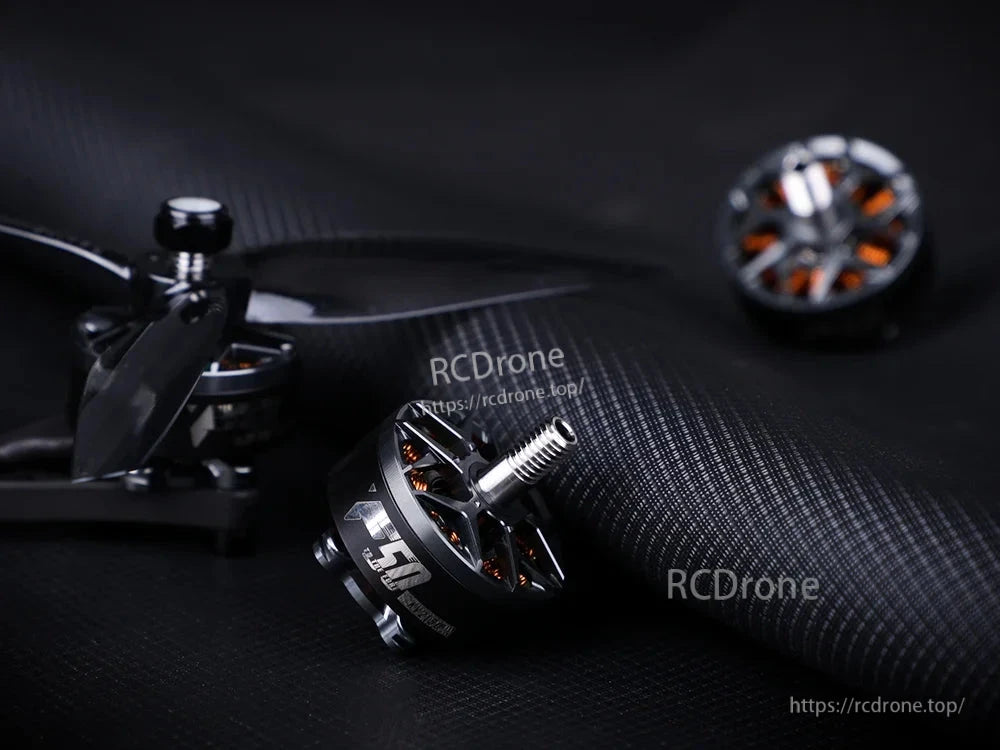

  • T-Motor style brushless drone motor with threaded shaft and exposed copper windings on a black carbon surface
  • T-Motor F50 brushless drone motor with threaded shaft, labeled KV2150 on the black can

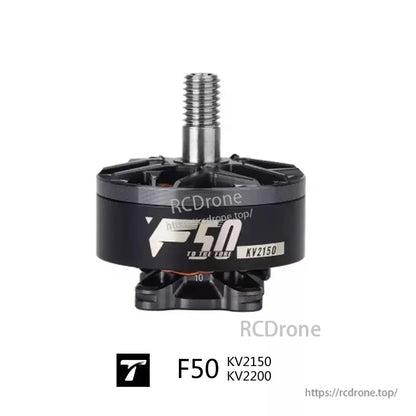

  • T-Motor F50 brushless FPV drone motor with threaded shaft, labeled F50 KV2150/KV2200 on the can
  • T-Motor F50 brushless FPV drone motor with black housing and threaded shaft for prop mounting
  • T-Motor F50 brushless drone motor with threaded shaft, labeled F50 KV2150/KV2200 on the side

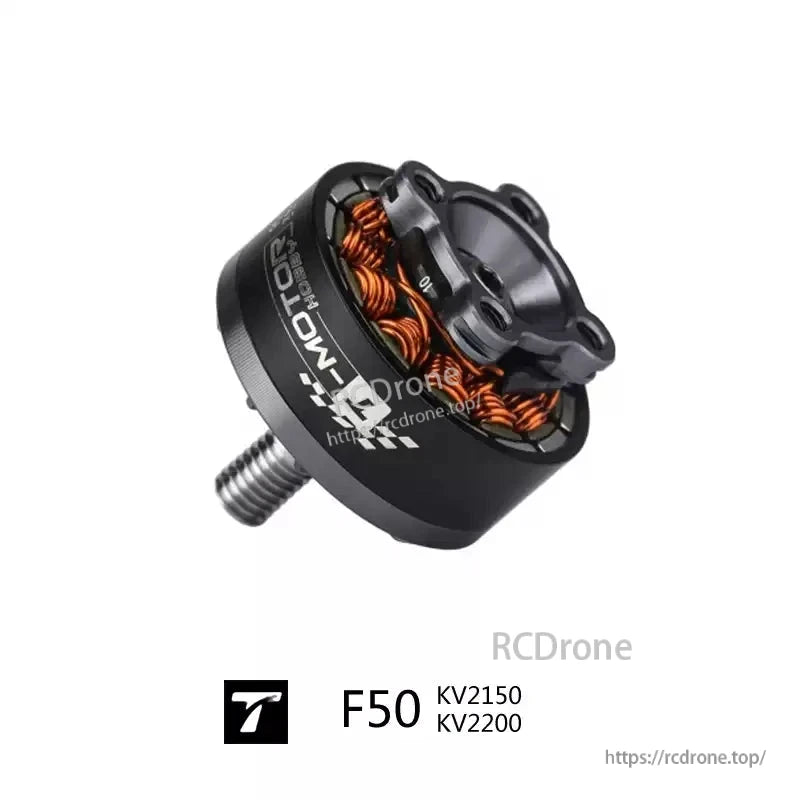

  • T-Motor F50 brushless FPV drone motor with black housing, copper windings, and threaded shaft (KV2150/KV2200)
1 8

T-Motor F50 2207 2150KV/2200KV Racing FPV Motor (product_type not specified) - 5mm Shaft, 6S 24V

T-Motor F50 2207 2150KV/2200KV Racing FPV Motor (product_type not specified) - 5mm Shaft, 6S 24V

T-MOTOR

$49.00 USD
$49.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
KV
Quantity
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The T-Motor F50 2207 2150KV/2200KV Racing FPV Motor (product_type not specified) is designed for racing drone power systems, with a lightweight motor body and published bench test data for multiple propellers.

Key Features

  • Lightweight design: weight (excl. cable) 28.56g (2150KV) / 28.36g (2200KV)
  • Superb control capability (high instantaneous torque; linear and smooth throttle response)
  • Full throttle, ample thrust (bench data includes max thrust up to 2136g)

For customer service and order support, contact support@rcdrone.top or visit https://rcdrone.top/.

Specifications

Type F50
Motor Dimension Φ27*29.5mm
Magnet Black nickel plated arc
Waterproof and dustproof class /
Dynamic balance requirements standards ≤3mg
Shaft Diameter 5mm
Screw Diameter Φ16-M3-4
Coil insulation test 300V withstand voltage test
Configuration 12N14P
Bearings Imported 684ZZ/MR84ZZ bearings
Lead 20AWG*150mm
Prop Adapter Shaft Thread M5*10.75mm
Packing Size Φ68*35.0mm
Packing Weight 55g

Technical Drawing (visible dimensions)

  • 29.5
  • 10.75
  • 6.5
  • Φ27
  • Φ16
  • 4-M3*0.5
  • M5

Tech Specs (2150KV)

KV 2150
Max Power 1273W
Rated Voltage (Lipo) 24V
Max Thrust 2136g
Idle Current(10V) ≤1.6A
Internal Resistance 50mΩ
Peak Current 54.8A
Weight (excl. cable) 28.56g

Tech Specs (2200KV)

KV 2200
Max Power 1315W
Rated Voltage (Lipo) 24V
Max Thrust 2134g
Idle Current(10V) ≤1.6A
Internal Resistance 47mΩ
Peak Current 56.63A
Weight (excl. cable) 28.36g

Recommended

Motor F50
Prop 5-inch 3-blade prop with small and medium pitch (TMHOBBY F5146)
ESC TMHOBBY F60A 8S 4IN1
FC TMHOBBY MINI F7 MPU6000
Frame Type X4
Lipo Cells 6S
Recommended takeoff weight Within 500g
Max Takeoff Weight 800g

Recommended ESC settings (as shown)

  • AM32: start power 100%, maximum timing angle, pwm frequency ≥ 32khz, kv value slightly higher than motor kv
  • BL32: start power about 40%, maximum timing angle, pwm frequency: 48-byrpm
  • Disclaimer: Desyncs is related to many factors, including FC parameters, motor usage, installation status, etc.

Test Data

Note: Motor temperature is motor surface temperature running at 80% throttle for 10 seconds. (Data above based on benchtest at T-MOTOR lab are for reference only.)

F50 2150KV - TM-HOBBY F5146

Voltage (V) Throttle (%) Current (A) RPM Thrust (g) Power (W) Efficiency (g/W) Torque (N*m) Operating Temperature (°C)
24.04 10% 0.40 5436 38 10 3.97 0.00 102
24.02 20% 1.41 10238 152 34 4.50 0.02 102
23.99 30% 3.47 14754 341 83 4.10 0.03 102
23.95 40% 6.67 18746 572 160 3.58 0.06 102
23.88 50% 10.97 22194 824 262 3.15 0.08 102
23.79 60% 17.23 25601 1120 410 2.73 0.11 102
23.68 70% 24.76 28392 1407 586 2.40 0.14 102
23.56 80% 33.12 31026 1704 780 2.19 0.17 102
23.42 90% 42.80 33213 1975 1002 1.97 0.20 102
23.28 100% 52.52 35042 2136 1222 1.75 0.22 102

F50 2150KV - HQ MCK

Voltage (V) Throttle (%) Current (A) RPM Thrust (g) Power (W) Efficiency (g/W) Torque (N*m) Operating Temperature (°C)
24.03 10% 0.38 5425 37 9 3.96 0.00 132
24.01 20% 1.39 10223 144 33 4.33 0.02 132
23.99 30% 3.38 14796 316 81 3.90 0.03 132
23.94 40% 6.51 18827 528 156 3.39 0.05 132
23.88 50% 10.70 22363 758 256 2.97 0.08 132
23.80 60% 16.71 25841 1019 398 2.56 0.11 132
23.69 70% 23.89 28707 1281 566 2.26 0.13 132
23.57 80% 32.06 31353 1531 756 2.03 0.16 132
23.44 90% 41.15 33873 1788 964 1.85 0.19 132
23.29 100% 51.16 35724 1983 1192 1.66 0.21 132

F50 2150KV - GF51377-3

Voltage (V) Throttle (%) Current (A) RPM Thrust (g) Power (W) Efficiency (g/W) Torque (N*m) Operating Temperature (°C)
24.03 10% 0.39 5294 40 9 4.29 0.00 122
24.01 20% 1.48 10018 161 35 4.55 0.02 122
23.98 30% 3.69 14490 354 89 4.00 0.04 122
23.93 40% 7.02 18241 577 168 3.43 0.06 122
23.86 50% 11.63 21673 824 277 2.97 0.09 122
23.77 60% 18.29 25020 1125 435 2.59 0.12 122
23.64 70% 26.38 27739 1448 624 2.32 0.15 122
23.52 80% 34.84 30073 1715 820 2.09 0.18 122
23.38 90% 44.49 32041 1905 1040 1.83 0.20 122
23.23 100% 54.80 33808 2100 1273 1.65 0.23 122

F50 2200KV - TM-HOBBY F5146

Voltage (V) Throttle (%) Current (A) RPM Thrust (g) Power (W) Efficiency (g/W) Torque (N*m) Operating Temperature (°C)
24.02 10% 0.39 5560 39 9 4.20 0.00 125
24.01 20% 1.45 10454 158 35 4.55 0.02 125
23.97 30% 3.57 15080 353 86 4.12 0.03 125
23.93 40% 6.99 19128 591 167 3.54 0.06 125
23.87 50% 11.48 22602 844 274 3.08 0.08 125
23.77 60% 18.05 26015 1144 429 2.67 0.11 125
23.65 70% 25.83 28811 1429 611 2.34 0.14 125
23.53 80% 34.76 31153 1695 818 2.07 0.17 125
23.39 90% 44.82 33585 1997 1048 1.91 0.20 125
23.26 100% 54.19 35287 2134 1260 1.69 0.22 125

F50 2200KV - HQ MCK

Voltage (V) Throttle (%) Current (A) RPM Thrust (g) Power (W) Efficiency (g/W) Torque (N*m) Operating Temperature (°C)
24.02 10% 0.40 5546 38 10 3.97 0.00 152
24.01 20% 1.46 10475 151 35 4.33 0.02 152
23.98 30% 3.54 15107 330 85 3.89 0.03 152
23.93 40% 6.86 19223 547 164 3.33 0.06 152
23.87 50% 11.23 22759 776 268 2.90 0.08 152
23.78 60% 17.52 26243 1042 416 2.50 0.11 152
23.67 70% 24.92 29098 1293 590 2.19 0.13 152
23.55 80% 33.38 31746 1548 786 1.97 0.16 152
23.41 90% 42.92 34228 1804 1005 1.80 0.19 152
23.27 100% 53.11 36000 1995 1236 1.61 0.21 152

F50 2200KV - GF51377-3

Voltage (V) Throttle (%) Current (A) RPM Thrust (g) Power (W) Efficiency (g/W) Torque (N*m) Operating Temperature (°C)
24.01 10% 0.47 5390 42 11 3.69 0.01 145
23.99 20% 1.72 10159 165 41 3.99 0.02 145
23.96 30% 4.03 14725 362 97 3.74 0.04 145
23.91 40% 7.53 18552 589 180 3.27 0.06 145
23.84 50% 12.46 21944 841 297 2.83 0.09 145
23.74 60% 19.45 25290 1145 462 2.48 0.12 145
23.62 70% 27.84 28013 1459 657 2.22 0.15 145
23.50 80% 36.50 30424 1708 858 1.99 0.18 145
23.36 90% 46.20 32492 1928 1079 1.79 0.20 145
23.21 100% 56.63 34082 2096 1315 1.59 0.23 145

Motor Analysis Chart (labels shown)

  • F50 2150KV TM-HOBBY F5146
  • F50 2150KV HQ MCK
  • F50 2150KV GF51377-3
  • F50 2200KV TM-HOBBY F5146
  • F50 2200KV HQ MCK
  • F50 2200KV GF51377-3

What’s Included

  • Motor*1
  • Parts Bag*1

Please check that your package contains all the above items before use. If something is missing, please contact online customer service or leave message to onlinesales@tmotor.com.

Applications

  • 5-inch 3-blade prop setups with small and medium pitch (TMHOBBY F5146)
  • X4 frame type builds
  • 6S builds (Rated Voltage (Lipo): 24V)

Details

T-Motor F50 brushless FPV drone motor close-up, highlighting lightweight 28.56 g design (excluding cables).

The T-Motor F50 motor is listed at 28.56 g per motor (excluding cables) for a lightweight racing drone build.

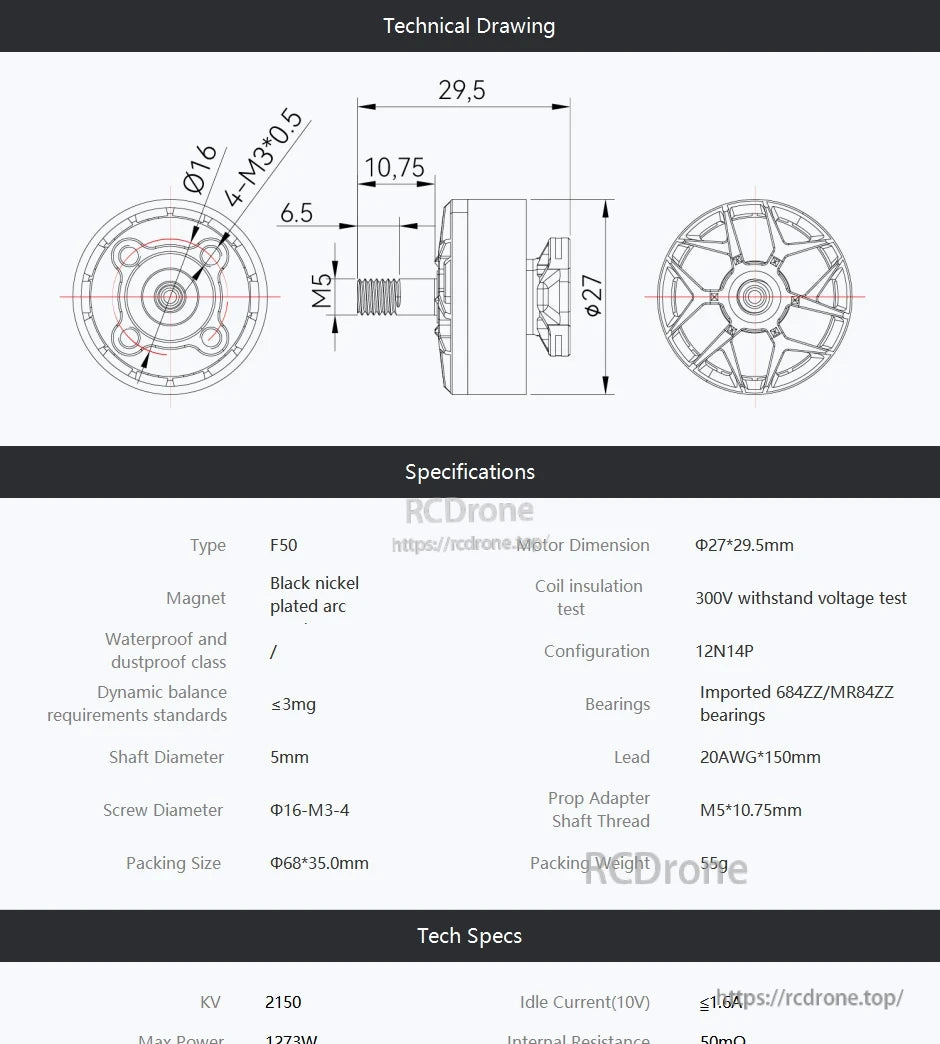

T-Motor F50 motor technical drawing and specs showing 27×29.5 mm size, 5 mm shaft, and M3/M5 mounting details

T-Motor F50 dimensions and mounting details include a 27×29.5 mm body, 5 mm shaft, and 4×M3 screw pattern with an M5 prop adapter thread.

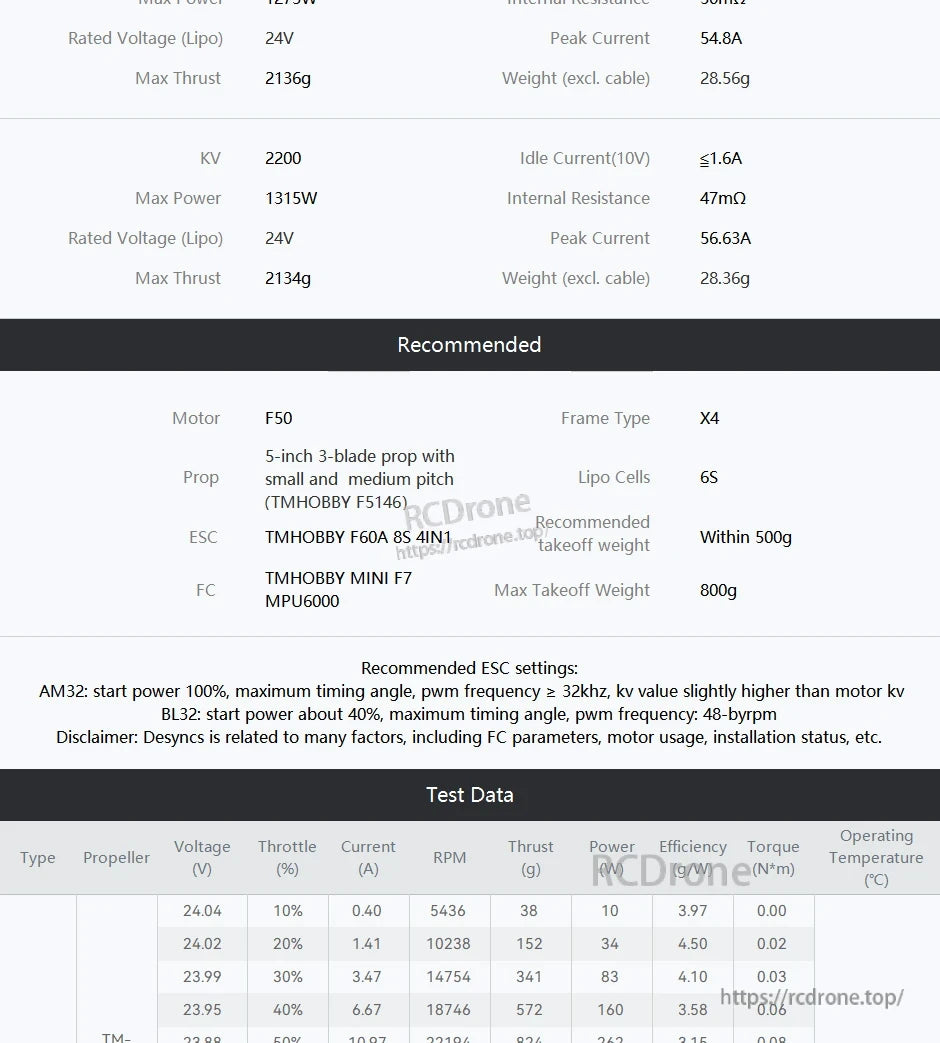

T-Motor F50 2200KV motor test data and recommended setup table for 6S 24V, showing thrust, power, and current

The table lists recommended components for the F50 2200KV motor (5-inch 3-blade prop, 6S) along with key specs like max thrust around 2134g and peak current up to 56.63A.

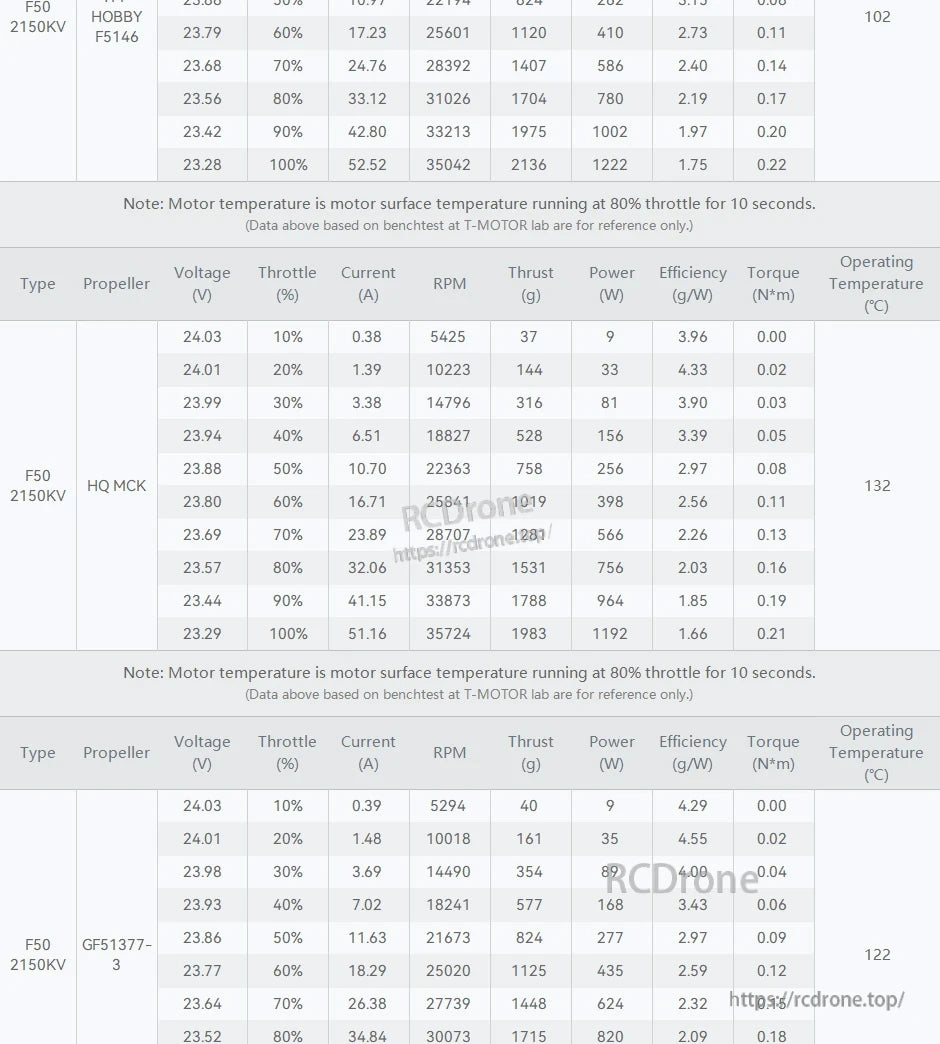

T-Motor F50 2150KV motor test table showing voltage, throttle, current, RPM, thrust, power, efficiency and temperature

T-Motor F50 2150KV bench data lists voltage, throttle, current, RPM, thrust, power, efficiency, torque, and operating temperature across propeller setups.

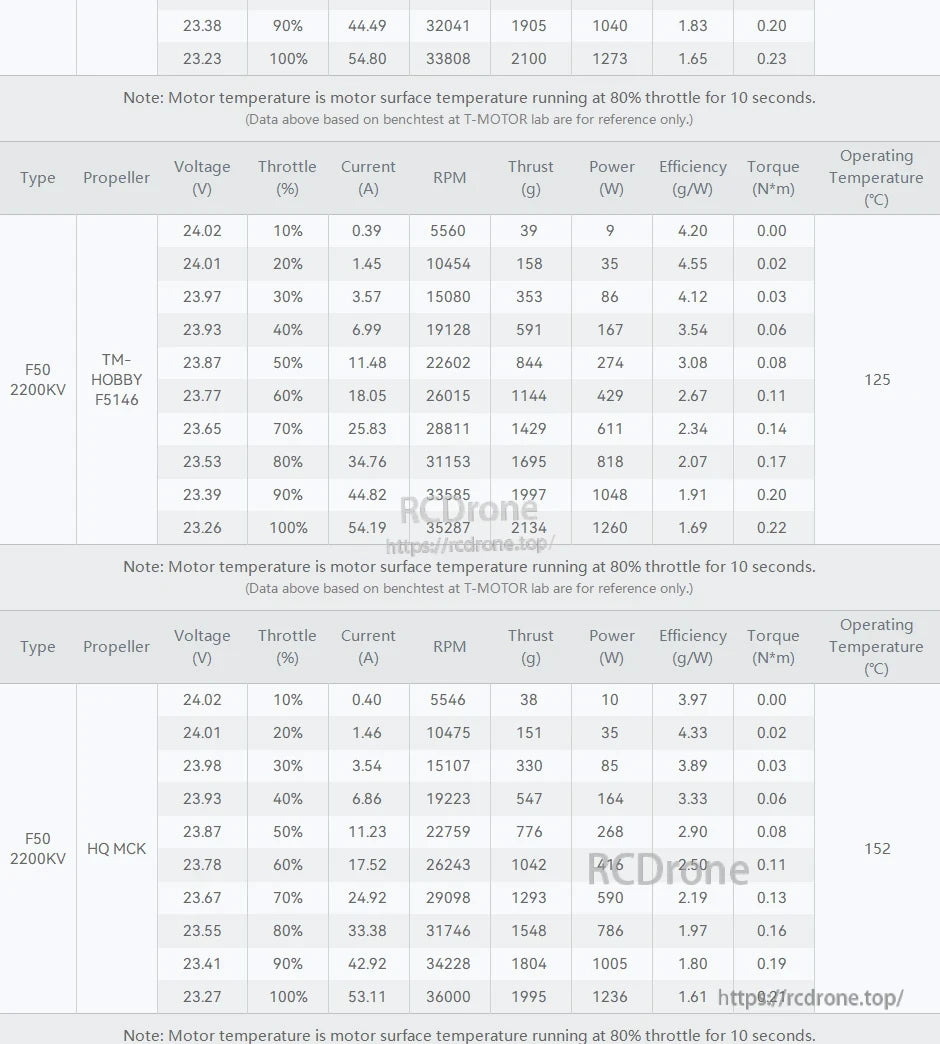

T-Motor F50 2200KV bench test table showing voltage, throttle, current, RPM, thrust, power, efficiency and temperature

T-Motor F50 2200KV performance tables list voltage, throttle percentage, current, RPM, thrust, power, efficiency, torque, and operating temperature by propeller.

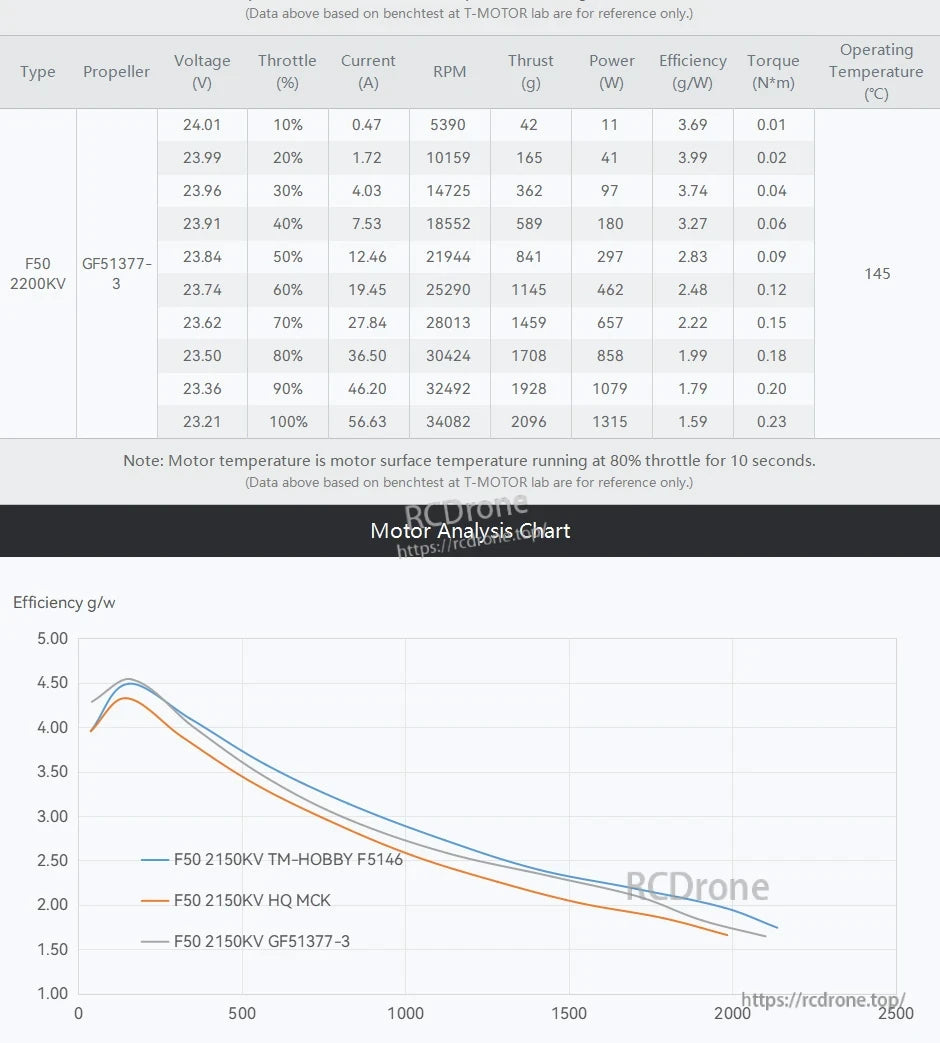

T-Motor F50 motor bench test table and efficiency chart showing thrust, RPM, power and g/W across throttle levels

T-Motor F50 bench data summarizes voltage, current, RPM, thrust, power, efficiency, and torque across throttle with different prop options.

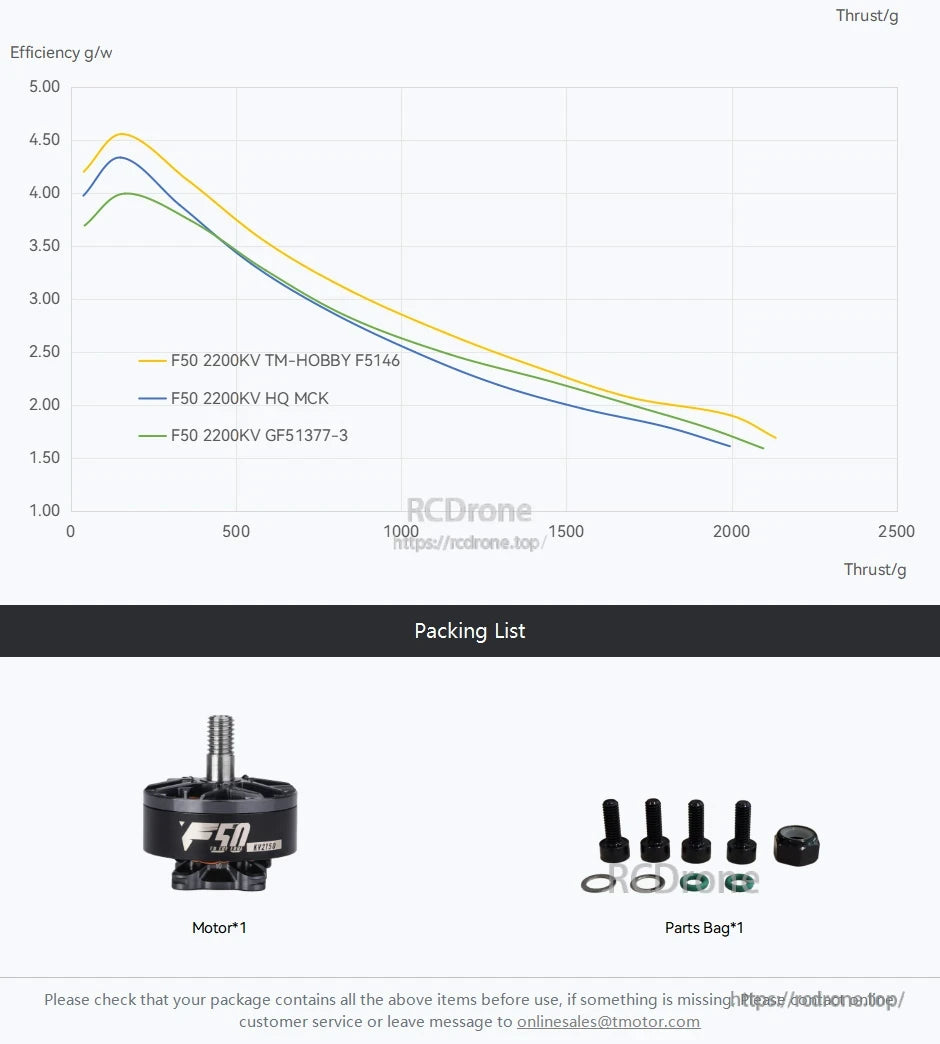

T-Motor F50 2200KV efficiency vs thrust chart with packing list showing one motor and screws, washers, and nut

The package includes one F50 motor with a parts bag of mounting screws, washers, and a nut, plus an efficiency-vs-thrust reference chart for prop comparisons.
