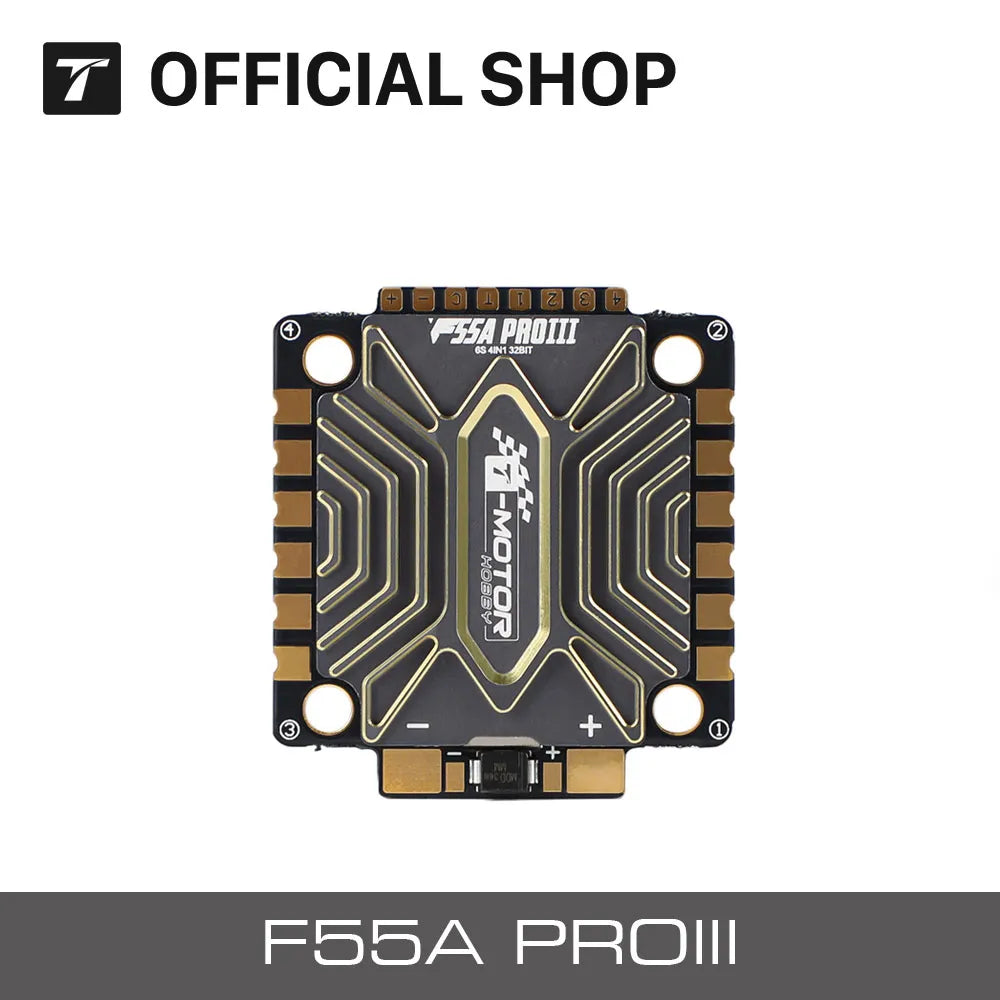

T-MOTOR F55APROIII F55A PROIII 4IN1 ESC SPECIFICATIONS
Brand Name: T-MOTOR
Origin: Mainland China
Material: Metal
Recommend Age: 14+y
Use: Vehicles & Remote Control Toys
SUPPORT WIDE PWM FREQUENCY 16-128KHZ LLY KHZ AUTOMATICALLY ADJUST AcCORDING TO THE MOTOR KV I

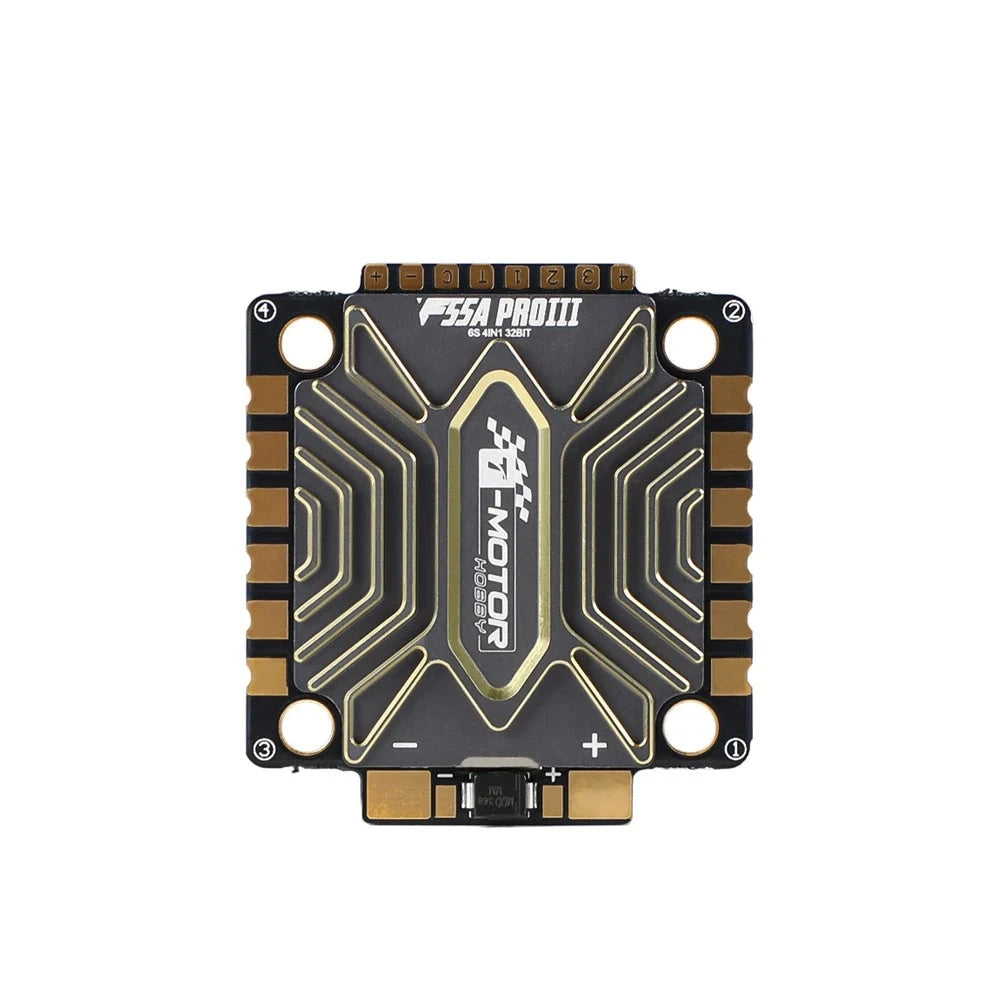

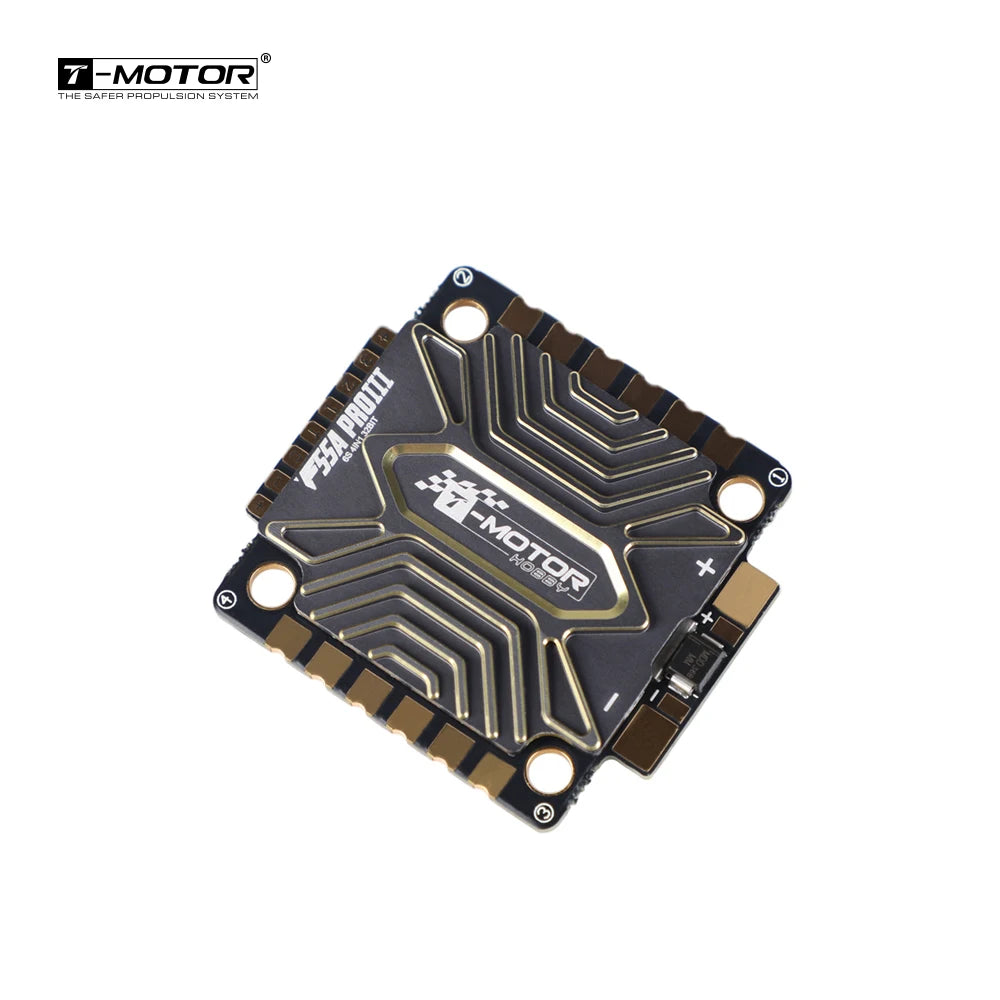

Features a special new heat sink design that effectively conducts excess heat away from the ESC, ensuring optimal temperature regulation.

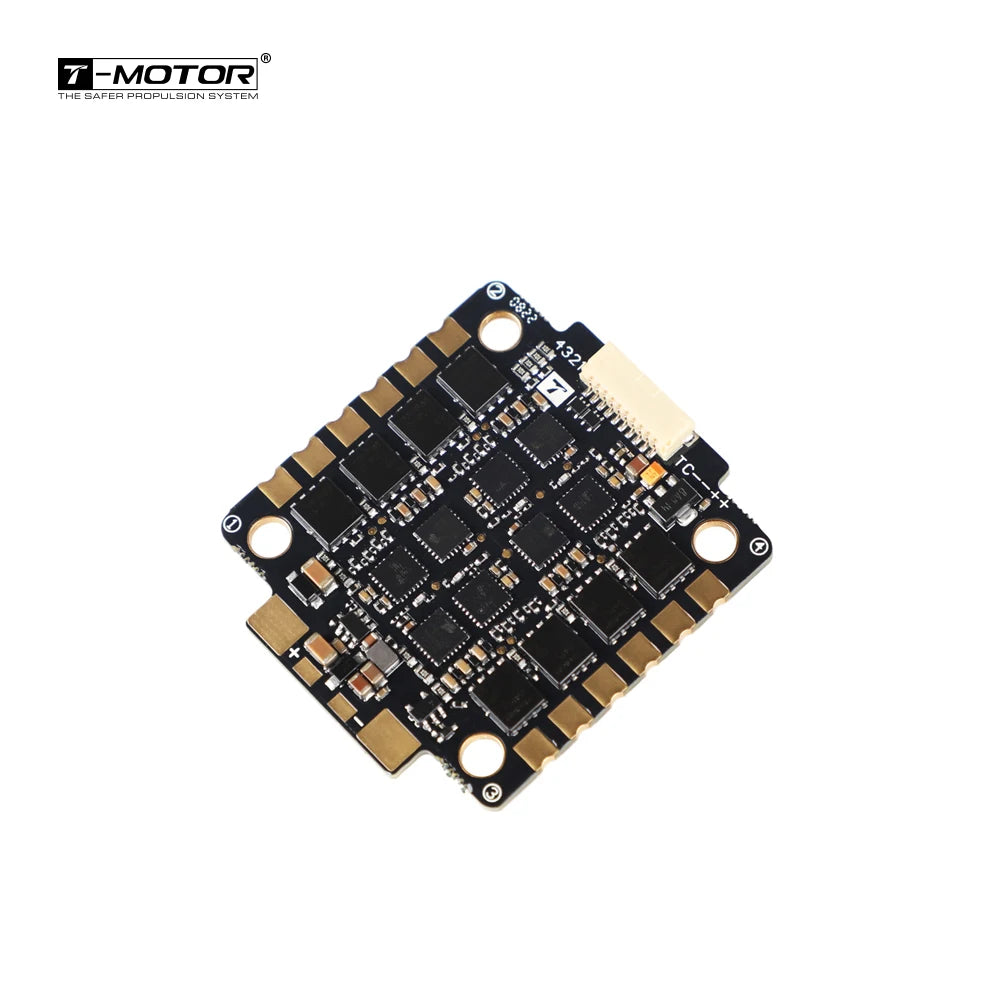

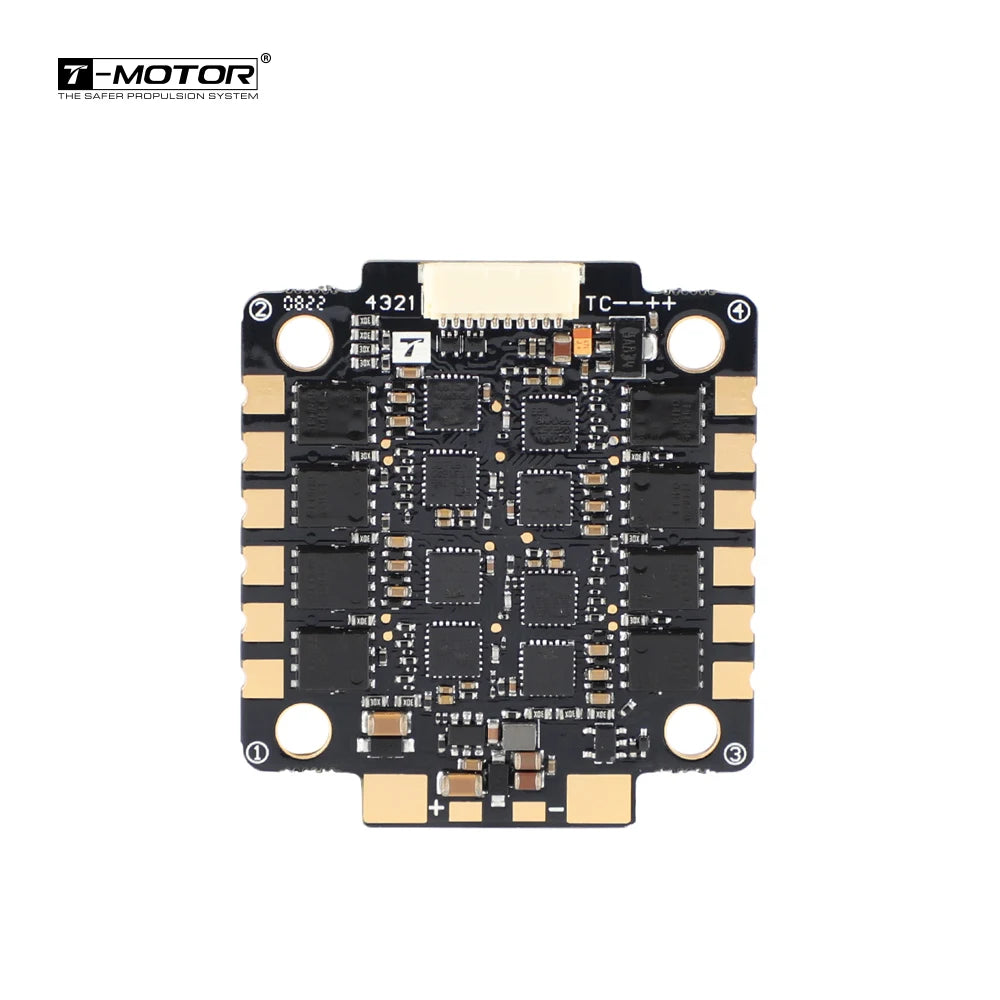

This product, T-MOTOR F55APROIII 4IN1 ESC, features a specification set that includes: * Voltage range: 35V (compatible with 8S LiPo batteries) * Current rating: up to 55A continuous, with peak current of 65A (up to 10 seconds) * Firmware: BLHELI 32 * Telemetry capabilities for monitoring and tracking performance data * No built-in battery eliminator circuit (BEC) available * Mounting hole size: 30.5mm x 30.5mm with M3 screw compatibility * Physical dimensions: 44mm x 40mm x 7mm in size * Amperage meter reading up to 200A * Weight: approximately 17.8 grams
Accessories: Includes a 61mm double-ended silicone cable (SH1.0-10OP), which is compatible with F7 and F7 HD FC units, as well as single-head SH1.0-10OP options. Additionally, this package contains one capacitor and four high-yield shock-absorbing washers in yellow color.
