T-Motor F7 PRO Flight Controller 30.5x30.5mm 30x30 with WiFi Bluetooth, DJI Air Unit Plug & Play

Overview

The T-Motor F7 PRO is a flight controller for FPV drones, designed for cinematic use and wireless configuration via built-in WiFi and Bluetooth. It uses a 30.5 x 30.5 mounting pattern and is shown as compatible with the DJI FPV Air Unit for plug-and-play wiring.

Key Features

• Built-in WiFi & Bluetooth for wireless access to firmware configuration and parameters (via smartphone)
• Wireless firmware flashing (promotional material states firmware upgrade can be completed in about 2 minutes when connected with WiFi)
• Wireless PID fine-tuning, motor direction adjustment, and Blackbox data checking (as shown)
• Wireless motor direction setting for BLHeli_32/BLHeli_S (as shown)
• Maximum of 8 PWM outputs (supports builds such as X8 cine-lifter configurations)
• Supports Betaflight & INAV
• SpeedyBee app compatibility (SpeedyBee APP download is shown)
• Supports barometer (as shown)
• VTX remote function and VTX switch jumper (VTX 10V power supply on/off control is shown)
• Blackbox data: wireless checking and online analysis support for Dronesitter (activation code mentioned in promotional material)
• Supports analog VTX and direct plug to DJI Air Unit; provides independent 10V BEC power supply (as shown)

Customer service: support@rcdrone.top (also available at https://rcdrone.top/).

Applications

• FPV cinematic drone builds requiring wireless configuration and tuning
• Builds needing up to 8 PWM outputs (e.g., X8 cine-lifter setups as shown)
• Betaflight or INAV flight controller setups with GPS, receiver, VTX, and ESC telemetry connections

Details

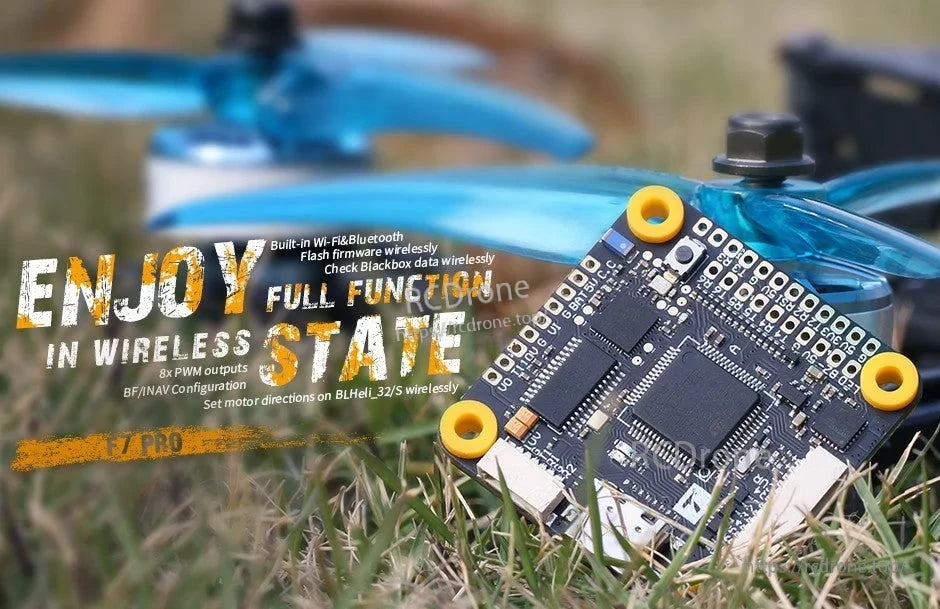

The T-Motor F7 PRO flight controller includes built-in Wi‑Fi and Bluetooth for wireless firmware flashing and Blackbox access.

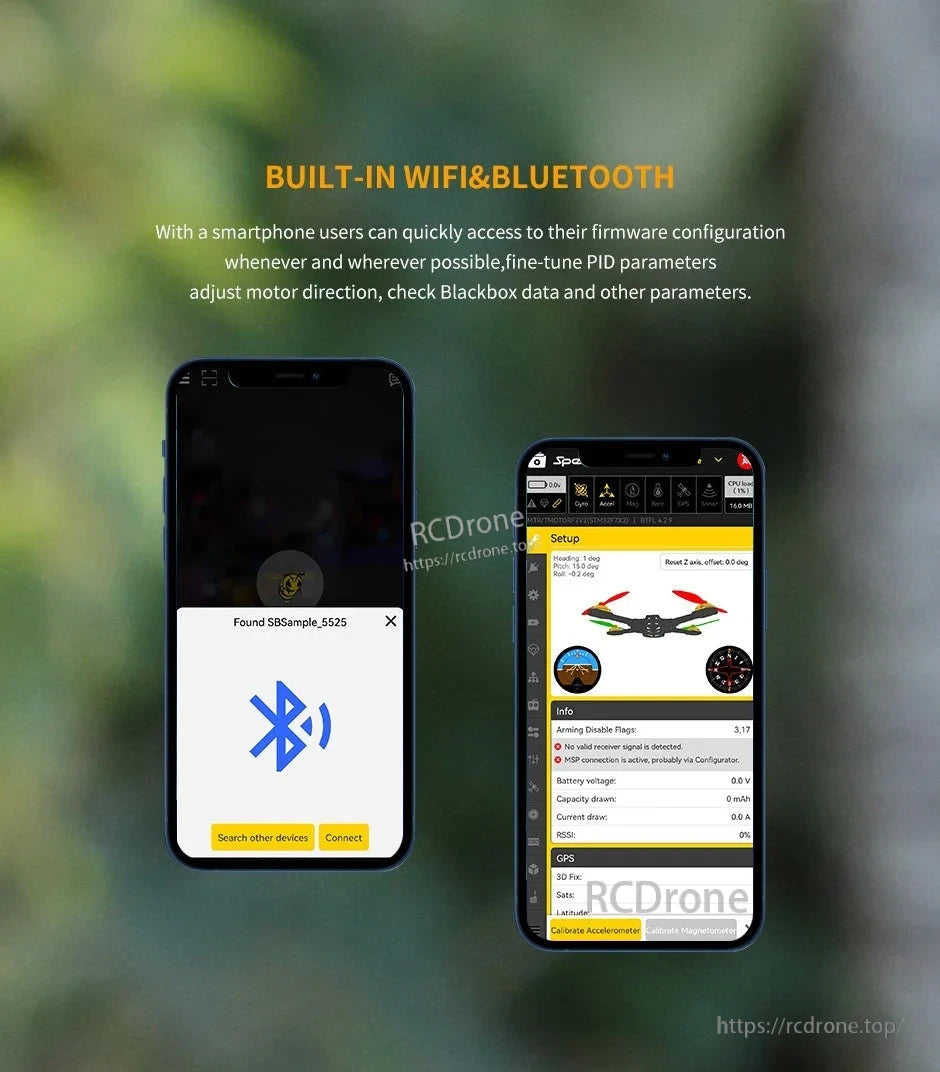

Built-in WiFi and Bluetooth let you connect a smartphone to access firmware configuration and tune settings more quickly.

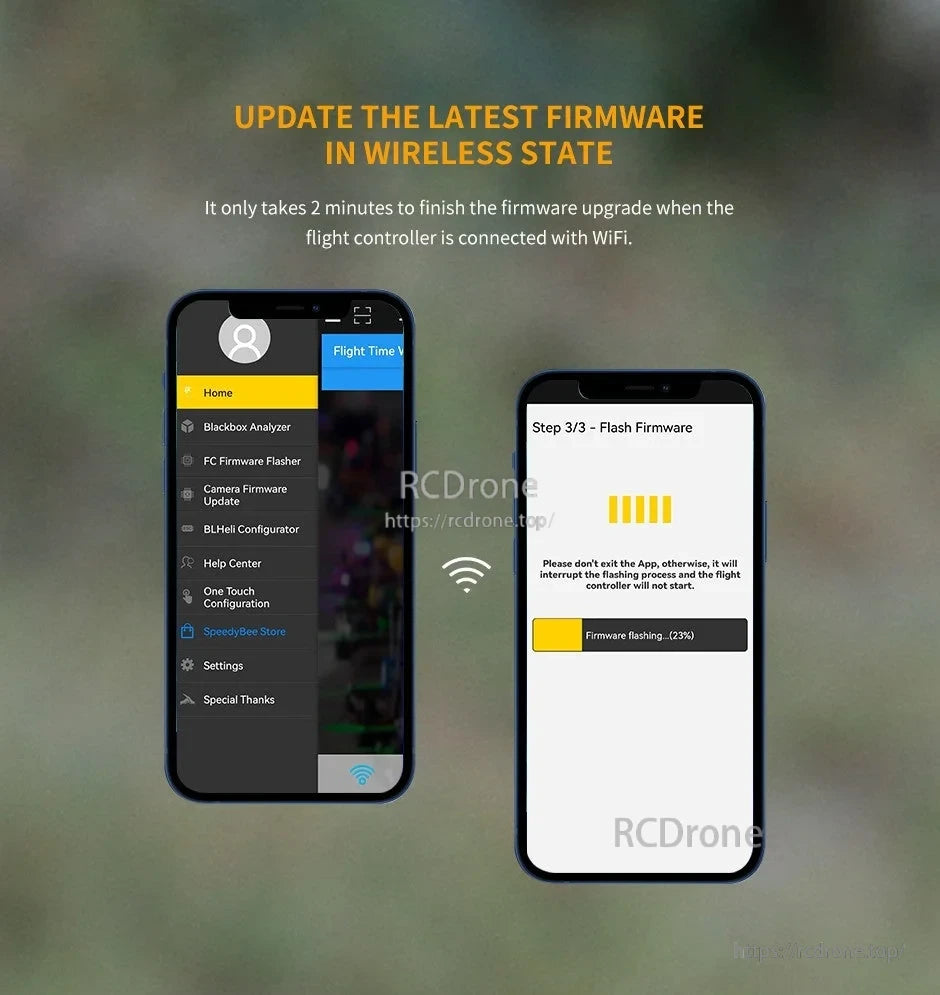

WiFi connectivity lets the flight controller update firmware wirelessly through a mobile app without plugging into a PC.

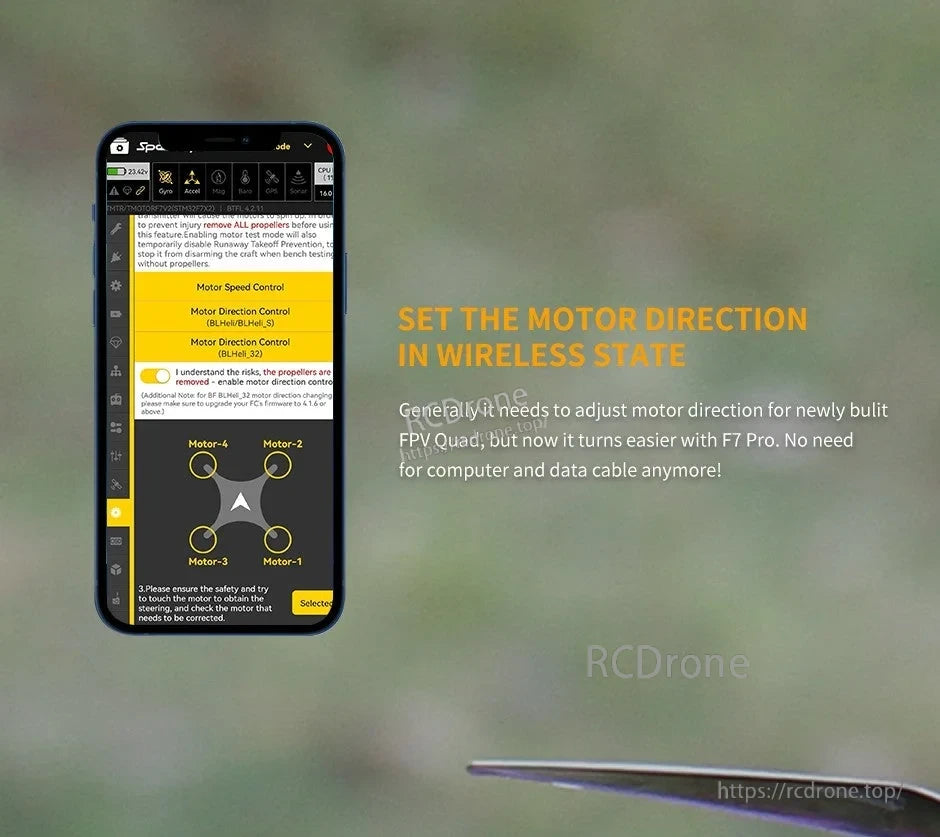

T-Motor F7 Pro supports wireless motor direction changes from a phone app, reducing the need for a computer and USB cable during setup.

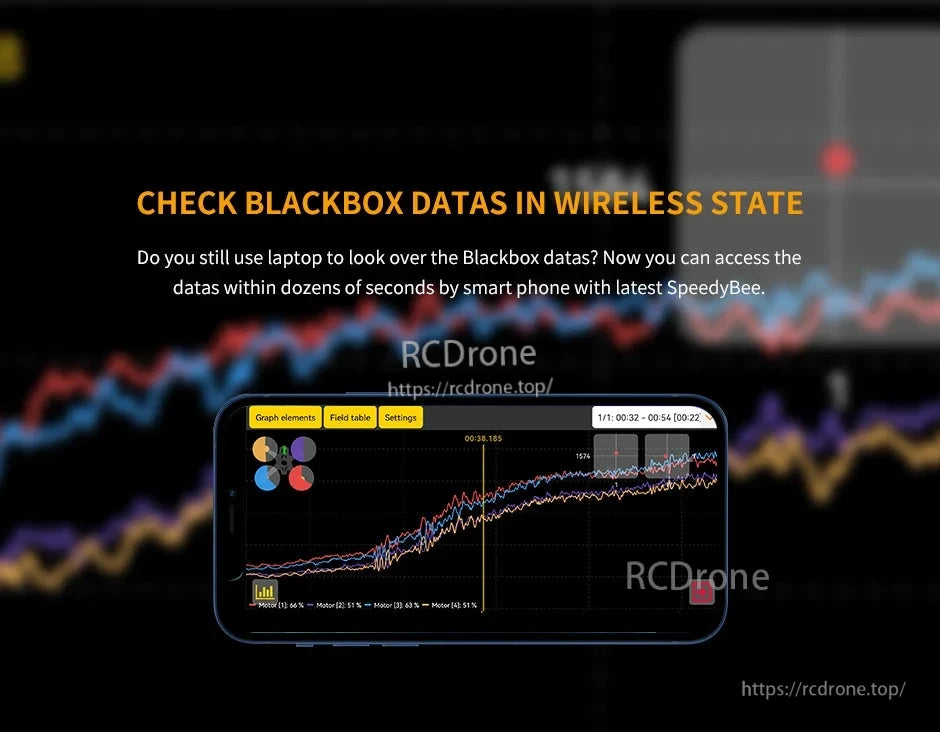

Built-in wireless support lets you access Blackbox logs on a smartphone through the SpeedyBee app for quick tuning and troubleshooting.

Online blackbox analysis can be unlocked using the included activation code for noise analysis and step response analysis via Dronesitter.

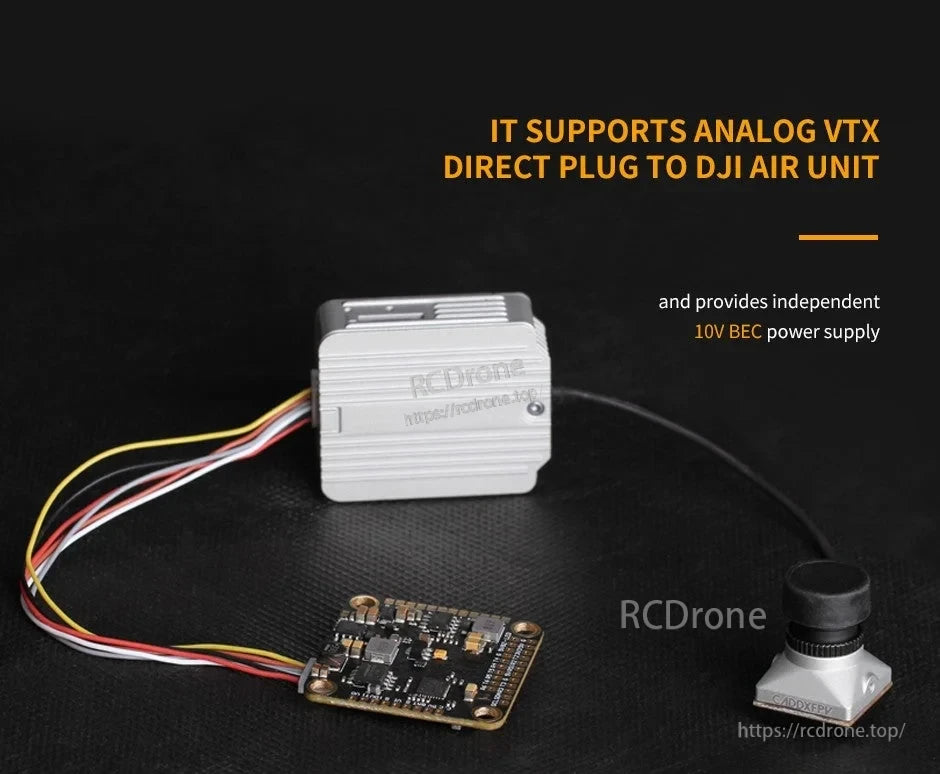

The F7 PRO flight controller supports analog VTX wiring, a direct plug connection to the DJI Air Unit, and an independent 10V BEC power supply.

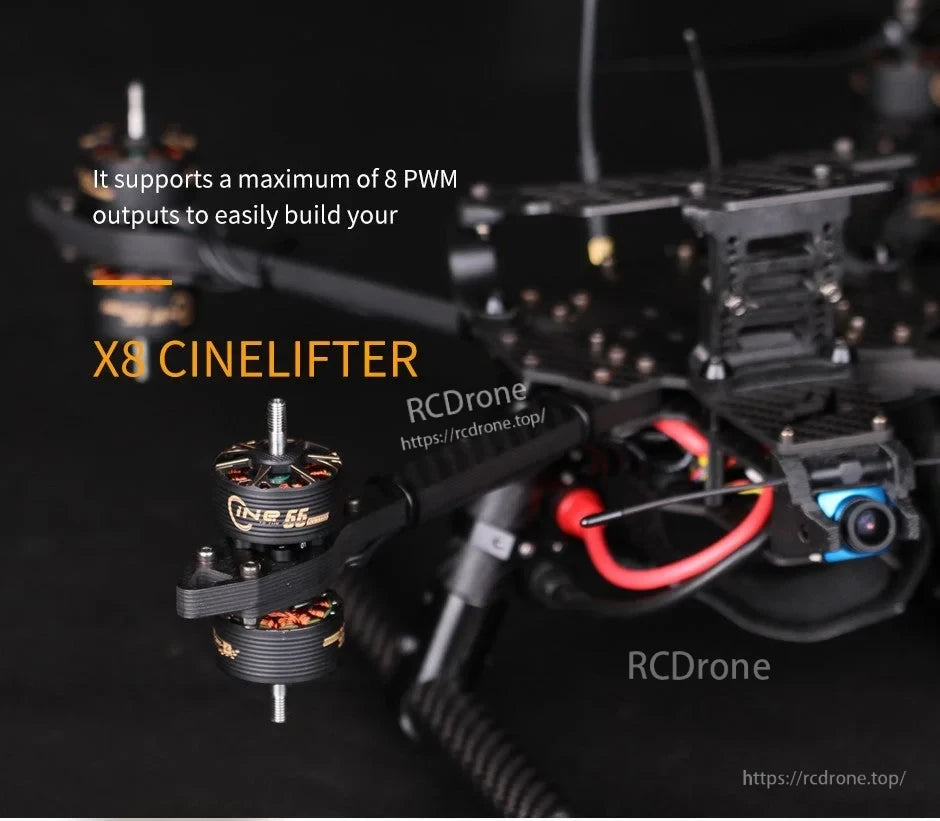

The F7 PRO flight controller supports up to 8 PWM outputs for flexible X8 cinelifter and multirotor builds.

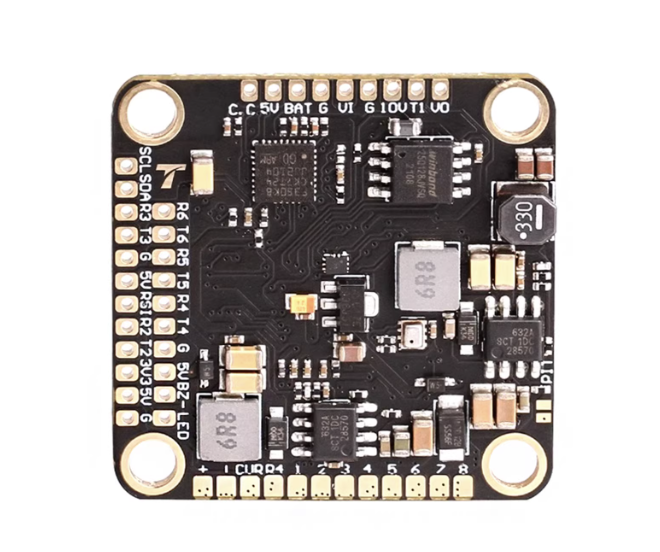

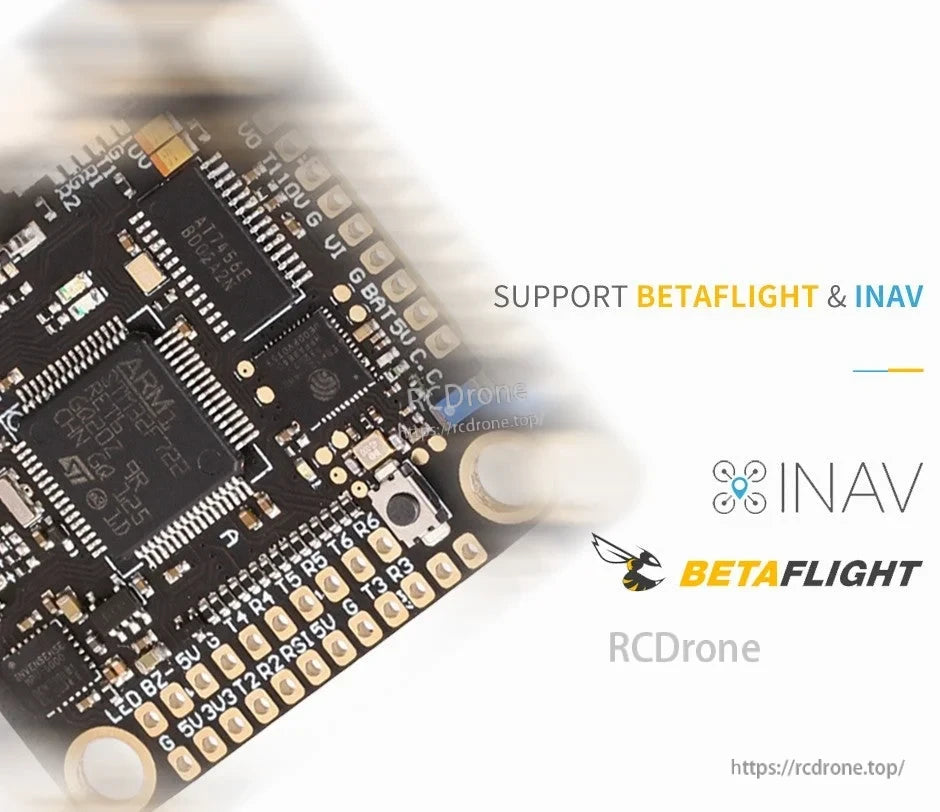

The T-Motor F7 PRO flight controller is labeled to support Betaflight and iNav, with clearly marked solder pads for wiring.

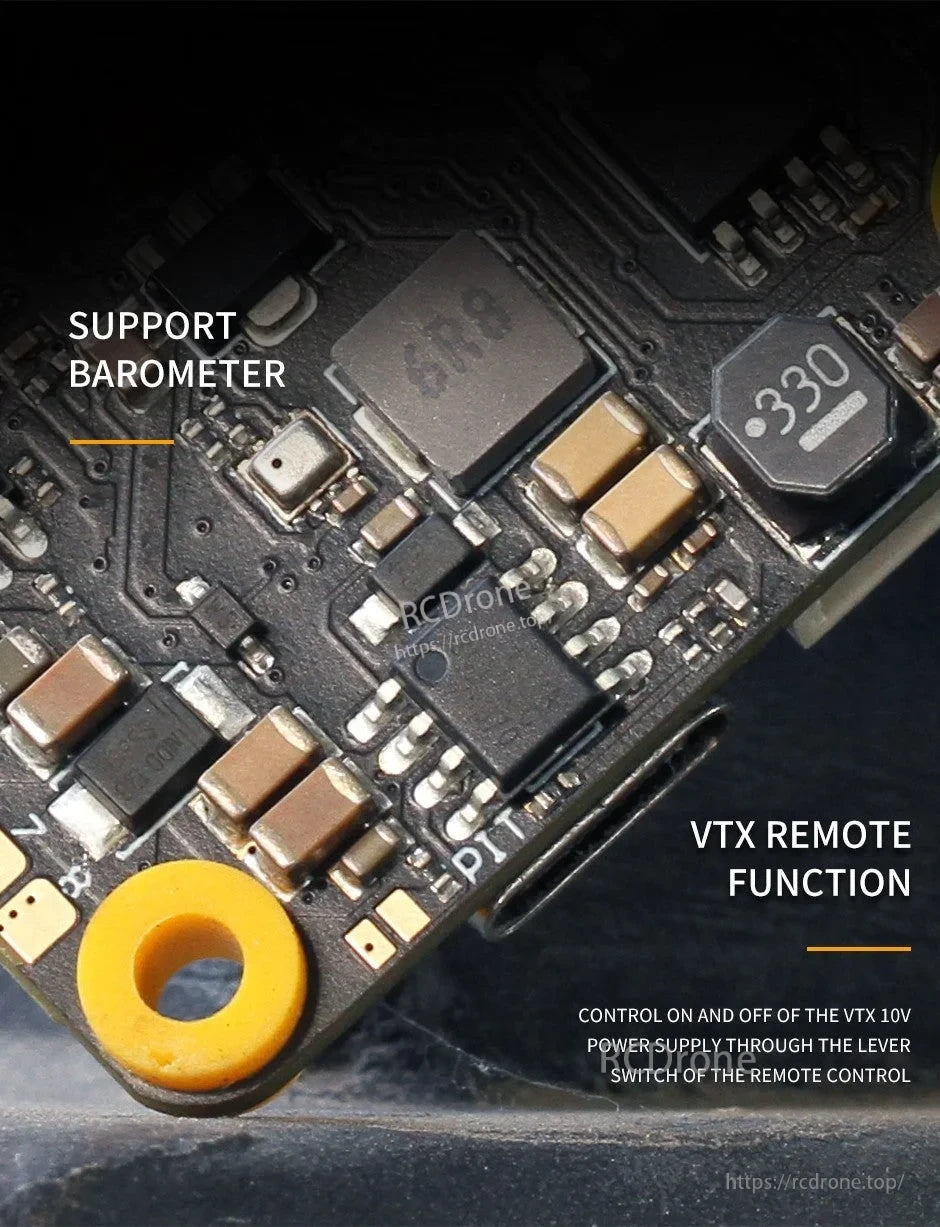

The T-Motor F7 PRO flight controller includes barometer support and a VTX remote function for simplified FPV power control.

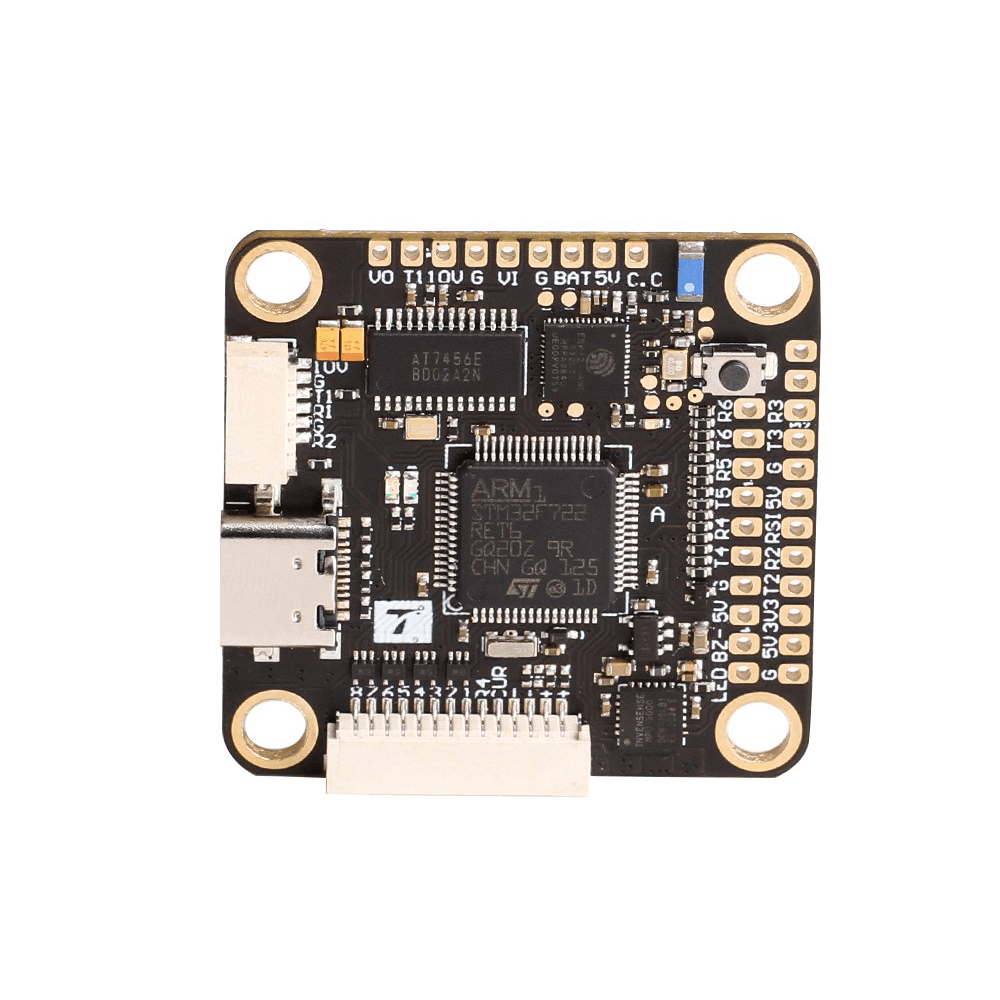

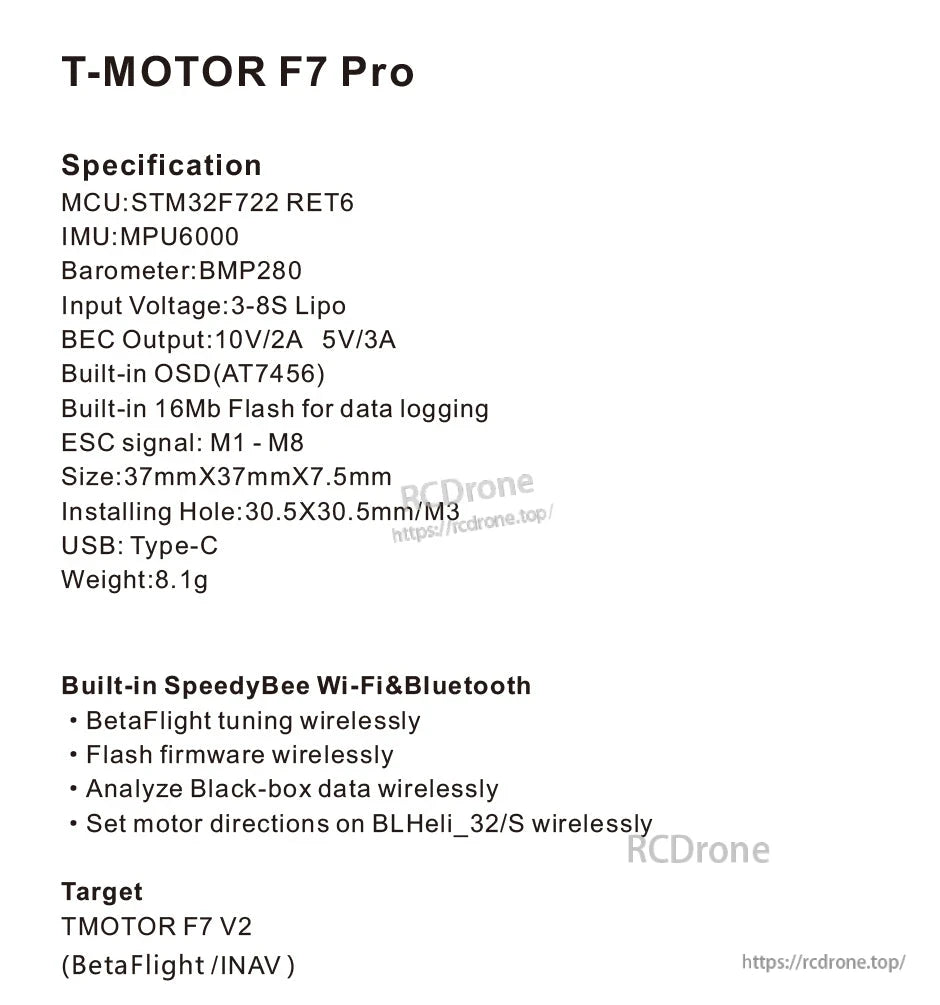

T-Motor F7 Pro uses an STM32F722 MCU, supports 3–8S LiPo input, and includes USB-C plus built-in SpeedyBee WiFi/Bluetooth for wireless Betaflight tasks.

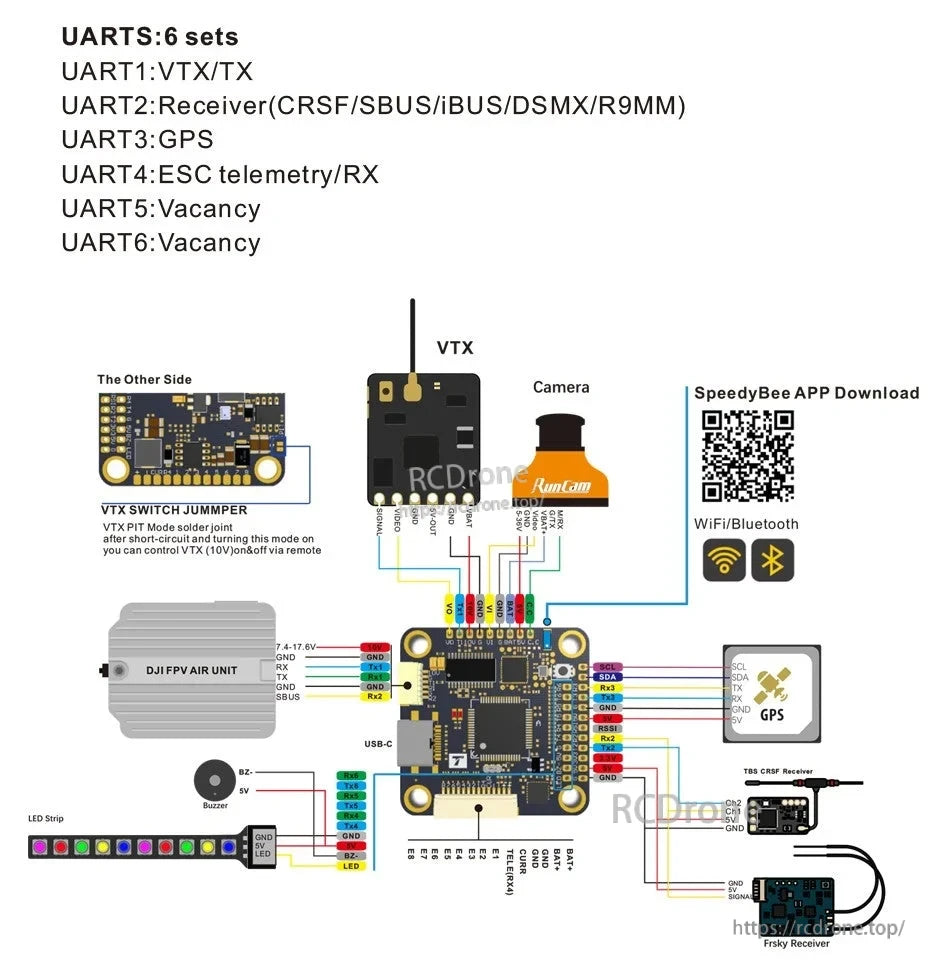

T-Motor F7 PRO uses labeled UART ports and dedicated pads to simplify wiring for a DJI FPV Air Unit, VTX/camera, GPS, receiver, buzzer, and LED strip.
