T-MOTOR F90 2806.5 1300KV / 1500KV 5–6S Brushless Motor for 6–8 Inch FPV Freestyle Long Range Drones

T-MOTOR F90 2806.5 1300KV / 1500KV 5–6S Brushless Motor for 6–8 Inch FPV Freestyle Long Range Drones

T-Motor

$118.51 USD
$142.21 USD $118.51 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

  • The T-MOTOR F90 2806.5 Brushless Motor is purpose-built for long-range and cinematic FPV quads, offering excellent performance and control across 5", 6", 7", and 8" platforms. With a large 2806.5 stator and premium construction, the F90 delivers powerful thrust, smooth throttle response, and high efficiency for both freestyle and cinematic flying styles.

    Available in two KV variants:

    • 1300KV: Ideal for 7"–8" propellers on 6S, optimized for endurance and payload.

    • 1500KV: Best paired with 6"–7" props for responsive freestyle agility and mid-range power.

    Key Specifications:

    Spec F90 1300KV F90 1500KV
    Rated Voltage 5–6S LiPo 5–6S LiPo
    Shaft Diameter 4mm 4mm
    Motor Weight 46.6g 36.7g
    Max Power (60s) 1059W 1089W
    Peak Current (60s) 45.1A 47.4A
    Configuration 12N14P 12N14P

    Why Choose the F90 2806.5:

    • Large stator for high torque and efficient power delivery

    • Designed for long range cinematic and freestyle builds

    • High durability with precise engineering from T-MOTOR

    • Reliable performance for heavier builds or extended flight time

    Recommended Applications:
    Perfect for cinelifters, long-range cruisers, and powerful freestyle rigs using 6S batteries and 6" to 8" props.

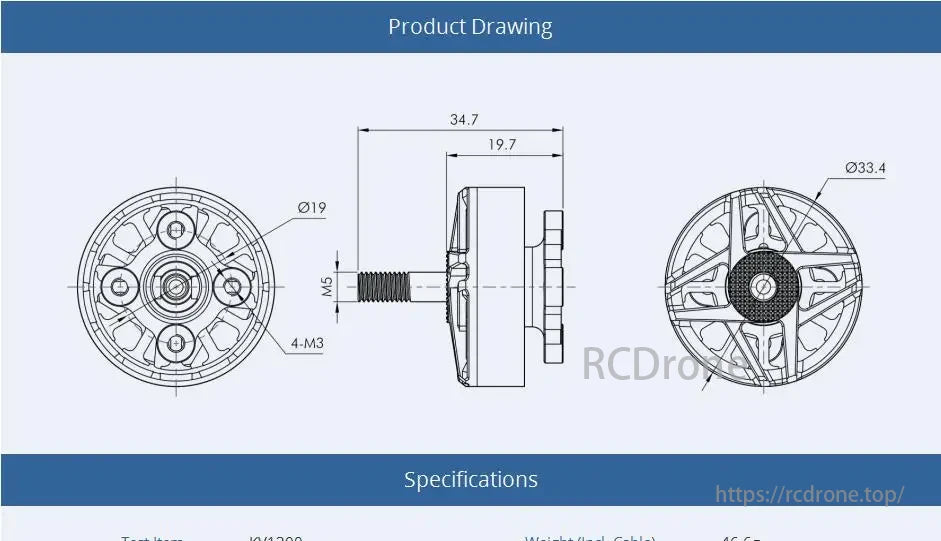

T-MOTOR specifications: 34.7mm, 19.7mm, Ø19, Ø33.4, M5, 4-M3 threading, weight 46.6g.

T-MOTOR drawing: 34.7mm, 19.7mm, Ø19, Ø33.4, M5, 4-M3; 46.6g.

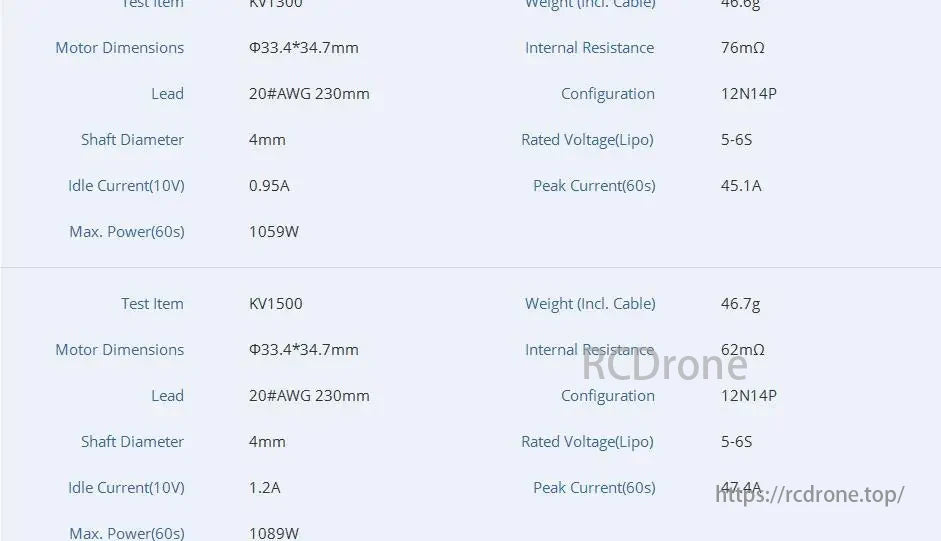

T-MOTOR KV1300/KV1500: 46.6g/46.7g weight, Φ33.4*34.7mm size, 20#AWG lead, 4mm shaft, 5-6S voltage, 0.95A/1.2A idle, 45.1A/47.4A peak current, 1059W/1089W max power.

T-MOTOR KV1300 and KV1500 specs: 46.6g/46.7g weight, Φ33.4*34.7mm dimensions, 20#AWG 230mm lead, 4mm shaft, 5-6S voltage, 0.95A/1.2A idle current, 45.1A/47.4A peak current, 1059W/1089W max power.

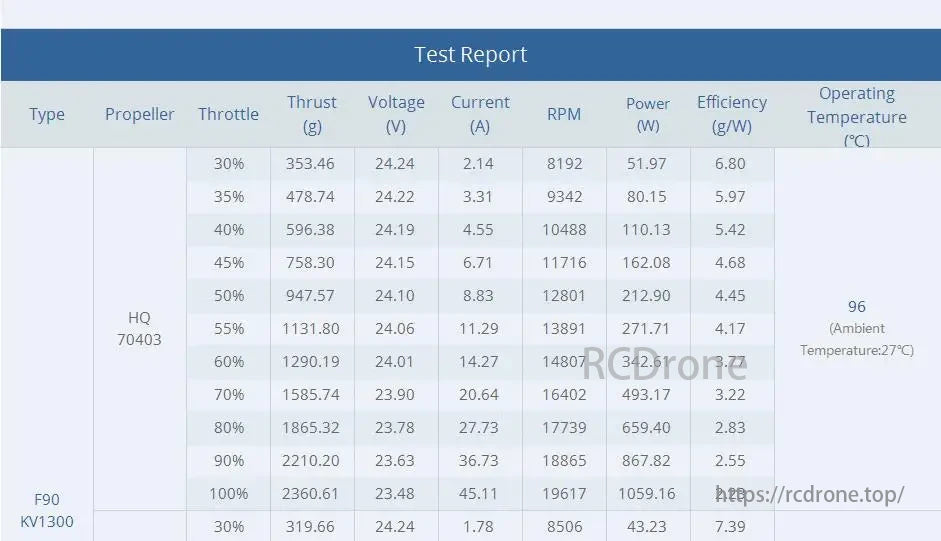

T-MOTOR F90 KV1300 test report with HQ 70403 propeller, covering throttle, thrust, voltage, current, RPM, power, efficiency, and temperature at various settings (27°C).

Test report for T-MOTOR F90 KV1300 with HQ 70403 propeller. Data includes throttle, thrust, voltage, current, RPM, power, efficiency, and operating temperature at various settings. Ambient temperature: 27°C.

T-MOTOR GF 7042 performance data at different throttle levels, including thrust, power, efficiency, and temperature, with ambient at 27°C. Benchtest results for reference.

T-MOTOR GF 7042 performance data at various throttle levels, including thrust, voltage, current, RPM, power, efficiency, and operating temperature. Ambient temperature is 27°C. Benchtest results for reference.

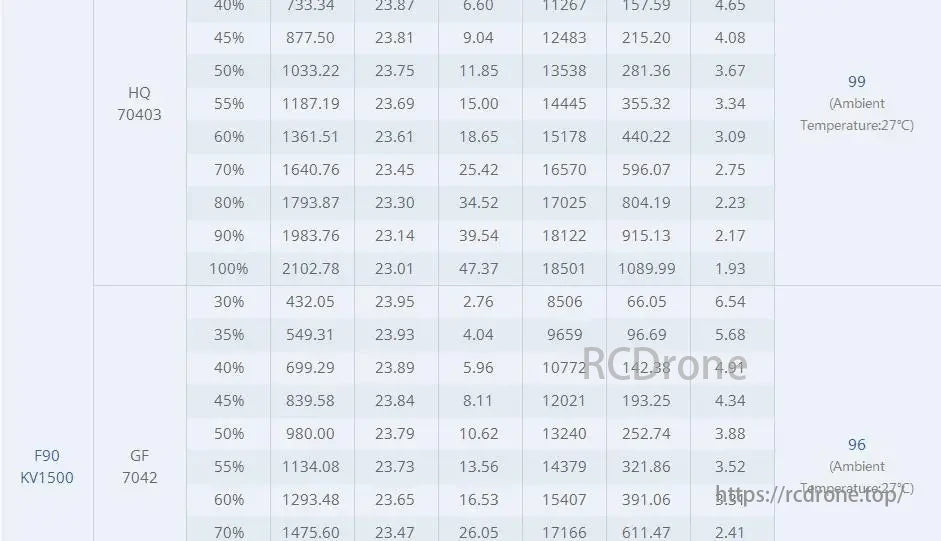

T-MOTOR HQ 70403 and F90 KV1500 GF 7042 performance data at different percentages, covering voltage, current, power, RPM, torque, efficiency at 27°C.

T-MOTOR HQ 70403 and F90 KV1500 GF 7042 performance data at various percentages, including voltage, current, power, RPM, torque, and efficiency, with ambient temperature at 27°C.

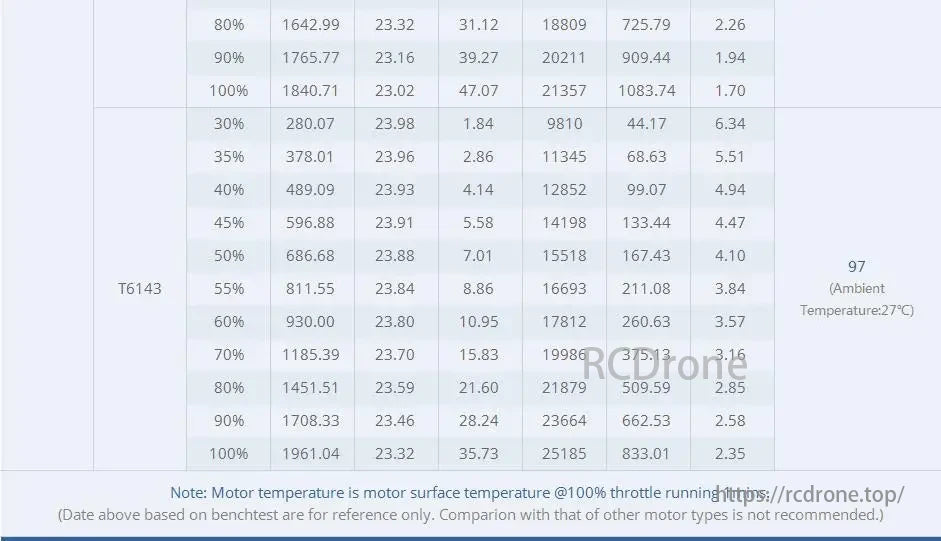

T-MOTOR, T6143 motor performance data at different throttle percentages for voltage, current, RPM, power, efficiency, temperature (27°C), and benchtest reference values.

T6143 motor performance data at various throttle percentages, including voltage, current, RPM, power, efficiency, and temperature. Ambient temperature: 27°C. Benchtest reference values for comparison.

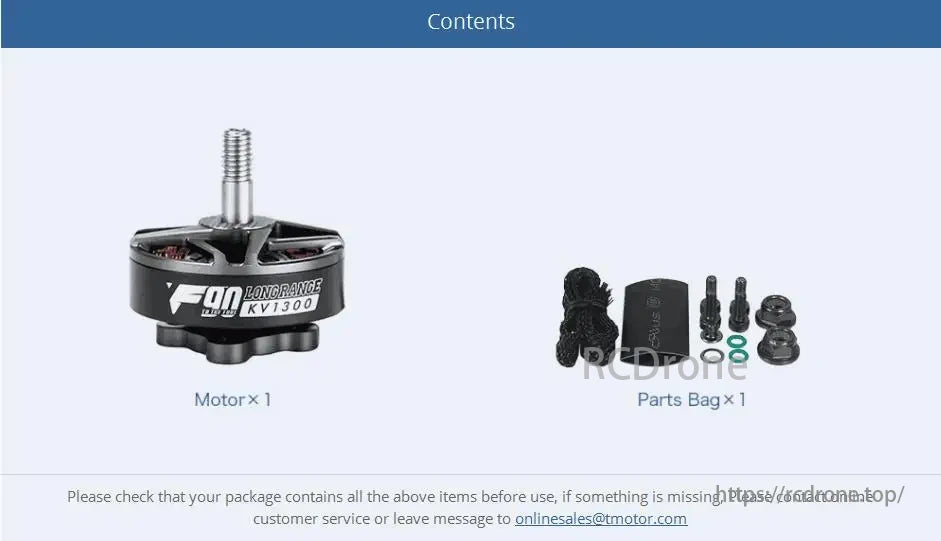

T-MOTOR product contains Motor KV1300 & Parts Bag. Check contents before use; contact support for missing items.

T-MOTOR product includes Motor KV1300 and Parts Bag. Verify contents before use; contact support if items are missing.

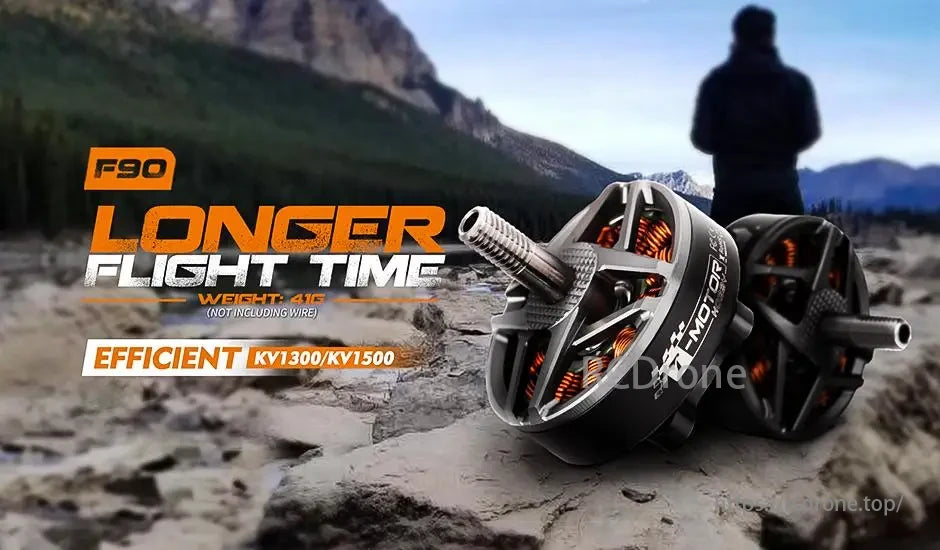

T-MOTOR, F90 motor: longer flight time, 41g weight, efficient KV1300/KV1500.

F90 motor offers longer flight time, weighs 41g, efficient KV1300/KV1500.

T-MOTOR, The F90 2806.5 motor offers high torque, efficient power delivery, and durability for long-range cinematic and freestyle builds.

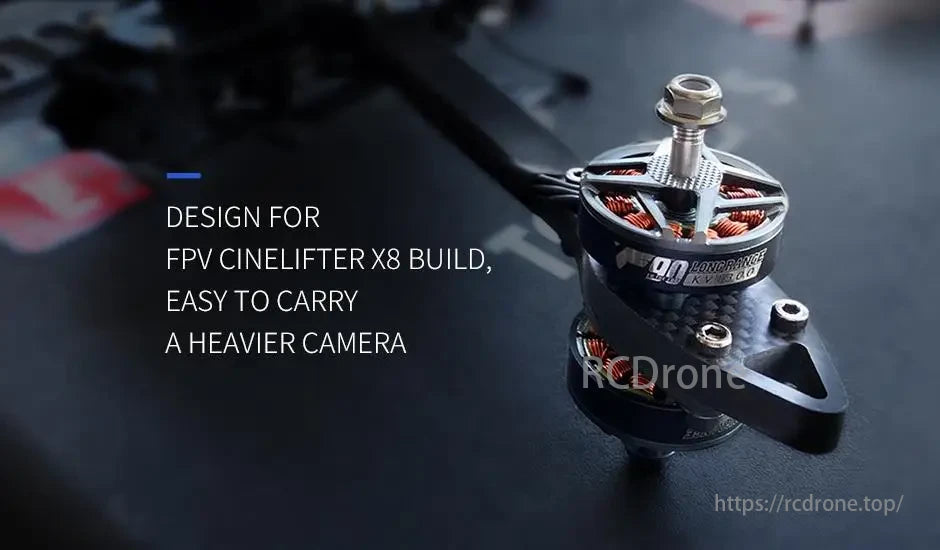

T-MOTOR designed for FPV Cinelike X8, supports heavier cameras, easy to carry.

T-MOTOR design for FPV Cinelike X8 build, easy to carry heavier camera.

T-MOTOR excels for mountain surfing, coastline, and cinematic flight experiences.

T-MOTOR excels for mountain surfing, coastline, and cinematic flight experiences.
