• T-MOTOR F90 2806.5 1300KV 1500KV 1950KV Brushless Motor 5-6S for 5-7 Inch Long Range FPV Freestyle Drones
  • T-MOTOR F90 2806.5 1300KV 1500KV 1950KV Brushless Motor 5-6S for 5-7 Inch Long Range FPV Freestyle Drones
  • T-MOTOR F90 2806.5 brushless motor, 1300-1950KV, designed for 5-7 inch FPV drones.
  • T-MOTOR F90 2806.5 1300KV 1500KV 1950KV Brushless Motor 5-6S for 5-7 Inch Long Range FPV Freestyle Drones
1 4

T-MOTOR F90 2806.5 1300KV 1500KV 1950KV Brushless Motor 5-6S for 5-7 Inch Long Range FPV Freestyle Drones

T-MOTOR F90 2806.5 1300KV 1500KV 1950KV Brushless Motor 5-6S for 5-7 Inch Long Range FPV Freestyle Drones

T-Motor

$35.50 USD
$46.15 USD $35.50 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

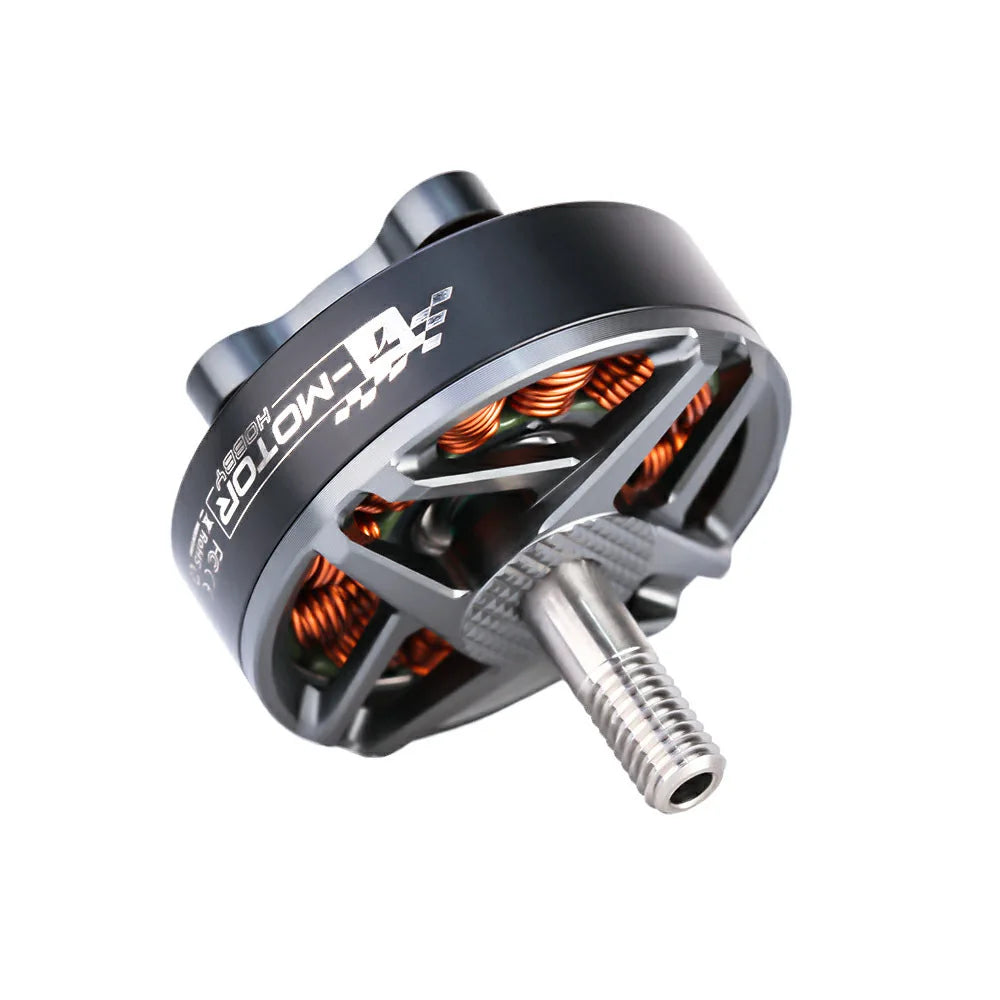

Overview

The T-MOTOR F90 2806.5 is purpose-built for long range, freestyle, and cinematic FPV drones. With a robust 2806.5 stator and available in 1300KV, 1500KV, and 1950KV options, this motor delivers high torque, smooth response, and consistent output on 5-6S LiPo setups. Whether you're building a 7-inch cruiser or a powerful 5-inch cinewhoop, the F90 series offers the flexibility and thrust you need for extended and stable flight.

Specifications

Model KV Voltage Max Power (60s) Peak Current (60s) Idle Current (10V) Internal Resistance Weight (with wire)
F90-1300KV 1300 5-6S 1059W 45.1A 0.95A 76mΩ 46.6g
F90-1500KV 1500 5-6S 1089W 47.1A 1.2A 62mΩ 46.7g
F90-1950KV 1950 5-6S 1302W 53.6A 1.5A 45mΩ 46.6g

Common Specs:

  • Motor Size: Φ33.4 × 34.7mm

  • Shaft Diameter: 4mm

  • Lead Wire: 20AWG 230mm

  • Configuration: 12N14P

  • Mounting Pattern: 19×19mm (M3)

Performance Highlights

F90 1300KV with GF51466-3 5S prop:

  • Max thrust: 1784g @ 100% throttle

  • Efficiency: up to 3.73g/W

F90 1950KV with T6143-3 5S prop:

  • Max thrust: 2136g

  • Max power: 1089W

  • Efficiency: 1.96g/W

F90 1950KV with GF51466-3 6S prop:

  • Max thrust: 2075g

  • Max power: 1301W

  • Efficiency: 1.59g/W

Note: Motor temperature readings were taken after 1-minute full-throttle runtime under controlled conditions.

Recommended Use

  • 1300KV: Ideal for 7–8 inch long-range drones

  • 1500KV: Suited for 6–7 inch freestyle builds

  • 1950KV: Optimized for 5–6 inch high-thrust cinewhoops and racing drones

What's Included

  • F90 Brushless Motor × 1

  • Mounting Accessories (Screws, Nut, Anti-slip pads) × 1 set

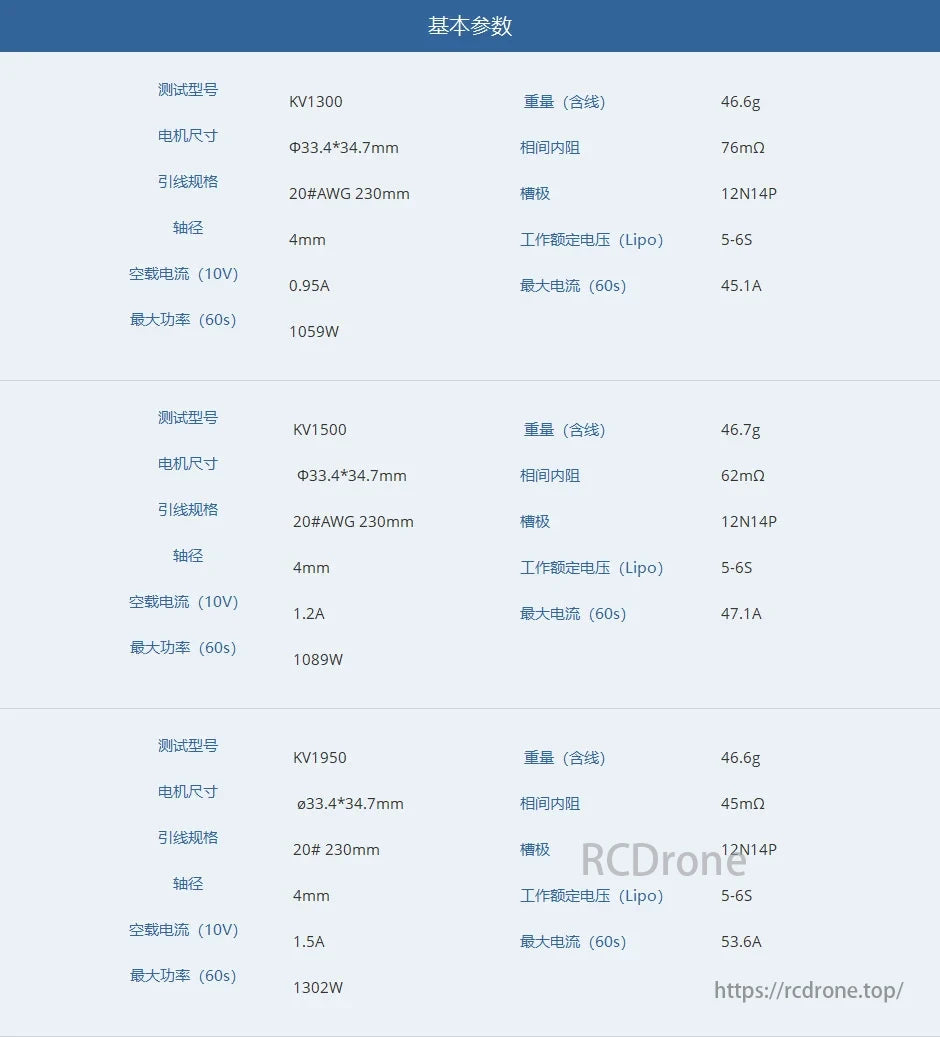

  • T-MOTOR KV1300/1500/1950 specs: 33.4x34.7mm, 4mm shaft, 20#AWG leads, 46.6-46.7g weight, 45-76mΩ resistance, 1059-1302W power, up to 53.6A current.

    T-MOTOR KV1300, KV1500, KV1950 specs: 33.4x34.7mm size, 4mm shaft, 20#AWG 230mm leads. Weights 46.6-46.7g, resistances 45-76mΩ. Power ranges 1059-1302W, currents up to 53.6A.

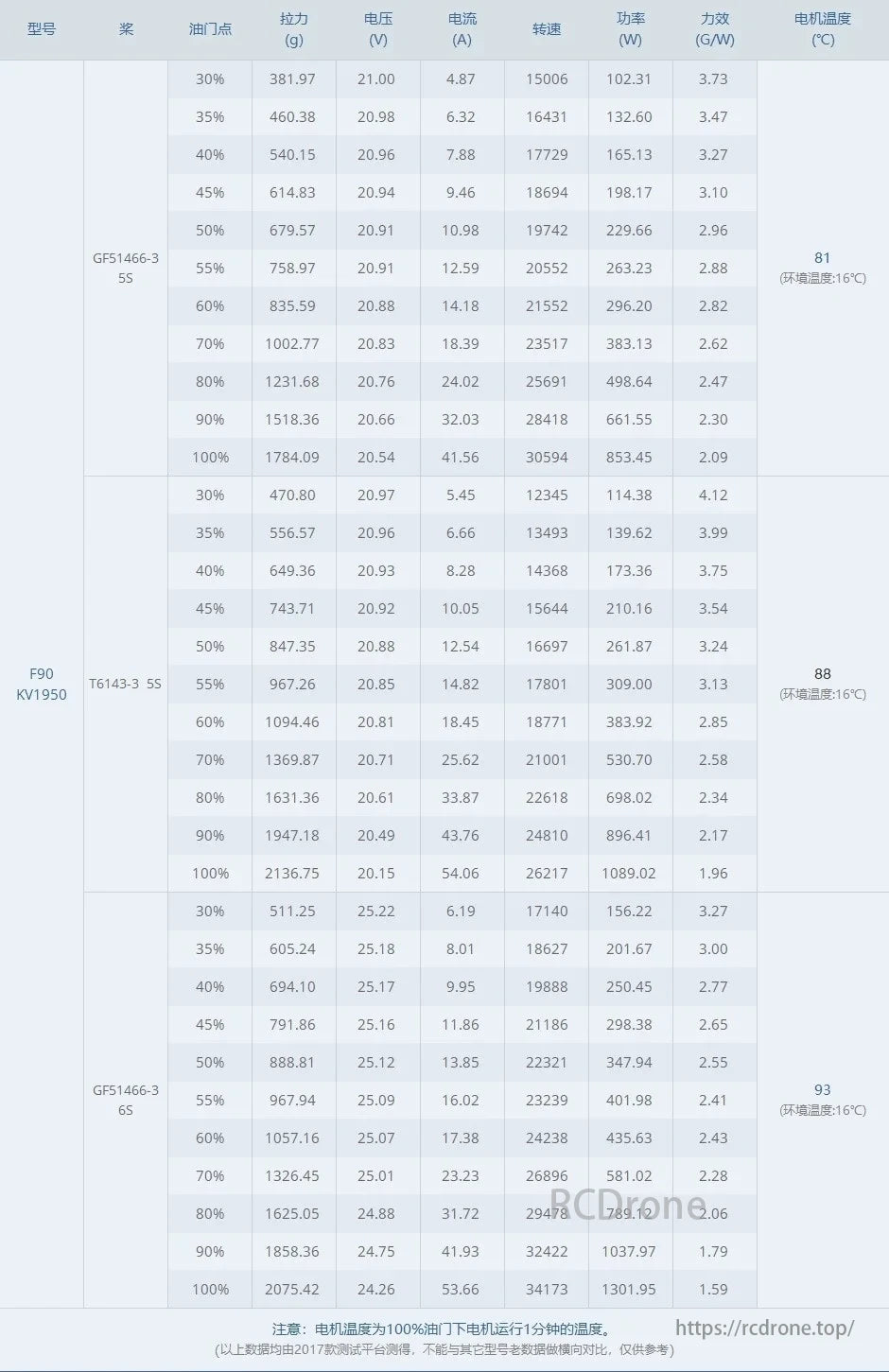

T-MOTOR, F90 KV1950 motor data: oil gate %, pull force, voltage, current, RPM, power, efficiency, and temperature across different conditions.

F90 KV1950 motor performance data, including oil gate percentage, pull force (g), voltage (V), current (A), RPM, power (W), efficiency (G/W), and motor temperature (°C) at various operating conditions.

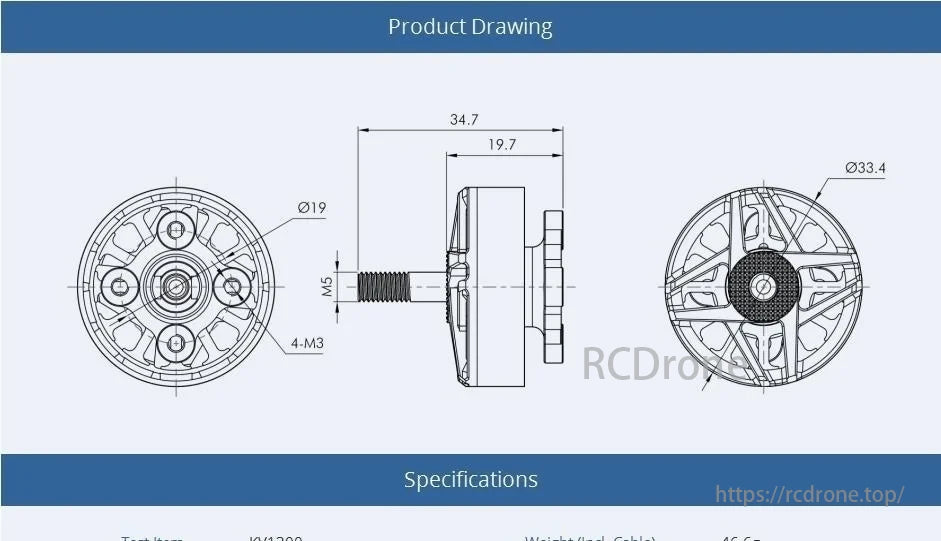

T-MOTOR, Product Drawing: Specifications list various dimensions (Ø19, Ø33.4, 34.7, 19.7) and thread sizes (M5, 4-M3).

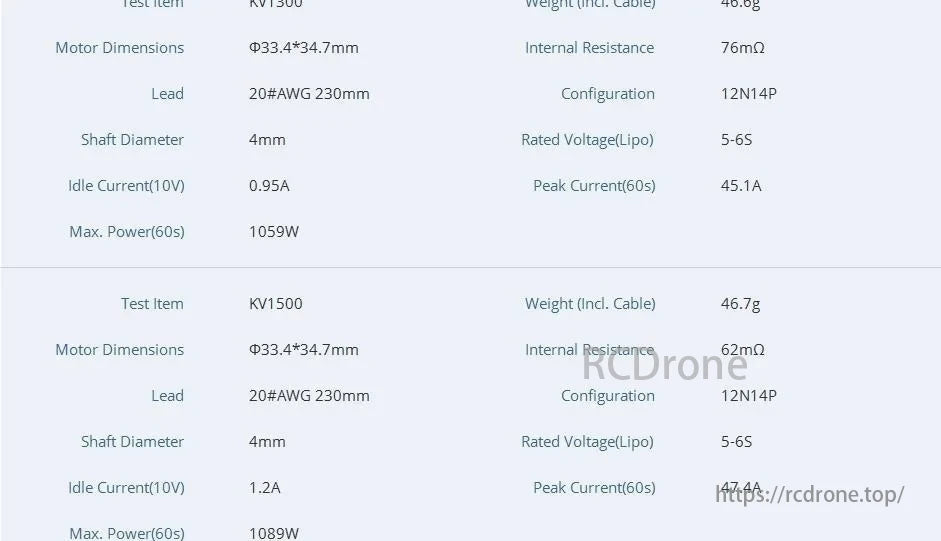

T-MOTOR KV1300/KV1500 specs: Weight 46.6g/46.7g, dimensions Φ33.4*34.7mm, 20#AWG lead, 4mm shaft, 76mΩ/62mΩ resistance, 5-6S voltage, 0.95A/1.2A idle current, 45.1A/47.4A peak current, 1059W/1089W max power.

T-MOTOR KV1300 and KV1500 specs: 46.6g/46.7g weight, Φ33.4*34.7mm dimensions, 20#AWG 230mm lead, 4mm shaft, 76mΩ/62mΩ resistance, 5-6S voltage, 0.95A/1.2A idle current, 45.1A/47.4A peak current, 1059W/1089W max power.

T-MOTOR F90 KV1300 test report with HQ 70403 propeller, covering throttle, thrust, voltage, current, RPM, power, efficiency, and temperature at various settings (27°C ambient).

Test report for T-MOTOR F90 KV1300 with HQ 70403 propeller. Data includes throttle, thrust, voltage, current, RPM, power, efficiency, and operating temperature at various settings. Ambient temperature: 27°C.

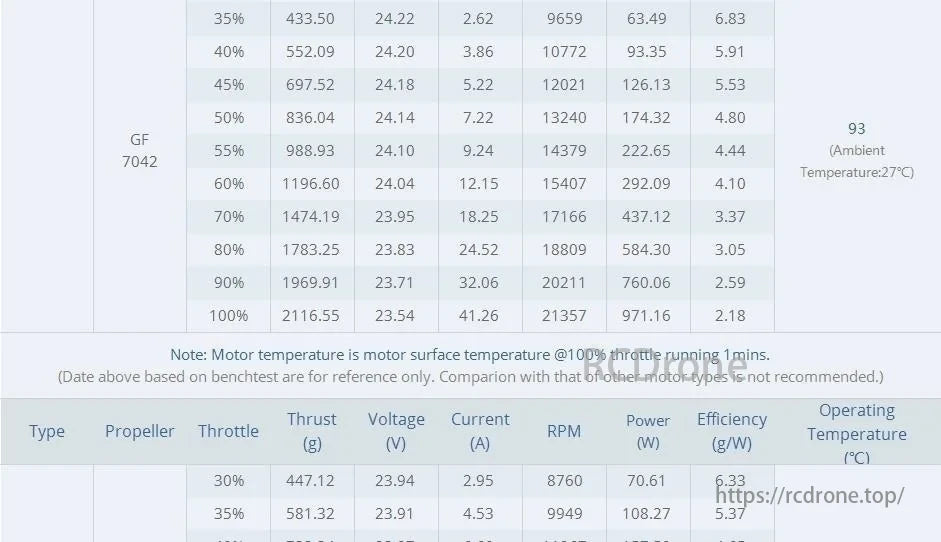

T-MOTOR GF 7042 performance data at different throttle levels, including thrust, power, efficiency, and temperature, with 27°C ambient. Benchtest results for reference.

T-MOTOR GF 7042 performance data at various throttle levels, including thrust, voltage, current, RPM, power, efficiency, and operating temperature. Ambient temperature is 27°C. Benchtest results for reference.

T-MOTOR HQ and F90 KV1500 GF 7042 performance data at various percentages, covering voltage, current, power, RPM, torque, and efficiency at 27°C.

T-MOTOR HQ 70403 and F90 KV1500 GF 7042 performance data at various percentages, including voltage, current, power, RPM, torque, and efficiency at 27°C ambient temperature.

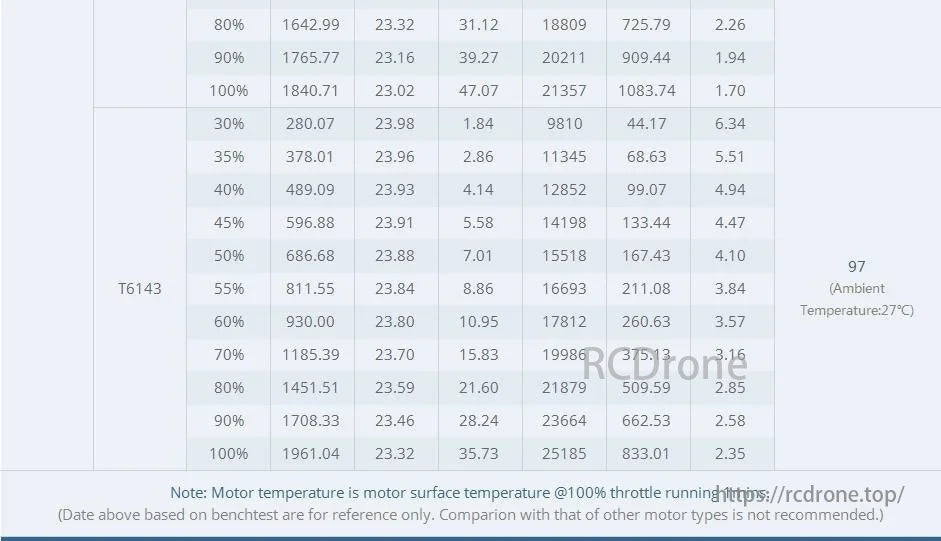

T-MOTOR, T6143 motor performance data at various throttle percentages, including voltage, current, RPM, power, efficiency, and temperature (27°C ambient). Benchtest reference for surface temperature at 100% throttle after 1 minute.

T6143 motor performance data at various throttle percentages, including voltage, current, RPM, power, efficiency, and temperature. Ambient temperature: 27°C. Benchtest reference values for motor surface temperature at 100% throttle after 1 minute.

T-MOTOR product includes Motor KV1300 and Parts Bag. Check contents before use and contact support for any missing items.

T-MOTOR product includes Motor KV1300 and Parts Bag. Check contents before use. Contact support for missing items.

T-MOTOR, F90 motor: longer flight time, 41g weight, efficient KV1300/KV1500.

F90 motor offers longer flight time, weighs 41g, efficient KV1300/KV1500.

T-MOTOR, The F90 series offers flexibility and thrust for extended and stable flight, suitable for various drone sizes.
T-MOTOR designed for FPV Cinelike X8, enabling easier carriage of heavier cameras.

T-MOTOR design for FPV Cinelike X8 build, easy to carry heavier camera.

T-MOTOR excels for mountain surfing, coastline, and cinematic flight experiences.

T-MOTOR excels for mountain surfing, coastline, and cinematic flight experiences.
