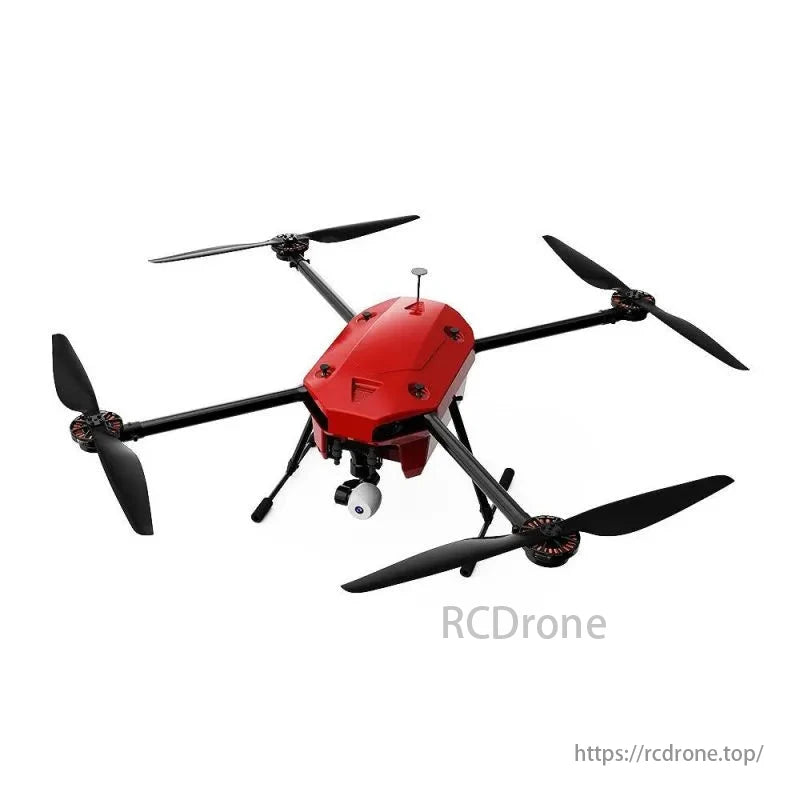

T-motor T-Drone M1000 Industrial Drone Specifications

Product name: M1000
Wheelbase: 1000mm
Aircraft weight (without canopy): 1050g
Maximum takeoff weight (payload 1KG): 6.8KG
Completed machine weight: 18.5 kg (including loading weight and batteries)
Effective loading weight: 1-2Kg
Sustained working time: Load 1kg ≥ 62 minutes Load 2kg ≥ 51 minutes (* Results will vary depending on the installed battery, FC, etc.)

Flight range: 10km
Flight altitude: 100 ~ 1000m (standard); 6500m asl. (Upper limit)
Flight speed: 10 ~ 35km / h (standard); 65km / h (upper limit)
Wind resistance: Force 5
Power system: T-MOTOR MN7005 kv230 motor / STAR 50A IESC / CF24 * 7.2 "Propeller (motor + ESC + motor mount + arm integrated)
Battery: smart 6S 6S 30AH
Flight controller: A3 / PIX / Micropilot etc.

It can be equipped with small cameras such as the DJI X3 / X5 / XT / Z3 series.

Package Includes:

1pcsxM1000 frame kit * 1 (partially assembled)
4pcsxT-MOTOR MN7005 kv230 motor / STAR 50A IESC / CF24 * 7.2 "Propeller drive system set

T-motor T-Drone M1000 Industrial Drone Main Features:

--Long endurance multi-rotor Flight Platform
--Powerful and Efficiency T-Motor Power System
--High energy density Lithium Battery gets long flight time
--Efficient and Reliable compact flight platform
--Completely open gimbal interface

T-Drone M1000 Descriptions

T-motor released M series multi-rotor platforms for industrial applications.Those UAV multi-rotor drones are great for pipeline inspection,photography&filming, environmental monitoring,electricity inspection, military supervision, searching, rescue service, surveying and mapping and etc.

T-motor M1000 quad-copter is suitable for 1 to 2kg payload. With 1kg payload, the flight time can reach to 62 minutes. With 2kg payload, the flight time can reach to 51 minutes. The drone only include T-motor M1200 drone frame, t-motor MN7005 kv230 motor, t-motor Star 50A  ESC and 24x7.2'' propellers. The flight controller, radio, battery need to purchase separately.

M-1000 Long Endurance Multi-Rotor Flight Platform

Ultra-Light (1050g(Excl. shell)

Long Endurance (Max. Flight Time: 69minutes)

Multiple Applications (Customization)

SPECIFICATIONS M-1000 Frame Size: 1000mm MTOW(Incl. 1kg Payload): 6.8kg Motor: T-MOTOR MN7005 KV230 Frame Weight(Excl. shell): 1050g Flight Time: 1 kg payload ≥ 62mins 2kg payload ≥ 51 mins ESC: T-MOTOR STAR 50A IESC Propeller: T-MOTOR CF24*7.2" Wind Resistance Level:Force 5 Battery:Ares 65 30AH(Excl.) Mounting: DJIA3 / PIX Micropilot (Excl.) FC: Compatible with (Excluded) FCs from DJI, XAIRCRAFT, TopGun and other mainstream FCs

Aerial Photography Chollance APPLICATIONS For multiple applications with various equipment. Mapping and Surveying Meteorological Monitoring Military Cunervicion Doccue and Doief Work

T-MOTOR MN7005 KV230+STAR 50A IESC+CF24×7.2" Max. flight time reaches up to 69mins 69 mins max. flight time * Flight time obtained with 0.5kg payload is for reference only.
