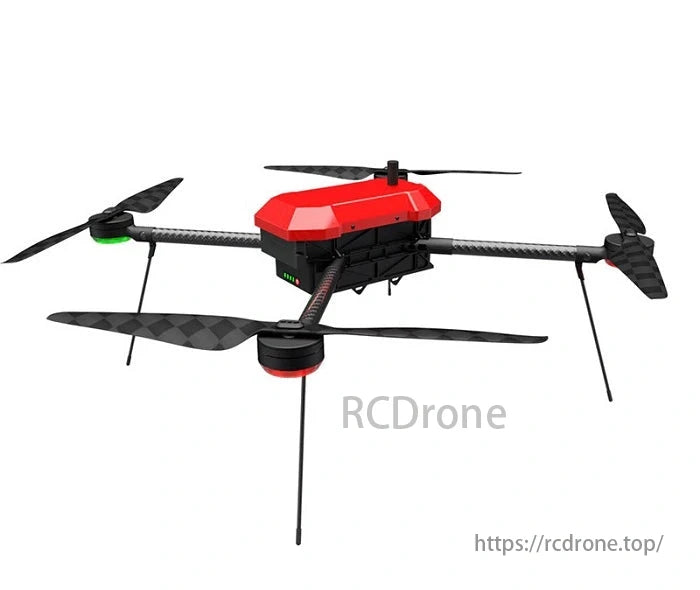

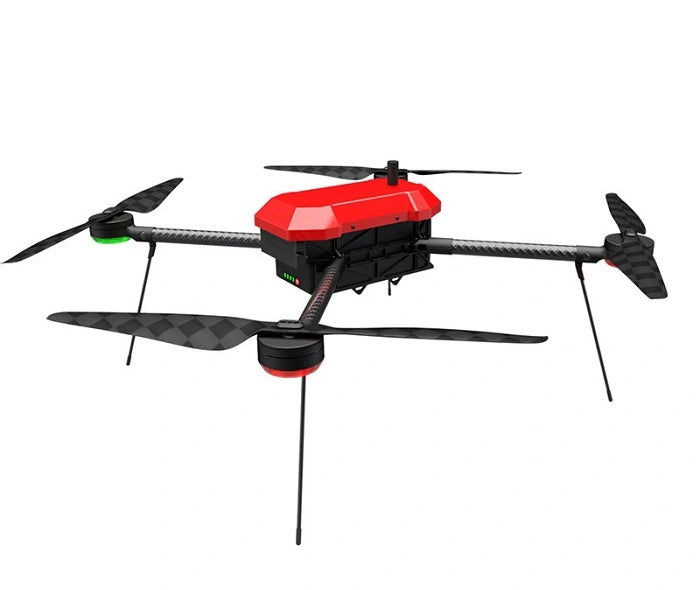

T-Motor T-Drone M690A Industrial Drone - 4 Axis 1kg Payload 71 Minutes Long Flight Time 10KM Distance UAV Drone for Industrial Applications Frame+T-MOTOR power system

T-motor released M series multi-rotor platforms for industrial applications.Those UAV multi-rotor drones are great for pipeline inspection,photography&filming, environmental monitoring,electricity inspection, military supervision, searching, rescue service, surveying and mapping and etc.

The lightweight design enables an increased endurance capacity by 30% compared to similar industry products. The aircraft's fuselage features high-strength, integrally molded Aeronautical Aluminum, enhancing overall structural integrity and installation convenience.

Traditionally, most drones on the market have an endurance time of around 15-38 minutes with smart batteries. However, users have been demanding longer flight times and higher efficiency operations. To address this need, T-MOTOR has developed high-energy density lithium batteries in conjunction with a power management system that enables an impressive 72-minute flying time.

T-Motor M690A Specification:
Product name: M690A
Wheelbase: 699mm
Completed machine weight: 4.25kg (including loading weight and batteries)
Effective loading weight: 1Kg
Sustained working time: Load 0.5kg ≥ 71 minutes
Load 1 kg ≥ 60 minutes (* Results will vary depending on the installed battery, FC, etc.)

Flight range: 10km
Flight altitude: 100 ~ 1000m (standard); 6500m asl. (Upper limit)
Flight speed: 10 ~ 35km / h (standard); 65km / h (upper limit)
Wind resistance: Force 4-5
Power system: T-MOTOR 5005 520KV / 45A ESC / NS18 * 6 Propeller (motor + ESC + motor mount + arm integrated)
Battery: 4S 30AH
Flight controller: A3 / PIX / Micropilot

Package Includes:
1pcsx M690A frame kit(partially assembled)
4pcs x T-MOTOR 5005 520KV / 45A ESC / NS18 * 6 propellers

The proven T-Motor M-Series is a reliable and efficient compact flight platform that has successfully undergone extensive flight testing and collaborated on various projects, demonstrating its effectiveness in real-world applications.

The airborne circuit design and production comply with military-standard IPC-3 standards. The entire frame utilizes American Cherry brand aviation rivets, strictly implementing the aviation industry's standard for riveting.

The M-series gimbal frame allows for mounting various equipment, expanding its applicability and enabling it to perform diverse tasks. The M-family drone can assist you in various ways...

The M690A Industrial Drone features a frame size of 100mm, maximum takeoff weight (MTOW) including payload and battery of 1 kg, an endurance time of approximately 62 minutes, and a range of 10 km. The drone can carry a payload of up to 2 kg and has a flying height range of 100-1000 mm (typical). Its typical speed is 35 km/h, and it can operate at altitudes up to 6500 meters above sea level.

=============

Related Article

T-Motor M690A Industrial Drone Review: Unleashing Efficiency, Endurance, and Versatility

In this comprehensive review, we explore the remarkable T-Motor M690A Industrial Drone, a 4-axis UAV designed for industrial applications. With a 1kg payload, an astounding 71-minute flight time, and a robust T-Motor power system, the M690A redefines what's possible in the world of industrial drones.

Specifications:

• Product Name: M690A
• Wheelbase: 699mm
• Completed Machine Weight: 4.25kg (including loading weight and batteries)
• Effective Loading Weight: 1kg
• Sustained Working Time:
  • Load 0.5kg ≥ 71 minutes
  • Load 1kg ≥ 60 minutes (*Results may vary depending on the installed battery, FC, etc.)
• Flight Range: 10km
• Flight Altitude: 100 ~ 1000m (standard); 6500m asl. (Upper limit)
• Flight Speed: 10 ~ 35km/h (standard); 65km/h (upper limit)
• Wind Resistance: Force 4-5
• Power System: T-MOTOR 5005 520KV / 45A ESC / NS18 * 6 Propeller (motor + ESC + motor mount + arm integrated)
• Battery: 4S 30AH
• Flight Controller: A3 / PIX / Micropilot

Advantages:

1. Extended Flight Time:

   • The M690A stands out with an exceptional flight time of up to 71 minutes with a 0.5kg payload, offering unmatched endurance in its class.

2. Efficient Power System:

   • The T-MOTOR power system, including the 5005 520KV motor, 45A ESC, and NS18 * 6 Propeller, is optimized for long-endurance characteristics, ensuring efficiency, reliability, and reduced weight.

3. Smart Battery Technology:

   • Utilizing a high-energy density Lithium battery and an improved power management system, the M690A achieves an astonishing 72 minutes of flying time, setting a new standard for efficiency.

4. Aeronautical Aluminum Frame:

   • The lightweight design of the drone, coupled with the integrated molding of Aeronautical Aluminum, increases endurance by 30-37% compared to similar products in the industry.

5. Enhanced ESC Redundancy:

   • The ESC (Electronic Speed Controller) has improved redundancy and reliability, with added LED lamp debugging and automatic motor debugging without the need for tools.

6. Weather-Resistant Design:

   • The M690A is designed to withstand challenging weather conditions, including rain and temperature variations, ensuring reliable performance in diverse environments.

7. Open Gimbal Interface:

   • The drone features a completely open gimbal interface, allowing for the mounting of various equipment, making it adaptable to a wide range of applications.

Paired Equipment:

• T-motor motor x 4
• T-motor ESC x 4
• T-motor 18 inches propeller x 4 (2CW+2CCW)

Application Scenarios:

• Pipeline Inspection
• Photography & Filming

FAQ (Frequently Asked Questions):

1. What is the maximum payload capacity of the M690A?

   • The M690A can carry an effective payload of up to 1kg.

2. What flight controllers are compatible with the M690A?

   • The M690A is compatible with A3, PIX, and Micropilot flight controllers.

3. How long does the drone fly with a 1kg payload?

   • The M690A can fly for a remarkable 60 minutes with a 1kg payload.

4. Is the M690A suitable for flying in high altitudes?

   • Yes, the M690A can reach altitudes of up to 6500m above sea level.

5. What makes the T-MOTOR power system efficient?

   • The T-MOTOR power system is optimized for endurance characteristics, offering efficiency, stability, and safety.

Conclusion: The T-Motor M690A Industrial Drone is a game-changer in the world of industrial UAVs. Its unmatched flight time, efficient power system, and adaptable design make it a top choice for professionals in various fields, from inspections to aerial photography. The M690A sets a new standard for endurance, efficiency, and versatility in industrial drone technology.
