T-Motor MN3510 KV360 KV630 KV700 Brushless Motor SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Recommend Age: 18+

RC Parts & Accs: Motors

Origin: Mainland China

Model Number: MN3510 KV360

Material: Metal

For Vehicle Type: Helicopters

Brand Name: T-MOTOR

T-Motor Navigator Series is a high quality, smooth running, durable brushless motor built for multirotor UAV application . the custom assembly methods and components unique to Navigator series help to provide the reliability required for a dependable aerial platform.

The motor features a safe and reliable propulsion system, providing the dependability required for a trustworthy aerial performance.

The T-MOTOR MN3XXX series features high-standard bearings from EZO, originally imported to ensure excellent performance. Additionally, T-MOTOR's rigorous quality control ensures that the motor operates smoothly even at low velocities.

Etiane offers a flexible motor mount design, allowing for easy adaptation to various prop configurations. The standard installation size is 25mm x 25mm, suitable for most primary propellers.

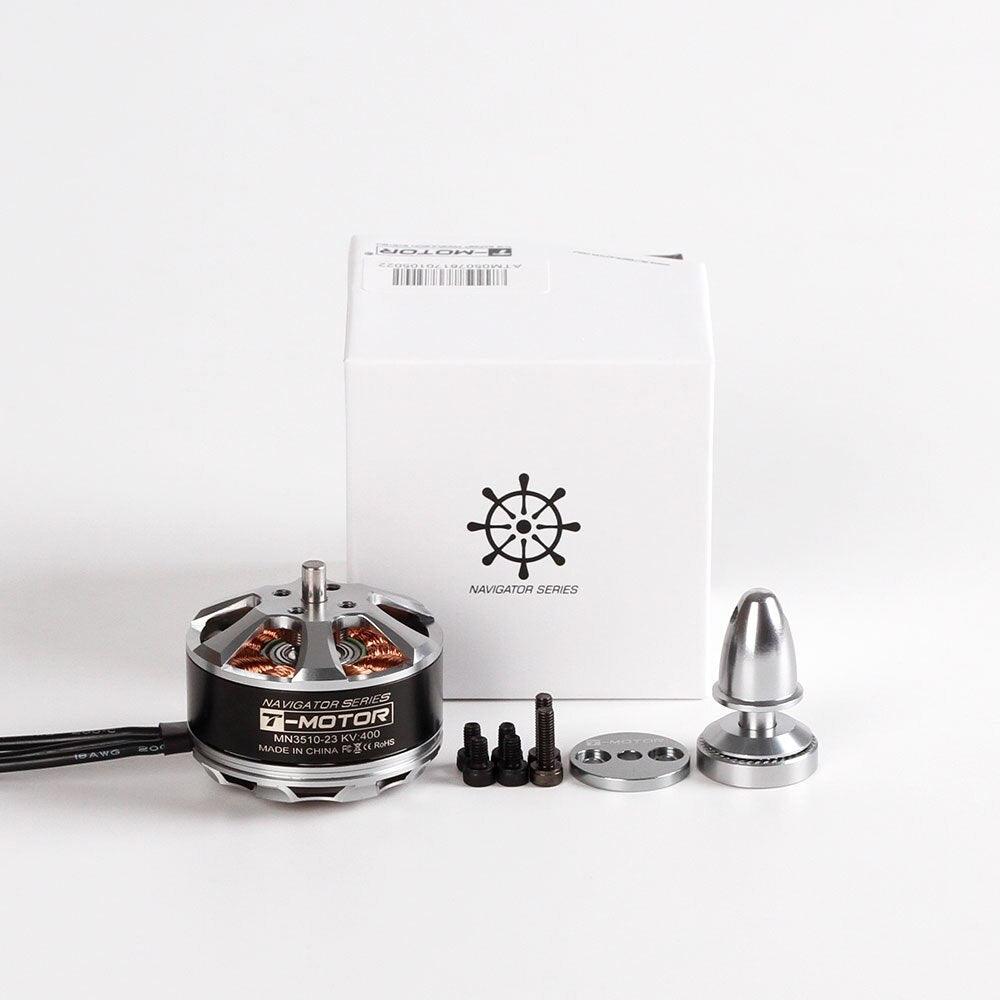

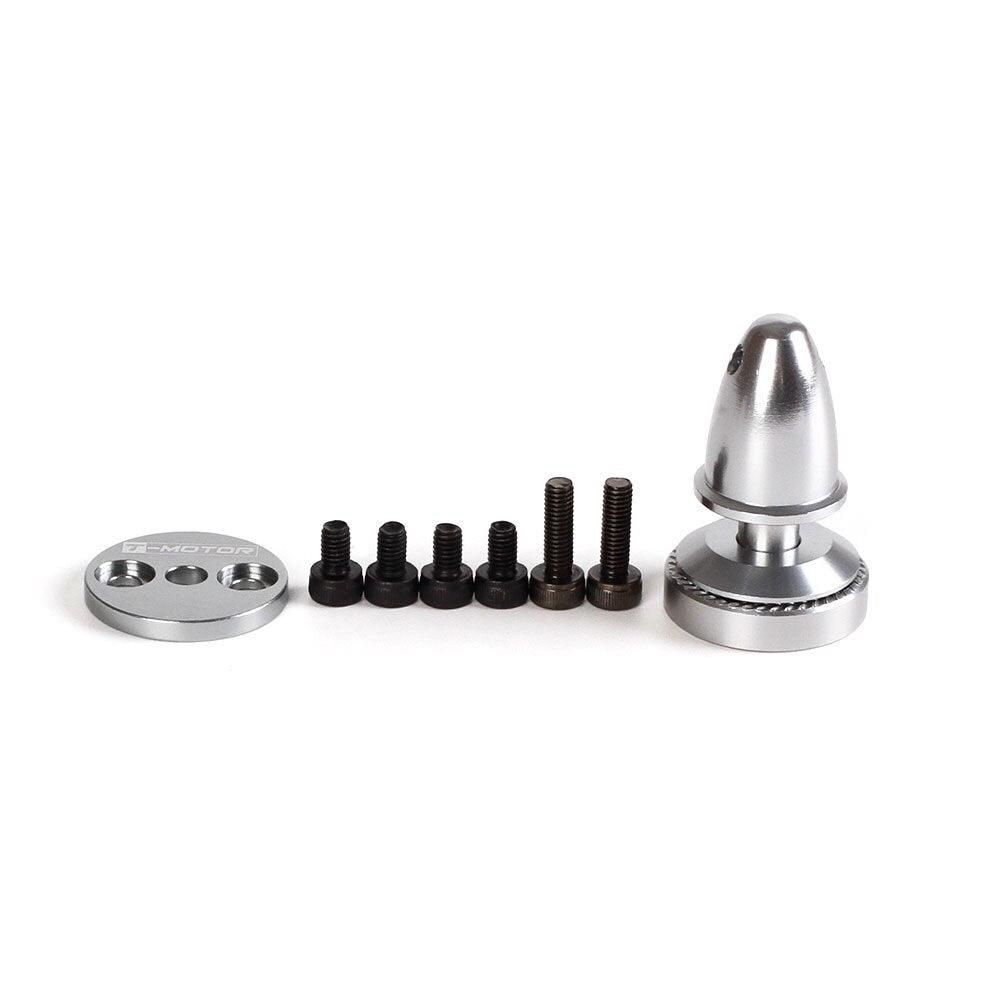

The package includes one set of prop adapters with an M6 thread. The M3 x 12mm screws (ZPCS) are designed specifically for installing the T-Motor CF propeller.

Test Report: MN3510 KV630 (Report Number: MN.00015) Specifications: * Internal Resistance: 6.5 mΩ * Configuration: 12 Ni-4P * Shaft Diameter: 4 mm * Motor Dimensions: 41.8 mm x 28.5 mm * Stator Diameter: 35 mm * Stator Height: 10 mm * AWG Cable: #18 * Cable Length: 600 mm * Weight (including cables): 119 g * Weight (excluding cables): 97 g * Number of Cells (Lipo): 34S * Idle Current @ 10V: Max Continuous Power: 180 S

MN3510 KV700 Report Test Item MN00016 Specifications: Internal Resistance - 50mΩ; Configuration - 12N14P; Shaft Diameter - 4mm; Stator Height - 10mm; AWG 18 Cable Length - 60mm; Weight (including cables) - 118g; Weight (excluding cables) - 99g; Number of Cells (Lipo) - 34S; Idle Current @ 10V - 0.5A; Max Continuous Power - 180S; Max Continuous Current - 1.8A.
