Longer Flights More Possibilities 3rd generation carbon fibre propellers for extra flight time up to 2%-1 0%.

Design Evolution: One Step Ahead - Significant hydrodynamic simulations were conducted during research and development to optimize and select the most suitable propeller designs.

Featuring a unique aerodynamic design, these general carbon fiber propellers are engineered with carefully crafted wingtips to minimize vortex formation and maximize lift-to-drag ratios.

Material Evolution: A new outlook on carbon fiber development, featuring a 16% increase in tensile strength and 22% improvement in fatigue resistance.

Introducing the NS Series: Our light prop pair features a new forming technology integrated with our 3rd-generation propellers, resulting in a significant 30%+ reduction in weight, lower moment of inertia, reduced motor vibration, and ultimately, extended flight times.

Rowed Propeller Protection Bags - Elaborately Designed for Safe Transportation and Storage

Compared to the NS and P series propellers, our NS series propellers have been shown to increase flight performance by 2-10%. This improvement in strength is based on simulation tests that mimic the alternating loads experienced during actual flights.

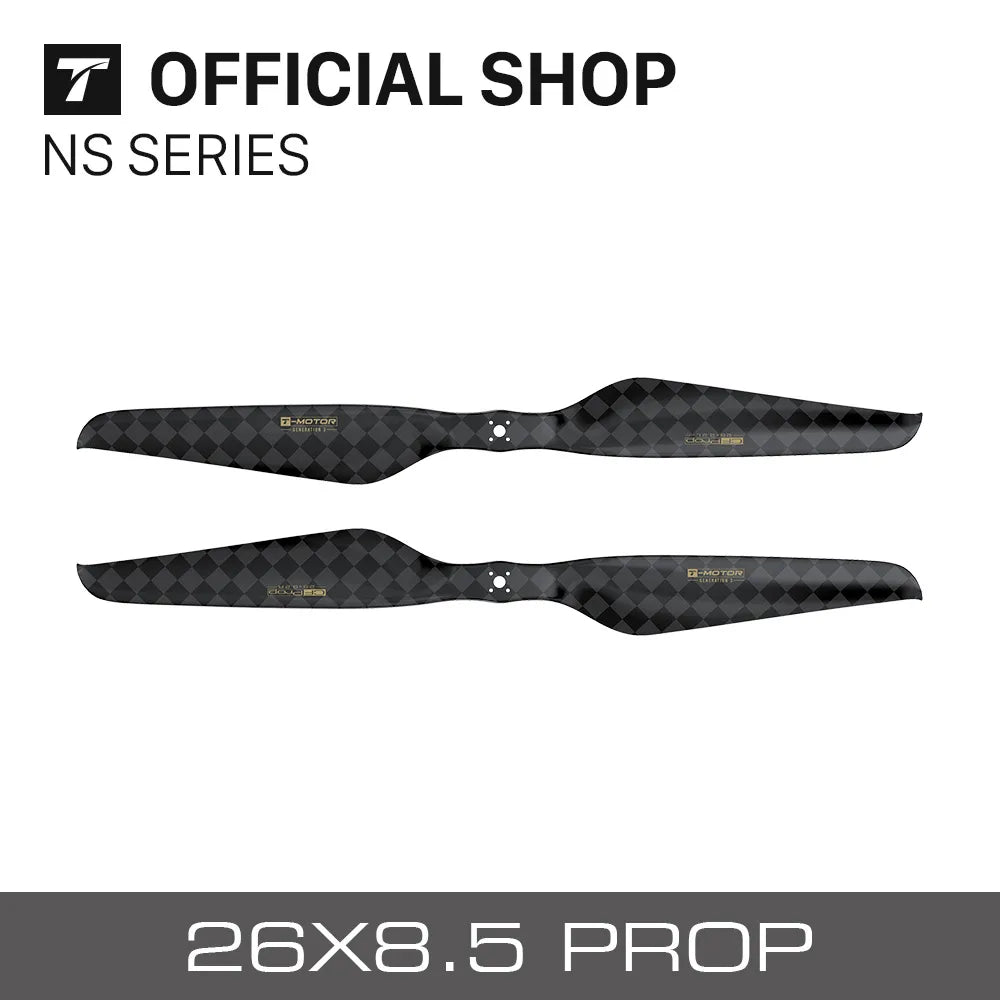

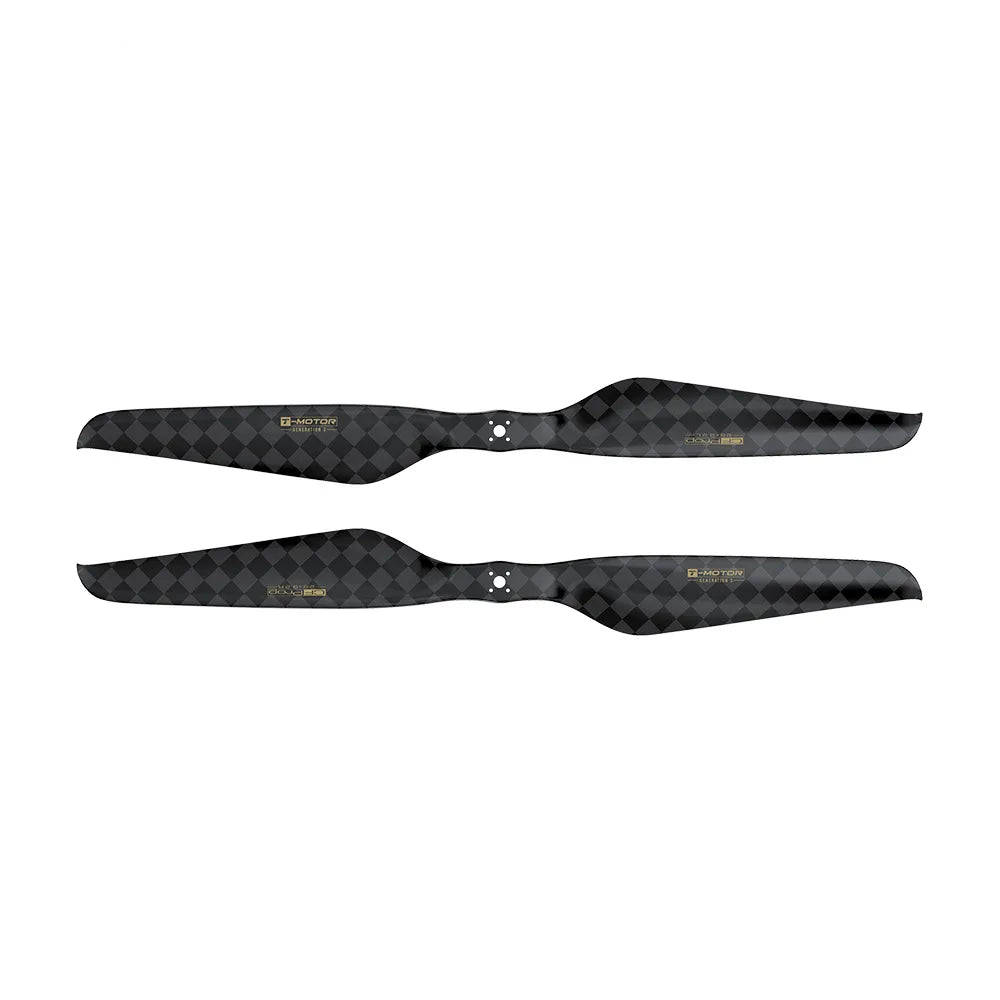

Specifications: Model NO. NS26X8.5, T-MOTOR Series Zblades Integrated Propeller. Weight: Single Blade - 48g, Package Weight - 625.2g. Dimensions: Diameter - 26 inches (660.9mm), Package Size - 717x105x75mm. Pitch: 8.5 inches (215.9mm). Material: Carbon Fiber + Epoxy. Recommended Usage: 4-8 kg, 3,970 RPM at ambient temperature up to 65°C. Storage Temperature: -1°C to 40°C.

Specifications Model NO 27*8.8 T-MOTOR Series Zblades integrated Weight 54g Package Weight 643.2g (Single Blade) Diameter 27inch(686.2mm) Size 717*105*75mm Pitch 8.8inch(223.52mm) Material CF+Epoxy Recommended Recommended 4.59kg/2840 - 3980RPM 17.5kg/5100RPM ThrustRPM Max Thrust/RPM Ambient Temp 40'C 65'C Storage

The T-MOTOR NS Series propellers, also known as Zblades, feature an integrated weight of 59g per blade. The single blade has a diameter of 28 inches (711.8mm) and measures 796x111x84mm in size. Its pitch is 9 inches (233.68mm), and it's made from carbon fiber with epoxy reinforcement. Recommended applications include aircraft weighing up to 59.5kg/2900RPM or 19kg/5490RPM for maximum thrust. The propellers can operate within a storage ambient temperature range of -10°C to 50°C, and the maximum operating temperature is 65°C.

Product Specifications: T-MOTOR NS Series. Model No.: NS30X10. Weight (single blade): 72g, Package weight: 783.2g. Blade diameter: 30 inches (762mm). Package size: 796 x 111 x 84 mm. Pitch: 10 inches (254mm). Material: Carbon Fiber + Epoxy. Recommended usage: 6-10.5 kg / 2580-3350 RPM, Max thrust/RPM: 22 kg / 4710 RPM. Ambient temperature range: -40°F to 65°C. Storage temperature range: -10°F to -1°F.

The structural integrity of our T-motor NS Series propellers has been thoroughly tested. In the unlikely event that defects are discovered, we recommend replacing them promptly. For storage purposes, please store them in a controlled environment to prevent damage from hostile conditions.
