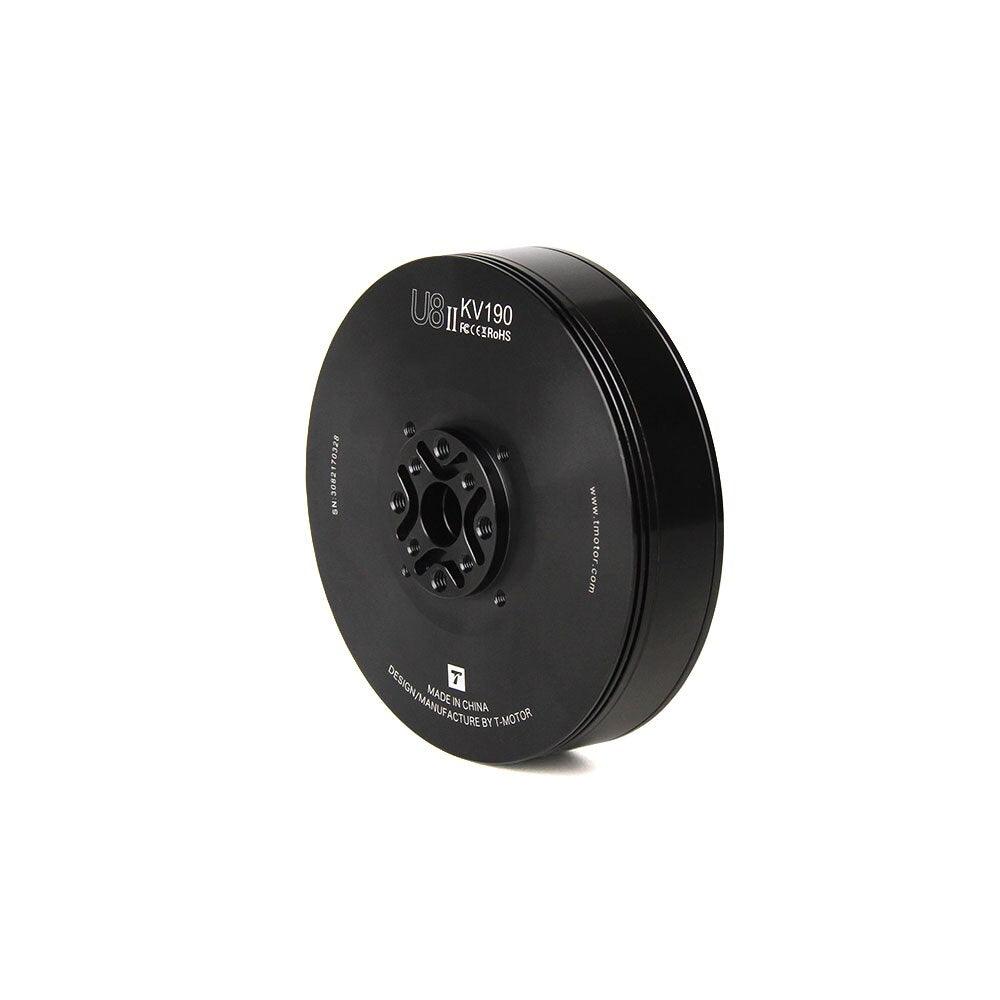

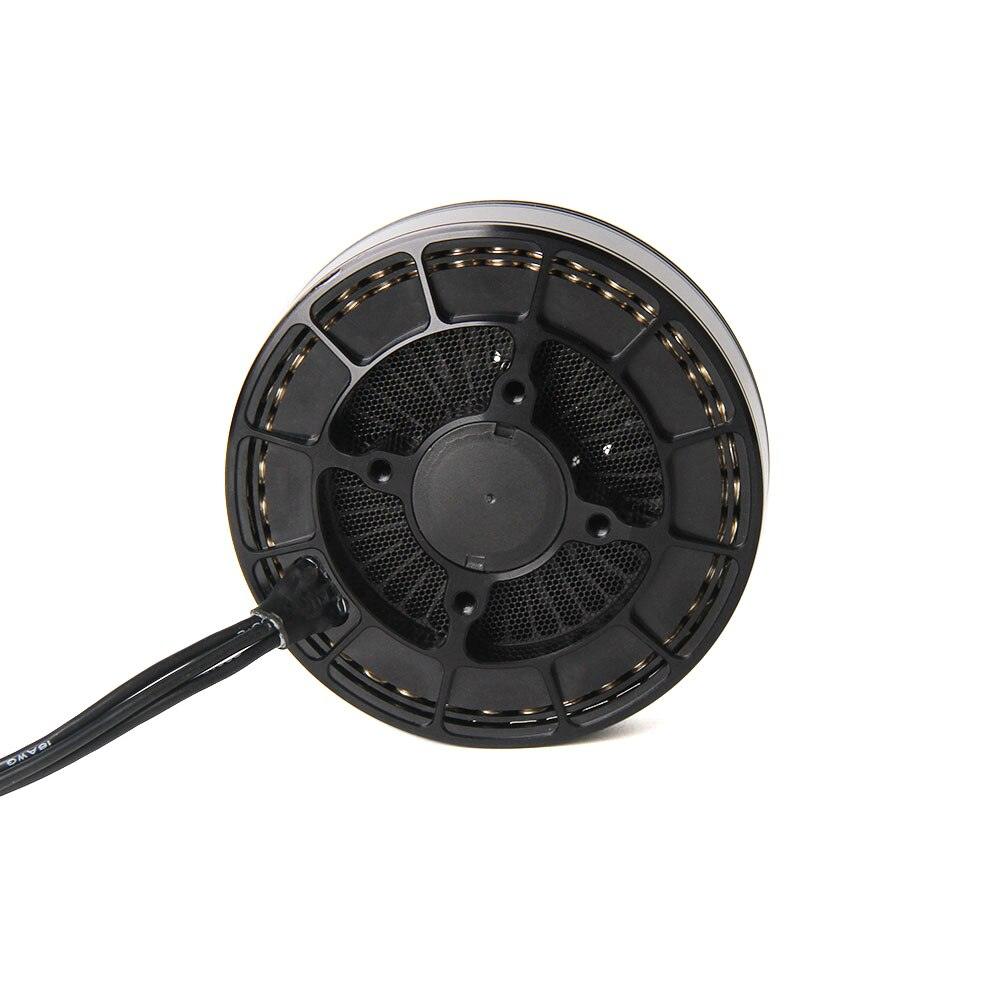

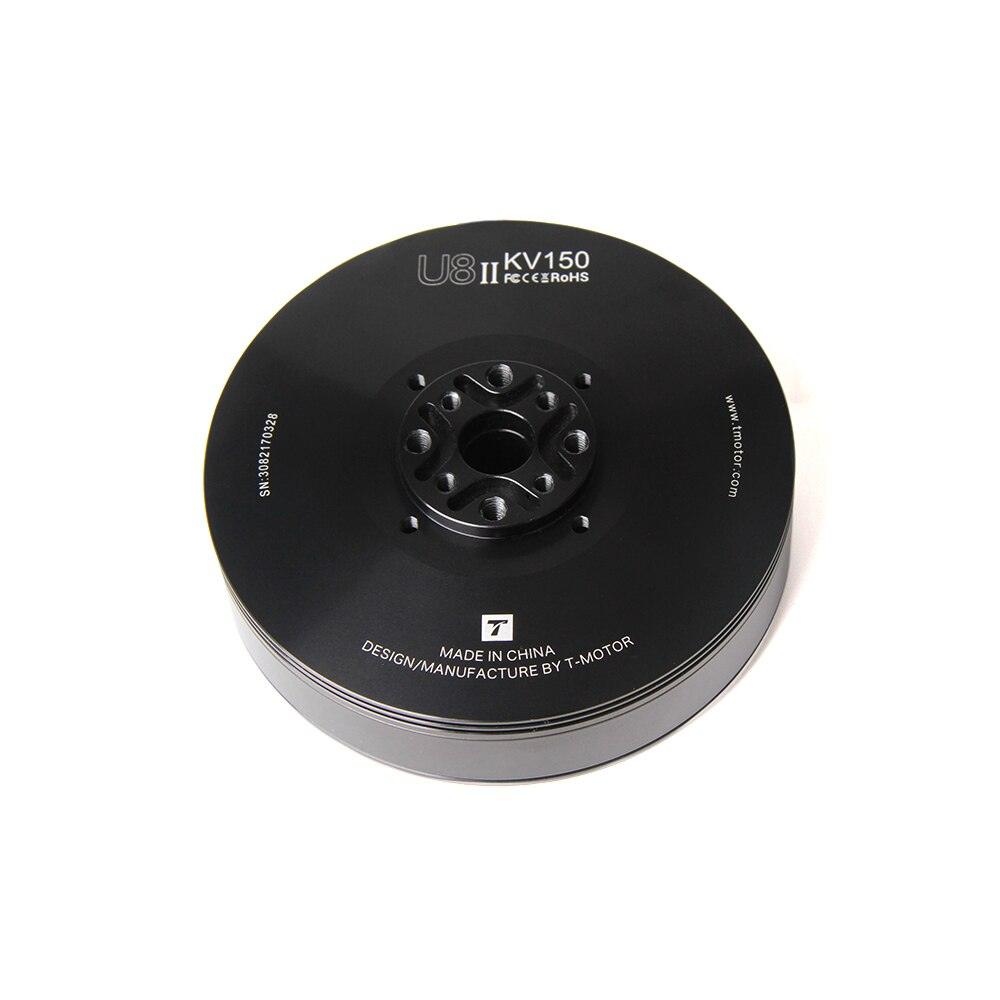

T-motor U8 II KV85 KV100 KV150 KV190 7KG Thrust Brushless Motor  SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: propeller

Tool Supplies: Battery

Size: U8 II KV190

Remote Control Peripherals/Devices: ESC

Recommend Age: 18+

RC Parts & Accs: Motors

Origin: Mainland China

Model Number: U8 II KV190

Material: Metal

For Vehicle Type: Airplanes

Brand Name: T-MOTOR

flight time 5% longer U8II Efficiency U8lite U8 14 U8PRO 12 Efficiency 10 1500g 2000g 2500g 3000g Thrustlg #Data obtained at 6s with 28" propeller gr

Featuring imported custom silver wires, this design allows for faster current flow on the silver wire's surface, enhancing the motor's response speed. The unique winding pattern also significantly reduces copper loss, resulting in a 30% decrease in motor heat.

The innovative design of the U8 motor features optimized curved magnetic circuits, which offer improved performance compared to traditional curved magnets that occupy more space.

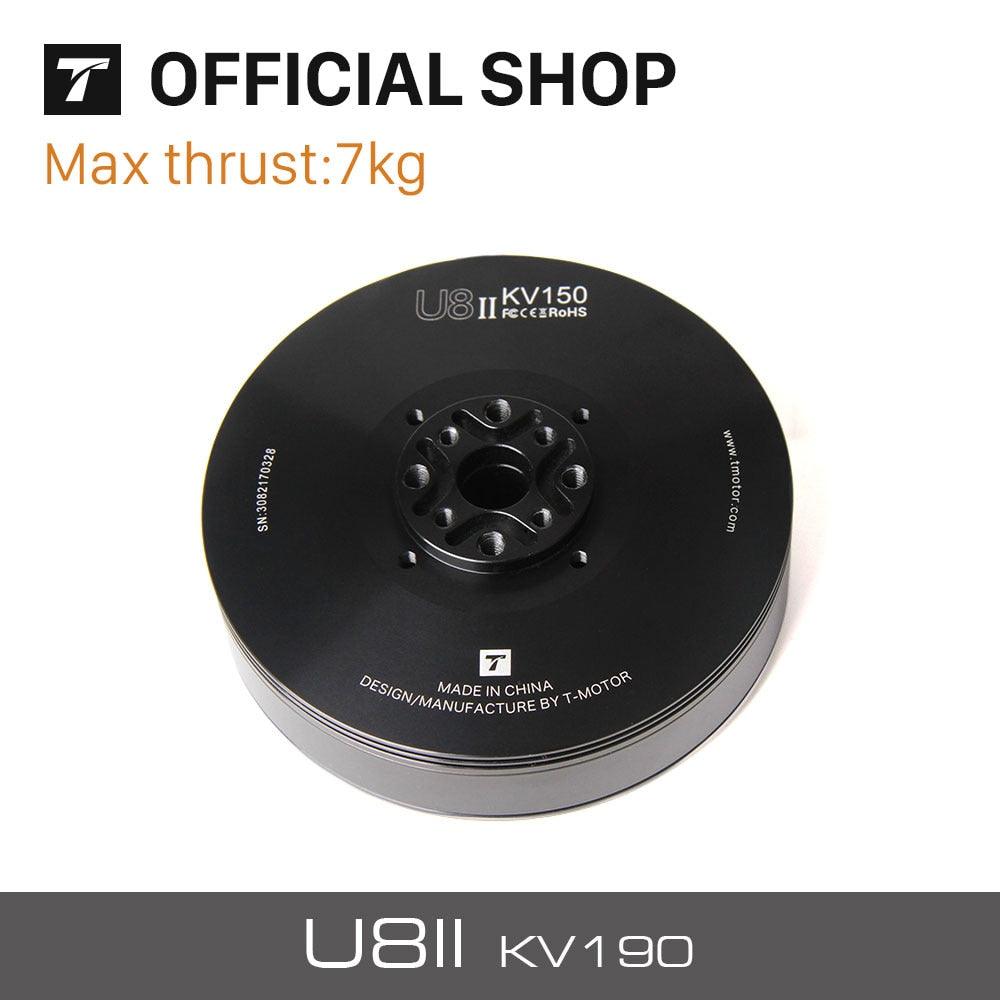

The new T-motor U8 II model boasts a maximum thrust of 7.3 kilograms, which doubles the aircraft's payload capacity. This means that with a maximum power output of 1,300 watts, the motor can generate a force equivalent to 7.3 kilograms, making it ideal for applications where heavy payloads are required.

The U8 PRO, U8 Lite, and U8 series motors are capable of achieving a maximum temperature of approximately 358°C (or 674°F), with data collected at an operating voltage of 32V and slow motor speed for 10 minutes.

The excellent cooling performance ensures reliable operation, even in extreme temperatures up to 50°C. Additionally, our efficient cooling system effectively dissipates heat.

Waterproof and dust-resistant, this product can withstand heavy rain and desert conditions, allowing for uninterrupted flight.

Featuring patented technology, these motors are designed to protect against the ingress of sand, dust, foreign matter, and magnetic particles, ensuring optimal performance and reliability.

Specialized silicon steel sheet with enhanced rust resistance, featuring an anti-rust treatment that passes rigorous 48-hour salt spray testing.

Expected service life: over 1500 flights, assuming an average flight time of 40 minutes per flight. The motor features imported custom bearings with dual bearing protection, which has been subjected to simulated analysis for stress in both axial and radial directions under operating conditions. As a result, the custom bearing design has been optimized to extend its lifespan to over 100 hours under normal operation.

Specifications: Grade N42 SH, N45 UH; magnetic properties: remanence (Br) 955-995 kA/m, coercive force (BHc) 318-350 kJ/m². The motor has a temperature coefficient of 1.29-1.35 T, and a density of 12.9-13.5 g/cm³.

The T-motor U8 II features a safety-first design, with silver wire leads that eliminate the need for soldering. Additionally, the motor's structure is reinforced by 20% with high-strength 7075 aviation-grade aluminum alloy, imported from Germany.

The latest ultra-light, 28-inch carbon fiber propeller weighs only 55 grams, representing a 12% increase in flight time and a significant weight reduction of 320 grams for the entire quadcopter, achievable once you upgrade to U8LITE on your aircraft.

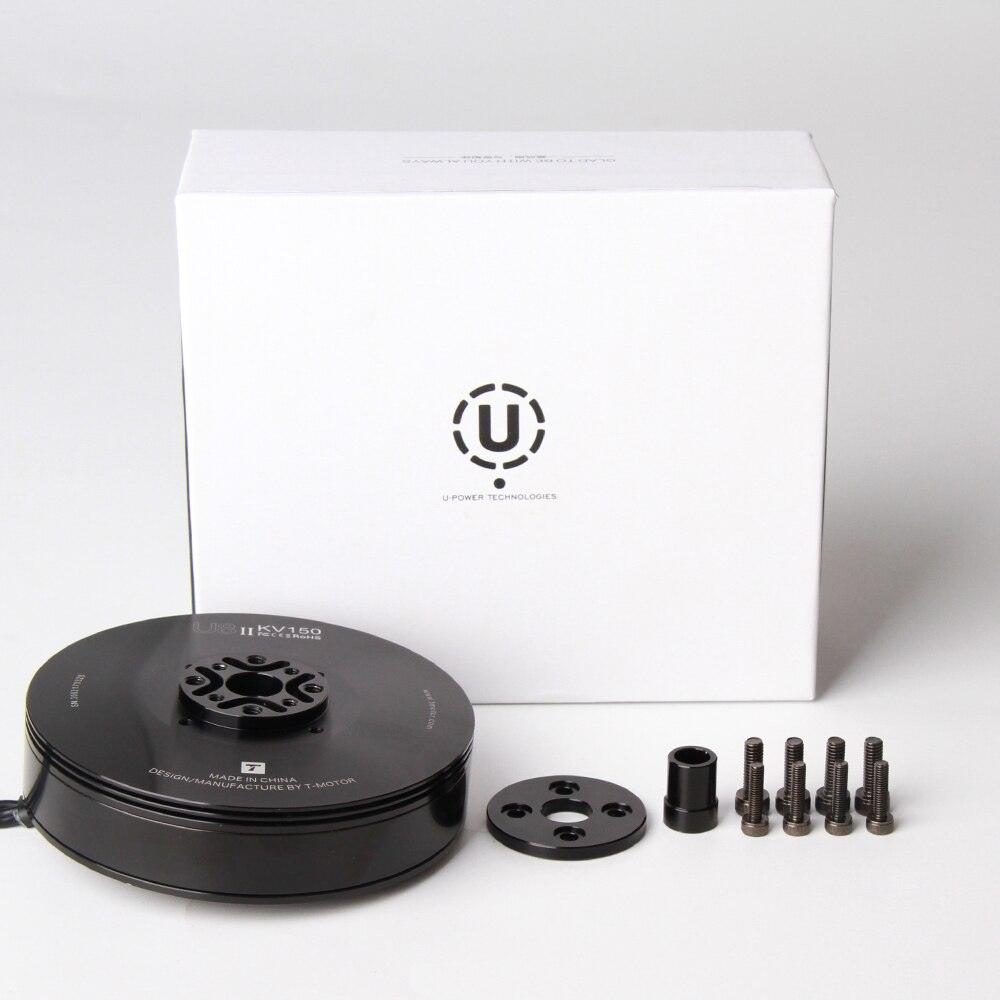

No prop adapter is needed, with a weight reduction of just 20g. For easy installation, don't forget to locate the 2g pin during assembly! Compatible with carbon fiber props (27-30 inches) featuring a folding design and tip.

Introducing the T-motor U8 II series, featuring KV85, KV100, KV150, and KV190 models with a thrust power of 7KG. This brushless motor is designed for hexacopter quadcopters, UAVs, and RC VTOL drones. The U8 series boasts ultra-light design, magnetic circuit design consistency with the U8LITE and U8IL models, and utilizes imported German 7075 aviation aluminum alloy to enhance motor durability.

Product Drawing 29 26L 6 0.75 8 8 6 8 Specifications Diameter 87.1mm Height 29.1mm Shaft Diameter 1Smm Configuration 36N42P Lead Spec 90mm Ingress Protection Level IPS5 Packing Size 130*111*50.6mm 8 8-M3 3 020 223 4-M4 3 8

This motor is suitable for hexacopters, quadcopters, or octocopters with the following specifications: peak current of 21kg, maximum power of 1406.4W, rated voltage of 150V (Lipo), and internal resistance of 14kg. It has a recommended idle current of 0.7A at 18V. The motor weight including cable is approximately 277g and is compatible with propellers up to 28-29 inches in diameter.
