T-motor MN3520 400KV Outrunner Brushless Motor SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Recommend Age: 18+

RC Parts & Accs: Engines

Origin: Mainland China

Model Number: MN3520 KV400

Material: Metal

For Vehicle Type: Airplanes

Brand Name: T-MOTOR

the custom assembly methods and components unique to Navigator series provide the reliability required for a dependable aerial platform . the motor is & high quality, smooth running, durable brushless motor built for multirotor UAV application .

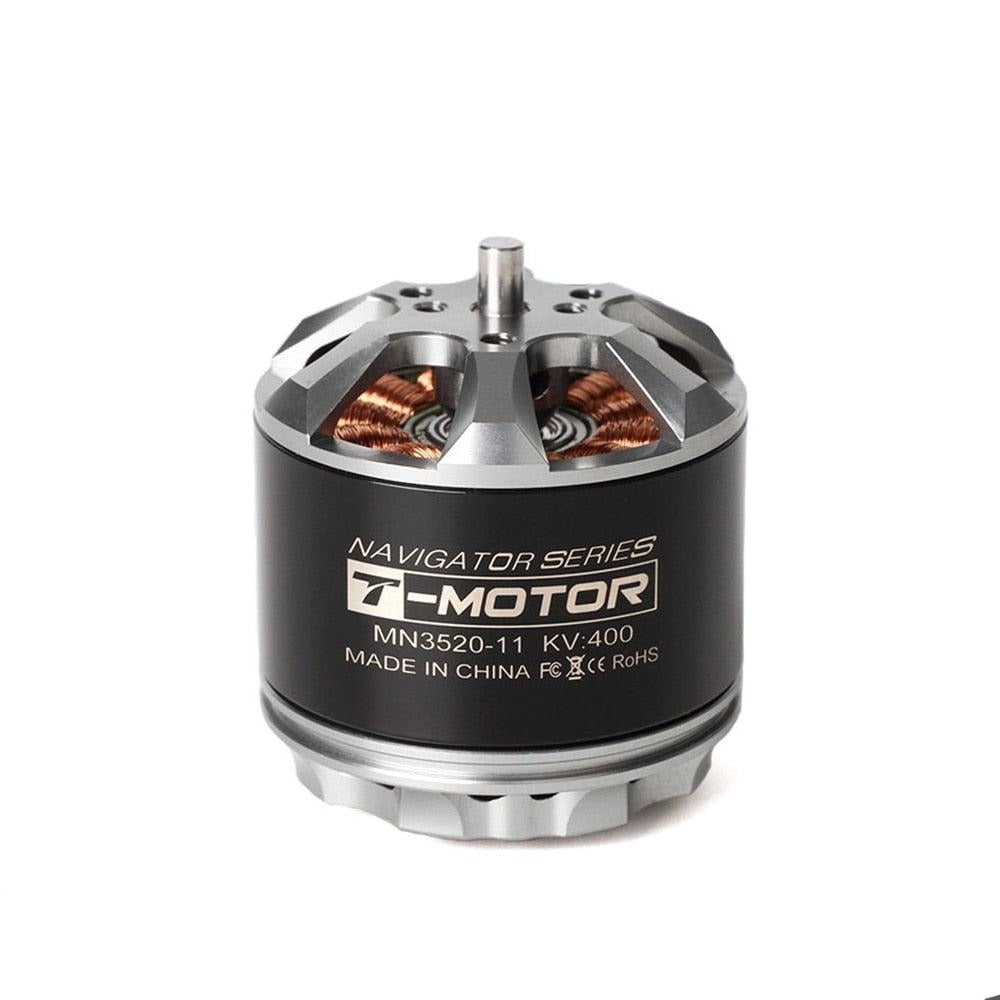

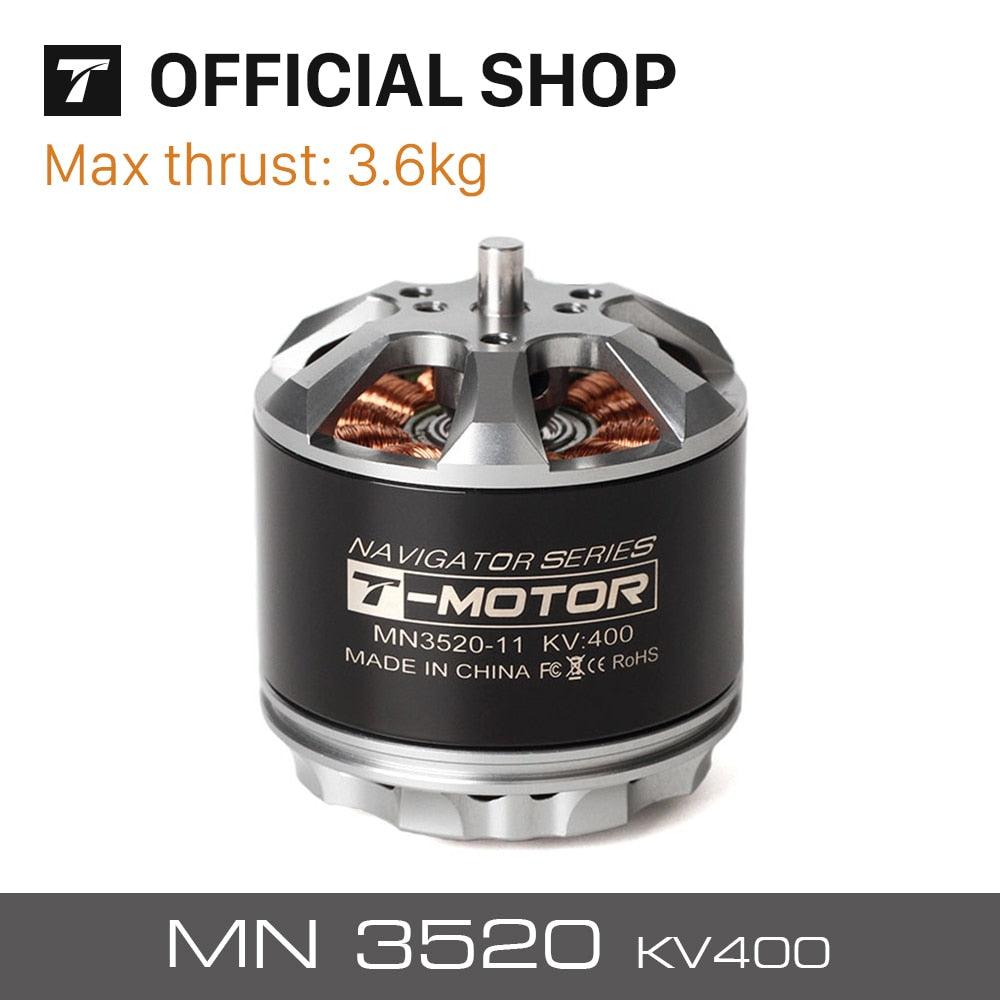

The T-Motor MN3520 features a robust outrunner brushless motor with a 400KV specification, designed specifically for multicopter UAVs and RC drones. This special design provides exceptional thrust, weighing in at 3.6KG.

The T-MOTOR MN3XXX features a high-quality bearing system, utilizing Navigator EZO bearings that were originally imported for exceptional performance. This ensures the motor operates smoothly and steadily even at low velocities.

Navigator's screw-in connector (8) features flexible mount holes designed to match standard 25x25mm mounting holes, allowing for compatibility with various devices in the current market.

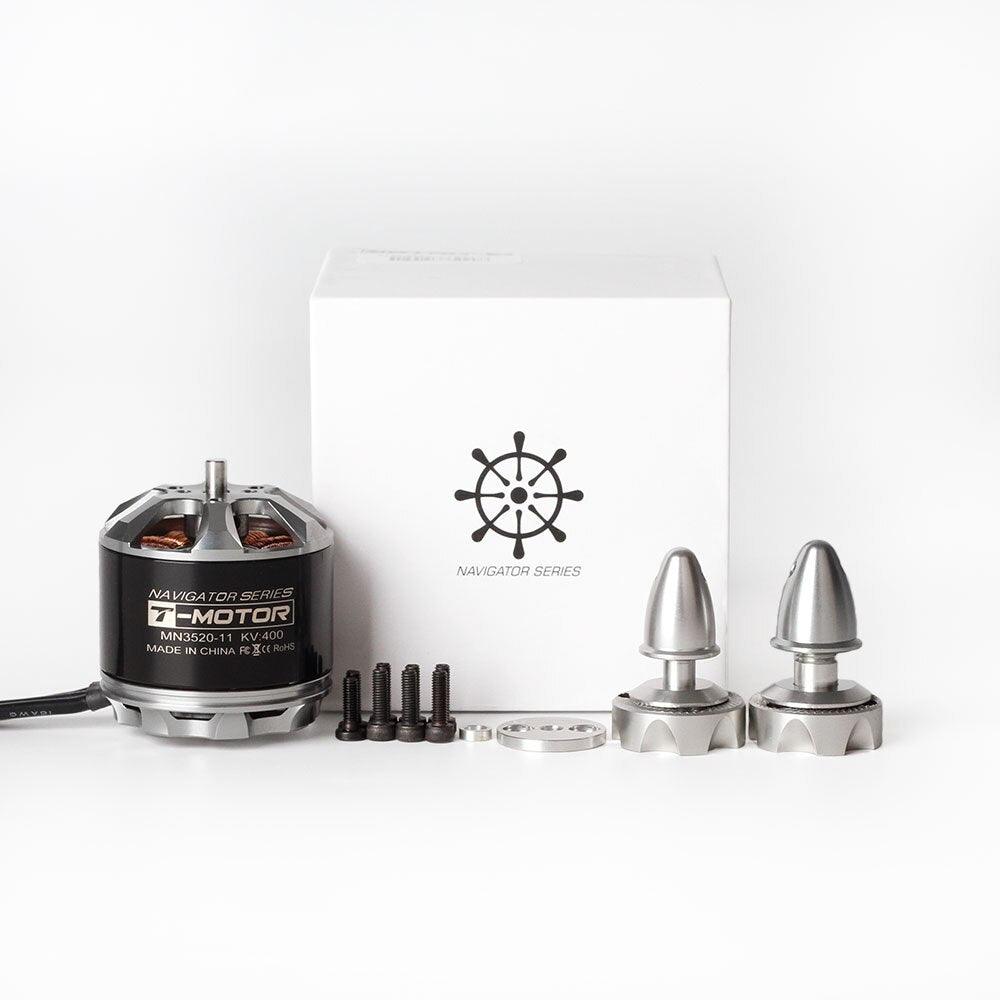

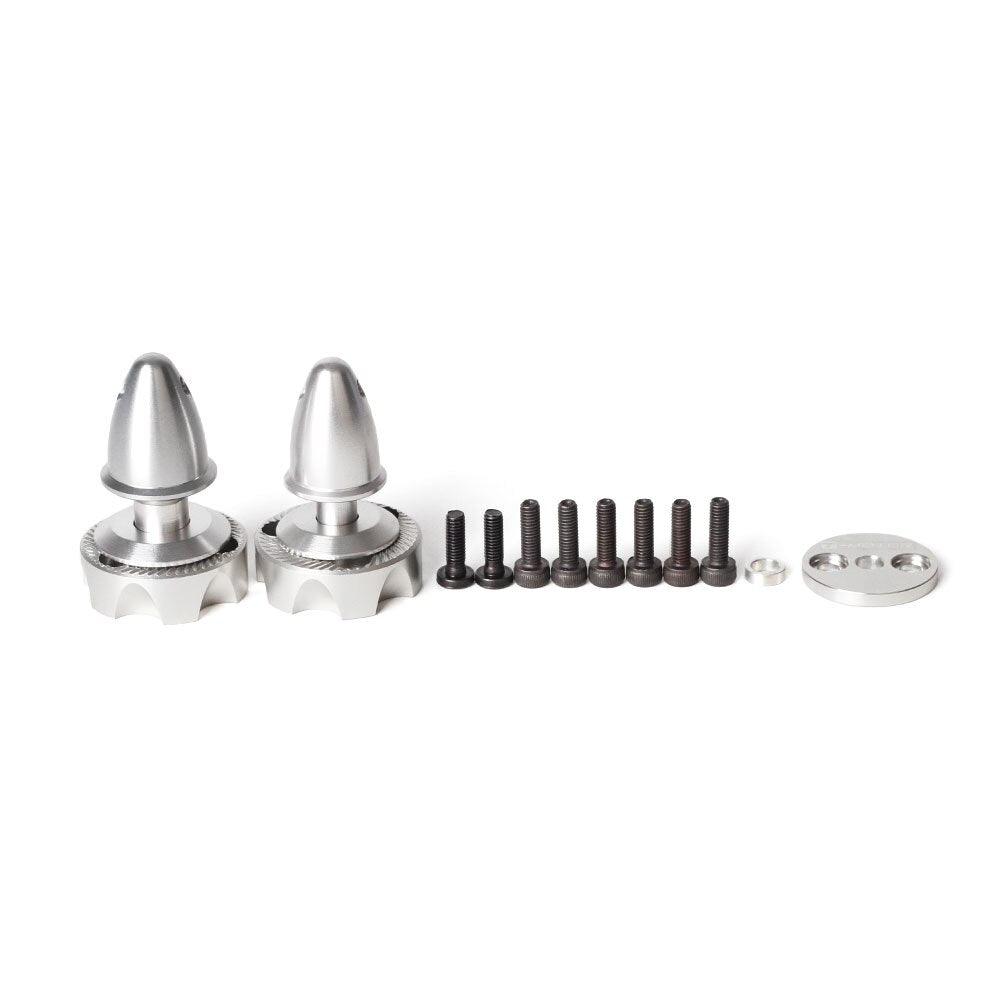

The package includes two sets of prop adapters, one for M6 and one for M8. Additionally, eight M3 x 12mm screws are provided for installing T-motor's CF props onto their plate covers.

Includes installation instructions for using M6 or M8 prop adapters, as well as a flat cover for securing CF props with 0-volt Tee adapters.

Test Report: MN3520, KV400. Report Number: MN00018. Specifications: Internal Resistance - 82mΩ. Configuration: 12N14P. Shaft Diameter: 4mm. Motor Dimensions: 42.5x42mm (length x width). Stator Diameter: 35mm. Stator Height: 20mm. AWG Cable: 16#. Cable Length: 600mm. Weight (including cables): 222g. Weight (excluding cables): 194g. Number of Cells (Lipo): 4-8S. Idle Current @ 10V: [insert value]
