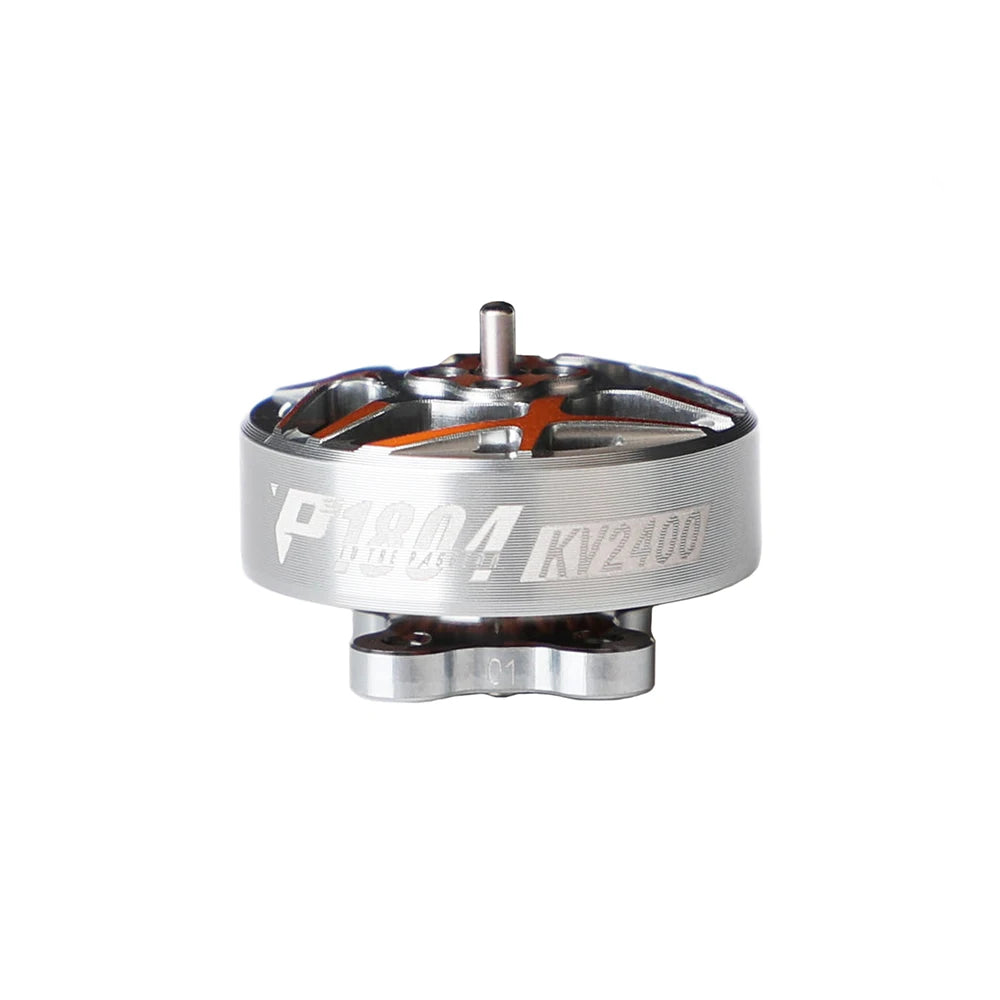

  • T-Motor P1804 2400KV brushless motor, 1.5mm/5mm shaft, ideal for 3-4 inch FPV drones.
  • T-Motor P1804 2400KV brushless motor for 3-4 inch FPV drones, featuring a 5mm shaft, compact size, and efficient performance.
  • T-Motor P1804 2400KV/3400KV brushless motor, designed for FPV drones, offers high performance and efficiency.

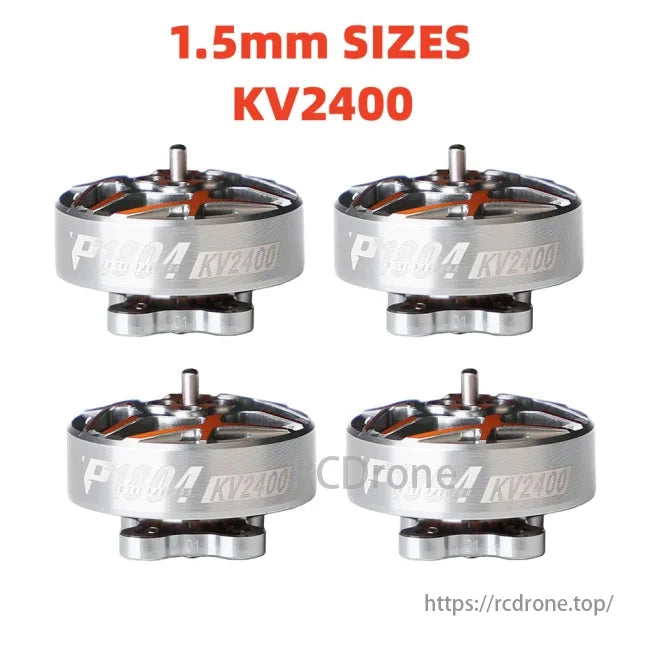

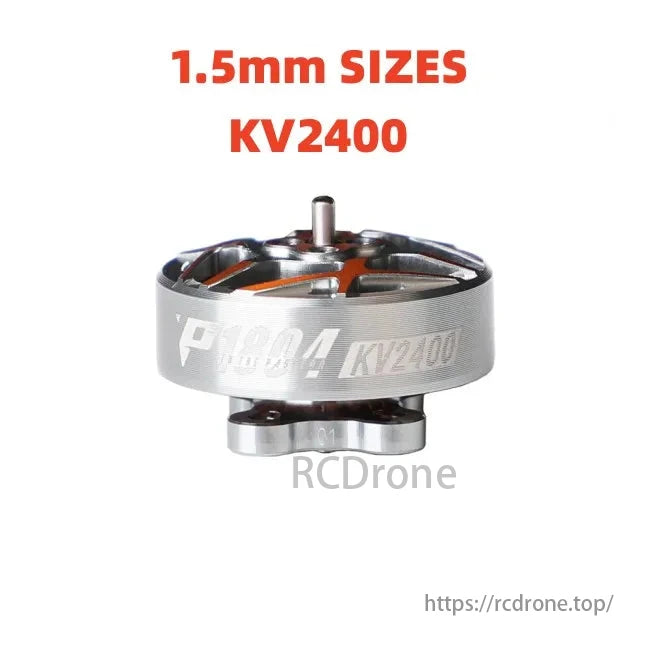

  • T-Motor P1804 2400KV brushless motor, 1.5mm shaft, ideal for 3-4 inch toothpick freestyle FPV drones.

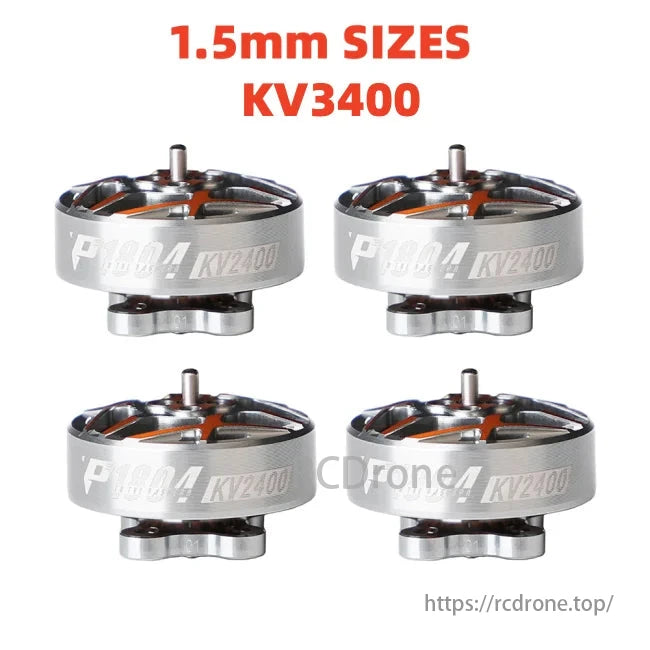

  • T-Motor P1804 brushless motor, 2400KV/3400KV, for 3-4 inch toothpick FPV drones, 1.5mm shaft, 3S-4S.
  • T-Motor P1804 2400KV, 1.5mm shaft, for 3-4 inch toothpick FPV drones, compact and efficient.
  • T-Motor P1804 brushless motor for 3-4 inch FPV drones, with 1.5mm shaft and optimized performance.

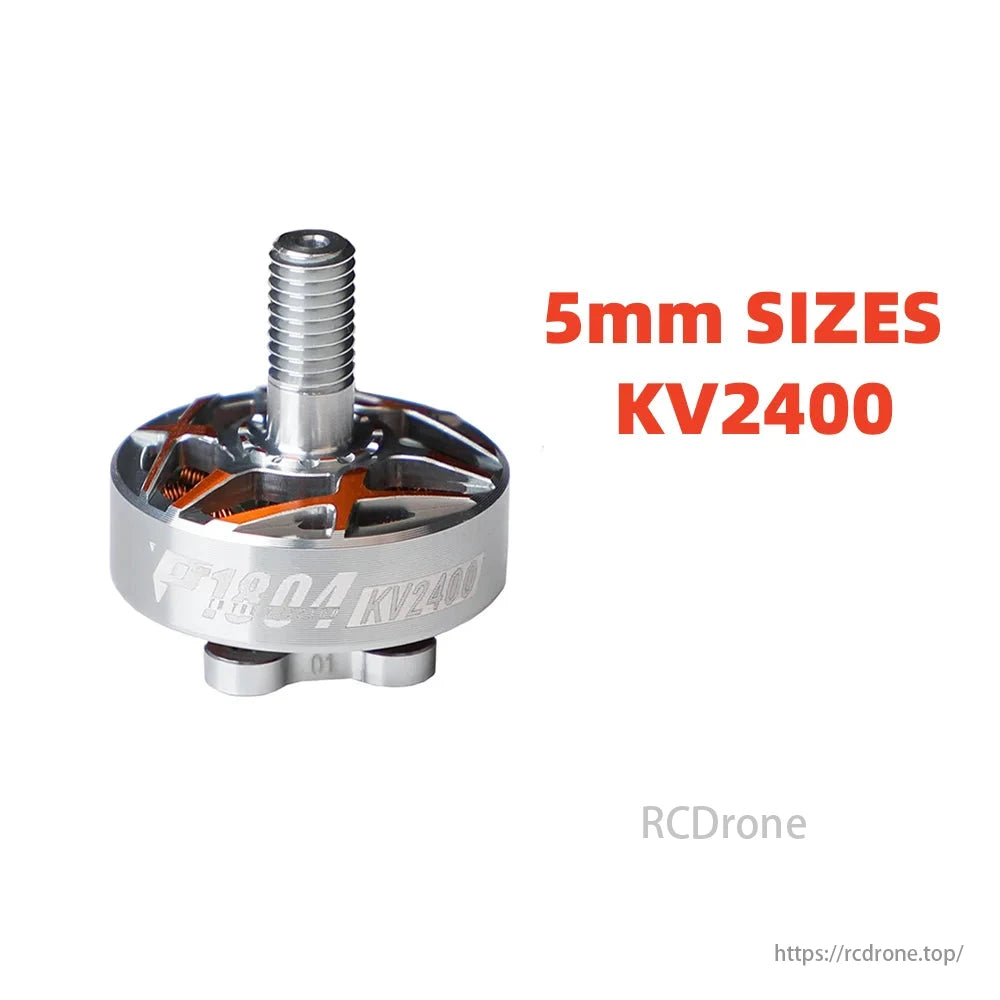

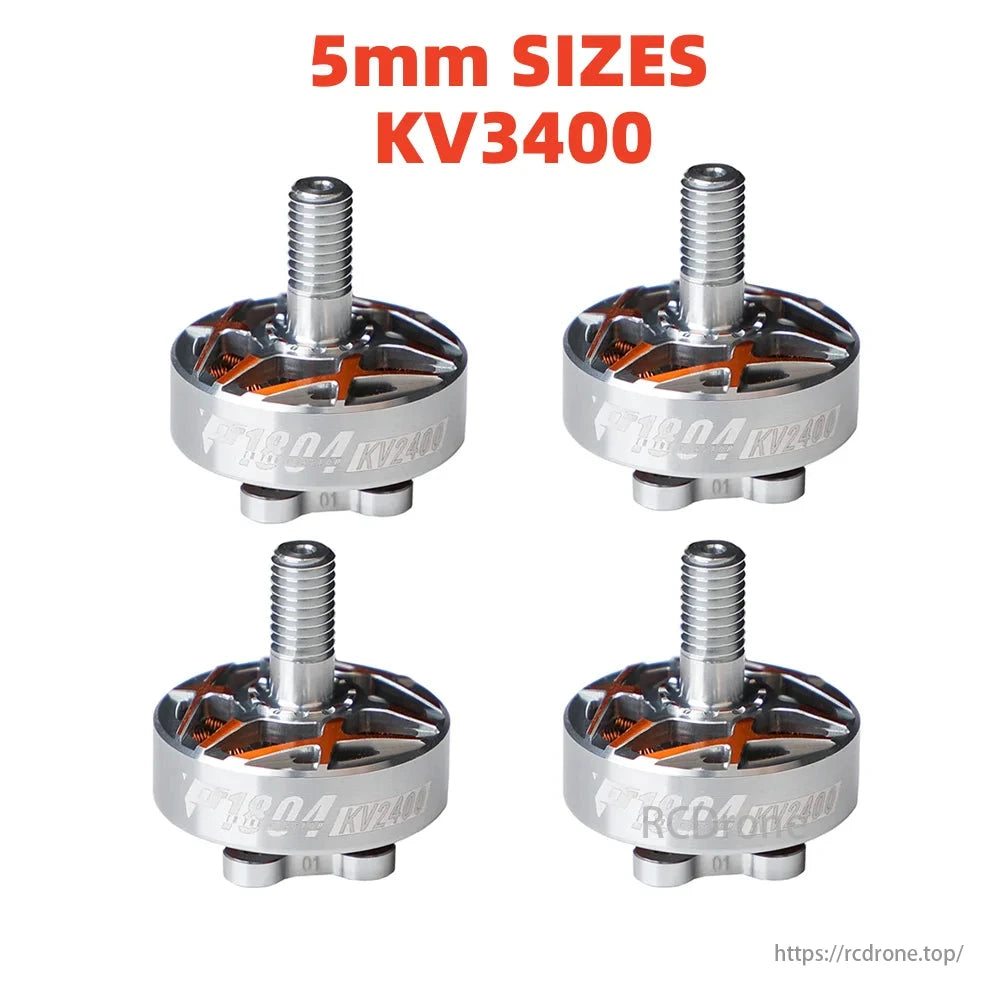

  • T-Motor P1804 2400KV brushless motor, 5mm shaft, for 3-4 inch toothpick freestyle FPV drones.
  • T-Motor P1804 2400KV/3400KV brushless motor, 5mm shaft, ideal for 3-4 inch FPV drones.
1 14

T-Motor P1804 2400KV 3400KV 3S 4S Brushless Motor 1.5mm/5mm Shaft for 3–4 Inch Toothpick Freestyle FPV Drones

T-Motor P1804 2400KV 3400KV 3S 4S Brushless Motor 1.5mm/5mm Shaft for 3–4 Inch Toothpick Freestyle FPV Drones

RCDrone

$65.00 USD
$65.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The T-Motor P1804 Brushless Motor is a lightweight and powerful option for 3" to 4" FPV toothpick and freestyle drones. Available in 2400KV (for 6S) and 3400KV (for 4S) versions, and in both 1.5mm and 5mm shaft options, the P1804 delivers smooth response, excellent durability, and top-tier performance.

With a refined Unibell design, precision-balanced internals, and strong thrust output—up to 609g at full throttle—the P1804 is perfect for agile flight in demanding indoor and outdoor conditions.

Key Features

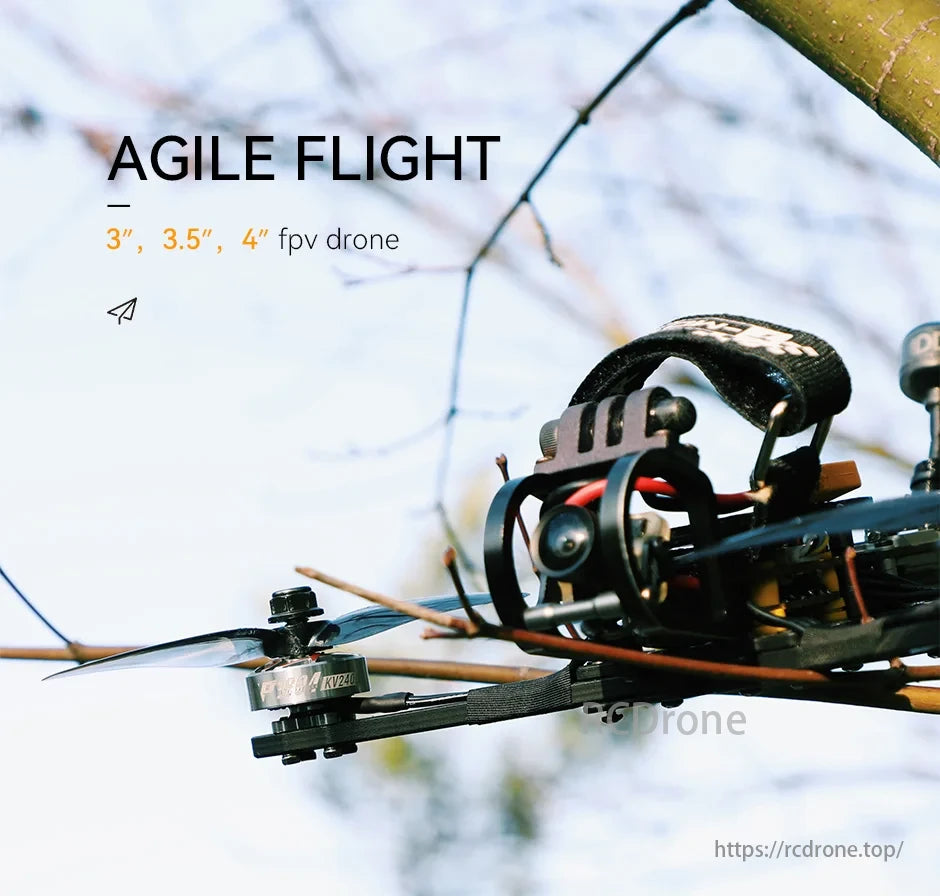

  • Optimized for 3", 3.5", and 4" FPV drones

  • Available in 2400KV (6S) and 3400KV (4S)

  • 1.5mm / 5mm shaft options for prop compatibility

  • Precision-balanced for smooth throttle response

  • Unibell structure for enhanced crash resistance

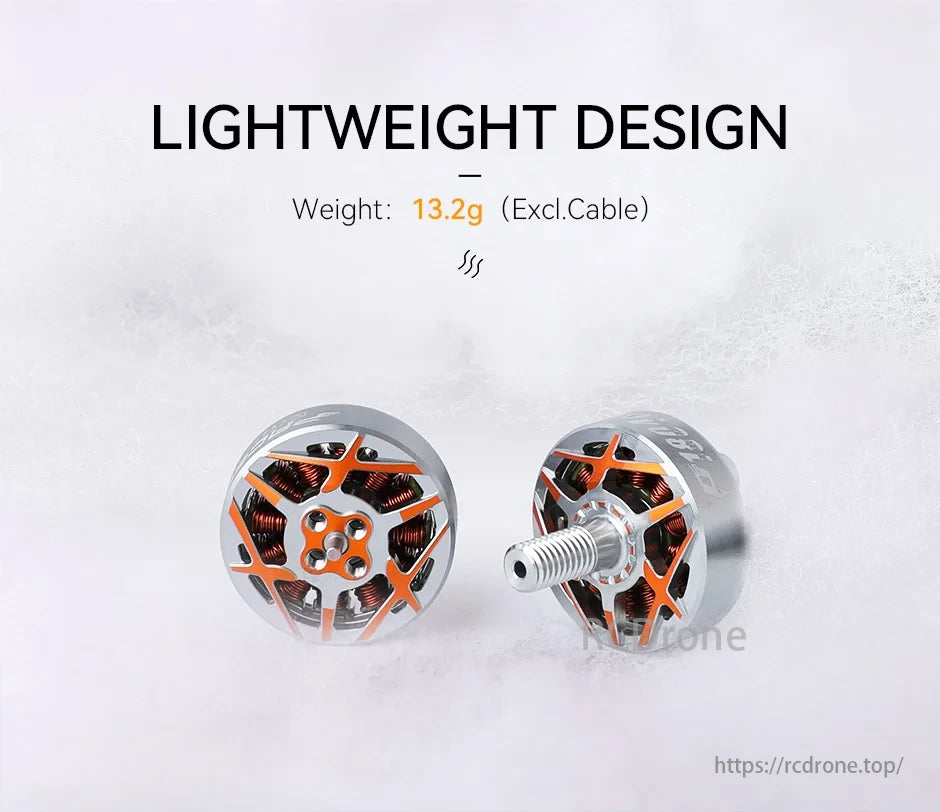

  • Lightweight: as low as 13.2g (excl. cable)

  • Suitable for cinewhoop, toothpick, and freestyle flying

Specifications

Parameter 2400KV 3400KV
Configuration 12N14P 12N14P
Input Voltage 6S 4S
Shaft Diameter 1.5mm / 5mm 1.5mm / 5mm
Lead Wires 24AWG 110mm 24AWG 110mm
Weight (Incl. Cable) 13.78–14.9g 14.3–14.9g
Idle Current @10V 0.45–0.51A 0.79–0.8A
Max Power (10s) 379.8W 318.3W
Peak Current (10s) 16A 20.2A

Performance Summary (with GF D90-3 Prop, 3400KV, 4S)

Throttle Current (A) Thrust (g) Power (W) Efficiency (g/W)
100% 15.3 609.6 363.0 1.68
80% 11.8 510.3 338.4 1.51
60% 8.4 264.4 133.8 1.98

More prop and KV configurations available in full datasheet.

Package Includes

  • 1 × T-Motor P1804 Brushless Motor (choose KV & shaft size)

  • 1 × Parts bag (mounting screws, lock nut, washers)

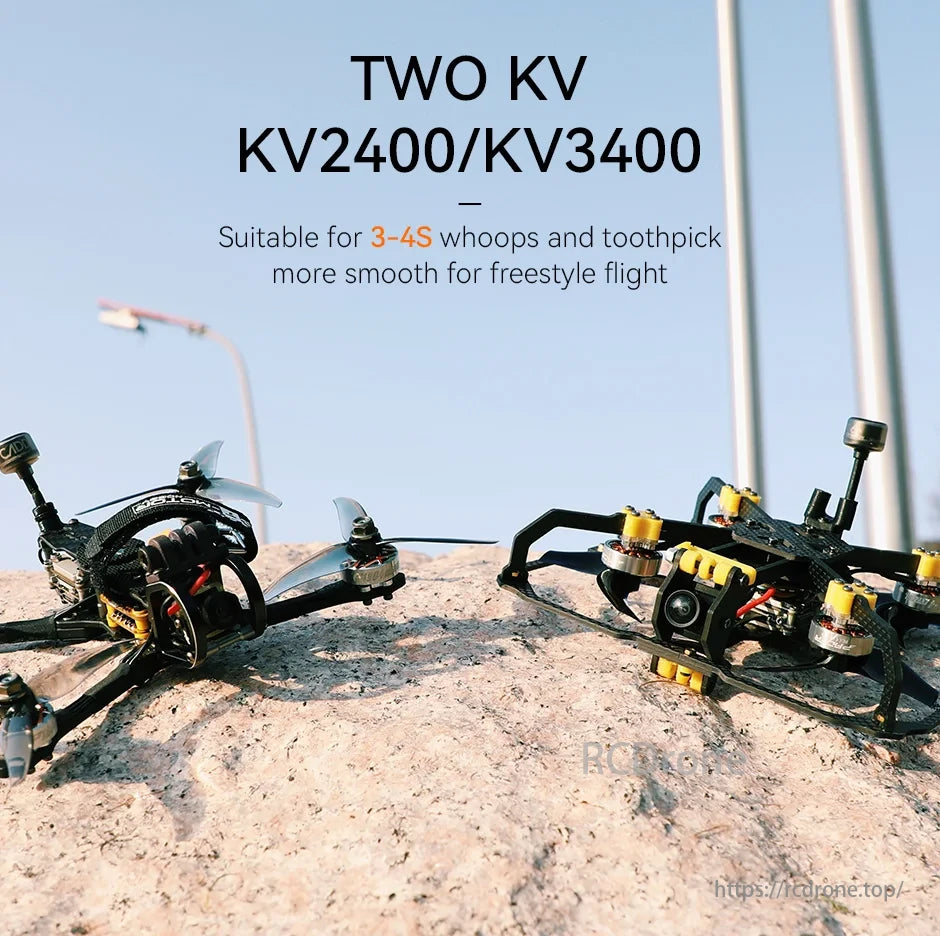

T-Motor, The P1804 offers smooth response, excellent durability, and high-performance in various versions and shaft options.T-Motor P1804 2400KV 3400KV 3S 4S Brushless Motor 1.5mm/5mm Shaft for 3–4 Inch Toothpick Freestyle FPV DronesT-Motor KV2400/KV3400 for 3-4S whoops offers smooth freestyle flight.

T-Motor KV2400/KV3400 for 3-4S whoops, smooth freestyle flight.

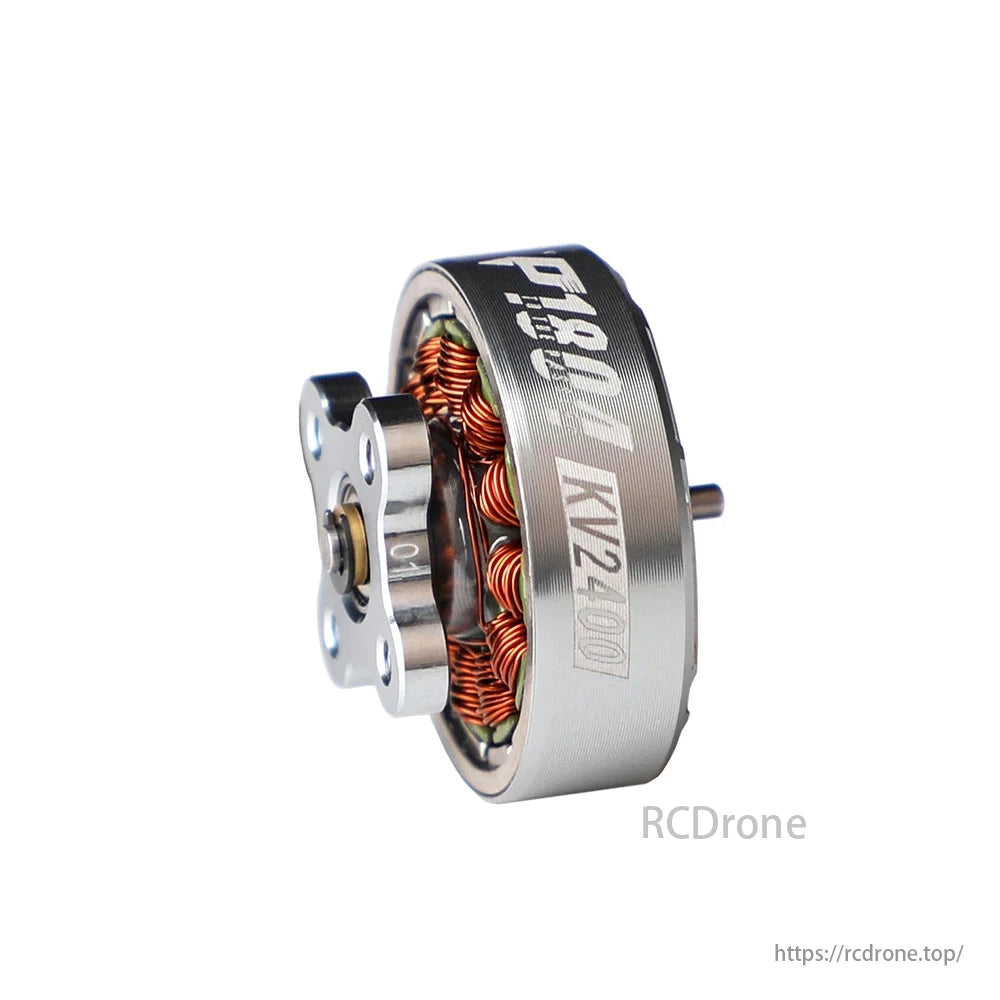

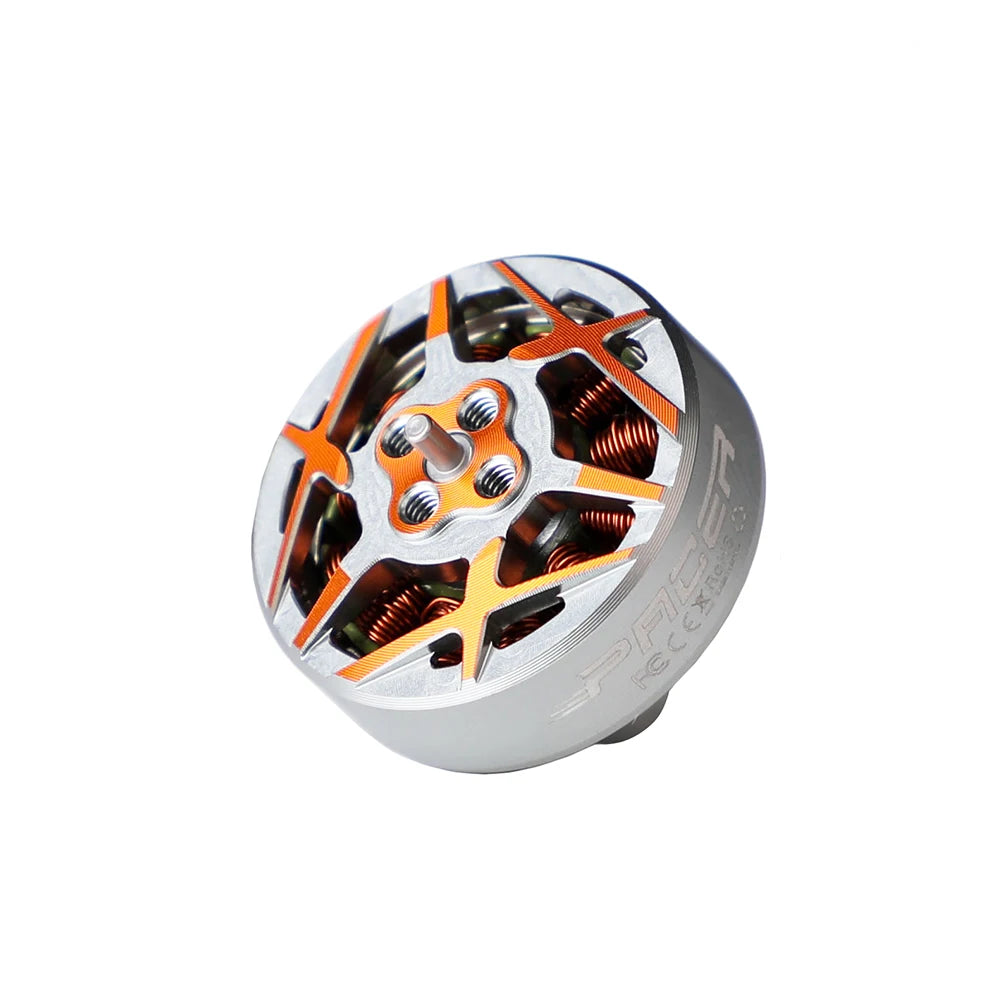

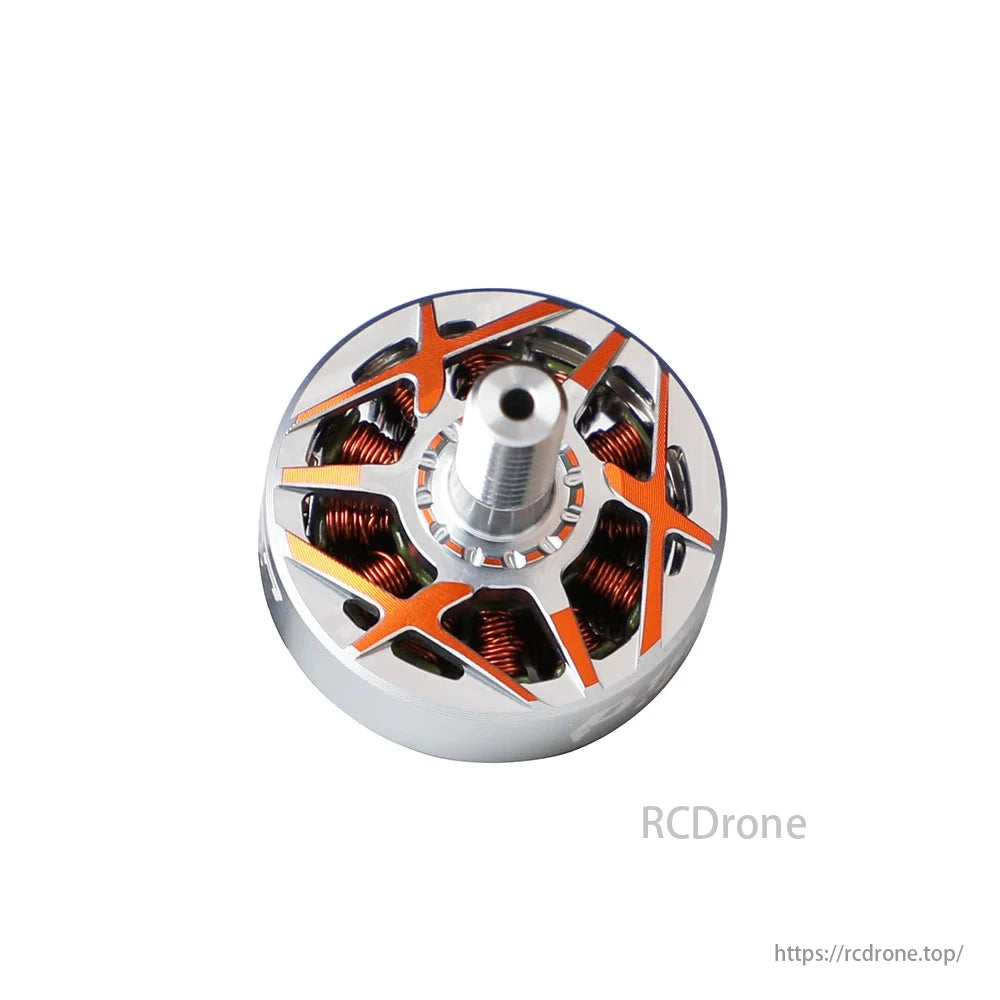

T-Motor Unibell Design: One-piece bell for durability and performance.

T-Motor Unibell Design: Classic Pacer series with one-piece bell design, offering enhanced durability for reliable performance.

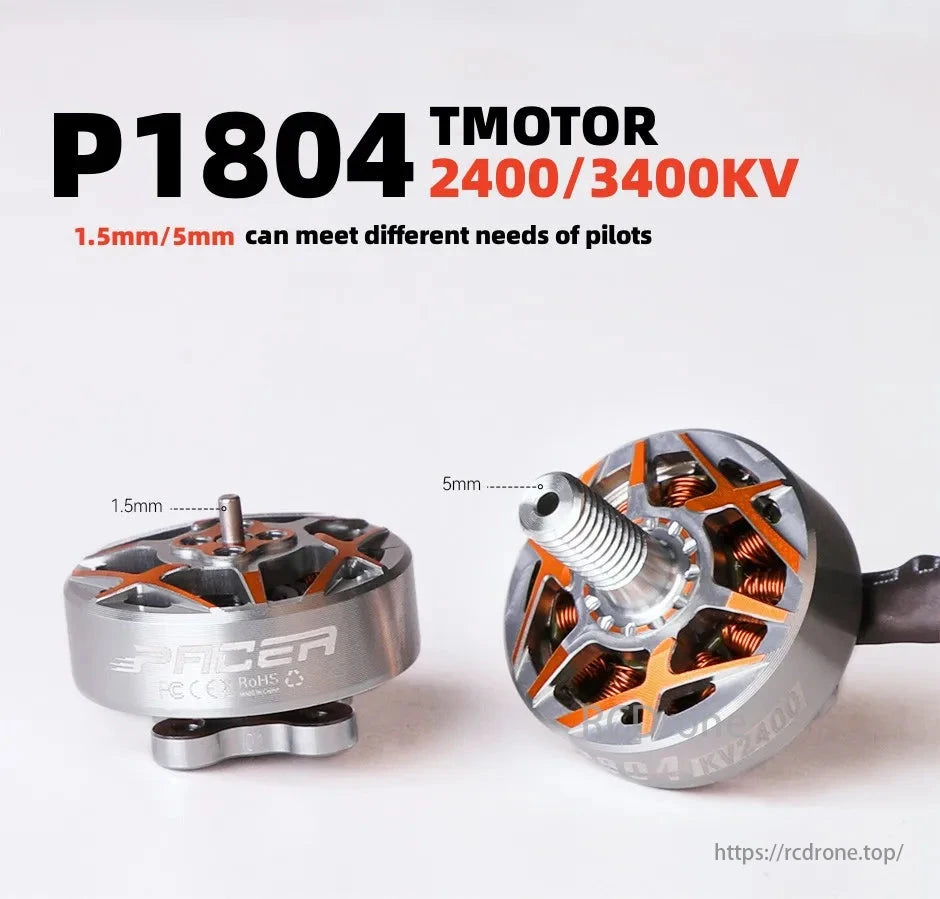

T-Motor offers two shaft sizes (1.5mm and 5mm) to meet varied pilot needs.

T-Motor offers two shaft sizes, 1.5mm and 5mm, for varied pilot needs.

T-Motor, P1804 motors offer 2400KV/3400KV options, 1.5mm/5mm shafts, weights from 13.78g-14.9g, max power 379.8W, and peak current 20.2A.

P1804 motor specifications include 2400KV and 3400KV options, with shaft diameters of 1.5mm and 5mm. Weights range from 13.78g to 14.9g, max power up to 379.8W, and peak current at 20.2A.

T-Motor P1804 Test Report details performance metrics for 2400KV and 3400KV propellers across different throttle settings.

T-Motor propellers' performance metrics, including voltage, current, RPM, thrust, power, and efficiency at various throttle settings for 2400KV and 3400KV types, are detailed in the P1804 Test Report.

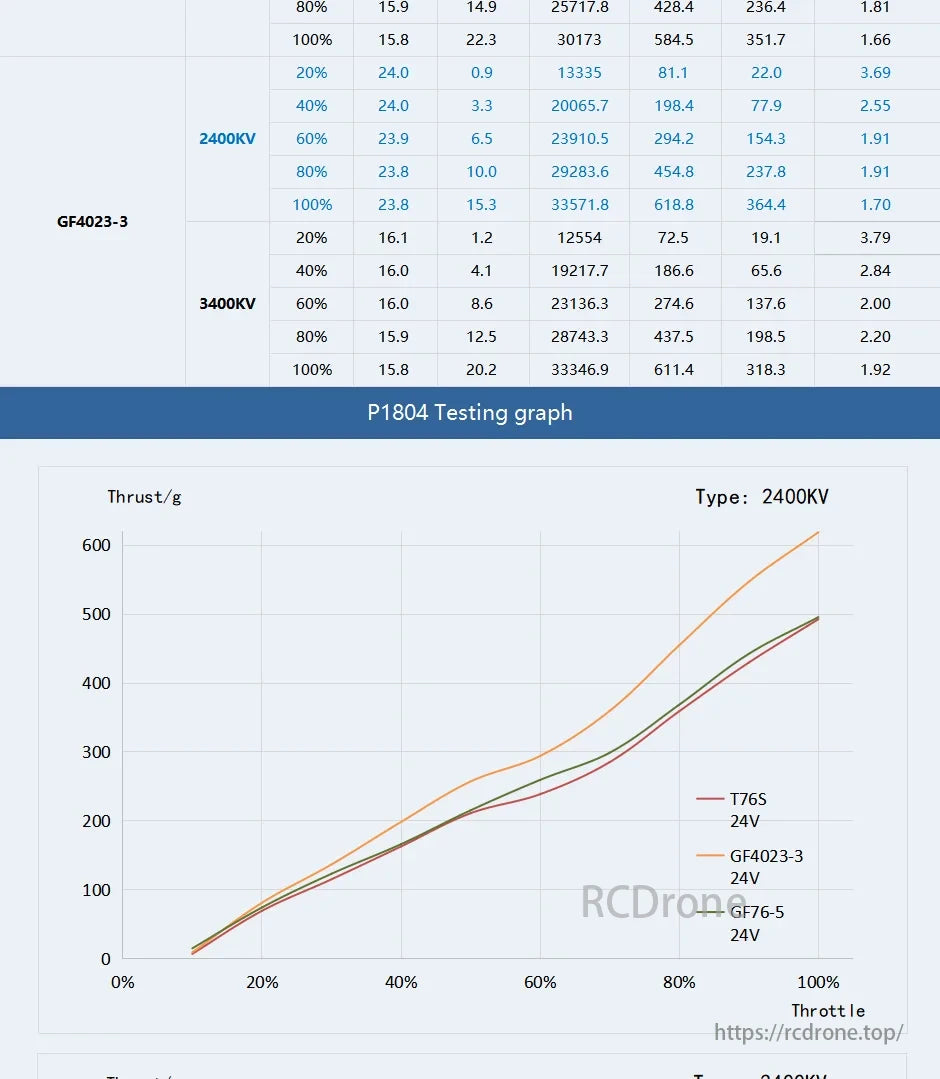

T-Motor, GF4023-3 motor data (2400KV & 3400KV) shows thrust in grams by throttle percentage. P1804 graph compares it with T76S and GF76-5 motors at 24V.

GF4023-3 motor data at 2400KV and 3400KV, including thrust in grams at various throttle percentages. P1804 testing graph compares T76S, GF4023-3, and GF76-5 motors at 24V.

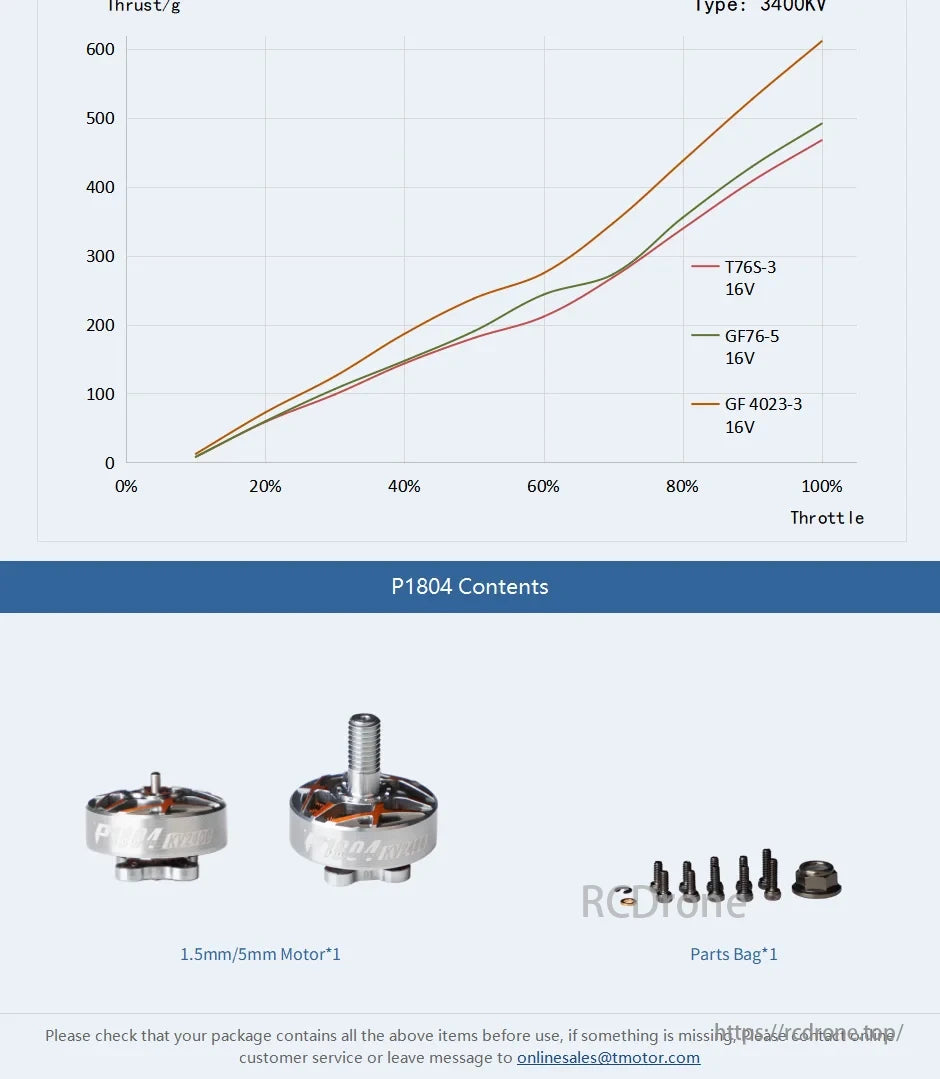

T-Motor P1804 details thrust performance at 16V for various propellers. Thrust increases with throttle percentage, and the package includes a motor and parts bag. Specifications: 3400KV. Graph shows grams of thrust versus throttle percentage.

T-Motor P1804 product details cover thrust performance at 16V for T76S-3, GF76-5, and GF 4023-3 types. Thrust rises with throttle percentage. The package includes one 1.5mm/5mm motor and a parts bag. Verify all items are included before use; if not, contact onlinesales@tmotor.com. Specifications: 3400KV. The graph displays thrust in grams versus throttle percentage, emphasizing motor efficiency and power output characteristics. This data helps evaluate the motor's performance effectively.
