• Blue T-Motor 2206 JUICY KV2060 brushless FPV drone motor with threaded shaft and vented bell

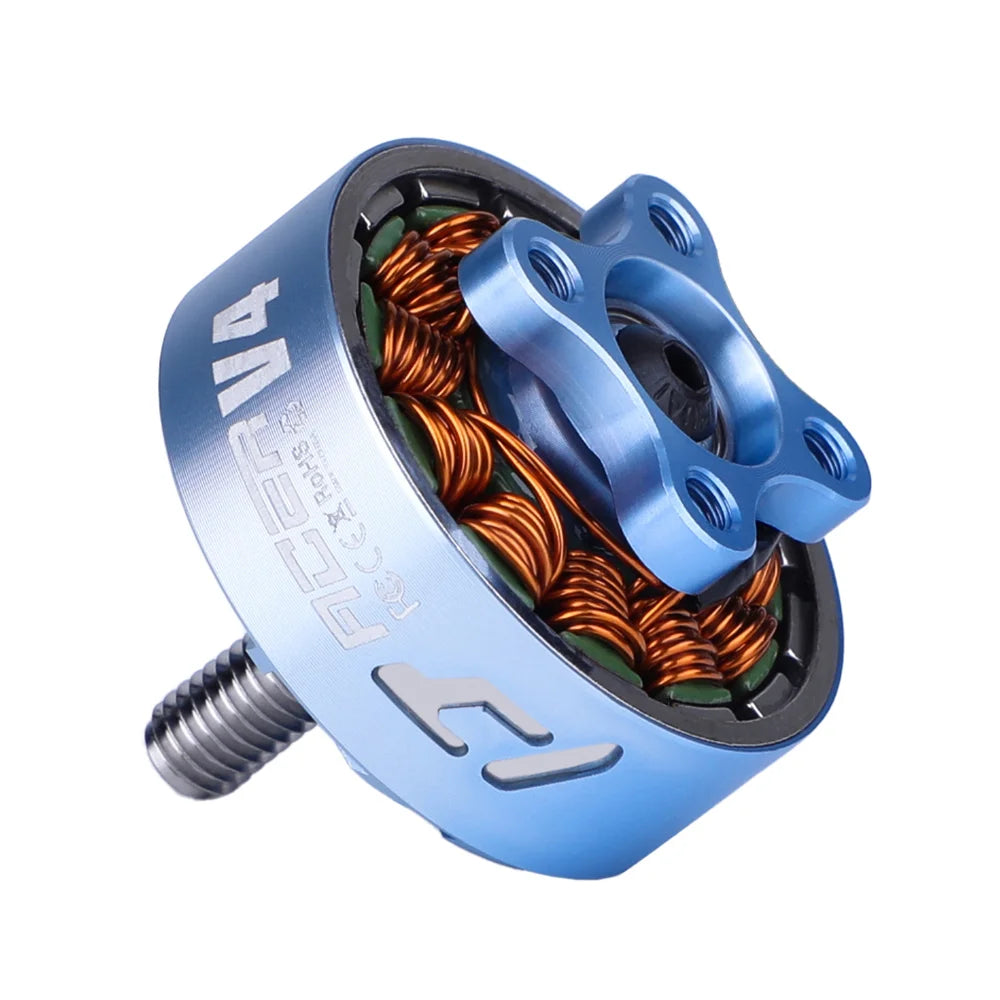

  • Blue T-Motor brushless drone motor with exposed copper windings, four-hole mounting top plate, and threaded shaft

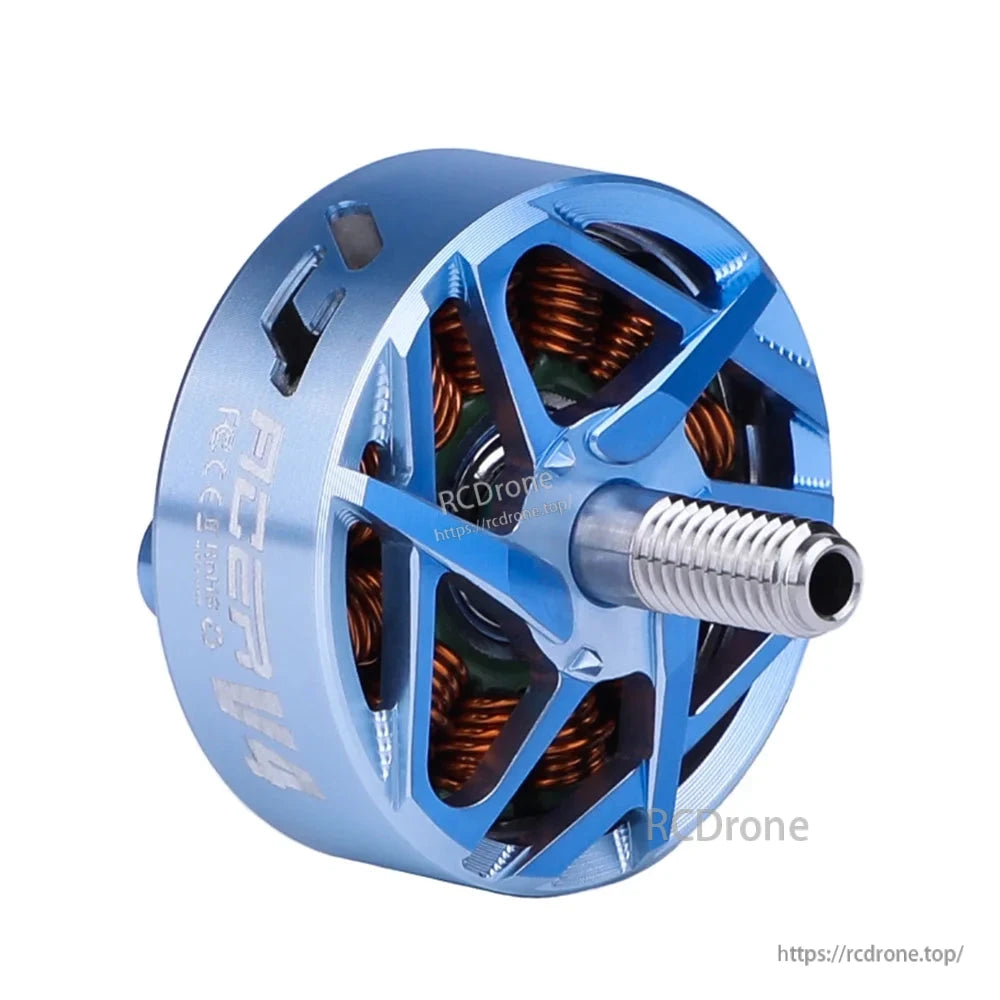

  • Close-up of a blue T-Motor brushless outrunner motor with visible copper windings and a threaded shaft

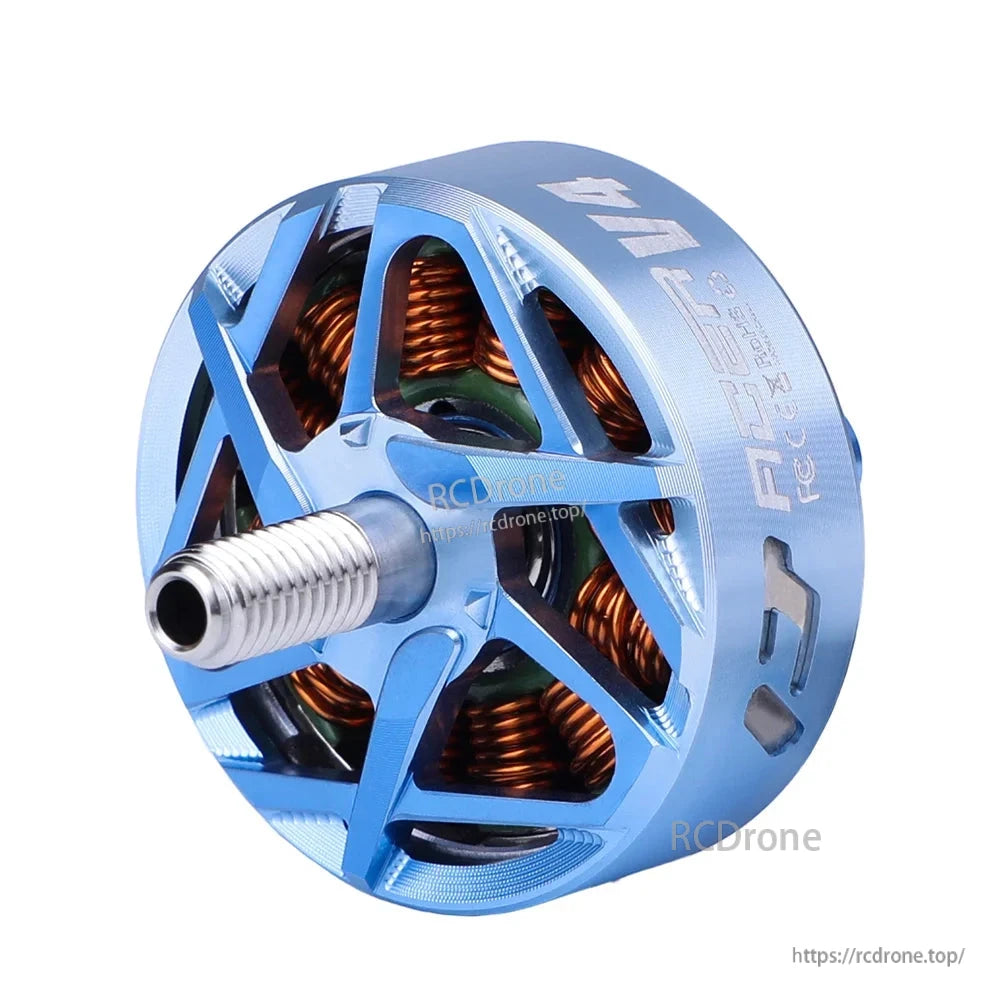

  • Blue T-Motor style brushless drone motor with exposed copper windings and a threaded output shaft

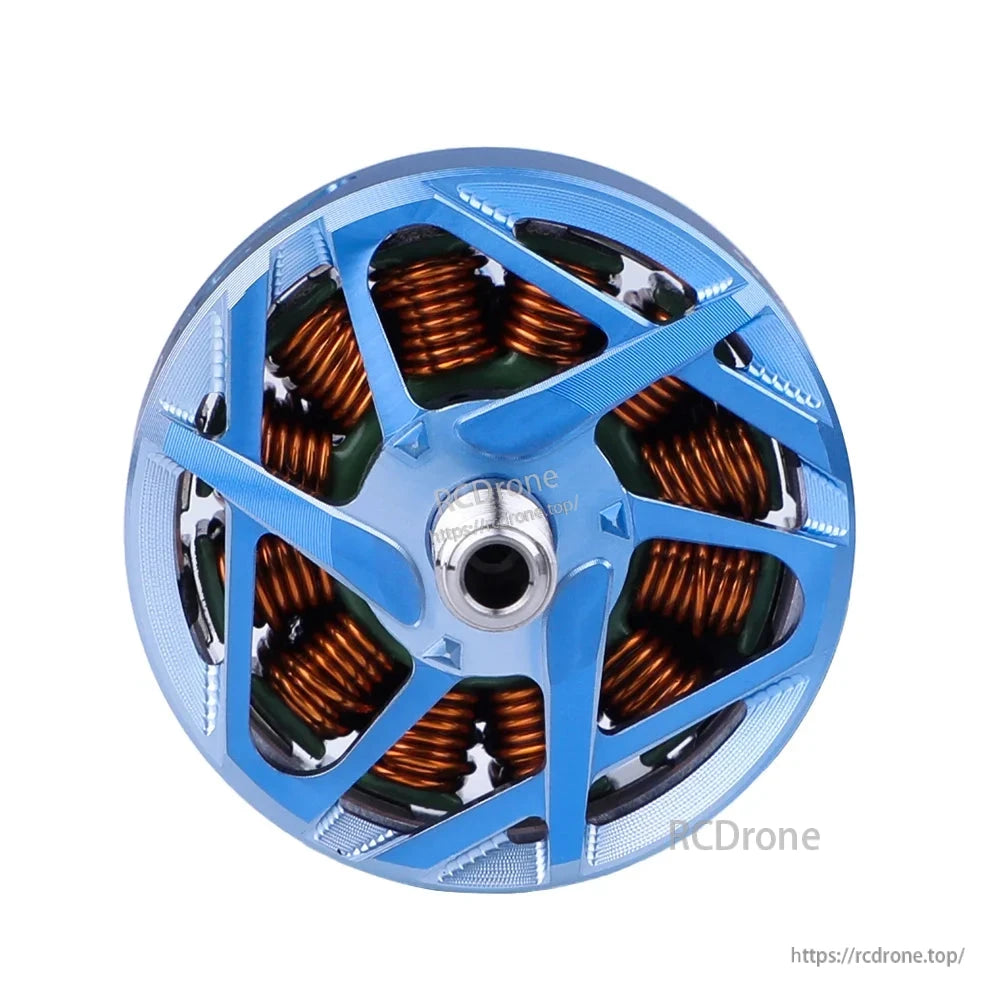

  • Top view of a T-Motor brushless outrunner motor with blue aluminum bell and exposed copper windings
1 5

T-Motor PACER V4 P2406 JUICY 2060KV FPV Brushless Motor for 5-6 Inch Freestyle Drones

T-Motor PACER V4 P2406 JUICY 2060KV FPV Brushless Motor for 5-6 Inch Freestyle Drones

T-MOTOR

$40.00 USD
$40.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Options
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The T-Motor PACER V4 P2406-JUICY 2060KV is a brushless motor designed for 5–6 inch freestyle FPV drones. It is positioned for high-mobility flying styles such as JUICY SBANG, FLOW, and BANDO, with an optimized core size, redesigned magnetic circuit, and enhanced structural strength.

Key Features

  • Prime pick for vibrant freestyle: Designed for 5–6 inch freestyle FPV drones; high thrust supports ejection and full-throttle maneuvers in SBANG style.
  • Extreme response to throttle: High motor torque and rapid yet smooth throttle acceleration for a strong sense of locking and fast control response.
  • Long service life: Efficient current transmission and a large heat dissipation area; coils are described as resisting discoloration under extreme tuning and aggressive settings.
  • Strong durability: Structural strength intended to handle frequent and intense misoperation typical of JUICY flying.
  • High thrust / high torque / low temperature / crash resistance: Targeted for aggressive 5-inch freestyle builds, including setups around 800 g (as described), with stable performance under extreme tuning (low filtering, high PID values).

For customer service and product support, contact https://rcdrone.top/ or email support@rcdrone.top.

Specifications

Parameter Value
Model / Type PV4 juicy
KV 2060
Motor dimension Φ30.2*31 mm
Configuration 12N14P
Magnet Nickel plated arc magnet
Bearings Imported 684ZZ
Shaft diameter 5 mm
Coil insulation test 500V withstand voltage test (5 s)
Dynamic balance requirements standard <= 5 mg
Waterproof and dustproof class /
Max power (15 s) 1160 W
Rated voltage (lip) 24 V
Max thrust 1939 g
Idle current (10 V) 1.9 A
Internal resistance 45 mΩ
Peak current (15 s) 48 A
Weight (incl. cable) 36 g
Packing weight 50 g

Recommended Pairing

Model Frame ESC Propellers Battery Mounting
PV4 JUICY TMOTOR Photon X5 5" Freestyle Frame P60A v2, V50A SE T5143S, HQProp J37, J33 6s 1000-1850mAh GOPRO7 or other cameras under 200 g

ESC Setup Note (from image text)

Note: The BL32 firmware specifies the use of V50A SE ESC; other ESCs may result in desync. Recommended ESC settings: Startup power: 75%, Timing: 30°, PWM frequency: 24-48kHz, Demagnetization compensation: low. (Improper settings may cause desync.)

What’s Included

  • Motor*1
  • Parts Bag*1

Applications

  • 5–6 inch freestyle FPV drones
  • Freestyle flying styles including JUICY SBANG, FLOW, and BANDO

Details

T-Motor FPV drone motor promo showing a blue motor and a 5–6 inch freestyle quad in flight with durability text

T-Motor’s freestyle FPV motor is positioned for 5–6 inch builds, with messaging focused on throttle response and durability.

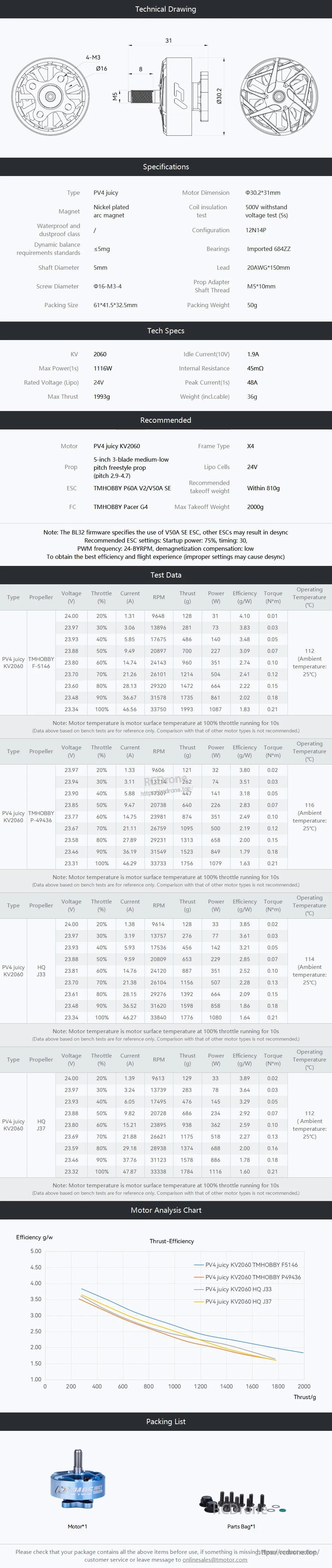

T-Motor PV4 Juicy KV2060 motor spec sheet with technical drawing, test data tables, efficiency chart, and packing list

Technical drawings, test data, and the packing list detail the PV4 Juicy KV2060 motor’s dimensions and the included mounting screws and hardware.
