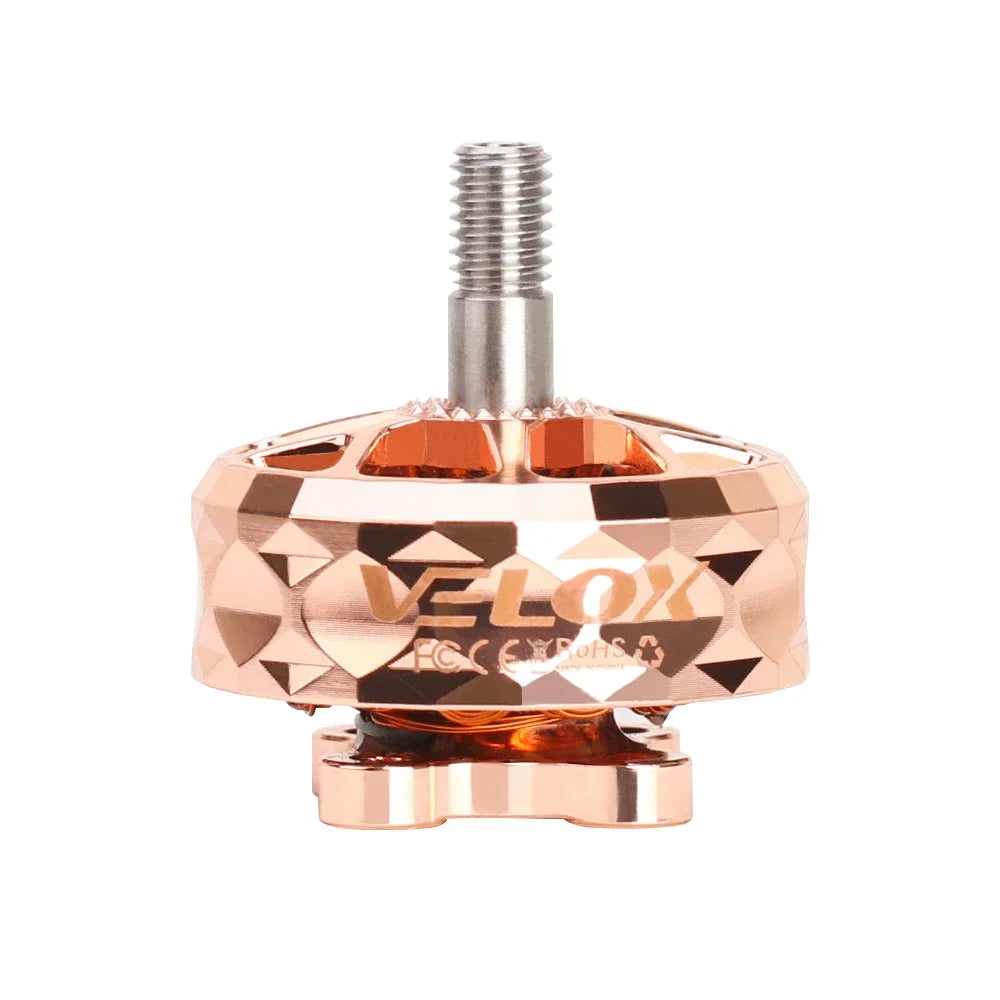

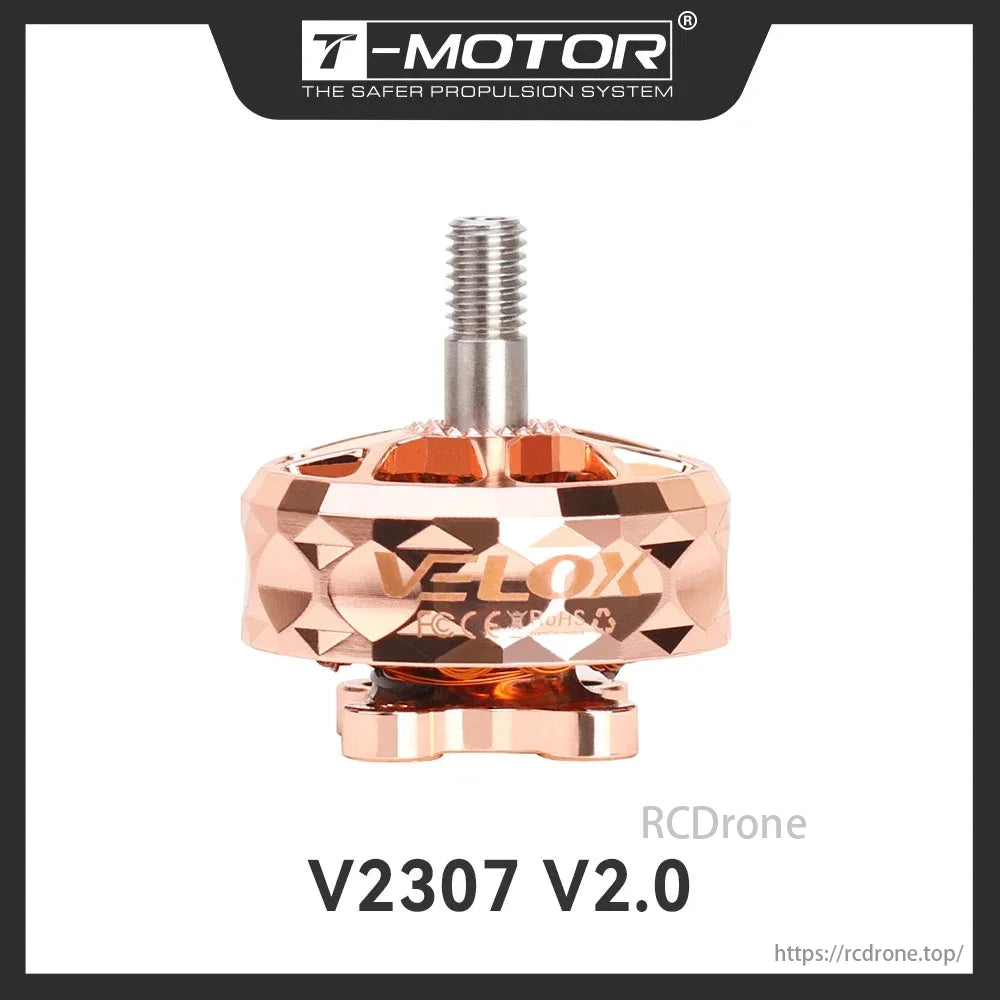

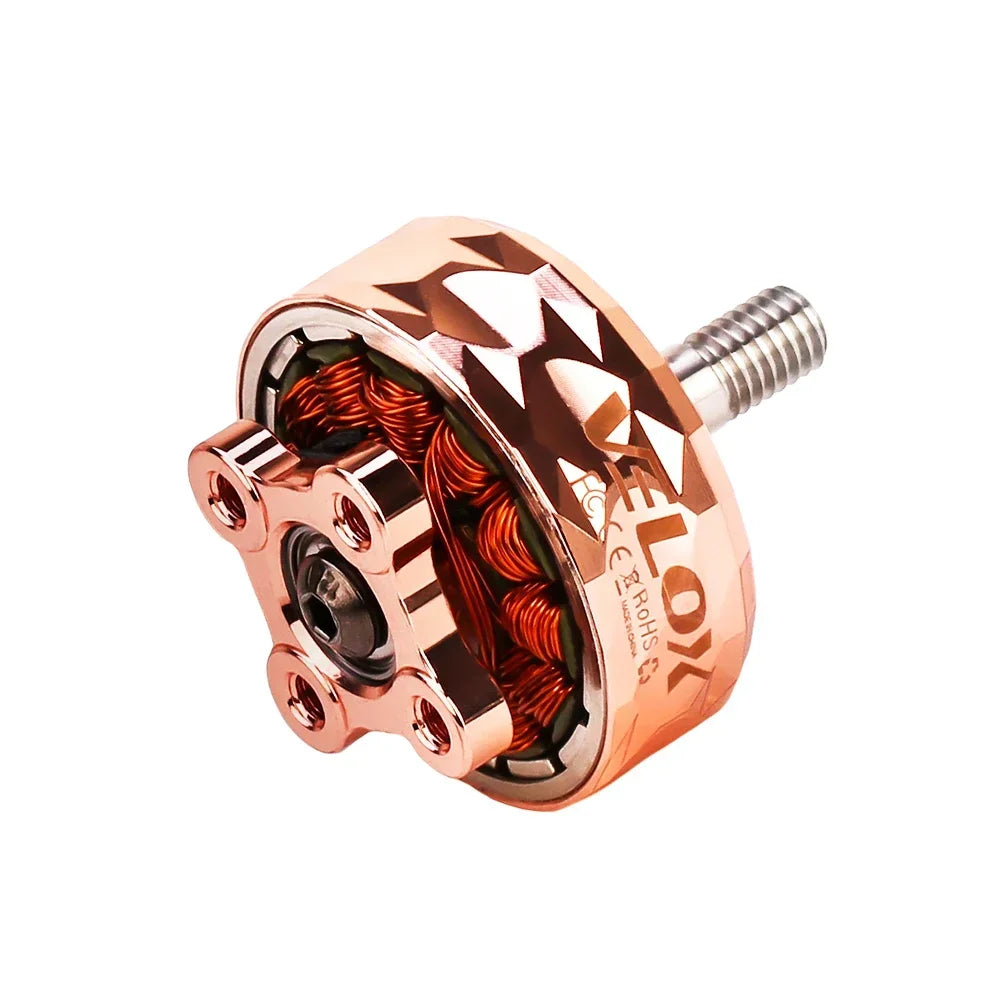

The T-MOTOR VELOX V2307 V2 brushless motor is engineered for 5-inch FPV freestyle drones, offering both explosive performance and refined control. Available in 1950KV for 6S setups and 2550KV for 4–5S, it delivers responsive power output, smooth throttle control, and robust durability for demanding pilots.

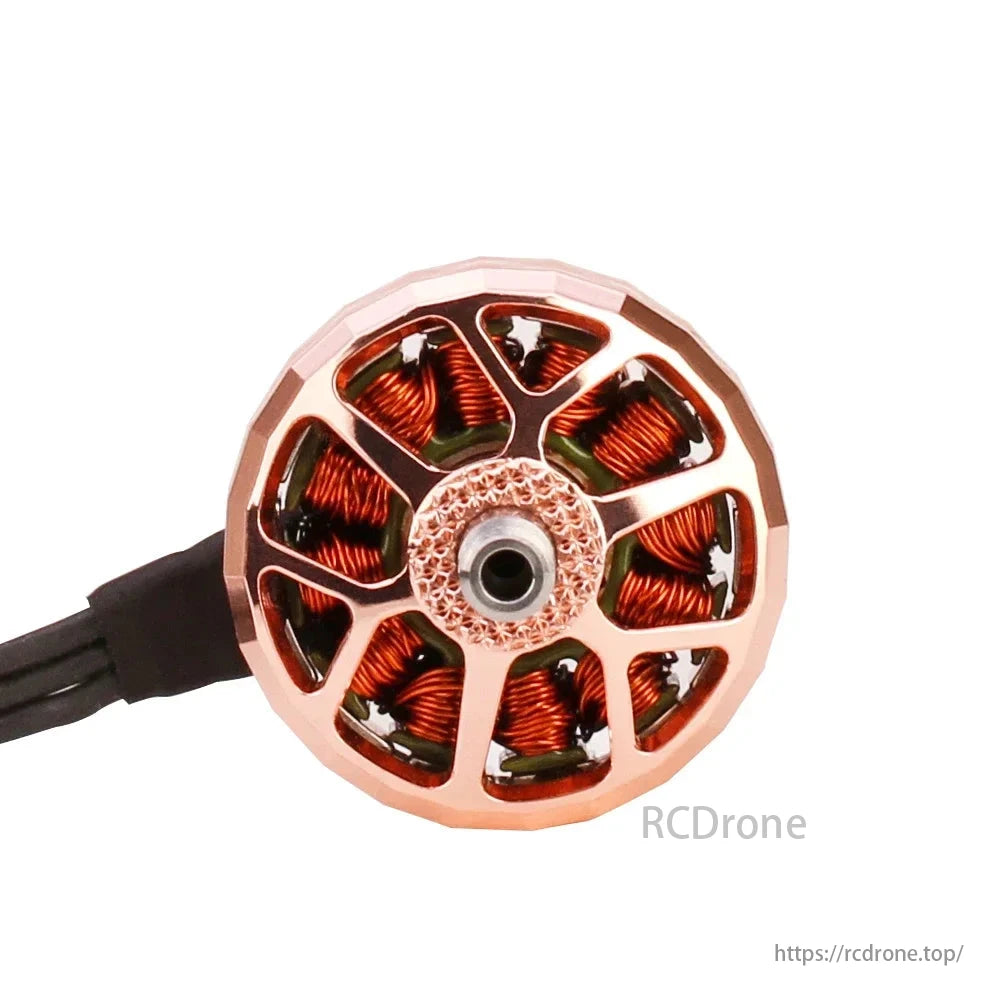

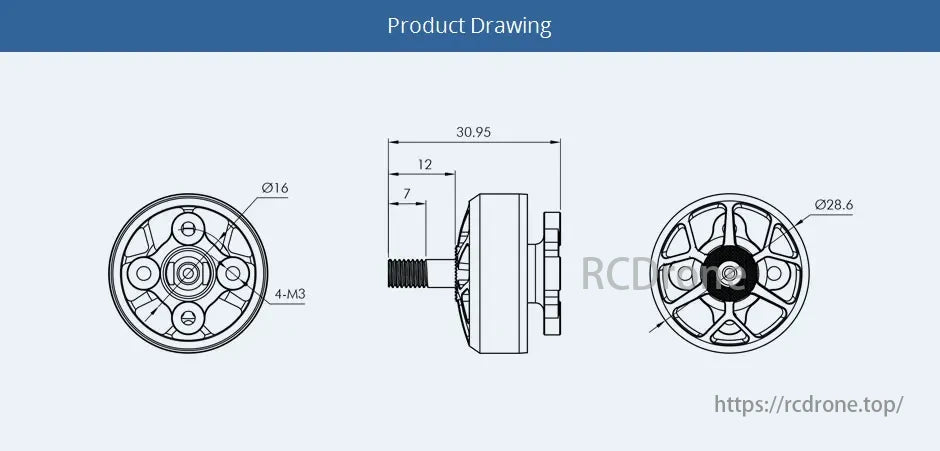

Crafted with high-quality components like a 4mm hollow steel shaft, 12N14P configuration, and 28.6×30.95mm aluminum alloy housing, this motor supports aggressive freestyle maneuvers while maintaining consistent flight characteristics.

Technical Specifications：

Packaging Contents:

• 1x T-MOTOR VELOX V2307 V2 Motor

• 1x M5 Lock Nut

• 1x Parts Bag (Screws + Spacers)

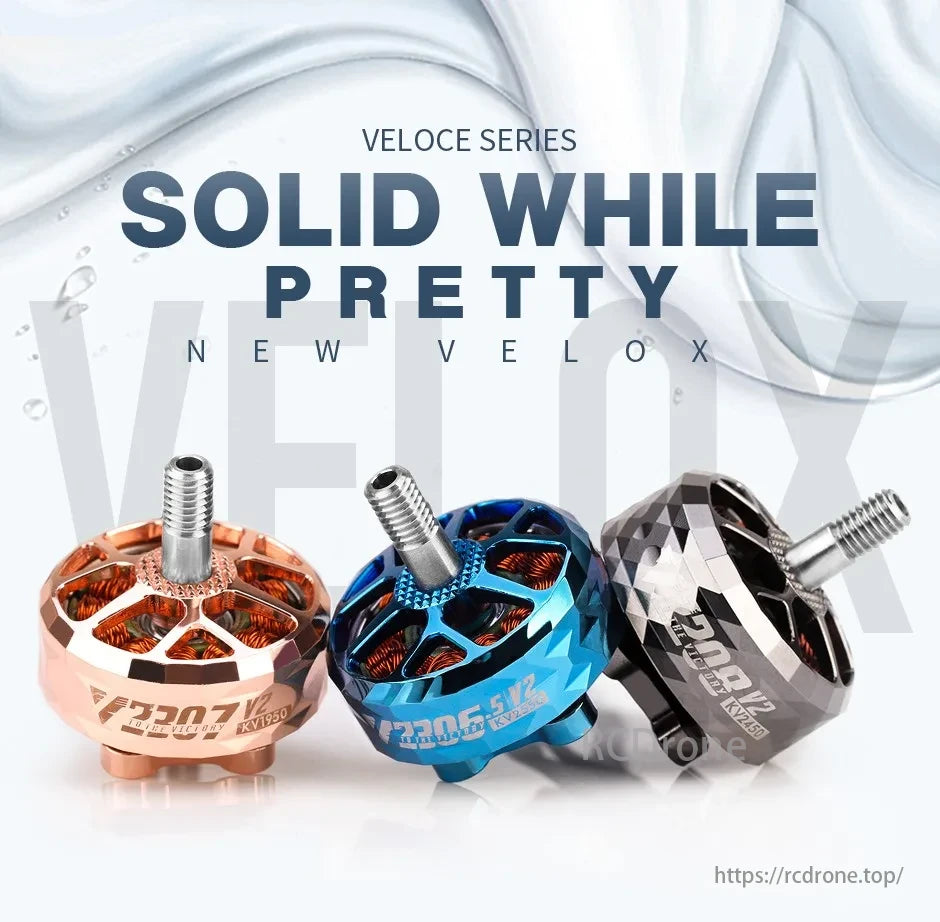

VELOCE SERIES: Solid while pretty motors in gold, blue, and black designs.

Velox series offers exquisite appearance and excellent performance for pilots to challenge limits, ensuring a better flight experience.

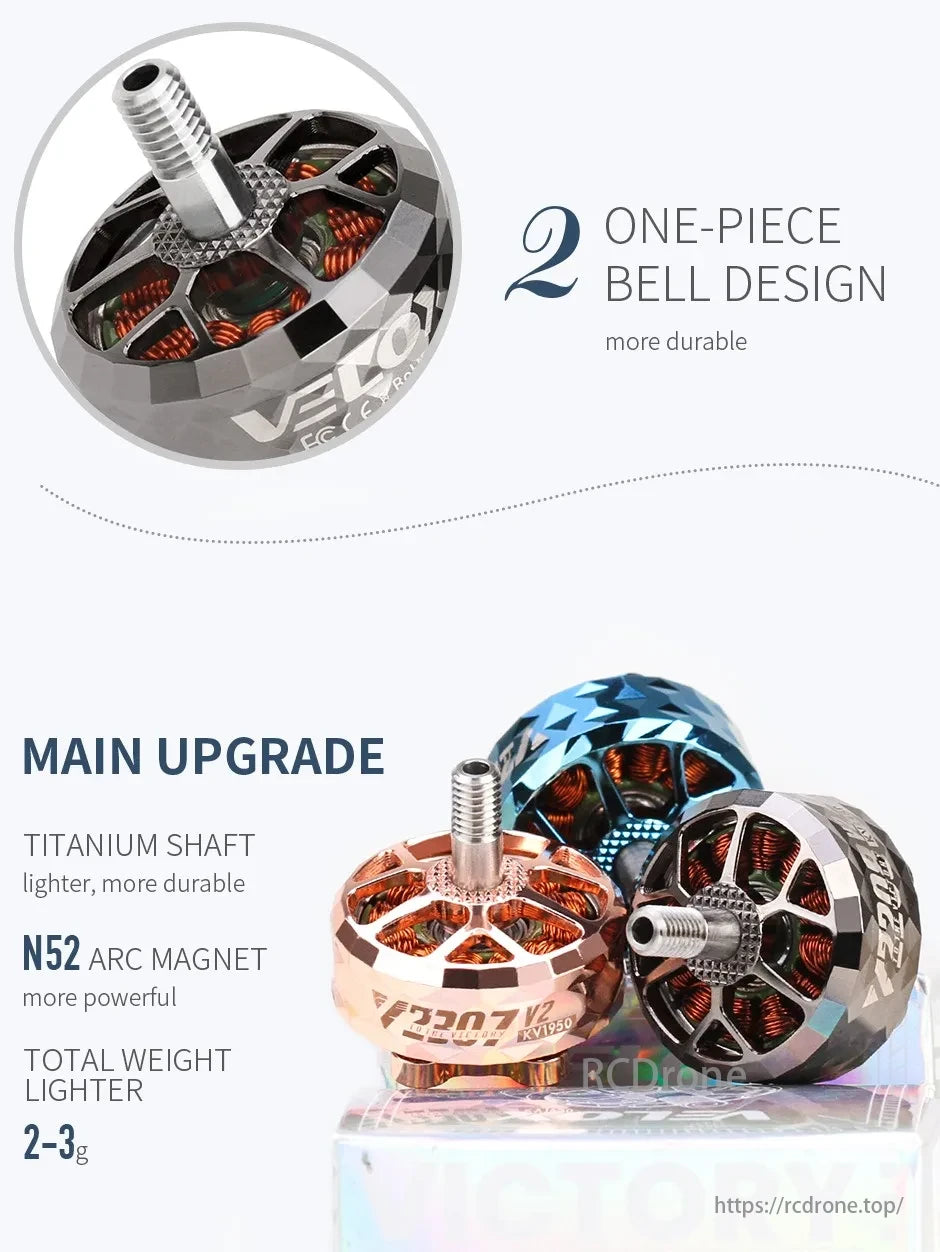

T-MOTOR has a one-piece bell, titanium shaft, N52 magnet, and lighter weight for durability and power.

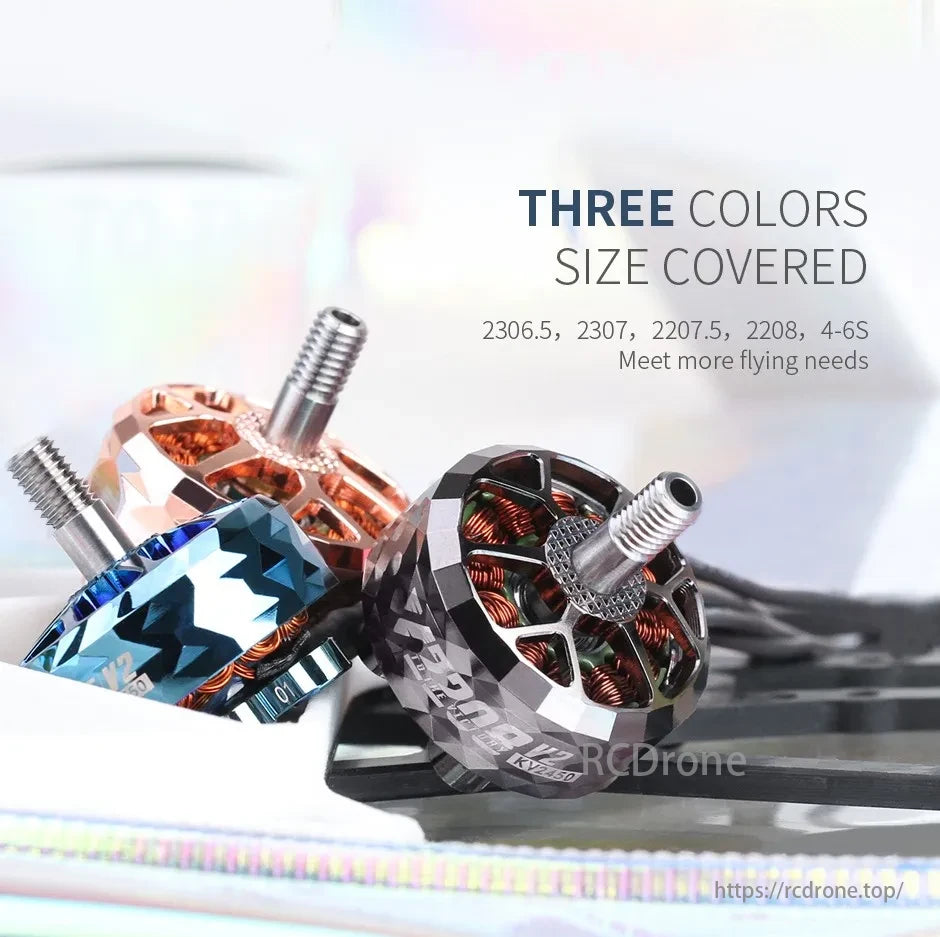

T-MOTOR in three colors, sizes 2306.5-2208, for flying needs.

T-MOTOR specifications: 1950 model has 67mΩ resistance, 4mm shaft, 35.1g weight, 6S voltage, 974W power; 2550 model has 41.5mΩ resistance, 4mm shaft, 35.5g weight, 4-5S voltage, 534W power. Both have Φ28.6*30.95mm dimensions.

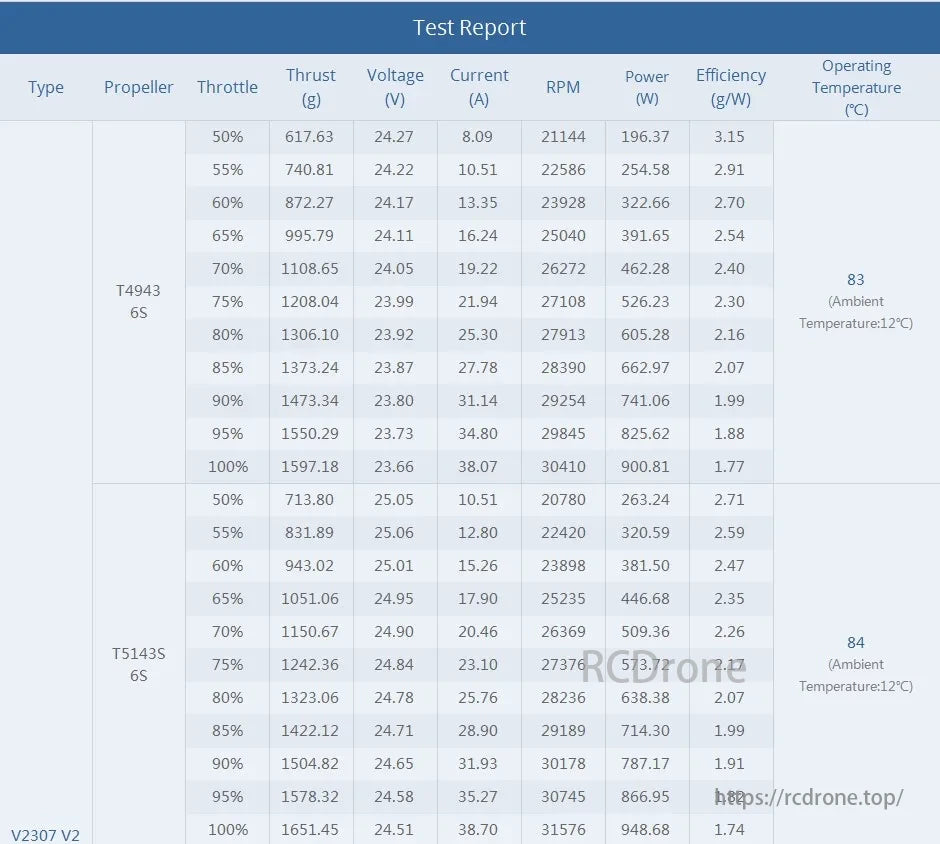

Test report for T-MOTOR propellers (T4943 6S, T5143S 6S) at various throttle settings. Data includes thrust, voltage, current, RPM, power, efficiency, and operating temperature under ambient conditions.

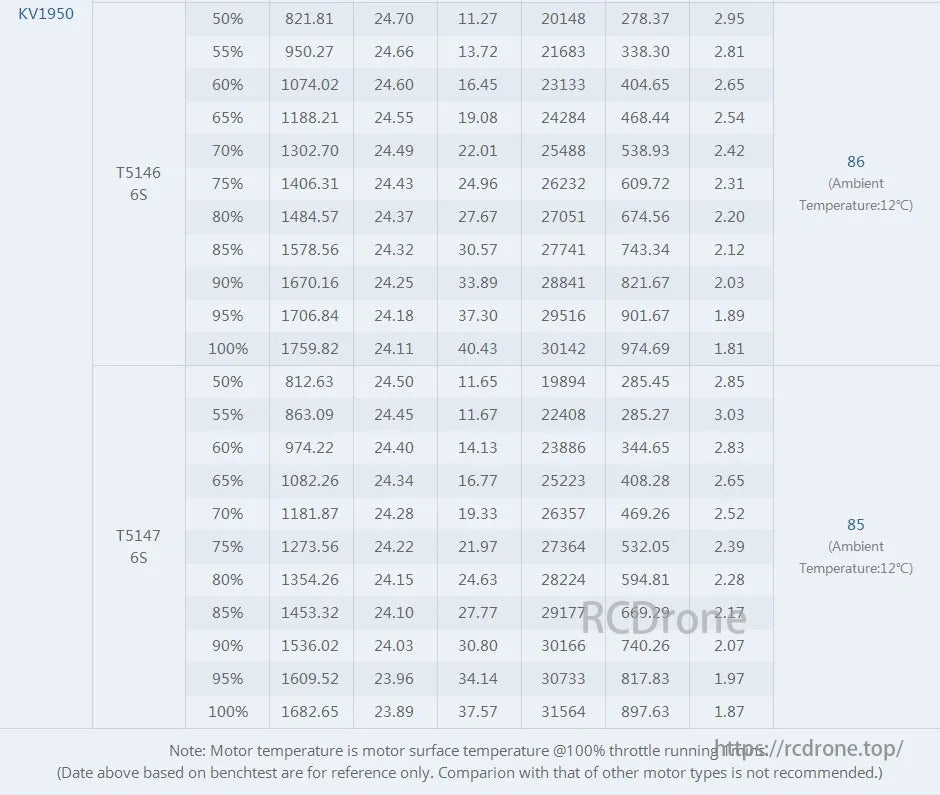

KV1950 T5146 6S and T5147 6S motor performance data at various throttle percentages, including voltage, current, power, RPM, torque, efficiency, and temperature. Ambient temperature: 12°C. Motor surface temp at 100% throttle for 1 min.

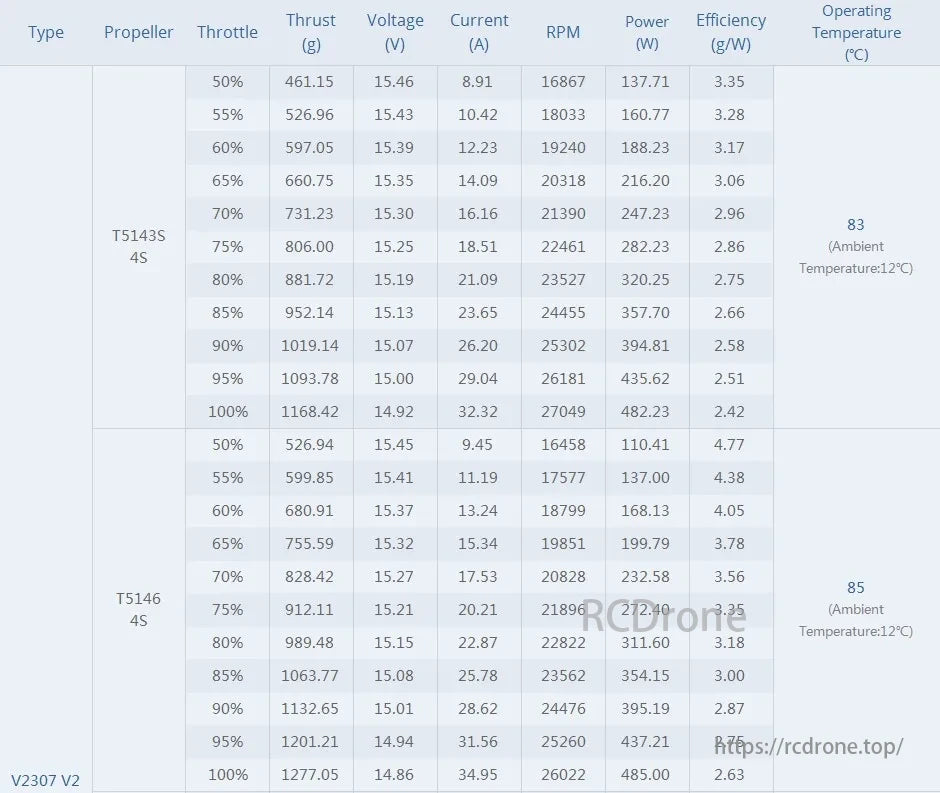

T-MOTOR T5143S and T5146 4S performance data, including throttle, thrust, voltage, current, RPM, power, efficiency, and operating temperature. Ambient temperature is 12°C.

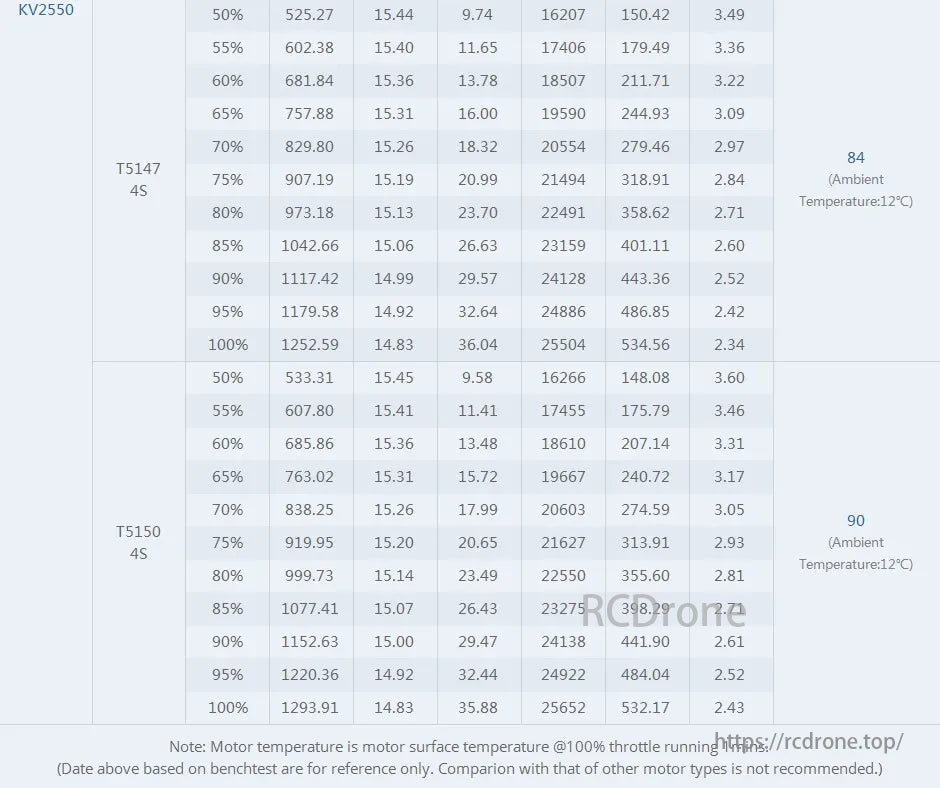

KV2550 motor performance data for T5147 4S and T5150 4S at various throttle percentages, including voltage, current, power, RPM, torque, efficiency, and temperature at 12°C ambient.

T-MOTOR package includes motor and parts bag. Verify contents before use; contact support for missing items.
