T-Motor VELOX VELOCE V2 V2306.5 1950KV 6S / 2550KV 4S Brushless Motor with 4mm Titanium Shaft for 4-5 Inch FPV Racing Drone

Overview

The T-Motor VELOX VELOCE V2306.5 V2 Brushless Motor is crafted for FPV pilots seeking elite performance with aggressive style. Designed with a strong 4mm titanium shaft, N52 arc magnets, and Japanese NSK bearings, this motor ensures reliable thrust and smooth responsiveness under high load. Available in 1950KV (6S) and 2550KV (4S) options, it's the ideal match for 4-5 inch FPV racing or freestyle drones.

With an upgraded one-piece bell, high-efficiency stator, and reduced motor weight, the V2306.5 V2 balances durability and speed, enabling pilots to push limits with confidence.

Key Features

• Titanium Alloy Shaft (4mm): Lighter and more impact-resistant

• Japanese NSK Bearings (Φ9×Φ4×4mm): Smooth operation and long lifespan

• N52H Arc Magnets: Higher magnetic efficiency and power density

• Dynamic Balancing: Smoother flight with minimal vibration

• One-piece Bell Design: Stronger structure, enhanced durability

• Premium Aesthetics: Available in striking colors (blue, rose gold, gray)

• Motor Wire Protection: Integrated strain relief for safer installs

Specifications

Package Includes

• 1 × T-Motor VELOX VELOCE V2306.5 V2 Motor (Select KV: 1950KV or 2550KV)

VELOCE SERIES: Solid while pretty. New VeloX motors in copper, blue, and gray designs.

Velox series motor offers exquisite appearance and excellent performance for pilots to challenge limits and enjoy better flights.

T-Motor has a one-piece bell, titanium shaft, N52 magnet, and lighter weight for durability and power.

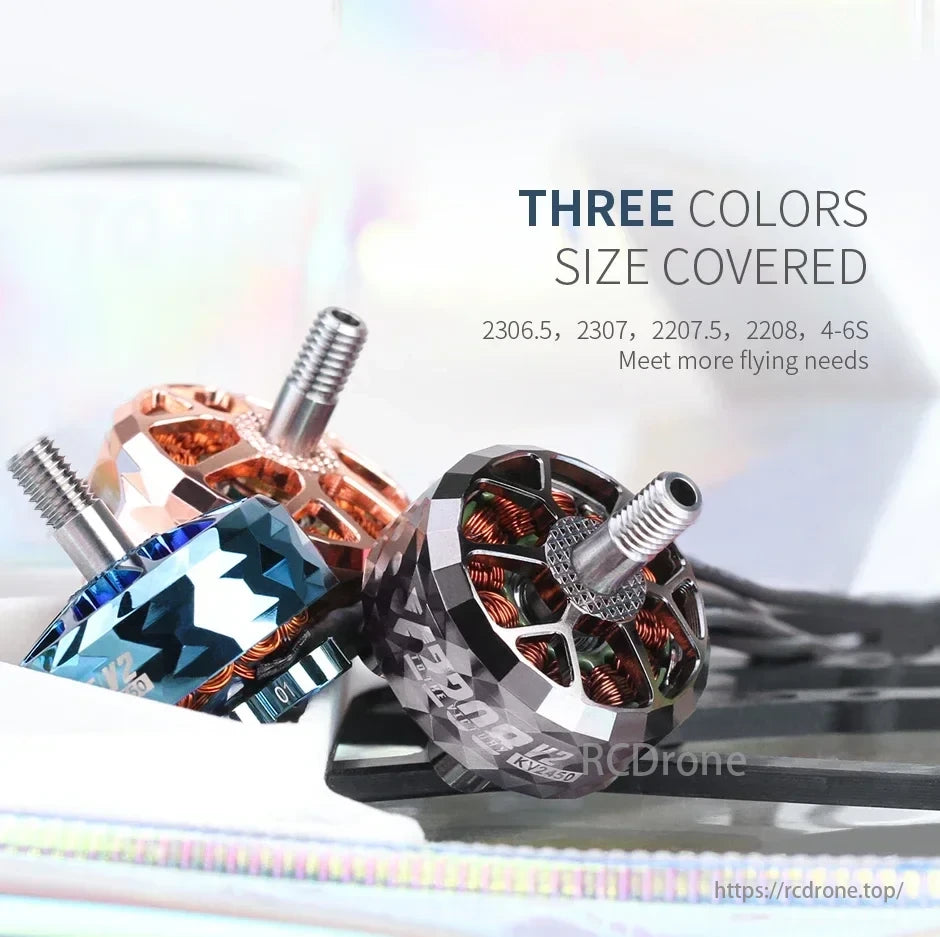

T-Motor in three colors, sizes 2306.5-2208, for flying needs.

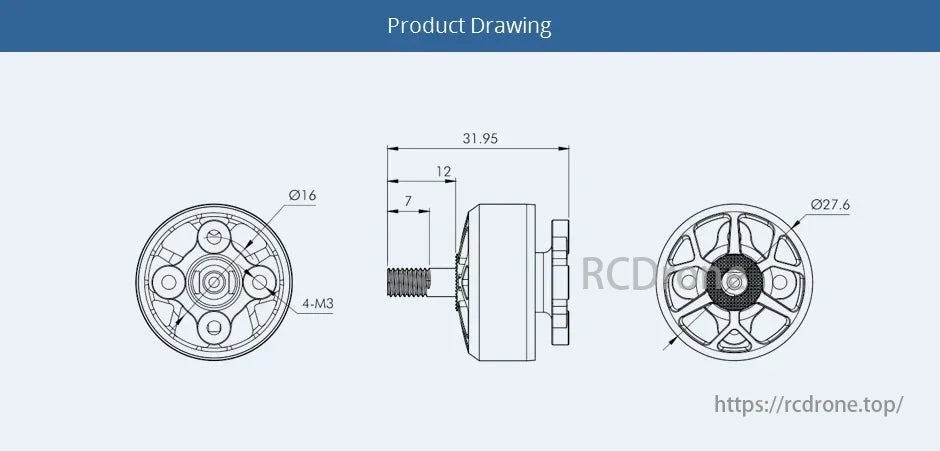

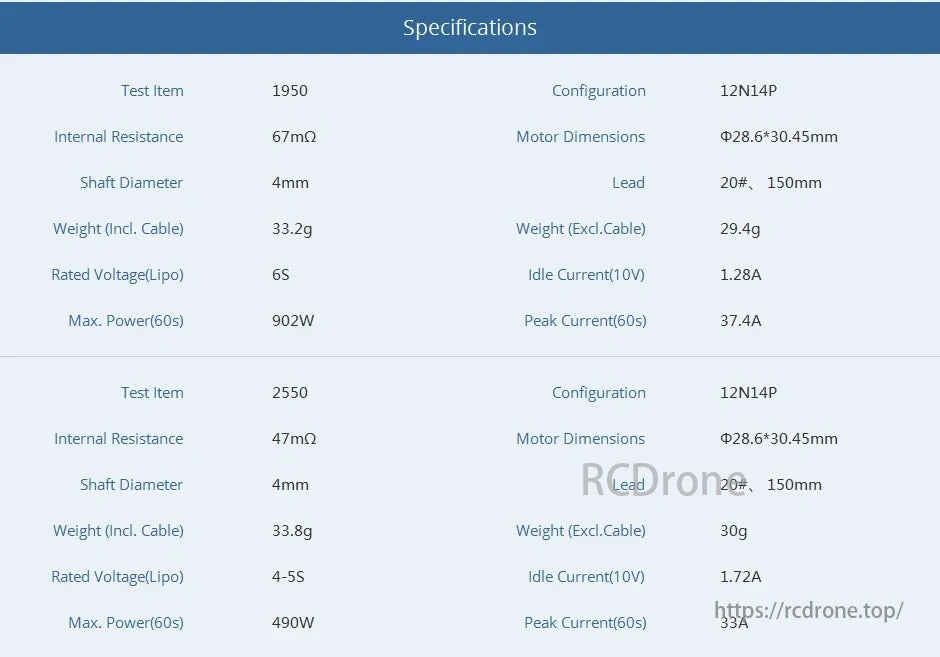

T-Motor specifications: 1950 model has 67mΩ resistance, 4mm shaft, 33.2g weight, 6S voltage, 902W power; 2550 model has 47mΩ resistance, 4mm shaft, 33.8g weight, 4-5S voltage, 490W power. Both have Φ28.6*30.45mm dimensions.

Test report for T-Motor propellers T4943 6S and T5143S 6S. Data includes throttle, thrust, voltage, current, RPM, power, efficiency, and operating temperature at various settings. Ambient temperature is 12°C.

KV1950 T5146 6S and T5147 6S motor performance data at various throttle percentages, including voltage, current, power, RPM, torque, efficiency, and temperature. Ambient temp: 12°C. Motor temp at 100%: 89°C, 88°C.

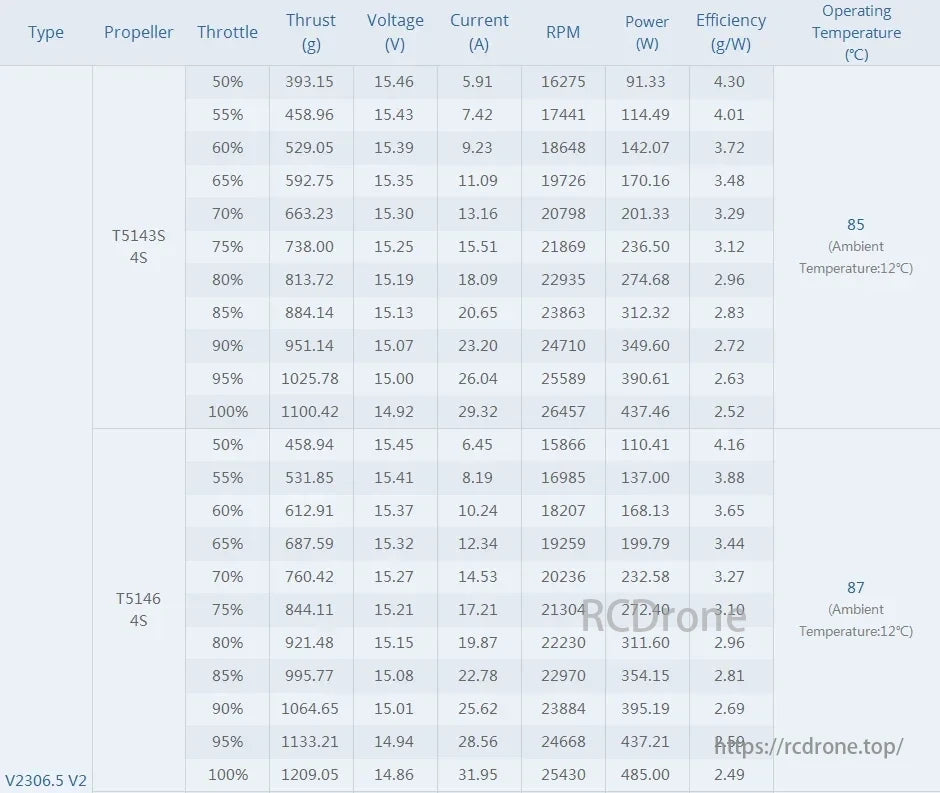

T-Motor performance data for T5143S 4S and T5146 4S propellers. Includes throttle, thrust, voltage, current, RPM, power, efficiency, and operating temperature at various settings. Ambient temperature: 12°C.

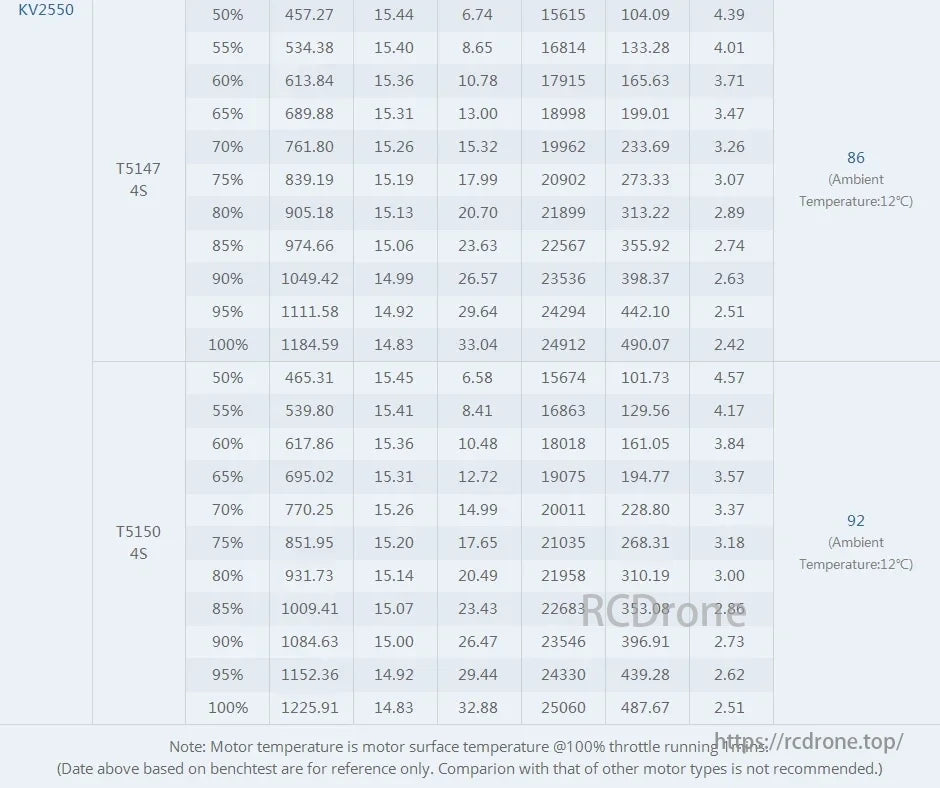

KV2550 T-Motor performance data for T5147 4S and T5150 4S at various throttle percentages, including voltage, current, power, RPM, torque, efficiency, and motor temperature at 100% throttle. Ambient temperature: 12°C.

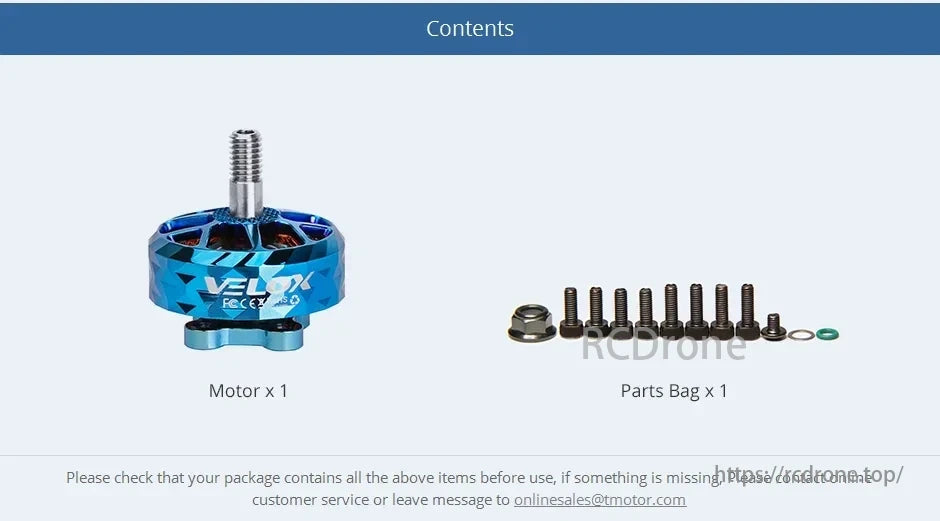

T-Motor Velox contents: Motor x 1, Parts Bag x 1. Verify package completeness before use; contact online support if items are missing.
