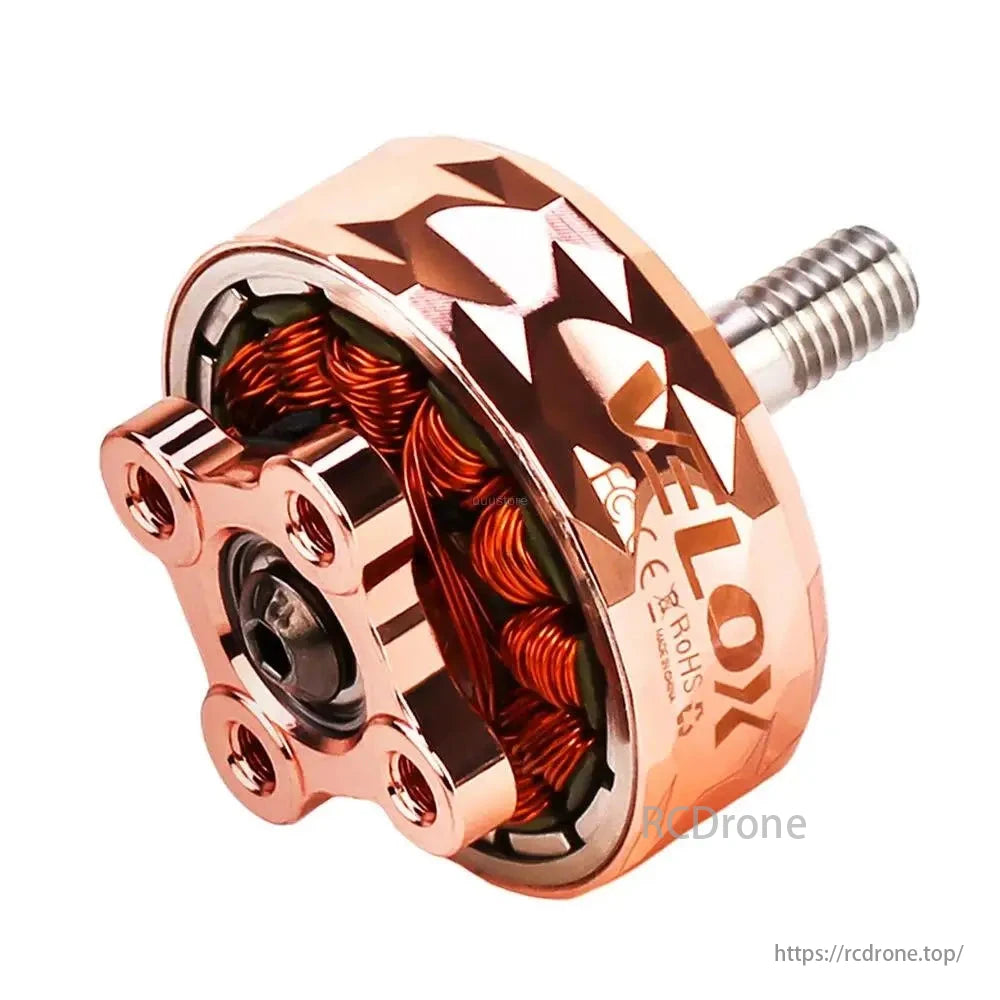

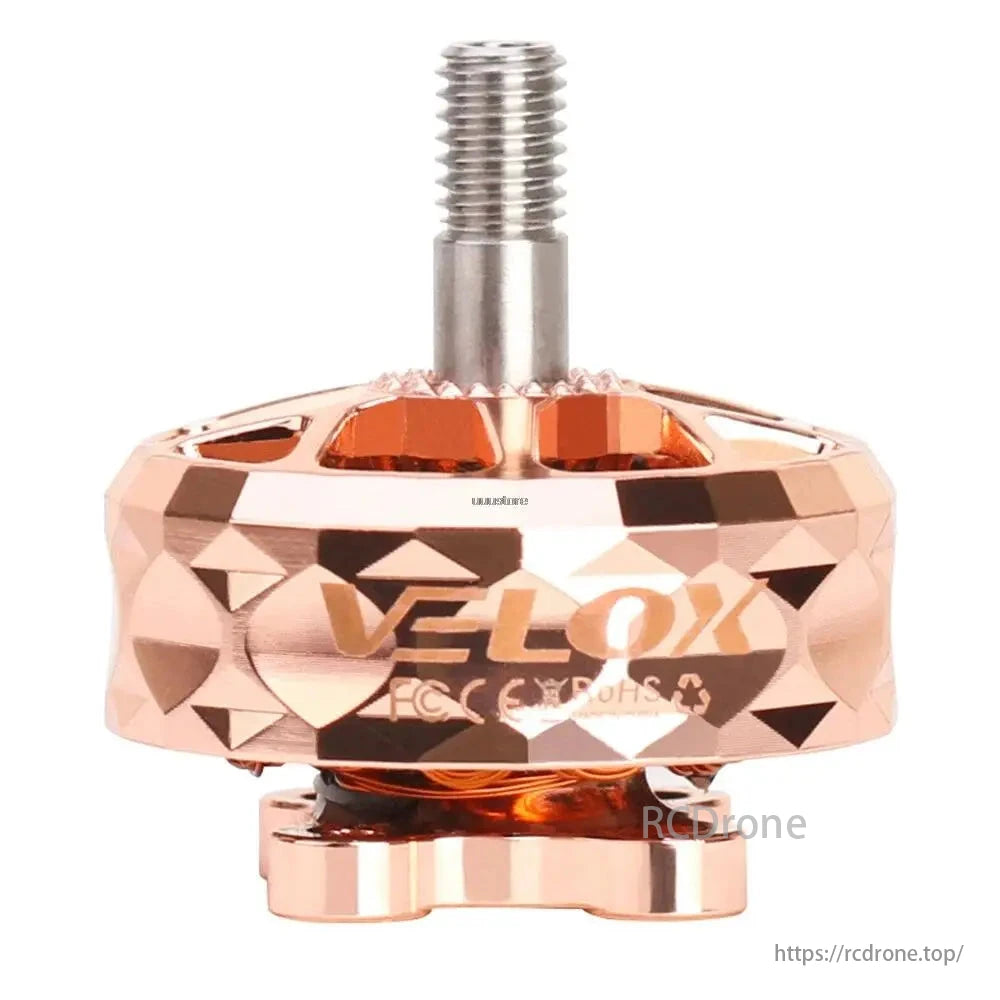

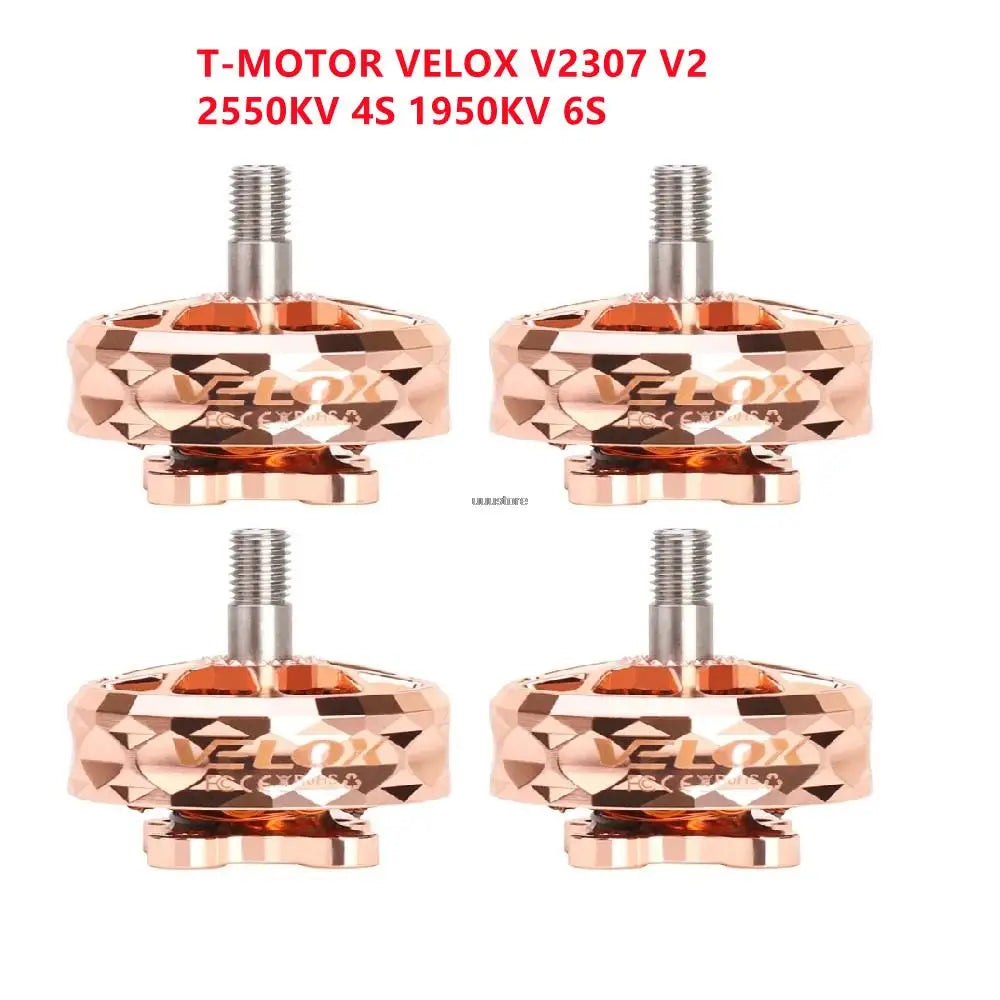

T-MOTOR VELOX VELOCE V2307 V2 2550KV 4S 1950KV 6S Brushless Motor for RC FPV Racing Freestyle Drones Replacement DIY Parts

The T-MOTOR VELOX VELOCE V2307 V2 is a high-performance brushless motor engineered for FPV freestyle and racing drones. Designed with a powerful 12N14P configuration and a high-strength 5mm shaft, this motor delivers excellent torque, throttle response, and durability under demanding flight conditions.

Available in two KV ratings:

• 2550KV – optimized for 4S-5S batteries, ideal for aggressive freestyle and race tracks.

• 1950KV – optimized for 6S batteries, offering better efficiency and control.

With a refined V2 design, this motor features a precision-machined bell, 20AWG 150mm silicone cables, and improved internal resistance for more reliable and consistent power delivery.

✅ Specifications (2550KV):

✅ Package Includes (Per Motor):

• 1 × T-MOTOR VELOX VELOCE V2307 V2 Motor

• 1 × M5 Propeller Lock Nut

• 1 × Mounting Hardware Pack (Screws)

✅ Recommended For:

• 5” FPV Racing & Freestyle Drones

• 4S / 5S / 6S LiPo Battery Setups

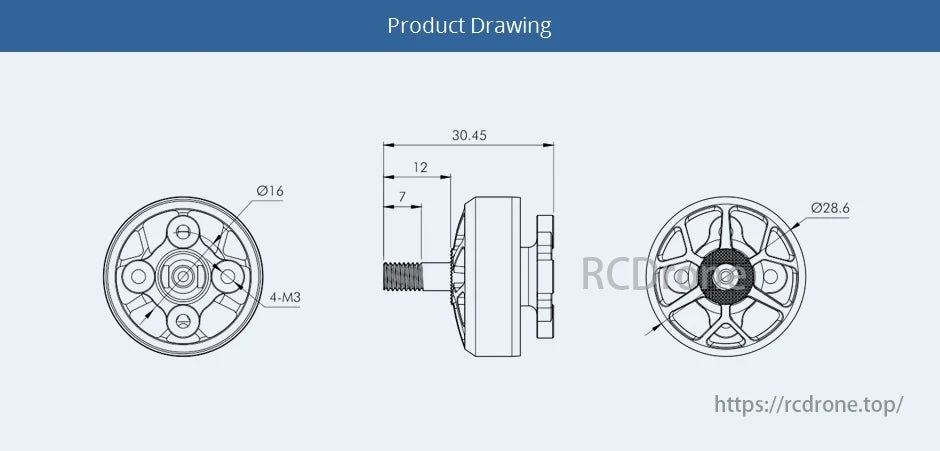

• Frame mount: 16×16mm pattern with M3 bolts

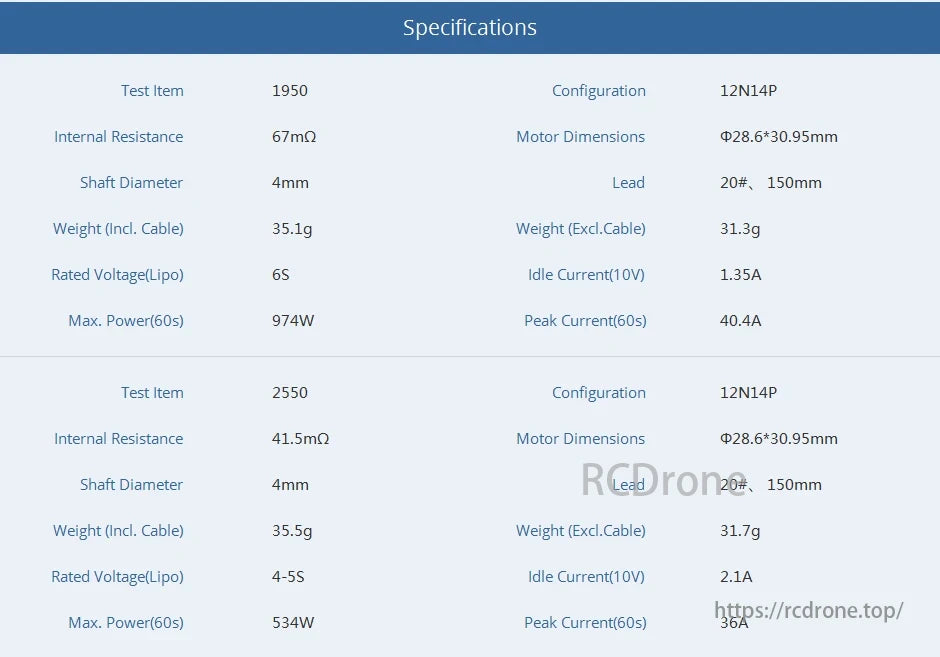

T-MOTOR specifications: 1950 model has 67mΩ resistance, 4mm shaft, 35.1g weight, 6S voltage, 974W power; 2550 model has 41.5mΩ resistance, 4mm shaft, 35.5g weight, 4-5S voltage, 534W power. Both have Φ28.6*30.95mm dimensions.

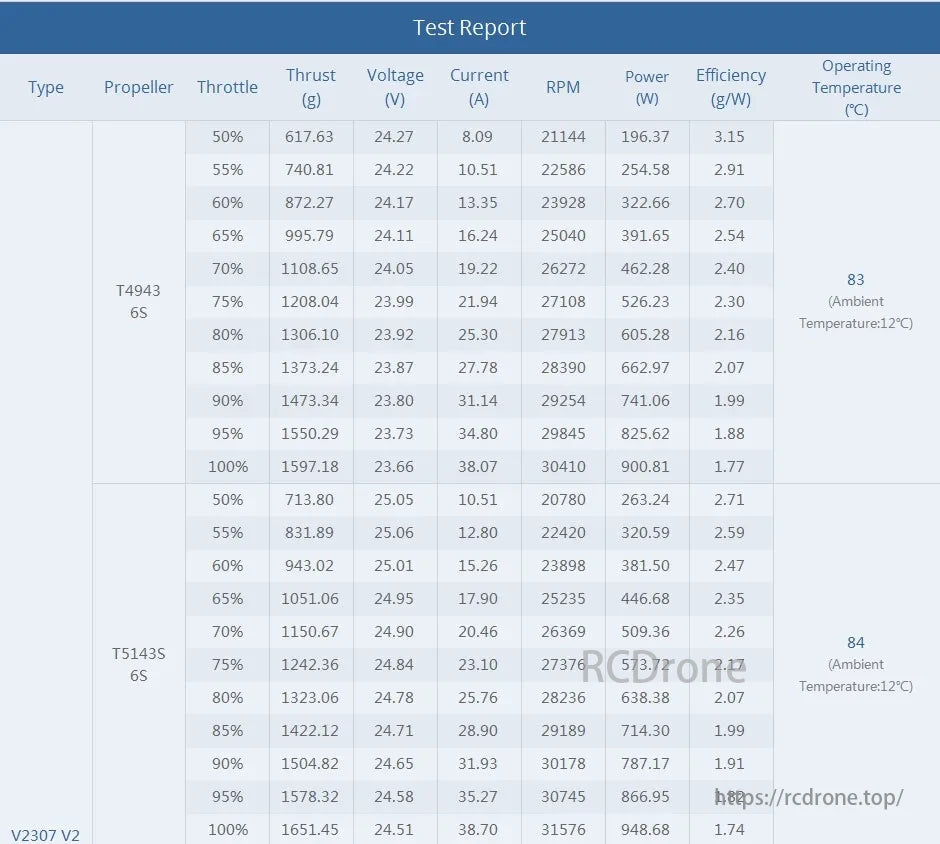

Test report for T-MOTOR propellers T4943 6S and T5143S 6S. Data includes throttle, thrust, voltage, current, RPM, power, efficiency, and operating temperature at various settings. Ambient temperature: 12°C.

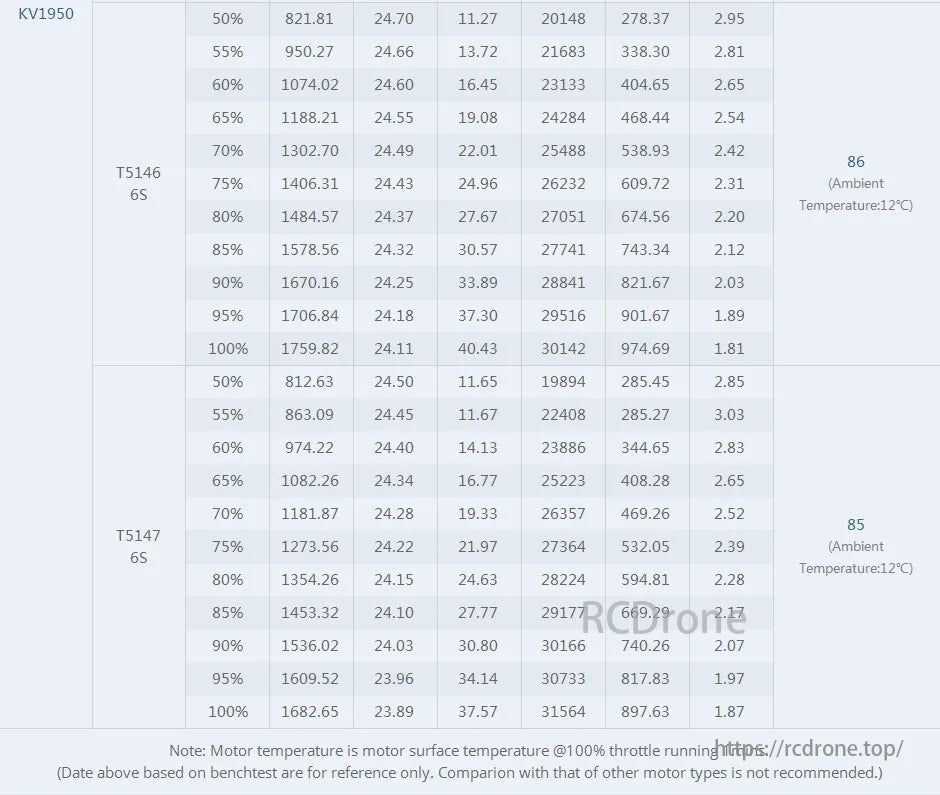

KV1950 T5146 6S and T5147 6S motor performance data at various throttle percentages, including voltage, current, power, RPM, torque, efficiency, and temperature. Ambient temperature: 12°C. Motor surface temp at 100% throttle for 1 min.

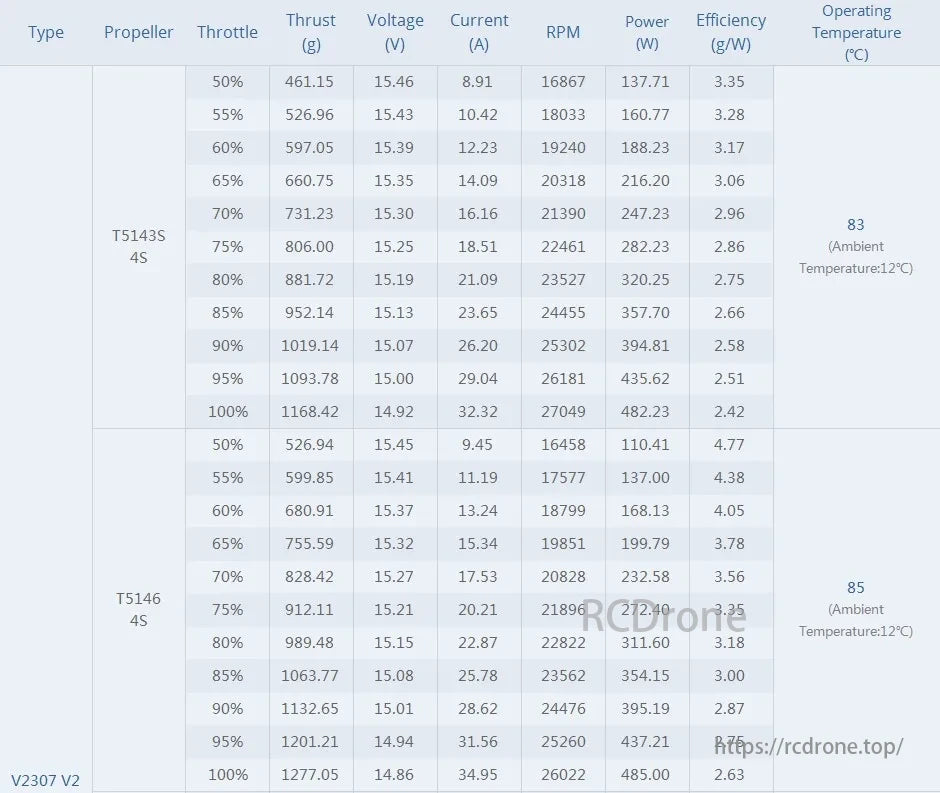

T-MOTOR T5143S and T5146 4S performance data, including throttle, thrust, voltage, current, RPM, power, efficiency, and operating temperature. Ambient temperature is 12°C.

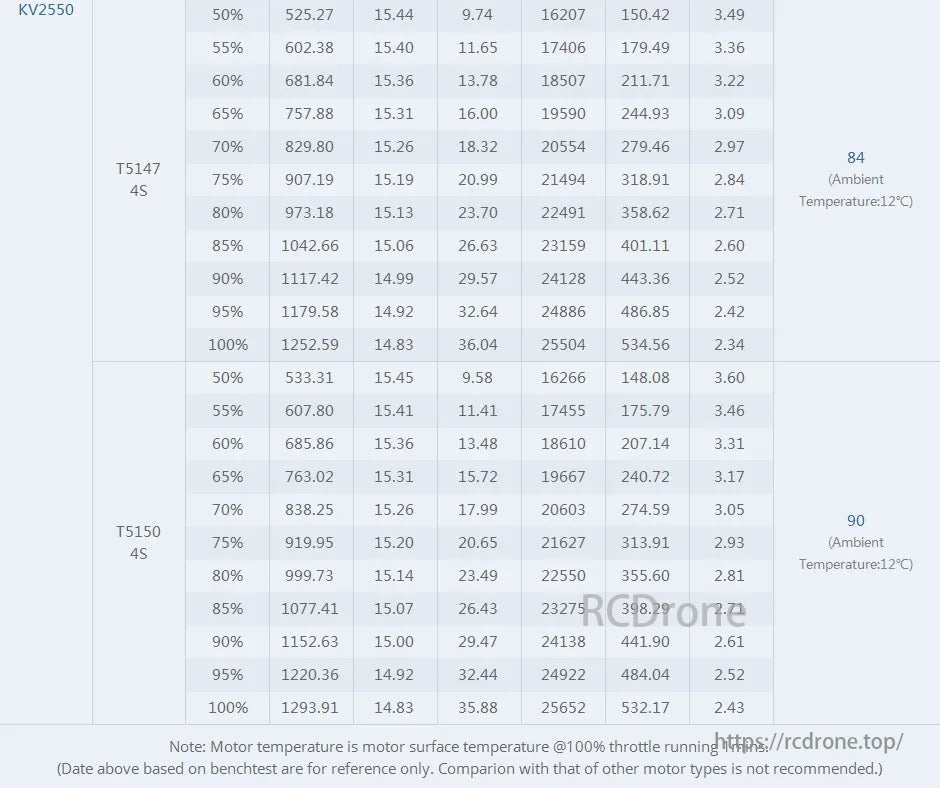

KV2550 motor performance data for T5147 4S and T5150 4S at various throttle percentages, including voltage, current, power, RPM, torque, efficiency, and temperature at 12°C ambient.

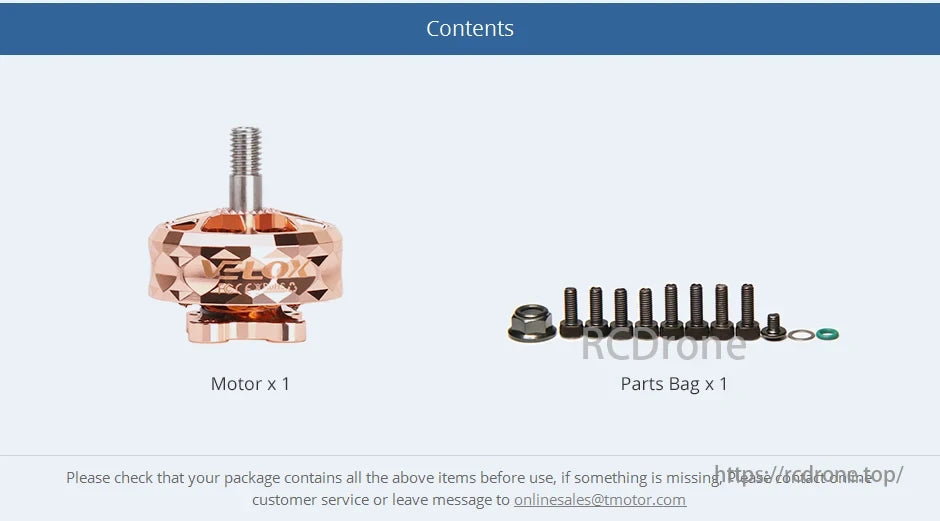

T-MOTOR product includes motor and parts bag. Check package contents before use; contact support for missing items.

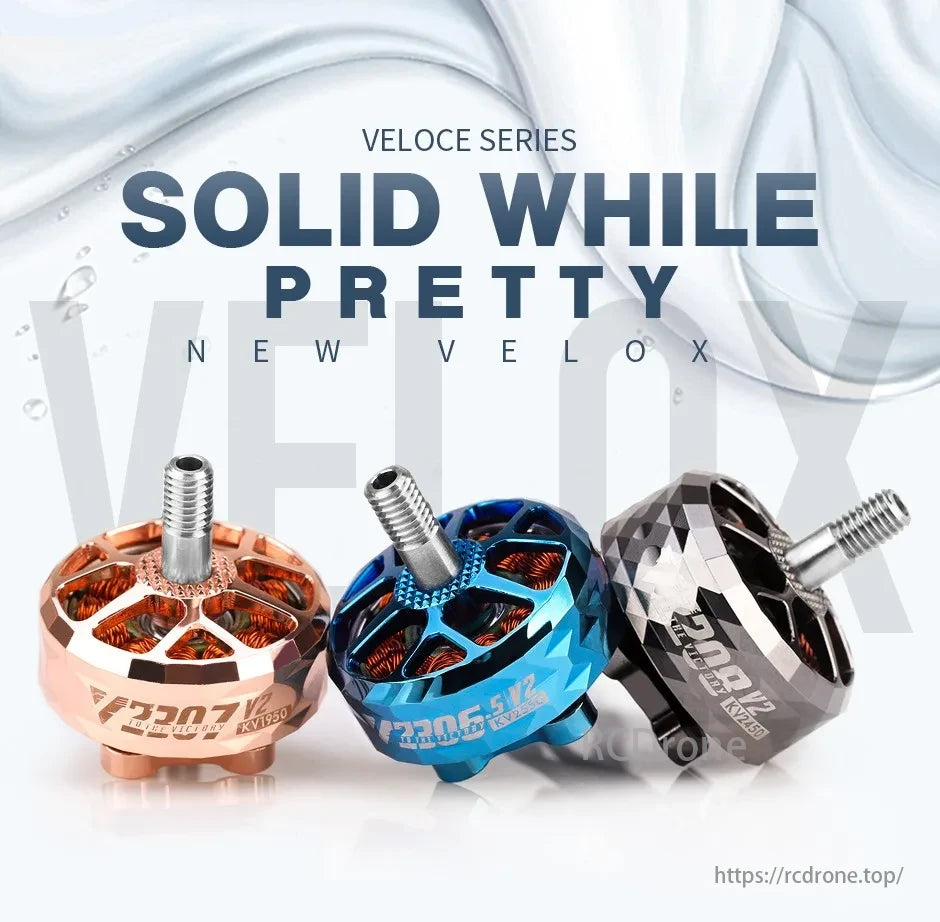

VELOCE SERIES: Solid while pretty motors in gold, blue, and black designs.

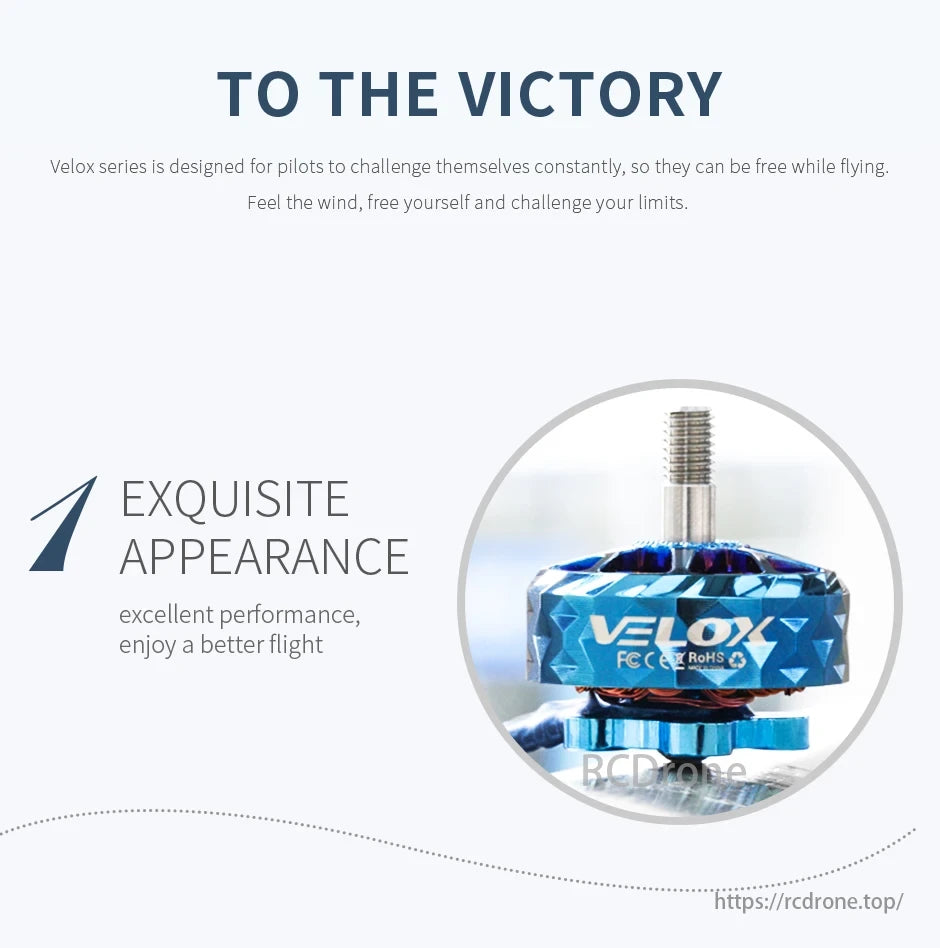

Velox series offers exquisite appearance and excellent performance for pilots to challenge limits, ensuring a better flight experience.

T-MOTOR has a one-piece bell, titanium shaft, N52 magnet, and lighter weight for durability and power.

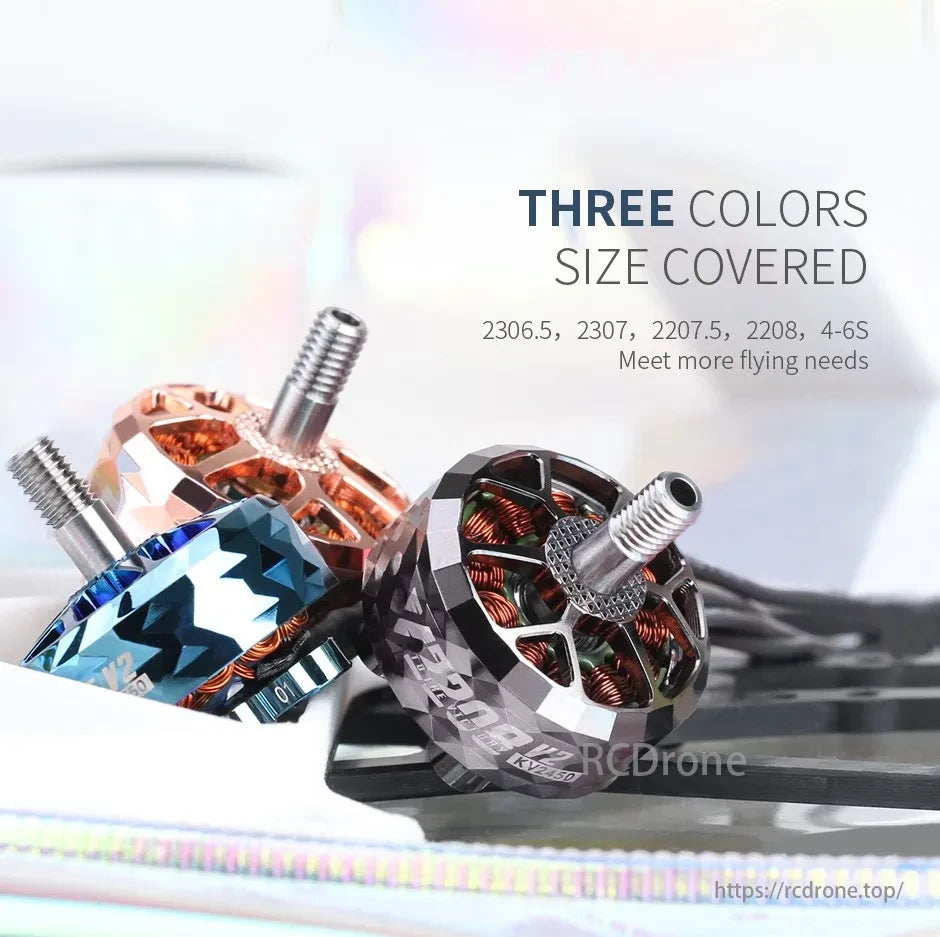

T-MOTOR in three colors, sizes 2306.5-2208, for flying needs.
