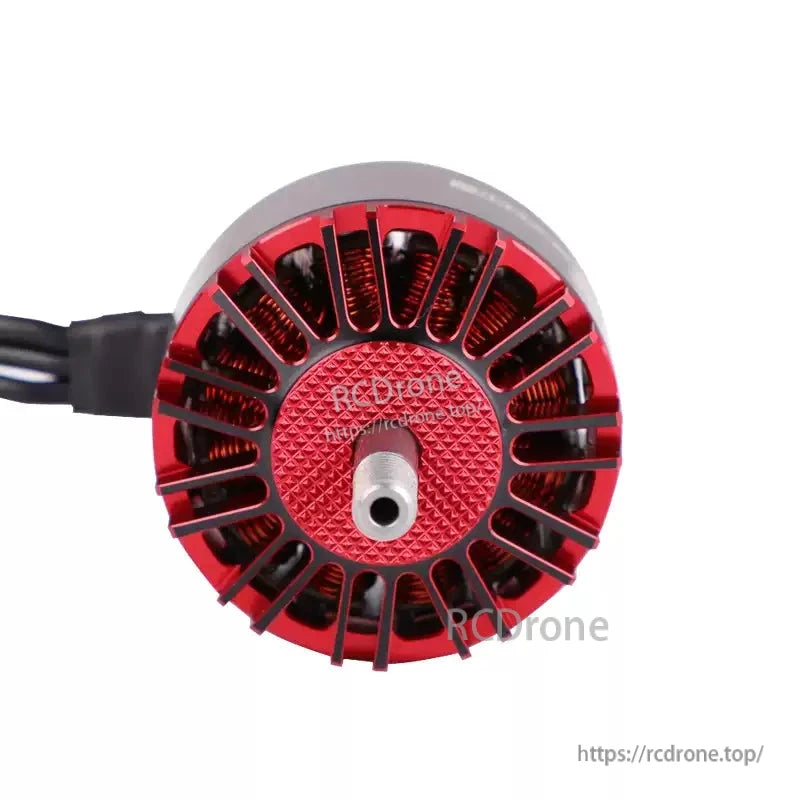

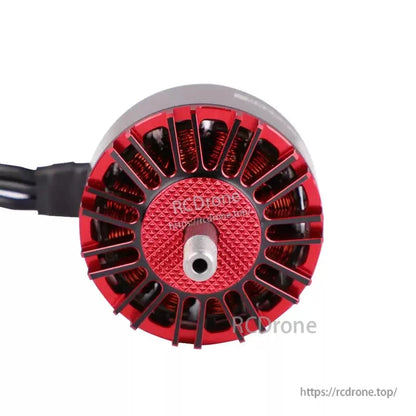

  • T-MOTORHOBBY V3115 motor, 400/640/900/1050KV, 3–12S, for 8–11 inch X4/X8 long-range drones.

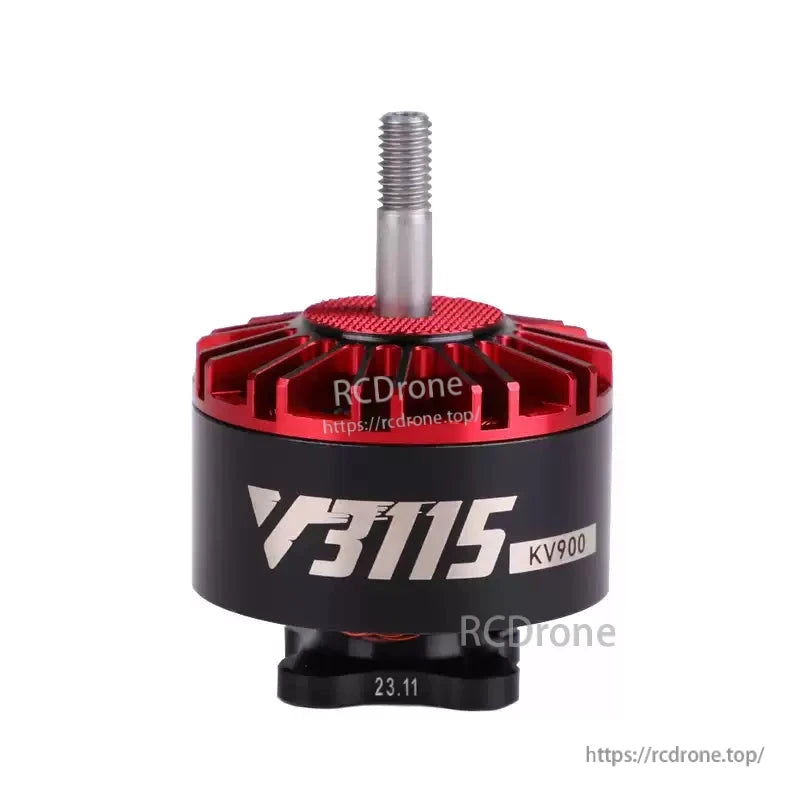

  • T-MOTOR, T-Motor V3115 KV900 is a cinematic FPV motor designed for 8-11 inch drones.

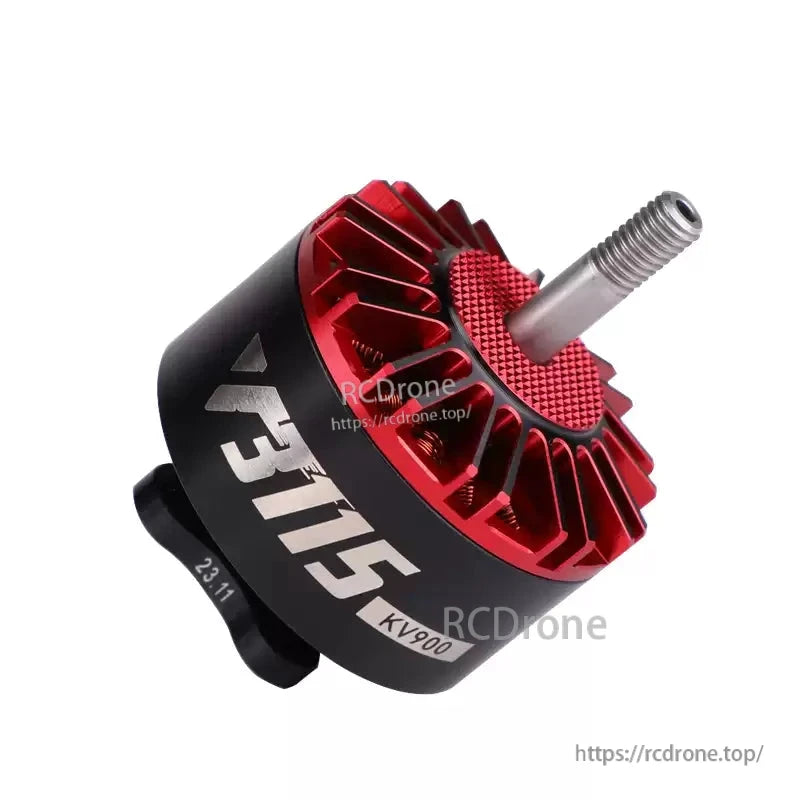

  • T-MOTOR V3115 KV900 FPV Motor 3-12S
1 5

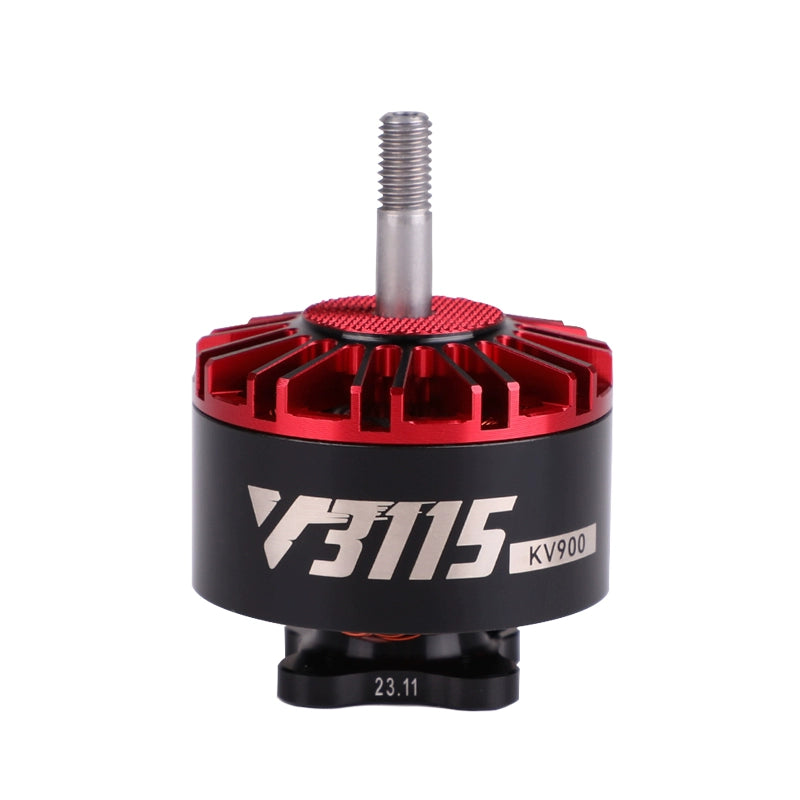

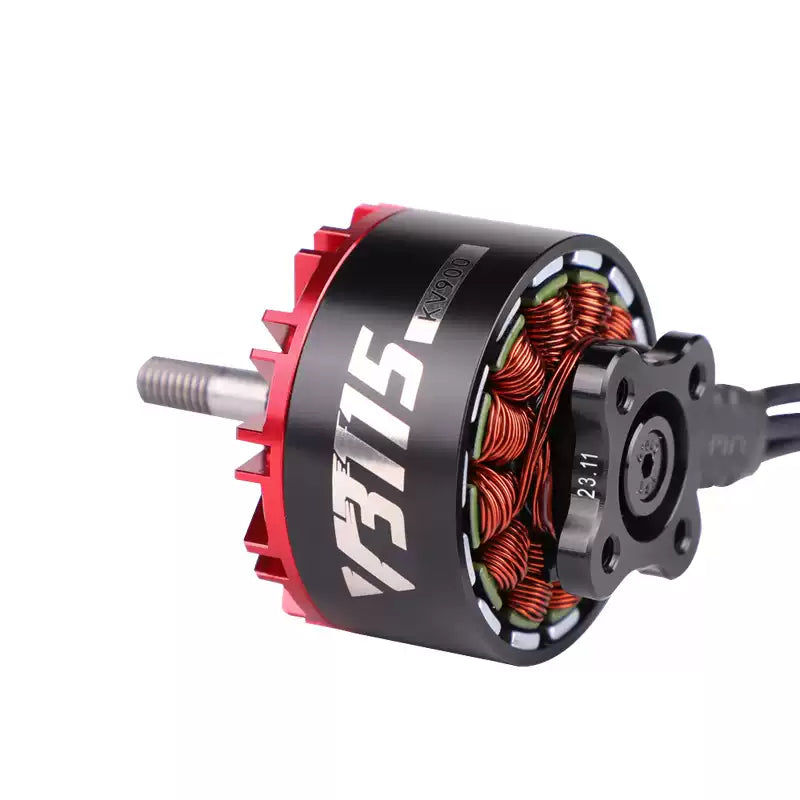

T-MOTORHOBBY V3115 T-Motor 3115 Cinematic FPV Motor 400/640/900/1050KV, 3–12S, for 8–11 inch X4/X8 Long-Range Drones

T-MOTORHOBBY V3115 T-Motor 3115 Cinematic FPV Motor 400/640/900/1050KV, 3–12S, for 8–11 inch X4/X8 Long-Range Drones

T-MOTOR

$59.00 USD
$59.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
KV
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

Meet the T-MOTORHOBBY V3115: a large-stator, 12N14P brushless motor built to push heavy cinematic rigs with smooth, reliable torque. A proactive heat-dissipation structure keeps temperatures in check, while the first-ever electrophoresis iron core improves corrosion resistance and long-term stability in humid environments. The wide 3–12S range and anti-slip prop-hub design make the V3115 a flexible choice for 8–11 inch X4/X8 platforms carrying gimbals or other payloads. (Official campaign tagline shown in images: “5KG Cinematic Powerhouse.”)

Key Features

  • Proactive heat-dissipation design for safer, cooler flights.

  • Electrophoresis iron core resists corrosion and maintains consistent performance.

  • Large anti-slip prop groove for broad prop compatibility.

  • Suited to 8–11 inch cinematic drones (X4/X8), wide 3–12S voltage coverage.

  • Precision 12N14P layout, NSK/NMB bearings, 18AWG 250 mm leads.

Recommended Pairing (from product images)

  • V3115 400KV: 6–12S, 9–11" cinematic FPV drone

  • V3115 640KV: 4–8S, 9–11" cinematic FPV drone

  • V3115 900KV: 4–6S, 9–11" cinematic FPV drone

  • V3115 1050KV: 3–6S, 8–10" cinematic FPV drone

Specifications

Test Item 400KV 640KV 900KV 1050KV
Configuration 12N14P 12N14P 12N14P 12N14P
Motor Dimensions φ37.2*51.1 mm φ37.2*51.1 mm φ37.2*51.1 mm φ37.2*51.1 mm
Shaft Diameter INS OUT5 INS OUT5 INS OUT5 INS OUT5
Lead 18AWG 250 mm 18AWG 250 mm 18AWG 250 mm 18AWG 250 mm
Internal Resistance 145.38 mΩ 67.13 mΩ 38.08 mΩ 33.84 mΩ
Idle Current (10 V) 0.59 A 1.10 A 1.57 A 1.79 A
Peak Current (10 s) 41 A 62 A 83 A 83.6 A
Max. Power (10 s) 1982 W 1927 W 1894 W 1903 W
Weight (incl. cable) 113.4 g 113.3 g 113.1 g 112.7 g

Compatibility & Use Cases

  • Frames/Props: Optimized for 8–11 inch props on X4/X8 cinematic and long-range builds.

  • Applications: Aerial cinematography, mapping with gimbals, payload-capable long-range rigs where smooth thrust and thermal headroom matter.

Details

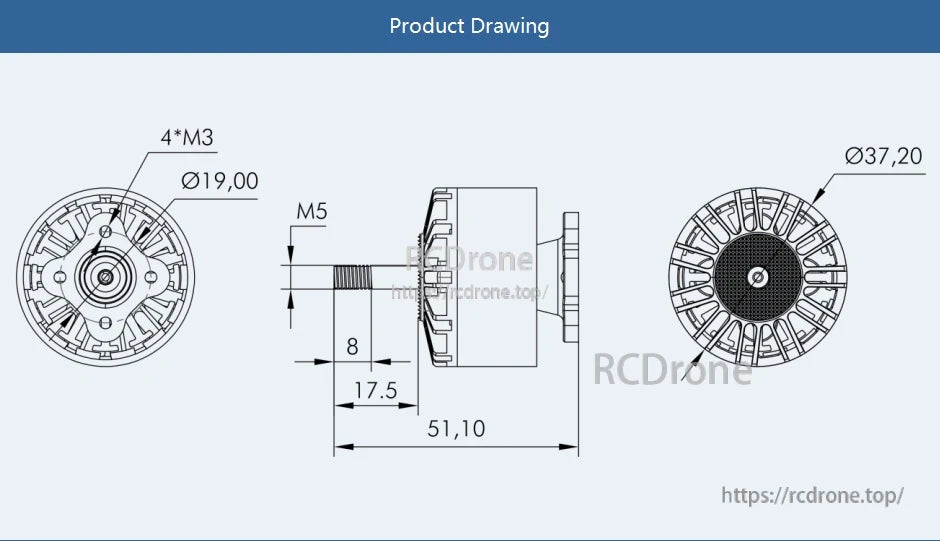

T-MOTOR, Electrophoresis iron core has good corrosion resistance and maintains consistent performance.

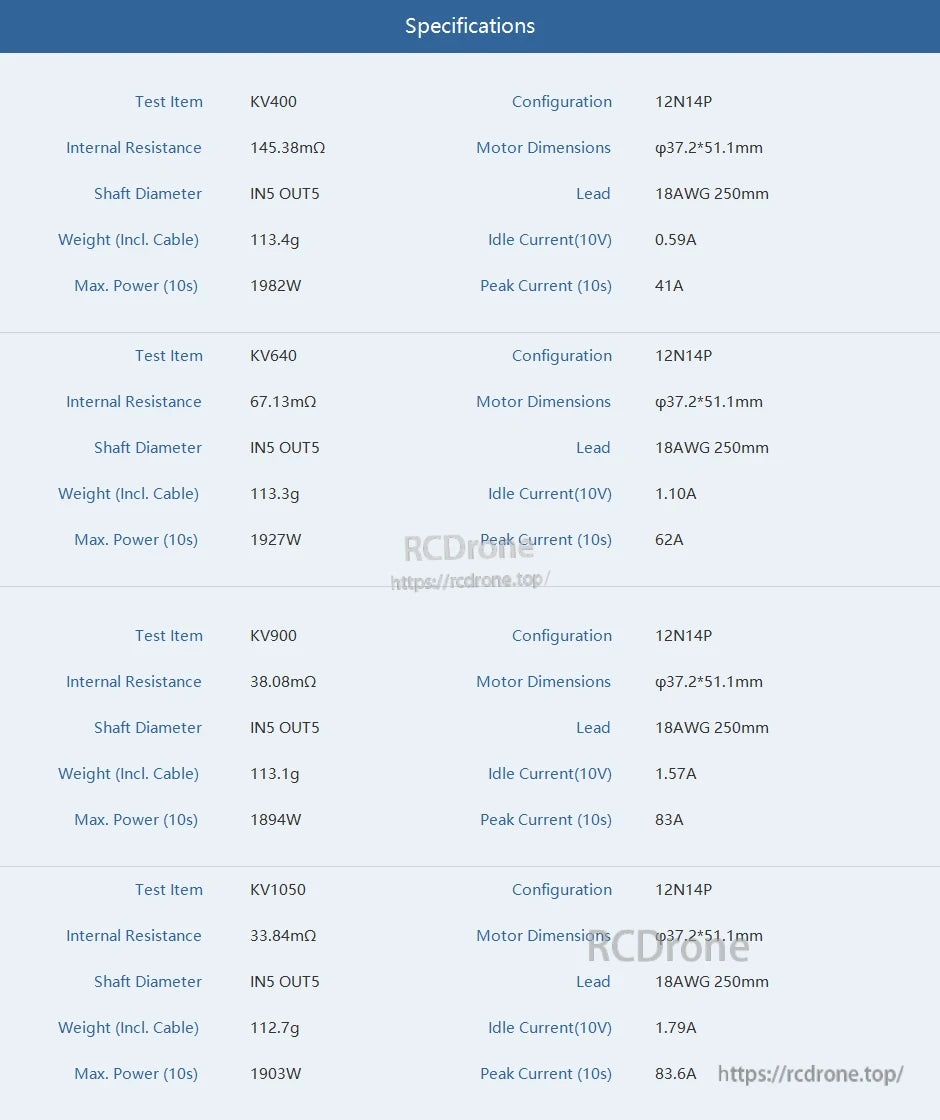

T-MOTOR KV400, KV640, KV900, and KV1050 specs include internal resistance, shaft diameter, weight, max power, configuration, dimensions, lead wire, idle current, and peak current.

T-MOTOR KV400, KV640, KV900, and KV1050 3115 Motor specifications: internal resistance, shaft diameter, weight, max power, configuration, motor dimensions, lead wire, idle current, peak current.

T-MOTOR, Test report analyzes V3115 KV400 motor performance with different propellers, measuring voltage, current, power, RPM, thrust, torque, efficiency, and temperature at various throttle levels.

Test report details V3115 KV400 motor performance with various propellers, covering voltage, current, power, RPM, thrust, torque, efficiency, and temperature across throttle levels.

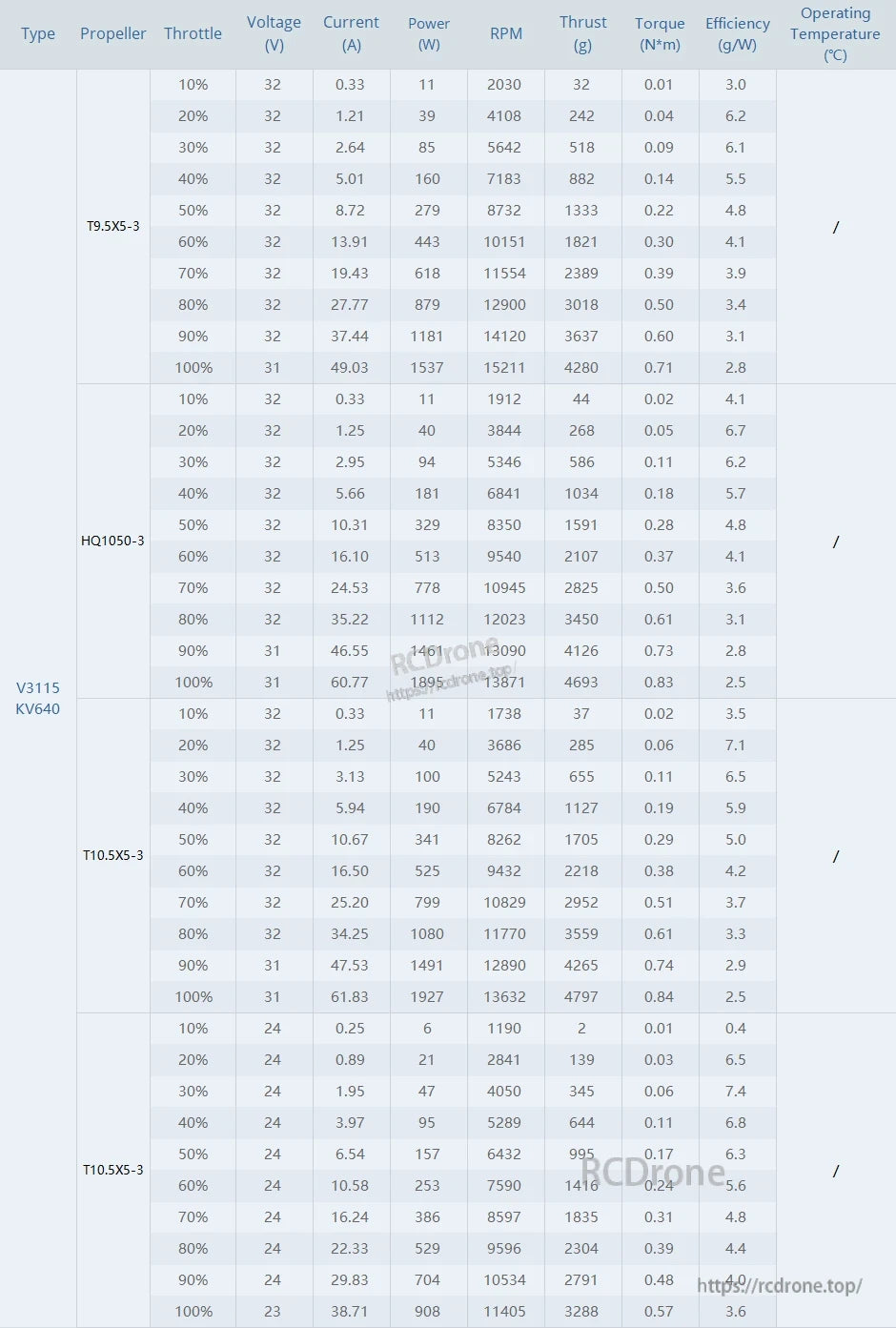

Performance data for T-MOTOR V3115 KV640 motor with various propellers, covering throttle, voltage, current, power, RPM, thrust, torque, efficiency, and temperature under different loads.

Performance data for T-MOTOR V3115 KV640 motor with various propellers, including throttle, voltage, current, power, RPM, thrust, torque, efficiency, and operating temperature across different load conditions.

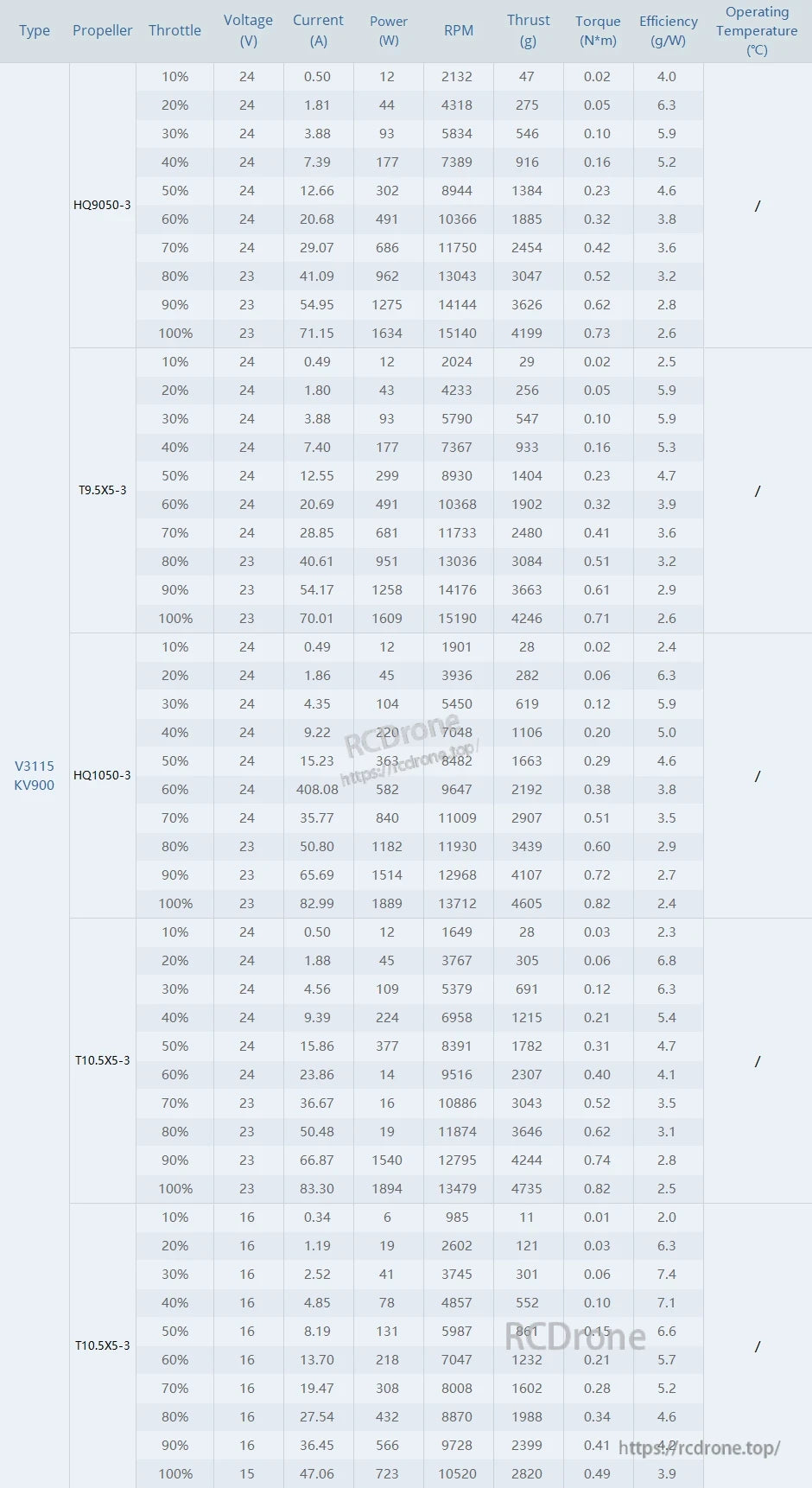

T-MOTOR propeller performance data covers throttle, voltage, current, power, RPM, thrust, torque, efficiency, and temperature across models and settings.

Performance data for T-MOTOR propellers including throttle, voltage, current, power, RPM, thrust, torque, efficiency, and operating temperature across various models and settings.

T-MOTOR propeller performance data covers throttle, voltage, current, power, RPM, thrust, torque, efficiency, and temperature across models and settings.

Performance data for T-MOTOR propellers including throttle, voltage, current, power, RPM, thrust, torque, efficiency, and operating temperature across various models and settings.

T-MOTOR, The V3115 5KG V3120 is a powerful cinematic drone offering exceptional performance and stunning visual capabilities.

V3115 5KG V3120 Cinematic Powerhouse. Extraordinary Power, Cinematic Extravaganza.

T-MOTOR, Safe flight with efficient heat dissipation motor

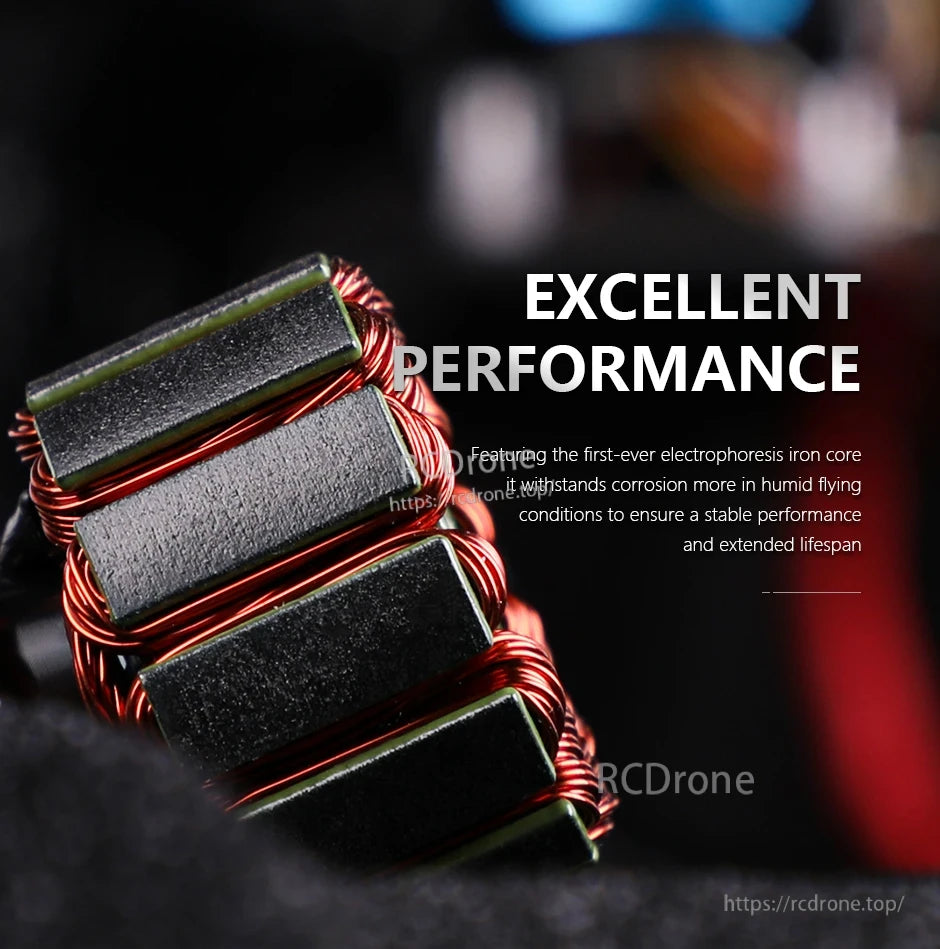

T-MOTOR, Corrosion-resistant iron core ensures stable operation and long life.

Corrosion-resistant iron core ensures stable operation and long life.

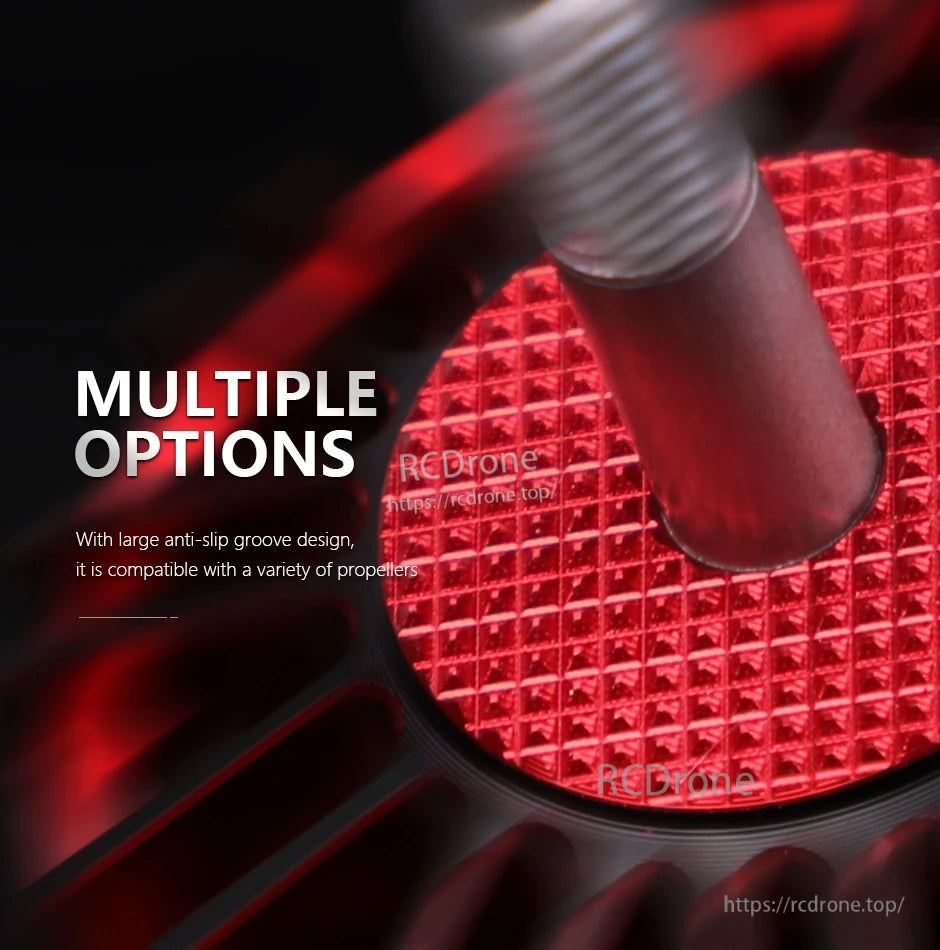

T-MOTOR, Multiple options with large anti-slip groove design, compatible with various propellers.

Multiple options with large anti-slip groove design, compatible with various propellers.

T-MOTOR V3115 and V3120 motors, suitable for 3-12S, 8-11 inch FPV drones, offer powerful propulsion, smooth control, and safe flight performance for cinematic use.

T-MOTOR V3115 (400KV-1050KV) and V3120 (500KV-700KV) motors suit 3-12S, 8-11 inch FPV drones. Provide powerful propulsion, smooth control, and safe flight performance for cinematic use.
