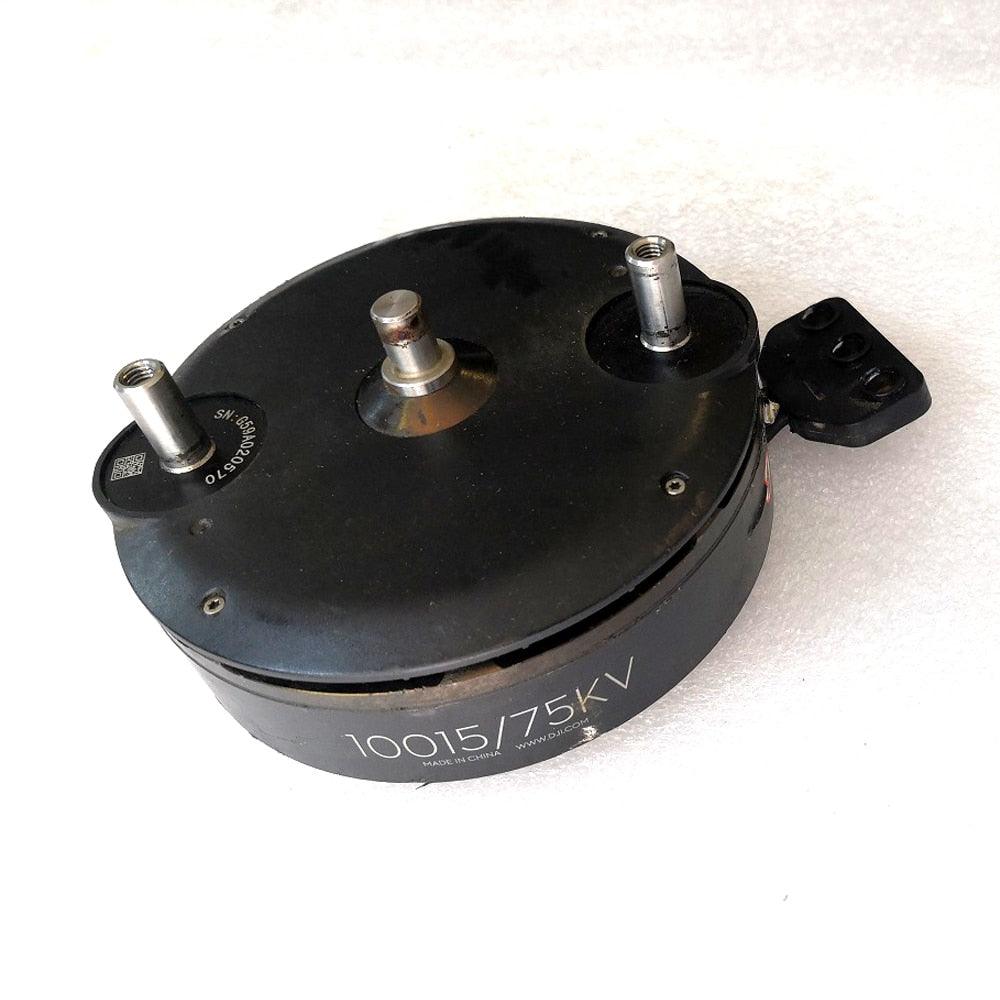

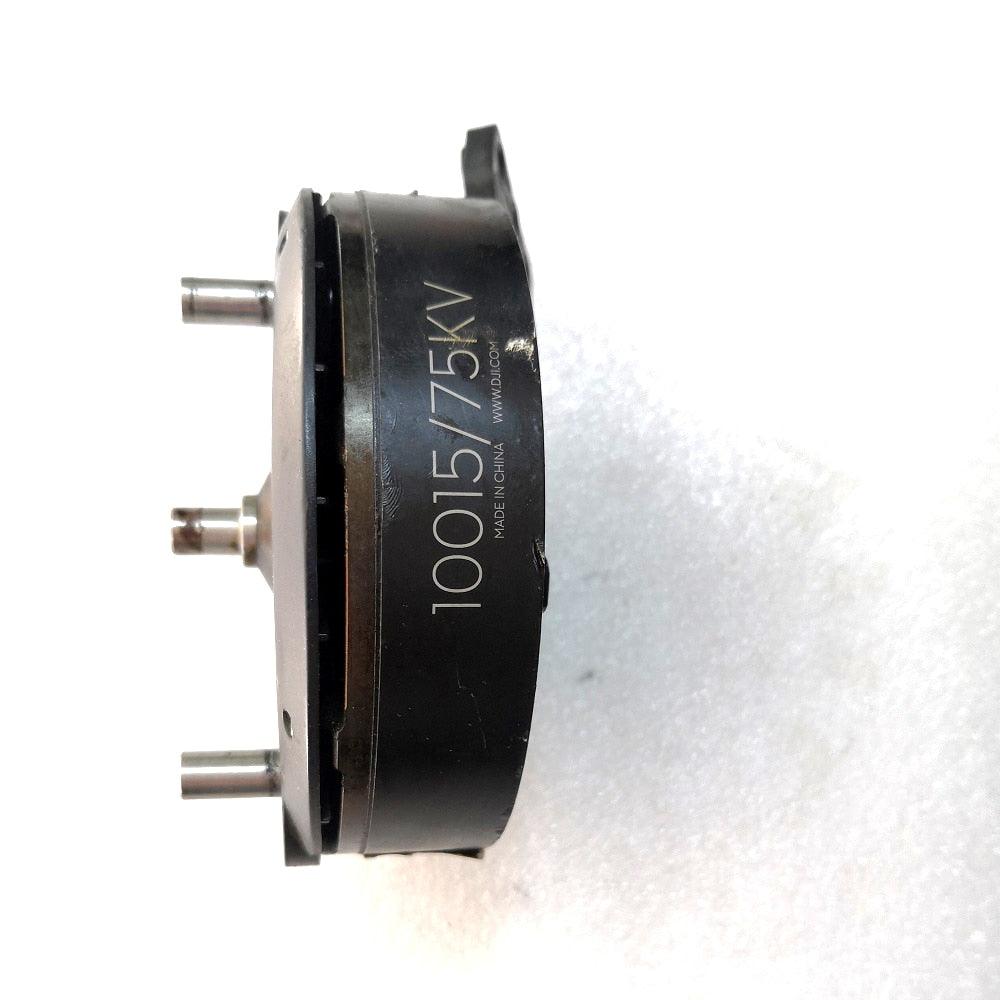

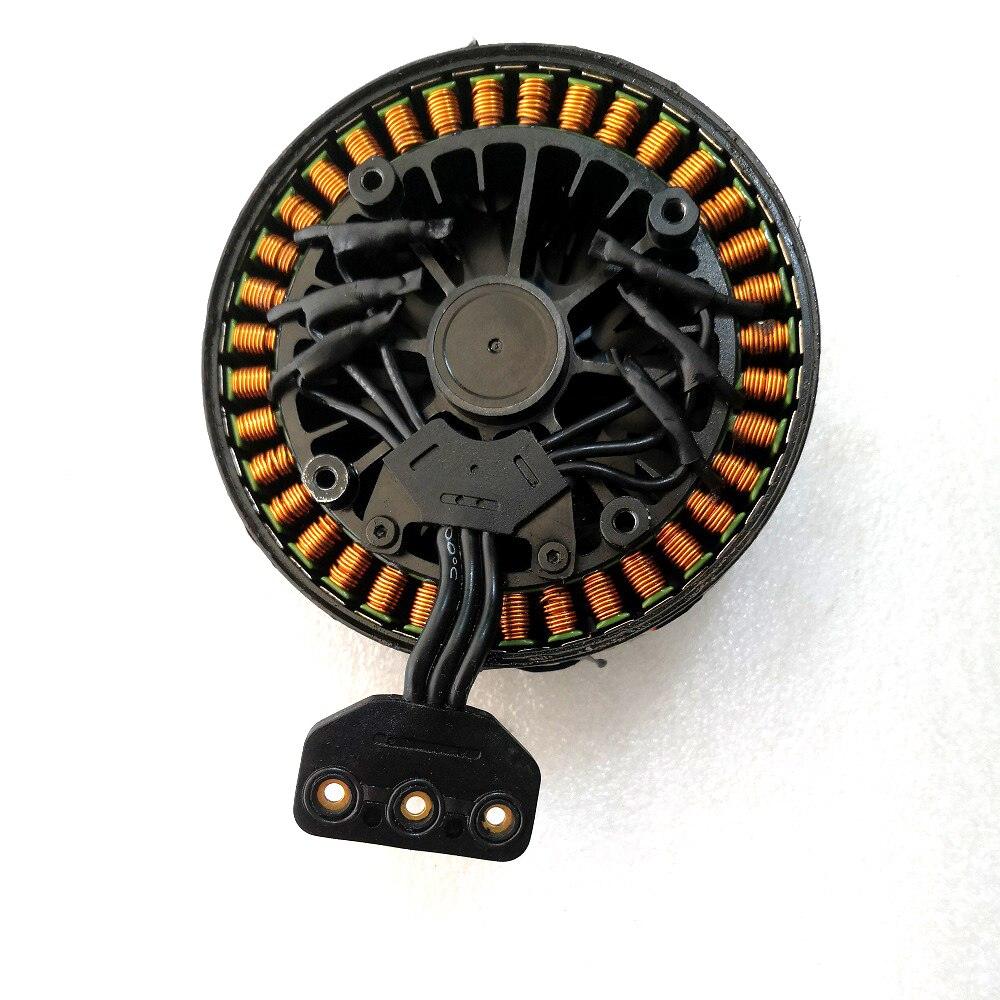

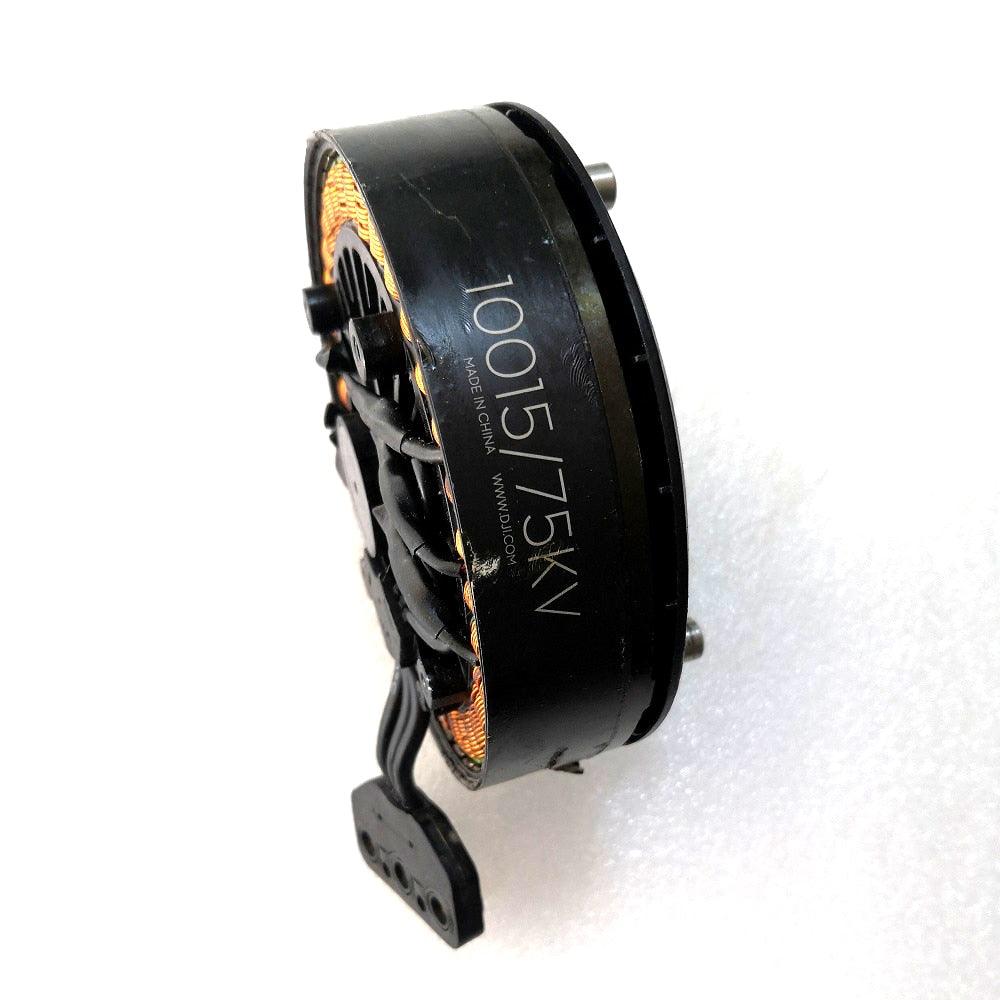

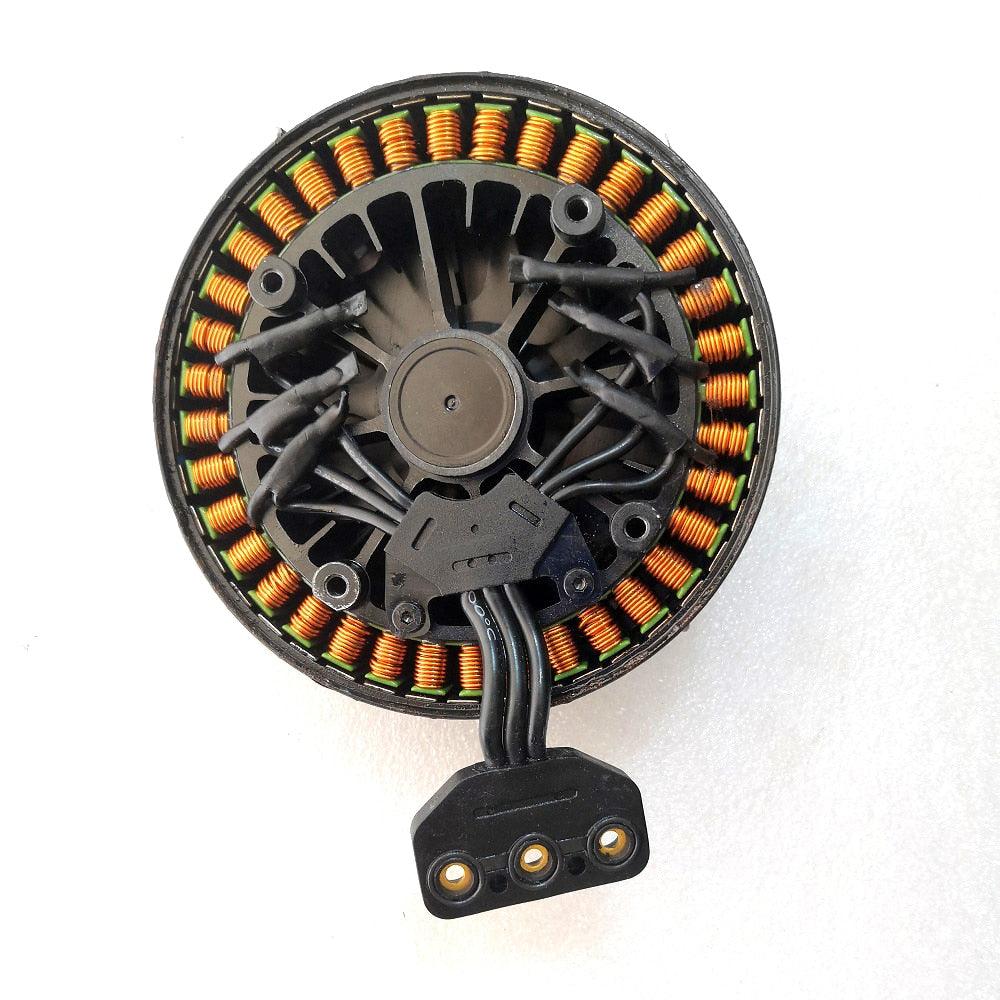

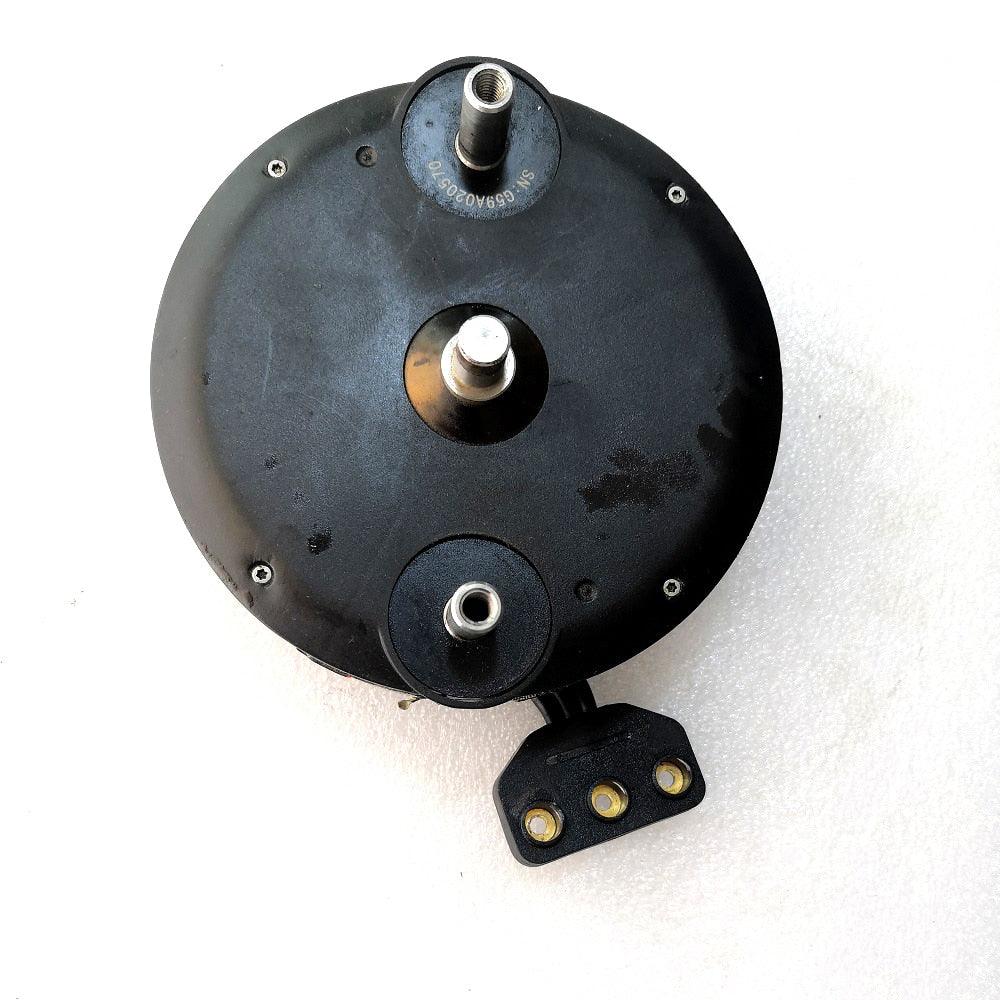

DJI T16 (10015) Motor - 75kv Brushless Aircraft Plant Protection UAV Motor Accessories Drone T16 Engine Parts Airplane

DJI T16 (10015) Motor - 75kv Brushless Aircraft Plant Protection UAV Motor Accessories Drone T16 Engine Parts Airplane

DJI

Regular price $97.69 USD
Regular price $146.54 USD Sale price $97.69 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

139 orders in last 90 days

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

DJI T16 (10015)  Motor SPECIFICATIONS

Origin: Mainland China

Model Number: T16

Brand Name: MAXUAV


10015 DJI Brushless Motor 75kv Aircraft Plant Protection UAV Motor Accessories Drone T16 Engine Parts Airplane

Model condition: T Disassembly motorall the functions could be work well

Model:T16(10015)
Stator size:100*15mm
Motor Diameter: 150mm
Motor height:30mm
Configuration:36N42P
Wire:16# silica gel wire 15mm in length
Protection grade:IP55
kv:75kv
Motor weight:616g
NO load current(18v):1A
Interphase resistance:22mΩ
Max current(180s):100A
Max Power(180s):2400W
Maximum pulling force:13.5KG
Battery:10-14S Lipo
POP:3390
ESC:FLAME 100A, ALPHA 100A HV
Four axis flight parameters
Standard takeoff weight
39.5kg (16L medicine box)
Maximum effective takeoff weight
40.5kg (near sea level)

Packing include:

1pc T16(10015) brushless motor
