T20(10015) DJI Brushless Motor SPECIFICATIONS

Origin: Mainland China

Model Number: T20

Brand Name: MAXUAV

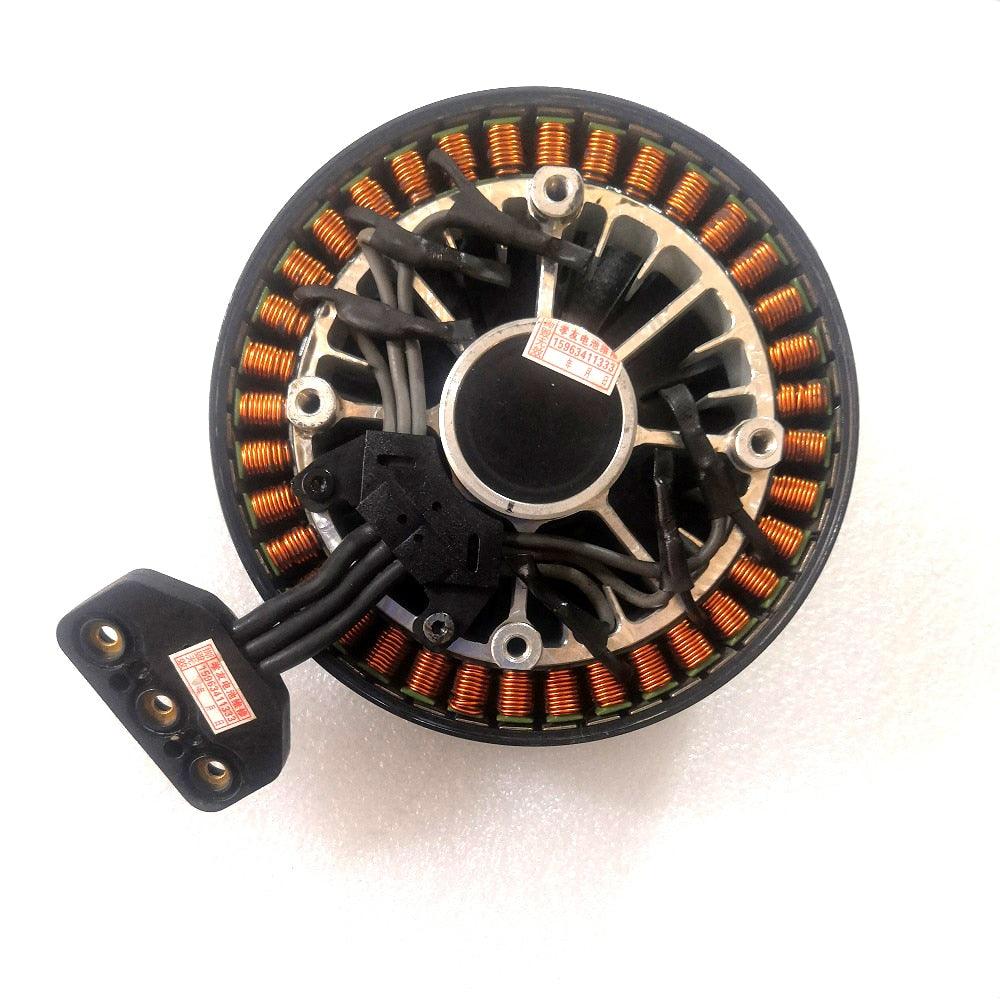

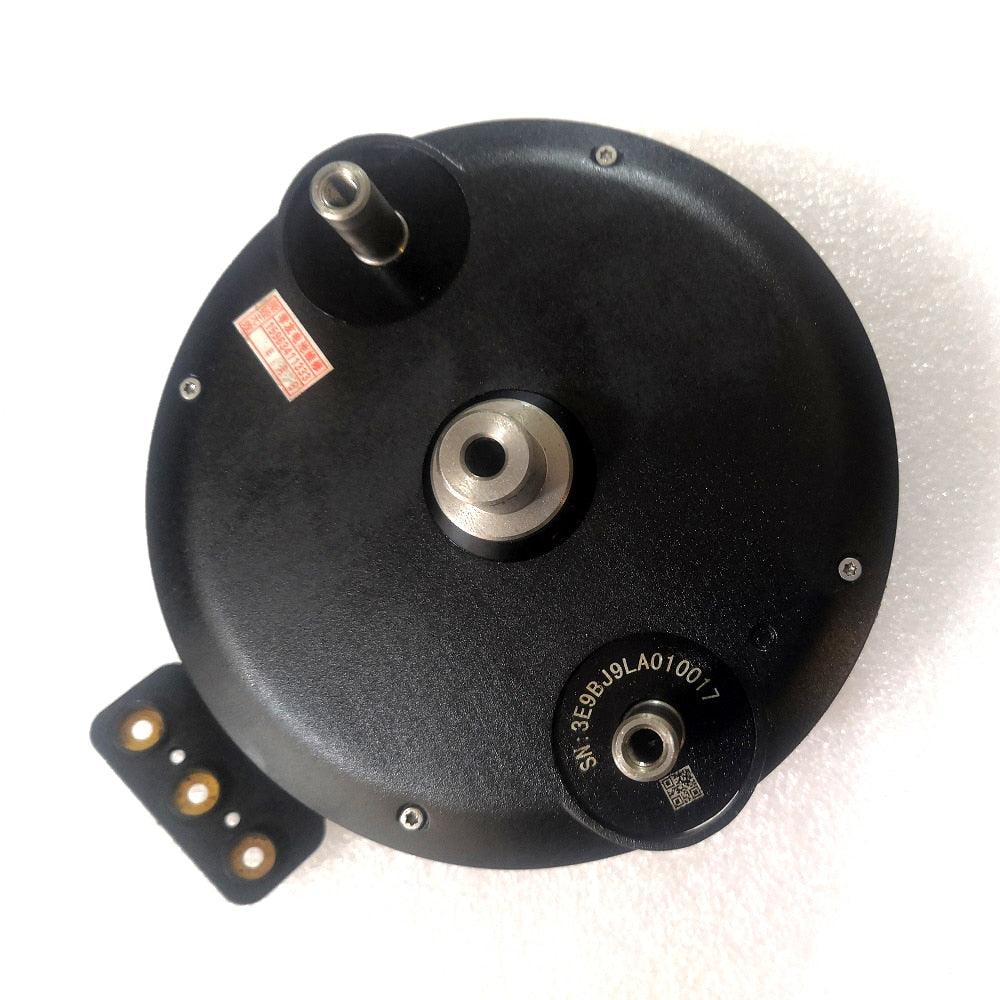

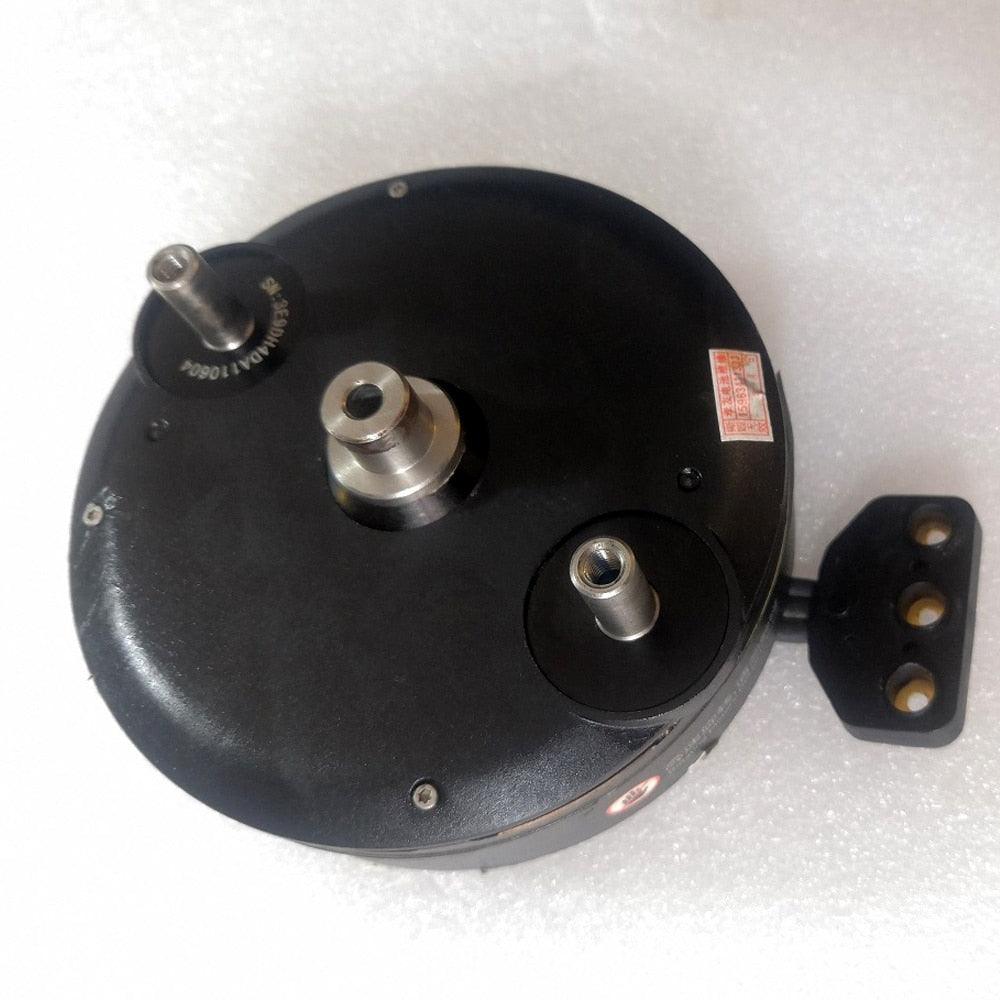

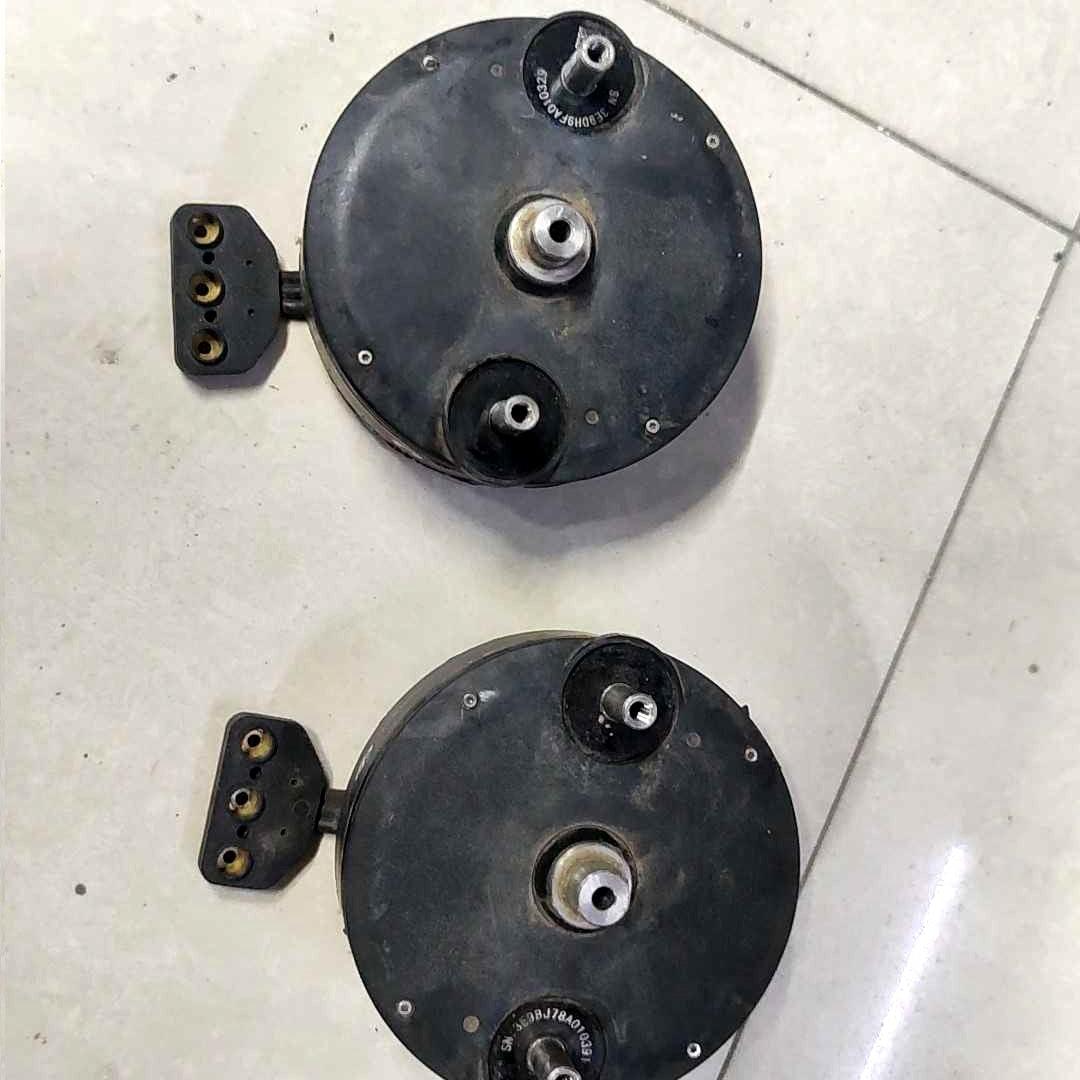

T20(10015) DJI Brushless Motor 75kv Aircraft Plant Protection UAV T20 Motor Accessories Drone T20 Engine Parts Airplane


Model condition: DJI T30 Drone disassembly motor. all function are good

Model:T20(10015)
Stator size:100*15mm
Motor Diameter: 150mm
Motor height:30mm
Configuration:36N42P
Wire：16# silica gel wire 15mm in length
Protection grade：IP55
kv：75kv
Motor weight：616g
NO load current(18v)：1A
Interphase resistance:22mΩ
Max current(180s):100A
Max Power(180s):2400W
Maximum pulling force:13.5KG
Battery:10-14S Lipo
POP:3390
ESC:FLAME 100A, ALPHA 100A HV
Four axis flight parameters
Standard takeoff weight
39.5kg (16L medicine box)
Maximum effective takeoff weight
40.5kg (near sea level)

Packing include:

1pc T20（10015） brushless motor


ESC:FLAME 100A, ALPHA 100A HV Four axisDJI T20(10015) DJI Brushless Motor 75kv Aircraft PlantICHINA MADE IN ENGLISH .DJI T20(10015) DJI Brushless Motor 75kv Aircraft PlantESC:FLAME 100A, ALPHA 100A HV Four axis
