tarot gimbal camera SPECIFICATIONS
Wheelbase: Screws
Upgrade Parts/Accessories: Adapter
Tool Supplies: Cutting
Technical parameters: Value 2
Size: As description
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 14+y
RC Parts & Accs: Connectors/Wiring
Quantity: 1 pcs
Origin: Mainland China
Model Number: Tarot Z30A2
Material: Metal
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
Brand Name: uuustore
Tarot Stellar camera Zoom 30X 2MP Gimbal Camera Stabilizer 1080P Z30A2 HDMI Output Stabilizer
The state intellectual property has been awarded the TAROT model.,ltd five patents.
Any units orindividual without the license holder manufacture,copy,use and sale the product will be patent lawsuit.

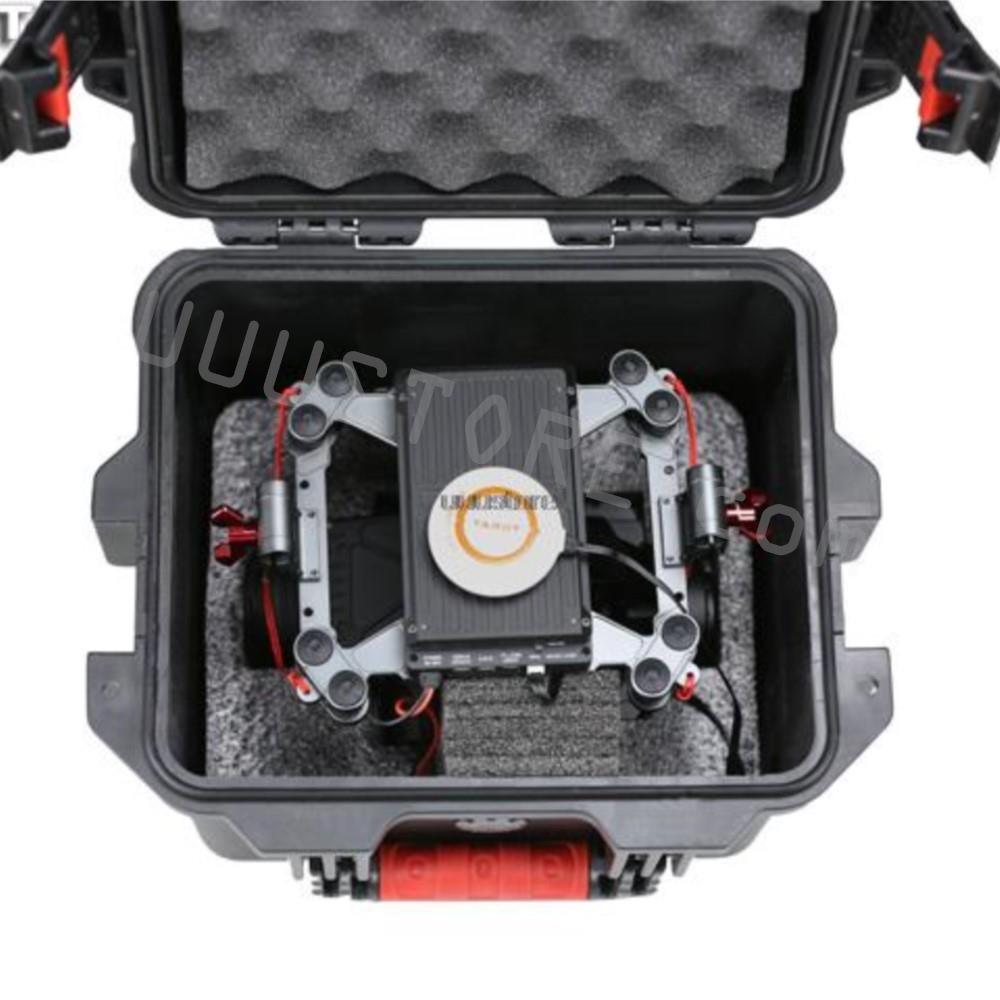

Package List:
- 1 x 500W Zoom Gimbal 1000G
- 1 x Gimbal assistant module
- 1 x Gimbal External GPS module
- 1 x SBUS receiver connection cable
- 1 x Port connection cable
- 2 x Shock proof protective metal parts
- 1 x Outline Package

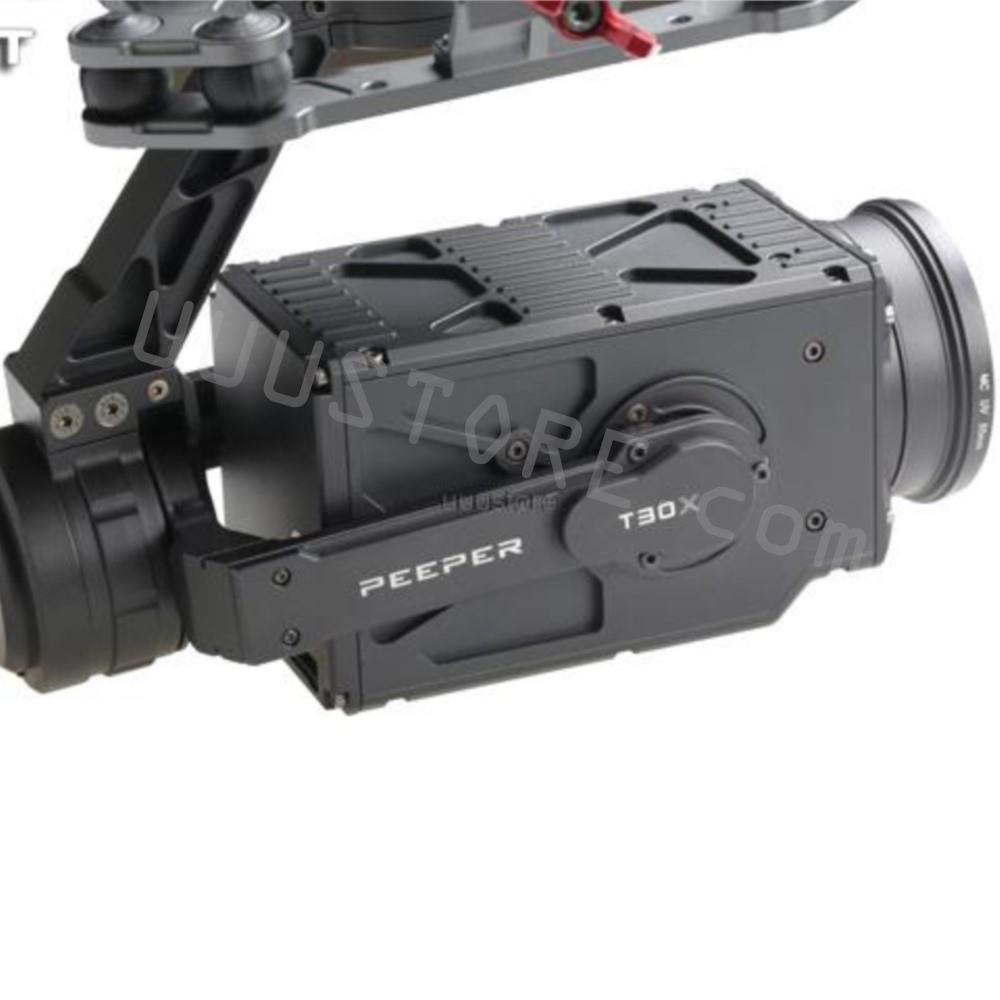

PEEPER Z30 times high-definition optical zoom three-axis gimbal designed for industry applications, equipped with professional star-level optical zoom camera, in low-light environment to restore more screen details. The overall use of the whole CNC aluminum alloy structure of industrial design, bringing light and the strongest stability.
Built-in 30x optical zoom lens, aperture value: F2.0 using high-performance SONY 1/2 CMOS sensor, 30x optical zoom gives a new visual dimension, anytime, anywhere to capture clear, accurate large area search area. Make work more efficient, easy and safe.
have 2000Hz control frequency, dedicated decoupling EKF attitude algorithm and servo motor vector control algorithm, can control the jitter range of 0.01 degrees or less, so that the gimbal in the farthest focal length also has excellent three-axis image stabilization effect.

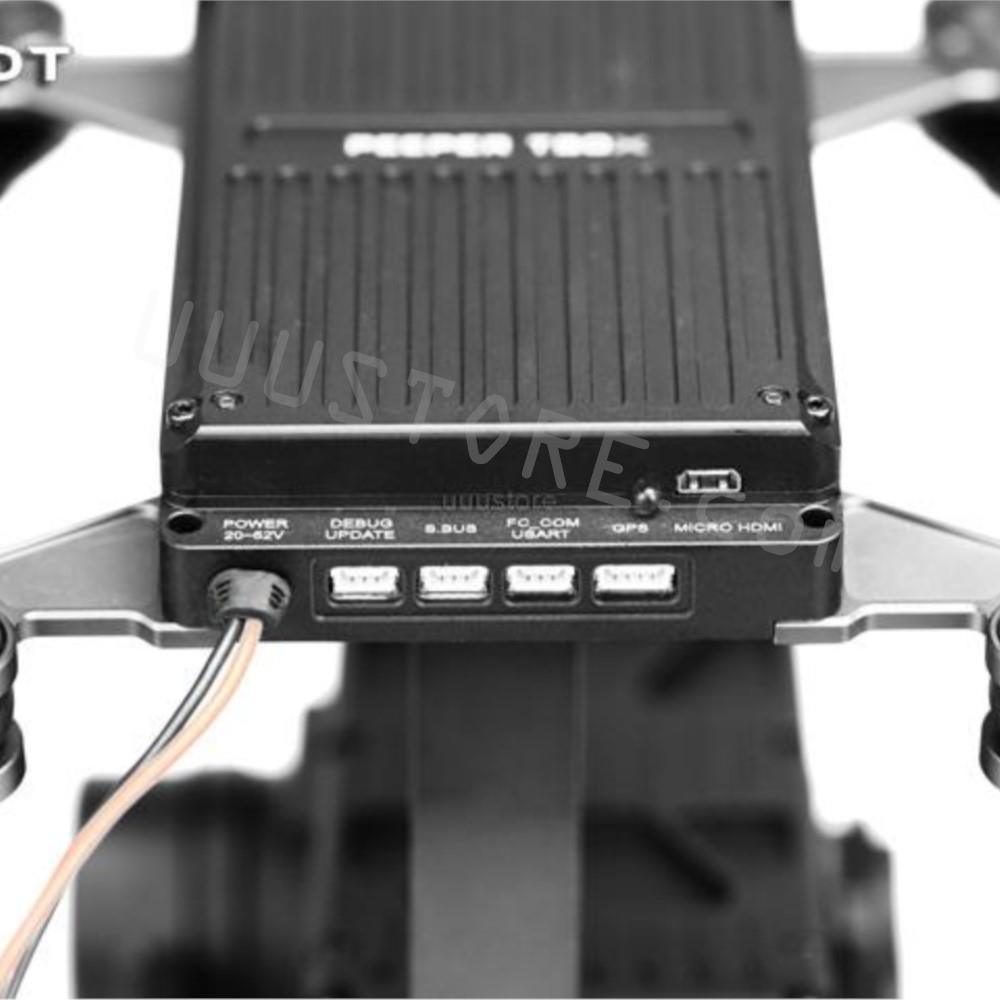

Unique GPS / gyroscope can control the stability of the direction of the axis, to prevent drift to bring the target shot missing. Its direction axis can be 360 degrees unlimited rotation, support 3-6S wide voltage input, with HDMI1.4 high-definition output port, set SD card slot, pitch axis and roller shaft waterproof level IP43, can defend against light rain.
PEEPER 30 times the gimbal powerful zoom capability and Tarot X6 Ⅱ aircraft platform combination, clearly show the details of the distance, no need to close the target observation, wide angle and telephoto easily switch between. Will be 100 meters away from the scene clearly present, to achieve the industry users need integrated solutions.
25@300ma on 8W 1000g 104mm 185mm 163mm Tilt -1208 +358 )n Roll 488 +488 Pan 0' +0.018 nt 20*C +60*C
camera parameters 1/1.9" CMOS 1/1.8" 644 million pixels 638 million pixels . f : 6180mm FNo 1.54.3 Distance lm 1.Sm(Wide-Tele) SD card IPv4/Pv6,HTTP Qos,FTP SMTP,U DNS,DDNS, NTP RTSP RTP,TCP UDPIC Motion Detection .
SOHz.2Sfps(3840- Resolution 60Hz.30fp(1920x1080) 255dB ( AGC Off Weight ON) It Auto/Manual/ATW/Indoor/Outdoor/Sodium lamp/Natural light/Stres ne 1/3 1/30,000 .
SOHz.2Sfps(3840- Resolution 60Hz.30fp(1920x1080) 255dB ( AGC Off Weight ON) It Auto/Manual/ATW/Indoor/Outdoor/Sodium lamp/Natural light/Stres ne 1/3 1/30,000 .
support RS232 Compatible SONY VISCA agreemer Auto/Manual/Semi-auto 4X support BzIhIE 45W jezhihit 5.5w 1.3 1920*1080P Recording Picture Max 128GB FAT32 ( 32 GB ) exFAT( > 326 Windows XP NISTA/7/8
f gimbal uses special way to avoid nding wire . balxl uses specialized Irivve module .
